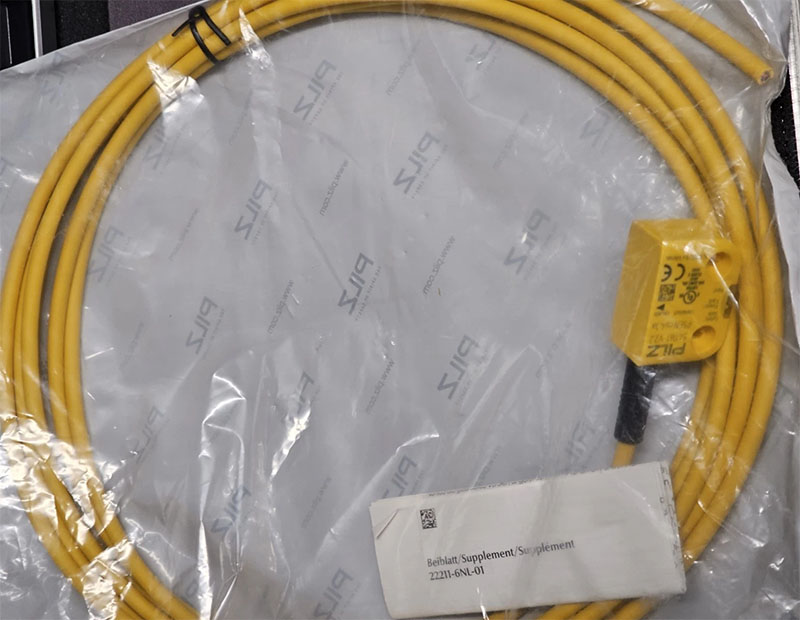

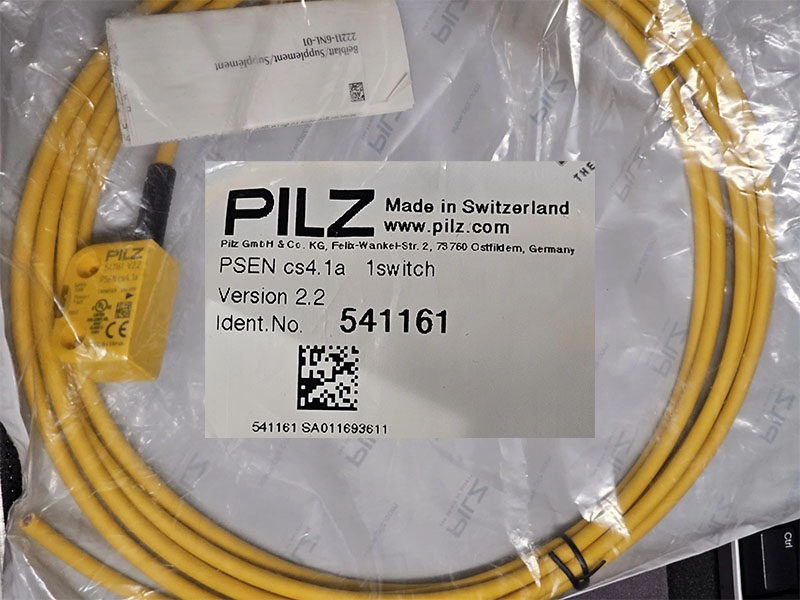

Công tắc an toàn Pilz PSEN cs4.1a 1switch | 541161 | RFiD 2SC Cáp-5m OD11mm Sao8mm Sar20mm

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm PILZ

•

  Cảm biến Tiệm cận cảm ứng Sick IQB2S -Đặc tính, Ưu điểm, Úng dụng và Các models

•

  Cảm biến Cảm ứng Pepperl Fuchs NBB -Đặc tính, Ưu điểm, Ứng dụng và Các models

• Xem thêm

Pilz PSEN cs4.1a 1switch | 541161 là Công tắc an toàn, RFiD 2SC Cáp-5m IP6K9K OD11mm Sao8mm Sar20mm PU-1 8T-in

Mô-đun Pilz PSEN cs4.1a 1switch | 541161
RFiD safety switch, 2 safe SC outputs, connection cable 5 m, one actuation direction, IP6K9K, typ. operating distance 11 mm, Sao = 8mm, Sar = 20 mm, PU = 1 piece fully coded switch, max. 8 teach-in processes.

dùng chung với
Pilz PSEN cs4.1 1 actuator | 541180
RFiD actuator for safety switch PSEN cs4.x, IP67, PU = 1 piece.

- Tài liệu kỹ thuật của Công tắc an toàn Pilz PSEN cs4.1a 1switch | 541161 ở đây.



General data của Công tắc an toàn Pilz PSEN cs4.1a 1switch | 541161

Approval	CE   UKCA   cULus Listed   FCC   IC   EAC (Eurasian)   TÜV
Sensor principle	Transponder
Coding level to ISO 14119	High
Classification to EN 60947-5-3	PDDB
Transponder coding	fully coded
Suitable for series connection	yes
unit type	Sensor



Technical data của Công tắc an toàn Pilz PSEN cs4.1a 1switch | 541161

Type

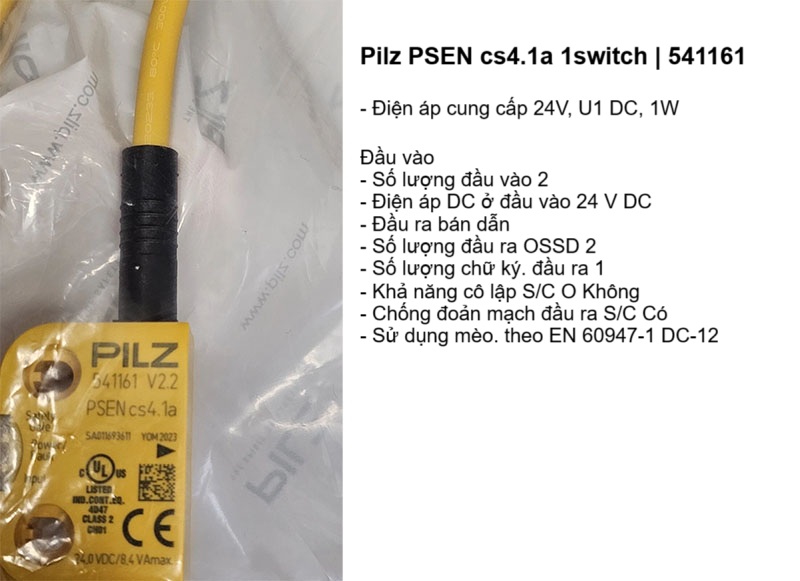

Electrical data của Công tắc an toàn Pilz PSEN cs4.1a 1switch | 541161

Supply voltage (V)	24  V
Type of supply voltage U1	DC
Power consumption DC	1  W



Inputs của Công tắc an toàn Pilz PSEN cs4.1a 1switch | 541161

Number of inputs	2
DC voltage at input	24 V DC



Semiconductor outputs của Công tắc an toàn Pilz PSEN cs4.1a 1switch | 541161

Number of OSSD outputs	2
Number of sig. outputs	1
Potential isolation S/C O	No
S/C output short circuit proof	Yes
Utilisation cat. to EN 60947-1	DC-12



Environmental data của Công tắc an toàn Pilz PSEN cs4.1a 1switch | 541161

Ambient temperature standard	EN 60068-2-14
Ambient temperature	-25 - 70  °C
Max. ambient temp. at Hmax	+60 °C
Max. ambient temp. at 2000 m	+70 °C
Storage temperature standard	EN 60068-2-1/-2
Climatic suitability standard	EN 60068-2-78
Humidity rating	93 % r. h. at 40 °C
Perm. operating height ASL	4000 m
EMC to standard ...	EN 60947-5-3
Vibration to standard ...	EN 60947-5-2
Acc. shock to standard1	30g
Overvoltage category	III
Pollution degree clear.&creep.	3
Protection type, housing



Switching distances của Công tắc an toàn Pilz PSEN cs4.1a 1switch | 541161

Change op. distance temp.act.1	+-0.01mm/°C
Change op. distance temp.act.2	+-0.1mm/°C
Change op. distance temp.act.3	+-0.01mm/°C
Change op. distance temp.act.4	+-0.01mm/°C



Mechanical data của Công tắc an toàn Pilz PSEN cs4.1a 1switch | 541161

Bend radius (when laying) K1	5 x Ø
Sensor can be flush-mounted	Yes, follow installation guide
Connection type	5 m cable
Cable lines	Li9Y11Y 8 x 0.14 mm2
Housing material upper part	PBT
Height dimension	37  mm
Width dimension	26  mm
Depth dimension	18  mm
Gross weight	245  g



Transponder của Công tắc an toàn Pilz PSEN cs4.1a 1switch | 541161

Operating frequency

122 kHz - 128 kHz



Environment của Công tắc an toàn Pilz PSEN cs4.1a 1switch | 541161

RoHS directive	2011/65/EU   2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	7a   7c I
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead   Lead oxide
%-part of the pollutant	> 0,1%
CAS No.	7439-92-1   1317-36-8
SCIP entry available	yes
WEEE classification (08/2018)	5 devices (feed size < 50cm)



Commercial data của Công tắc an toàn Pilz PSEN cs4.1a 1switch | 541161

ECLASS version	ECLASS-13
ECLASS Reference Feature	27274601
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000026
ETIM Reference Feature	EC002592
UNSPSC 25	39122205
GTIN	4046548067156
Volume	0  dm3
Harmonized System Code	85365019
Type of tariff number	TARIC
Use of customs tariff number	Ausfuhr   Einfuhr
Quantity per packaging unit	1



Optional accessories của Công tắc an toàn Pilz PSEN cs4.1a 1switch | 541161

PSEN/PDP67 M12-8sm screw terminals540334
Plug-in connector, 8-pin, connector straight M12, A-coded, screw connection, material threaded ring: Zinc die castingnickel-plated, outer cable diameter 6-8mm

SDD ES ETH540130
SDD (Safety Device Diagnostics), fieldbus module, standard, Modbus/TCP,2 RJ45 ports, 6 digital inputs/outputs, plug-in connection terminals (not supplied with the unit).

Obligatory accessories
PSEN cs4.1 1 actuator541180
RFiD actuator for safety switch PSEN cs4.x, IP67, PU = 1 piece.

PSEN cs4.1 low profile glue 1 actuator541187
RFiD actuator for safety switch PSEN cs4.x, IP67, adhesive, without screw-on option, PU = 1 piece.

PSEN cs4.1 low profile screw 1 actuator541188
RFiD actuator for safety switch PSEN cs4.x, IP67, adhesive, with screw-on option, PU = 1 piece.

PSEN cs2.1 1 actuator540180
RFiD actuator for safety switch PSEN cs2.x, IP67, PU = 1 piece.

Installation accessories
PSEN cs4.1 1 actuator541180
RFiD actuator for safety switch PSEN cs4.x, IP67, PU = 1 piece.

PSEN cs4.1 low profile glue 1 actuator541187
RFiD actuator for safety switch PSEN cs4.x, IP67, adhesive, without screw-on option, PU = 1 piece.

PSEN cs4.1 low profile screw 1 actuator541188
RFiD actuator for safety switch PSEN cs4.x, IP67, adhesive, with screw-on option, PU = 1 piece.

PSEN cs2.1 1 actuator540180
RFiD actuator for safety switch PSEN cs2.x, IP67, PU = 1 piece.
