Simplex product catalog (Order codes)
Control Units
As you consider what fire and life safety solutions to choose for your facility, first look at the reputation behind your supplier. Building owners around the globe trust the Simplex family of fire alarm control units to help protect their facilities –no matter how large and complex – because of their high degree of reliability, ease of use and innovative features. The complete range of Simplex control units are adaptable and scalable and offer real and significant advantages to you and to building occupants in the event of a fire or other emergency.
Five ways Simplex fire alarm control units put you in control
Industry-leading technology
Simplex fire alarm control units offer some of the most advanced technology to meet your life safety and compliance requirements. From intelligent addressability and networking capabilities to remote management and touchscreen convenience, our feature-rich control units lead the market in performance, benefits and reliability.
True addressability
Many Simplex fire alarm control units feature addressable technology, which allows you to easily manage each device on your life safety network. The benefits of addressability include lower installation and maintenance costs, the prevention of nuisance alarms, and convenient system self-testing options.
Forward/backward capability
You’ll always get the most out of your investment with Simplex fire alarm control units. Forward/backward compatibility allows you to leverage existing infrastructure for cost-effective upgrades and expansions with minimal disruption. In addition, your control units can serve as the foundation of an integrated life-safety communications system, adding emergency notifications to infrastructure that’s already in place.
Flexible, tailored solutions
Simplex fire alarm control units offer a wide range of features and capabilities designed to meet all your needs. Whether you’re looking to protect a single building or a complex campus, our control units offer easier installation, lower life-cycle costs, and operational efficiencies. Plus, our small- and mid-sized control units provide the functionality usually associated with larger control units but in a cost-effective, compact package.
Greater value
With greater design flexibility, easier installation, improved operational efficiency and game-changing addressable technology, Simplex fire alarm control units help you save time, money and labor throughout their life cycle. Whatever Simplex fire alarm control units you choose, you’ll find they offer the broadest range of features and services to best meet the unique characteristics of your facility.
Choose a Simplex fire alarm control unit tailored to your facility’s unique needs
Simplex 4100ES

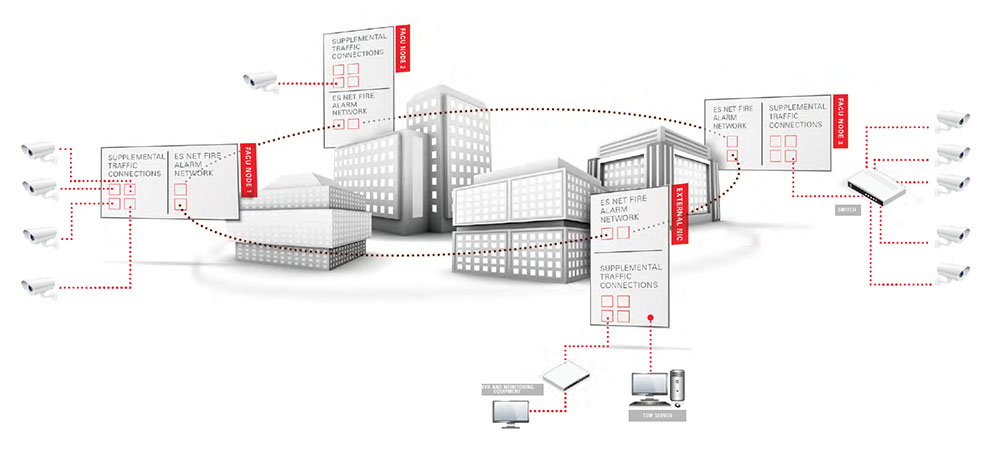

The fully networkable Simplex 4100ES supports up to 3,000 points and is designed to handle the complex requirements of medium/large facilities and multi-building campus networks. It features addressable technology, scalable design flexibility, voice notification/audio capability and is listed for multi-hazard suppression release control. An optional touchscreen display includes an intuitive interface that provides a wealth of information.
Simplex 4010ES
The addressable, fully networkable Simplex 4010ES supports up to 1,000 detectors, modules or manual stations – ideal for small- to mid-sized facilities. Labor-saving features available in all Simplex control units, such as device-level ground fault isolation and almost-dirty smoke sensor status reports, help minimize installation time and enable proactive maintenance while preventing nuisance alarms. An optional touchscreen display with intuitive interface is available.
Simplex 4007ES
For smaller facilities seeking advanced Simplex capabilities, the addressable, fully networkable Simplex 4007ES delivers with a compact, cost-effective package. It features multi-hazard suppression release and an intuitive color touchscreen display. Since it’s UL cross-listed with most conventional control units, it can replace a conventional control unit with minimal cost and disruption.
Simplex 4004R
Designed specifically for suppression release operation, the Simplex 4004R allows you to choose and program a number of releasing sequences right at the control unit, so there’s no need for an offline programming tool.
Simplex 4006
The Simplex 4006 is a conventional control unit that features a built-in DACT for easy connection to central station monitoring, a multi-function keypad and a 2x20 character display. It’s perfectly suited for facilities that require five to ten initiating device
Advanced features for greater protection, easier operation

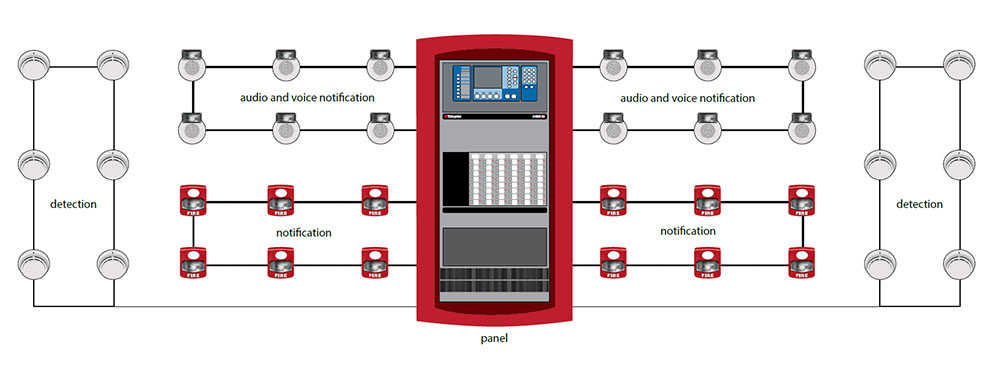

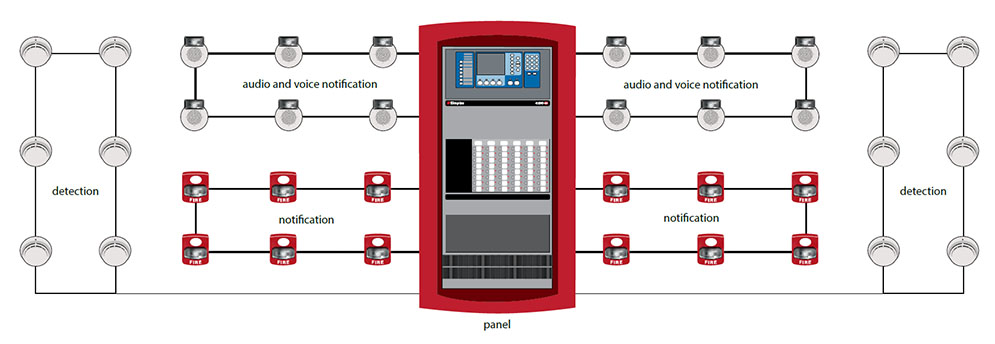

Addressability
Many Simplex fire alarm control units feature smarter
design, better fault tolerance and intelligent addressability, which
allows them to manage and integrate with addressable detection
and notification devices. This lets you supervise each device for
malfunction or failure – plus customize individual device settings
– all from your control unit.
Intuitive interface

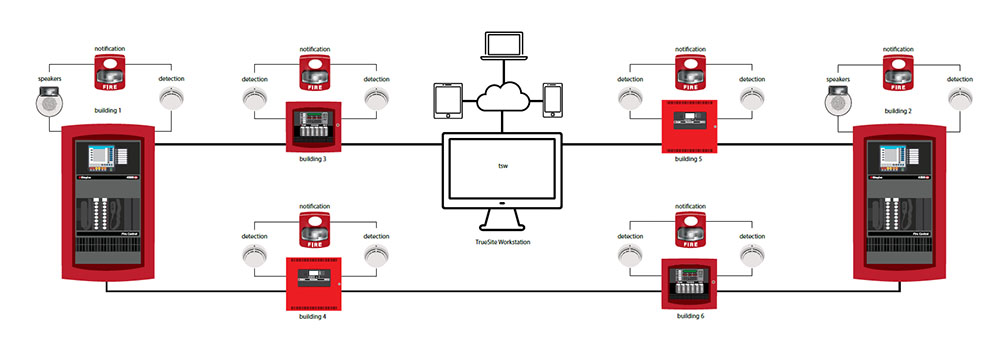

Connect to your control unit through the PC-based TrueSite
Workstation command center or TrueSite Workstation Mobile Client
app, which allows you to easily access information from your mobile
device and perform a number of operations.
Modular design
Simplex fire alarm control units can be custom-configured to each facility’s specifications and capacity requirements. As an additional convenient
option, Simplex 4100ES control units are custom-built so they are ready to connect on arrival.
Integration with building systems
Simplex fire alarm control units integrate with other systems, including the Johnson Controls Metasys building automation system and other security
systems. This enables the sharing of information and centralized facility control. In addition, you can create a multifaceted emergency response by
linking your fire protection system with elevators, door holders, smoke dampers, air pressurization systems and more. Simplex control units also
support popular communication protocols such as BACnet and Modbus.
Future-proofing/upgradeability
The modular design of Simplex control units allows them to
incorporate future upgrades and technologies. This makes them ideal
for fast, easy expansions.
Regulatory compliance
Simplex fire alarm control units are UL and ULC listed and comply with
a wide variety of industry and jurisdictional requirements
4100ES Fire Control Unit
4100ES Addressable Fire Detection
and Control Basic Panel Modules and Accessories
The fully networkable 4100ES supports up to 3,000 points and is designed
to handle the complex requirements of medium/large facilities and
multi-building campus networks. It features addressable technology,
scalable design flexibility, voice notification/audio capability and is listed for
multi-hazard suppression release control. An optional touchscreen display
includes an intuitive interface that provides a wealth of information.
Datasheet: S4100-1031
4100ES Master Controller
4100-9701 ES-PS Master Controller with 2x40 Display - English, UL/ULC
4100-9706 ES-PS Master Controller with ES Touchscreen Display. Same as 4100-9701 above except with Color ES Touchscreen Display user interface. For dual-language support, desired language is switch selectable.
4100-9709 ES-PS Master Controller without Display - English, UL/ULC
4100ES Master Controller Upgrades for Existing 4100 Series Fire Alarm Control units
4100-7150 For Panel type 1000 pt 4100 (4100+). Includes New Master Controller CPU card, 4100ES
door assembly with LCD and user interface, and Ethernet connection
4100-7152 For Panel type 512 pt 4100. Same as 4100-7150 plus a Universal Power Supply
4100-7158 For Panel type 4100U or 1000 pt 4100 (4100+) previously upgraded to 4100U. New Master Controller CPU card with Ethernet Connection Upgrade Kit
Master Controller Accessories
4100-2300 Expansion Bay Assembly
4100-2303 Legacy Module Stabilizer Bracket
4100-2301 Expansion Bay Upgrade Kit for mounting 4100ES style (four-inch x 5 in. modules) in existing 4100 style panels
Master Controller Upgrades for Existing 4020 Series Fire Alarm Control unit
4100-9833 4020 Master Controller Upgrade to 4100ES. Includes New Master Controller with LCD and operator interface assembly, 8 VDC Converter and RUI+ (isolated or un-isolated) Interface in a single bay cabinet with locking glass door and retainer
Communication Modules
4100-1291 Un-isolated remote unit interface module (RUI); up to three maximum per control unit
4100-6031 City Circuit, with disconnect switches
4100-6032 City Circuit, without disconnect switches
4100-6033 Alarm Relay, three Form C relays, 2 A @ 32 VDC
4100-6038 Dual Port RS-232 with 2120 interface (slot module)
4100-6048 VESDA Aspiration System Interface
4100-6080 DACT, Point or Event Reporting; one shipped unless 4100-7908 is selected ES Power Supplies
4100-5401 24 V Aux. Relay, 24 V Aux. Power 2 A Tap/ Simple NAC, 110 Ah Battery Charger, 2 PDI Blocks for compatible option cards
4100-5402 Same as ES-PS above, except without battery charger
Power Supply Accessories
4100-5152 12 VDC Power Option, 2 A maximum 1 Block 1.5 A maximum
4100-0156 8 VDC Converter, required for multiple Physical Bridge Modules, 3 A maximum 1 Block included with loads
4100-5130 Voltage Regulator Module, 22.8 to 26.4 VDC (25 VDC nominal)
4100-5131 ES-PS Fan Module
4100-0636 Box Interconnection Harness Kit (non-audio)
4100-0638 4100 Slot Module Additional 24 VDC Harness; needed when 4100 Slot module requirements exceed 2 A from ES-PS
4100-5403 Harness for ES-PS Backup Power Supply
4100-0644 120 VAC PDM Harness
4100-0645 220 VAC PDM Harness
4100-0646 230 VAC PDM Harness
4100-0647 240 VAC PDM Harness
Conventional and Addressable Modules (Can only be powered from a 4100-5401 and 4100-5402 power supply)
4100-5450 Conventional NAC Module
4100-5451 IDNAC Addressable Notification SLC Module
8 Zone Initiating Device Circuits
4100-5005 Class B, 75 mA, 195 mA
4100-5015 Class A, 75 mA, 195 mA
8-Point Zone/Relay Card
4100-5013 8 point zone/relay four-inch x 5 in. flat module
4100-6305 25 V regulator harness for 8 point zone/relay module
IDNet Addressable
Interface Modules
4100-3109 IDNet 2 Module, 250 point capacity
4100-3117 IDNet 2 Module, 250 point capacity
4100-3110 IDNet 2+2 Module, 250 point capacity
4100-3111 IDNet Short Circuit Isolating Loop Output Module
Relay Modules
4100-3202 4 DPDT w/feedback
4100-3204 4 DPDT w/feedback
4100-3206 8 SPDT
End User Programming Software
4100-8802 Programming Software
End User Programming Software Selection
4100-0292 Custom Labels Editing
4100-0296 Access Level/Passcode Editing
4100-0295 Port Vectoring Setup and Control
4100-0298 WALKTEST Configuration Setup and Control
Miscellaneous Accessories
4100-1279 Single blank 2 in. display cover
4100-9856 4100ES Canadian French Appliqué Kit
4100-9857 4100ES English Appliqué Kit
4100-9859 4100ES InfoAlarm Remote Display Canadian French Appliqué Kit
4100-9868 Special Purpose Appliqué Kit: Simplex, Elevator Recall Control and
Supervisory Control Unit, 4100ES
4100-9835 Termination and Address Label Kit
4100-6034 Tamper Switch, one per cabinet assembly if required
2081-9031 Series resistor for WSO, IDCs
Panel-Mounted Annunciation Modules
For use with 4100ES/4100U Fire Alarm Control Units, Remote Annunciators, and Network Display Units (NDU) 4100ES/4100U fire alarm control units support a variety of switch input and LED status indicators to complement the information and controls available at the operator interface. These modules provide a convenient interface efficiently packaged onto the front panel space of the cabinet bay. Additionally, the panel-mounted printer can conveniently record system status without requiring a separately located printer.
Datasheet: S4100-0032
LED/Switch Modules, General Purpose
4100-1280 LED/Switch Module - Red (1 LED/Switch)
4100-1281 LED/Switch Module - Yellow (1 LED/Switch)
4100-1282 LED/Switch Module - Red on top, Yellow on bottom (2 LED/Switch)
4100-1283 LED/Switch Module - Yellow on top and bottom (2 LED/Switch)
4100-1284 LED/Switch Module - Red on top, Green on bottom (2 LED/Switch)
4100-1296 LED/Switch Module - Green on top, Yellow on bottom (2 LED/Switch)
4100-1285 LED/Switch Module - Red (1 LED/Switch)
4100-1278 LED/Switch Module - 8 Red on left, 8 Yellow on right (1 LED/Switch)
4100-1300 LED/Switch Module - With pluggable LEDs; shipped Red on top, Yellow on bottom (1 LED/ Switch), UL, ULC, and CSFM listed only
4100-1287 LED/Switch Module - Red (1 LED/Switch)
LED Only Modules and LED Kits
4100-1276 LED Only Module - Eight LED Module with Red LEDs; custom label area per module and per LED
4100-1277 LED Only Module - Sixteen (16) LED Module; Red LED on top and Yellow LED on bottom at each position; custom label area per module and per LED pair
4100-9843 LED Kit - Yellow Kit of 8 LEDs
4100-9844 LED Kit - Green Kit of 8 LEDs
4100-9845 LED Kit - Red Kit of 8 LEDs
4100-9855 LED Kit - Blue Kit of 8 LEDs
LED/Switch Modules with Green/Red/Green LEDs
4100-1286 LED/Switch Module - Eight function HOA (On, Off, Auto) Control Module with labeled switches; custom label area per module and per LED/switch set
4100-1295 LED/Switch Module - Eight function HOA (On, Off, Auto) Control Module, same as 4100-1275 except switches are unlabeled
LED/Switch Modules with Green/ Red/White LEDs for IBC Applications
4100-1275 LED/Switch Module - Eight function HOA (On, Off, Auto) Control Module with labeled switches; LED colors meet International Building Code (IBC) requirements; custom label area per module and per LED/switch set
4100-1299 LED/Switch Module - Eight function HOA (On, Off, Auto) Control Module, same as 4100-1275 except switches are unlabeled
LED/Switch Modules with Green/ Yellow/Green LEDs (UL, ULC, and CSFM listed only)
4100-1302 LED/Switch Module - Eight function HOA (On, Off, Auto) Control Module with labeled switches; for applications requiring no red LEDs; custom label area per module and per LED/ switch set
4100-1301 LED/Switch Module - Eight function HOA (On, Off, Auto) Control Module, same as 4100-1302 except switches are unlabeled
LED/Switch Controller Modules and Accessories
4100-1288 64 LED/64 Switch Controller Module with mounting plate
4100-1289 64 LED/64 Switch Controller Module without mounting plate
4100-0636 Harness Kit, Power and Communications
4100-0641 Harness Kit, 26 Position Flex Cable, 14-1/2” (368 mm) long
LED/Switch Controller Modules and Accessories
4100-1290 24 Point I/O Module for external connections
4100-1294 LED/Switch Module Slide-in Labels
4100-1279 Single blank 2” display cover
Panel-Mounted Printer
4100-1293 Panel Mount Thermal Printhead Printer, supplied with one roll of paper
4190-9803 Replacement Paper for 4100-1293 Printer, one roll
System Accessories
4100 Series Graphic Annunciator Modules; LED/Switch and 24 Point I/O Graphic Modules
These remote annunciator graphic control modules complement Simplex
4007ES, 4010ES, 4100ES, and 4100U (and other installed legacy panels) by providing LED/lamp/relay drivers and switch inputs to allow custom graphic displays to be designed for specific facility requirements, such as for smoke control (UUKL) systems. Wiring is minimized by Signaling Line Circuit (SLC) communications that also provides supervision. In the event of communications loss, an alert will be displayed at the fire alarm control unit. This can also be identified at the remote annunciator if desired.
Datasheet: S4100-0005
System Type
4100-8401 Cabinet mounted graphic modules
4100-8402 Graphic modules only, plate mounted
4100-8904 Aftermarket addition, modules only
Graphic Modules
4100-7401 24 Point I/O Graphic Module
4100-7402 64/64 LED Switch Controller
4100-7403 32 Point LED Driver Module
4100-7404 32 Point Switch Input Module
Package Size, Finish and Trim Options (select as required if 4100-8401)
4100-2401 2-Unit Cabinet assembly, box with glass door and retainer
4100-2402 4-Unit Cabinet assembly, box with glass door and retainer
4100-2403 6-Unit Cabinet assembly, box with glass door and retainer
4100-2404 2-Unit Box only, no door
4100-2405 4-Unit Box only, no door
4100-2406 6-Unit Box only, no door
4100-2201 Red finish option
2975-9801 Semi-flush trim option, beige, 1-7/16" wide (37 mm)
2975-9802 Semi-flush trim option, red, 1-7/16" wide (37 mm)
Aftermarket Solid Door (for cabinet only models)
4100-8911 Aftermarket addition designation, use if solid door is required, order with cabinet only models
4100-2031 2-unit, Solid door, beige
4100-2032 4-unit, Solid door, beige
4100-2033 6-unit, Solid door, beige
Emergency Voice / Alarm Communications with ES Touchscreen Display Equipment
4100ES Audio Systems provide voice communication, alarm tones, and/ or digitally prerecorded voice messages to alert occupants of fire or other emergency situations. Evacuation signaling may be automatically generated via alarm-initiated event programs or by firefighting personnel using the operator controls. The audio system modules and features listed here are both compatible with, and listed for use with, 4100U series fire alarm control units.
Datasheet: S4100-1034
Analog Emergency Voice/Alarm Communications Equipment, Constant Supervision Compatible
4100-9620 Basic Analog Audio Operation with microphone
4100-1210 Analog Controller Board only
4100-1361 Flex-35, 35 W Amplifier, constant supervision compatible, 25 VRMS output
4100-1362 Flex-35, 35 W Amplifier, constant supervision compatible, 70.07 VRMS output
4100-1312 Flex-50, 50 W Amplifier, constant supervision compatible, 25 VRMS output
4100-1313 Flex-50, 50 W Amplifier, constant supervision compatible, 70.07 VRMS output
100 W Analog Amplifiers with Power Supply, Constant Supervision Compatible
4100-1314 Primary Amplifier, Output Voltage 25 VRMS, 120 VAC, 60 Hz UL
4100-1315 Primary Amplifier, Output Voltage 70.7 VRMS, 120 VAC, 60 Hz UL
4100-1316 Primary Amplifier, Output Voltage 25 VRMS, 120 VAC, 60 Hz ULC
4100-1317 Primary Amplifier, Output Voltage 70.7 VRMS, 120 VAC, 60 Hz ULC
4100-1318 Primary Amplifier, Output Voltage 25 VRMS, 220/230/240 VAC, 50/60 Hz UL
4100-1319 Primary, Amplifier, Output Voltage 70.7 VRMS, 220/230/240 VAC, 50/60 Hz UL
4100-1320 Backup Amplifier, Output Voltage 25 VRMS, 120 VAC, 60 Hz UL
4100-1321 Backup Amplifier, Output Voltage 70.7 VRMS, 120 VAC, 60 Hz UL
4100-1322 Backup Amplifier, Output Voltage 25 VRMS, 120 VAC, 60 Hz ULC
4100-1323 Backup Amplifier, Output Voltage 70.7 VRMS, 120 VAC, 60 Hz ULC
4100-1324 Backup Amplifier, Output Voltage 25 VRMS, 220/230/240 VAC, 50/60 Hz UL
4100-1325 Backup Amplifier, Output Voltage 70.7 VRMS, 220/230/240 VAC, 50/60 Hz UL
Digital Emergency Voice/Alarm Communications Equipment, Constant Supervision Compatible
4100-9621 Basic Digital Audio Operation with microphone
4100-1311 Eight Channel Digital Controller Board only
4100-1412 ESNet Digital Audio Operation with microphone
4100-1411 ESNet Eight Channel Digital Controller Board only
4100-1363 Flex-35, 35 W Amplifier, constant supervision compatible, 25 VRMS output
4100-1364 Flex-35, 35 W Amplifier, constant supervision compatible, 70.07 VRMS output
4100-1326 Flex-50, 50 W Amplifier, constant supervision compatible, 25 VRMS output
4100-1327 Flex-50, 50 W Amplifier, constant supervision compatible, 70.07 VRMS output
100 W Digital Amplifiers with Power Supply, Constant Supervision Compatible
4100-1328 Primary Amplifier, Output Voltage 25 VRMS, 120 VAC, 60 Hz UL
4100-1329 Primary Amplifier, Output Voltage 70.7 VRMS, 120 VAC, 60 Hz UL
4100-1330 Primary Amplifier, Output Voltage 25 VRMS, 120 VAC, 60 Hz ULC
4100-1331 Primary Amplifier, Output Voltage 70.7 VRMS, 120 VAC, 60 Hz ULC
4100-1332 Primary Amplifier, Output Voltage 25 VRMS, 220/230/240 VAC, 50/60 Hz UL
4100-1333 Primary Amplifier, Output Voltage 70.7 VRMS, 220/230/240 VAC, 50/60 Hz UL
4100-1334 Backup Amplifier, Output Voltage 25 VRMS, 120 VAC, 60 Hz UL
Product Part Number Description
100 W Digital Amplifiers
with Power Supply, Constant
Supervision Compatible
4100-1335 Backup Amplifier, Output Voltage 70.7 VRMS, 120 VAC, 60 Hz UL
4100-1336 Backup Amplifier, Output Voltage 25 VRMS, 120 VAC, 60 Hz ULC
4100-1337 Backup Amplifier, Output Voltage 70.7 VRMS, 120 VAC, 60 Hz ULC
4100-1338 Backup Amplifier, Output Voltage 25 VRMS, 220/230/240 VAC, 50/60 Hz UL
4100-1339 Backup Amplifier, Output Voltage 70.7 VRMS, 220/230/240 VAC, 50/60 Hz UL
Amplifier and Related
Audio Options
4100-1245 Flex-35/50 Expansion NAC Module
4100-1246 Flex-35/50 Class A Adapter Module
4100-1248 100 W Amplifier Expansion NAC Module
4100-1249 100 W Class A Adapter Module
4100-1259 Constant Supervison Adapter, 25 VRMS Output
4100-1260 Constant Supervison Adapter, 70.7 VRMS Output
4100-5116 Expansion Signal Module
4100-1266 Expansion Signal Module NAC Expander
4100-1267 Expansion Signal Module Class A Adapter
4100-1268 Expansion Signal Module Constant Supervision Adapter for 25 VRMS or 70.7 VRMS
4081-9018 End-of-line resistor harness for 70.7 VRMS NACs
4100-2300 Expansion Bay Hardware
4100-2320 Audio Bay-to-Bay Interconnection Harness Kit
4100-0637 Audio Box Interconnection Harness Kit
Audio Input and Controller Options
4100-1240 Auxiliary Audio Input Module
4100-1241 8 Minute Message Expansion Module
4100-1242 32 Minute Message Expansion Module
Operator Interface and
Related Options
4100-1243 Microphone Module (mike) for Fire Alarm Control units
4100-1244 Remote Microphone Module for Remote Annunciator Panels
4003-9803 Remote Microphone Module
4100-1252 Operator Interface LED/Switch Module, 1 Channel (audio or mike)
4100-1253 Operator Interface LED/Switch Module, 1.5 Channel (audio or mike)
4100-1254 Operator Interface LED/Switch Module, 2 Channel (full audio)
4100-1255 Operator Interface LED/Switch Module, 3-8 Channel
4100-1288 64 LED/64 Switch Controller Module with mounting plate
4100-1289 65 LED/64 Switch Controller Module without mounting plate
Firefighter Telephone
System Products
4100-1270
Master Telephone with Control Module and three Class B telephone NACs, one maximum
per audio system
4100-1271 Remote Master Telephone
4100-1272 Expansion Telephone Control Module with threeClass B telephone NACs
4100-1273 Telephone NAC Class A Adapter Module
Network and MINIPLEX Transponder
Audio Connection Options
4100-0623 Network Audio Riser Controller Module for control of either an analog or digital riser module
4100-0621 Dual Channel Analog Audio Riser Module
4100-0622 3-8 Channel Digital Audio Riser Module
4100-1341 MCC (Multiple Command Center) Digital Audio Riser Interface
4100-9854 4100/4100+ Legacy bay mounting kit
System Accessories
Battery Brackets
For geographic regions where earthquake activity is a building design criteria, these battery brackets will hold the system batteries securely in place.
Datasheet: S2081-0019
Battery Brackets
2081-9401 Battery Bracket for 12.7 Ah Compatible Batteries
2081-9402 Battery Bracket for 18 Ah Compatible Batteries
2081-9403 Battery Bracket for 25 Ah Compatible Batteries
2081-9297 Battery Bracket for 33 Ah Compatible Batteries
2081-9298 Battery Bracket for 50 Ah Compatible Batteries
Additional Battery Equipment
4100-0650 Battery Shelf
4005-9860 4005 Retrofit DACT Bracket
5009-9906 Seismic Rated Screw Kit
Master Clock Interface
Dual RS-232 port module with port B dedicated for master clock/master time interface. RS-232 port A is available for connection to printers, terminals, or other compatible peripherals.
Datasheet: S4100-0033
Master Clock Interface 4100-9816 Dual Port RS-232 Module for Master Clock Interface
4100ES MINIPLEX Transponders
4100ES MINIPLEX transponders connect to a host 4100ES Fire Alarm Control
Unit using remote unit interface (RUI) communications. At the transponder, RUI communications are received by the transponder interface module and translated into the same internal communications format that is used in the host control unit.
Datasheet: S4100-1035
ES Power Supplies
4100-5401 ES-PS, 120-240 V 50/60 Hz
4100-5402 ES-XPS, 120-240 V 50/60 Hz
Power Supply Accessories
4100-5152 12 VDC Power Option, 2 A maximum
4100-0156 8 VDC Converter
4100-5130 Voltage Regulator Module, 22.8 to 26.4 VDC (25VDC nominal)
4100-5131 ES-PS Fan Module
4100-0636 Box Interconnection Harness Kit
4100-0638 4100 Slot Module Additional 24 VDC Harness
4100-5403 Harness for ES-PS Backup Power Supply
4100-0644 120 VAC PDM Harness
4100-0645 220 VAC PDM Harness
4100-0646 230 VAC PDM Harness
4100-0647 240 VAC PDM Harness
Transponder Type
4100-9600
Basic Transponder, includes bay equipment with power distribution interface, and 4100-0620 Basic Transponder Interface Module mounted in Block A
4100-9601
Local Mode Transponder, includes bay equipment with power distribution interface, and 4100-0625 Local Mode Transponder Interface Module mounted in Block A
Local Mode Controller Selection
4601-9108 Flush mount - Red with white lettering
4601-9109 Surface mount - Red with white lettering
4601-9110 Flush mount - Beige with black lettering
4601-9111 Surface mount - Beige with black lettering
Communication Modules (For 4100-6031, 4100-6032 and 4100-6033, select one per ES Power Supply (non-power limited)
4100-6031 City Circuit, with disconnect switches
4100-6032 City Circuit, without disconnect switches
4100-6033 Alarm/Supv/Tbl Relay, 3 Form C relays, 2 A @ 32 VDC; for EPS or RPS
4100-6038 Dual RS-232 Interface
4100-6045 Decoder Module
4100-6048 VESDA Aspiration System Interface
4100-9816 Master Clock Interface Module with one standard RS-232 port
Miscellaneous Options and Accessories
4100-1290 24 Point I/O Module for external connections
4100-0632 Terminal Block Utility Module
4100-0633 Door Tamper Switch
4100-0634 Power Distribution Module (PDM) - 120 VAC
4100-0635 Power Distribution Module (PDM) - 220/230/240 VAC
4100-9837 Green LED Power-on Indicator Kit
2081-9031 Series resistor for WSO, IDCs
Audio Riser Modules
4100-0621 Dual Channel Analog Audio Riser Module
4100-0622 3-8 Channel Digital Audio Riser Module
Analog Emergency Voice/Alarm Communications Equipment, Constant Supervision Compatible
4100-1361 Flex-35, 35 W Amplifier, constant supervision compatible, 25 VRMS output
4100-1362 Flex-35, 35 W Amplifier, constant supervision compatible, 70.07 VRMS output
4100-1312 Flex-50, 50 W Amplifier, constant supervision compatible, 25 VRMS output
4100-1313 Flex-50, 50 W Amplifier, constant supervision compatible, 70.07 VRMS output
100 W Analog Amplifiers with Power Supply, Constant Supervision Compatible
4100-1314 Primary 100 W Amplifier, 120 VAC, 60 Hz, UL
4100-1315 Primary 100 W Amplifier, 120 VAC, 60 Hz, UL
4100-1316 Primary 100 W Amplifier, 120 VAC, 60 Hz, ULC
4100-1317 Primary 100 W Amplifier, 120 VAC, 60 Hz, ULC
4100-1318 Primary 100 W Amplifier, 220/230/240 VAC, 50/60 Hz, UL
4100-1319 Primary 100 W Amplifier, 220/230/240 VAC, 50/60 Hz, UL
4100-1320 Backup 100 W Amplifier, 120 VAC, 60 Hz, UL
4100-1321 Backup 100 W Amplifier, 120 VAC, 60 Hz, UL
4100-1322 Backup 100 W Amplifier, 120 VAC, 60 Hz, ULC
4100-1323 Backup 100 W Amplifier, 120 VAC, 60 Hz, ULC
4100-1324 Backup 100 W Amplifier, 220/230/240 VAC, 50/60 Hz, UL
4100-1325 Backup 100 W Amplifier, 220/230/240 VAC, 50/60 Hz, UL
Digital Emergency Voice/Alarm Communications Equipment
4100-1363 Flex-35, 35 W Amplifier, constant supervision compatible, 25 VRMS output
4100-1364 Flex-35, 35 W Amplifier, constant supervision compatible, 70.07 VRMS output
4100-1326 Flex-50, 50 W Amplifier, constant supervision compatible, 25 VRMS output
4100-1327 Flex-50, 50 W Amplifier, constant supervision compatible, 70.07 VRMS output
100 W Digital Amplifiers with Power Supply, Constant Supervision Compatible
4100-1328 Primary 100 W Amplifier, 120 VAC, 60 Hz, UL
4100-1329 Primary 100 W Amplifier, 120 VAC, 60 Hz, UL
4100-1330 Primary 100 W Amplifier, 120 VAC, 60 Hz, ULC
4100-1331 Primary 100 W Amplifier, 120 VAC, 60 Hz, ULC
4100-1332 Primary 100 W Amplifier, 220/230/240 VAC, 50/60 Hz, UL
4100-1333 Primary 100 W Amplifier, 220/230/240 VAC, 50/60 Hz, UL
4100-1334 Backup 100 W Amplifier, 25 VRMS, 120 VAC, 60 Hz, UL
4100-1335 Backup 100 W Amplifier, 120 VAC, 60 Hz, UL
4100-1336 Backup 100 W Amplifier, 120 VAC, 60 Hz, ULC
4100-1337 Backup 100 W Amplifier, 120 VAC, 60 Hz, ULC
4100-1338 Backup 100 W Amplifier, 220/230/240 VAC, 50/60 Hz, UL
4100-1339 Backup 100 W Amplifier, 220/230/240 VAC, 50/60 Hz, UL
Options for Use with Either Analog or Digital Amplifiers
4100-1245 Flex-35/50 Expansion NAC Module
4100-1246 Flex-35/50 Class A Adapter Module
4100-1248 100 W Amplifier Expansion NAC Module
4100-1249 100 W Class A Adapter Module
4100-1259 Constant Supervison Adapter, 25 VRMS Output
4100-1260 Constant Supervison Adapter, 70.7 VRMS Output
Firefighters Telephone Options
4100-1272 Expansion Telephone Control Module with three Class B telephone NACS
4100-1273 Telephone Class A Adapter Module
General Audio Options
4081-9018 End-of-line resistor harness for 70.7 VRMS NACs; 10 kΩ, 1 W
4100-2320 Audio Bay-to-Bay Interconnection Harness Kit
4100-0637 Audio Box Interconnection Harness Kit
Audio Expansion Signal Module and Options
4100-5116 Expansion Signal Module
4100-1266 Expansion Signal Module NAC Expander;
4100-1267 Expansion Signal Module Class A Adapter
4100-1268 Expansion Signal Module Constant Supervision Adapter
Initiating Device Circuits (IDCs)
4100-5005 Eight zones, Class B
4100-5015 Eight zones, Class A
8-Point Zone/Relay Card
4100-5013 8 point zone/relay 4x5” flat module
4100-6305 25V regulator harness for 8 point zone/relay module
Addressable Interface Modules
4100-3109 IDNet 2 Module
4100-3110 IDNet 2+2 Module
4100-3111 IDNet Short Circuit Isolating Loop Output Module
Relay Modules; Non-power-limited
4100-3208 4 DPDT w/ feedback, 10A 250 VAC
4100-3207 4 DPDT w/feedback, 2 A 30 VDC/VAC
4100-3209 8 SPDT, 3 A 30 VDC/120VAC
Cabinet
Boxes, Doors, Dress Panels, Rack Mounting and Accessories
4100ES Boxes are available sized for one, two, or three equipment bays, each with a battery bay located at the bottom. Colors include platinum or red. Doors are glass front with modular dress panels, or solid. Models are available with box and door combined for single package shipping, or packaged separately. Enclosures are NEMA 1 rated; wall mount enclosures are also IP30 rated.
Datasheet: S4100-0037
Combined Box and Door Selection
2975-9444 Platinum 1 Bay - Box with Glass Door and Dress Panel
2975-9450 Platinum 1 Bay - Box with Solid Door
2975-9445 Platinum 2 Bay - Box with Glass Door and Dress Panel
2975-9451 Platinum 2 Bay - Box with Solid Door
2975-9446 Platinum 3 Bay - Box with Glass Door and Dress Panel
2975-9452 Platinum 3 Bay - Box with Solid Door
2975-9441 Red 1 Bay - Box with Glass Door and Dress Panel
2975-9447 Red 1 Bay - Box with Solid Door
2975-9442 Red 2 Bay - Box with Glass Door and Dress Panel
2975-9448 Red 2 Bay - Box with Solid Door
2975-9443 Red 3 Bay - Box with Glass Door and Dress Panel
2975-9449 Red 3 Bay - Box with Solid Door
Separate Box and Door Selection
2975-9438 Platinum 1 Bay - Box
4100-2104 Platinum 1 Bay - Glass Door and Dress Panel
4100-2114 Platinum 1 Bay - Solid Door
2975-9439 Platinum 2 Bay - Box
4100-2105 Platinum 2 Bay - Glass Door and Dress Panel
4100-2115 Platinum 2 Bay - Solid Door
2975-9440 Platinum 3 Bay - Box
4100-2106 Platinum 3 Bay - Glass Door and Dress Panel
4100-2116 Platinum 3 Bay - Solid Door
2975-9407 Red 1 Bay - Box
4100-2124 Red 1 Bay - Glass Door and Dress Panel
4100-2134 Red 1 Bay - Solid Door
2975-9408 Red 2 Bay - Box
4100-2125 Red 2 Bay - Glass Door and Dress Panel
4100-2135 Red 2 Bay - Solid Door
2975-9409 Red 3 Bay - Box
4100-2126 Red 3 Bay - Glass Door and Dress Panel
4100-2136 Red 3 Bay - Solid Door
Cabinet Rack Mounting
4100-2140 Master Controller Rack Mount Kit
4100-2145 Option Bay Rack Mounting Kit
4100-2144 Power Distribution Module (PDM) Rack Mount Kit
Power Distribution Modules (one required per 4100ES box or cabinet rack)
4100-0634 120 VAC
4100-0635 220/230/240 VAC
Miscellaneous Accessories
252-019 Door key (B Key)
4100-9856 Canadian French Appliqué Kit, for 1, 2, or 3 bay sizes
4100-9857 4100ES Appliqué Retrofit Kit, for 1, 2, or 3 bay sizes
4100-9868 Special Purpose Appliqué Kit, Elevator Recall Control and Supervisory Control Unit
4100-9869 Special Purpose Appliqué Kit, Sprinkler Waterflow and Supervisory Station
4100-9835 Termination and Address Label Kit
4100-9837 Green LED Power-on Indicator Kit
2975-9813 Platinum semi-flush box trim
2975-9812 Red semi-flush box trim
Battery Model (Sealed lead-acid batteries, 12 VDC each)
2081-9272 6.2 Ah
2081-9286 7 Ah
2081-9274 10 Ah
2081-9288 12.7 Ah
2081-9275 18 Ah
2081-9287 25 Ah
2081-9276 33 Ah
2081-9296 50 Ah
Battery Accessories
4100-0650 Battery Shelf
4100-5128 Battery Distribution Terminal Block
Remote Annunciator Panels
Remote Annunciator Panels are dedicated-purpose transponders that support fire alarm system status information. Typical use is when the host fire alarm control unit is located away from the area where those responding to a fire situation need status information.
Datasheet: S4100-1039
Remote Annunciator Panel
4100-9610 Remote Annunciator Panel; requires an internal power supply
4100-9611 Basic Remote Annunciator Panel; requires power from another cabinet
4100-9616 Remote Annunciator Panel with ES Touchscreen Display
4100-9617 Basic Remote Annunciator Panel with ES Touchscreen Display
Remote Command Center
4100-1292 Panel Mounted LCD Annunciator, 2 x 40 character LCD with LED illumination
4100-9616 Remote Annunciator Panel with ES Touchscreen Display
4100-9617 Basic Remote Annunciator Panel with ES Touchscreen Display
Emergency Voice/Alarm
Communications Operator Interface Options
4100-1244 Remote Microphone (mike) Module
4100-1252 Operator Interface Module - 1 Channel (audio or mike)
4100-1253 Operator Interface Module - 1.5 Channel (audio + mike)
4100-1254 Operator Interface Module - 2 Channel (full audio)
4100-1255 Operator Interface Module - 3-8 Channel
Firefighter Telephone System Products
4100-1271 Remote Master Telephone
4100-1272 Phone Module with 3 Class B phone NACs
4100-1273 Phone Class A Adapter Module
LED and LED/Switch Modules, General Purpose
4100-1280 Red - 8 Switches, One LED per Switch
4100-1281 Yellow - 8 Switches, One LED per Switch
4100-1282 Red on top, Yellow on bottom - 16 LEDs, 8 Switches, Two LEDs per Switch
4100-1283 Yellow, top and bottom - 16 LEDs, 8 Switches, Two LEDs per Switch
4100-1284 Red on top, Green on bottom - 16 LED, 8 Switch, Two LEDs per switch
4100-1296 Green on top, Yellow on bottom - 16 LEDs, 8 Switches, Two LEDs per Switch
4100-1285 Red- 16 LEDs, 16 Switches, One LED per Switch
4100-1278 8 Red on left, 8 Yellow on right- 16 LEDs, 16 Switches, One LED per Switch
LED and LED/Switch Modules, General Purpose
4100-1276 Red, pluggable, LEDs only
4100-1277 Pluggable LEDs, shipped Red on top, Yellow on bottom, LEDs only
4100-1300 Pluggable LEDs, shipped Red on top, Yellow on bottom, 16 LEDs, 16 Switches, One LED per Switch
4100-1287 Red, One LED per Switch, 24 LEDs, 24 Switches LED/Switch Modules, Special Purpose
4100-1286 Eight function HOA (On, Off, Auto) Control Module with labeled switches
4100-1295 Eight function HOA (On, Off, Auto) Control Module, same as 4100-1286 except switches are unlabeled
LED/Switch Controller Modules and Accessories
4100-1288 64 LED/64 Switch Controller Module with mounting plate
4100-1289 64 LED/64 Switch Controller Module without mounting plate
4100-1294 LED/Switch Module Slide-in Labels
A100-1290 24 Point I/O Module for external connections
Communication Modules
4100-6038 Dual RS-232 Interface, mounts in Slot 3 or Slot 2
4100-9816 Master Clock Interface Module with one standard RS-232 port
Panel Mounted Printer
4100-1293 Panel Mount Thermal Printhead Printer
4190-9803 Replacement Paper for 4100-1293 Printer, one roll
ES Power Supplies
4100-5401 ES-PS, 120-240 V 50/60 Hz
4100-5402 ES-XPS, 120-240 V 50/60 Hz
Power Supply Accessories
4100-5152 12 VDC Power Option, 2 A maximum
4100-5156 8 VDC Converter
4100-5130 Voltage Regulator Module, 22.8 to 26.4 VDC (25VDC nominal)
4100-5131 ES-PS Fan Module
4100-0636 Box Interconnection Harness Kit
4100-0638 4100 Slot Module Additional 24 VDC Harness
4100-5403 Harness for ES-PS Backup Power Supply
4100-0644 120 VAC PDM Harness
4100-0645 220 VAC PDM Harness
4100-0646 230 VAC PDM Harness
4100-0647 240 VAC PDM Harness
Power Distribution Modules
4100-0634 Power Distribution Module (PDM); 120 VAC
4100-0635 Power Distribution Module (PDM); 220/230/240 VAC
Miscellaneous Accessories
4100-2300 Expansion Bay Hardware
4100-1279 Single blank 2 in. display cover
4100-9835 Termination and Address Label Kit (for module marking)
4100-0632 Terminal Block Utility Module
4100-0633 Door Tamper Switch (connects to Transponder Interface Module)
4100-9843 Kits of 8 LEDs - Yellow
4100-9844 Kits of 8 LEDs - Green
4100-9845 Kits of 8 LEDs - Red
4100-9855 Kits of 8 LEDs - Blue
ES Touchscreen Remote Displays
ES Touchscreen Remote Displays for 4100ES and 4010ES fire alarm systems provide a large display with extended information content, dual-language support including UTF-8 character languages, and an intuitive control key interface. The Color ES Touchscreen Displays offer intuitive operation similar to a tablet or smartphone that mimics the fire alarm control unit user interface operation. By using a larger area format versus an individual textline display, more information is available at a glance and minimal key presses are needed to access detailed information.
Datasheet: S4100-1070
Remote Annunciators with ES Touchscreen Display
4100-9404 Remote ES Touchscreen Display - Red. Compatible with 4100ES and 4010ES Fire Alarm Control Units.
4100-9405 Remote ES Touchscreen Display - Platinum. Compatible with 4100ES and 4010ES Fire Alarm Control Units.
4100-9616 Remote Annunciator with ES Touchscreen Display. Compatible with 4100ES Fire Alarm Control Unit Annunciator Cabinets.
4100-9617 Basic Remote Annunciator with ES Touchscreen Display. Compatible with 4100ES Fire Alarm Control Unit Annunciator Cabinets.
ES Touch Screen Upgrade Kits
Upgrade Kit for existing 4100ES or 4100U Series Fire Alarm Control Units
Datasheet: S4100-1013
Upgrade Kits
4100-7162 4100+ Master Controller Upgrade with ES Touch Screen Display
4100-7163 ES Touch Screen Display UI Upgrade for 4100+ Cabinet with ES Master Controlle
4100-7164 Upgrade kit for exsiting 4100U Master Controller Upgrade with ES Touch Screen Display
4100-7165 ES Touch Screen Display UI Upgrade for 4100ES and 4010ES
InfoAlarm Upgrade Kits
Upgrade Kit for existing 4100ES or 4100U Series Fire Alarm Control Units.
Datasheet: S4100-1045
Upgrade Kits
4100-7153
Upgrade Kit for existing 4100ES or 4100U Series Fire Alarm Control Units (English)
Note: Available for redundant CPU applications.
4100-7155
Upgrade Kit for existing 4100ES or 4100U Series Fire Alarm Control Units (International)
Note: Available for redundant CPU applications
4100ES Release Control System
When combined with suppression release peripherals, the 4100ES series fire alarm control unit provides actuator supervision and control for use in automatic extinguishing and deluge or preaction releasing systems. Hazard area initiating and notification devices are controlled using either conventional or addressable circuits per standard 4100ES capabilities. The necessary releasing system logic is implemented within the 4100ES control unit as required for the local application.
Datasheet: S4100-0040
4100ES Releasing Control System
Modules
2081-9046 Coil Supervision Module
2080-Series Maintenance Switches
2080-9056 Flush mount - Abort Switch
2080-9057 Surface mount - Abort Switch
Releasing Appliqués (Required for 4100ES Suppression Releasing Applications)
4010-9830 English
Suppression Release Peripheral and Accessories
4090-9005 Basic Suppression Release Peripheral on mounting plate
4090-9006 Suppression Release Peripheral mounted in NEMA 1 red box; required for ULC listing
2975-9227 NEMA 1 red mounting box; required for 4090-9005
4090-9812 Red LED IDNet communications indicator option kit; mounts on door of 2975-9227 box
TFX Equipment Migration to 4100ES
Fire Alarm Control
TFX Equipment Migration to 4100ES Fire Alarm Control. Convert an existing
TFX system to 4100ES operation while retaining TFX peripherals.
Datasheet: S4100-0050
Product Selection
4100-6066 TFX Addressable Loop Interface Module
4100-5130 Voltage Regulator Module, 25 VDC nominal
4100-1340 TFX Audio Interface Module
4100-1297
Expansion Firefighter Phone Control Module with three Class B telephone NACs for control of ATM-500 modules
Fiber Optic Modems for 4120 network
Multiple-Signal Fiber Optic Modems combine various system communications signals and convert them to fiber optic communications for transmission via a single, full-duplex fiber optic cable connection that simplifies field wiring and increases transmission distances. Communications can be sent individually or combined.
Datasheet: S4100-0049
4120 Network Fiber Modems for Internal Mounting
4100-6120 Left-Port Fiber Modem Assembly - Single Mode
4100-6121 Right-Port Fiber Modem Assembly - Single Mode
4100-6122 Left-Port Fiber Modem Assembly - Multi-Mode
4100-6123 Right-Port Fiber Modem Assembly - Multi-Mode
4100-9840 Single Fiber Modem Mounting Bracket
4100-9841 Audio Expansion Module Assembly with Mounting Bracket
4100-9842 Audio Expansion Module only
Expansion Cabinet and Related Modem Assemblies for Remote Mounting
4190-9035 Expansion Cabinet with Left-Port Fiber Modem Assembly (Red) - Single Mode
4190-9038 Expansion Cabinet with Left-Port Fiber Modem Assembly (Red) - Multi Mode
4190-9036 Expansion Cabinet with Left-Port Fiber Modem Assembly (Beige) - Single Mode
4190-9039 Expansion Cabinet with Left-Port Fiber Modem Assembly (Beige) - Multi Mode
4190-9037 Right-Port Fiber Modem Assembly - Single Mode
4190-9040 Right-Port Fiber Modem Assembly - Multi-Mode
4190-9018 Audio Expansion Module - for Expansion Cabinet Mounting only
Network System Integrator (NSI) for ES Net or 4120 networks
The Network System Integrator provides a gateway between any building control unit into the 4120 or ES Net fire alarm network. This allows information from other building control units that are not equipped for direct network communications to be annunciated on the Simplex fire alarm network.
Datasheet: S4190-0026
Network System Integrator
4190-9836 Simplex NSI for 4120 Network, Red
4190-9837 Simplex NSI for 4120 Network, Platinum
4190-9838 Simplex NSI for ES Net Network, Red
4190-9839 Simplex NSI for ES Net Network, Platinum
Field Installed Optional Modules 4007-9801 Eight Point Zone/Relay Module
Media Modules for NSI with 4120
Network Interface Card
4007-9813 Wired media card
4007-6301 Left port, single-mode 4120 duplex fiber media card
4007-6302 Right port, single-mode 4120 duplex fiber media card
4007-6303 Left port, multi-mode 4120 duplex fiber media card
4007-6304 Right port, multi-mode 4120 duplex fiber media card
Media Modules for NSI with ES Net
Network Interface Card
4007-6306 ES Net Ethernet Media Card
4007-6307 ES Net DSL Media Card
4007-6308 ES Net SM Fiber Media Card
4007-6309 ES Net MM Fiber Media Card
Batteries
2081-9272 6.2 Ah
2081-9274 10 Ah
2081-9288 12.7 Ah
2081-9275 18 Ah
2081-9287 25 Ah For remote mount in Battery Box 4009-9801
2081-9271 33 Ah For remote mount in Battery Box 4009-9802
Battery Accessories
4009-9801 External battery cabinet without charger. For up to 33 Ah batteries
4009-9802 External battery cabinet without charger. For up to 25 Ah batteries
Accessories
2975-9812 Red semi-flush box trim
2975-9813 Platinum semi-flush box trim
Network Annunciator Panels for ES
Network (ES Net)
The 4100ES NDU with Voice Command Center (VCC) for ES Net is a networklevel
annunciator and manual system/point controller with optional network voice control equipment. It provides alphanumeric annunciation for up to 12,000 network points and/or point lists and can be programmed to function as the network master controller for Alarm Silence, Trouble Acknowledge, and System Reset.
Datasheet: S4100-1077
Network Display Unit, Non-Voice
4100-9750
NDU Master Controller Bay with English 2x40 Display, CPU Card, ES Network Interface Card, ES Power Supply (120 V to 240 V 50/60 Hz, 24 V Aux. Relay, 24 V Aux. Power Tap, 110 Ah
Battery Charger) and external RUI+ communications interface
4100-9751 Same as 4100-9750 except with Canadian French user interface
4100-9752 Same as 4100-9750 except with English InfoAlarm user interface with raised keys. Note: Available for redundant CPU applications
4100-9753 Same as 4100-9750 except with Canadian French InfoAlarm user interface with raised keys. Note: Available for redundant CPU applications
4100-9754 Same as 4100-9750 except with InfoAlarm user interface with flat keys and slide in labels. Note: Available for redundant CPU applications
4100-9755 ES Net NDU with ES-PS and ES Touch Screen Display Network Display Unit with Voice
Command Center (VCC)
4100-9760 NDU Master Controller Bay with English 2x40 Display, CPU Card, ES Network Interface Card,
ES Power Supply (120 V to 240 V 50/60 Hz, 24 V Aux. Relay, 24 V Aux. Power Tap, 110 Ah Battery Charger) and external RUI+communications interface. VCC Master Controller Bay with CPU Card, ES Network Interface Card, IDNet 2 Card supports up to 250 addressable/ analog points, ES Power Supply (120 V to 240 V 50/60 Hz, 24 V Aux. Relay, 24 V Aux. Power Tap, 110 Ah Battery Charger) and external RUI+ communications interface
4100-9761 Same as 4100-9760 except with Canadian French user interface in NDU Master Controller Bay
4100-9762 Same as 4100-9760 except with English InfoAlarm user interface with raised keys in NDU Master Controller Bay. Note: Available for redundant CPU applications
4100-9763
Same as 4100-9760 except with Canadian French InfoAlarm user interface with raised keys
in NDU Master Controller Bay. Note: Available for redundant CPU applications
4100-9764
Same as 4100-9760 except with InfoAlarm user interface with flat keys and slide in labels in
NDU Master Controller Bay. Note: Available for redundant CPU applications
4100-9765 ES Net Voice NDU with ES-PS and ES Touch Screen Display
ES Net Dual Channel Media Cards
For 4100ES Mounted NICS
4100-6308 ES Net NIC dual channel single-mode fiber media card
4100-6309 ES Net NIC dual channel multi-mode fiber media card
4100-6307 ES Net NIC dual channel DSL media card
ES Net Fiber Media Card Service
Kits (For Use in Retrofit Jobs
Where Fiber Optic Cables with ST
Connectors are Already Installed)
4100-6412 50/125 μm multi-mode
4100-6413 62.5/125 μm multi-mode
4100-6414 9/125 μm single-mode
NDU Equipment Selection
4100-1291 Remote Unit Interface module (RUI)
4100-6031 City Circuit, with disconnect switches (For use with ES-PS only)
4100-6032 City Circuit, without disconnect switches (For use with ES-PS only)
4100-6033 Alarm/Supv/Tbl Relay, 3 Form C relays, 2 A @ 32 VDC (For use with ES-PS only)
4100-6038 Dual RS-232 Interface
4100-6046 Dual Port RS-232 standard interface (4 x 5 module)
4100-6080 Side Mount DACT, Point or Event Reporting
4100-9816 Master Clock Interface Module with one standard RS-232 port
4100-6079 Safelinc internet interface module
4100-1290 24 Point I/O Module
4100-6069 BACpac Ethernet Module – 1500 Points
4100-6110 BACpac Ethernet Module – 5000 Points
NDU Equipment Selection
4100-6111 BACpac Ethernet Module – 15000 Points
4100-6308 ES Net NIC dual channel single-mode fiber media card
4100-6309 ES Net NIC dual channel multi-mode fiber media card
4100-6307 ES Net NIC dual channel DSL media card
Power Supplies
4100-5401 ES-PS, 120 to 240 V 50/60 Hz
4100-5402 ES-XPS, 120 to 240 V 50/60 Hz
Power Supply Accessories
4100-5152 12 VDC Power Option
4100-0156
8 VDC Converter, required for multiple Physical Bridge Modules, 3 A maximum 1 Block
included with loads
4100-5130 Voltage Regulator Module
4100-5131 ES-PS Fan Module
4100-0636 Box Interconnection Harness Kit (non-audio)
4100-0638 4100 Slot Module Additional 24 VDC Harness
4100-5403 Harness for ES-PS Backup Power Supply
4100-0644 120 VAC PDM Harness
4100-0645 220 VAC PDM Harness
4100-0646 230 VAC PDM Harness
4100-0647 240 VAC PDM Harness
System Accessories
4602 Series SCU (Status Command Units) and RCU
(Remote Command Units)
Status Command Units (SCU) provide 16 red zone status LEDs. Multiples may be mounted together for additional zone coverage. Remote Command Units (RCU) provide eight red zone status LEDs, and control switches duplicating the switch functions of the host fire alarm control unit. A keyswitch enables the control switches. A green LED indicates power is present and a yellow LED indicates trouble.
Datasheet: S4602-0001
Individual LED/Switch Annunciators;
Six-Gang Box Mounting
4602-9101 Status Command Unit (SCU) with beige trim plate
4602-9102 Remote Command Unit (RCU) with beige trim plate
4602-9111 Brushed stainless steel trim plate option
2975-9206 Surface mount box option for use with 4602-9101 or 4602-9102; painted steel, ivory finish
Individual Graphic I/O Module 4602-9150 Graphic I/O RCU/SCU Board Assembly
Plate-Mounted Graphic I/O Modules
4602-8103 Graphic I/O Mounting Plate for up to four (4)
4602-8902
Select when adding 4602-7101 modules in the field to an existing Graphic I/O annunciator
mounting plate
4602-7101 Graphic I/O RCU/SCU module for mounting on 4602-8103 plate (up to four);
Modular LED/Switch Annunciators;
Cabinet Mounted
4602-8001
Basic annunciator panel; includes 2975-9197 beige box and beige surface mount door;
has space for up to 4 RCU/SCU modules
4602-8901
Select when adding features in the field to an existing 4602 Modular LED/Switch
annunciator cabinet
4602-7001 Remote Command Unit (RCU) module; typically one used per 4602-8001
4602-6001 Status Command Unit (SCU) module; up to 4 may be selected
4602-5001 Select when no 4602-7001 or 4602-6001 modules are to be selected
4602-2201 Flush mount door and trim option - Beige
4602-2202 Flush mount door and trim option - Stainless Steel
SCU/RCU Options
4602-9110 Eight (8) pluggable Yellow LEDs
4602-9112 Zone labels numbered 1 through 64
System Accessories
Serial Digital Alarm Communicating Transmitters (SDACT)
Serial digital alarm communicating transmitter (SDACT) modules monitor the status of the host fire alarm control unit and its connections to the Central Station monitoring location. When status changes require information to be reported, the SDACT provides detailed messages that can assist the Central Station in accurately implementing the required response. Typical information reports include alarms, troubles, and supervisory conditions. Model series 4007ES, 4010, 4010ES, 4100ES, and 4100U provide specific point information. SDACT modules directly communicate with the fire alarm control unit CPU and are custom programmed for the specific requirements of the Central Station and the connected fire alarm control unit.
Datasheet: S2080-0009
Product Part Number Description
Serial DACT Selection
4100-6052 Serial DACT - 4100ES and 4100U
4100-6080 Serial DACT - 4100ES with EPS
4010-9912 Serial DACT - 4010ES
4007-9806 Serial DACT - 4007ES
4010-9816 Serial DACT - 4010
Battery Cabinet with Charger
4010 FACUs batteries allow up to 25 Ah to be mounted within their cabinet.
4004R Agent Release Control Units allow batteries up to 12.7 Ah to be mounted inside their cabinet. For system applications requiring more battery backup, the external 4081 Series battery cabinets with charger can accommodate batteries up to 50 Ah.
Datasheet: S4081-0001
External Battery Cabinet
with Charger
4081-9301 Serial DACT - 4100ES and 4100U
4081-9302 Serial DACT - 4100ES with EPS
Battery Selection
2081-9287 25 Ah sealed lead-acid battery, 12V DC, Qty 2
2081-9276 33 Ah sealed lead-acid battery, 12V DC, Qty 2
2081-9296 50 Ah sealed lead-acid battery, 12V DC, Qty 2
External Battery Cabinet with Charger
For use with model 4100ES, 4100U, and 4010ES addressable fire alarm control units. Use batteries mounted within their enclosures. For system applications requiring additional battery backup, these battery cabinets with battery charger accommodate batteries up to 110 Ah.
Datasheet: S4081-0002
External Battery Cabinet
with Charger
4081-9306 120 VAC Input
4081-9308 220/230/240 Input, Multi-Tapped
Accessories 4100-9837 Green LED Power-on Indicator Kit, required for ULC listing
Battery Reference 2081-9279 110 Ah Sealed Lead-Acid Battery, 12V DC, Qty 2
4009 IDNet NAC Extender
For control with IDNet Communications or Conventional NACs Provides additional notification appliance circuit (NAC) capacity with flexible operation modes and power-limited design. Datasheet: S4009-0002
4009 IDNet NAC Extender
4009-9201 4009 IDNet NAC Extender, 120 VAC input
4009-9301 4009 IDNet NAC Extender, 240 VAC input
4009-9202CA 4009 IDNet NAC Extender, (ULC listed model) 120 VAC input
Optional Modules
4009-9807
Additional four point NAC module, rated 1.5 A Special Application appliances; 1 A for
Regulated 24 DC appliance power, Class B
4009-9808 Dual Class A adapter (for two NAC outputs)
4009-9809 IDNet Repeater, output is Class A or Class B
4009-9810 Fiber Optic Receiver, Class B
4009-9811 Fiber Optic Receiver, Class A (IDNet), Class X (fiber)
4009-9805 Red Appliqué for door Select if required
2975-9801 Semi-Flush Trim Kit, Beige
2975-9802 Semi-Flush Trim Kit, Red
Batteries
2081-9272 6.2 Ah Battery, 12V DC
2081-9274 10 Ah, Battery, 12V DC
2081-9288 12.7 Ah, Battery, 12V DC
2081-9275 18 Ah, Battery, 12V DC
External Accessories
4090-9105 Class B operation, IDNet Fiber Optic Transmitter
4090-9107 Class X operation, IDNet Fiber Optic Transmitter
4009-9801 External battery cabinet for up to 18 Ah batteries, beige
4081 series End-of-Line resistor harnesses
4009 IDNAC Repeater
Fire alarm control units with IDNAC SLC outputs provide individual address and control of TrueAlert and TrueAlert ES addressable notification appliances.
When an IDNAC SLC reaches the current limit or the distance limit of the source IDNAC SLC, 4009 IDNAC Repeaters extends the IDNAC SLC with an additional 3 A of SLC current and up to 139 unit loads of additional supervisory capacity.
Datasheet: S4009-0004
4009 IDNAC Repeater Selection
4009-9601 4009 IDNAC Repeater with cabinet (Red)
4009-9602 4009 IDNAC Repeater with cabinet (Platinum)
Aftermarket Accessories
4009-9814 Class A Adapter Module, mounts on repeater controller board
2975-9813 Platinum semi-flush box trim
2975-9812 Red semi-flush box trim
External Accessories
4905-9929 Remote TrueAlert Communications Isolator
4009-9801 External Battery Cabinet for 25 Ah batteries
Batteries
2081-9272 6.2 Ah Battery, 12V DC
2081-9274 10 Ah, Battery, 12V DC
2081-9288 12.7 Ah, Battery, 12V DC
2081-9275 18 Ah, Battery, 12V DC
Interface to VESDA Air Aspiration Detectors
For 4100ES/4010ES /4100U/4100 Series Fire Alarm
Control Units
Allows addressable fire detection units to gather and process status information from VESDA high-sensitivity air aspiration smoke detection systems. Hardware requirements include an Intelligent Interface Module installed in the fire alarm control unit, and an HLI Module and associated VESDA equipment installed in a separate enclosure.
Datasheet: S4100-0026
Fire Alarm Control Unit Reference
4100-6048 Intelligent Interface Module - 4100ES and 4100U
4100-9901 Intelligent Interface Module - 4010ES
4100-0154 Intelligent Interface Module - 4100
Xtralis VESDA Smoke Detector
Equipment Reference
VSR-13D01-S04
Includes VESDA High Level Interface board, a VESDA programmer, and a VESDA net socket, all mounted in a 19 in. equipment rack within a mounting box
Fire Alarm System Remote Printer
A high-resolution 24-pin printer for use with fire alarm control units and related systems. It is listed for supplemental fire protective signaling system operation under UL Standard 864.
Datasheet: S4190-0027
Remote Printer 4190-9027 High-resolution, 24-pin, dot matrix bi-directional printer
4010ES Fire Control Units (Conventional), North America
4010ES Series Fire Detection and Control Units provide leading-edge installation, operator, and service features for customer applications in the mid-range addressable fire alarm systems market. An onboard Ethernet port provides fast external system communications to expedite installation and service activity. Dedicated compact flash memory archiving provides secure onsite system information storage of electronic job configuration files. A variety of functional modules are available to meet specific system requirements. Selections allow control units to be configured for either standalone or networked fire control operation. An optional touchscreen display provides convenient expanded display content.
Datasheet: S4010-0004
1 Bay Unit - Basic Control Unit
with 2x40 Operator Interface
4010-9401 Red Color, English 120 VAC, UL, CSFM, FM, NYC Fire Dept
4010-9402 Platinum Color, English 120 VAC, UL, CSFM, FM, NYC Fire Dept
Same Features as above
with 48 LED Annunciation
4010-9403 Red Color, English 120 VAC, UL, ULC, CSFM, FM, NYC Fire Dept
4010-9404 Platinum Color, English 120 VAC, UL, ULC, CSFM, FM, NYC Fire Dept
4010-9405 Red Color, Fernch 120 VAC, ULC, CSFM, FM
4010-9406 Platinum Color, Fernch 120 VAC, ULC, CSFM, FM
2 Bay Unit - Basic Control Unit
with 2x40 Operator Interface
4010-9421 Red Color, English 120 VAC, UL, FM
4010-9422 Platinum Color, English 120 VAC, UL, FM
Same Features as above
with 48 LED annunciation
4010-9423 Red Color, English 120 VAC, UL, ULC, FM
4010-9428 Platinum Color, English 120 VAC, UL, ULC, FM
4010-9430 Platinum Color, French, 120 VAC, UL, ULC, FM
Basic control unit with ES Touch
Screen Operator Interface
4010-9435
4010ES with ES Touchscreen Display, 2 IDNET, RED, 120V
(note: Red option only, no platinum equivalent for ES TSD)
4010ES Release Control System, North America
When combined with suppression release peripherals, the 4010ES series fire alarm control unit provides actuator supervision and control for use in automatic extinguishing and deluge or preaction releasing systems. Hazardarea initiating and notification devices are controlled using either conventional or addressable circuits per standard 4010ES capabilities. The necessary releasing system logic is implemented within the 4010ES control unit as required for the local application.
Datasheet: S4010-0005
Releasing Control System Modules
2081-9046 Coil Supervision Module
2080-Series Maintenance Switches
2080-9056 Abort Switch, Flush mount
2080-9057 Abort Switch, Surface mount
Releasing Appliqués
(Required for 4010ES Suppression
Releasing Applications)
4010-9830 Suppression Releasing Appliqué, English
Suppression Release Peripheral and Accessories
4090-9005 Basic Suppression Release Peripheral on mounting plate
4090-9006 Suppression Release Peripheral mounted in NEMA 1 red box; required for ULC listing
2975-9227 NEMA 1 Red Mounting Box; required for 4090-9005
4090-9812 Red LED IDNet communications indicator option kit; mounts on door of 2975-9227 box
4010ES Fire Control Units
Addressable Fire Detection with IDNAC, Fire Alarm Control Unit and Accessories
The addressable, fully networkable 4010ES supports up to 1,000 detectors, modules or manual stations – ideal for small- to mid-sized facilities. Labor-saving features available in all Simplex panels, such as device-level ground fault isolation and almost-dirty smoke sensor status reports, help minimize installation time and enable proactive maintenance while preventing nuisance alarms. An optional touchscreen display with intuitive interface is available.
Datasheet: S4010-0011
Basic 1- Bay Control Unit with 2x40
LCD Operator Interface
4010-9601 Red Color, English 120 VAC, UL, CSFM, FM
4010-9602 Platinum Color, English 120 VAC, UL, CSFM, FM
Same Features as above with
48 LED Annunciation
4010-9603 Red Color, English 120 VAC, UL, ULC, CSFM, FM
4010-9604 Platinum Color, English 120 VAC, UL, ULC, CSFM, FM
4010-9606 Platinum Color, French 120 VAC, UL, ULC, CSFM, FM
Basic 2-Bay Control Unit Unit with
2x40 LCD Operator Interface
4010-9621 Red Color, English 120 VAC, UL, CFSM, FM
4010-9622 Platinum Color, English 120 VAC, UL, CFSM, FM
Same Features as above with
48 LED Annunciation
4010-9609 Red Color, English 120 VAC, UL, ULC, CSFM, FM
4010-9610 Platinum Color, English 120 VAC, UL, ULC, CSFM, FM
4010-9608 Platinum Color, French, 120 VAC, UL, ULC, CSFM, FM
Basic control unit with ES Touch
Screen Operator Interface
4010-9633
4010ES with ES Touchscreen Display, IDNAC, 2 IDNET, RED, 120V
(note: Red option only, no platinum equivalent for ES TSD)
Single Block Option Modules
4010-9912 Serial DACT
4010-9908 4 Point Aux Relay Module
4010-9916 Voltage Regulator Module, 22.8 to 26.4 VDC (25 VDC nominal)
4010-9918 Dual RS-232 Module
4010-9930 Dual Class A IDNAC Isolator (DCAI)
4010-9915 BACpac Ethernet Portal Module
4010-9901 VESDA HLI
4010-9929 IDNet 2+2 Module, 250 point capacity
4010-9935 8 point zone/relay four-inch x 5 in. flat module
4100-6305 25V regulator harness for 8 point zone/relay module
Dual Vertical Block (Flat) Modules
4010-9928 For 1-Bay Units Only: Dual Vertical Block Card Mounting Kit
4010-9923 SafeLINC Internet Interface
Additional Control Unit Option
4010-9909 City Connect Module with disconnect switches
4010-9910 City Connect Module
4010-9911 Alarm Relay Module
4100-5128 Battery Distribution Terminal Block
Miscellaneous Accessories
4100-9843 8 Yellow LED Kit
4100-9844 8 Green LED Kit
4100-9845 8 Red LED Kit
4100-9855 8 Blue LED Kit
4100-8802 End User Programming Unit Software
4100-0292 Custom Label Editing (USB Dongle)
4100-0295 Port Vectoring Setup and Control (USB Dongle)
4100-0296 Access Level/Passcode Editing (USB Dongle)
4100-0298 WalkTest Configuration Setup and Control (USB Dongle)
4100-8810 Factory Programming (select)
4100-0831 Custom Labels and Programming (requires 4010-8810)
4010ES Fire Control Units
(Conventional), International
Addressable Fire Detection and Control - Basic Control Unit Modules and Accessories
4010ES Series Fire Detection and Control Units provide leadingedge installation, operator, and service features for customer applications in the mid-range addressable fire alarm systems market. An onboard Ethernet port provides fast external system communications to expedite installation and service activity.
Dedicated compact flash memory archiving provides secure onsite system information storage of electronic job configuration files. A variety of functional modules are available to meet specific system requirements. Selections allow control units to be configured for either standalone or networked fire control operation. An optional touchscreen display provides convenient expanded information content.
Datasheet: S4010-0006
1 Bay Unit - Basic Control Unit with
2x40 Operator Interface
4010-9401 Red Color, English 120 VAC, UL, FM
4010-9402 Platinum Color, English 120 VAC, UL, FM
4010-9501 Red Color, English 220 - 240 VAC, UL, FM
4010-9502 Platinum Color, English 220 - 240 VAC, UL, FM
Same Features as above with 48
LED Annunciation
4010-9403 Red Color, English 120 VAC, UL, ULC, FM
4010-9404 Platinum Color, English 120 VAC, UL, UFM, FM
Basic Control Unit with 2x40
Operator Interface (ESMX)
4010-9505 Red Color, English 220 - 240 VAC, UL
2 Bay Unit - Basic Control Unit with
2x40 Operator Interface
4010-9421 Red Color, English 120 VAC, UL, FM
4010-9422 Platinum Color, English 120 VAC, UL, FM
Basic control unit with ES
Touchscreen Interface
4010-9433
4010ES with ES Touchscreen Display, IDNAC, 2 IDNET, RED, 120V
(note: Red option only, no 4010-9624 platinum equivalent for ES TS)
4010-9435
4010ES with ES Touchscreen Display, 2 IDNET, RED, 120V
(note: Red option only, no 4010-9426 platinum equivalent for ES TSD)
Basic Control Unit with 2x40
Operator Interface
4010-9521 Red Color, English 220 - 240 VAC, UL, FM
4010-9522 Platinum Color, English 220 - 240 VAC, UL, FM
Single Block Option Modules
4010-9912 Serial DACT
4010-9908 4 Point Aux Relay Module
4010-9916 Voltage Regulator Module, 22.8 to 26.4 VDC (25 VDC nominal)
4010-9918 Dual RS-232 Module
4010-9915 BACpac Ethernet Portal Module
4010-9901 VESDA HLI
4010-9935 8 point zone/relay four-inch x 5 in. flat module
4100-6305 25V regulator harness for 8 point zone/relay module
4010-9929 IDNet 2+2 Module, 250 point capacity
Dual Vertical Block (Flat) Modules
4010-9928 Dual Vertical Block Card Mounting Kit, For 1-Bay Units Only
4010-9923 SafeLINC Internet Interface
Additional Control Unit Features
4010-9909 City Connect Module w/ disconnect switches
4010-9910 City Connect Module
4010-9911 Alarm Relay Module
4100-5128 Battery Distribution Terminal Block
4010ES Release Control System, International
When combined with suppression release peripherals, the 4010ES series fire alarm control unit provides actuator supervision and control for use in automatic extinguishing and deluge or preaction releasing systems. Hazard-area initiating and notification devices are controlled using either conventional or addressable circuits per standard 4010ES capabilities.
The necessary releasing system logic is implemented within the 4010ES control unit as required for the local application.
Datasheet: S4010-0007
Releasing Control System Modules
2081-9046 Coil Supervision Module
2080-Series Maintenance Switches
2080-9056 Abort Switch, Flush mount
2080-9057 Abort Switch, Surface mount
Releasing Appliqués
(Required for 4010ES Suppression
Releasing Applications)
4010-9830 Suppression Releasing Appliqué, English
Suppression Release Peripheral
and Accessories
4090-9005 Basic Suppression Release Peripheral on mounting plate
4090-9006 Suppression Release Peripheral mounted in NEMA 1 red box; required for ULC listing
2975-9227 NEMA 1 red mounting box; required for 4090-9005
4090-9812 Red LED IDNet communications indicator option kit; mounts on door of 2975-9227 box
4010ES Fire Control Units,
International
Addressable Fire Detection and Basic Control Unit
Modules and Accessories
4010ES Series Fire Detection and Control Units provide leading-edge installation, operator, and service features for customer applications in the mid-range addressable fire alarm systems market. An onboard Ethernet port provides fast external system communications to expedite installation and service activity. Dedicated compact flash memory archiving provides secure onsite system information storage of electronic job configuration files.
Datasheet: S4010-0012
I Bay Unit - Basic Control Unit with 2x40 LCD Operator Interface
4010-9601 Red Color, English 120 VAC, UL, CSFM, FM
4010-9602 Platinum Color, English 120 VAC, UL, CSFM, FM
4010-9701 Red Color, English 220 to 240 VAC, UL, FM
4010-9702 Platinum Color, English 220 to 240 VAC, UL, FM
Same Features as above with
48 LED Annunciation
4010-9603 Red Color, English 120 VAC, UL, ULC, CSFM, FM
4010-9604 Platinum Color, English 120 VAC, UL, ULC, CSFM, FM
2 Bay Unit - Basic Control Unit unit
with 2x40 LCD Operator Interface
4010-9621 Red Color, English 120 VAC, UL, CFSM, FM
4010-9622 Platinum Color, English 120 VAC, UL, CFSM, FM
4010-9721 Red Color, English 220 to 240 VAC, UL, FM
4010-9722 Platinum Color, English 220 to 240 VAC, UL, FM
Same Features as above with
48 LED Annunciation
4010-9609 Red Color, English 120 VAC, UL, ULC, CSFM, FM
4010-9610 Platinum Color, English 120 VAC, UL, ULC, CSFM, FM
Basic control unit with ES
Touchscreen Display Interface
4010-9731
4010ES with ES Touchscreen Display, IDNAC 2 IDNET, RED, 240V
(note: Red option only, no 4010-9712 platinum equivalent for ES TSD)
Single Block Option Modules
4010-9912 Serial DACT
4010-9908 4 Point Aux Relay Module
4010-9916 Voltage Regulator Module, 22.8 to 26.4 VDC (25 VDC nominal)
4010-9918 Dual RS-232 Module
4010-9930 Dual Class A IDNAC Isolator (DCAI)
4010-9901 VESDA HLI
4010-9935 8 point zone/relay four-inch x 5 in. flat module
4100-6305 25V regulator harness for 8 point zone/relay module
4010-9929 IDNet 2+2 Module, 250 point capacity
Dual Vertical Block (Flat) Modules
4010-9928 For 1-Bay Units Only: Dual Vertical Block Card Mounting Kit
4010-9923 SafeLINC Internet Interface
Miscellaneous Accessories
4100-9843 8 Yellow LED Kit
4100-9844 8 Green LED Kit
4100-9845 8 Red LED Kit
4100-9855 8 Blue LED Kit
4100-0650 Battery Shelf, required for 50 Ah batteries (2 Bay cabinets only)
4100-8802 End User Programming Unit Software
4100-0292 Custom Label Editing (USB Dongle)
4100-0295 Port Vectoring Setup and Control (USB Dongle)
4100-0296 Access Level/Passcode Editing (USB Dongle)
4100-0298 WalkTest Configuration Setup and Control (USB Dongle)
4100-0831 Custom Labels and Programming (requires 4010-8810)
4100-8810 Factory Programming (select)
Additional Control Unit Option
4010-9909 City Connect Module with disconnect switches
4010-9910 City Connect Module
4010-9911 Alarm Relay Module
4100-5128 Battery Distribution Terminal Block
4007ES Control Units
4007ES Hybrid Fire Detection and Control Unit with Addressable and/or Conventional Initiation
4007ES Series Fire Detection and Control Units provide extensive installation, operator, and service features with point and module capacities suitable for a wide range of system applications. Panels can be configured for standalone or networked fire control operation. The convenient and intuitive color touchscreen provides easy access for typical system response actions and for detailed system review or configuration updates with password control to limit user access. Standard conventional IDCs and addressable IDNet+ communications provide flexibility for both new and retrofit systems. IDC and NAC end-of-line resistor values are selectable to match a wide range of existing initiating device circuits and notification appliance circuits.
Datasheet: S4007-0001
4007ES Hybrid with Four
Conventional NACs, 6 A Output
Power Supply/Battery Charger
and One IDNet+ SLC for up to 100
Addressable Points
4007-9101 Red Color
4007-9101BA Red Color
4007-9102 Platinum Color
4007-9102BA Platinum Color
Factory Programming Options
4007-8810 Factory Programming
4007-0831 Custom Labels and Programming
Field Installed Optional Modules
4007-9801 Eight Point Zone/Relay Module
4007-9802 25 VDC Regulator Module
4007-9803
IDNet+ Loop Expansion Module; provides an additional isolated loop with short circuit
isolation to the existing IDNet+ channel, also provides an additional addressable points to
the IDNet+ channel capacity, maximum of two
4007-9804 Dual Class A IDNAC Isolator (DCAI)
4007-9805 Panel Mounted 48 LED Status Annunciator Module
4007-9806 SDACT Module for Point or Event Reporting
4007-9807 City Circuit Module with Disconnect Switch
4007-9808 City Circuit Module without Disconnect Switch
4007-9809 Relay Module; relays for Alarm, Supervisory, and Trouble
4007-9812 Dual RS-232 Interface Module
Batteries
2081-9272 6.2 Ah
2081-9274 10 Ah
2081-9288 12.7 Ah
2081-9275 18 Ah
Battery Accessories
4009-9801 Beige, For up to 25 Ah batteries
4009-9802 Beige, For up to 33 Ah batteries
Accessories
2080-9047 DACT cable, 14 ft (4.3 m) long, RJ45 plug one end, spade lugs on the other
2975-9812 Red semi-flush box trim
2975-9813 Platinum semi-flush box trim
2081-9031 Series resistor for WSO, non-addressable IDCs
4081-9002 3.3 kΩ, 1 W end-of-line resistor for Class B non-addressable initiating zones
4081-9018 10 kΩ, 1 W end-of-line resistor harness for non-addressable NACs
4007ES Fire Control Units
For smaller facilities seeking advanced Simplex capabilities, the addressable, fully networkable Simplex 4007ES delivers with a compact, cost-effective package. It features multi-hazard suppression release and an intuitive color touchscreen display. Since it’s UL cross-listed with most conventional units, it can replace a conventional unit with minimal cost and disruption.
Datasheet: S4007-0002
Control Unit with a 3 A, Class
B, IDNAC SLC for up to 127
Addressable Notification Appliances
4007-9201 Red Color
4007-9201BA Red Color
4007-9202 Platinum Color
4007-9202BA Platinum Color
Factory Programming Options
4007-8810 Factory Programming
4007-0831 Custom Labels and Programming
Field Installed Optional Modules
4007-9801 Eight Point Zone/Relay Module
4007-9802 25 VDC Regulator Module
4007-9803
IDNet+ Loop Expansion Module; provides an additional isolated loop with short circuit
isolation to the existing IDNet+ channel, also provides an additional addressable points to
the IDNet+ channel capacity, maximum of two
4007-9804 Dual Class A IDNAC Isolator (DCAI)
4007-9805 Panel Mounted 48 LED Status Annunciator Module
4007-9806 SDACT Module for Point or Event Reporting
4007-9807 City Circuit Module with Disconnect Switch
4007-9808 City Circuit Module without Disconnect Switch
4007-9809 Relay Module; relays for Alarm, Supervisory, and Trouble
4007-9812 Dual RS-232 Interface Module
Batteries
2081-9272 6.2 Ah
2081-9274 10 Ah
2081-9288 12.7 Ah
2081-9275 18 Ah
Battery Accessories 4009-9801 Beige, For up to 25 Ah batteries
Product Part Number Description
Accessories
2080-9047 DACT cable, 14 ft (4.3 m) long, RJ45 plug one end, spade lugs on the other
2975-9812 Red semi-flush box trim
2975-9813 Platinum semi-flush box trim
4081-9018 10 kΩ, 1 W end-of-line resistor harness for non-addressable NACs
2081-9031 Series resistor for WSO, non-addressable IDCs
4007ES Release Control System
When combined with suppression release peripherals, the 4007ES series fire alarm control unit provides actuator supervision and control for use in automatic extinguishing, and deluge or preaction releasing systems. Hazard area initiating and notification devices are controlled using either conventional or addressable circuits per standard 4007ES capabilities.
The necessary releasing system logic is implemented within the 4007ES control unit as required for the local application.
Datasheet: S4007-0003
Releasing Control System Modules
2081-9046 Coil Supervision Module
2080-Series Maintenance Switches
2080-9056 Abort Switch, Flush mount
2080-9057 Abort Switch, Surface mount
Releasing Appliqués,
(Required for 4010ES Suppression
Releasing Applications)
4010-9830 Suppression Releasing Appliqué, English
Suppression Release Peripheral
and Accessories
4090-9005 Basic Suppression Release Peripheral on mounting plate
4090-9006 Suppression Release Peripheral mounted in NEMA 1 red box; required for ULC listing
2975-9227 NEMA 1 red mounting box; required for 4090-9005
4090-9812 Red LED IDNet communications indicator option kit; mounts on door of 2975-9227 box
4100ES Remote Annunciator Panels
Remote Annunciator Panels are dedicated-purpose transponders that support fire alarm system status information. Typical use is when the host fire alarm control unit is located away from the area where those responding to a fire situation need status information.
Datasheet: S4100-0038
Remote Annunciator Panel
4100-9610 Annunciator Remote Annunciator Panel
4100-9611 Basic Remote Annunciator Panel
4100-1292 Panel Mounted LCD Annunciator
Initiating Devices
Initiating Devices
As you consider what fire and life safety solution to use for your facility, first look at the reputation of the supplier behind it. Building owners around the globe trust the Simplex family of detection solutions to help protect their facilities – no matter how large and complex – because of their high degree of reliability, ease of use and revolutionary addressability.
The complete range of Simplex detection products are accurate and responsive and offer real and significant advantages to you and to building occupants in the event of a fire or other emergency
Five ways Simplex detection solutions exceed expectations
Industry-leading technology
The Simplex line of sensors and initiating devices offer high performance and reliability. Quick detection of fire, smoke and heat events help protect your people, property and assets while mitigating any potential fire damage.
And advanced technology lets you monitor and calibrate the performance of your system in accordance with changing environmental conditions.
True addressability
Many Simplex detection devices feature addressable technology, which allows them to function as intelligent configurable devices on a fire detection network. Since they are supervised by the control unit, potential issues can quickly be identified and remediated, saving both time and money while streamlining system management.
Tailored solutions for every space
A wide range of Simplex TrueAlarm Sensors and initiating devices lets you choose the right technology for the scope and needs of your facility. Not only do these devices integrate with fire suppression systems where needed, but a solution customized to your specific requirements helps to ensure a more targeted, accurate response.
Significant reduction of nuisance alarms
Of course you want an alarm to work – but only in the context of an actual event. Through our innovative software and electronics, we created a more stable technology for the quickest response with the least nuisance. And with remote diagnostics, you can proactively service a device that is on the verge of creating nuisance alarms.
Stronger value
As an integral part of Simplex fire and life safety systems, our sensors and detection devices benefit from innovative design and technology that is reliable and efficient, easy to manage and upgrade, and more cost effective overall.
Manage easier and improve performance with these detector features
Advanced photo sensor features
Reduce nuisance alarms, fine-tune sensitivity for optimum protection and receive multiple levels of warning that cleaning or replacement is needed.
Peak value logging
By providing historical data on how close each sensor has come to its alarm point, this feature lets you more accurately set your system for maximum sensitivity while reducing nuisance alarms. Data is logged and stored within the fire detection control unit.
Device address in mounting base
This feature lets you easily interchange heads without reprogramming, remove heads for service, and reinstall them anywhere.
Choose from our complete line of detection devices and sensors
Easily design a system that addresses the unique characteristics and needs of your facility.
Heat and flame detectors
Simplex heat sensors can be set to alarm according to the rise rate or at a fixed temperature. They can also be programmed by time of day to operate in different modes/sensitivities. Flame detectors combine IR sensors with Digital Signal Processing (DSP) algorithms to validate flame presence.
Photoelectric sensors
These devices allow you to detect smoke particles in a sensor chamber and trigger alarms based on their sensitivity setting and the amount of obscuration. Advanced features include drift compensation, automatic sensitivity selection, variable sensitivity by time of day, and dual-stage operation and alarm verification.
Addressable beam detectors
Beam detectors measure the presence and concentration of smoke across an open area using a laser beam and reflector. They are the preferred solution for warehouses, atriums, arenas and other open areas where traditional point-type sensors or aspirating smoke detectors can perform.
Addressable duct sensors
Detect smoke in HVAC ducts with these specialized sensors, which are available in aspirating and non-aspirating models for a wide range of environments.
Multi-sensor devices
Multiple types of sensors (e.g., smoke, heat and CO gas) are combined in a single device, which lets you protect against a broader range of fire types, reduce false alarms, and save on wiring and installation costs.
Pull stations and interface modules
Conventional and addressable pull stations, including ADA-compliant
models, allow for the manual initiation of alarms. Addressable interface modules let you connect external systems (fire pumps, water flow sensors, air handlers, smoke dampers) to the Simplex system.
Addressable aspirated smoke detectors
These detectors can provide early warning of fire hazards by identifying precursor conditions, such as smoldering or overheated equipment – making them ideal for data centers.
Addressable Analog Smoke and Heat Sensing Devices
TrueAlarm Analog Sensors and Bases
TrueAlarm analog sensors provide an analog measurement digitally communicated to the host control unit using addressable communications. At the control unit, the data is analyzed and an average value is determined and stored. An alarm or other abnormal condition is determined by comparing the sensor’s present value against its average value and time.
Datasheet: S4098-0019
TrueAlarm Sensor Bases
(for use with Sensors 4098-9714
and 4098-9733)
4098-9792 Standard Sensor Base, White
4098-9776 Standard Sensor Base, Black
4098-9789 Sensor Base with connections for Remote LED Alarm Indicator or Unsupervised Relay, White
4098-9789 IND Sensor Base with connections for Remote LED Alarm Indicator or Unsupervised Relay, White
4098-9775 Sensor Base with connections for Remote LED Alarm Indicator or Unsupervised Relay, Black
4098-9791
4-Wire Sensor Supervised Relay Base with connections for LED Indicator or Unsupervised
Relay, White (NOT compatible with the 2120 CDT)
4098-9780
2-Wire Sensor Supervised Relay Base with connections for LED Indicator or Unsupervised
Relay, White (NOT compatible with the 2120 CDT)
TrueAlarm Sensors
4098-9714 Photoelectric Smoke Sensor, White, NEMA 1 rated
4098-9714 IND Photoelectric Smoke Sensor, White, NEMA 1 rated
4098-9774 Photoelectric Smoke Sensor, Black, NEMA 1 rated
4098-9733 Heat Sensor, White, NEMA 1 rated
4098-9778 Heat Sensor, Black, NEMA 1 rated
4098-9734 High Temperature Heat Sensor, White, NEMA 1 rated
Note: Model numbers ending in IND are assembled in India.
TrueAlarm Sensor/Base Accessories
2098-9737 Supervised Relay (For use with 4098-9791 base)
4098-9860 Supervised Relay (For use with 4098-9780 base)
2098-9808 Remote Red LED Alarm Indicator on single gang stainless steel plate, NEMA 1 rated
4098-9822 Unsupervised Relay, tracks base led status
4098-9832 Adapter Plate
TrueAlarm Multi-Sensor and Bases
TrueAlarm multi-sensor combines the established performances of a TrueAlarm photoelectric smoke sensor with a fast-acting and accurate TrueAlarm thermal sensor to provide both features in a single sensor/base assembly.
Datasheet: S4098-0024
TrueAlarm Multi-Sensor
4098-9754 Multi-sensor, photoelectric sensor with integral thermal sensor, White
4098-9764 Multi-sensor, photoelectric sensor with integral thermal sensor, White
4098-9754 IND Multi-sensor, photoelectric sensor with integral thermal sensor, White
4098-9764 BA Multi-sensor, photoelectric sensor with integral thermal sensor, White
4098-9764 IND Multi-sensor, photoelectric sensor with integral thermal sensor, White
4098-9764 BK Multi-sensor, photoelectric sensor with integral thermal sensor, Black
4098-9779 Multi-sensor, photoelectric sensor with integral thermal sensor, Black
TrueAlarm Multi-Sensor Bases
4098-9792 Standard Sensor Base, White
4098-9776 Standard Sensor Base, Black
4098-9789 Sensor Base with connections for remote LED alarm indicator or unsupervised relay, White
4098-9789 IND Sensor Base with connections for remote LED alarm indicator or unsupervised relay, White
4098-9775
Black
Sensor Base with connections for remote LED alarm indicator or unsupervised relay, Black
4098-9791 4-Wire Sensor Relay Base, White
4098-9780 2-Wire Sensor Relay Base, White
4098-9793 Isolator Base with built-in IDNet communications isolator, White
4098-9794 Sounder Base with connections for remote LED alarm indicator or unsupervised relay, White
Note: Model numbers ending in IND are assembled in India.
Accessories
4098-9832 Adapter Plate, 6-3/8” (162 mm) diameter, 1/4” (6.4 mm) deep, matches bases
2098-9808 Red LED Alarm Indicator on single gang stainless steel plate
4098-9822 Relay with operation that tracks base led status
2098-9737 Supervised Relay for use with 4098-9791 only
4098-9860 Supervised Relay for use with 4098-9780 only
Dual Address Bases for Multi-Sensor
This TrueAlarm multi-sensor combines the established performances of a TrueAlarm photoelectric smoke sensor with a fast-acting and accurate TrueAlarm thermal sensor to provide both features in a single sensor/base assembly.
Datasheet: S4098-0033
TrueAlarm Multi-Sensor Bases
4098-9795 Sounder Base, Dual address base for multi-sensor 4098-9754
4098-9796 Standard Base, Dual address base for multi-sensor 4098-9754
TrueAlarm Sounder Base
Sounder bases combine an audible notification appliance and a TrueAlarm analog sensor to provide digital communication of analog sensing, intelligent data evaluation, control unit selection, timed/multi-stage selection and sensor alarm and trouble LED indication.
Datasheet: S4098-0028
Sounder Base 4098-9794 Sounder Base with connections for Remote LED Alarm Indicator or Unsupervised Relay
Sensors
4098-9714 Photoelectric Smoke Sensor
4098-9733 Heat Sensor
Sounder Base Accessories
4098-9832 Adapter Plate
2098-9808 Remote red LED Alarm Indicator on single gang stainless steel plate
4098-9822 Relay, tracks base LED status
IDNet Isolator Base
The IDNet Isolator Base provides TrueAlarm analog sensor operation and also
provides IDNet communications isolation to improve installation convenience
and increase system integrity.
Datasheet: S4098-0025
Product Part Number Description
IDNet Isolator Base 4098-9793 Isolator base for TrueAlarm analog sensors
TrueAlarm CO Sensor Bases
TrueAlarm addressable CO sensor bases contain a carbon monoxide (CO) sensing module providing both CO toxic gas monitoring and enhanced fire detection.
Datasheet: S4098-0052
TrueAlarm CO Sensor Base
4098-9770 CO Base, Standard operation
4098-9771 CO Base with Sounder
TrueAlarm Sensors
4098-9714 Photoelectric Smoke Sensor
4098-9754 Multi-Sensor Photoelectric and Heat Sensing
4098-9733 Heat Sensor
CO Base Replacement CO Cartridge
and Accessories
4098-9747 CO Replacement Cartridge (CORC)
Solo 332 Aerosol Dispenser, suitable for larger diameter detectors
Solo C3 CO Aerosol Canister
4098-9832 Adapter Plate
2098-9808 Remote red LED Alarm Indicator on single gang stainless steel plate
4098-9822 Relay, tracks base LED status
TrueAlarm CO Sensor Base with 520 Hz Sounder
TrueAlarm addressable CO sensor base with 520 Hz sounder provides CO toxic gas monitoring and enhanced fire detection.
Datasheet: S4098-0053
TrueAlarm CO Sensor Base 4098-9773 CO Sensor base with 520 Hz Sounder
TrueAlarm Sensors
4098-9714 Photoelectric Smoke Sensor
4098-9754 Multi-Sensor Photoelectric and Heat Sensing modes
4098-9733 Heat Sensor
CO Base Replacement CO Cartridge
and Accessories
4098-9747 CO Replacement Cartridge (CORC)
Solo 332 Aerosol Dispenser, suitable for larger diameter detectors
Solo C3 CO Aerosol Canister
4098-9863 Adapter Plate required for surface flush 4” square electrical boxes
2098-9808 Remote red LED Alarm Indicator on single gang stainless steel plate
TrueAlarm Sensor Base with 520 Hz Sounder
TrueAlarm sensor bases with 520 Hz tone are multi-point devices, use a single IDNet address, and receive communications and sensor power from the IDNet channel.
Datasheet: S4098-0054
TrueAlarm Sensor Base 4098-9772 Sensor base with 520 Hz Sounder
TrueAlarm Sensors
4098-9714 Photoelectric Smoke Sensor
4098-9754 Multi-Sensor Photoelectric and Heat Sensing
4098-9733 Heat Sensor
Accessories
4098-9863 Adapter Plate required for surface flush 4” square electrical boxes
2098-9808 Remote red LED Alarm Indicator on single gang stainless steel plate
Duct Sensor Housings
The compact air duct smoke sensor housings provide TrueAlarm operation for the detection of smoke in air conditioning or ventilating ducts. Sampling tubes are installed in the duct to allow air to be directed to the smoke sensor mounted in the housing.
Datasheet: S4098-0030
Duct Smoke Sensor Housing with
Photoelectric Sensor
4098-9755 Basic Duct Sensor Housing
4098-9756
Duct Sensor Housing with supervised multiple relay output, requires separate 24 VDC fire
alarm power and 4081-9008 end-of-line resistor harness
Remote LED Indicator and
Test Station
2098-9808 Red LED status indicator on single-gang stainless steel plate
2098-9806 Test Station with keyswitch and red LED status indicator, on single-gang stainless steel plate
Epoxy Encapsulated Remote Relay
and End-of-Line Resistor
4098-9843 Relay
4081-9008 End-of-Line Resistor Harness
In-Duct Sensor Housing
HVAC air ducts in buildings supply fresh air and exhaust stale air. Depending on the overall fire detection requirements, smoke detection may be required in the air ducts. For applsications where sampling tube-type duct detection is not appropriate because of low air velocity or small duct size, In-Duct Sensor Housings can be used to install the TrueAlarm analog sensor directly in the duct.
Datasheet: S4098-0021
In-Duct Sensor Housing
4098-9750 In-Duct Sensor Housing with beige mounting box, (requires 4098-9714 sensor) without relay
4098-9751 In-Duct Sensor Housing with beige mounting box, (requires 4098-9714 sensor) with relay
4098-9714 Photoelectric Sensor Head
In-Duct Sensor Options
4098-9819 Adapter for 6” (152 mm) round duct, beige
4098-9824 Adapter for 8” (203 mm) round duct, beige
4098-9852 Adapter for 10” (254 mm) round duct, beige
4098-9853 Adapter for 12” (305 mm) round duct, beige
2098-9806 Remote Test Station mounted on single gang stainless steel plate
2098-9808 Remote LED Alarm Indicator mounted on single gang stainless steel plate
FFE IDNet Auto-Aligning Reflective
Beam Smoke Detectors
Addressable beam smoke detection provides the proven Fireray® 5000 system features of auto-aligning infrared beam smoke detection combined with IDNet addressable communications.
Datasheet: S4098-0049
Addressable Beam Detector
4098-9019 IDNet Communications Addressable Reflective Auto Align Beam Smoke Detector System
4098-9020
IDNet Communications Addressable Reflective Auto Align Beam Smoke Detector Controller
only, for upgrade or replacement
Beam Detector Heads, Prisms,
and Accessories
5000-031 Additional Detector Head and Prism
1210-000 Detector Surface Mount Uni-Box, with conduit knockouts on all sides
1220-000 Cover Plate, pre-drilled to mount the reflective detector head to a double gang electric box
1030-000 Surface Mount Wall Bracket for prisms
5000-201
Adjustment Bracket for Motorized Reflective Detector Heads, with 360 degree rotation and
140 degree adjustment. White in color
5000-009 Controller Back Box. Surface or flush mount
5000-010 Controller Back Box Semi-Flush Mount Trim Plate for the 5000-009 Box
1031-000 Surface Mount Wall Bracket for prisms. Black in color
1040-000 Single Prism Alignment Adaptor Plate. White in color
1050-000 Four Prism Alignment Adaptor Plate. White in color
23901.01 Replacement Prism Reflector
1010-000
Long Range Prism Kit, includes three additional prisms for installations between 164 ft and
328 ft (50m and 100m)
5000-014 Ceiling Pendant Mounting Bracket
1000-018 Protective Wire Cage for 5000 Series detector heads
1000-019 Protective Wire Cage for 5000 Series controllers
1140-000
Ceiling Pendant Mount for the reflective detector head, supplied with a 12” long nipple.
White in color
1141-000
Ceiling Pendant Mount for the end to end transmitter and receiver units, supplied with a 12”
long nipple. White in color
1142-000
Ceiling Pendant Mount for the reflective detector head, supplied with a 12” long nipple.
White in color
1143-000
Ceiling Pendant Mount for a single prism, includes ceiling pendant and a single prism
mounting plate. White in color
1144-000
Ceiling Pendant Mount for long throw prism kit, includes ceiling pendant and a four prism
mounting plate. White in color
VESDA-E VEP IDNet Aspirating Smoke Detectors
The Simplex VESDA-E VEP IDNet series of smoke detectors use advanced detection technology to provide early warning and nuisance alarm rejection to a wide range of applications. Built on the Flair detection technology and years of application experience, VEP detectors perform consistently over their lifetime through absolute calibration.
Datasheet: AC4098-0056
Vesda-E Aspirating Smoke Detector
4098-VEP-A00-1P VESDA-E VEP, one pipe with LEDs - Simplex
4098-VEP-A00-P VESDA-E VEP with LEDs - Simplex
4098-VEP-A10-P VESDA-E VEP with 3.5 in. display - Simplex
Accessories
VSP-960 VESDA-E mounting bracket
VSP-961 VESDA-E exhaust adaptor US
VSP-962 VESDA-E filter
VSP-962-20 VESDA-E filter, 20 pieces
VSP-963 VESDA-E aspirator
VSP-964-03 VESDA-E smoke detection chamber, MK4
VSP-965 VESDA-E sampling module
VESDA-E VES IDNet Aspirating Smoke Detectors
The Simplex VESDA-E VES IDNet series of smoke detectors are similar to the VESDA-E VEP aspirating smoke detectors, but include a valve mechanism in the inlet manifold and software to control the airflow from the four sectors or pipes. Using this configuration, you can divide a single zone into four separate sectors, for example, distinguishing between separate aisles within a data room. With the VES, the user can locate the source of smoke by identifying the first sector to reach the Alert level. The detector then continues to sample from all sectors to monitor fire growth and report separate alarm levels for each sector. In addition, the VES delivers a range of revolutionary features that provide user value.
Datasheet: AC4098-0058
Vesda-E Aspirating Smoke Detector
4098-VES-A00-P VESDA-E VES with LEDs - Simplex
4098-VES-A10-P VESDA-E VES with 3.5 in. display - Simplex
VSP-955-04 VESDA-E VES scanner manifold spare
Accessories
VSP-960 VESDA-E mounting bracket
VSP-961 VESDA-E exhaust adaptor US
VSP-962 VESDA-E filter
VSP-962-20 VESDA-E filter, 20 pieces
VSP-963 VESDA-E aspirator
VSP-964-03 VESDA-E smoke detection chamber, MK4
VSP-965 VESDA-E sampling module
VESDA-E VEU IDNet Aspirating Smoke Detectors
The Simplex VESDA-E VEU IDNet series aspirating smoke detectors are the premium detector of the VESDA-E range. With an ultra-wide sensitivity range 15 times greater than VESDA VLP, and provision for more sampling holes, VEU detectors provide increased coverage of at least 40 percent in high airflow applications. Longer linear pipe runs and extended branched pipe network configurations cater to applications with higher ceilings, providing an increased coverage of up to 80 percent. You can conveniently mount VEU detectors for ease of service and maintenance. In addition, the VEU delivers a range of revolutionary features that provide user value.
Datasheet: AC4098-0057
Vesda-E Aspirating Smoke Detector
A4098-VEU-A00 VESDA-E VEU with LEDs - Simplex
A4098-VEU-A10 VESDA-E VEU with 3.5 in. display - Simplex
VSP-960 VESDA-E mounting bracket
Accessories
VSP-961 VESDA-E exhaust adaptor US
VSP-962 VESDA-E filter
VSP-962-20 VESDA-E filter, 20 pieces
VSP-963 VESDA-E aspirator
VSP-964-03 VESDA-E smoke detection chamber, MK4
VSP-965 VESDA-E sampling module
VSP-965 VESDA-E sampling module
Xtralis IDNet Air Aspiration Addressable Duct
Smoke Detection
For smoke detection in HVAC ducts or other locations that are inconvenient and/or difficult to access, these smoke sensing systems mount the sensor remotely and sample the air using traditional air aspiration techniques.
Datasheet: S4098-0048
Single Inlet Duct
Detection Application
4098-XAD-110 Single inlet sensor housing with single duct probe kit
LF-42247 25 ft (7.5 m) Flexible dual core tubing
LF-42246 50 ft (15 m) Flexible dual core tubing
LF-42282 Single inlet water trap kit
Dual Inlet Duct
Detection Application
4098-XAD-210 Dual inlet sensor housing with dual duct probe kit
LF-42247 25 ft (7.5 m) Flexible dual core tubing
LF-42250 25 ft (7.5 m) Flexible single core tubing
LF-42246 50 ft (15 m) Flexible dual core tubing
LF-42249 50 ft (15 m) Flexible single core tubing
LF-42283 Dual inlet water trap kit
Accessories
ISP-001 Replacement air filter package of ten (10) model 80-0020-0 filters
LF-42241 Single inlet duct probe kit
LF-42243 Dual inlet duct probe kit
Remote LED Indicator and
Test Station
2098-9808 Red LED status indicator on single-gang stainless steel plate
2098-9806 Test station with keyswitch and red LED status indicator, on single-gang stainless steel plate
Epoxy Encapsulated Remote Relay
and End-of-Line Resistor
4098-9843 Relay
4081-9008 End-of-Line Resistor Harness
TrueAlarm Analog Sensing
QuickConnect2 sensor design provides TrueAlarm photoelectric analog sensing and IDNet two-wire addressable communications combined into one assembly.
Datasheet: S4098-0034
Sensors
4098-9757 QuickConnect2 TrueAlarm Sensor
GSA4098-9757 QuickConnect2 TrueAlarm Sensor, Assembled in America
MX Technology Addressable Devices
MX Loop Interface Modules
The MX Loop Interface Module provides the necessarycommunications, monitoring, and control for up to 250 addressable MX devices per loop.
Datasheets: 4100-0059
MX Loop Interface Module
4010-9917 MX Loop interface module for 4010ES fire alarm control units with EPS, ES-PS or ES-XPS
4100-6077 MX Loop Interface Module for 4100ES fire alarm panels with SPS
MX 850 Series Addressable Multi-Sensors
MX 850 Series Sensors communicate to the MX Loop Module using MX Technology communications. Each detector can operate in one or two of several detection modes, thus allowing it to be easily optimized to the risk.
Datasheet: S4906-0016
Addressable Sounder-Beacons
4098-5209 Addressable Loop Powered Low Power Sounder Base, 85 dB maximum @ 3 ft (1 m)
4098-5210 Addressable Loop Powered Standard Power Sounder Base, 85 dB maximum @ 10 ft (3 m)
4098-5211 Addressable 4-Wire Sounder Base, 90 dB maximum @ 10 ft (3 m)
4098-5260 4” Addressable Continuity Base 4B-C UL
4098-5261 4” Detector Base for use when isolation is not required
4098-5212 Addressable Loop Powered Sounder-Beacon Base
4098-5215 Addressable Loop Powered Sounder Base
4098-5251 Photoelectric/Heat Sensor with Isolator
4098-5252 Photoelectric Smoke Sensor with Isolator
4098-5253 Heat Sensor with Isolator
4098-5254 Triple Sensor with Isolator
Accessories
2098-9808 Remote LED Alarm Indicator for use with the bases listed above
4098-5276 Address Flags (pack of 100)
4098-5277 Address Flag Labels
517.050.058 Ceiling Tile Adaptor Plate, use to mount beacon or sounder bases to the Ceiling Tile Adaptor
517.050.060
Ceiling Tile Adaptor (CTA), use to mount sensors to suspended ceilings;
allows commissioning and testing before ceiling is installed
MX Technology Addressable Callpoints
Addressable manual callpoints, with compact communications modules, are easily installed to satisfy demanding applications. An integral addressable module monitors status and communicates changes to the connected control unit via MX Loop communications.
Datasheet: S4099-0004
Addressable Manual Callpoints
4099-5203 MX Loop addressable indoor callpoint
4099-5204 MX Loop addressable outdoor callpoint, includes surface mount box
MX Technology Addressable Duct Sensor Housing
The 4098-5214 duct smoke sensor housing allows a 4098-5252 MX
Technology smoke sensor to monitor for smoke conditions in air conditioning or ventilating ducts.
Datasheet: S4098-0046
Duct Smoke Sensor Housing 4098-5214
Duct sensor housing with internally mounted sensor base, 7 in. (178 mm) exhaust tube,
sampling tube end plug, mounting screws, and mounting template
Smoke Sensor 4098-5252 850 series MX Technology Addressable Photoelectric Sensor for the 4098-5214
MX Technology Addressable Manual Stations
MX addressable stations contain an integral addressable module that constantly monitors status and communicates with an MX Loop Module located in the host fire alarm control unit.
Datasheet: S4099-0003
Addressable Manual Stations
4099-5201 MX Technology single action manual station
4099-5202 MX Technology double action manual Station, Breakglass operation
Accessories
2099-9803 Replacement breakglass
2099-9804 Replacement break-rod
2099-9820 Flush mount adapter kit, beige
2099-9828 Institutional cover kit for field installation on A4099-9004
2099-9813 Semi-flush trim plate for double gang switch box, red
2099-9814 Surface trim plate for Wiremold box V5744-2, red
2975-9022 Cast aluminum surface mount box, red
2975-9178 Surface mount steel box, red
2099-9819 Flush mount adapter kit, black
MX Technology Addressable Multi-Sensors and
Triple Sensors
MX Sensors communicate to the MX Loop Module using MX Technology communications. Each detector can operate in one or two of several detection modes, thus allowing it to be easily optimized to the risk.
Datasheet: S4906-0017
Addressable Multi-Sensors,
Triple Sensors, Bases
4098-5255 MX Photo/Heat Sensor
4098-5256 MX Photo Sensor
4098-5257 MX Heat Sensor
4098-5265 MX Photo/Heat Sensor-Isolator
4098-5266 MX Photo Sensor Isolator
4098-5267 MX Heat Sensor Isolator
4098-5268 MX Photo/Heat/CO Sensor Isolator
MX Technology Addressable Smoke and
Heat Sensors
MX Sensors communicate to the MX Loop Module using MX Technology communications. This allows each detector to operate in one or two of several detection modes, thus allowing it to be easily optimized to the risk.
Datasheet: S4098-0045
Smoke & Heat Sensors, Bases
4098-5203 Photoelectric Smoke Sensor with Heat Sensor (Multi-Sensor)
4098-5207 5” Addressable Sensor Base with Remote LED Output
4098-5208 5” Addressable Isolator Base with Remote LED Output
4098-5209 Addressable Loop Powered Low Power Sounder Base, 85 dB maximum @ 3 ft (1 m)
4098-5210 Addressable Loop Powered Standard Power Sounder Base, 85 dB maximum @ 10 ft (3 m)
4098-5211 Addressable 4-Wire Sounder Base, 90 dB maximum @ 10 ft (3 m)
4098-5212 Addressable Loop Powered Sounder-Beacon Base
4098-5215 Addressable Loop Powered Sounder Base
MX Technology Addressable Sounder beacons
MX Loop Powered Sounder beacons use MX Technology communications for control and power. Indoor models are available in red or white. The outdoor model is in red.
Datasheet: S4906-0015
Addressable Sounder Beacons
4906-5205 Indoor Sounder Beacon with mounting box, Red
4906-5206 Indoor Sounder Beacon with mounting box, White
4906-5207 Outdoor Sounder Beacon with mounting box, Red
MX Technology Addressable Sounders
MX Loop Powered Sounders use MX Technology communications for control and power. Indoor models are available in red or white. The outdoor model is in red.
Datasheet: S4906-0014
Addressable Sounders
4906-5201 Indoor Sounder with mounting box, Red
4906-5202 Indoor Sounder with mounting box, White
4906-5203 Outdoor Sounder with mounting box, Red
MX Technology Addressable Visual Indicating
Device (VID) Sounders and Sounder beacons
MX Loop Powered Visual Indicating Device (VID) Sounders and Sounder beacons use MX technology communication for control and power. These units operate with the 4100ES or 4010ES Fire Alarm Control Units (FACUs) through the MX Loop Card’s addressable loop.
Datasheet: S4906-0018
Addressable Sounder
& Sounder-Beacons
4098-5220 Addressable Base Sounder Beacon VID, Clear
4906-5211 Addressable Wall Sounder, Red
4906-5212 Addressable Wall Sounder Waterproof, Red
4906-5214 Addressable Wall Sounder Beacon VID Red, Red
4906-5215 Addressable Wall Sounder Beacon VID Weatherproof, Red
4098-5217 Addressable Base Sounder, White
4906-5210 Addressable Wall Sounder, White
4906-5213 Addressable Wall Sounder Beacon VID White, White
Accessories
4905-5205 Flush Back Box Adaptor for Indoor Wall Sounder
4905-5203 Shallow Surface Back Box for Indoor Wall Sounder Red
4905-5206 Deep Surface Back Box for Indoor Wall Sounder Red
4905-5201 Blanking Cap for Sounder Base
4905-5202 Conduit Adaptor for Sounder Base
4905-5204 Shallow Surface Back Box for Indoor Wall Sounder White
4905-5207 Deep Surface Back Box for Indoor Wall Sounder White
MX Technology Individual Addressable Modules (IAMs)
These MX Technology addressable I/O (input/output) modules provide flexible monitoring and control to satisfy a variety of applications.
Each is individually addressable and communicates with an MX Loop Module located in the host fire alarm control unit.
Datasheet: S4090-0012
Addressable Input/Output Modules
4090-5201 Mini-IAM, supervised contact monitoring module
4090-5202 Dual Input IAM, dual Class B or single Class A supervised contact monitoring module
4090-5203 Relay IAM, contact rated 2 A @ 24 VDC
4090-5204 Signal IAM, two Class B NACs, or one Class A NAC, rated 2 A @ 24 VDC
4090-5205 Monitor ZAM, two Class B inputs or one Class A input
4090-5206 Line Isolator Module
Accessories
2098-9808 Remote LED on single gang stainless steel plate, optional for use with 4090-5201 Mini-IAM
4081-9020 200 Ω, 1%, ½ W resistor, UL listed, Four Wire End-of-Line Resistor
4081-9021 4.7 kΩ, 1%, ½ W resistor, UL listed, Four Wire End-of-Line Resistor
4081-9022 27 kΩ, 1%, ½ W resistor, UL listed, Four Wire End-of-Line Resistor
MX Technology Multiple I/O Modules
These MX Technology addressable I/O (input/output) modules provide flexible monitoring and control to satisfy a variety of applications.
Each is individually addressable and communicates with an MX Loop Module located in the host fire alarm control unit.
Datasheet: S4090-0012
Multiple I/O Modules use MX Technology to provide an addressable input/output module with flexible monitoring of three inputs and
control of two outputs to satisfy a variety of applications.
Datasheet: S4090-0016
Product Part Number Description
Multiple I/O Module 4090-5250 3 Class B inputs and 2 Form C relay outputs
Addressable Input/Output Devices
Addressable Manual Stations
The addressable manual station combines the familiar manual station housing with a compact communication module that is easily installed to satisfy demanding applications. Its integral individual addressable module (IAM) constantly monitors status and communicates changes to the connected control panel via IDNet or MAPNET II communications wiring.
Datasheet: S4099-0005
Addressable Manual Station
(NEMA 1 rated when used
with 2975-9178 back box)
4099-9004 Addressable single action manual station, English, UL, ULC, FM, CSFM
4099-9004CB Addressable single action manual station, Bilingual English and French, ULC
4099-9004CF Addressable single action manual station, French, ULC
4099-9004PO Addressable single action manual station, Portuguese, UL, FM
4099-9004SP Addressable single action manual station, Spanish, UL, FM
4099-9005 Addressable double action manual station, Breakglass operation, English
4099-9005PO Addressable double action manual station, Breakglass operation, Portuguese, UL, FM
4099-9005SP Addressable double action manual station, Breakglass operation, Spanish, UL, FM
4099-9006 Addressable double action manual station, Push operation, English, UL, ULC, FM, CSFM
4099-9006PO Addressable double action manual station, Push operation, Portuguese, UL, FM
4099-9006SP Addressable double action manual station, Push operation, Spanish, UL, FM
4099-9021 Addressable single action manual station, NO GRIP operation, English, UL, ULC, FM, CSFM
Accessories
2099-9803 Replacement breakglass
2099-9804 Replacement break-rod
2099-9813 Semi-flush trim plate for double gang switch box, red
2099-9814 Surface trim plate for Wiremold box V5744-2, red
2099-9819 Flush mount adapter kit, black
2099-9820 Flush mount adapter kit, beige
2099-9822 Replacement retaining clip for breakglass
2099-9828 Institutional cover kit for field installation on A4099-9004
252-019 B key for manual station reset
2975-9022 Cast aluminum surface mount box, red
2975-9178 Surface mount steel box, red
4099-9805 Retrofit Kit for field conversion of a single action station to a NO GRIP station
Six Point Module
The Six Point Module allows a compatible fire alarm control unit IDNet communications channel to monitor four T-sense input circuits and control two output relays from a single compact module requiring a single address. Power is supplied by a 24 VDC connection to a listed fire alarm power supply.
Datasheet: S4090-0009
Six Point Module 4090-9120 Six Point Module
Trim Plates
4090-9801 Optional Trim Plate, For semi-flush mounted box
4090-9802 Optional Trim Plate, For surface mounted box
End-of-Line Resistor Harnesses
4081-9003 4.7 kΩ, 1/2 W
4081-9004 6.8 kΩ, 1/2 W; Standard end-of-line resistor harness for N.O. contact supervision
4081-9005 1.8 kΩ, 1/2 W
8 A Relay Individual Addressable Module (IAM)
8 A Relay IAMs allow fire alarm control units to control a remotely located NO and NC contact using IDNet addressable communications for both data and module power.
Datasheet: S4090-0015
Relay IAM 4090-9010 8 A Relay IAM
Adapter and Trim Plates
4090-9801 Optional Trim Plate, For semi-flush mounted box
4090-9802 Optional Trim Plate, For surface mounted box
4090-9813 Adapter plate to fit 4 11/16” (119mm) square electrical box
Addressable IDNet Communications Isolator
Addressable IDNet Communications Isolators provide IDNet communications isolation to improve installation convenience and increase system integrity. Isolation is automatically activated when an output short circuit is detected and isolation can also be selected manually from the control unit to assist with troubleshooting wiring problems.
Datasheet: S4090-0005
IDNet Communications Isolator 4090-9116 Addressable IDNet Communications Isolator
Adapter and Trim Plates
4090-9801 Optional Trim Plate, For semi-flush mounted box
4090-9802 Optional Trim Plate, For surface mounted box
4090-9813 Adapter plate to fit 4 11/16” (119 mm) square electrical box
Addressable Power Isolator
Under normal conditions, the Addressable Power Isolator provides continuity between ports. In the event of a short circuit, or if requested from the control unit, the isolator opens a two-pole electronic switch, isolating both power circuit conductors.
Datasheet: S4090-0006
Power Isolator 4090-9117 Addressable Power Isolator
Trim Plates
4090-9801 Optional Trim Plate, For semi-flush mounted box
4090-9802 Optional Trim Plate, For surface mounted box
Analog Monitor Zone Adapter Module (AMZ)
Analog Monitor ZAMs (AMZs) provide an accurate, multi-featured interface for connecting analog sensors to compatible addressable fire detection panels. The panel monitors the sensor and annunciates whenever a selected threshold level or trouble condition is observed.
Datasheet: S4190-0007
Analog Monitor ZAM
4190-9050 Remote AMZ package with cover - surface mount
4190-9051 Remote AMZ package with cover - semi-flush
Remote LED indicator 2098-9808 3.3 kΩ, 1 End-of-Line Resistor Harness
Dual Contact Relay Individual Addressable
Modules (IAMs)
Dual Contact Relay IAMs allow fire alarm control units to control two remotely located Form “C” contact using IDNet or MAPNET II addressable communications for both data and module power.
Datasheet: S4090-0014
Relay IAM 4090-9008 Dual Contact Relay IAM
Adapter and Trim Plates
4090-9801 Optional Trim Plate, For semi-flush mounted box
4090-9802 Optional Trim Plate, For surface mounted box
4090-9813 Adapter plate to fit 4 11/16” (119 mm) square electrical box
Relay Individual Addressable Module (IAM)
IDNet Relay IAMs allow fire alarm control units to control a remotely located Form “C” contact using IDNet addressable communications for both data and module power.
Datasheet: S4090-0002
Relay IAM 4090-9002 Relay IAM
Adapter and Trim Plates
4090-9801 Optional Trim Plate, For semi-flush mounted box
4090-9802 Optional Trim Plate, For surface mounted box
4090-9813 Adapter plate to fit 4 11⁄16” (119 mm) square electrical box
Individual Addressable Modules (IAMs)
Individual addressable modules (IAMs) receive both power and communications from a two-wire MAPNET II or IDNet circuit. They provide location specific addressability to a single initiating device (such as single station smoke detector alarm contacts or heat detector contacts) or multiple devices at the same location by monitoring normally open dry contacts and the wiring to an end-of-line resistor.
Datasheet: S4090-0001
Supervised IAM
4090-9001 Supervised IAM mounted in thermoplastic housing with screw terminals
4090-9051 Supervised IAM encapsulated with wire leads
Optional Trim Plates
and Mounting Bracket
4090-9807 Trim Plates for surface mounted box
4090-9810 Mounting bracket
4098-9806 Trim Plates for semi-flush mounted box
End-of-Line Resistor Harnesses
4081-9003 4.7 kΩ, 1/2 W
4081-9004 6.8 kΩ, 1/2 W
4081-9005 1.8 kΩ, 1/2 W
Relay Individual Addressable Module (IAM) with T-Sense Input
The Relay IAM with T-Sense allows a compatible fire alarm control unit IDNet communication channel to monitor two input contact closures with one point and control an output relay with the other point, both from a compact module requiring a single address.
Datasheet: S4090-0007
Relay IAM 4090-9118 Relay IAM with T-Sense
Adapter and Trim Plates
4090-9801 Optional Trim Plate, For semi-flush mounted box
4090-9802 Optional Trim Plate, For surface mounted box
4090-9813 Adapter plate to fit 4 11/16” (119 mm) square electrical box
End-of-Line Resistor Harnesses
4081-9003 4.7 kΩ, 1/2 W
4081-9005 1.8 kΩ, 1/2 W
Relay Individual Addressable Module (IAM) with Unsupervised Input
The Relay IAM allows a compatible fire alarm control unit IDNet communications channel to monitor an unsupervised input contact closure with one point and control an output relay with the other point, both from a compact module requiring a single address.
Datasheet: S4090-0008
Relay IAM 4090-9119 Relay IAM with Unsupervised Input
Adapter and Trim Plates
4090-9801 Optional Trim Plate, For semi-flush mounted box
4090-9802 Optional Trim Plate, For surface mounted box
4090-9813 Adapter plate to fit 4 11/16” (119 mm) square electrical box
Security Monitor Individual Addressable
Module (IAM)
The Security Monitor IAM has both power and communications supplied by a two-wire 4100ES, 4100U or 4010ES IDNet circuit. It provides location specific addressability for up to five initiating devices by monitoring the circuit wiring connections to either normally closed or normally open dry contacts (one type per IAM).
Datasheet: S4090-0004
Security Monitor IAM 4090-9121 Security Monitor IAM
Accessories
4081-9010 1 kΩ Resistor Harness, use for series connection to N.O. switches
4081-9014
2.4 kΩ Resistor Harness, use for series and end-of-line resistor when connected to N.C.
switches (2 required)
4081-9015 1.5 kΩ Resistor Harness, use for end-of-line resistor when connected to N.O. switches
4090-9806 Optional Trim Plate, semi-flush mount
4090-9807 Optional Trim Plate, surface mount
4090-9810
Mounting bracket, mounts IAM to box, provides screw holes for trim plate, required for optional trim plates
Signal Individual Addressable Module (IAM)
For applications requiring additional individual NAC supervision and control, the Signal IAM provides a 0.5 A remote NAC under host panel addressable point control. IDNet communications monitor the Signal IAM status and then connects the output NAC to the separate signal input for local alarm notification.
Datasheet: S4090-0010
Signal IAM 4090-9007 Signal IAM
Accessories
2081-9044 Overvoltage Protector
4081-9008 End-of-Line Resistor Harness
4090-9116 Addressable IDNet Communications Isolator
4090-9801 Optional Trim Plate, For semi-flush mounted box
4090-9802 Optional Trim Plate, For surface mounted box
Zone Adapter Modules (ZAM)
ZAMs allow a single addressable point to monitor a conventional initiating device circuit (IDC) populated with 2-wire or 4-wire initiating devices.
Datasheet: S4090-0003
Adapter Module
4090-9106 Zone Adapter Module for Class A monitoring of 2-wire initiating devices
4090-9101 Zone Adapter Module for Class B monitoring of 2-wire or 4-wire initiating devices
End-of-Line Resistor Harness 4081-9002 End-of-line resistor for Signal IAM NAC output when wired Class B
Optional Adapter and Trim Plates
4090-9801 Trim Plates for semi-flush mounted box
4090-9802 Trim Plates for surface mounted box
4090-9813 Adapter plate to fit 4 11⁄16” (119 mm) square electrical box
Addressable Peripheral Accessories
Sensor Guard
The Sensor Guard combines the sensitivity and maintained accuracy of TrueAlarm sensors with a rugged, tamper resistant enclosure. Typical applications are: Correctional/Detention facilities, Mental Hospitals, Industrial areas, Educational facilities, Dormitories, and many other locations where the smoke sensor may be intentionally or accidentally subjected to abuse.
Datasheet: S4098-0035
Sensor Guard 4098-9846 Sensor Guard for TrueAlarm Sensors
Weatherproof Duct Housing Enclosure
The Weatherproof Duct Housing Enclosure provides for the circulation of conditioned air around the internally mounted addressable duct sensor housing to maintain the sensor housing at its rated temperature range and provide protection from ambient environmental extremes.
Datasheet: S4098-0032
Temporal Code 4 Module
CO gas alarm warnings are different to fire alarm warnings. In the event of a CO gas alarm, a Temporal Code 4 audible pattern signals the type of condition to the responders and helps them determine the proper action.
Datasheet: S4905-0006
Module 4905-9835 Temporal Code 4 Module
4100ES Release Control System
When combined with Suppression Release Peripherals, the 4100ES series fire alarm control panel provides actuator supervision and control for use in automatic extinguishing, and deluge or preaction releasing systems. Hazard area initiating and notification devices are controlled using either conventional or addressable circuits per standard 4100ES capabilities. The necessary releasing system logic is implemented within the 4100ES control panel as required for the local application.
Datasheet: S4100-0040
Manual Station 4099-9015
Double action, Push operation, Addressable manual station; red housing with white letters
and white pull lever; requires label kit 4099-9802
4100ES Releasing
Control System Modules
2080 Series Maintenance Switches
2080-9056 Abort Switch, Flush mount
2080-9057 Abort Switch, Surface mount
2081-9046 Coil Supervision Module
Appliqués
4010-9830 Releasing Appliqué required for 4100ES suppression releasing applications, English
4010-9830CAF Releasing Appliqué required for 4100ES suppression releasing applications, French
Suppression Releasing Peripheral
4090-9005 Basic Suppression Release Peripheral on mounting plate
4090-9006 Suppression Release Peripheral mounted in NEMA 1 red box; required for ULC listing
Accessories
2099-9804 Replacement break-rod
2099-9820 Flush mount adapter kit, beige
2975-9227 NEMA 1 red mounting box; required for 4090-9005
4090-9812 Red LED IDNet communications indicator option kit; mounts on door of 2975-9227 box
2099-9813 Semi-flush trim plate for double gang switch box, red
2099-9814 Surface trim plate for Wiremold box V5744-2, red
2975-9022 Cast aluminum surface mount box, red
2975-9178 Surface mount steel box, red
4099-9802
Label kit, white lettering on red background; select the label required for the specific releasing application; types include: Clean Agent, Extinguishing, Carbon Dioxide, Foam System, Sprinkler, and Manual 2099-9819 Flush mount adapter kit, black
Non-Addressable Initiating
Photoelectric Smoke Detectors
TrueAlarm Photoelectric Smoke Detectors for Two-Wire and Four-Wire Bases
TrueAlarm photoelectric detectors provide many of the proven TrueAlarm analog sensing features for applications where detectors are connected to conventional 2-wire or 4-wire initiating device circuits (IDCs). Each TrueAlarm detector has an on-board microprocessor that evaluates its photoelectric light scattering chamber activity and makes an intelligent decision based on light obscuration history as to whether an alarm condition is present.
Datasheet: S4098-0015
Smoke Detectors
4098-9601 TrueAlarm Photoelectric Detector, 2.8% /ft (standard)
4098-9605 TrueAlarm Photoelectric Detector, 3.5% /ft (special application sensitivity, not ULC listed)
GSA4098-9601 TrueAlarm Photoelectric Detector, 2.8% /ft (standard)
GSA4098-9605 TrueAlarm Photoelectric Detector, 3.5% /ft (special application sensitivity, not ULC listed)
Compatible Bases
4098-9788 2-Wire Base with connections for Remote Alarm LED Indicator
4098-9682
4-Wire Base with Auxiliary Alarm Relay Contacts and connections for Remote
LED Alarm Indicator
4098-9683 2-Wire Base with Auxiliary Alarm Relay and connections for Remote LED Indicator
Detector Accessories
4098-9832 Adapter Plate
4098-9830 Remote LED Indicator
2098-9739 Encapsulated 24 VDC, End-of-Line Relay
2098-9735 Plate Mounted, End-of-Line Relay
TrueAlarm Photoelectric Smoke Detectors with TrueSense Smoke/Heat Detection
These detectors combine photoelectric smoke detection technology and quick response thermistor-based heat detection technology into a sophisticated, intelligent detector that analyzes each of these activities and their combination to determine whether alarm conditions are present.
4098-9602 TrueSense Detector mounted in Base Datasheet: S4098-0017
Smoke Detectors
4098-9602 TrueAlarm photoelectric detector with TrueSense photoelectric/thermal detection
GSA4098-9602 TrueAlarm photoelectric detector with TrueSense photoelectric/thermal detection
Compatible Bases
4098-9682 4-Wire Base with Auxiliary Alarm Relay Contacts and connections for Remote
LED Alarm Indicator
4098-9683 2-Wire Base with Auxiliary Alarm Relay and connections for Remote LED Indicator
4098-9788 2-Wire Base with connections for Remote Alarm LED Indicator
Detector Accessories
2098-9735 End-of-Line Relay, Mounted on single gang stainless steel plate
2098-9739 Encapsulated 24 VDC, End-of-Line Relay
4098-9830 Remote LED Indicator
4098-9832 Adapter Plate
Heat Detectors
Electronic Heat Detectors for Two-Wire
and Four-Wire Bases
These electronic heat detectors use a fast response, thermistor based design to provide temperature sensing that quickly, accurately, and consistently identifies when fixed temperatures are exceeded. The fixed temperature sensing thermistor readily tracks the local ambient temperature. This eliminates the time required to melt a lead pellet or heat a bimetallic element as occurs in mechanical heat detector designs and provides the required heatdetection for most applications.
Electronic Heat Detector mounted in Base Datasheet: S4098-0014
Heat Detectors
4098-9612 Fixed Temperature Operation at 135°F (57°C)
4098-9613
Fixed Temperature Operation at 135°F (57°C), Between 15° and 25°F/min
(8.33° and 13.88°C/min) Rate-of-rise
4098-9613E
Fixed Temperature Operation at 135°F (57°C), Between 15° and 25° F/min
(8.33° and 13.88°C/min) Rate-of-rise
4098-9614 Fixed Temperature Operation at 200°F (93°C)
4098-9614E Fixed Temperature Operation at 200°F (93°C)
4098-9615
Fixed Temperature Operation at 200°F (93°C), Between 15° and 25°F/min
(8.33° and 13.88°C/min) Rate-of-rise
GSA4098-9613
Fixed Temperature Operation at 135°F (57°C), Between 15° and 25°F/min
(8.33° and 13.88°C/min) Rate-of-rise
Heat Detector Base
4098-9684 2-Wire Base with connection for remote LED alarm indicator
4098-9788 2-Wire Base, no options
4098-9682 4-Wire Base with auxiliary alarm relay output
4098-9683 2-Wire Base with auxiliary alarm relay output
Heat Detector Accessories
2098-9735 End-of-Line Relay, Mounted on single gang stainless steel plate
2098-9739 End-of-Line Relay, Epoxy encapsulated design
4098-9830 Remote Red LED Alarm Indicator
4098-9832 Adapter Plate
Electronic Heat Detectors for Two-Wire
Direct Connect
These electronic heat detectors use a fast response, thermistor based design to provide temperature sensing that quickly, accurately, and consistently identifies when fixed temperatures are exceeded. The fixed temperature sensing thermistor readily tracks the local ambient temperature.
Electronic Direct Connect Heat Detector
Datasheet: S4098-0007
Heat Detectors
4098-9401 Fixed temperature, 135°F (57°C)
4098-9402 Fixed with rate-of-rise, 135°F (57°C)
4098-9403 Fixed temperature, 200°F (93°C)
4098-9404 Fixed with rate-of-rise, 200°F (93°C)
Duct Detectors
Duct Detector Housings with TrueAlarm
Photoelectric Detector for 2-Wire or
4-Wire Operation
Air duct smoke detector housings provide a TrueAlarm smoke detector for monitoring air conditioning or ventilating ducts. Sampling tubes are installed into the duct allowing air to be directed to the smoke detector mounted in the housing. These duct detector housings with smoke detectors are compatible with fire alarm control units that provide conventional two-wire or four-wire initiating device circuits (IDCs).
Datasheet: S4098-0029
Duct Smoke Detector Housing
with Photoelectric Detector
4098-9685 2-Wire Duct Detector, standard operation
4098-9688 2-Wire Duct Detector with supervised single remote relay output
4098-9686 4-Wire Duct Detector with supervised multiple remote relay output
LED Indicator and
Remote Test Stations
4098-9830 Red LED alarm indicator
4098-9834 Test Station with keyswitch and red LED alarm indicator
4098-9835 Test Station with keyswitch, red LED alarm indicator, and green power-on LED
Epoxy Encapsulated Remote Relays
and End-of-Line Resistor
4098-9841 Relay, dual Form C (1/2 A @ 120 VAC)
4098-9843 Relay, single Form C (7 A @ 120 VAC)
4081-9008 End-of-Line Resistor Harness
Duct Detector Housings with TrueAlarm
Photoelectric Detector for Stand-Alone Operation
The stand-alone duct detector housings with smoke detector are for applications that operate independent of a fire alarm control unit. They provide a TrueAlarm smoke detector for monitoring air conditioning or ventilating ducts. Sampling tubes are installed into the duct allowing air to be directed to the smoke detector mounted in the housing.
Datasheet: S4098-0031
Duct Detector 4098-9687
Stand-alone operation duct detector with internal output relay, input power is 120
VAC, 24 VAC, or 24 VDC
Control Station 4098-9842
Control Station with power-on green LED, red alarm LED, tone-alert, silence switch and key switch for test/reset, on stainless steel plate
Space Age Electronics Duct Detector Housings with sensor for standalone operation
The RT-3000 is a weathertight NEMA 4X rated corrosion resistant enclosure coupled with extended temperature listings to allow installation in the widest possible range of indoor/outdoor environments. The SL-2000 Series Smoke Duct Detector is the latest innovation for early detection of smoke and products of combustion present in air moving through HVAC ducts in Commercial, Industrial, and Residential applications.
Datasheet: DS-DU-2 D051230
Sensors
SSU-RT-3000-P Duct detector photo NEMA4X
SSU-SL-2000-P Duct detector 4 wire photo
SSU-SL-701 Duct carb monox detector
SSU-SM-501-P Duct det 4 wire photo square
Accessories
SSU-SL-701-KIT Duct carbon monoxide det kit
SSU-WP-1 WP duct encl wh 12x12x4 N3RCRS
SSU-WP-2000 Weatherproof enclosure SL2000
Aspirating Detectors
VESDA-E VEA
The Conventional VEA detector is able to divide a protected space in to sampling locations, enabling the localization of potential sources of fire for faster incident response. Using microbore tubes, the VEA provides assued detection through active sampling and pin point notification of alarm with flexible installation options, as well as field programmability, enhanced connectivity and reduced total cost of ownership.
Datasheet: 22210_09
Sensors
VEA-040-A00 VESDA-E VEA-40 Aspirating Smoke Detector with LEDs
VEA-040-A10 VESDA-E VEA-40 Aspirating Smoke Detector with 3.5” Display
Accessories
VER-A40-40-STX VESDA-E VEA 40-Relay Local StaX
VSP-970 VESDA-E VEA-40 Mounting Bracket
VSP-971 VESDA-E VEA-40 Smoke Sensor Module
VSP-972 VESDA-E VEA Filter
VSP-973 VESDA-E VEA Pump
VSP-974 VESDA-E VEA Rotary Valve
VSP-975 VESDA-E VEA-040-A00 Fascia with LEDs
VSP-976 VESDA-E VEA-040-A10 Fascia with 3.5” Display
VESDA-E VEP
The Conventional VESDA-E VEP series of smoke detectors bring the latest and most advanced detection technology to provide very early warning and the best nuisance alarm rejection to a wide range of applications. VEP is backwards compatible with existing VESDA installations and uses the same mounting footprint, pipe, conduit and electrical connector positioning as the VESDA VLP.
Datasheet: 22063_09
Sensors
VEP-A00-1P VESDA-E VEP with LEDs, 1 pipe, Plastic Enclosure
VEP-A00-P VESDA-E VEP with LEDs, 4 pipe, Plastic Enclosure
VEP-A10-P VESDA-E VEP with 3.5” Display, 4 pipe, Plastic Enclosure
Accessories
VSP-960 VESDA-E mounting bracket
VSP-961 VESDA-E exhaust adaptor US
VSP-962 VESDA-E filter
VSP-962-20 VESDA-E filter, 20 pieces
VSP-963 VESDA-E aspirator
VSP-964 VESDA-E smoke detection chamber
VSP-964-03 VESDA-E smoke detection chamber, MK4
VSP-965 VESDA-E sampling module
VSP-967 VESDA-E VEP-A10-P Front Cover Plastic (3.5” Display
VESDA-E VES
The Conventional VESDA-E VES can identify and monitor smoke density by individual sampling pipe (sector) which allows a single zone to be divided into four separate sectors; for example, distinguishing between separate aisles within a data room. Sector addressability enables the user to respond to a potential fire event quickly by reducing the search area.
Datasheet: 33728_02
Sensors
VES-A00-P VESDA-E VES with LEDs, Plastic Enclosure
VES-A10-P VESDA-E VES with 3.5” Display, Plastic Enclosure
Accessories
VKT-855 VESDA-E VES Demo Kit
VSP-955-04 VESDA-E VES scanner manifold spare
VSP-960 VESDA-E mounting bracket
VSP-961 VESDA-E exhaust adaptor US
VSP-962 VESDA-E filter
VSP-962-20 VESDA-E filter, 20 pieces
VSP-963 VESDA-E aspirator
VSP-964 VESDA-E smoke detection chamber
VSP-964-03 VESDA-E smoke detection chamber, MK4
VSP-965 VESDA-E sampling module
VSP-967 VESDA-E VEU-A10 Front Cover
VSP-969 VESDA-E VES-A10-P Front Cover Plastic (3.5” Display)
VESDA-E VEU
The Conventional VESDA-E VEU series of aspirating smoke detectors are the premium detector of the VESDA-E range. The VEU offers an ultrawide sensitivity range, 15 times greater than the VESDA VLP, and provision for more sampling holes provide an increased coverage in high airflow applications by at least 40 percent. Considerably longer pipe runs and extended branched pipe network configurations allow the VEU to fit perfectly in to high ceiling and large open space areas while still allowing the detector to be mounted in an easily serviceable location.
Datasheet: 22065_11
Sensors VEU-A00 VESDA-E VEU with LED’s, Aluminium Enclosure
Accessories VEU-A10 VESDA-E VEU with 3.5” Display, Aluminium Enclosure
VESDA VLF-500
The VESDA LaserFOCUS (VLF) is a very early warning smoke detector designed to protect small, business critical environments. The VLF-500 covers up to 5,000 sqft.
Datasheet: 10046_19
Sensors VSP-715 ASpirator for VESDA VLF-500
Accessories
VIC-010 VESDAnet Interface Card
VIC-020 VIC-020 Multifunction Control Card (MCC)
VIC-030 Multifunction Control Card (MCC) with Monitored Powered Output (MPO)
VLF-500 VESDA VLF. European language set. English display labels
VLF-500-00 VESDA VLF. European language set. English display labels
VSP-005 Filter Cartridge
VESDA VLF-250
The VESDA LaserFOCUS (VLF) is a very early warning smoke detector designed to protect small, business critical environments. The VLF-250 covers up to 2,500sqft.
Datasheet: 07854_15
Sensors VSP-722 Aspirator for VESDA VLF-250
Accessories
VIC-010 VESDAnet Interface Card
VIC-020 VIC-020 Multifunction Control Card (MCC)
VIC-030 Multifunction Control Card (MCC) with Monitored Powered Output (MPO)
VLF-250 VESDA VLF. European language set. English display labels
VLF-250-00 VESDA VLF. European language set. English display labels
VSP-005 Filter Cartridge
VESDA VLI
The VESDA VLI is an early warning aspirating smoke detection system designed to prodect industrial applications and harsh environments up to 21,520sqft.
The VLI combines a fail-safe intelligent filter with an advanced clean-air barrier for optics protection and a long life detection chamber without
the need for recalibration.
Datasheet: 17115_19
Sensors
VLI-880 VESDA Aspirating Detector
VLI-885 VESDA Aspirating Detector
Accessories
VRT-Q00 VESDA VLI Remote Display 7 Relays
VRT-T00 VESDA VLI Remote Display No Relays
VSP-030 VLI Intelligent Filter
VSP-031 VLI Secondary Foam Filter
VSP-032 VLI Aspirator
VSP-033 VLI Chamber Assembly
VSP-034 VLI VESDAnet Card
VSP-036 VLI Remote Display Module Spare
VESDA Flush Mount Sampling Point
The Flush Mount Sampling Point (patent pending) provides a functionally and aesthetically improved alternative to the conical sampling point used in Xtralis Aspirating Smoke Detection (ASD) pipe networks.
Datasheet: 32188_02
Accessories
VSP-877 Flush Mount Sampling Point
VSP-877-B Flush Mount Sampling Point (Black)
VSP-877-G Flush Mount Sampling Point (Grey)
VSP-878 Push-in Connect Adaptor Kit for ½” capillary tubing
VESDA Pipes and Fittings
VESDA Aspirating Pipe and Fittings packages to simplify pipe selection and ensure that a quality system is installed every time.
Datasheet: 17748_10
Accessories
CAP-KIT Brass connector kit for miniature sampling point and capillary tube arrangement
E700-CAP-KIT Connector Kits
E700-SP Miniature Sampling Point
E700-SP-DCL Sampling Point Label, wrap around style, 200 per roll
E700-SP-DCL-PIPE Pipe Label, 35 per roll
E700-SP-DCL-PNT Sampling Point Label, 50 per roll
E700-SPLG Sampling Point Label, grey, 8 per sheet
E700-SPLR Sampling Point Label, red, 10 per sheet
E700-TUBE Capillary Tube 3/8” internal diameter
PIP-015 Flush Sampling Point
TUBING-250 Polyethylene tubing, black, 1/2” OD X 3/8” ID, FPE rated.
VP-BV Ball Valve, 10 per box
VP-CEMENT Solvent Cement, one pint
VP-CLIP-US ¾” pipe support clamp (required for each 5 feet of pipe)
VP-COUP Couplings - ¾”, 15 per box
VP-CUTTERS Pipe Cutters
VP-EC End Cap - ¾”, 25 per box CPVC Pipe and fittings
VP-ELB-45 45° Elbow - ¾”, 10 per box CPVC Pipe and fittings
VP-ELB-90 90° Elbow - ¾”, 20 per box CPVC Pipe and fittings
VP-P-105 Pipe - ¾” (105ft. kit) CPVC Pipe and fittings
VP-P-210 Pipe - ¾” (210ft. kit) CPVC Pipe and fittings
VP-P-420 Pipe - ¾” (420ft. kit) CPVC Pipe and fittings
VP-TEE Tee - ¾”, 15 per box CPVC Pipe & Fittings
VP-TEE-FPT Tee - ¾” x ¾” x ½” FPT, 10 per box CPVC Pipe & Fittings
VP-UNION Unions - ¾”, 10 per box CPVC Pipe & Fittings
VSP-610-US Tamper Proof Sampling Point
VSP-870-US
In-Line Flow Restrictor Assembly - US, for use with Tamper Proof Sampling Points
(models VSP-610-US and VSP-620)
VSP-877 Flush Mount Sampling Point
VSP-878 Push-in Connect Adaptor Kit for ½” capillary tubing
VSP-950 Test Point Pipe Labels
Beam Detectors
FFE Reflective Beam Smoke Detectors without Controller
With no specialist tools or knowledge needed for installation and operation, the Fireray® One is a standalone beam smoke detector that prioritises ease of installation.
Datasheet: S4098-0055
Reflective Beam Smoke Detectors
6010-300 Fireray One – 164ft (50 m) detection range
1010-000 Reflective Long Range Kit – 394ft (120 m) detection range
Accessories
1030-000 Reflector Wall Bracket - White
1031-000 Reflector Wall Bracket - Black
1040-000 Single Reflector Adjustment Bracket
1050-000 4 Reflector Adjustment Bracket
1060-000 Fireray One Anti-condensation Heater
1090-000 Reflector Anti-condensation Heater
1100-000 Fireray One Protective Cage
1150-000 Commissioning and Maintenance Kit
1170-000 Reflective Detector Adjustment Bracket
1260-000 Fireray One Back Box
FFE Reflective Beam Smoke Detectors
The Fireray® 5000 System is an auto-aligning, self-correcting infrared reflective beam smoke detector. Up to 2 detector heads can report to a single ground level controller. In addition, each system controller houses two pairs of fire and trouble relays, one per detector. Once the detector head is installed, using the easyfit mounting system an integral LASER can be activated. This allows the reflective prism to be located quickly and
with confidence.
Datasheet: S4098-0042
Reflective Beam Smoke Detectors
5000-103 Fireray® 5000 Reflective Auto Align Beam Smoke Detector System
5000-031
Additional Detector Head and Prism, select up to one additional head
per 5000-103 System
1000-018 Protective Wire Cage for 5000 Series detector heads
1000-019 Protective Wire Cage for 5000 Serie4s Controllers
Accessories
209 Replacement Obscuration Test F
23901.01 Replacement Prism
1070-000 F5000 Anti Condensation Heater
1130-000 Wire Prot Cage F-5000
1180-000 Adjustment Bracket
1230-000 4 inch square electric back box
1240-000 End-to-End TX RX Surface mount plate
5000-003 Additional Conventional Controller
5000-004
Long Range Prism Kit; provides three, 23901 Prisms for distances between 160ft and
330ft (50m to 100m)
5000-005
Alignment Bracket for detector or prism, surface mount; pivots horizontally or
vertically for accurate alignment
5000-006 Prism Wall Mount Bracket
5000-007 Four Prism Alignment Adapter
5000-008 Single Prism Alignment Adapter
5000-009 Controller Back Box, surface or flush mount
5000-010 Controller Back Box Semi-Flush Mount Trim Plate (for 5000-009 box)
5000-011 5000 Series Detector Uni-Box back box
5000-012
Detector Cover Plate for mounting 5000 Series Detector to a double gang electrical
box,surface or flush mount
5000-014 Ceiling Pendant Mounting Bracket
5000-201
Alignment Bracket for detector or prism, surface mount; provides 360° rotation plus 130° adjustment for accurate alignment, order detector and prism parts separately
FFE End-to-End Infrared Optical
Beam Smoke Detector
The Fireray® 3000 End to End Infra-red Optical Beam Smoke Detector (OBSD) has been designed using the latest optical technology, incorporating modern industrial, electronic and software techniques. This detector offers cost effective protection of large, open area spaces with high ceilings. It is also very suited to applications where access to ceiling mounted smoke detectors presents practical difficulties.
Datasheet: S4098-0050
Optical Beam Smoke Detectors
3000-103 End-to-End Beam Smoke Detector
3000-115
Fireray 3000 End to End smoke detector Exd 33ft to 262ft, (10 to 80 m). System includes 1
x Transmitter, 1 x Receiver, 1 x System Control Unit, 1 x Fixing Kit, 2 x Brackets
3000-016 Additional Detector Pack
Accessories
1000-018
Wire Cage, requires 5000-011 Detector Back Box and 3000-202 Surface Mount Adaptor
(ordered separately)
1080-000 F3000 Anti Condensation Heater
3000-026 EXD Heads includes TX RX Red
3000-201 Adjustment Bracket
3000-202 Surface Mount Adapter
3000-203 4” Square Cover Plate
3000-209 Control Back Box
3000-210 Semi-flush Trim Plate
5000-011
Surface Mount Detector Back Box, requires one 3000-202 Surface Mount Adaptor for each head, ordered separately
OSID Dual Ended Smoke Beam Detector
Open-area Smoke Imaging Detection (OSID) provides projected beam smoke detection technology. By using advanced dual wavelength projected beams and optical imaging technology for early warning smoke detection, OSID provides a low-cost, reliable and easy-to-install solution that overcomes typical beam detection issues such as false alarm incidents and alignment difficulties.
Datasheet: 15211_29
Sensors
OSE-HPW Emitter - High Power, Wired
OSE-SPW Emitter - Standard Power, Wired
OSE-HP-01 Emitter - High power alkaline battery
OSE-RBA Emitter - Spare alkaline battery pack
OSE-SP-01 Emitter - Alkaline battery
OSI-10 Imager - 7° coverage
OSI-90 Imager - 80° coverage
Accessories
OSE-ACF Anti-condensation film for Emitters
OSEH-ACF Anti-condensation film for OSID-EHE and OSID-EHI environmental housings
OSID-EHE Imager environmental housing IP66
OSID-EHI Emitter environmental housing IP66
OSID-INST OSID Installation Kit
OSID-SK OSID-DE KIT - STARTER
OSID-WG Wire Guard
OSP-001 FTDI Cable 1.5m
OSP-002 Laser Alignment tool
OSP-003 Acrylic test filter - pack of 10
OSP-003-200 Acrylic test filter - bulk pack (200 units)
RTS151KEY Imager Reset Station Surface Mount
RTS151KIT Imager Reset Station Flush Mount
OSID Reflective Imaging Smoke Beam Detector
The OSI-R is a reflector- type linear optical beam smoke detector designed to operate as a component of fire alarm systems. The beam operates primarily on the principle of light obscuration utilising an Infra-Red beam. Optical beam smoke detectors are particularly appropriate for protecting buildings with large open spaces such as warehouses, atriums etc. The OSI-R detector is a combined transmitter/receiver unit that can be directly connected to a conventional detector circuit.
Datasheet: 33089_01
Sensors
OSI-R CONVENTIONAL BEAM LABELED XTRA
OSI-RA CONV BEAM LABELED XTRA - ULC
Accessories
OSI-INST OSID Installation Kit
OSP-002 Laser Alignment tool
OSP-004 TEST FILTER 10 PK
RTS151KEY Imager Reset Station Surface Mount
RTS151KIT Imager Reset Station Flush Mount
Gas Detectors
VESDA Sensepoint XCL MICRO BORE
When used with the VESDA-E VEA; VESDA Sensepoint XCL provides early warning of the presence of gases for occupant protection and system monitoring whilst at the same time ensuring protection against fire threats. Through its embedded Bluetooth interface, VESDA Sensepoint XCL enables customers to pair the gas detector with their smart device applications to perform installation, commissioning and maintenance. This ensures a faster VESDA Sensepoint XCL installation, rapid configuration, simplicity to operate, and simplified maintenance.
Datasheet: 33770_05
Sensor
XCL-VEA-CH4-RA VESDA Sensepoint XCL CH4 0-100% LEL 4-20mA Relay for VEA
XCL-VEA-CH4-RA-5 5 x VESDA Sensepoint XCL CH4 0-100% LEL 4-20mA Relay for VEA
XCL-VEA-CH4-RM VESDA Sensepoint XCL CH4 0-100% LEL Modbus Relay for VEA
XCL-VEA-CO2PP-RA VESDA Sensepoint XCL CO2 5000ppm 4-20mA Relay for VEA
XCL-VEA-CO2PP-RM VESDA Sensepoint XCL CO2 5000ppm Modbus Relay for VEA
XCL-VEA-CO2VV-RA VESDA Sensepoint XCL CO2 5% v/v 4-20mA Relay for VEA
XCL-VEA-CO2VV-RM VESDA Sensepoint XCL CO2 5% v/v Modbus Relay for VEA
XCL-VEA-CO-RA VESDA Sensepoint XCL CO 300ppm 4-20mA Relay for VEA
XCL-VEA-CO-RA-5 5 x VESDA Sensepoint XCL CO 300ppm 4-20mA Relay for VEA
XCL-VEA-CO-RM VESDA Sensepoint XCL CO 300ppm Modbus Relay for VEA
XCL-VEA-H2-RA VESDA Sensepoint XCL H2 1000ppm 4-20mA Relay for VEA
XCL-VEA-H2-RA-5 5 x VESDA Sensepoint XCL H2 1000ppm 4-20mA Relay for VEA
XCL-VEA-H2-RM VESDA Sensepoint XCL H2 1000ppm Modbus Relay for VEA
Accessories
XCL-COVER VESDA Sensepoint XCL Sensor Cover with Gasket
XCL-FILTER VESDA Sensepoint XCL Replacement Filter - Pack of 10
XCL-M20-CG Cable Glands – pk of 10
XCL-SC-CH4 Flammable (CAT) (% LEL), Replacement Gas Sensor
XCL-SC-CO2PP Carbon Dioxide (ppm), Replacement Gas Sensor
XCL-SC-CO2VV Carbon Dioxide (% v/v), Replacement Gas Sensor
XCL-VEA-CAL VESDA Sensepoint XCL Calibration/Flow Cap for VEA
XCL-VEA-TUB VESDA Sensepoint XCL Tubing Interface for VEA
VESDA Sensepoint XCL LARGE BORE
VESDA Sensepoint XCL – Large Bore is a gas detection solution that utilizes the ASD pipe network to deliver superior gas detection via multiple hole (multipoint) sampling. The combined solution provides reliable detection of gases for occupant protection and process monitoring whilst simultaneously ensuring protection against fire threats. The VESDA Sensepoint XCL – Large Bore portfolio has a range of gas sensors that addresses a wide range of applications and through its Bluetooth interface can be paired with a smart device for commissioning and maintenance. The smart device application (Sensepoint App) provides quick access to detector diagnostic information and simplifies detector configuration, calibration and bump testing.
Datasheet: 35553_07
Sensor
XCL-LB-CH4-RA Flammable (CAT) 20-100% LEL, 4-20mA Analogue Relay
XCL-LB-CH4-RM Flammable (CAT) 20-100% LEL, Modbus RTU Relay
XCL-LB-CO2PP-RA Carbon Dioxide 1000 to 5000ppm, 4-20mA Analogue Relay
XCL-LB-CO2PP-RM Carbon Dioxide 1000 to 5000ppm, Modbus RTU Relay
XCL-LB-CO2VV-RA Carbon Dioxide 1.0 to 5.0% v/v, 4-20mA Analogue Relay
XCL-LB-CO2VV-RM Carbon Dioxide 1.0 to 5.0% v/v, Modbus RTU Relay
XCL-LB-CO-RA Carbon Monoxide 50 to 1000 ppm, 4-20mA Analogue Relay
XCL-LB-CO-RM Carbon Monoxide 50 to 1000 ppm, Modbus RTU Relay
XCL-LB-H2-RA Hydrogen 1000ppm (Fixed), 4-20mA Analogue Relay
XCL-LB-H2-RM Hydrogen 1000ppm (Fixed), Modbus RTU Relay
XCL-LB-H2S-RA Hydrogen Sulphide 10 to 50ppm, 4-20mA Analogue Relay
XCL-LB-H2S-RM Hydrogen Sulphide 10 to 50ppm, Modbus RTU Relay
XCL-LB-NH3-RA Ammonia 50 to 200ppm, 4-20mA Analogue Relay
XCL-LB-NH3-RM Ammonia 50 to 200ppm, Modbus RTU Relay
XCL-LB-NO2-RA Nitrogen Dioxide 5 to 50ppm, 4-20mA Analogue Relay
XCL-LB-NO2-RM Nitrogen Dioxide 5 to 50ppm, Modbus RTU Relay
XCL-LB-O2-RA Oxygen 25.0% v/v (Fixed), 4-20mA Analogue Relay
XCL-LB-O2-RM Oxygen 25.0% v/v (Fixed), Modbus RTU Relay
Accessories
XCL-LB-CAP Flow Cap
XCL-LB-COV-1 Sensor Cover CAT, NH3, CO2
XCL-LB-COV-2 Sensor Cover CO, O2, H2S, NO2, H2
XCL-LB-ELB 60° Elbows – pk of 4
XCL-LB-FLT-1 Filter CAT, NH3, CO2 – pk of 10
XCL-LB-FLT-2 Filter CO, O2, H2S, NO2, H2 – pk of 10
XCL-M20-CG Cable Glands – pk of 10
XCL-SC-CH4 Flammable (CAT) (% LEL), Replacement Gas Sensor
XCL-SC-CO2PP Carbon Dioxide (ppm), Replacement Gas Sensor
XCL-SC-CO2VV Carbon Dioxide (% v/v), Replacement Gas Sensor
XCL-SC-H2S Hydrogen Sulphide (ppm), Replacement Gas Sensor
XCL-SC-NH3 Ammonia (ppm), Replacement Gas Sensor
XCL-SC-NO2 Nitrogen Dioxide (ppm), Replacement Gas Sensor
XCL-SC-O2 Oxygen (% v/v), Replacement Gas Sensor
XCL-XRL-SC-CO VESDA SPXCL/XRL REPL SENSOR
XCL-XRL-SC-H2 VESDA SPXCL/XRL SPARE CELL H2
Flame Detectors
Fike Flame Detector
The IR3 flame detector provides ultra-fast response, high performance and reliable detection of all types of hydrocarbon fires (visible and non-visible). The detector addresses slow growing fires as well as fast eruption of fire using improved triple IR (IR3) technology. It operates in all weather and light conditions with highest immunity to false alarms.
Datasheet: P.1.239.01-5
Sensors
FIK-IR3-H2-AS11 Trip IR hydro flame DET M25 CON
FIK-IR3-H2-AS21 Trip IR hydro flame DET 3/4 NPT
FIKIR3H2HDAS11 Trip IR HF DET W/HD VIDOUT M25
FIKIR3H2HDAS21 Trip IR HF DET W/HD VIDOUT 3/4
FIK-IR3-HD-AS11 Trip IR DET W/HD VIDOUT M25 CON
FIK-IR3-HD-AS21 Trip IR DET W/HD VIDOUT 3/4 NPT
Accessories
FIK-IR3-AS11 Triple IR DET M25 COND OPNINGS
FIK-IR3-AS21 Trip IR DET 3/4"NPT COND OPNGS
FIK-TMA-S01 Tilt mount adapt (UNIV OH MNT)
FIK-TMO-S01 Stainless steel flame DET MNT
FIK-TMO-S02 Stainnlss steel HD flame det mnt
FIK-USB/RS485 USB/RS485 converter kit
FIK-UV-IR-AS11 UV/IR DET M25 conduit openings
FIK-UV-IR-AS21 UV/IR DET 3/4 NPT COND OPENGS
FIK-UV-IR-F-AS11 UV/IR DET HC FIRE ONLY M25 CND
FIK-UV-IR-F-AS21 UV/IR DET HC FIRE ONLY 3/4 NPT
FIKUVIRFHDAS11 UV/IR DET W/HD VIDOUT HFIR M25
FIKUVIRFHDAS21 UV/IRDET W/HD VIDOUT HFIR 3/4
FIKUVIRHDAS11 UV/IR DET W/HD VIDOUT M25 COND
FIKUVIRHDAS21 UV/IR DET W/HD VIDOUT 3/4 NPT
FIK-WEATHERCOVER Stainless steel weathercover
FLSFSIMIR3H2KIT Flame simulator kit IR3-H2
FLS-FSIM-IR3-KIT Flame simulator kit IR3
FLS-FSIM-STRAP Flame simulator carrying strap
Hochiki America Intrinsically Safe Detector
Product Part Number Description
Sensors SOC-E-IS Intrinsically Safe Photoelectric Detector
Bases YBN-R/4-IS Intrinsically Safe 4" Base
Explosion-proof Manual Station
RSG/Aames Security Manual Station
Explosion-proof Manual Station
The RMS manual station has a 10 amp. snap action switch offered in all possible contact arrangements (including gold contacts). The RMS pull station can be used with or without break glass rod and replacement requires no special tools.
Manual Station MPS-400X Manual Pull Station, Explosion-proof
Non-Coded Manual Stations
Non-Coded, Non-Addressable Manual Stations
Activation of the single action manual stations requires a firm downward pull to activate the alarm switch. Completing the action breaks an internal plastic break-rod (visible below the pull lever, use is optional). The use of a breakrod can be a deterrent to vandalism without interfering with the minimum pull requirements needed for easy activation. The pull lever latches into the alarm position and remains extended out of the housing to provide a visible indication.
Datasheet: S2099-0007
Single Action Models (General Alarm)
2099-9101 Non-coded single action manual station, MEA, Annunciator Contacts, N.O.
2099-9102 Non-coded single action manual station, MEA, Annunciator Contacts, N.C.
2099-9107 Non-coded single action manual station, Pre-Signal, Annunciator Contacts, N.O.
2099-9754 Non-coded single action manual station, MEA
2099-9755 Non-coded single action manual station, MEA, Local Alarm Cover
2099-9762 Non-coded single action manual station, MEA, Insitutional Cover
Double Action Models
(General Alarm)
2099-9103 Non-coded double action manual station, MEA, Break-Glass
2099-9104 Non-coded double action manual station, MEA, Break-Glass, Annunciator Contacts, N.O.
2099-9105 Non-coded double action manual station, MEA, Break-Glass, Annunciator Contacts, N.C.
2099-9108
Non-coded single action manual station, Pre-Signal, Break-Glass,
Annunciator Contacts, N.O.
2099-9756 Non-coded double action manual station, MEA, Push
2099-9757 Non-coded double action manual station, MEA, Push, Annunciator Contacts, N.O.
2099-9758 Non-coded double action manual station, MEA, Push, Annunciator Contacts, N.C.
2099-9759 Non-coded double action, Pre-Signal, Push, Annunciator Contacts, N.O.
Accessories
2099-9803 Replacement breakglass (standard, English)
2099-9804 Replacement break-rod
2099-9819 Flush adapter kit, black
2099-9820 Flush adapter kit, beige
2099-9822 Replacement retaining clip for breakglass
2099-9828 Institutional cover kit
252-019 B key for manual station reset
2975-9022
Red, cast aluminum surface mount box, 5 in. H x 3 7/8 in. W x 2 3/16 in. D
(127 mm x 98 mm x 56 mm)
2975-9178
Red, surface mount box, sheet metal, 5-3/16” H x 4” W x 2-3/16” D
(127 mm x 102 mm x 56 mm)
4099-9805 Retrofit Kit for field conversion of a single action station to a NO GRIP station
Intrinsically Safe Detector
Product Part Number Description
Sensors SOC-E-IS Intrinsically Safe Photoelectric Detector
Bases YBN-R/4-IS Intrinsically Safe 4” Base
Intrinsically Safe Pull Station
Areas are considered hazardous due to the presence of flammable gases, flammable vapors, combustible dust, or easily ignitable fibers or flyings. Such areas exist at petroleum refineries, chemical and petrochemical plants, spray painting booths, storage areas, and many other locations where potentially hazardous conditions occur. Manual fire alarm stations for these hazardous areas are designed to ensure that initiation of the alarm will be safe and compatible with the hazardous substance.
Datasheet: S2099-0008
Manual Station 2099-9767 Pull Station, Intrinsically Safe, IN/O
Explosion proof Manual Station
Product Part Number Description
Manual Station MPS-400X Manual Pull Station, Explosion-proof
Signal Communications Manual Stations for Hazardous Locations
Manual fire alarm stations for these hazardous areas are designed to ensure that initiation of the alarm will be safe and compatible with the hazardous substance.
Datasheet: S2099-0008
Manual Station 2099-9136 Manual Station for Hazardous Locations
Signal Communications Manual Stations,
Cast Metal Construction
For applications requiring cast metal construction, these non-coded manual stations provide a variety of models and operations. Single action stations are operated by simply pulling the handle while dual action stations require a “PUSH” of the top lever to allow grabbing of the “PULL” lever.
Datasheet: S2099-0009
Manual Station
2099-9138 Non-coded single action manual station, SPST, N.O. contact
2099-9139 Non-coded dual action manual station with PUSH Lever, SPST, N.O. contact
2099-9143
Non-coded single action manual station with white New York City stripe; SPST, N.O.
contact (not CSFM listed)
2099-9144
Non-coded single action manual station, Explosion-proof and weather-proof
station with enclosure
Accessories
2099-9829 Twelve replacement break rods
2975-9211
Red Weatherproof Box; cast aluminum construction with gasket kit,
required for NEMA 3R rating
2975-9212 Red Surface Mount Box; stamped steel construction
INT-ST-BKP01 Backplate
INT-ST-FRC01 Basic Cover
INTST-GASKET Gasket replacement
INT-ST-WPK01 Weatherproof kit with gasket
INT-ST-XTR01 Extender Assembly
ST-ALM01 Alarm Module
RSG/Aames Security Manual Station
The RMS manual station has a 10 amp. snap action switch offered in all possible contact arrangements (including gold contacts). The RMS pull station can be used with or without break glass rod and replacement requires no special tools.
Manual Station
RMS-1P S.P.S.T. Manual Pull Station
RMS-1P-WP Weather Proof S.P.S.T. Pull Station
RMS-1T-DAH Manual Sattion, Break Glass
RMS-1T-LP Manual Station, Dual Action
RMS-1T-LPA Pull Station
RMS-1T-WP Weather Proof S.P.S.T. Pull Station
RMS-1T-WP-LP Manual Station, Dual Action WP
RMS-2P Dual Pole N.O. Station
RMS-2T D.P.S.T. Manual Pull Station
RMS-2T-WP Weather Proof D.P.S.T. Pull Station
RMS-2T-WP-LP Manual Station, Dual Action WP
RMS-6T D.P.D.T. Manual Pull Station
RMS-6T-EXP-LP Manual Station, Dual Action EXP
RMS-6T-WP Weather Proof D.P.D.T. Pull Station
RMS-LP/NY NYC Lift/Pull, SA To DA Station
Accessories
RMS-1T-KL-LP Manual Station, Dual, Key RSET
RMS-1T-KO Manual Station, Institutional
RMS-1T-WP-KO Manual Station, Institutional, WP
RMS-BB Pull Station Surface MT Back Box
RMS-BB-NOKO PS Backbox NO Knockouts
RMS-GR RMS Series Glass Rods
RMS-LP-COVER Lift/Pull, RMS Series Station
Non-Coded Manual Stations for Hazardous Locations
Manual fire alarm stations for these hazardous areas are designed to ensure that initiation of the alarm will be safe and compatible with the hazardous substance.
Datasheet: S2099-0008
Manual Station 2099-9136 Manual Station for Hazardous Locations
Non-Coded Manual Stations, Cast Metal Construction
For applications requiring cast metal construction, these non-coded manual stations provide a variety of models and operations. Single
action stations are operated by simply pulling the handle while dual action stations require a “PUSH” of the top lever to allow grabbing
of the “PULL” lever.
Datasheet: S2099-0009
Manual Station
2099-9138 Single Action Station; SPST, N.O. contact
2099-9139 Dual Action Station with PUSH Lever; SPST, N.O. contact
2099-9143
Single Action Station with White New York City Stripe; SPST, N.O. contact
(not CSFM listed)
2099-9144 Explosion-Proof & Weather-Proof Station with Enclosure
Accessories
2975-9211
Red Weatherproof Box; cast aluminum construction with gasket kit, required for
NEMA 3R rating
2975-9212 Red Surface Mount Box; stamped steel construction
2099-9829 Twelve replacement break rods
Common Accessories
Manual Stations Wire Guard
The wire guard protects the manual stations from damage due to accidental contact while providing easy access when actual alarm conditions occur.
Datasheet: S2099-0004
Station Wire Guard 2099-9800 Wire Guard
Photoelectric Smoke Detectors Wire Guard
The wire guard help protect photoelectric or ionization smoke detectors where they may be subjected to damage.
Datasheet: S2098-0023
Detector Wire Guard 2098-9715 Wire Guard
Notification Appliances
Notification Appliances
As you consider what fire and life safety solution to use for your facility, first look at the reputation behind the supplier.
Building owners around the globe trust the Simplex family of notification solutions to help protect their facilities – no matter how large and complex – because of their high degree of reliability, ease of use and self-testing capabilities.
The complete range of Simplex notification products are intelligent and efficient and offer real and significant advantages to you – and to building occupants in the event of a fire or other emergency.
Five reasons why Simplex TrueAlert ES helps you take safety to another level
Industry-leading technology
Following commitment to innovation and new technologies, Simplex TrueAlert ES notification solutions lead the market in flexibility, performance and reliability. From designing and installing to testing and maintenance – TrueAlert ES appliances offer an easier and more cost-effective way to provide advanced protection for your people and property.
True addressability
TrueAlert ES addressability lets each device function as an independent, intelligent unit on your life safety network.
Since devices communicate directly with your control unit, you’ll immediately be notified in the event of a malfunction. And with revolutionary self-testing options, you can automatically test your entire system in seconds, saving time, money and labor compared with the disruptive and costly after-hours testing of conventional systems.
Easier design and expansion
With a flexible wiring architecture, you can go further with less wiring while avoiding design roadblocks.
TrueAlert ES is also highly scalable, allowing your system to easily grow as your buildings expand or your life safety needs change.
Enhanced documentation and reporting
TrueAlert ES device information and test history are conveniently stored in the control unit and can quickly be retrieved to generate reports for compliance purposes.
Greater value
With more efficient installation and testing than conventional systems, TrueAlert ES notification solutions save you significant money right out of the gate. Flexible wiring architecture can mean fewer power supplies and batteries are needed, and convenient self-testing can help ensure your system is optimally performing for maximum operational efficiency.
Find the right notification products and capabilities for your needs
Addressable technology gives TrueAlert ES notification appliances the intelligence to report their location and status to your fire alarm control unit. Design, installation, testing and maintenance are all made easier.
Discover solutions with horns, strobes, speakers, LED displays, visual messaging and more.
Addressable TrueAlert ES Notification Products
Operating under constant control unit supervision, TrueAlert ES appliances feature next-generation, self-testing capability for ease of management and maximum reliability.
LED Messaging Boards
Managed and powered by your life safety system, LED messaging boards are UL-listed and feature a high-visibility, multicolor text messaging display.
Conventional Notification Products
A full line of wall- and ceiling-mounted appliances ensure a wide range of options for all your needs.
Addressable TrueAlert ES 5900 Series LED
Notification Appliances
Compact and energy efficient, TrueAlert ES 5900 Series appliances
leverage revolutionary self-testing to ensure system readiness and reduced costs.
TrueAlert ES Addressable Speakers
With sound quality comparable to high-end PA/VA speakers, TrueAlert
ES speakers are individually controllable for targeted emergency messaging and also feature self-testing capabilities.
Intelligent features for across-the-board benefits
Greater protection, easier installation and increased efficiency. TrueAlert ES addressable technology allows for T-tapping and more appliances to be installed per run – with each appliance individually programmable.
Systems are more cost-effective to install and can be fine-tuned to each unique space in a facility.
Application versatility
Capable of handling virtually any application, TrueAlert ES products include multi-tone appliances that are NFPA 72-compliant for lowfrequency notification in certain environments.
Self-testing capability
Gone are the days of disruptive and costly after-hours manual testing.
The TrueAlert ES revolutionary self-testing capability enables all notification appliances to be tested in seconds.
Pulse width compliance with TrueAlert ES 5900 Series
As the industry’s first LED appliances to meet NFPA 72 2016 edition notification appliance pulse width requirements, TrueAlert ES 5900 LEDs and strobes can be integrated into the same network.
Less obtrusive and more energy efficient
The latest LED technology paves the way for appliances with greater energy efficiency and a compact, visually pleasing design.
Addressable Horn
TrueAlert ES Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
TrueAlert ES addressable horns are individually addressed audible notification appliances that receive power, supervision and control signals from a fire alarm control unit providing IDNAC Signaling Line Circuits (SLCs). TrueAlert ES addressable horns are available in red with white lettering and white with red lettering.
Datasheet: S49AO-0001
Appliance (complete)
49AO-WRF TrueAlert ES Addressable Horn Appliance, Wall-Mount, Red, "FIRE"
49AO-WRQ TrueAlert ES Addressable Horn Appliance, Wall-Mount, Red, "FEU"
49AO-WRS TrueAlert ES Addressable Horn Appliance, Wall-Mount, Red, Logo Only
49AO-WWF TrueAlert ES Addressable Horn Appliance, Wall-Mount, White, "FIRE"
49AO-WWF-BA TrueAlert ES Addressable Horn Appliance, Wall-Mount, White, "FIRE", BA
Appliance Only
49AO-APPLW
TrueAlert ES Addressable Horn Appliance Electronics, Wall-Mount
(order mounting plate and cover separately)
49AO-APPLW-BA
TrueAlert ES Addressable Horn Appliance Electronics, Wall-Mount, BA
(order mounting plate and cover separately)
Cover
49AOC-WRFIRE Cover, Red, "FIRE"
49AOC-WRS Cover, Red, Logo Only
49AOC-RBLANK Cover, Red, Blank
49AOC-WWFIRE Cover, White, "FIRE"
49AOC-WWS Cover, White, Logo Only
49AOC-WBLANK Cover, White, Blank
Mounting Plate
49MP-AVVOWR Mounting plate, Red
49MP-AVVOWW Mounting plate, White
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box
(typically for retrofit, mount vertical or horizontal)
4905-9937 Adapter Skirt, Surface-Mount, Red
4905-9940 Adapter Skirt, Surface-Mount, White
4905-9961 Wire guard, Red with mounting plate, compatible with semiflush or surface mount boxes
TrueAlert ES Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
Addressable Strobe
Appliance (complete)
49VO-WRA TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Red, "ALERT"
49VO-WRA-A TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Amber Lens, Red, "ALERT"
49VO-WRA-A-BA TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Amber Lens, Red, "ALERT", BA
49VO-WRA-BA TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Red, "ALERT", BA
49VO-WRF TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Red, "FIRE"
49VO-WRF-BA TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Red, "FIRE", BA
49VO-WRQ TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Red, "FEU"
49VO-WRQ-BA TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Red, "FEU", BA
49VO-WRS TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Red, Logo Only
49VO-WWA TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, White, "ALERT"
49VO-WWA-A TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, White, Amber Lens, "ALERT"
49VO-WWA-A-BA TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, White, Amber Lens, "ALERT", BA
49VO-WWA-BA TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, White, "ALERT", BA
49VO-WWF TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, White, "FIRE"
49VO-WWF-BA TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, White, "FIRE", BA
49VO-WWQ TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, White, "FEU"
49VO-WWS TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, White, Logo Only
49VO-WWS-A-BA TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, White, Amber Lens, Blank, BA
49VO-WWS-BA TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, White, Logo Only, BA
Appliance Only
49VO-APPLW
TrueAlert ES Addressable Strobe Appliance Electronics, Wall-Mount, 15/30/75/110/135/185cd
(order mounting plate and cover separately, colored lens not supported)
49VO-APPLW-BA
TrueAlert ES Addressable Strobe Appliance Electronics, Wall-Mount, 15/30/75/110/135/185cd, BA
(order mounting plate and cover separately, colored lens not supported)
49VO-APPLWE
TrueAlert ES Addressable Strobe Appliance Electronics, Wall-Mount, 15/30/75/110/135/185cd
(order mounting plate, cover and colored lens separately)
49VO-APPLWE-BA
TrueAlert ES Addressable Strobe Appliance Electronics, Wall-Mount, 15/30/75/110/135/185cd, BA
(order mounting plate, cover and colored lens separately)
Cover
49VOC-WRFIRE Cover, Red, "FIRE"
49VOC-WRALT Cover, Red, "ALERT"
49VOC-WRS Cover, Red, Logo Only
49VOC-WWFIRE Cover, White, "FIRE"
49VOC-WWALT Cover, White, "ALERT"
49VOC-WWS Cover, White, Logo Only
Mounting Plate
49MP-AVVOWR Mounting plate, Red
49MP-AVVOWW Mounting plate, White
Lens
49LENS-AMBER Amber Lens Only Kit
49LENS-BLUE Blue Lens Only Kit
49LENS-GREEN Green Lens Only Kit
49LENS-RED Red Lens Only Kit
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9931 Adapter Plate, Red for mounting to Simplex 2975-9145 Box (typically for retrofit, mount vertical or horizontal)
4905-9937 Adapter Skirt, Surface-Mount, Red
4905-9940 Adapter Skirt, Surface-Mount, White
4905-9961 Wire guard, Red with mounting plate, compatible with semiflush or surface mount boxes
TrueAlert ES addressable strobes are individually addressed visible notification appliances that receive power, supervision and control signals from the fire alarm control unit providing IDNAC Signaling Line Circuits (SLCs). TrueAlert ES Addressable strobes are available in red with white lettering and white with red lettering. Separate lens covers are available in amber, blue, green and red to configure strobes (V/O) or audible/visible (A/V) appliances.
Datasheet: S49VO-0001
TrueAlert ES Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
Addressable Horn/Strobe
TrueAlert ES addressable horns/strobes are individually addressed audible/ visible notification appliances that receive power, supervision and control signals from a fire alarm control unit providing IDNAC Signaling Line Circuits (SLCs). TrueAlert ES Addressable A/Vs are available in red with white lettering, and white with red lettering. Separate lens covers are available in amber, blue, green, and red to configure strobes (V/O) or audible/visible (A/V) appliances.
Datasheet: S49AV-0001
Appliance (complete)
49AV-WRF
TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Red,
"FIRE"
49AV-WRF-BA
TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Red,
"FIRE", BA
49AV-WRQ
TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Red,
"FEU"
49AV-WRQ-BA
TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Red,
"FEU"
49VO-WRQ
TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Red,
"FEU"
49AV-WRS
TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Red,
Logo Only
49AV-WRS-BA
TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, Red,
Logo Only, BA
49AV-WWF
TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd,
White, "FIRE"
49AV-WWF-BA
TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd,
White, "FIRE", BA
49AV-WWS-BA
TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd,
White, Logo Only, BA
Appliance Only
49AV-APPLW
TrueAlert ES Addressable Horn/Strobe Appliance Electronics, Wall-Mount,
15/30/75/110/135/185cd (order mounting plate, cover and optional colored lens separately)
49AV-APPLW-BA
TrueAlert ES Addressable Horn/Strobe Appliance Electronics, Wall-Mount,
15/30/75/110/135/185cd, BA (order mounting plate, cover and optional colored lens separately)
Cover
49AVC-WRFIRE Cover, Red, "FIRE"
49AVC-WRALT Cover, Red, "ALERT"
49AVC-WRS Cover, Red, Logo Only
49AVC-WWFIRE Cover, White, "FIRE"
49AVC-WWALT Cover, White, "ALERT"
49AVC-WWS Cover, White, Logo Only
Mounting Plate
49MP-AVVOWR Mounting plate, Red
49MP-AVVOWW Mounting plate, White
Lens
49LENS-AMBER Amber Lens Only Kit
49LENS-BLUE Blue Lens Only Kit
49LENS-GREEN Green Lens Only Kit
49LENS-RED Red Lens Only Kit
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box
(typically for retrofit, mount vertical or horizontal)
4905-9937 Adapter Skirt, Surface-Mount, Red
4905-9940 Adapter Skirt, Surface-Mount, White
4905-9961 Wire guard, Red with mounting plate, compatible with semiflush or surface mount boxes
TrueAlert ES Addressable Horns, Strobes and Horn/Strobes
Ceiling-Mounted
Addressable Horn
TrueAlert ES addressable horns are individually addressed audible notification appliances that receive power, supervision and control signals from a fire alarm control unit providing IDNAC Signaling Line Circuits (SLCs).
Datasheet: S49AOC-0001
Appliance Only
49AO-APPLC
TrueAlert ES Addressable Horn Appliance Electronics, Ceiling-Mount
(order mounting plate and cover separately)
49AO-APPLC-BA
TrueAlert ES Addressable Horn Appliance Electronics, Ceiling-Mount (order mounting plate
and cover separately), BA
Cover
49AOC-CRFIRE Cover, Red, "FIRE"
49AOC-CRALT Cover, Red, "ALERT"
49AOC-CRS Cover, Red, Logo Only
49AOC-CWFIRE Cover, White, "FIRE"
49AOC-CWALT Cover, White, "ALERT"
49AOC-CWS Cover, White, Logo Only
Accessory
49WG-SOCR
Wire Guard, Ceiling Mounted, Red
(mounts directly to ceiling for semiflush-mounted appliances)
49WG-SOCR-O
Wire Guard, Ceiling-Mounted, Red
(mounts directly to ceiling for surface-mounted appliances)
49WPBB-SOCR Back Box, Ceiling Surface-Mounted, Weatherproof, Red
49WPBB-SOCW Back Box, Ceiling Surface-Mounted, Weatherproof, White
TrueAlert ES Addressable Horns, Strobes and Horn/Strobes
Ceiling-Mounted
Product Part Number Description
Appliance Only
49VO-APPLC
TrueAlert ES Addressable Strobe Appliance Electronics, Ceiling-Mount, 15/30/75/110cd
(order cover separately)
49VO-APPLC-BA
TrueAlert ES Addressable Strobe Appliance Electronics, Ceiling-Mount, 15/30/75/110cd, BA
(order cover separately)
49VOH-APPLC
TrueAlert ES Addressable Strobe Appliance Electronics, Ceiling-Mount, High-candela
110/135/185cd (order cover separately)
49VOH-APPLCA-BA
TrueAlert ES Addressable Strobe Appliance Electronics, Ceiling-Mount, High-candela
110/135/185cd, Amber Lens, BA (order cover separately)
49VOH-APPLC-BA
TrueAlert ES Addressable Strobe Appliance Electronics, Ceiling-Mount, High-candela
110/135/185cd, BA (order cover separately)
49VOH-APPLCB-BA
TrueAlert ES Addressable Strobe Appliance Electronics, Ceiling-Mount, High-candela
110/135/185cd, Blue Lens, BA (order cover separately)
Cover
49VOC-CRF Cover, Red, "FIRE"
49VOC-CRALT Cover, Red, "ALERT"
49VOC-CRS Cover, Red, Logo Only
49VOC-CWF Cover, White, "FIRE"
49VOC-CWALT Cover, White, "ALERT"
49VOC-CWS Cover, White, Logo Only
49VOC-CK Cover, Black, Blank
Accessory
49VO-APCS Adapter Plate, Red for mounting to single gang electrical box
49WGBB-VOCR-O
Wire Guard Back Box, Ceiling-Mounted, Red (used in addition to wire guard and surfacemounted
back box)
49WG-VOCR
Wire Guard, Ceiling-Mounted, Red with mounting plate, compatible with semiflushmounting
or surface mount boxes (surface mounting also requires wireguard back box in
addition to surface-mounted back box)
49WPBB-VOCR Back Box, Ceiling Surface-Mounted, Weatherproof, Red
49WPBB-VOCW Back Box, Ceiling Surface-Mounted, Weatherproof, White
Addressable Strobe
TrueAlert ES Addressable strobes are individually powered, addressed, and controlled from a fire alarm control unit IDNAC Signaling Line Circuit (SLC). V/O notification appliances use a multi-candela strobe with synchronized 1 Hz flash rate and selectable candela rating. Xenon tube strobes devices are interoperable on the same IDNAC channel.
Datasheet: S49VOC-0001
TrueAlert ES Addressable Horns, Strobes and Horn/Strobes
Ceiling-Mounted
Addressable Horn/Strobe
TrueAlert ES Addressable horns/strobes are individually addressed audible/visible notification appliances that receive power, supervision, and control signals from a fire alarm control unit providing IDNAC Signaling Line Circuits (SLCs).
Datasheet: S49AVC-0001
Appliance Only
49AV-APPLC
TrueAlert ES Addressable Horn/Strobe Appliance Electronics, Ceiling-Mount, 15/30/75/110cd
(order cover separately)
49AV-APPLC-BA
TrueAlert ES Addressable Horn/Strobe Appliance Electronics, Ceiling-Mount, 15/30/75/110cd,
BA (order cover separately)
49AVH-APPLC
TrueAlert ES Addressable Horn/Strobe Appliance Electronics, Ceiling-Mount, High-candela
110/135/185cd (order cover separately)
49AVH-APPLCA-BA
TrueAlert ES Addressable Horn/Strobe Appliance Electronics, Ceiling-Mount, High-candela
110/135/185cd, Amber Lens, BA (order cover separately)
49AVH-APPLC-BA
TrueAlert ES Addressable Horn/Strobe Appliance Electronics, Ceiling-Mount, High-candela
110/135/185cd, BA (order cover separately)
49AVH-APPLCB-BA
TrueAlert ES Addressable Horn/Strobe Appliance Electronics, Ceiling-Mount, High-candela
110/135/185cd, Blue Lens, BA (order cover separately)
Cover
49AVC-CRFIRE Cover, Red, "FIRE"
49AVC-CRALT Cover, Red, "ALERT"
49AVC-CRS Cover, Red, Logo Only
49AVC-CWFIRE Cover, White, "FIRE"
49AVC-CWALT Cover, White, "ALERT"
49AVC-CWS Cover, White, Logo Only
49AVC-CK Cover, Black, Blank
Accessory
49WGBB-SVCR-O Wire Guard Back Box, Red
49WG-SVWCR Wire Guard, Red
49WPBB-SVCR Back Box, Ceiling Surface-Mounted, Weatherproof, Red
49WPBB-SVCW Back Box, Ceiling Surface-Mounted, Weatherproof, White
TrueAlert ES Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
Weatherproof Addressable Strobe
TrueAlert ES wall-mounted weatherproof addressable strobes provide visible notification for indoor and outdoor, extended temperature and extended humidity applications. They are individually addressed and receive power, supervision, and control signals from a fire alarm control unit providing IDNAC Signaling Line Circuits (SLCs).
Datasheet: S49WP-0001
Appliance (complete)
49VO-WRFO
TrueAlert ES Addressable Strobe Appliance, Wall-Mount, Weatherproof, 15/75/WP75/
WP185cd, Red, "FIRE"
49VO-WRFO-BA
TrueAlert ES Addressable Strobe Appliance, Wall-Mount, Weatherproof, 15/75/WP75/
WP185cd, Red, "FIRE", BA
49VO-WRFO-C
TrueAlert ES Addressable Strobe Appliance, Wall-Mount, Weatherproof, ULC, 20/30/75cd,
Red, "FIRE"
49VO-WRQO-C
TrueAlert ES Addressable Strobe Appliance, Wall-Mount, Weatherproof, ULC, 20/30/75cd,
Red, "FEU"
49VO-WRSO
TrueAlert ES Addressable Strobe Appliance, Wall-Mount, Weatherproof, 15/75/WP75/
WP185cd, Red, Logos Only
49VO-WRSO-BA
TrueAlert ES Addressable Strobe Appliance, Wall-Mount, Weatherproof, 15/75/WP75/
WP185cd, White, Logos Only, BA
49VO-WWFO-BA
TrueAlert ES Addressable Strobe Appliance, Wall-Mount, Weatherproof, 15/75/WP75/
WP185cd, White, "FIRE", BA
Appliance Only
49VO-APPLW-O
TrueAlert ES Addressable Strobe Appliance Electronics, Wall-Mount, Weatherproof, 15/75/
WP75/WP185cd (order back box and cover separately)
49VO-APPLW-O-BA
TrueAlert ES Addressable Strobe Appliance Electronics, Wall-Mount, Weatherproof, 15/75/
WP75/WP185cd, BA (order back box and cover separately)
Cover
49VOC-WRFIRE-O Cover, Weatherproof, Red, "FIRE"
49VOC-WRALT-O Cover, Weatherproof, Red, "ALERT"
49VOC-WRS-O Cover, Weatherproof, Red, Logo Only
49VOC-WWFIRE-O Cover, Weatherproof, White, "FIRE"
49VOC-WWALT-O Cover, Weatherproof, White, "ALERT"
49VOC-WWS-O Cover, Weatherproof, White, Logo Only
Back Box
49WPBB-AVVOWR Back Box, Surface-Mounted, Weatherproof, Red
49WPBB-AVVOWW Back Box, Surface-Mounted, Weatherproof, White
TrueAlert ES Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
Weatherproof Addressable Horn/Strobe
TrueAlert ES wall-mounted weatherproof addressable horns/strobes provide audible/visible notification for indoor and outdoor, extended temperature and extended humidity applications. They are individually addressed and receive power, supervision, and control signals from a fire alarm control unit providing IDNAC Signaling Line Circuits (SLCs).
Datasheet: S49WP-0001
Appliance (complete)
49AV-WRFO
TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, Weatherproof, 15/75/WP75/
WP185cd, Red, "FIRE"
49AV-WRFO-BA
TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, Weatherproof, 15/75/WP75/
WP185cd, Red, "FIRE", BA
49AV-WRFO-C
TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, Weatherproof, ULC,
20/30/75cd, Red, "FIRE"
49AV-WRQO-C
TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, Weatherproof, ULC,
20/30/75cd, Red, "FEU"
49AV-WWFO-BA
TrueAlert ES Addressable Horn/Strobe Appliance, Wall-Mount, Weatherproof, 15/75/WP75/
WP185cd, White, "FIRE", BA
Appliance Only
49AV-APPLW-O
TrueAlert ES Addressable Horn/Strobe Appliance Electronics, Wall-Mount, Weatherproof,
15/75/WP75/WP185cd (order back box and cover separately)
49AV-APPLW-O-BA
TrueAlert ES Addressable Horn/Strobe Appliance Electronics, Wall-Mount, Weatherproof,
15/75/WP75/WP185cd, BA (order back box and cover separately)
Cover
49AVC-WRFIRE-O Cover, Weatherproof, Red, "FIRE"
49AVC-WRALT-O Cover, Weatherproof, Red, "ALERT"
49AVC-WRS-O Cover, Weatherproof, Red, Logo Only
49AVC-WWFIRE-O Cover, Weatherproof, White, "FIRE"
49AVC-WWALT-O Cover, Weatherproof, White, "ALERT"
49AVC-WWS-O Cover, Weatherproof, White, Logo Only
Back Box
49WPBB-AVVOWR Back Box, Wall Surface-Mounted, Weatherproof, Red
49WPBB-AVVOWW Back Box, Wall Surface-Mounted, Weatherproof, White
TrueAlert ES Addressable Horns, Strobes and Horn/Strobes
Ceiling-Mounted
Weatherproof Addressable Horn
TrueAlert ES ceiling-mounted weatherproof addressable horns are individually addressed audible notification appliances that receive power, supervision and control signals from a fire alarm control unit providing IDNAC Signaling Line Circuits (SLCs).
Datasheet: S49AOC-0002
Appliance Only
49AO-APPLC-O TrueAlert ES Addressable Horn Appliance, Ceiling-Mount, Weatherproof, White
49AO-APPLC-O-BA TrueAlert ES Addressable Horn Appliance, Ceiling-Mount, Weatherproof, White, BA
Cover
49SOC-CRFIRE-O Cover, Weatherproof, Red, "FIRE"
49SOC-CRALT-O Cover, Weatherproof, Red, "ALERT"
49SOC-CRS-O Cover, Weatherproof, Red, Logo Only
49SOC-CR-O Cover, Weatherproof, Red, Blank
49SOC-CWFIRE-O Cover, Weatherproof, White, "FIRE"
49SOC-CWALT-O Cover, Weatherproof, Red, "ALERT"
49SOC-CWS-O Cover, Weatherproof, White, Logo Only
49SOC-CW-O Cover, Weatherproof, White, Blank
Back Box
49WPBB-SOCR Back Box, Ceiling Surface-Mounted, Weatherproof, Red
49WPBB-SOCW Back Box, Ceiling Surface-Mounted, Weatherproof, White
Accessory 49WG-SOCR-O Wire Guard, Weatherproof, Red
TrueAlert ES Addressable Horns, Strobes and Horn/Strobes
Ceiling-Mounted
Weatherproof Addressable Strobe
TrueAlert ES ceiling-mounted weatherproof addressable strobes are individually powered, addressed, and controlled from a fire alarm control unit IDNAC Signaling Line Circuit (SLC). V/O notification appliances use a multi-candela strobe with synchronized 1 Hz flash rate and selectable candela rating. Xenon tube strobes devices are interoperable on the same IDNAC channel.
Datasheet: S49VOC-0002
Appliance Only
49VOH-APPLC-O
TrueAlert ES Addressable Strobe Appliance Electronics, Ceiling-Mount, Weatherproof,
15/75/WP75/WP185cd (order back box and cover separately)
49VOH-APPLC-O-BA
TrueAlert ES Addressable Strobe Appliance Electronics, Ceiling-Mount, Weatherproof,
15/75/WP75/WP185cd, BA (order back box and cover separately)
Cover
49VOC-CRF-O Cover, Weatherproof, Red, "FIRE"
49VOC-CRALT-O Cover, Weatherproof, Red, "ALERT"
49VOC-CRS-O Cover, Weatherproof, Red, Logo Only
49VOC-CWF-O Cover, Weatherproof, White, "FIRE"
49VOC-CWALT-O Cover, Weatherproof, White, "ALERT"
49VOC-CWS-O Cover, Weatherproof, White, Logo Only
Back Box
49WPBB-VOCR Back Box, Ceiling Surface-Mounted, Weatherproof, Red
49WPBB-VOCW Back Box, Ceiling Surface-Mounted, Weatherproof, White
Accessory
49WGBB-VOCR-O
Wire Guard Back Box, Ceiling-Mounted, Red (used in addition to wire guard and
surface-mounted back box)
49WG-VOCR Wire Guard, Red
TrueAlert ES Addressable Horns, Strobes and Horn/Strobes
Ceiling-Mounted
Weatherproof Addressable Horn/Strobe
TrueAlert ES ceiling-mounted weatherproof addressable horns/strobes are individually addressed audible/visible notification appliances that receive power, supervision and control signals from a fire alarm control panel providing IDNAC Signaling Line Circuits (SLCs).
Datasheet: S49AVC-0002
Appliance Only
49AVH-APPLC-CO
TrueAlert ES Addressable Horn/ Strobe Appliance Electronics, Ceiling-Mount, ULC
Weatherproof, 20/30/75cd (order back box and cover separately)
49AVH-APPLC-O-BA
TrueAlert ES Addressable Horn/Strobe Appliance Electronics, Ceiling-Mount, Weatherproof,
High-Candela 110/135/185cd, BA (order back box and cover separately)
Cover
49SVC-CRFIRE-O Cover, Weatherproof, Red, "FIRE"
49SVC-CRALT-O Cover, Weatherproof, Red, "ALERT"
49SVC-CRS-O Cover, Weatherproof, Red, Logo Only
49SVC-CWFIRE-O Cover, Weatherproof, White, "FIRE"
49SVC-CWALT-O Cover, Weatherproof, White, "ALERT"
49SVC-CWS-O Cover, Weatherproof, White, Logo Only
Back Box
49WPBB-SVCR Back Box, Ceiling Surface-Mounted, Weatherproof, Red
49WPBB-SVCW Back Box, Ceiling Surface-Mounted, Weatherproof, White
Accessory
49WGBB-SVCR-O Wire Guard Back Box, Red
49WG-SVWCR Wire Guard, Red
TrueAlert ES Addressable Speaker and Speaker/Strobes
Wall-Mounted
Addressable Speaker
TrueAlert ES wall-mounted indoor addressable speakers are individually powered, addressed and controlled from a fire alarm control unit IDNAC Signaling Line Circuit (SLC). Audio is supplied from a separate compatible Fire Alarm Control Unit audio NAC.
Datasheet: S49SOW-0001
Appliance Only
49HF-APPLW
TrueAlert ES High-Fidelity Addressable Speaker Appliance Electronics, Wall-Mount,
25/70.7V, 1/4, 1/2, 1, 2watts (order mounting plate and cover separately)
49HF-APPLW-BA
TrueAlert ES High-Fidelity Addressable Speaker Appliance Electronics, Wall-Mount,
25/70.7V, 1/4, 1/2, 1, 2watts, BA (order mounting plate and cover separately)
49SO-APPLW
TrueAlert ES Addressable Speaker Appliance Electronics, Wall-Mount, 25/70.7V, 1/4, 1/2, 1,
2watts (order mounting plate and cover separately)
49SO-APPLW-BA
TrueAlert ES Addressable Speaker Appliance Electronics, Wall-Mount, 25/70.7V, 1/4, 1/2, 1,
2watts, BA (order mounting plate and cover separately)
Cover
49SOC-WRFIRE Cover, Red, "FIRE"
49SOC-WRALT Cover, Red, "ALERT"
49SOC-WRS Cover, Red, Logo Only
49SOC-WRBLANK Cover, Red, Blank
49SOC-WWFIRE Cover, White, "FIRE"
49SOC-WWALT Cover, White, "ALERT"
49SOC-WWS Cover, White, Logo Only
49SOC-WWBLANK Cover, White, Blank
Mounting Plate
49MP-SOWR Mounting plate, Red
49MP-SOWW Mounting plate, White
Accessory
49WGBB-SOWR-O Wire Guard Back Box, Red
49WG-SOWR Wire Guard, Red
49WPBB-SOWR Back Box, Wall Surface-Mounted, Weatherproof, Red
49WPBB-SOWW Back Box, Wall Surface-Mounted, Weatherproof, White
TrueAlert ES Addressable Speaker and Speaker/Strobes
Wall-Mounted
Addressable Speaker/Strobe
TrueAlert ES wall-mounted indoor addressable speakers/strobes are individually powered, addressed, and controlled from a fire alarm control unit IDNAC Signaling Line Circuit (SLC). Audio is supplied from a separate compatible Fire Alarm Control Unit audio NAC.
Datasheet: S49SVW-0001
Appliance Only
49HFV-APPLW
TrueAlert ES High-Fidelity Addressable Speaker/Strobe Appliance Electronics, Wall-Mount,
15/30/75/110/135/185cd, 25/70.7V, 1/4, 1/2, 1, 2watts (order mounting plate, cover, and
optional colored lens separately)
49HFV-APPLW-BA
TrueAlert ES High-Fidelity Addressable Speaker/Strobe Appliance Electronics, Wall-Mount,
15/30/75/110/135/185cd,25/70.7V, 1/4, 1/2, 1, 2watts, BA (order mounting plate, cover, and
optional colored lens separately)
49SV-APPLW
TrueAlert ES Addressable Speaker/Strobe Appliance Electronics, Wall-Mount,
15/30/75/110/135/185cd, 25/70.7V, 1/4, 1/2, 1, 2watts (order mounting plate, cover, and
optional colored lens separately)
49SV-APPLW-BA
TrueAlert ES Addressable Speaker/Strobe Appliance Electronics, Wall-Mount,
15/30/75/110/135/185cd, 25/70.7V, 1/4, 1/2, 1, 2watts, BA (order mounting plate, cover, and
optional colored lens separately)
Cover
49SVC-WRFIRE Cover, Red, "FIRE"
49SVC-WRALT Cover, Red, "ALERT"
49SVC-WRS Cover, Red, Logo Only
49SVC-WWFIRE Cover, White, "FIRE"
49SVC-WWALT Cover, White, "ALERT"
49SVC-WWS Cover, White, Logo Only
Mounting Plate
49MP-SVWR Mounting plate, Red
49MP-SVWW Mounting plate, White
Lens
49LENS-AMBER Amber Lens Only Kit
49LENS-BLUE Blue Lens Only Kit
49LENS-GREEN Green Lens Only Kit
49LENS-RED Red Lens Only Kit
Accessory
49WPBB-SVWR Back Box, Wall Surface-Mounted, Weatherproof, Red
49WG-SVWCR
Wire Guard, Wall and Ceiling-Mounted, Red with mounting plate, compatible with
semiflush-mounting or surface mount boxes (surface mounting also requires wireguard back
box in addition to surface-mounted back box)
49WPBB-SVWR Back Box, Wall Surface-Mounted, Weatherproof, Red
49WPBB-SVWW Back Box, Wall Surface-Mounted, Weatherproof, White
TrueAlert ES Addressable Speaker and Speaker/Strobes
Ceiling-Mounted
Addressable Speaker
TrueAlert ES ceiling-mounted indoor addressable speakers are individually powered, addressed, and controlled using the Fire Alarm Control Unit IDNAC Signaling Line Circuit (SLC). Audio is supplied using a separate compatible Fire Alarm Control Unit audio NAC.
Datasheet: S49SOC-0001
Appliance Only
49HF-APPLC
TrueAlert ES High-Fidelity Addressable Speaker Appliance Electronics, Ceiling-Mount,
25/70.7V, 1/4, 1/2, 1, 2watts (order cover separately)
49HF-APPLC-BA
TrueAlert ES High-Fidelity Addressable Speaker Appliance Electronics, Ceiling-Mount,
25/70.7V, 1/4, 1/2, 1, 2watts, BA (order cover separately)
49SO-APPLC
TrueAlert ES Addressable Speaker Appliance Electronics, Ceiling-Mount, 25/70.7V, 1/4, 1/2,
1, 2watts (order cover separately)
49SO-APPLC-BA
TrueAlert ES Addressable Speaker Appliance Electronics, Ceiling-Mount, 25/70.7V, 1/4, 1/2,
1, 2watts, BA (order cover separately)
Cover
49SOC-CRFIRE Cover, Red, "FIRE"
49SOC-CRALT Cover, Red, "ALERT"
49SOC-CRS Cover, Red, Logo Only
49SOC-CR Cover, Red, Blank
49SOC-CWFIRE Cover, White, "FIRE"
49SOC-CWALT Cover, White, "ALERT"
49SOC-CWS Cover, White, Logo Only
49SOC-CW Cover, White, Blank
49SOC-CK Cover, Black, Blank
Accessory
49WG-SOCR
Wire Guard, Ceiling Mounted, Red
(mounts directly to ceiling for semiflush-mounted appliances)
49WG-SOCR-O
Wire Guard, Ceiling-Mounted, Red
(mounts directly to ceiling for surface-mounted appliances)
49WPBB-SOCR Back Box, Ceiling Surface-Mounted, Weatherproof, Red
49WPBB-SOCW Back Box, Ceiling Surface-Mounted, Weatherproof, White
TrueAlert ES Addressable Speaker and Speaker/Strobes
Ceiling-Mounted
Addressable Speaker/Strobe
TrueAlert ES ceiling-mounted indoor addressable speakers/strobes are individually powered, addressed, and controlled using the fire alarm control unit (FACU) IDNAC signaling line circuit (SLC). Audio is supplied using a separate compatible Fire Alarm Control Unit audio NAC.
Datasheet: S49SVC-0001
Appliance Only
49HFV-APPLC
TrueAlert ES High-Fidelity Addressable Speaker/Strobe Appliance Electronics,
Ceiling-Mount, 15/30/75/110cd, 25/70.7V, 1/4, 1/2, 1, 2watts (order cover separately)
49HFV-APPLC-BA
TrueAlert ES High-Fidelity Addressable Speaker/Strobe Appliance Electronics,
Ceiling-Mount, 15/30/75/110cd, 25/70.7V, 1/4, 1/2, 1, 2watts, BA (order cover separately)
49HFVH-APLCA-BA
TrueAlert ES High-Fidelity Addressable Speaker/Strobe Appliance Electronics,
Ceiling-Mount, High-Candela 110/135/185cd, 25/70.7V, 1/4, 1/2, 1, 2watts, Amber Lens, BA
(order cover separately)
49HFVH-APLCB-BA
TrueAlert ES High-Fidelity Addressable Speaker/Strobe Appliance Electronics,
Ceiling-Mount, High-Candela 110/135/185cd, 25/70.7V, 1/4, 1/2, 1, 2watts, Blue Lens, BA
(order cover separately)
49HFVH-APPLC
TrueAlert ES High-Fidelity Addressable Speaker/Strobe Appliance Electronics, Ceiling-
Mount, High-Candela 110/135/185cd, 25/70.7V, 1/4, 1/2, 1, 2watts (order cover separately)
49HFVH-APPLC-BA
TrueAlert ES High-Fidelity Addressable Speaker/Strobe Appliance Electronics,
Ceiling-Mount, High-Candela 110/135/185cd, 25/70.7V, 1/4, 1/2, 1, 2watts, BA
(order cover separately)
49SV-APPLC
TrueAlert ES Addressable Speaker/Strobe Appliance Electronics, Ceiling-Mount,
15/30/75/110cd, 25/70.7V, 1/4, 1/2, 1, 2watts (order cover separately)
49SV-APPLC-BA
TrueAlert ES Addressable Speaker/Strobe Appliance Electronics, Ceiling-Mount,
15/30/75/110cd, 25/70.7V, 1/4, 1/2, 1, 2watts, BA (order cover separately)
49SVH-APPLC
TrueAlert ES Addressable Speaker/Strobe Appliance Electronics, Ceiling-Mount,
High-Candela 110/135/185cd, 25/70.7V, 1/4, 1/2, 1, 2watts (order cover separately)
49SVH-APPLC-BA
TrueAlert ES Addressable Speaker/Strobe Appliance Electronics, Ceiling-Mount,
High-Candela 110/135/185cd, 25/70.7V, 1/4, 1/2, 1, 2watts, BA (order cover separately)
Cover
49SVC-CRFIRE Cover, Red, "FIRE"
49SVC-CRALT Cover, Red, "ALERT"
49SVC-CRS Cover, Red, Logo Only
49SVC-CWFIRE Cover, White, "FIRE"
49SVC-CWALT Cover, White, "ALERT"
49SVC-CWS Cover, White, Logo Only
49SVC-CK Cover, Black, Blank
Accessory
49WGBB-SVCR-O
Wire Guard Back Box, Ceiling-Mounted, Red
(used in addition to wire guard and surface-mounted back box)
49WG-SVWCR
Wire Guard, Wall and Ceiling-Mounted, Red with mounting plate, compatible with
semiflush-mounting or surface mount boxes (surface mounting also requires wireguard back
box in addition to surface-mounted back box)
49WPBB-SVCR Back Box, Ceiling Surface-Mounted, Weatherproof, Red
49WPBB-SVCW Back Box, Ceiling Surface-Mounted, Weatherproof, White
TrueAlert ES Addressable Speaker and Speaker/Strobes
Wall-Mounted
Weatherproof Addressable Speaker
TrueAlert ES wall-mounted weatherproof addressable speakers are individually powered, addressed, and controlled from a fire alarm control unit IDNAC Signaling Line Circuit (SLC). Audio is supplied from a separate compatible Fire Alarm Control Unit audio NAC.
Datasheet: S49SOW-0001
Appliance Only
49SO-APPLW-O
TrueAlert ES Addressable Speaker Appliance Electronics, Wall-Mount, Weatherproof,
25/70.7V, 1/4, 1/2, 1, 2watts (order back box, mounting plate, and cover separately)
49SO-APPLW-O-BA
TrueAlert ES Addressable Speaker Appliance Electronics, Wall-Mount, Weatherproof,
25/70.7V, 1/4, 1/2, 1, 2watts, BA (order back box, mounting plate, and cover separately)
Cover
49SOC-WRFIRE-O Cover, Weatherproof, Red, "FIRE"
49SOC-WRALT-O Cover, Weatherproof, Red, "ALERT"
49SOC-WRS-O Cover, Weatherproof, Red, Logo Only
49SOC-WRBLANK-O Cover, Weatherproof, Red, Blank
49SOC-WWFIRE-O Cover, Weatherproof, White, "FIRE"
49SOC-WWALT-O Cover, Weatherproof, White, "ALERT"
49SOC-WWS-O Cover, Weatherproof, White, Logo Only
49SOC-WWBLANK-O Cover, Weatherproof, White, Blank
Mounting Plate
49MP-SOWR Mounting plate, Red
49MP-SOWW Mounting plate, White
Back Box
49WPBB-SOWR Back Box, Wall Surface-Mounted, Weatherproof, Red
49WPBB-SOWW Back Box, Wall Surface-Mounted, Weatherproof, White
Accessory
49WGBB-SOWR-O Wire Guard Back Box, Red
49WG-SOWR Wire Guard, Red
TrueAlert ES Addressable Speaker and Speaker/Strobes
Wall-Mounted
Weatherproof Addressable Speaker/Strobe
TrueAlert ES wall-mounted weatherproof addressable speakers/strobes are individually powered, addressed, and controlled from a fire alarm control unit IDNAC Signaling Line Circuit (SLC). Audio is supplied from a separate compatible Fire Alarm Control Unit audio NAC.
Datasheet: S49SVW-0001
Appliance Only
49SV-APPLW-O
TrueAlert ES Addressable Speaker/Strobe Appliance Electronics, Wall-Mount, Weatherproof,
15/75/WP15/WP75/WP110/WP185cd, 25/70.7V, 1/4, 1/2, 1, 2watts (order back box, mounting
plate, and cover separately)
49SV-APPLW-O-BA
TrueAlert ES Addressable Speaker/Strobe Appliance Electronics, Wall-Mount, Weatherproof,
15/75/WP15/WP75/WP110/WP185cd, 25/70.7V, 1/4, 1/2, 1, 2watts, BA (order back box,
mounting plate, and cover separately)
Cover
49SVC-WRFIRE-O Cover, Weatherproof, Red, "FIRE"
49SVC-WRALT-O Cover, Weatherproof, Red, "ALERT"
49SVC-WRS-O Cover, Weatherproof, Red, Logo Only
49SVC-WWFIRE-O Cover, Weatherproof, White, "FIRE"
49SVC-WWALT-O Cover, Weatherproof, White, "ALERT"
49SVC-WWS-O Cover, Weatherproof, White, Logo Only
Mounting Plate
49MP-SVWR Mounting plate, Red
49MP-SVWW Mounting plate, White
Back Box
49WPBB-SVWR Back Box, Wall Surface-Mounted, Weatherproof, Red
49WPBB-SVWW Back Box, Wall Surface-Mounted, Weatherproof, White
Accessory
49WGBB-SVWR-O Wire Guard Back Box, Red
49WG-SVWCR Wire Guard, Red
TrueAlert ES Addressable Speaker and Speaker/Strobes
Ceiling-Mounted
Weatherproof Addressable Speaker
TureAlert ES ceiling-mounted weather proof addressable speakers are individually powered, addressed, and controlled using the Fire Alarm Control Unit IDNAC Signaling Line Circuit (SLC). Audio is supplied using a separate compatible Fire Alarm Control Unit audio NAC.
Datasheet: S49SOC-0001
Appliance Only
49SO-APPLC-O
TrueAlert ES Addressable Speaker Appliance Electronics, Ceiling-Mount, Weatherproof,
25/70.7V, 1/4, 1/2, 1, 2watts (order back box and cover separately)
49SO-APPLC-O-BA
TrueAlert ES Addressable Speaker Appliance Electronics, Ceiling-Mount, Weatherproof,
25/70.7V, 1/4, 1/2, 1, 2watts, BA (order back box and cover separately)
Cover
49SOC-CRFIRE-O Cover, Weatherproof, Red, "FIRE"
49SOC-CRALT-O Cover, Weatherproof, Red, "ALERT"
49SOC-CRS-O Cover, Weatherproof, Red, Logo Only
49SOC-CR-O Cover, Weatherproof, Red, Blank
49SOC-CWFIRE-O Cover, Weatherproof, White, "FIRE"
49SOC-CWALT-O Cover, Weatherproof, White, "ALERT"
49SOC-CWS-O Cover, Weatherproof, White, Logo Only
49SOC-CW-O Cover, Weatherproof, White, Blank
Back Box
49WPBB-SOCR Back Box, Ceiling Surface-Mounted, Weatherproof, Red
49WPBB-SOCW Back Box, Ceiling Surface-Mounted, Weatherproof, White
Accessory 49WG-SOCR-O Wire Guard, Weatherproof, Red
TrueAlert ES Addressable Speaker and Speaker/Strobes
Ceiling-Mounted
Weatherproof Addressable Speaker/Strobe
TrueAlert ceiling-mounted weatherproof addressable speakers/strobes are individually powered, addressed, and controlled using the fire alarm control unit (FACU) IDNAC signaling line circuit (SLC). Audio is supplied using a separate compatible Simplex Fire Alarm Control Unit audio NAC.
Datasheet: S49SVC-0001
Appliance Only
49SVH-APPLC-O
TrueAlert ES Addressable Speaker/Strobe Appliance Electronics, Ceiling-Mount,
Weatherproof, High-Candela 110/135/185cd, 25/70.7V, 1/4, 1/2, 1, 2watts (order back box and
cover separately)
49SVH-APPLC-O-BA
TrueAlert ES Addressable Speaker/Strobe Appliance Electronics, Ceiling-Mount,
Weatherproof, High-Candela 110/135/185cd, 25/70.7V, 1/4, 1/2, 1, 2watts, BA (order back box
and cover separately)
Cover
49SVC-CRFIRE-O Cover, Weatherproof, Red, "FIRE"
49SVC-CRALT-O Cover, Weatherproof, Red, "ALERT"
49SVC-CRS-O Cover, Weatherproof, Red, Logo Only
49SVC-CWFIRE-O Cover, Weatherproof, White, "FIRE"
49SVC-CWALT-O Cover, Weatherproof, White, "ALERT"
49SVC-CWS-O Cover, Weatherproof, White, Logo Only
Back Box
49WPBB-SVCR Back Box, Ceiling Surface-Mounted, Weatherproof, Red
49WPBB-SVCW Back Box, Ceiling Surface-Mounted, Weatherproof, White
Accessory
49WGBB-SVCR-O Wire Guard Back Box, Red
49WG-SVWCR Wire Guard, Red
TrueAlert ES Addressable Multi-Tone Horns and Chimes
Wall/Ceiling-Mounted
Addressable Multi-Tone Horn
TrueAlert ES multi-tone horns are individually addressed audible notification appliances that receive power, supervision and control signals from a fire alarm control unit providing IDNAC Signaling Line Circuits (SLCs). 520 Hz tone is compliant with NFPA 72 Low Frequency Signal Requirements for Sleeping Areas. TrueAlert ES multi-tones addressable horns are available in red with white lettering and white with red lettering.
Datasheet: S49MT-0001
Appliance (complete)
49MT-WRF TrueAlert Addressable MultiTone Horn, Wall/Ceiling-Mount, Red, "FIRE"
49MT-WRF-BA TrueAlert Addressable MultiTone Horn, Wall/Ceiling-Mount, Red, "FIRE", BA
49MT-WRS-BA TrueAlert Addressable MultiTone Horn, Wall/Ceiling-Mount, Red, Logo Only, BA
49MT-WWF TrueAlert Addressable MultiTone Horn, Wall/Ceiling-Mount, White, "FIRE"
49MT-WWF-BA TrueAlert Addressable MultiTone Horn, Wall/Ceiling-Mount, White, "FIRE", BA
49MT-WWS-BA TrueAlert Addressable MultiTone Horn, Wall/Ceiling-Mount, White, Logo Only, BA
Appliance Only
49MT-APPLW
TrueAlert Addressable MultiTone Horn Appliance Electronics, Wall/Ceiling-Mount
(order mounting plate and cover separately)
49MT-APPLW-BA
TrueAlert Addressable MultiTone Horn Appliance Electronics, Wall/Ceiling-Mount, BA
(order mounting plate and cover separately)
Cover
49AOC-WRFIRE Cover, Red, "FIRE"
49AOC-WRS Cover, Red, Logo Only
49AOC-RBLANK Cover, Red, Blank
49AOC-WWFIRE Cover, White, "FIRE"
49AOC-WWS Cover, White, Logo Only
49AOC-WBLANK Cover, White, Blank
Mounting Plate
49MP-AVVOWR Mounting plate, Red
49MP-AVVOWW Mounting plate, White
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box
(typically for retrofit, mount vertical or horizontal)
4905-9937 Adapter Skirt, Surface-Mount, Red
4905-9940 Adapter Skirt, Surface-Mount, White
TrueAlert ES Addressable Multi-Tone Horns and Chimes
Wall-Mounted
Addressable Multi-Tone Horn/Strobe
TrueAlert ES addressable multi-tone horns/strobes are individually addressed audible/visible notification appliances that receive power, supervision, and control signals from a fire alarm control unit providing IDNAC Signaling Line Circuits (SLCs). 520 Hz tone is compliant with NFPA 72 Low Frequency Signal Requirements for Sleeping Areas. TrueAlert ES multi-tone addressable A/Vs are available in red with white lettering and white with red lettering.
Datasheet: S49MTV-0001
Appliance (complete)
49MTV-WRF TrueAlert Addressable MultiTone Horn/Strobe, Wall/Ceiling-Mount, Red, "FIRE"
49MTV-WRF-BA TrueAlert Addressable MultiTone Horn/Strobe, Wall/Ceiling-Mount, Red, "FIRE", BA
49MTV-WRS-BA TrueAlert Addressable MultiTone Horn/Strobe, Wall/Ceiling-Mount, Red, Logo Only, BA
49MTV-WWF TrueAlert Addressable MultiTone Horn/Strobe, Wall/Ceiling-Mount, White, "FIRE"
49MTV-WWF-BA TrueAlert Addressable MultiTone Horn/Strobe, Wall/Ceiling-Mount, White, "FIRE", BA
49MTV-WWS-BA TrueAlert Addressable MultiTone Horn/Strobe, Wall/Ceiling-Mount, White, Logo Only, BA
Appliance Only
49MTV-APPLW
TrueAlert Addressable MultiTone Horn/Strobe Appliance Electronics, Wall-Mount,
15/30/75/110/135/185cd (order mounting plate and cover separately)
49MTV-APPLW-BA
TrueAlert Addressable MultiTone Horn/Strobe Appliance Electronics, Wall-Mount,
15/30/75/110/135/185cd, BA (order mounting plate and cover separately)
Cover
49AVC-WRFIRE Cover, Red, "FIRE"
49AVC-WRALT Cover, Red, "ALERT"
49AVC-WRS Cover, Red, Logo Only
49AVC-WWFIRE Cover, White, "FIRE"
49AVC-WWALT Cover, White, "ALERT"
49AVC-WWS Cover, White, Logo Only
Mounting Plate
49MP-AVVOWR Mounting plate, Red
49MP-AVVOWW Mounting plate, White
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box
(typically for retrofit, mount vertical or horizontal)
4905-9937 Adapter Skirt, Surface-Mount, Red
4905-9940 Adapter Skirt, Surface-Mount, White
TrueAlert ES Addressable Multi-Tone Horns and Chimes
Wall-Mounted
Addressable Chime
TrueAlert ES addressable appliances on IDNAC SLCs provide separate audible (and visible) notification using a single two-wire circuit that also confirms connection to the individual notification appliance’s electronic circuit. TrueAlert ES Addressable Chime covers are available in red and white with a variety of lettering for applications.
Datasheet: S49CHO-0001
Appliance Only 49CHO-APPLW
TrueAlert ES Addressable Chime Appliance Electronics, Wall-Mount
(order mounting plate and cover separately)
Cover
49AOC-WRFIRE Cover, Red, "FIRE"
49AOC-WRS Cover, Red, Logo Only
49AOC-RBLANK Cover, Red, Blank
49AOC-WWFIRE Cover, White, "FIRE"
49AOC-WWS Cover, White, Logo Only
49AOC-WBLANK Cover, White, Blank
Mounting Plate
49MP-AVVOWR Mounting plate, Red
49MP-AVVOWW Mounting plate, White
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box
(typically for retrofit, mount vertical or horizontal)
4905-9937 Adapter Skirt, Surface-Mount, Red
4905-9940 Adapter Skirt, Surface-Mount, White
4905-9961
Wire guard, Red with mounting plate, compatible with semiflush-mounting or surface
mount boxes
TrueAlert ES Addressable Multi-Tone Horns and Chimes
Wall-Mounted
Addressable Chime/Strobe
TrueAlert ES addressable appliances on IDNAC SLCs provide separate audible (and visible) notification using a single two-wire circuit that also confirms connection to the individual notification appliance’s electronic circuit. TrueAlert ES Addressable Chime/Strobe covers are available in red and white with a variety of lettering for applications.
Datasheet: S49CHV-0001
Appliance Only 49CHV-APPLW
TrueAlert ES Addressable Chime/Strobe Appliance Electronics, Wall-Mount,
15/30/75/110/135/185cd (order mounting plate and cover separately)
Cover
49AVC-WRFIRE Cover, Red, "FIRE"
49AVC-WRS Cover, Red, Logo Only
49AVC-WWFIRE Cover, White, "FIRE"
49AVC-WWS Cover, White, Logo Only
Mounting Plate
49MP-AVVOWR Mounting plate, Red
49MP-AVVOWW Mounting plate, Red
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box
(typically for retrofit, mount vertical or horizontal)
4905-9937 Adapter Skirt, Surface-Mount, Red
4905-9940 Adapter Skirt, Surface-Mount, White
4905-9961
Wire guard, Red with mounting plate, compatible with semiflush-mounting or surface
mount boxes
TrueAlert ES LED Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
LED Addressable Horn
TrueAlert ES LED horns are individually addressed audible notification appliances that receive power, supervision and control signals from a fire alarm control unit providing IDNAC SLCs. TrueAlert ES LED addressable horns are available in red with white lettering and white with red lettering.
Datasheet: S59AO-0002
Appliance (complete)
59AO-WRS TrueAlert ES LED Addressable Horn Appliance, Wall-Mount, Red, Logo Only
59AO-WRS-BA TrueAlert ES LED Addressable Horn Appliance, Wall-Mount, Red, Logo Only, BA
59AO-WWS TrueAlert ES LED Addressable Horn Appliance, Wall-Mount, White, Logo Only
59AO-WWS-BA TrueAlert ES LED Addressable Horn Appliance, Wall-Mount, White, Logo Only, BA
Appliance Only
59AO-APPLWR
TrueAlert ES LED Addressable Horn Appliance Electronics, Wall-Mount, Red
(order cover separately)
59AO-APPLWW
TrueAlert ES LED Addressable Horn Appliance Electronics, Wall-Mount, White
(order cover separately)
Cover
59AOC-WRF Cover, Red, "FIRE"
59AOC-WRS Cover, Red, Logo Only
59AOC-WWF Cover, White, "FIRE"
59AOC-WWS Cover, White, Logo Only
Accessory
59AP-EUROBB
European Adapter Plate. Wall mounting plate for mounting to UK (Deta DB164), Swiss
(Kaiser 9063-01), or German (HSB, NIS Kombi. 372501686) back boxes
59WGBB-LEDWR-O
Wire Guard Back Box, Wall-Mount, Red
(used in addition to wire guard and surface-mounted back box)
59WG-LEDWR
Wire Guard, Wall-Mount, Red with mounting plate, compatible with semiflush-mounting or surface mount boxes (surface mounting also requires wireguard back box in addition to surface-mounted back box)
TrueAlert ES LED Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
LED Addressable Strobe
TrueAlert ES LED addressable strobes are individually addressed visible notification appliances that receive power, supervision, and control signals from a fire alarm control unit providing IDNAC Signaling Line Circuits. TrueAlert ES LED addressable strobes are available in red with white lettering and white with red lettering.
Datasheet: S59VO-0002
Appliance (complete)
59VO-WRF TrueAlert ES LED Addressable Strobe Appliance, Wall-Mount, Red, "FIRE"
59VO-WRFH-BA TrueAlert ES LED Addressable Strobe Appliance, Wall-Mount, High-Candela, Red, "FIRE", BA
59VO-WWF TrueAlert ES LED Addressable Strobe Appliance, Wall-Mount, White, "FIRE"
59VO-WWFH-BA
TrueAlert ES LED Addressable Strobe Appliance, Wall-Mount, High-Candela, White,
"FIRE", BA
Appliance Only
59VO-APPLWR
TrueAlert ES LED Addressable Strobe Appliance Electronics, Wall-Mount, 15/30/75cd, Red
(order cover separately)
59VO-APPLWRH
TrueAlert ES LED Addressable Strobe Appliance Electronics, Wall-Mount, High-Candela
110/135/186cd, Red (order cover separately)
59VO-APPLWW
TrueAlert ES LED Addressable Strobe Appliance Electronics, Wall-Mount, 15/30/75cd, White
(order cover separately)
59VO-APPLWWH
TrueAlert ES LED Addressable Strobe Appliance Electronics, Wall-Mount, High-Candela
110/135/186cd, White (order cover separately)
Cover
59VOC-WRF Cover, Red, "FIRE"
59VOC-WRA Cover, Red, "ALERT"
59VOC-WRS Cover, Red, Logo Only
59VOC-WWF Cover, White, "FIRE"
59VOC-WWA Cover, White, "ALERT"
59VOC-WWS Cover, White, Logo Only
Accessory
59AP-EUROBB
European Adapter Plate. Wall mounting plate for mounting to UK (Deta DB164), Swiss
(Kaiser 9063-01), or German (HSB, NIS Kombi. 372501686) back boxes
59WGBB-LEDWR-O
Wire Guard Back Box, Wall-Mount, Red
(used in addition to wire guard and surface-mounted back box)
59WG-LEDWR
Wire Guard, Wall-Mount, Red with mounting plate, compatible with semiflush-mounting
or surface mount boxes (surface mounting also requires wireguard back box in addition to
surface-mounted back box)
TrueAlert ES LED Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
LED Addressable Horn/Strobe
TrueAlert ES LED addressable horns/strobes are individually addressed audible/visible notification appliances that receive power, supervision and control signals from a fire alarm control unit providing IDNAC Signaling Line Circuits. TrueAlert ES LED addressable A/Vs are available in red with white lettering and white with red lettering.
Datasheet: S59AV-0002
Appliance (complete)
59AV-WRF TrueAlert ES LED Addressable Horn/Strobe Appliance, Wall-Mount, Red, "FIRE"
59AV-WRF-BA TrueAlert ES LED Addressable Horn/Strobe Appliance, Wall-Mount, Red, "FIRE", BA
59AV-WRFH
TrueAlert ES LED Addressable Horn/Strobe Appliance, Wall-Mount, High-Candela,
Red, "FIRE"
59AV-WRFH-BA
TrueAlert ES LED Addressable Horn/Strobe Appliance, Wall-Mount, High-Candela,
Red, "FIRE", BA
59AV-WWFH-BA
TrueAlert ES LED Addressable Horn/Strobe Appliance, Wall-Mount, High-Candela,
White, “FIRE”, BA
59AV-WWF TrueAlert ES LED Addressable Horn/Strobe Appliance, Wall-Mount, White, "FIRE"
59AV-WWF-BA TrueAlert ES LED Addressable Horn/Strobe Appliance, Wall-Mount, White, "FIRE", BA
Appliance Only
59AV-APPLWR
TrueAlert ES LED Addressable Horn/Strobe Appliance Electronics, Wall-Mount, 15/30/75cd,
Red (order cover separately)
59AV-APPLWW
TrueAlert ES LED Addressable Horn/Strobe Appliance Electronics, Wall-Mount, 15/30/75cd,
White (order cover separately)
59AV-APPLWRH
TrueAlert ES LED Addressable Horn/Strobe Appliance Electronics, Wall-Mount,
High-Candela 110/135/186cd, Red (order cover separately)
59AV-APPLWWH
TrueAlert ES LED Addressable Horn/Strobe Appliance Electronics, Wall-Mount,
High-Candela 110/135/186cd, White (order cover separately)
Cover
59AVC-WRF Cover, Red, "FIRE"
59AVC-WRA Cover, Red, "ALERT"
59AVC-WRS Cover, Red, Logo Only
59AVC-WWF Cover, White, "FIRE"
59AVC-WWA Cover, White, "ALERT"
59AVC-WWS Cover, White, Logo Only
Accessory
59AP-EUROBB
European Adapter Plate. Wall mounting plate for mounting to UK (Deta DB164), Swiss
(Kaiser 9063-01), or German (HSB, NIS Kombi. 372501686) back boxes
59WGBB-LEDWR-O
Wire Guard Back Box, Wall-Mount, Red (used in addition to wire guard and surfacemounted
back box)
59WG-LEDWR
Wire Guard, Wall-Mount, Red with mounting plate, compatible with semiflush-mounting
or surface mount boxes (surface mounting also requires wireguard back box in addition to
surface-mounted back box)
TrueAlert ES LED Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
Weatherproof LED Addressable Horn
TrueAlert ES 59 Series weatherproof addressable horns are individually addressed audible notification appliances that receive power, supervision, and control signals from a fire alarm control unit providing IDNAC SLCs. TrueAlert ES 59AO series Addressable Horns are Available in Red with White Lettering and White with Red Lettering.
Datasheet: S59AO-0002
Appliance (complete)
59AO-WRSO
TrueAlert ES LED Addressable Horn Appliance, Wall-Mount, Weatherproof, Red, Logo Only
(order back box separately)
59AO-WRSO-BA
TrueAlert ES LED Addressable Horn Appliance, Wall-Mount, Weatherproof, Red, Logo Only,
BA (order back box separately)
59AO-WWSO-BA
TrueAlert ES LED Addressable Horn Appliance, Wall-Mount, Weatherproof, White, Logo
Only, BA (order back box separately)
Appliance Only
59AO-APPLWR-O
TrueAlert ES LED Addressable Horn Appliance Electronics, Wall-Mount, Weatherproof, Red
(order back box and cover separately)
59AO-APPLWW-O
TrueAlert ES LED Addressable Horn Appliance Electronics, Wall-Mount, Weatherproof,
White (order back box and cover separately)
Cover
59AOC-WRFO Cover, Weatherproof, Red, "FIRE"
59AOC-WRSO Cover, Weatherproof, Red, Logo Only
59AOC-WWFO Cover, Weatherproof, White, "FIRE"
59AOC-WWSO Cover, Weatherproof, White, Logo Only
Back Box
59WPBB-WR
Back Box, Surface-Mounted, Weatherproof, Red. Surface mount weatherproof single-gang
mounting box, includes weatherproof gasket and painted versions of model 7219K23 (below)
59WPBB-WW
Back Box, Surface-Mounted, Weatherproof, White. Surface mount weatherproof
single-gang mounting box, includes weatherproof gasket and painted versions of
model 7219K23 (below).
Accessory
59WGBB-LEDWR-O
Wire Guard Back Box, Wall-Mount, Red (used in addition to wire guard and surfacemounted
back box)
59WG-LEDWR
Wire Guard, Wall-Mount, Red with mounting plate, compatible with semiflush-mounting
or surface mount boxes (surface mounting also requires wireguard back box in addition to
surface-mounted back box)
TrueAlert ES LED Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
Weatherproof LED Addressable Strobe
TrueAlert ES LED weatherproof addressable strobes provide visible-only notification for indoor and outdoor, extended temperature and extended humidity applications. They are individually addressed and receive power, supervision, and control signals from a fire alarm control unit providing IDNAC SLCs. TrueAlert ES LED addressable strobes are available in red with white lettering and white with red lettering.
Datasheet: S59WP-0002
Appliance (complete)
59VO-WRFO TrueAlert ES LED Addressable Strobe Appliance, Wall-Mount, Weatherproof, Red, "FIRE"
59VO-WRFO-BA TrueAlert ES LED Addressable Strobe Appliance, Wall-Mount, Weatherproof, Red, "FIRE", BA
Appliance Only
59VO-APPLWRH-O
TrueAlert ES LED Addressable Strobe Appliance Electronics, Wall-Mount, Weatherproof,
High-Candela 110, 135, 185cd, Red (order back box and cover separately)
59VO-APPLWR-O
TrueAlert ES LED Addressable Strobe Appliance Electronics, Wall-Mount, Weatherproof,
20/30/75cd, Red (order back box and cover separately)
59VO-APPLWWH-O
TrueAlert ES LED Addressable Strobe Appliance Electronics, Wall-Mount, Weatherproof,
High-Candela 110, 135, 185cd, White (order back box and cover separately)
59VO-APPLWW-O
TrueAlert ES LED Addressable Strobe Appliance Electronics, Wall-Mount, Weatherproof,
20/30/75cd, White (order back box and cover separately)
Cover
59VOC-WRFO Cover, Weatherproof, Red, "FIRE"
59VOC-WRAO Cover, Weatherproof, Red, "ALERT"
59VOC-WRSO Cover, Weatherproof, Red, Logo Only
59VOC-WWFO Cover, Weatherproof, White, "FIRE"
59VOC-WWAO Cover, Weatherproof, White, "ALERT"
59VOC-WWSO Cover, Weatherproof, White, Logo Only
Back Box
59WPBB-WR
Back Box, Surface-Mounted, Weatherproof, Red. Surface mount weatherproof single-gang
mounting box, includes weatherproof gasket and painted versions of model 7219K23 (below)
59WPBB-WW
Back Box, Surface-Mounted, Weatherproof, White. Surface mount weatherproof singlegang
mounting box, includes weatherproof gasket and painted versions of model 7219K23
(below)
Accessory
59WGBB-LEDWR-O
Wire Guard Back Box, Wall-Mount, Red (used in addition to wire guard and surfacemounted
back box)
59WG-LEDWR
Wire Guard, Wall-Mount, Red with mounting plate, compatible with semiflush-mounting
or surface mount boxes (surface mounting also requires wireguard back box in addition to
surface-mounted back box)
TrueAlert ES LED Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
Weatherproof LED Addressable Horn/Strobe
TrueAlert ES LED weatherproof addressable horns/strobes provide audible/ visible notification for indoor and outdoor, extended temperature and extended humidity applications. They are individually addressed and receive power, supervision, and control signals from a fire alarm control panel providing IDNAC SLCs. TrueAlert ES LED addressable horns/strobes are available in red with white lettering and white with red lettering.
Datasheet: S59WP-0002
Appliance (complete)
59AV-WRFO TrueAlert ES LED Addressable Horn/Strobe Appliance, Wall-Mount, Weatherproof, Red, "FIRE"
59AV-WRFO-BA
TrueAlert ES LED Addressable Horn/Strobe Appliance, Wall-Mount, Weatherproof,
Red, "FIRE", BA
59AV-WWFO-BA
TrueAlert ES LED Addressable Horn/Strobe Appliance, Wall-Mount, Weatherproof, White,
"FIRE", BA
Appliance Only
59AV-APPLWRH-O
TrueAlert ES LED Addressable Horn/ Strobe Appliance Electronics, Wall-Mount,
Weatherproof, High-Candela 110, 135, 185cd, Red (order back box and cover separately)
59AV-APPLWR-O
TrueAlert ES LED Addressable Horn/ Strobe Appliance Electronics, Wall-Mount,
Weatherproof, 20/30/75cd, Red (order back box and cover separately)
59AV-APPLWWH-O
TrueAlert ES LED Addressable Horn/ Strobe Appliance Electronics, Wall-Mount,
Weatherproof, High-Candela 110, 135, 185cd, White (order back box and cover separately)
59AV-APPLWW-O
TrueAlert ES LED Addressable Horn/ Strobe Appliance Electronics, Wall-Mount,
Weatherproof, 20/30/75cd, White (order back box and cover separately)
Cover
59AVC-WRFO Cover, Weatherproof, Red, "FIRE"
59AVC-WRAO Cover, Weatherproof, Red, "ALERT"
59AVC-WRSO Cover, Weatherproof, Red, Logo Only
59AVC-WWFO Cover, Weatherproof, White, "FIRE"
59AVC-WWAO Cover, Weatherproof, White, "ALERT"
59AVC-WWSO Cover, Weatherproof, White, Logo Only
Back Box
59WPBB-WR
Back Box, Surface-Mounted, Weatherproof, Red. Surface mount weatherproof single-gang
mounting box, includes weatherproof gasket and painted versions of model 7219K23 (below)
59WPBB-WW
Back Box, Surface-Mounted, Weatherproof, White. Surface mount weatherproof singlegang
mounting box, includes weatherproof gasket and painted versions of model 7219K23
(below)
Accessory
59WGBB-LEDWR-O
Wire Guard Back Box, Wall-Mount, Red
(used in addition to wire guard and surface-mounted back box)
59WG-LEDWR
Wire Guard, Wall-Mount, Red with mounting plate, compatible with semiflush-mounting or surface mount boxes (surface mounting also requires wireguard back box in addition to surface-mounted back box)
TrueAlert Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
Addressable Dual-Strobe
Multi-Candela TrueAlert addressable combination strobes are individually addressed and individually controlled with power, supervision, and control supplied from a fire alarm control unit providing IDNAC Signaling Line Circuits (SLCs). A single assembly provides an amber lens strobe for non-fire alarm, alert notification for use with Emergency Communications Systems, and a clear lens strobe for fire alarm notification.
Datasheet: S4906-0009
Appliance (complete)
4906-9208
TrueAlert Multi-Candela Dual-Strobe, Wall-Mount, 15/30/75/110cd, Top Strobe: Amber Lens,
"ALERT", Lower Strobe: Clear Lens, "FIRE", Red
4906-9211
TrueAlert Multi-Candela Dual-Strobe, Wall-Mount, 15/30/75/110cd, Top Strobe: Amber Lens,
"ALERT", Lower Strobe: Clear Lens, "FIRE", White
Accessory
4905-9837 Adapter Skirt, Surface-Mount, Red
4905-9840 Mounting Plate, White for mounting to 2975-9145 boxes (flush mount only)
4905-9847 Adapter Skirt, Surface-Mount, White
TrueAlert Addressable Horns, Strobes and Horn/Strobes
Ceiling-Mounted
Multi-Candela Addressable Strobe
Multi-Candela TrueAlert addressable strobe provide convenient installation to standard electrical boxes. The strobe is individually addressed and individually controlled with power, supervision and control supplied from a fire alarm control unit providing IDNAC Signaling Line Circuits (SLCs).
Datasheet: S4906-0004
Appliance (complete)
4906-9202 TrueAlert Multi-Candela Addressable Strobe, Ceiling-Mount, 15/30/75/110cd, Red, "FIRE"
4906-9204 TrueAlert Multi-Candela Addressable Strobe, Ceiling-Mount, 15/30/75/110cd, White, "FIRE"
4906-9207 TrueAlert Multi-Candela Strobe, Ceiling-Mount, 15/30/75/110cd, White, Amber Lens, "ALERT"
Accessory
4905-9910
Adapter Plate for mounting to Wiremold Box or handy electrical box
(typically surface applications)
4905-9926 Wire guard, Red with mounting plate, compatible with semiflush or surface mount boxes
TrueAlert Addressable Horns, Strobes and Horn/Strobes
Ceiling-Mounted
Multi-Candela Addressable Horn/Strobe
Multi-Candela TrueAlert addressable horns/strobes provide convenient installation to standard electrical boxes. Operation is individually addressed and individually controlled with power, supervision, and control supplied from a fire alarm control unit providing IDNAC Signaling Line Circuits (SLCs).
Datasheet: S4906-0005
Appliance (complete)
4906-9228 TrueAlert Multi-Candela Horn/Strobe, Ceiling-Mount, 15/30/75/110cd, Red, "FIRE"
4906-9230 TrueAlert Multi-Candela Horn/Strobe, Ceiling-Mount, 15/30/75/110cd, White, "FIRE"
Accessory
4905-9915 Adapter Skirt, White for mounting to 1 1/2 inch deep electrical box
4905-9916 Adapter Skirt, Red for mounting to 1 1/2 inch deep electrical box
4905-9927
Wire Guard, Red, Semiflush-Mounting
(requires 4905-9928 mounting plate for 4905-9923, -9924, and -9145 boxes
TrueAlert Non-Addressable Speaker/Addressable Strobes
Wall-Mounted
Non-Addressable Speaker/Addressable Strobe
Multi-Candela TrueAlert Non-addressable Speaker/Addressable Strobe provides convenient installation to standard electrical boxes with extensions.The strobe is individually addressed and individually controlled with power, supervision and control supplied from fire alarm control units providing IDNAC Signaling Line Circuits (SLCs).
Datasheet: S4906-0006
Appliance (complete)
4906-9251
TrueAlert Addressable Multi-Candela Speaker/Strobe, Wall-Mount, 15/30/75/110cd, 25/70.7V,
1/4, 1/2, 1, 2watts, Red, "FIRE"
4906-9253
TrueAlert Addressable Multi-Candela Speaker/Strobe, Wall-Mount, 15/30/75/110cd, 25/70.7V,
1/4, 1/2, 1, 2watts, White, "FIRE"
Cover
4905-9996 Cover, Red, "FIRE"
4905-9997 Cover, White, "FIRE"
Accessory
2975-9145 Mounting Box, Red (requires 4905-9903 Adapter Plate)
4905-9903 Adapter Plate for mounting to 2975-9145 back box
4905-9946 Adapter Skirt, Red for mounting to 1 1/2 inch deep electrical box
4905-9947 Adapter Skirt, White for mounting to 1 1/2 inch deep electrical box
4905-9998 Wire guard, Red with mounting plate, compatible with semiflush or surface mount boxes
TrueAlert Non-Addressable Speaker/Addressable Strobes
Ceiling-Mounted
Non-Addressable Speaker/Addressable Strobe
Multi-Candela TrueAlert Non-addressable Speaker/Addressable Strobe provides convenient installation to standard electrical boxes with extensions. The strobe is individually addressed and individually controlled with power, supervision, and control supplied from Simplex fire alarm control units providing IDNAC Signaling Line Circuits (SLCs).
Datasheet: S4906-0006
Appliance (complete)
4906-9254
TrueAlert Addressable Multi-Candela Speaker/Strobe, Ceiling-Mount, 15/30/75/110cd,
25/70.7V, 1/4, 1/2, 1, 2watts, White, "FIRE"
4906-9255
TrueAlert Addressable Multi-Candela Speaker/Strobe, Ceiling-Mount, 15/30/75/110cd,
25/70.7V, 1/4, 1/2, 1, 2watts, White, Blank
4906-9256
TrueAlert Addressable Multi-Candela Speaker/Strobe, Ceiling-Mount, 15/30/75/110cd,
25/70.7V, 1/4, 1/2, 1, 2watts, White, "ALERT"
4906-9257
TrueAlert Addressable Multi-Candela Speaker/Strobe, Ceiling-Mount, ULC, 15/30/75/110cd,
25/70.7V, 1/4, 1/2, 1, 2watts, White, "FIRE"
Accessory
2905-9946 Tile Bridge, Suspended Ceiling 2ft by 4ft tile size installation
4905-9947 Adapter Skirt, White for mounting to 1 1/2 inch deep electrical box
4905-9998 Wire guard, Red with mounting plate, compatible with semiflush or surface mount boxes
TrueAlert Addressable Modules
Addressable Isolator+ Module
Part Number Description
Module 4905-9929
TrueAlert Addressable Isolator+ Module, mounts in 4" (102 mm) square, 2-1/8" (54 mm)
minimum depth electrical box
TrueAlert Addressable Modules
Addressable Adapter Module
TrueAlert Addressable Adapter Module converts a TrueAlert addressable notification address into separate 24vdc audible and visible notification outputs. Mounts in standard four-inch electrical box.
Datasheet: S4905-0004
Module 4905-9816
TrueAlert Addressable Adapter Module, mounts in 4-11/16" (119 mm) square, 2" (51 mm)
minimum depth electrical box, requires surface or flush mount cover plate
Accessory
4081-9008
End-of-Line Resistor Harness (ref. 733-894); 10 kΩ, ½ W; two required, one each for audible
and visible output
4905-9817 Cover Plate, Surface Mount, Beige
4905-9818 Cover Plate, Flush Mount, Beige
TrueAlert Non-Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
Non-Addressable Horn
TrueAlert Non-Addressable Horn model 4901-9820 is an audible notification appliance with a loud and penetrating, harmonically rich sound that can be controlled either directly from a standard NAC (free-run operation mode) or by the SmartSync two-wire operation mode.
Datasheet: S4901-0010
Appliance (complete) 4901-9820 TrueAlert Non-Addressable Horn, Free-Run/SmartSync, Red, Logo Only
Cover
4905-9988 Cover, Red, "FIRE" (for replacement if required)
4905-9980 Cover, Red, Logo Only (for replacement if required)
4905-9989 Cover, White, "FIRE" (for replacement if required)
4905-9981 Cover, White, Logo Only (for replacement if required)
4905-9814 Cover, White, Blank (for replacement if required)
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box (typically for retrofit, mount
vertical or horizontal)
4905-9937 Adapter Skirt, Surface-Mount, Red
4905-9938 SmartSync Control Module
4905-9940 Adapter Skirt, Surface-Mount, White
4905-9961
Wire guard, Red with mounting plate, compatible with semiflush-mounting or surface
mount boxes
TrueAlert Non-Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
Non-Addressable Mini-Horn
Mini-horns provide a loud and penetrating notification sound controlled by SmartSync two-wire operation. The compact package allows mounting in a variety of convenient locations. An output level switch allows selection of low or high sound output as required for the location.
Datasheet: S4901-0013
Appliance (complete)
4901-9858 Non-Addressable Mini-Horn, SmartSYNC, Red, Blank
4901-9859 Non-Addressable Mini-Horn, SmartSYNC, White, Blank
Accessory 4905-9938 SmartSync Control Module
TrueAlert Non-Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
Multi-Candela, Non-Addressable Strobe
TrueAlert multi-candela high-intensity appliances provide convenient installation to standard electrical boxes. They are both impact and vandal resistant and provide a convenient strobe intensity selection. Since each model can be selected for strobe intensity output, onsite model inventory is minimized and changes encountered during construction can be easily accommodated. Wall-mount strobe housings are a one-piece assembly (including lens) that mounts to a single or double gang, or 4” square standard electrical box.
Datasheets: S4906-0001 / S4906-0008 / S4906-0011
Appliance (complete)
4906-9101 TrueAlert Multi-Candela Strobe, Wall-Mount, 15/30/75/110cd, Red, "FIRE"
4906-9103 TrueAlert Multi-Candela Strobe, Wall-Mount, 15/30/75/110cd, White, "FIRE"
4906-9107 TrueAlert Multi-Candela Strobe, Wall-Mount, 15/30/75/110cd, White, Amber Lens, "ALERT"
4906-9108 TrueAlert Multi-Candela Strobe, Wall-Mount, 15/30/75/110cd, Red, Amber Lens, "ALERT"
4906-9109 TrueAlert Multi-Candela Strobe, Wall-Mount, High-Candela 135/177/185cd, Red, "FIRE"
4906-9111 TrueAlert Multi-Candela Strobe, Wall-Mount, High-Candela 135/177/185cd, White, "FIRE"
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9914 Synchronized Flash Module (Class B), 2 amps
4905-9922 Synchronized Flash Module (Class A), 2 amps
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box (typically for retrofit, mount
vertical or horizontal)
4905-9937 Adapter Skirt, Surface-Mount, Red
4905-9938 SmartSync Control Module
4905-9940 Adapter Skirt, Surface-Mount, White
4905-9961
Wire guard, Red with mounting plate, compatible with semiflush-mounting or surface
mount boxes
TrueAlert Non-Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
Non-Addressable Horn/Strobe
TrueAlert multi-candela horn and synchronized strobe provide convenient installation to standard electrical boxes. The enclosure designs are both impact and vandal resistant and provide a convenient strobe intensity selection. Wall mount strobe housings are a one-piece assembly (including lens) that mounts to a single or double gang, or four-inch square standard electrical box.
Datasheet: S4906-0002 / S4906-0011
Appliance (complete)
4906-9127 TrueAlert Multi-Candela Horn/Strobe, Wall-Mount, 15/30/75/110cd, Red, "FIRE"
4906-9129 TrueAlert Multi-Candela Horn/Strobe, Wall-Mount, 15/30/75/110cd, White, "FIRE"
4906-9139 TrueAlert Multi-Candela Horn/Strobe, Wall-Mount, High-Candela 135/177/185cd, Red, "FIRE"
4906-9141
TrueAlert Multi-Candela Horn/Strobe, Wall-Mount, High-Candela 135/177/185cd,
White, "FIRE"
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box
(typically for retrofit, mount vertical or horizontal)
4905-9937 Adapter Skirt, Surface-Mount, Red
4905-9938 SmartSync Control Module
4905-9940 Adapter Skirt, Surface-Mount, White
4905-9961
Wire guard, Red with mounting plate, compatible with semiflush-mounting or surface
mount boxes
TrueAlert Non-Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
Non-Addressable Strobe, Fixed-Candela
TrueAlert non-addressable free-run strobes provide quick and convenient installation using a flexible mounting design. The strobe housing is a rugged, one-piece assembly (including lens) that mounts to single gang, double gang, or four-inch square standard electrical box.
Datasheet: S4904-0005
Appliance (complete)
4904-9168 TrueAlert Non-Addressable Strobe, Wall-Mount, 15cd, 24V, Free-Run, Red, "Fire" and Logo
4904-9169 TrueAlert Non-Addressable Strobe, Wall-Mount, 75cd, 24V, Free-Run, Red, "Fire" and Logo
4904-9170 TrueAlert Non-Addressable Strobe, Wall-Mount, 110cd, 24V, Free-Run, Red, "Fire" and Logo
4904-9171 TrueAlert Non-Addressable Strobe, Wall-Mount, 15cd, 24V, Free-Run, Red, "Fire" and Logo
4904-9172 TrueAlert Non-Addressable Strobe, Wall-Mount, 75cd, 24V, Free-Run, Red, "Fire" and Logo
4904-9173 TrueAlert Non-Addressable Strobe, Wall-Mount, 110cd, 24V, Free-Run, Red, "Fire" and Logo
Cover
4905-9992 Cover, Red, "FIRE" (for replacement if required)
4905-9841 Cover, Red, "ALERT" (for replacement if required)
4905-9985 Cover, White, Logos Only (for replacement if required)
4905-9993 Cover, White, "FIRE" (for replacement if required)
4905-9842 Cover, White, "ALERT" (for replacement if required)
4905-9810 Cover, White, Blank (for replacement if required)
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9914 Synchronized Flash Module (Class B), 2 amps
4905-9922 Synchronized Flash Module (Class A), 2 amps
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box
(typically for retrofit, mount vertical or horizontal)
4905-9937 Adapter Skirt, Surface-Mount, Red
4905-9938 SmartSync Control Module
4905-9940 Adapter Skirt, Surface-Mount, White
4905-9961
Wire guard, Red with mounting plate, compatible with semiflush-mounting or surface
mount boxes
TrueAlert Non-Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
Non-Addressable Horn/Strobe, Fixed-Candela
TrueAlert non-addressable audible and visible notification. For applications requiring Audible/Visible (A/V) notification with horn tones, these appliances combine a high-intensity strobe with a low-current electronic horn in a compact package that is easy and quick to install. The audible and visual portion of the appliance can be controlled independently using conventional reverse-polarity NACs.
Datasheet: S4903-0011
Appliance (complete)
4903-9425
TrueAlert Non-Addressable Horn/Strobe, Wall-Mount, 4-Wire, 15cd, Free-Run/Sync, Red, Logo Only
4903-9426
TrueAlert Non-Addressable Horn/Strobe, Wall-Mount, 4-Wire, 75cd, Free-Run/Sync, Red, Logo Only
4903-9427
TrueAlert Non-Addressable Horn/Strobe, Wall-Mount, 4-Wire, 110cd, Free-Run/Sync, Red, Logo Only
4903-9431
TrueAlert Non-Addressable Horn/Strobe, Wall-Mount, 4-Wire, 15cd, Free-Run/Sync, White, Logo Only
4903-9432
TrueAlert Non-Addressable Horn/Strobe, Wall-Mount, 4-Wire, 75cd, Free-Run/Sync, White, Logo Only
4903-9433
TrueAlert Non-Addressable Horn/Strobe, Wall-Mount, 4-Wire, 110cd, Free-Run/Sync, White, Logo Only
Cover
4905-9984 Cover, Red, Logos Only (for replacement if required)
4905-9994 Cover, Red, "FIRE" (for replacement if required)
4905-9843 Cover, Red, "ALERT" (for replacement if required)
4905-9983 Cover, White, Logos Only (for replacement if required)
4905-9995 Cover, White, "FIRE" (for replacement if required)
4905-9844 Cover, White, "ALERT" (for replacement if required)
4905-9808 Cover, White, Blank (for replacement if required)
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9914 Synchronized Flash Module (Class B), 2 amps
4905-9922 Synchronized Flash Module (Class A), 2 amps
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box
(typically for retrofit, mount vertical or horizontal)
4905-9937 Adapter Skirt, Surface-Mount, Red
4905-9940 Adapter Skirt, Surface-Mount, White
4905-9961
Wire guard, Red with mounting plate, compatible with semiflush-mounting or surface
mount boxes
TrueAlert Non-Addressable Horns, Strobes and Horn/Strobes
Ceiling-Mounted
Non-Addressable Strobe
TrueAlert multi-candela high intensity appliances provide convenient installation to standard electrical boxes. They are both impact and vandal resistant and provide a convenient strobe intensity selection. Since each model can be selected for strobe intensity output, onsite model inventory is minimized and changes encountered during construction can be easily accommodated. Ceiling-mounted strobes install using standard single gang electrical boxes. Color choice is determined by model number.
Datasheet: S4906-0001 / S4906-0011
Appliance (complete)
4906-9102 TrueAlert Multi-Candela Strobe, Ceiling-Mount, 15/30/75/110cd, Red, "FIRE"
4906-9104 TrueAlert Multi-Candela Strobe, Ceiling-Mount, 15/30/75/110cd, White, "FIRE"
4906-9110 TrueAlert Multi-Candela Strobe, Ceiling-Mount, High-Candela 135/177/185cd, Red, "FIRE"
4906-9112 TrueAlert Multi-Candela Strobe, Ceiling-Mount, High-Candela 135/177/185cd, White, "FIRE"
4906-9114 TrueAlert Multi-Candela Strobe, Ceiling-Mount, 15/30/75/110cd, Red, "ALERT"
4906-9115 TrueAlert Multi-Candela Strobe, Ceiling-Mount, 15/30/75/110cd, White, "ALERT"
4906-9116 TrueAlert Multi-Candela Strobe, Ceiling-Mount, 15/30/75/110cd, Red, Blank
4906-9117 TrueAlert Multi-Candela Strobe, Ceiling-Mount, 15/30/75/110cd, White, Blank
Accessory
4905-9910
Adapter Plate for mounting to Wiremold Box or handy electrical box
(typically surface applications)
4905-9914 Synchronized Flash Module (Class B), 2 amps
4905-9915 Adapter Skirt, White for mounting to 1 1/2 inch deep electrical box
4905-9916 Adapter Skirt, Red for mounting to 1 1/2 inch deep electrical box
4905-9922 Synchronized Flash Module (Class A), 2 amps
4905-9926 Wire guard, Red with mounting plate, compatible with semiflush or surface mount boxes
4905-9927
Wire Guard, Red, Semiflush Mounting (requires 4905-9928 mounting plate for 4905-9923,
-9924, and -9145 boxes)
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box
(typically for retrofit, mount vertical or horizontal)
4905-9937 Adapter Skirt, Surface-Mount, Red
4905-9938 SmartSync Control Module
4905-9940 Adapter Skirt, Surface-Mount, White
TrueAlert Non-Addressable Horns, Strobes and Horn/Strobes
Ceiling-Mounted
Non-Addressable Horn/Strobe
TrueAlert multi-candela horn and synchronized strobe provide convenient installation to standard electrical boxes. The enclosure designs are both impact and vandal resistant and provide a convenient strobe intensity selection. Since each model can be selected for strobe intensity output, onsite model inventory is minimized and changes encountered during construction can be easily accommodated.
Datasheet: S4906-0002 / S4906-0011
Appliance (complete)
4906-9128 TrueAlert Multi-Candela Horn/Strobe, Ceiling-Mount, 15/30/75/110cd, Red, "FIRE"
4906-9130 TrueAlert Multi-Candela Horn/Strobe, Ceiling-Mount, 15/30/75/110cd, White, "FIRE"
4906-9140
TrueAlert Multi-Candela Horn/Strobe, Ceiling-Mount, High-Candela 135/177/185cd,
Red, "FIRE"
4906-9142
TrueAlert Multi-Candela Horn/Strobe, Ceiling-Mount, High-Candela 135/177/185cd,
White, "FIRE"
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9838
Sound Damper (optional), 20 per package, field installed adhesive backed horn output attenuator, reduces output 6-6 dbA (after installation measure sound level to ensure compliance with applicable code)
4905-9915 Adapter Skirt, White for mounting to 1 1/2 inch deep electrical box
4905-9916 Adapter Skirt, Red for mounting to 1 1/2 inch deep electrical box
4905-9927
Wire Guard, Red, Semi-Flush Mounting (requires 4905-9928 mounting plate for 4905-9923, -9924, and -9145 boxes)
4905-9938 SmartSync Control Module
TrueAlert Non-Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted
Non-Addressable Weatherproof Strobe
TrueAlert weatherproof multi-candela appliances provide Visible Only (V/O)
SmartSync operation for indoor and outdoor, extended temperature and extended humidity applications. The enclosures are impact and vandal resistant and provide a convenient strobe intensity selection.
Datasheet: S4906-0010
Appliance (complete)
4906-9105
TrueAlert Multi-Candela Strobe, Wall-Mount, Weatherproof, 15/60/75/WP75cd, Red, "FIRE"
(order back box separately)
4906-9106
TrueAlert Multi-Candela Strobe, Wall-Mount, Weatherproof, 15/60/75/WP75cd, White,
"FIRE" (order back box separately)
4906-9113
TrueAlert Multi-Candela Strobe, Wall-Mount, Weatherproof, ULC, 5/20/30cd, Red, "FIRE"
(order back box separately)
Back Box
49WPBB-AVVOWR Back Box, Surface-Mounted, Weatherproof, Red
49WPBB-AVVOWW Back Box, Surface-Mounted, Weatherproof, White
Accessory
4905-9914 Synchronized Flash Module (Class B), 2 amps
4905-9922 Synchronized Flash Module (Class A), 2 amps
4905-9938 SmartSync Control Module
TrueAlert Non-Addressable Horns, Strobes and Horn/Strobes
Wall-Mounted Weatherproof
Non-Addressable Weatherproof Horn/Strobe
TrueAlert weatherproof multi-candela appliances provide Audible/Visible (A/V) SmartSync operation for indoor and outdoor, extended temperature and extended humidity applications. The enclosures are impact and vandal resistant and provide a convenient strobe intensity selection.
Datasheet: S4906-0010
Appliance (complete)
4906-9131
TrueAlert Multi-Candela Horn/Strobe, Wall-Mount, Weatherproof, 15/60/75/WP75cd, Red,
"FIRE" (order back box separately)
4906-9132
TrueAlert Multi-Candela Horn/Strobe, Wall-Mount, Weatherproof, 15/60/75/WP75cd, White,
"FIRE" (order back box separately)
4906-9143
TrueAlert Multi-Candela Horn/Strobe, Wall-Mount, Weatherproof, ULC, 5/20/30cd, Red,
"FIRE" (order back box separately)
Back Box
49WPBB-AVVOWR Back Box, Surface-Mounted, Weatherproof, Red
49WPBB-AVVOWW Back Box, Surface-Mounted, Weatherproof, White
Accessory
4905-9914 Synchronized Flash Module (Class B), 2 amps
4905-9922 Synchronized Flash Module (Class A), 2 amps
4905-9938 SmartSync Control Module
TrueAlert Non-Addressable Multi-Tone Horns and Chimes
Wall-Mounted
Non-Addressable Multi-Tone Horn
TrueAlert non-addressable multi-tone horns provide a flexible selection of output tones for fire alarm audible notification. Tone selection and output level is set for each appliance, allowing notification needs to be tailored to specific area requirements.
Datasheet: S49CMT-0001
Appliance (complete)
49CMT-WRF TrueAlert Non-Addressable MultiTone Horn, Wall/Ceiling-Mount, Red, "FIRE"
49CMT-WRF-BA TrueAlert Non-Addressable MultiTone Horn, Wall/Ceiling-Mount, Red, "FIRE", BA
49CMT-WWF TrueAlert Non-Addressable MultiTone Horn, Wall/Ceiling-Mount, White, "FIRE"
49CMT-WWF-BA TrueAlert Non-Addressable MultiTone Horn, Wall/Ceiling-Mount, White, "FIRE", BA
Appliance Only
49CMT-APPLW
TrueAlert Non-Addressable MultiTone Horn Appliance Electronics, Wall/Ceiling-Mount
(order mounting plate and cover separately)
49CMT-APPLW-BA
TrueAlert Non-Addressable MultiTone Horn Appliance Electronics, Wall/Ceiling-Mount, BA
(order mounting plate and cover separately)
Cover
49CMTC-WRFIRE Cover, Red, "FIRE"
49CMTC-WRALT Cover, Red, "ALERT"
49CMTC-WRS Cover, Red, Logo Only
49AOC-RBLANK Cover, Red, Blank
49CMTC-WWFIRE Cover, White, "FIRE"
49CMTC-WWALT Cover, White, "ALERT"
49CMTC-WWS Cover, White, Logo Only
49AOC-WBLANK Cover, White, Blank
Mounting Plate
49CMP-MTWR Mounting plate, Red
49CMP-MTWW Mounting plate, White
TrueAlert Non-Addressable Multi-Tone Horns and Chimes
Wall-Mounted
Non-Addressable Multi-Tone Horn/Strobe
TrueAlert non-addressable multi-tone multi-candela horn/strobe provides a flexible selection of output tones and strobe intensity for fire alarm audible notification. Tone selection, output level, and strobe intensity is set per appliance, allowing notification needs to be tailored to specific area requirements. 520 Hz tone is compliant with NFPA 72 Low Frequency Signal Requirements for Sleeping Areas.
Datasheet: S49CMTV-0001
Appliance (complete)
49CMTV-WRF TrueAlert Non-Addressable MultiTone Horn/Strobe, Wall/Ceiling-Mount, Red, "FIRE"
49CMTV-WRF-BA TrueAlert Non-Addressable MultiTone Horn/Strobe, Wall/Ceiling-Mount, Red, "FIRE", BA
49CMTV-WWF TrueAlert Non-Addressable MultiTone Horn/Strobe, Wall/Ceiling-Mount, White, "FIRE"
49CMTV-WWF-BA TrueAlert Non-Addressable MultiTone Horn/Strobe, Wall/Ceiling-Mount, White, "FIRE", BA
Appliance Only
49CMTV-APPLW
TrueAlert Non-Addressable MultiTone Horn/Strobe Appliance Electronics, Wall-Mount,
15/30/75/110/135/185cd (order mounting plate and cover separately)
49CMTV-APPLW-BA
TrueAlert Non-Addressable MultiTone Horn/Strobe Appliance Electronics, Wall-Mount,
15/30/75/110/135/185cd, BA (order mounting plate and cover separately)
Cover
49CMTC-WRFIRE Cover, Red, "FIRE"
49CMTC-WRALT Cover, Red, "ALERT"
49CMTC-WRS Cover, Red, Logo Only
49AOC-RBLANK Cover, Red, Blank
49CMTC-WWFIRE Cover, White, "FIRE"
49CMTC-WWALT Cover, White, "ALERT"
49CMTC-WWS Cover, White, Logo Only
49AOC-WBLANK Cover, White, Blank
Mounting Plate
49CMP-MTWR Mounting plate, Red
49CMP-MTWW Mounting plate, White
TrueAlert Non-Addressable Multi-Tone Horns and Chimes
Wall-Mounted
Non-Addressable Chime
TrueAlert non-addressable chimes are private mode audible notification appliances for applications requiring notification of trained personnel instead of the general public. Typical applications would be in medical patient areas where the softer chime tones are less disruptive thancconventional fire alarm audible notification.
Datasheet: S4902-0004
Appliance (complete)
4902-9210 Non-Addressable Chime, SmartSYNC, Red, "FIRE"
4902-9211 Non-Addressable Chime, SmartSYNC, White, "FIRE"
Cover
4905-9988 Cover, Red, "FIRE" (replacement cover)
4905-9989 Cover, White, "FIRE" (replacement cover)
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box
(typically for retrofit, mount vertical or horizontal)
4905-9937 Adapter Skirt, Surface-Mount, Red
4905-9938 SmartSync Control Module
4905-9940 Adapter Skirt, Surface-Mount, White
4905-9961
Wire guard, Red with mounting plate, compatible with semiflush-mounting or surface
mount boxes
TrueAlert Non-Addressable Multi-Tone Horns and Chimes
Wall-Mounted
Non-Addressable Chime/Strobe
TrueAlert multi-candela chime/strobe provides private mode audible notification for applications requiring notification of trained personnel instead of the general public. Typical applications would be in medical patient areas where the softer chime tones are less disruptive than conventional fire alarm audible notification.
Datasheet: S4906-0012
Appliance (complete)
4906-9133 Non-Addressable Chime/Strobe, 15/30/75/110/135/185cd, SmartSYNC, Red, "FIRE"
4906-9134 Non-Addressable Chime/Strobe, 15/30/75/110/135/185cd, SmartSYNC, White, "FIRE"
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box
(typically for retrofit, mount vertical or horizontal)
4905-9937 Adapter Skirt, Surface-Mount, Red
4905-9938 SmartSync Control Module
4905-9940 Adapter Skirt, Surface-Mount, White
4905-9961
Wire guard, Red with mounting plate, compatible with semiflush-mounting or surface mount boxes
TrueAlert Non-Addressable Multi-Tone Horns and Chimes
Ceiling-Mounted
Non-Addressable Chime/Strobe
TrueAlert multi-candela chime/strobe provides private mode audible notification for applications requiring notification of trained personnel instead of the general public. Typical applications would be in medical patient areas where the softer chime tones are less disruptive than conventional fire alarm audible notification.
Datasheet: S4906-0012
Appliance (complete)
4906-9135 Non-Addressable Chime/Strobe, 15/30/75/110/135/185cd, SmartSYNC, Red, "FIRE"
4906-9136 Non-Addressable Chime/Strobe, 15/30/75/110/135/185cd, SmartSYNC, White, "FIRE"
Accessory
4905-9915 Adapter Skirt, White for mounting to 1 1/2 inch deep electrical box
4905-9916 Adapter Skirt, Red for mounting to 1 1/2 inch deep electrical box
4905-9927
Wire Guard, Red, Semi-Flush Mounting
(requires 4905-9928 mounting plate for 4905-9923, -9924, and -9145 boxes)
4905-9938 SmartSync Control Module
TrueAlert Non-Addressable Speakers and Speaker/Strobes
Wall-Mounted
Non-Addressable Speaker
4902 Series speakers provide high-quality sound for emergency fire alarm use as well as for background music. The moisture-repellent speaker is designed for smooth frequency response with minimal distortion.
Datasheet: S4902-0003
Appliance (complete)
4902-9716 TrueAlert Speaker, Wall-Mount, 25/70.7V, 1/4, 1/2, 1, 2watts, Red, "FIRE"
4902-9717 TrueAlert Speaker, Wall-Mount, 25/70.7V, 1/4, 1/2, 1, 2watts, White, "FIRE"
Accessory
2975-9145 Mounting Box, Red (requires 4905-9931 Adapter Plate)
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box
(typically for retrofit, mount vertical or horizontal)
4905-9941 Adapter Skirt, Surface-Mount, Red
4905-9942 Adapter Skirt, Surface-Mount, White
TrueAlert Non-Addressable Speakers and Speaker/Strobes
Wall-Mounted
Non-Addressable Speaker/Strobe
The TrueAlert multi-candela speaker and synchronized strobe provides convenient installation to standard electrical boxes with extensions. The enclosure designs are both impact and vandal resistant and provide a convenient strobe intensity selection. Since each model can be selected for strobe intensity output, onsite model inventory is minimized and changes encountered during construction can be easily accommodated. Wall mount S/V housings are a onepiece assembly (including lens) that mounts to a four-inch square electrical box with extension.
Datasheet: S4906-0003
Appliance (complete)
4906-9151
TrueAlert Multi-Candela Speaker/Strobe, Wall-Mount, UL/ULC, 15/30/75/110cd, 25/70.7V, 1/4,
1/2, 1, 2watts, Red, "FIRE"
4906-9153
TrueAlert Multi-Candela Speaker/Strobe, Wall-Mount, UL/ULC, 15/30/75/110cd, 25/70.7V, 1/4,
1/2, 1, 2watts, White, "FIRE"
Cover
4905-9996 Cover, Red, "FIRE"
4905-9845 Cover, Red, "ALERT"
4905-9811 Cover, Red, Blank
4905-9997 Cover, White, "FIRE"
4905-9846 Cover, White, "ALERT"
4905-9991 Cover, White, Logo Only
4905-9812 Cover, White, Blank
Accessory
2975-9145 Mounting Box, Red (requires 4905-9903 Adapter Plate)
4905-9903 Adapter Plate for mounting to 2975-9145 back box
4905-9914 Synchronized Flash Module (Class B), 2 amps
4905-9922 Synchronized Flash Module (Class A), 2 amps
4905-9938 SmartSync Control Module
4905-9946 Adapter Skirt, Red for mounting to 1 1/2 inch deep electrical box
4905-9947 Adapter Skirt, White for mounting to 1 1/2 inch deep electrical box
4905-9998 Wire guard, Red with mounting plate, compatible with semiflush or surface mount boxes
TrueAlert Non-Addressable Speakers and Speaker/Strobes
Wall-Mounted
Non-Addressable Speaker/Strobe, Fixed-Candela
TrueAlert non-addressable speaker/visible (S/V) notification appliances combine a multi-tapped speaker and a high-intensity strobe to provide audio/ tone notification and visible notification from the same appliance. Speakers and strobes are wired separately. The speaker is multi-tapped with taps available for either 25 VRMS or 70.7 VRMS and the strobe is selectable for either free-run or synchronized operation.
Datasheet: S4903-0015
Appliance (complete)
4903-9356
TrueAlert Non-Addressable Fixed-Candela Speaker/Strobe, Wall-Mount, 15cd, 2-Wire,
Free-Run/Sync, Red, "FIRE"
4903-9357
TrueAlert Non-Addressable Fixed-Candela Speaker/Strobe, Wall-Mount, 75cd, 2-Wire,
Free-Run/Sync, Red, "FIRE"
4903-9358
TrueAlert Non-Addressable Fixed-Candela Speaker/Strobe, Wall-Mount, 110cd, 2-Wire,
Free-Run/Sync, Red, "FIRE"
4903-9359
TrueAlert Non-Addressable Fixed-Candela Speaker/Strobe, Wall-Mount, 15cd, 2-Wire,
Free-Run/Sync, White, "FIRE"
4903-9360
TrueAlert Non-Addressable Fixed-Candela Speaker/Strobe, Wall-Mount, 75cd, 2-Wire,
Free-Run/Sync, White, "FIRE"
4903-9361
TrueAlert Non-Addressable Fixed-Candela Speaker/Strobe, Wall-Mount, 110cd, 2-Wire,
Free-Run/Sync, White, "FIRE"
Cover
4905-9996 Cover, Red, "FIRE"
4905-9997 Cover, White, "FIRE"
Accessory
2975-9145 Mounting Box, Red (requires 4905-9903 Adapter Plate)
4905-9903 Adapter Plate for mounting to 2975-9145 back box
4905-9914 Synchronized Flash Module (Class B), 2 amps
4905-9922 Synchronized Flash Module (Class A), 2 amps
4905-9946 Adapter Skirt, Red for mounting to 1 1/2 inch deep electrical box
4905-9947 Adapter Skirt, White for mounting to 1 1/2 inch deep electrical box
4905-9998 Wire guard, Red with mounting plate, compatible with semiflush or surface mount boxes
Non-Addressable Speaker/Strobe,
TrueAlert Non-Addressable Speakers and Speaker/Strobes
Ceiling-Mounted
Non-Addressable Speaker
4902 Series speakers provide high-quality sound for emergency fire alarm use as well as for background music. The moisture-repellent speaker is designed for smooth frequency response with minimal distortion. Round speakers are available in off-white (no lettering).
Datasheet: S4902-0003
Appliance (complete) 4902-9721 TrueAlert Speaker, Ceiling-Mount, 25/70.7V, 1/4, 1/2, 1, 2watts, White, “FIRE”
Accessory 2905-9946 Tile Bridge, Suspended Ceiling 2ft by 4ft tile size installation
TrueAlert Non-Addressable Speakers and Speaker/Strobes
Ceiling-Mounted
Non-Addressable Speaker/Strobe
Multi-Candela TrueAlert S/Vs with speaker and synchronized strobe provides convenient installation to standard electrical boxes with extensions. The enclosure designs are both impact and vandal resistant and provide a convenient strobe intensity selection. Since each model can be selected for strobe intensity output, onsite model inventory is minimized and changes encountered during construction can be easily accommodated. Ceiling mount S/Vs also install using four-inch electrical boxes with an extension.
Datasheet: S4906-0003
Appliance (complete)
4906-9154
TrueAlert Multi-Candela Speaker/Strobe, Ceiling-Mount, 15/30/75/110cd, 25/70.7V, 1/4, 1/2,
1, 2watts, White, "FIRE"
4906-9157
TrueAlert Multi-Candela Speaker/Strobe, Ceiling-Mount, ULC, 15/30/75/110cd, 25/70.7V, 1/4,
1/2, 1, 2watts, White, "FIRE"
4906-9158
TrueAlert Multi-Candela Speaker/Strobe, Ceiling-Mount, 15/30/75/110cd, 25/70.7V, 1/4, 1/2,
1, 2watts, White, "ALERT"
4906-9159
TrueAlert Multi-Candela Speaker/Strobe, Ceiling-Mount, 15/30/75/110cd, 25/70.7V, 1/4, 1/2,
1, 2watts, White, Blank
Accessory
2905-9946 Tile Bridge, Suspended Ceiling 2ft by 4ft tile size installation
4905-9914 Synchronized Flash Module (Class B), 2 amps
4905-9922 Synchronized Flash Module (Class A), 2 amps
4905-9938 SmartSync Control Module
TrueAlert Non-Addressable Speakers and Speaker/Strobes
Ceiling-Mounted
Non-Addressable Speaker/Strobe, Fixed-Candela
TrueAlert non-addressable Speaker/Visible (S/V) notification appliances combine a multi-tapped speaker and a high-intensity strobe to provide audio/ tone notification and visible notification from the same appliance. Speakers and strobes are wired separately. The speaker is multi-tapped with tapsavailable for either 25 VRMS or 70.7 VRMS and the strobe is selectable for either free-run or synchronized operation.
Datasheet: S4903-0019
Accessory
4903-9196
TrueAlert Non-Addressable Speaker/Strobe, Round, Ceiling-Mount, 15cd, 25/70.7V, 1/4, 1/2,
1, 2watts, White, "FIRE"
4903-9197
TrueAlert Non-Addressable Speaker/Strobe, Round, Ceiling-Mount, 30cd, 25/70.7V, 1/4, 1/2,
1, 2watts, White, "FIRE"
4903-9198
TrueAlert Non-Addressable Speaker/Strobe, Round, Ceiling-Mount, 110cd, 25/70.7V, 1/4, 1/2,
1, 2watts, White, "FIRE"
2905-9946 Tile Bridge, Suspended Ceiling 2ft by 4ft tile size installation
4905-9914 Synchronized Flash Module (Class B), 2 amps
4905-9922 Synchronized Flash Module (Class A), 2 amps
TrueAlert Non-Addressable Module
SmartSync Adapter Module
Standard SmartSync operation notification appliances activate horns and/or strobes in response to commands received from the SmartSync operation control source using a two-wire connection.
Datasheet: S4905-0005
Module 4905-9815
SmartSync Adapter Module, mounts in 4-11/16" (119mm) square, 2" (51mm) minimum depth
electrical box, requires surface or flush mount cover plate
Accessory
4081-9008
End-of-Line Resistor Harness (ref. 733-894); 10 kΩ, ½ W; two required, one each for audible
and visible output
4905-9817 Cover Plate, Surface Mount, Beige
4905-9818 Cover Plate, Flush Mount, Beige
Conventional Notification - Horns, Strobes and Horn/Strobes
Wall-Mounted
Visible Notification Appliance, Fixed Candela
4904 Series wall-mounted visible notification appliances provide symmetrical light output in key axis directions by utilizing a compound, multi-surface reflector. The lens assembly fits securely into its housing, providing a highintegrity notification appliance that is impact and vandal resistant and suitable for a variety of applications. Wall Mount Strobes are available in red or white for vertical mounting and in red for horizontal mounting.
Datasheet: S4904-0008
Appliance (complete)
4904-9174
Visible Notification Appliance, Wall-Mount, 30cd, Free-Run/Sync, Red, "FIRE" and Logo
(vertical mount)
4904-9175
Visible Notification Appliance, Wall-Mount, 110cd, Free-Run/Sync, Red, "FIRE" and Logo
(vertical mount)
4904-9176
Visible Notification Appliance, Wall-Mount, 15cd, Free-Run/Sync, Red, "FIRE" and Logo
(vertical mount)
4904-9177
Visible Notification Appliance, Wall-Mount, 15cd, Free-Run/Sync, White, "FIRE" and Logo
(vertical mount)
4904-9178
Visible Notification Appliance, Wall-Mount, 15cd, Free-Run/Sync, Red, "FIRE" and Logo
(horizontal mount)
Accessory
4905-9910
Adapter Plate for mounting to Wiremold Box or handy electrical box
(typically surface applications)
4905-9914 Synchronized Flash Module (Class B), 2 amps
4905-9922 Synchronized Flash Module (Class A), 2 amps
4905-9926 Wire guard, Red with mounting plate, compatible with semiflush or surface mount boxes
4905-9938 SmartSync Control Module
Conventional Notification - Horns, Strobes and Horn/Strobes
Wall-Mounted
Audible/Visible Notification Appliance,
Fixed Candela
Audio/Visible (A/V) notification appliances combine a high-intensity strobe with a low-current electronic horn. The horn output provides a steady, harmonically rich sound that can be easily coded by the controlling notification appliance circuit (NAC). A/V notification appliances with electronic horns are available for horizontal or vertical mounting.
Datasheet: S4903-0017
Appliance (complete)
4903-9252
Audio/Visible Notification Appliance, Wall-Mount, 4-Wire, 15cd, Free-Run/Sync, Red,
"FIRE" and Logo (horizontal mount)
4903-9253
Audio/Visible Notification Appliance, Wall-Mount, 4-Wire, 30cd, Free-Run/Sync, Red, "FIRE"
and Logo (horizontal mount)
4903-9254
Audio/Visible Notification Appliance, Wall-Mount, 4-Wire, 110cd, Free-Run/Sync, Red,
"FIRE" and Logo (horizontal mount)
4903-9255
Audio/Visible Notification Appliance, Wall-Mount, 4-Wire, 15cd, Free-Run/Sync, Red, "FIRE"
and Logo (vertical mount)
Accessory
2975-9145 Mounting Box, Red (requires 4905-9903 Adapter Plate)
4905-9903 Adapter Plate for mounting to 2975-9145 back box
4905-9914 Synchronized Flash Module (Class B), 2 amps
4905-9916 Adapter Skirt, Red for mounting to 1 1/2 inch deep electrical box
4905-9922 Synchronized Flash Module (Class A), 2 amps
4905-9923 Surface Mount Box, Red
4905-9927
Wire Guard, Red, Semi-Flush Mounting (requires 4905-9928 mounting plate for 4905-9923,
-9924, and -9145 boxes)
4905-9931
Adapter Plate, Red for mounting to Simplex 2975-9145 Box (typically for retrofit, mount
vertical or horizontal)
4905-9939
Adapter Plate for mounting to Wiremold Box or 2 gang electrical box
(typically retrofit applications
Conventional Notification - Horns, Strobes and Horn/Strobes
Ceiling-Mounted
Visible Notification Appliance, Fixed Candela
4904 Series ceiling-mounted visible notification appliances provide symmetrical light output in key axis directions by utilizing a compound, multi-surface reflector design. The lens assembly fits securely into its housing, providing a high-integrity notification appliance that is impact and vandal resistant and suitable for a variety of applications. Ceiling-mount strobes are available in red with white lettering and white without lettering.
Datasheet: S4904-0009
Appliance (complete)
4904-9183 Visible Notification Appliance, Ceiling-Mount, 15cd, 24V, Free-Run/Sync, Red, "Fire"
4904-9184 Visible Notification Appliance, Ceiling-Mount, 30cd, 24V, Free-Run/Sync, Red, "Fire"
4904-9185 Visible Notification Appliance, Ceiling-Mount, 110cd, 24V, Free-Run/Sync, Red, "Fire"
4904-9345 Visible Notification Appliance, Ceiling-Mount, 15cd, 24V, Free-Run/Sync, White, Blank
4904-9346 Visible Notification Appliance, Ceiling-Mount, 30cd, 24V, Free-Run/Sync, White, Blank
4904-9360 Visible Notification Appliance, Ceiling-Mount, 75cd, 24V, Free-Run/Sync, White, Blank
Accessory
4905-9910
Adapter Plate for mounting to Wiremold Box or handy electrical box
(typically surface applications)
4905-9914 Synchronized Flash Module (Class B), 2 amps
4905-9922 Synchronized Flash Module (Class A), 2 amps
4905-9926 Wire guard, Red with mounting plate, compatible with semiflush or surface mount boxes
4905-9938 SmartSync Control Module
Conventional Notification - Speakers and Speaker/Strobes
Wall-Mounted
Speaker/Visible Notification Appliance,
Fixed-Candela
Speaker/Visible (S/V) notification appliances combine a multi-tapped speaker and a high-intensity strobe to provide audio/tone notification and visible notification from the same appliance. Audible/Visible notification appliances with electronic horns are available for horizontal or vertical mounting.
Datasheet: S4903-0016
Appliance (complete)
4903-9148
Speaker/Visible Notification Appliance, Wall-Mount, 4-Wire, 30cd, Free-Run/Sync, Red,
"FIRE" and Logo (horizontal mount)
4903-9149
Speaker/Visible Notification Appliance, Wall-Mount, 4-Wire, 110cd, Free-Run/Sync, Red,
"FIRE" and Logo (horizontal mount)
4903-9150
Speaker/Visible Notification Appliance, Wall-Mount, 4-Wire, 15cd, Free-Run/Sync, Red,
"FIRE" and Logo (horizontal mount)
4903-9153
Speaker/Visible Notification Appliance, Wall-Mount, 4-Wire, 15cd, Free-Run/Sync, Red,
"FIRE" and Logo (vertical mount)
4903-9193
Speaker/Visible Notification Appliance, Wall-Mount, 4-Wire, 15cd, Free-Run/Sync, White,
"FIRE" and Logo (vertical mount)
Accessory
2975-9145 Mounting Box, Red (requires 4905-9903 Adapter Plate)
4905-9903 Adapter Plate for mounting to 2975-9145 back box
4905-9914 Synchronized Flash Module (Class B), 2 amps
4905-9915 Adapter Skirt, White for mounting to 1 1/2 inch deep electrical box
4905-9916 Adapter Skirt, Red for mounting to 1 1/2 inch deep electrical box
4905-9922 Synchronized Flash Module (Class A), 2 amps
4905-9923 Surface Mount Box, Red
4905-9927
Wire Guard, Red, Semi-Flush Mounting
(requires 4905-9928 mounting plate for 4905-9923, -9924, and -9145 boxes)
4905-9939
Adapter Plate for mounting to Wiremold Box or 2 gang electrical box
(typically retrofit applications)
Visual Messaging
TrueAlert Text Messaging Appliance
High-visibility, multi-color LED text message board provides visible textual alarm notification controlled from compatible fire alarm control units. Up to 32 pre-programmed messages can be activated in response to pre-defined emergency situations.
Datasheet: J4907-0002
Message Board 4907-9007
TrueAlert Messaging Appliance, Wall/Ceiling-Mounted, Dark Gray with optional VESA
bracket mounting or for ceiling cable mounting
Accessory
4907-9002 Mounting Bracket, Wall-Mounted, Dark Gray, adjustable swivel
4907-9003 Mounting Bracket, Wall-Mounted, Dark Gray, fixed
4907-9005 Ethernet Cable, 15 feet length (connect for non-fire alarm messaging)
4907-9006 Mounting Box, Wall-Mounted, Dark Gray
Hyperspike Speakers and Amplifiers
High-Power Outdoor Mass Notification
HyperSpike MA-1 Loudspeakers
The HyperSpike® MA-1 is a customizable, omni-directional high-power speaker array that broadcasts live and pre-recorded voice commands and tones over a four-square-mile area.
Datasheet: 90105A-SS-MA1
Speaker
90223A-801-02
Hyperspike Encompass MA-1 Loudspeaker, Multichannel, 5 sided, Universal-Mount, 41V,
1600watts, Tan
90223A-801-02-L
Hyperspike Encompass MA-1 Loudspeaker, UL-Listed, Multichannel, 5 sided, Universal-
Mount, 41V, 1600watts, Tan
90223A-801-04
Hyperspike Encompass MA-1 Loudspeaker, Multichannel, 5 sided, Universal-Mount, 41V,
1600watts, Gray
90223A-801-04-L
Hyperspike Encompass MA-1 Loudspeaker, UL-Listed, Multichannel, 5 sided, Universal-
Mount, 41V, 1600watts, Gray
90223A-802-02
Hyperspike Encompass MA-1 Loudspeaker, Multichannel, 3 sided, Universal-Mount, 41V,
960watts, Tan
90223A-802-02-L
Hyperspike Encompass MA-1 Loudspeaker, UL-Listed, Multichannel, 3 sided, Universal-
Mount, 41V, 960watts, Tan
90223A-802-04
Hyperspike Encompass MA-1 Loudspeaker, Multichannel, 3 sided, Universal-Mount, 41V,
960watts, Gray
90223A-802-04-L
Hyperspike Encompass MA-1 Loudspeaker, UL-Listed, Multichannel, 3 sided, Universal-
Mount, 41V, 960watts, Gray
90223A-803-02
Hyperspike Encompass MA-1 Loudspeaker, Multichannel, 2 sided, Universal-Mount, 41V,
640watts, Tan
90223A-803-02-L
Hyperspike Encompass MA-1 Loudspeaker, UL-Listed, Multichannel, 2 sided, Universal-
Mount, 41V, 640watts, Tan
90223A-803-04
Hyperspike Encompass MA-1 Loudspeaker, Multichannel, 2 sided, Universal-Mount, 41V,
640watts, Gray
90223A-803-04-L
Hyperspike Encompass MA-1 Loudspeaker, UL-Listed, Multichannel, 2 sided, Universal-
Mount, 41V, 640watts, Gray
90223A-804-02
Hyperspike Encompass MA-1 Loudspeaker, Multichannel, 1 sided, Universal-Mount, 41V,
320watts, Tan
90223A-804-02-L
Hyperspike Encompass MA-1 Loudspeaker, UL-Listed, Multichannel, 1 sided, Universal-
Mount, 41V, 320watts, Tan
90223A-804-04
Hyperspike Encompass MA-1 Loudspeaker, Multichannel, 1 sided, Universal-Mount, 41V,
320watts, Gray
90223A-804-04-L
Hyperspike Encompass MA-1 Loudspeaker, UL-Listed, Multichannel, 1 sided, Universal-
Mount, 41V, 320watts, Gray
Accessory
74014A-SK15 Hyperspike Ceiling Mount Kit
90209A-802 Hyperspike Pole Mount Kit
90209A-803 Hyperspike Wall Mount Kit
90209A-804 Hyperspike Roof Mount Kit (10ft)
90210A-801 Hyperspike Heavy Duty Tripod
Hyperspike Speakers and Amplifiers
High-Power Outdoor Mass Notification
HyperSpike MA-2 Loudspeakers
The HyperSpike® MA-2 is a customizable, omni-directional high-power speaker array that broadcasts live and pre-recorded voice commands and tones over a 12-square-mile area.
Datasheet: 90080A-SS-MA2
Speaker
90224A-801-02
Hyperspike Encompass MA-2 Loudspeaker, Multichannel, 5 sided, Universal-Mount, 41V,
1600watts, Tan
90224A-801-02-L
Hyperspike Encompass MA-2 Loudspeaker, UL-Listed, Multichannel, 5 sided, Universal-Mount,
41V, 1600watts, Tan
90224A-801-04
Hyperspike Encompass MA-2 Loudspeaker, Multichannel, 5 sided, Universal-Mount, 41V,
1600watts, Gray
90224A-801-04-L
Hyperspike Encompass MA-2 Loudspeaker, UL-Listed, Multichannel, 5 sided, Universal-Mount,
41V, 1600watts, Gray
90224A-802-02
Hyperspike Encompass MA-2 Loudspeaker, Multichannel, 3 sided, Universal-Mount, 41V,
960watts, Tan
90224A-802-02-L
Hyperspike Encompass MA-2 Loudspeaker, UL-Listed, Multichannel, 3 sided, Universal-Mount,
41V, 960watts, Tan
90224A-802-04
Hyperspike Encompass MA-2 Loudspeaker, Multichannel, 3 sided, Universal-Mount, 41V,
960watts, Gray
90224A-802-04-L
Hyperspike Encompass MA-2 Loudspeaker, UL-Listed, Multichannel, 3 sided, Universal-Mount,
41V, 960watts, Gray
90224A-803-02
Hyperspike Encompass MA-2 Loudspeaker, Multichannel, 2 sided, Universal-Mount, 41V,
640watts, Tan
90224A-803-02-L
Hyperspike Encompass MA-2 Loudspeaker, UL-Listed, Multichannel, 2 sided, Universal-Mount,
41V, 640watts, Tan
90224A-803-04
Hyperspike Encompass MA-2 Loudspeaker, Multichannel, 2 sided, Universal-Mount, 41V,
640watts, Gray
90224A-803-04-L
Hyperspike Encompass MA-2 Loudspeaker, UL-Listed, Multichannel, 2 sided, Universal-Mount,
41V, 640watts, Gray
90224A-804-02
Hyperspike Encompass MA-2 Loudspeaker, Multichannel, 1 sided, Universal-Mount, 41V,
320watts, Tan
90224A-804-02-L
Hyperspike Encompass MA-2 Loudspeaker, UL-Listed, Multichannel, 1 sided, Universal-Mount,
41V, 320watts, Tan
90224A-804-04
Hyperspike Encompass MA-2 Loudspeaker, Multichannel, 1 sided, Universal-Mount, 41V,
320watts, Gray
90224A-804-04-L
Hyperspike Encompass MA-2 Loudspeaker, UL-Listed, Multichannel, 1 sided, Universal-Mount,
41V, 320watts, Gray
Accessory
74014A-SK15 Hyperspike Ceiling Mount Kit
90209A-802 Hyperspike Pole Mount Kit
90209A-803 Hyperspike Wall Mount Kit
90209A-804 Hyperspike Roof Mount Kit (10ft)
92055A-801 Hyperspike Super Heavy Duty Tripod
Hyperspike Speakers and Amplifiers
Medium-Power Indoor/Outdoor Mass Notification
HyperSpike Linewave Speakers
Designed with the latest technology in line array speaker systems, the HyperSpike® LineWave is optimized to produce clear and authoritative voice commands and powerful tones never before possible within reverberant environments.
Datasheet: 90243A-SS-LINEWAVE
Product Part Number Description
Speaker
90243A-801-05-L Hyperspike Linewave2 Speaker, UL-Listed, Universal-Mount, 25/70/100V, Red
90243A-801-06-L Hyperspike Linewave2 Speaker, UL-Listed, Universal-Mount, 25/70/100V, White
90243A-801-01-L Hyperspike Linewave2 Speaker, UL-Listed, Universal-Mount, 25/70/100V, Black
90243A-801-07-L Hyperspike Linewave2 Speaker, UL-Listed, Universal-Mount, 25/70/100V, Gray
Accessory 72575B-801-L Hyperspike Line-Matching Transformer, UL-Listed, 25/70/100V
Speaker
90243A-802-05-L Hyperspike Linewave4 Speaker, UL-Listed, Universal-Mount, 25/70/100V, Red
90243A-802-06-L Hyperspike Linewave4 Speaker, UL-Listed, Universal-Mount, 25/70/100V, White
90243A-802-01-L Hyperspike Linewave4 Speaker, UL-Listed, Universal-Mount, 25/70/100V, Black
90243A-802-07-L Hyperspike Linewave4 Speaker, UL-Listed, Universal-Mount, 25/70/100V, Gray
Accessory 72575B-801-L Hyperspike Line-Matching Transformer, UL-Listed, 25/70/100V
Speaker
90243A-803-05-L Hyperspike Linewave8 Speaker, UL-Listed, Universal-Mount, 25/70/100V, Red
90243A-803-06-L Hyperspike Linewave8 Speaker, UL-Listed, Universal-Mount, 25/70/100V, White
90243A-803-01-L Hyperspike Linewave8 Speaker, UL-Listed, Universal-Mount, 25/70/100V, Black
90243A-803-07-L Hyperspike Linewave8 Speaker, UL-Listed, Universal-Mount, 25/70/100V, Gray
Accessory 72542B-801-L Hyperspike Line-Matching Transformer, UL-Listed, 25/70/100V
Speaker
90243A-804-05-L Hyperspike Linewave16 Speaker, UL-Listed, Universal-Mount, 25/70/100V, Red
90243A-804-06-L Hyperspike Linewave16 Speaker, UL-Listed, Universal-Mount, 25/70/100V, White
90243A-804-01-L Hyperspike Linewave16 Speaker, UL-Listed, Universal-Mount, 25/70/100V, Black
90243A-804-07-L Hyperspike Linewave16 Speaker, UL-Listed, Universal-Mount, 25/70/100V, Gray
Accessory 72581B-801 Pole Mount Adapter, Grey
Hyperspike Speakers and Amplifiers
Medium-Power Indoor/Outdoor Mass Notification
HyperSpike MA-Micro Loudspeaker
The HyperSpike® MA-Micro is a lightweight, 360° medium-power speaker array that broadcasts live and pre-recorded voice commands and tones over a half-mile radius.
Datasheet: 90145A-SS-MAMICRO
Speaker
90145A-801-02-L Hyperspike Encompass MA-Micro Loudspeaker, UL-Listed, Universal-Mount, 550watts, Tan
90145A-801-04-L Hyperspike Encompass MA-Micro Loudspeaker, UL-Listed, Universal-Mount, 550watts, Gray
Amplifier 90172A-805 MA MICRO Standalone Amplifier (Crown 4002 Xti) 1200watts
Accessory
74014A-SK15 Hyperspike Ceiling Mount Kit
90179A-801 Hyperspike Constant Voltage Transformer, 70V
90209A-802 Hyperspike Pole Mount Kit
90209A-803 Hyperspike Wall Mount Kit
90209A-804 Hyperspike Roof Mount Kit (10ft)
90210A-801 Hyperspike Heavy Duty Tripod
Hyperspike Speakers and Amplifiers
Medium-Power Indoor/Outdoor Mass Notification
TCPA OMNI LoudSpeaker
The TCPA-Omni is the perfect solution for both indoor and outdoor mass notification needs. The TCPA-Omni provides both crystal-clear voice and high-impact tones, making it possible for one speaker to service all your acoustic needs.
Datasheet: S49OMNI-0001
Speaker
49OMNI-05-F Hyperspike OMNI Speaker, Ceiling-Mount, 70V, 50/100/200watts, Red, "FIRE"
49OMNI-05-A Hyperspike OMNI Speaker, Ceiling-Mount, 70V, 50/100/200watts, Red, "ALERT"
49OMNI-05-N Hyperspike OMNI Speaker, Ceiling-Mount, 70V, 50/100/200watts, Red, Blank
49OMNI-06-F Hyperspike OMNI Speaker, Ceiling-Mount, 70V, 50/100/200watts, White, "FIRE"
49OMNI-06-A Hyperspike OMNI Speaker, Ceiling-Mount, 70V, 50/100/200watts, White, "ALERT"
49OMNI-06-N Hyperspike OMNI Speaker, Ceiling-Mount, 70V,50/100/200watts, White, Blank
49OMNI-04-A Hyperspike OMNI Speaker, Ceiling-Mount, 70V, 50/100/200watts, Gray, "ALERT"
49OMNI-04-N Hyperspike OMNI Speaker, Ceiling-Mount, 70V, 50/100/200watts, Gray, Blank
Hyperspike Speakers and Amplifiers
Medium-Power Indoor/Outdoor Mass Notification
TCPA-10 LoudSpeaker
The HyperSpike® TCPA-10 is intended for indoor and outdoor audio signaling and notification. The five power settings have been designed to interface with industry-standard amplification. Its 90° acoustic beam makes it an ideal notification tool for indoor and outdoor areas.
Datasheet: 90215A-SS-TCPA10
Speaker
90215A-801-04 Hyperspike TCPA-10 Speaker, Universal-Mount, 25/70/100V, Grey, Blank
90215A-801-05 Hyperspike TCPA-10 Speaker, Universal-Mount, 25/70/100V, Red, Blank
90215A-801-05-L Hyperspike TCPA-10 Speaker, UL-Listed, Universal-Mount, 25/70/100V, Red, Blank
90215A-801-06 Hyperspike TCPA-10 Speaker, Universal-Mount, 25/70/100V, White, Blank
90215A-801-06-L Hyperspike TCPA-10 Speaker, UL-Listed, Universal-Mount, 25/70/100V, White, Blank
90215A-801-01 Hyperspike TCPA-10 Speaker, Universal-Mount, 25/70/100V, Black, Blank
90215A-801-01-L Hyperspike TCPA-10 Speaker, UL-Listed, Universal-Mount, 25/70/100V, Black, Blank
90219A-801-05-L Hyperspike TCPA-10 Speaker, UL-Listed, Universal-Mount, 25/70/100V, Red, Blank
Accessory
72377B-801 Wall-Mount Bracket, Tan
72378B-801 Dual Unit Mounting Adapter, Black
72379B-801 Pole Mount Adapter, Black
Hyperspike Encompass System
Encompass Amplifier Cabinets
Engineered and designed with the latest mass notification control technology. When paired with with a HyperSpike® MA -2 speaker, the Encompass Amplifier Cabinet is optimized to produce clear and authoritative voice commands with an acoustic footprint of greater than 12 square miles.
Datasheet: 90240A-SS
Amplifier
90240A-801 Hyperspike Encompass MA-Micro Amplifier Cabinet, Universal-Mount, Gray
90240A-802 Hyperspike Encompass MA-1 Amplifier Cabinet, Universal-Mount, 320watts, Gray
90240A-803 Hyperspike Encompass MA-1 Amplifier Cabinet, Universal-Mount, 640watts, Gray
90240A-804 Hyperspike Encompass MA-1 Amplifier Cabinet, Universal-Mount, 960watts, Gray
90240A-805 Hyperspike Encompass MA-1 Amplifier Cabinet, Universal-Mount, 1600watts, Gray
90240A-806 Hyperspike Encompass MA-2 Amplifier Cabinet, Universal-Mount, 1280watts, Gray
90240A-807 Hyperspike Encompass MA-2 Amplifier Cabinet, Universal-Mount, 1920watts, Gray
90240A-808 Hyperspike Encompass MA-2 Amplifier Cabinet, Universal-Mount, 3200watts, Gray
Accessory
72538B-801 Hyperspike Encompass Floor Pedestal Mount Kit, Gray
72539B-801 Hyperspike Encompass Wall-Mount Kit, Gray
72540B-801 Hyperspike Encompass Pole-Mount Kit, Gray
72551B-801 25/70/100V Transformer Kit
Other Notification - Bells
Wheelock Motor Bell
The Wheelock MB motor bells provide a specifically designed motor bell for fire and life safety alarm systems. The Wheelock MB bells include higher dBA, low current draw, a built-in trimplate for semi-flush mounting, low-frequency aluminum shells, and low RFI noise. The motor for MB bells is a durable, hightorque permanent magnet motor selected for its high performance and long life.
Datasheet: TD450055EN
Appliance (complete)
MB-G10-12-R Wheelock Motor Bell, Wall-Mount, Weatherproof, 12VDC, 10 inch, Red, Blank
MB-G6-12-R Wheelock Motor Bell, Wall-Mount, Weatherproof, 12VDC, 6 inch, Red, Blank
MB-G6-24-S Wheelock Motor Bell, Wall-Mount, Weatherproof, 24VDC, 6 inch, Silver, Blank
Accessory
AP-R Adapter Plate, Wall-Mount, Red
AP-W Adapter Plate, Wall-Mount, White
BB-R Backbox, Wall-Mount, 4 inch square (Steel), Red
DBB-R Backbox, Deep 4 inch square (Steel), Red
DBB-W Backbox, Deep 4 inch square (Steel), White
RP-R Adapter Plate (Retrofit), Wall-Mount, Red
RP-W Adapter Plate (Retrofit), Wall-Mount, White
SBB-R Backbox, Wall-Mount (Surface), Red
SBB-W Backbox, Wall-Mount (Surface), White
SFP-R Adapter Plate, Semi-Flush, Wall-Mount, Red
SFP-W Adapter Plate, Semi-Flush, Wall-Mount, White
SHBB-R Backbox, Wall-Mount, Surface, Red
SHBB-W Backbox, Wall-Mount, Surface, White
WBB-R Backbox, Weatherproof, Red
WBB-R-3/4T-3/4B Backbox, Weatherproof, 3/4 Threaded, Red
WBB-W Backbox, Weatherproof, White
Other Notification - Bells
Wheelock 43T AC Bells
The Wheelock 43T bells provide the durable operation and dependable performance required for life safety alarm systems. A complete range of vibrating models is offered in six inch and ten inch sizes for 115- or 24-volt AC operation in indoor or outdoor installations. All models provide high sound output with low power consumption.
Datasheet: TD450054EN
Appliance (complete)
43T-G10-115-R Wheelock 43T Bell, 10", 115VAC, Red
43T-G10-115-S Wheelock 43T Bell, 10", 115VAC, Sand
43T-G10-24-R Wheelock 43T Bell, 10", 24VAC, Red
43T-G6-115-R Wheelock 43T Bell, 6", 115VAC, Red
43T-G6-115-S Wheelock 43T Bell, 6", 115VAC, Sand
43T-G6-24-R Wheelock 43T Bell, 6", 24VAC, Red
Accessory
AP-R Adapter Plate, Wall-Mount, Red
AP-W Adapter Plate, Wall-Mount, White
RP-R Adapter Plate (Retrofit), Wall-Mount, Red
RP-W Adapter Plate (Retrofit), Wall-Mount, White
SFP-R Adapter Plate, Semi-Flush, Wall-Mount, Red
SFP-W Adapter Plate, Semi-Flush, Wall-Mount, White
Backbox
DBB-R Backbox, Deep 4 inch square (Steel), Red
BB-R Backbox, Wall-Mount, 4 inch square (Steel), Red
SBB-R Backbox, Wall-Mount (Surface), Red
SHBB-R Backbox, Wall-Mount, Surface, Red
WBB-R Backbox, Weatherproof, Red
WBB-R-3/4T-3/4B Backbox, Weatherproof, 3/4 Threaded, Red
DBB-W Backbox, Deep 4 inch square (Steel), White
SBB-W Backbox, Wall-Mount (Surface), White
SHBB-W Backbox, Wall-Mount, Surface, White
WBB-W Backbox, Weatherproof, White
Other Notification - Bells
Wheelock Series CVX/CSX Explosion-Proof Bell
The Wheelock Series CVX/CSX Explosion-Proof Bell is listed for service in Division One applications. Available in single-stroke and vibrating models with 24 VDC and 115 VAC versions. High sound output is provided through a large ten-inch bell shell. Outdoor models include protective hood and guard.
Datasheet: S0200 CVX/CSX
Appliance (complete)
CSX10-24-R
Wheelock Series CVX/CSX Explosion-Proof Bell, Wall-Mounted, Red (refer to datasheet for
hazardous classifications)
CSX10-24-S
Wheelock Series CVX/CSX Explosion-Proof Bell, Wall-Mounted, Silver (refer to datasheet
for hazardous classifications)
Other Notification - Beacons
Wheelock MAX Strobe
The Wheelock MAX Strobes are high-intensity, weather-resistant visible warning signals designed for stationary or mobile applications. Available in AC or DC voltage and with a steady-light option.
Datasheet: TD450098EN
Appliance (complete) AC-MAX-R Wheelock MAX Strobe, 20cd, Double Flash, 120VAC, Red Lens
Appliance (complete)
DC-MAX-A Wheelock DC-MAX Strobe, Various-Mounted, 24VDC, non-synch, 80cd, Amber Lens
DC-MAX-C Wheelock DC-MAX Strobe, Various-Mounted, 24VDC, non-synch, 100cd, Clear Lens
DC-MAX-R Wheelock DC-MAX Strobe, Various-Mounted, 24VDC, non-synch, 20cd, Red Lens
DC-MAXS-R
Wheelock DC-MAX Strobe, Various-Mounted, 24VDC, non-synch, 20cd, Red Lens
with 2 steady lights
Other Notification - Horns and Strobes
Wall-Mounted Wheelock MIZ Minihorn
Wheelock MIZ piezoelectric mini horns are compact electronic alarm appliances that are listed under UL Standard 464 for Audible Appliances in Public Mode Fire Protection Systems.
Datasheet: TD450052EN
Appliance (complete)
MIZ-24S-R Wheelock MIZ Minihorn, Wall-Mount, 24VDC, Red, Blank
MIZ-24S-W Wheelock MIZ Minihorn, Wall-Mount, 24VDC, White, Blank
Other Notification - Speakers and Speakers/Strobes
Wheelock S8 Speakers and Speaker/Strobes
The Wheelock S product line includes Speakers and Speaker Strobes are designed for high-efficiency sound output, with dual-voltage (25/70 VRMS) capability and field-selectable taps from 1/8 to eight watts.
Datasheet: TD450020EN
Appliance (complete) S8-70/25 Wheelock S8 Speaker, Ceiling-Mount, 8", 8watts, White, Blank
Accessory
CBB-8 Speaker Backbox, Ceiling-Mount, Black
SSB-8 Speaker Support Bridge, Ceiling-Mount, 8 inch speaker
Appliance (complete) S8-24MCC-FW Wheelock S8 Speaker/Strobe, Ceiling-Mount, 8”, 8watts, 15/30/75/95cd, White, “FIRE”
Accessory
CBB-8 Speaker Backbox, Ceiling-Mount, Black
SSB-8 Speaker Support Bridge, Ceiling-Mount, 8 inch speaker
Other Notification - Speakers and Speakers/Strobes
Wheelock Vandal Resistant Speakers and
Speaker/Strobes
The Wheelock ET Vandal Resistant speakers and speaker strobes provide a- full range of rugged, high-performance combinations specifically designed to meet the critical needs of the life safety industry for voice and tone signaling.
Datasheet: TD450030EN
Appliance (complete)
ET-1010-R
Wheelock Vandal Resistant Speaker, Wall/Ceiling-Mount (Surface), Weatherproof, Red, Blank
(select WBB backbox as needed)
ET-1010-W
Wheelock Vandal Resistant Speaker, Wall/Ceiling-Mount (Surface), Weatherproof, White,
Blank (select WBB backbox as needed)
Accessory
DBB-R Backbox, Deep 4 inch square (Steel), Red
DBB-W Backbox, Deep 4 inch square (Steel), White
RP-R Adapter Plate (Retrofit), Wall-Mount, Red
RP-W Adapter Plate (Retrofit), Wall-Mount, White
SFP-R Adapter Plate, Semi-Flush, Wall-Mount, Red
SFP-W Adapter Plate, Semi-Flush, Wall-Mount, White
WBB-R Backbox, Weatherproof, Red
WBB-R-3/4T-3/4B Backbox, Weatherproof, 3/4 Threaded, Red
WBB-W Backbox, Weatherproof, White
Appliance (complete)
ET-1080-R Wheelock Vandal Resistant Speaker, Wall/Ceiling-Mount (Flush), Weatherproof, Red, Blank
ET-1080-W Wheelock Vandal Resistant Speaker, Wall/Ceiling-Mount (Flush), Weatherproof, White, Blank
Accessory
RP-R Adapter Plate (Retrofit), Wall-Mount, Red
RP-W Adapter Plate (Retrofit), Wall-Mount, White
SBB-R Backbox, Wall-Mount (Surface), Red
SBB-W Backbox, Wall-Mount (Surface), White
SFP-R Adapter Plate, Semi-Flush, Wall-Mount, Red
SFP-W Adapter Plate, Semi-Flush, Wall-Mount, White
Other Notification - Speakers and Speakers/Strobes
Wheelock Supervised Self-Amplified Speakers and Speaker/Strobes
The Wheelock SA-S Supervised Self-Amplified Speakers and Speaker
Strobes are designed to meet the critical needs for the life safety industry.
These speakers and speaker strobes are a perfect fit for SCIF
(Sensitive Compartmented Information Facilities) room applications.
Datasheet: TD450047EN
Product Part Number Description
Accessory
SBB-R Backbox, Wall-Mount (Surface), Red
SBB-W Backbox, Wall-Mount (Surface), White
Other Notification - Speakers and Speakers/Strobes
Wheelock Vandal Resistant Speakers and
Speaker/Strobes
The Wheelock STH cluster speaker with RSS multi-candela strobe is designed for indoor ceiling mounting in high ambient noise environments. It is available with two, three or four speakers for wide area coverage.
Datasheet: TD450078EN
Appliance (complete)
STH-15S Wheelock Horn Loudspeaker, Wall/Ceiling-Mount, 15watts, Gray, Blank
STH-15SR Wheelock Horn Loudspeaker, Wall/Ceiling-Mount, 15watts, Red, Blank
STH-2R24MCCH-FR Wheelock Cluster Speakers (2) with (1) RSS-24MCCH Strobe, Ceiling-Mount, 115/177cd, Red, "FIRE"
STH-3R24MCCH-FR Wheelock Cluster Speakers (3) with (1) RSS-24MCCH Strobe, Ceiling-Mount, 115/177cd, Red, "FIRE"
STH-4R24MCCH-FR Wheelock Cluster Speakers (4) with (1) RSS-24MCCH Strobe, Ceiling-Mount, 115/177cd, Red, "FIRE"
STH-4R24MCCH-NR Wheelock Cluster Speakers (4) with (1) RSS-24MCCH Strobe, Ceiling-Mount, 115/177cd, Red, Blank
Accessory
SHMP-R Adapter Plate, Wall/Ceiling-Mount, Red
SHMP-S Adapter Plate, Wall/Ceiling-Mount, Gray
Networks and Workstations
Networking and Workstation Solutions
As you consider what fire and life safety provider to use for your facility, first look at the reputation behind your supplier.
Building owners around the globe trust the Simplex family of networking and workstation products to help protect their facilities – no matter how large and complex – because of their high degree of reliability, ease of use and streamlined safety.
The broad range of Simplex networking and workstation solutions enable a coordinated response and offer real and significant advantages to you and to building occupants in the event of a fire or other emergency
Five ways to raise the bar with Simplex ES Net and TrueSite Workstation
Design and installation freedom and flexibility
As one of the most scalable, resilient and high-capacity systems on the market, IP-based ES Net effectively removes all barriers to efficient, optimized design and worry-free installation. It supports up to 687 nodes on seven loops, multiple network topologies, and all major connection media types (Ethernet, DSL, fiber), as well as supplemental system network traffic.
Industry-leading technology
In complex multi-building environments, you want it all. Design without limitations. Installation flexibility. The capacity and scalability to handle current and future needs. Outstanding performance and uptime. And the ability to quickly respond to an emergency from a central command center or mobile device. The advanced ES Net life safety network and TrueSite Workstation satisfy all of these needs, delivering an ideal life safety solution for any environment – from single-building commercial facilities and manufacturing plants to sprawling university campuses.
Expedited emergency response and streamlined management
When an emergency strikes, every second counts – and ES Net and the TrueSite Workstation combine to enable a fast and efficient response. ES Net’s IP technology supports data rates of up to 100 MB per second, empowering the TrueSite Workstation to swiftly provide color-coded action messages, audio notifications and detailed instructions for responding to specific events as an emergency situation unfolds. Graphical and technical alarm data is displayed on up to four screens, allowing operators to quickly access system activity and initiate a fast, appropriate response. You get extraordinary visibility and control as ES Net and TrueSite Workstation capture and seamlessly process data from up to 687 network nodes.
Reliable integration, superb survivability
ES Net and the TrueSite Workstation can thrive in any environment. Compatible with existing Simplex 4120 networks, ES Net supports multiple network topologies and media, and integrates with security and building automation systems. Full redundancy and battery backup maximize uptime. Through its Digital Alarm Communication Receiver interface, the TrueSite Workstation can integrate with panels from other vendors, as well as panels that can’t be networked because of their remote location. And since it operates as an actual node on the fire alarm network – providing peer-to-peer linkage with all network panels – the TrueSite Workstation can continue to operate even if some nodes or parts of the network are impaired by a catastrophic event.
Remote capabilities for on-the-go access
The TrueSite Mobile Client app brings the functionality and features of the TrueSite Workstation to any Apple® or Android™ mobile device. You can view system diagnostics and critical information wherever you go for added peace of mind and a more effective emergency response.
Maintain full control over your life safety network – no matter how complex
The bigger your facility, building or campus, the more potentially complicated your life safety network – and the job of managing it. Today, many facilities consist of hundreds of control units and thousands of devices – and that doesn’t even include other building and security systems.
Our high-speed IP-based ES Net network is made for these environments, easily supporting the largest facilities – even accommodating security and building automation system traffic. Its large network capacity, advanced diagnostics and broad bandwidth improve technician productivity and keep performance high.
The TrueSite Workstation complements ES Net by streamlining the management of your life safety network, giving you superior, industry-leading control.
You can easily monitor and control multiple panels and buildings from a single location. And you can continually share information by linking your life safety system to building systems, including the Johnson Controls Metasys® Building Automation System and others that support BACnet connectivity.
Mount an effective and coordinated emergency response
In an emergency, so much depends on effective and timely management of your life safety system. That’s why ES Net and TrueSite Workstation offer industryleading control, flexibility and ease of use. The seamless gathering and processing of information from potentially thousands of sensors and other devices allows you to make well-informed decisions and act quickly during an emergency – even from your mobile device.
TrueSite also provides action messages, audio notifications and detailed, step-by-step instructions to help guide your response to each specific condition, including how to inform colleagues
Simplex networking solutions inform and empower
Simplex ES Net Network
The Simplex ES Net IP-based life safety network is one of the industry’s most scalable, resilient and highest-capacity systems, optimizing system design and installation flexibility while increasing network capacity, speed and performance.
ES Net harnesses the power of IP technology with data rates of up to 100 MB per second and a range of network media choices including Ethernet, DSL and fiber. This versatility – and its full compatibility with existing Simplex 4120 networks – provides building owners with a platform for growth and integration.
ES Net eases design and installation by supporting ring, star, bus and bridged ring network topologies. Because you can combine multiple topologies, you can create fault-tolerant, highly survivable networks while mixing and matching media between nodes to optimize cost, distances and performance.
Centralized system management and increased bandwidth enable quicker upgrades to reduce downtime and operational expenses. In addition, ES Net provides greater flexibility during network expansion and allows up to 82,000 feet (25 km) between nodes.
The network’s increased memory capacity, advanced diagnostics and broad bandwidth helps maximize uptime, deliver consistent performance and support future expansion and enhancements. A redundant system with battery backup, ES Net can also support network traffic from other systems, such as security cameras, access control and building automation systems, without any interference to life safety traffic.
Fire-related data is totally segregated from supplemental traffic to ensure it has top priority. You get to leverage that extra bandwidth and take advantage of a high-speed, fault-tolerant infrastructure for critical data and applications.
Utilizing ES Net’s expanded bandwidth to connect TSW Remote Clients
Multiple Simplex TrueSite Workstations can be connected using the supplemental traffic channel of ES Net, negating the need to set up a separate network.
This results in significant savings of time, materials and resources without sacrificing network performance or reliability. The network can exist within a single building or across multiple buildings and works with a mix of network types (fiber, Ethernet, etc.).
Simplex TrueSite Workstation
Designed for large facilities and campus environments, the TrueSite Workstation is a PC-based graphical command center that runs on Micrsoft Windows.
It can monitor and control 687 network nodes, 60 clients and up to 250,000 devices. If a fire occurs, a high-resolution graphical display shows all locations on a campus-wide map and individual building floor plans, allowing for an immediate and wellinformed response. True peer-to-peer linkage with all network panels helps ensure continued operation even if individual nodes fail. TrueSite also shows errors and faults and can be used to view and export extensive reports and historical logs. The TrueSite Workstation can monitor many control unit brands using agency-listed digital alarm communicators and can store historical data for up to 500,000 events.
In the event of a server failure, TrueSite monitoring can switch automatically to a backup server. TrueSite Workstation is also ULC listed for supervising station operation.
TrueSite Workstation Remote Client
TrueSite Workstation’s remote client capability allows additional users to connect to the network via the TrueSite Workstation server. Up to 60 users – including building managers, maintenance staff and emergency response teams – can concurrently view system status, events, maintenance records and activity logs for greater efficiency and effectiveness. The remote client capability also enables you to set up additional remote command centers.
TrueSite Mobile Client
The TrueSite Mobile Client app puts critical fire system information and diagnostics in the palm of your hand. Access all the key features and functionality of the TrueSite Workstation remotely using your Apple or Android mobile device.
Adding video to ES Net’s supplemental traffic channel
The expanded bandwidth of ES Net means other building safety and security systems, such as video surveillance cameras, can be added to the supplemental traffic channel of ES Net without sacrificing network performance or reliability.
Take the next step - put Simplex products to work for you today Ensure your life safety system addresses the unique needs of your facility today – and will be able to take advantage of industry-leading innovations in the future.
As always, Simplex continues to advance state-of-theart protection, pioneering advanced systems that help make management easier and more cost-effective, and protect buildings and occupants alike. Choose Simplex networking and workstation solutions – and experience greater freedom and command of your life safety network, today and for years to come.
ES Net Network Applications
ES Network (ES Net) is a high-bandwidth (100 Mbps) IP-based fire alarm network that supports up to 99 nodes and uses industry-standard network technology and infrastructure for greater design and installation flexibility.
Datasheet: S4100-0076
ES Net NIC Cards for 4100ES,
TrueSite Workstation, or Incident
Commander
4100-6104 Slot Card - install to a singleslot in a 4100ES bay
4100-6310 Flat Card - install to any (2) vertical block space in a 4100ES bay
ES Net Dual-Channel Media Cards
for 4100ES Mounted NICs
4100-6306 ES Net NIC dual channel Ethernet media card
4100-6308 ES Net NIC dual channel single-mode fiber media card
4100-6309 ES Net NIC dual channel multi-mode fiber media card
4100-6307 ES Net NIC dual channel DSL media card
ES Net NIC Cards for 4010ES 4010-6310 Flat Card. Connects a 4010ES FACU to an ES network
ES Net Dual-Channel Media
Modules for 4010ES
4010-6306 ES Net NIC dual channel Ethernet media card
4010-6308 ES Net NIC dual channel single-mode fiber media card
4010-6309 ES Net NIC dual channel multi-mode fiber media card
4010-6307 ES Net NIC dual channel DSL media card
ES Net NIC Cards for 4007ES 4007-9817 Flat Card. Connects a 4007ES FACU to an ES network
ES Net Dual-Channel Media
Modules for 4007ES
4007-6306 ES Net NIC dual channel Ethernet media card
4007-6308 ES Net NIC dual channel single-mode fiber media card
4007-6309 ES Net NIC dual channel multi-mode fiber media card
4007-6307 ES Net NIC dual channel DSL media card
ES Net External NIC for TSW
Product Selection
4190-9832 Connects a TSW or Incident Commander to the ES Network. Red Enclosure, 120/240 VAC
4190-9833 Connects a TSW or Incident Commander to the ES Network. Platinum Enclosure, 120/240 VAC
4190-9834 Connects a TSW or Incident Commander to the ES Network. Red Enclosure, 24 VDC
4190-9835 Connects a TSW or Incident Commander to the ES Network. Platinum Enclosure, 24 VDC
ES Net Dual-Channel Media
Modules for External NIC
4190-9856 ES Net NIC dual channel Ethernet media card
4190-9858 ES Net NIC dual channel single-mode fiber media card
4190-9859 ES Net NIC dual channel multi-mode fiber media card
4190-9857 ES Net NIC dual channel DSL media card
ES Net Fiber Media Card
Service Kits
4100-6412 50/125 μm multi-mode
4100-6413 62.5/125 μm multi-mode
4100-6414 9/125 μm single-mode
DSL Retrofit Harness 4100-6415 DSL Retrofit Harness
TrueSite Workstations
TrueSite Workstations provide annunciation, status display, and control for fire alarm networks using a PC-based graphical interface with a high-resolution color display. Response buttons with realistic icons provide control switches specific to the operation being performed.
Datasheet: S4190-0016
Hardware Systems
4190-8401 TrueSite Workstation Annunciator
4190-8403 TrueSite Workstation Supervising Station Control Unit
4190-8410 TrueSite Workstation Remote Client
Software Only and Aftermarket
Additions Product Selection
4190-8603 TrueSite Workstation software only package
4190-8901 Aftermarket hardware addition
4190-8605 Aftermarket software addition
Computer Type
4190-7026 Desktop Computer
4190-7028 Desktop Computer
4190-7027 Rack Mount Computer
4190-7029 Rack Mount Computer
4190-7030 Desktop Computer, Order with 4190-8901 only
ULC Mechanical Protection
Compliance Kit
4190-6058
Kit includes the necessary hardware to comply with ULC mechanical protection
requirements on all ULC listed TSW Desktop PCs
LCD Color Monitor
4190-7131 21.5” LCD Monitor for desktop applications
4190-7114 21.5” LCD Monitor for horizontal wall mount applications
4190-7233 18.5” Desktop LCD Monitor with touchscreen and built-in serial controller
4190-7234 42” Rack Mount LCD Monitor with touchscreen and built-in serial controller
4190-7214 42” Wall Mount LCD Monitor with touchscreen and built-in serial controller
Applications Software
4190-5050 TrueSite Workstation Server Software
4190-5053 TrueSite Remote Client Installation CD, no operating system
Server Feature Option
4190-5060 DACR Interface for a TrueSite Workstation Server
4190-5064 3rd Party Interface Software Package
4190-5065 TrueSite Workstation Feature Upgrade
4190-5067 TrueSite Workstation Mobile Client Feature
Remote Client Type
4190-5061 Feature code for Remote Client with restricted features (reduced feature set)
4190-5062 Feature code for Remote Client with password protected feature access
4190-5066
3rd Party Interface Client for adding additional 3rd Party Client connections to an existing
TrueSite Workstation
Internal Hardware Options
4190-6034 Quad RS-232 Serial Port Card
4190-6038 Dual video card for 32 bit operating system, PCI slot, 1 DVI and 1 VGA output
4190-6039 Dual video card for 64 bit operating system, PCIe x 16 slot, 2 DVI outputs
Transient Suppressed Connectors
4190-6002 Transient Protected Connector
4190-6026 Transient Protected Connector for Quad Serial Port Card
4190-6010 Transient Suppressor for LAN/WAN Connection
Upgrade to DACR 4190-9807 Upgrade standard TrueSite Workstation
Network Interface Modules
4190-6061 Modular network interface card (Configured)
4190-9829 Modular network interface card (Aftermarket)
Media Modules for Modular Network
4190-6036 Wired Media (Configured)
4190-9822 Wired Media (Aftermarket)
Programming 4190-8122 TrueSite Workstation Programming
Programming Items
4190-4006 AutoCAD DXF or DWG file, one floor plan
4190-4008 25 Custom Action Messages
4190-4009 25 Travel Screen Keys
4190-4010 25 Status Icons
4190-4011 25 Control Functions; On/Off, Bypass, etc.
4190-4012 Convert one (1) Existing IMS Screens to TrueSite Workstation Screen
4190-4013 10 Coverage Zones; order quantity as required
4190-4014 One (1) Emergency Communications/Mass Notification Control Screen
TrueSite Incident Commander
The TrueSite Incident Commander offers TrueSite Workstation operation in an all-in-one package providing a touchscreen computer, monitor, hard drive, and required input/output connections in single assembly. This allows installation within a 4100ES fire alarm control unit or remote annunciator with power supplied from the fire alarm power supply and secondary batteries. The all-in-one computer is also available for desktop applications (requires separate AC power).
Datasheet: S4190-0020
Hardware
4190-8404 TrueSite Incident Commander Annunciator
4190-8405 TrueSite Incident Commander Supervising Station Control Unit
4190-8411 TrueSite Incident Commander Remote Client
Additional Products
4190-8901 Aftermarket hardware addition
4190-8605 Aftermarket software addition
Computer Type
4190-7031
4100ES Cabinet Mount; computer for mounting into an existing 4100ES Fire Alarm Control
Unit cabinet
4190-7033
4100ES Cabinet Mount; computer for mounting into an existing 4100ES Fire Alarm Control
Unit cabinet
4190-7032
Desktop PC; PCs are pre-installed with Windows 10 Enterprise 64 bit
(includes CD and license) and TrueSite Workstation software
4190-7034
Desktop PC; PCs are pre-installed with Windows 10 Enterprise 64 bit
(includes CD and license) and TrueSite Workstation software
4190-7014 Aftermarket PC; Computer without application software and operating system
Applications Software
4190-5050 TrueSite Incident Commander Server Software
4190-5053 TrueSite Remote Client Installation CD, no operating system
Server Feature Option
4190-5068 ES Net Supplemental Traffic feature
4190-5060 DACR Interface for a TrueSite Workstation Server
4190-5064 3rd Party Interface Software Package
4190-5065 TrueSite Workstation Feature Upgrade
4190-5067 TrueSite Workstation Mobile Client Feature
Remote Client and Network
Related Product
4190-5061 Feature code for Remote Client with restricted features
Selection
4190-5062 Feature code for Remote Client with password protected feature access
4190-5066
3rd Party Interface Client for adding additional 3rd Party Client connections to an existing
TrueSite Workstation 3rd Party Interface
Serial Port Option 4190-6034 Quad RS-232 Serial Port PCI Card
Transient Suppressed Connectors
4190-6002 Transient Protected Connector
4190-6026 Transient Protected Connector for Quad Serial Port Card
4190-6010 Transient Suppressor for LAN/WAN Connection
USB Ethernet Adapter 4190-6059 USB 3.0 to Gigabit Ethernet NIC Network Adapter
Fire Alarm Ethernet Switch, 24 VDC, red cabinet
4190-6050 Eight wired Ethernet connections
4190-6054 Four wired Ethernet connections and two single-mode fiber optic connections
4190-6055 Four wired Ethernet connections and two Multimode fiber optic connections
Network Interface Modules
4190-6061 Modular network interface card (Configured)
4190-9829 Modular network interface card (Aftermarket)
Media Modules for Modular
Network Interface
4190-6036 Wired Media (Configured)
4190-9822 Wired Media (Aftermarket)
4190-6301 Left port, single-mode 4120 duplex fiber media card (Aftermarket)
4190-9851 Left port, single-mode 4120 duplex fiber media card (Configured)
4190-6302 Right port, single-mode 4120 duplex fiber media card (Configured)
4190-9852 Right port, single-mode 4120 duplex fiber media card (Aftermarket)
4190-6303 Left port, multi-mode 4120 duplex fiber media card (Configured)
4190-9853 Left port, multi-mode 4120 duplex fiber media card (Aftermarket)
Media Modules for Modular
Network Interface
4190-6304 Right port, multi-mode 4120 duplex fiber media card (Configured)
4190-9854 Right port, multi-mode 4120 duplex fiber media card (Aftermarket)
ES Net External NIC for TSW
Product Selection
4190-9832 Red, 120/240 VAC
4190-9833 Platinum, 120/240 VAC
4190-9834 Red, 24 VDC
4190-9835 Platinum, 24 VDC
ES Net NIC cards for 4100ES or
TrueSite Workstation
4100-6104 Slot Card - install to a singleslot in a 4100ES bay
4100-6310 Flat Card - install to any (2) vertical block space in a 4100ES bay
ES Net Dual-Channel Media
Modules for External NIC and
4100ES NICs
4190-9856 Ethernet media card
4190-9858 Single-mode fiber media card
4190-9859 Multi-mode fiber media card
4190-9857 DSL media card
Programming
4190-8122 TrueSite Incident Commander Programming
4190-4006 AutoCAD DXF or DWG file, one floor plan
4190-4008 25 Custom Action Messages
4190-4009 25 Travel Screen Keys
4190-4010 25 Status Icons
4190-4011 25 Control Functions; On/Off, Bypass, etc.
4190-4012 Convert one (1) Existing IMS Screens to TrueSite Workstation Screen
4190-4013 10 Coverage Zones; order quantity as required
4190-4014 One (1) Emergency Communications/Mass Notification Control Screen
Ship with Bay 2 Empty 4100-7909 Designates that the 4100ES fire alarm control unit is to be shipped with bay 2 empty
Box and Door Configurations
2975-9459 Platinum 2 Bay, Box with Glass Door and Dress Panel
2975-9457 Platinum 3 Bay, Box with Glass Door and Dress Panel
2975-9460 Red 2 Bay, Box with Glass Door and Dress Panel
2975-9548 Red 3 Bay, Box with Glass Door and Dress Panel
2975-9439 Platinum 2 Bay, Box Only
2975-9440 Platinum 3 Bay, Box Only
2975-9408 Red 2 Bay, Box Only
2975-9409 Red 3 Bay, Box Only
4100-2107 Platinum 2 Bay, Glass Door and Dress Panel
4100-2108 Platinum 3 Bay, Glass Door and Dress Panel
4100-2127 Red 2 Bay, Glass Door and Dress Panel
4100-2128 Red 3 Bay, Glass Door and Dress Panel
Remote Annunciator Panel Option 4100-9615
Remote Annunciator Panel Mount; includes expansion bay with power distribution interface
module (PDI)
Panel Mount Touchscreen
Computer/Monitor
4190-7031
4100ES Cabinet Mount; computer for mounting into an existing 4100ES Fire Alarm Control
Unit cabinet
4190-7033
4100ES Cabinet Mount; computer for mounting into an existing 4100ES Fire Alarm Control
Unit cabinet
Desktop Touchscreen
Computer/Monitor
4190-7032
Desktop PC; PCs are pre-installed with Windows 10 Enterprise 64 bit
(includes CD and license) and TrueSite Workstation software
4190-7034
Desktop PC; PCs are pre-installed with Windows 10 Enterprise 64 bit
(includes CD and license) and TrueSite Workstation software
4190-7014 Aftermarket PC; Computer without application software and operating system
Network Display Units for 4120 network
The 4100ES NDU with Voice Command Center (VCC) is a 4120 network-level annunciator and manual system/point controller with optional network voice control equipment. It provides alphanumeric annunciation for up to 12,000 network points and/or point lists and can be programmed to function as the network master controller for Alarm Silence, Trouble Acknowledge, and System Reset.
Datasheet: S4100-1036
Network Display Unit, Non-Voice
4100-9720
NDU Master Controller Bay with English 2x40 Display, CPU Card, 4120 Network Interface
Card, ES Power Supply (120 V to 240 V 50/60 Hz, 24V Aux. Relay, 24 V Aux. Power Tap, 110
Ah Battery Charger) and external RUI+ (isolated or un-isolated) communications interface
4100-9721 Same as 4100-9720 except with Canadian French user interface
4100-9722
Same as 4100-9720 except with English InfoAlarm user interface with raised keys.
Note: Available for redundant CPU applications.
4100-9723
Same as 4100-9720 except with Canadian French InfoAlarm user interface with raised keys.
Note: Available for redundant CPU applications.
4100-9724
Same as 4100-9720 except with InfoAlarm user interface with flat keys and slide in labels.
Note: Available for redundant CPU applications.
4100-9725 4120 NDU with ES-PS and ES Touch Screen Display
Network Display Unit with Voice
Command Center (VCC)
4100-9730
NDU Master Controller Bay with English 2x40 Display, CPU Card, 4120 Network Interface Card, ES
Power Supply (120 V to 240 V 50/60 Hz, 24 V Aux. Relay, 24 V Aux. Power Tap, 110 Ah Battery
Charger) and external RUI+ (isolated or un-isolated) communications interface
VCC Master Controller Bay with CPU Card, ES Network Interface Card, IDNet 2 Card supports up to 250 addressable/analog points, ES Power Supply (120 V to 240 V 50/60 Hz, 24 V Aux.
Relay, 24 V Aux. Power Tap, 110 Ah Battery Charger) and external RUI+ (isolated or unisolated) communications interface
4100-9731
Same as 4100-9730 except with Canadian French user interface in NDU
Master Controller Bay
4100-9735 4120 Voice NDU with ES-PS and ES Touch Screen Display
4100-9732
Same as 4100-9730 except with English InfoAlarm user interface with raised keys in NDU
Master Controller Bay. Note: Available for redundant CPU applications.
4100-9733
Same as 4100-9730 except with Canadian French InfoAlarm user interface with raised keys
in NDU Master Controller Bay. Note: Available for redundant CPU applications.
4100-9734
Same as 4100-9730 except with InfoAlarm user interface with flat keys and slide in labels in NDU Master Controller Bay. Note: Available for redundant CPU applications.
Media cards for 4120 Modular
Network Interface Cards
4100-6056 Wired network media card
4100-6301 Left port, single-mode 4120 duplex fiber media card
4100-6302 Right port, single-mode duplex 4120 fiber media card
4100-6303 Left port, multi-mode 4120 duplex fiber media card
4100-6304 Right port, multi-mode 4120 duplex fiber media card
4100-6055
Network access dial-in service modem, mounts to supplied network interface card,
requires telephone line connection
BACpac Ethernet Portal Modules
The BACpac Ethernet module provides a supplementary communications interface that converts computer terminal information from a compatible fire alarm control unit into the building automation protocol of BACnet and Modbus. With this module, status information from the fire alarm control unit can be provided to other components of the building automation network with the detail and information format required.
Datasheet: S4100-0051
BACpac Ethernet Portal Modules
4100-6069
For 4100ES and 4100U series fire alarm control panels - 1500 Points Max;
Required RS-232 Module 4100-6038
4100-6110
For 4100ES and 4100U series fire alarm control units - 5000 Points Max;
Required RS-232 Module 4100-6038
4100-6110
For 4100/4100+ and 4120 series fire alarm control units - 5000 Points Max;
Required RS-232 Module 4100-0113
4100-6111
For 4100ES and 4100U series fire alarm control units - 15000 Points Max;
Required RS-232 Module 4100-6038
4100-6111
For 4100/4100+ and 4120 series fire alarm control units - 15000 Points Max;
Required RS-232 Module 4100-0113
4100-9915
For 4010ES series fire alarm control units - 1500 Points Max;
Required RS-232 Module 4010-9918
dienelectrics@gmail.com
0909186879
