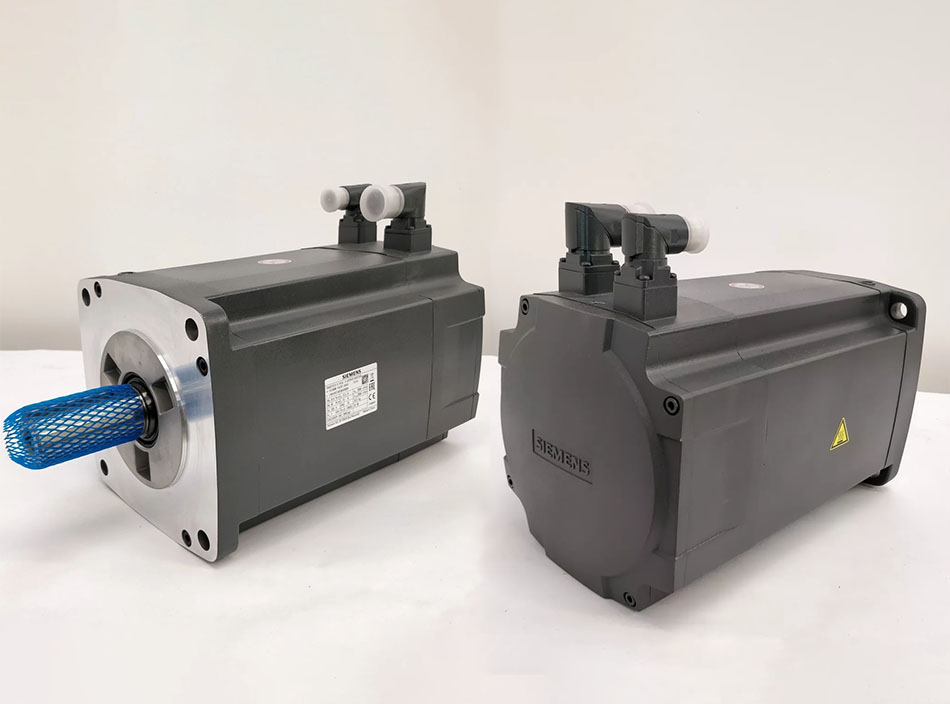

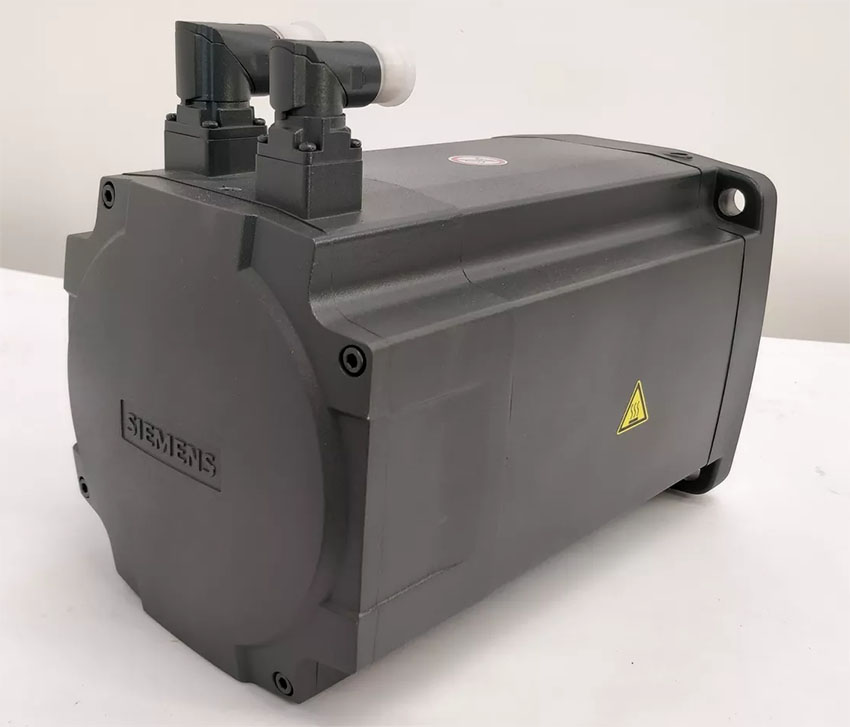

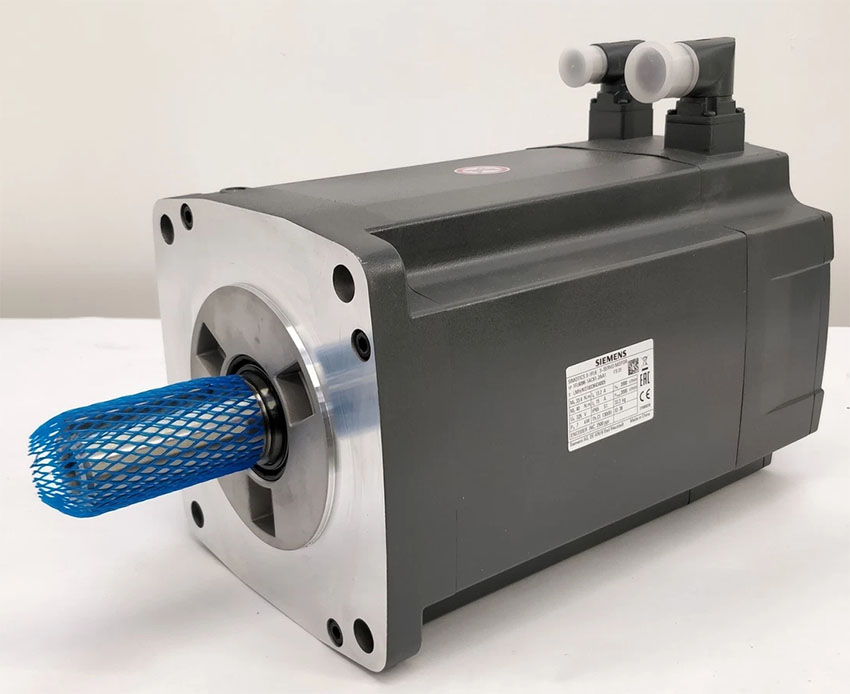

Động cơ Siemens 1FL6096-1AC61-2AA1

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm SIEMENS

• Xem thêm

Siemens 1FL6096-1AC61-2AA1 là Động cơ SIMOTICS S-1FL6-1FL6,  3AC 400V 7kW, Nn2000rpm, M0=40Nm, MN=33.4Nm, trục cao 90mm, chốt góc, inc. Enc 2500incr./rev., khóa then phẳng, ..



- Tài liệu kỹ thuật của Động cơ Siemens 1FL6096-1AC61-2AA1 ở đây.



Thông số kỹ thuật cơ bản của Động cơ Siemens 1FL6096-1AC61-2AA1

Product
Article Number (Market Facing Number)	1FL60961AC612AA1 | 1FL60961AC612AA1
Product Description	SIMOTICS S-1FL6-1FL6 Operating voltage 3AC 400 V Pn=7 kW; Nn=2000 rpm M0=40 Nm; MN=33.4 Nm Shaft height 90 mm, with angle plug; incremental encoder 2500 incr./rev. with feather key, tolerance N without holding brake Degree of protection IP65 with sealing ring SINAMICS V70 & V90
Product family	1FL6 servomotors for SINAMICS V90
Product Lifecycle (PLM)	PM300:Active Product
Price data
Price Group	A87
List Price	Show prices
Customer Price	Show prices
Metal Factor	------71
Delivery information
Export Control Regulations	AL : N / ECCN : N
Standard lead time ex-works	30 Day/Days
Net Weight (lb)	73.414 lb
Packaging Dimension	14.37 x 19.488 x 13.386
Package size unit of measure	Inch
Quantity Unit	1 Piece
Packaging Quantity	1
Additional Product Information
EAN	4042948675298
UPC	804766790966
Commodity Code	85015220
LKZ_FDB/ CatalogID	NC81
Product Group	5183
Group Code	R220
Country of origin	China
Compliance with the substance restrictions according to RoHS directive	Since: 01/01/2018
Returnable	No
WEEE (2012/19/EU) Take-Back Obligation	Yes
REACH Art. 33 Duty to inform according to the current list of candidates	Reach Information
SCIP number	Not available
Classifications
	Version Classification eClass 12 27-02-26-02 eClass 14 27-02-26-02 eClass 6 27-02-26-02 eClass 7.1 27-02-26-02 eClass 8 27-02-26-02 eClass 9 27-02-26-02 eClass 9.1 27-02-26-02 ETIM 7 EC001851 ETIM 8 EC001851 ETIM 9 EC001851
