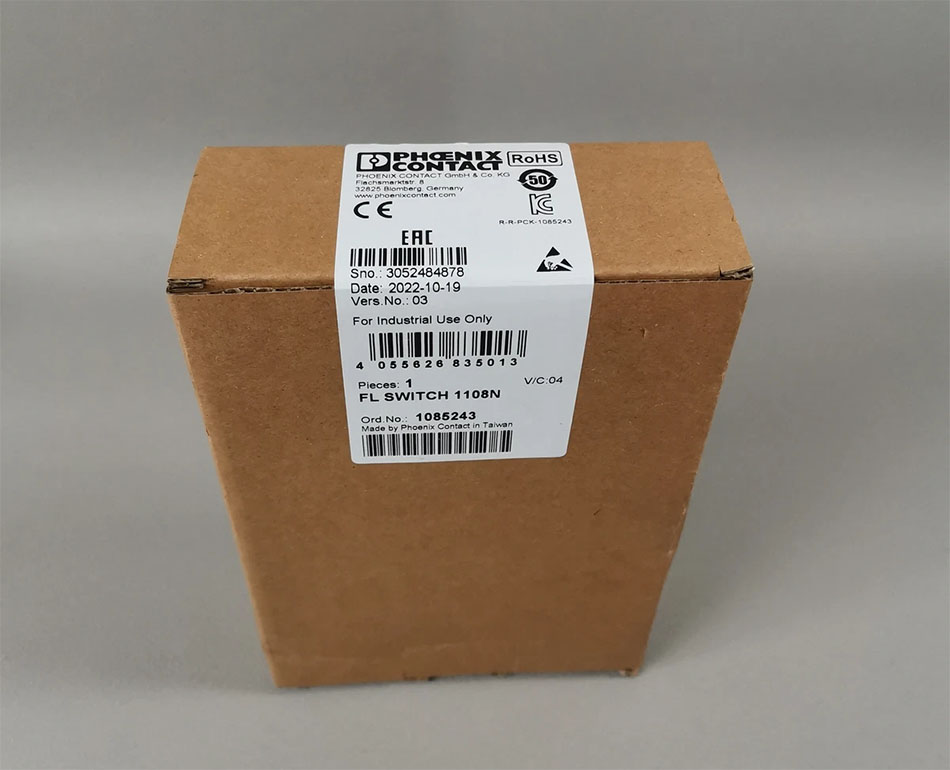

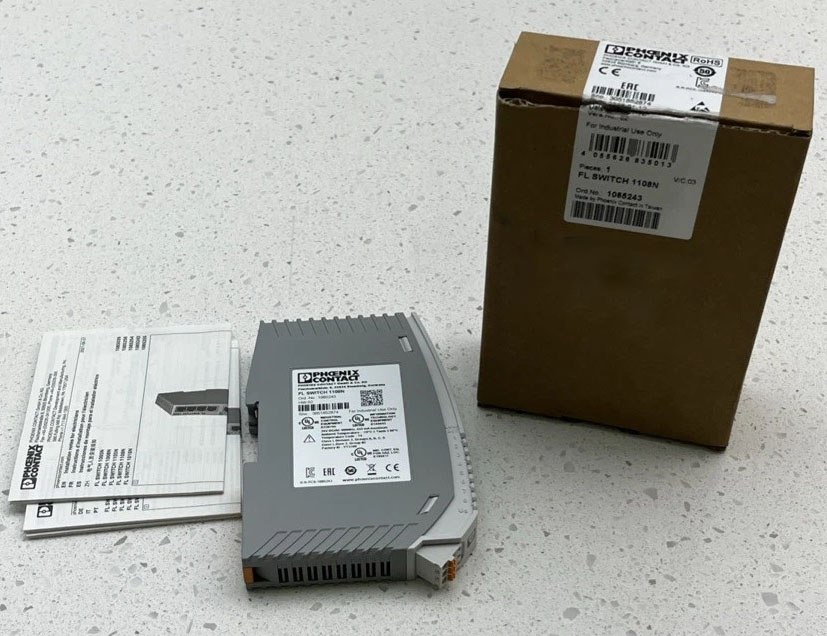

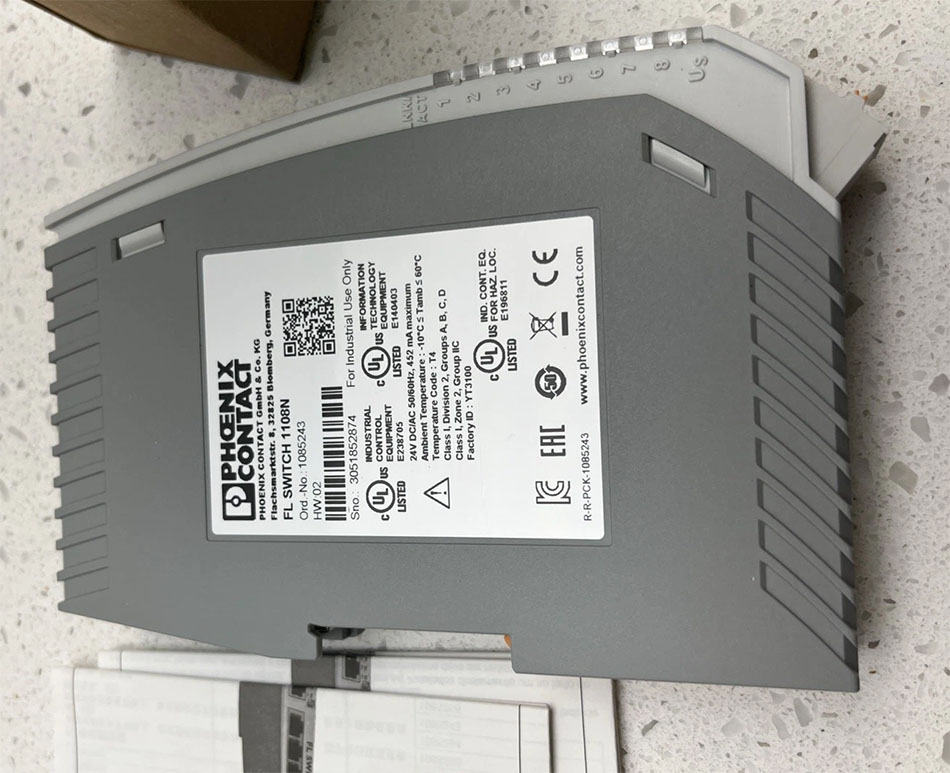

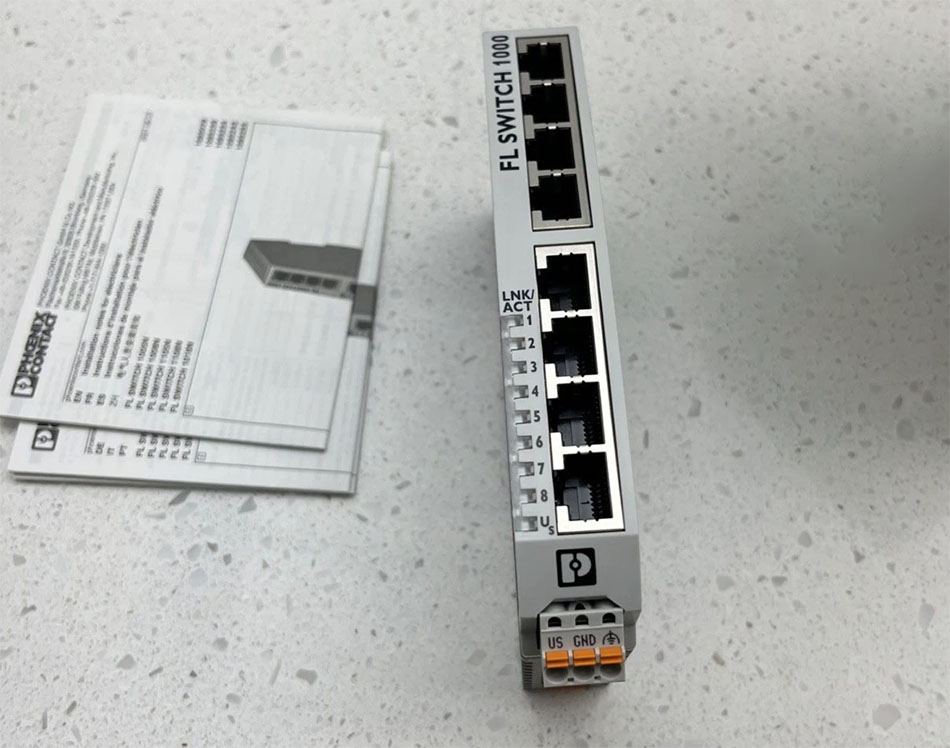

Bộ chia mạng 8 ports RJ45 Phoenix Contact FL SWITCH 1108N | 1085243

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm PHOENIX CONTACT

•

  Tất cả các model chuyển mạch Ethernet công nghiệp Siemens RUGGEDCOM RSG2100

•

  Thiết bị chuyển đổi tín hiệu truyền thông Siemens SCALANCE X-100 & RUGGEDCOM RMC Series

• Xem thêm

Phoenix Contact FL SWITCH 1108N | 1085243 là Bộ chia mạng công nghiệp, 8 cổng RJ45, unmanged, 10/100/1000 Mbps, Jumbo frames Max. 9,216 bytes



Your advantages của Bộ chia mạng 8 ports RJ45 Phoenix Contact FL SWITCH 1108N | 1085243

- Auto negotiation and autocrossing detection simplifies installation and setup
- Local diagnostic indicators with LEDs
- RJ45 ports support a transmission speed of 10/100/1000 Mbps
- QoS-prioritized (Quality of Service) messages
- PROFINET conformance Class A for real-time data exchange
- PROFINET PTCP filter for reliable communication on PROFINET networks
- Enhanced traffic prioritization for automation protocols
- Jumbo frame support (frame size up to 9216 bytes/frame)




Note của Bộ chia mạng 8 ports RJ45 Phoenix Contact FL SWITCH 1108N | 1085243

Utilization restriction	EMC: class A product, see manufacturer's declaration in the download area



Dimensions của Bộ chia mạng 8 ports RJ45 Phoenix Contact FL SWITCH 1108N | 1085243

Width	22.5 mm
Height	140.4 mm
Depth	92 mm
Note on dimensions	147.5 mm with connector



Ambient conditions của Bộ chia mạng 8 ports RJ45 Phoenix Contact FL SWITCH 1108N | 1085243

Degree of protection	IP30
Ambient temperature (operation)	-10 °C ... 60 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)	5 % ... 95 % (non-condensing)
Air pressure (operation)	79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
Air pressure (storage/transport)	79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)



Interfaces của Bộ chia mạng 8 ports RJ45 Phoenix Contact FL SWITCH 1108N | 1085243

Interface	Ethernet (RJ45)
No. of ports	8 (RJ45 ports)
Note on the connection method	Auto negotiation and autocrossing
Transmission physics	Ethernet in RJ45 twisted pair
Transmission speed	10/100/1000 Mbps
Transmission length	100 m (per segment)
Signal LEDs	Data receive, link status



Function của Bộ chia mạng 8 ports RJ45 Phoenix Contact FL SWITCH 1108N | 1085243

Basic functions	Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
Additional functions	Autonegotiation
	Jumbo frames (Max. 9,216 bytes)
MAC address table
Status and diagnostic indicators	LEDs: US, link and activity per port



Network expansion parameters của Bộ chia mạng 8 ports RJ45 Phoenix Contact FL SWITCH 1108N | 1085243

Cascading depth	Network, linear, and star structure: any
Maximum conductor length (twisted pair)	100 m



Supply voltage của Bộ chia mạng 8 ports RJ45 Phoenix Contact FL SWITCH 1108N | 1085243

Supply voltage	24 V
	24 V AC (50/60 Hz)
Residual ripple	3.6 VPP (within the permitted voltage range)
Supply voltage range	9 V DC ... 32 V DC
	18 V AC ... 30 V AC
Max. current consumption	452 mA



General của Bộ chia mạng 8 ports RJ45 Phoenix Contact FL SWITCH 1108N | 1085243

Mounting type	DIN rail
Type AX	Stand-alone
Net weight	179 g
MTTF	66.1 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
	786 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
	709 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))



Connection data của Bộ chia mạng 8 ports RJ45 Phoenix Contact FL SWITCH 1108N | 1085243

Connection method	Push-in spring connection
Conductor cross section solid min.	0.2 mm²
Conductor cross section solid max.	2.5 mm²
Conductor cross section flexible min.	0.2 mm²
Conductor cross section flexible max.	2.5 mm²
Conductor cross section AWG min.	24
Conductor cross section AWG max.	12
Stripping length	10 mm



Standards and Regulations của Bộ chia mạng 8 ports RJ45 Phoenix Contact FL SWITCH 1108N | 1085243

Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Type of test	Free fall in accordance with EN 61131-2
Noise emission	EN 61000-6-4:2007 + A1:2011
Noise immunity	EN 61000-6-2:2005
Vibration (storage/transport)	5g, 150 Hz, in acc. with IEC 60068-2-6
Vibration (operation)	in acc. with IEC 60068-2-6: 5g, 150 Hz
Shock (operation)	30g (EN 60068-2-27)



Classifications của Bộ chia mạng 8 ports RJ45 Phoenix Contact FL SWITCH 1108N | 1085243

  eCl@ss của Bộ chia mạng 8 ports RJ45 Phoenix Contact FL SWITCH 1108N | 1085243

eCl@ss 10.0.1	19170402
eCl@ss 8.0	19170106
eCl@ss 9.0	19170106



ETIM của Bộ chia mạng 8 ports RJ45 Phoenix Contact FL SWITCH 1108N | 1085243

ETIM 5.0	EC000734
