Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711 là Hộp nối cáp quang, 6 đầu nối LC duplex, 12 dây nối 900µm, ≤ 0.3dB, FO, 40x130x115mm, RAL 7042, IP20
- Tài liệu kỹ thuật của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711 ở đây.
Thông số kỹ thuật của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
Product description của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711

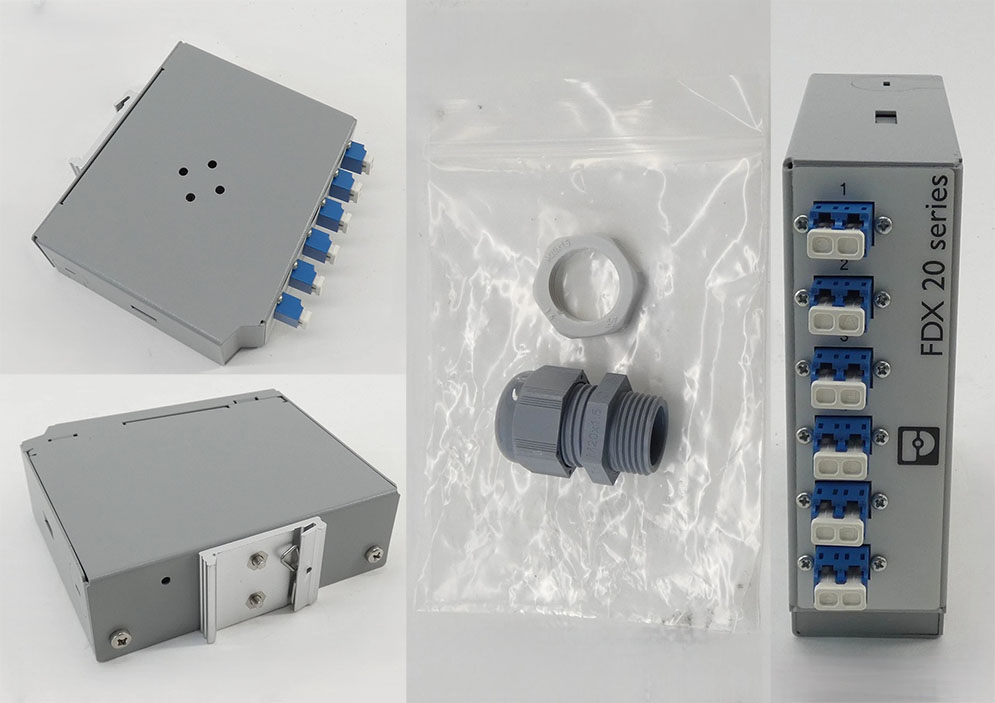

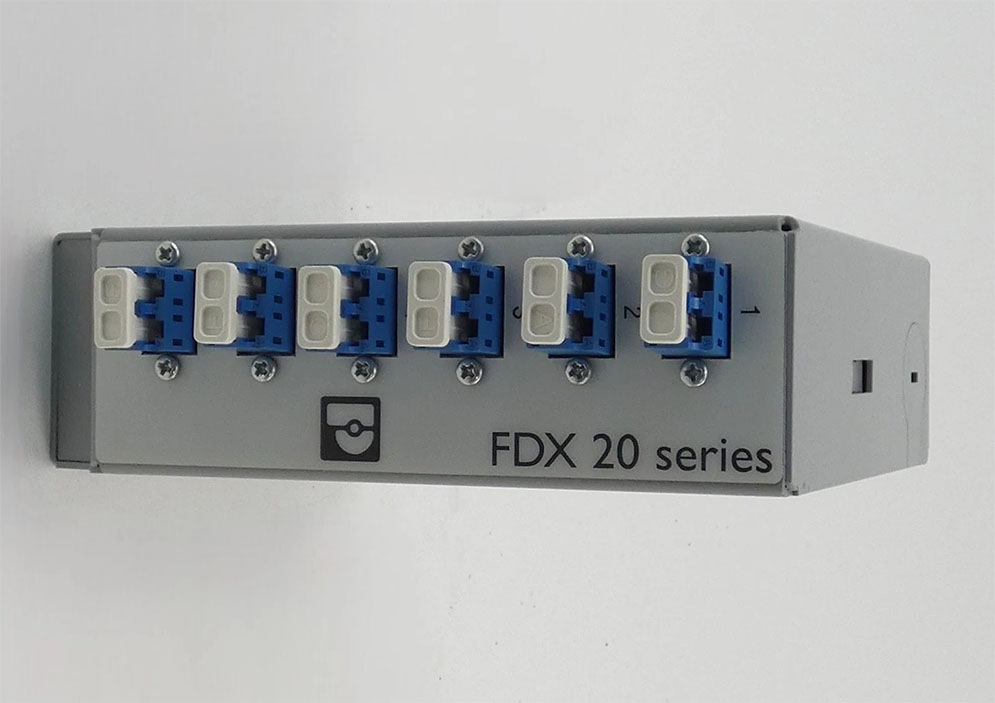

FDX 20 series DIN rail splice box, equipped with 6x LC duplex couplings, fully assembled and ready for splicing, with pre-assembled 900 µm pigtails (OS2) and splice holder (for separately sold shrink and crimp splice protection) on a patented splice comb made from powder-coated sheet steel. Cable insertion possible via cable gland either at the top or bottom. Housing (2-part) prepared for DIN rail mounting through rear-side adapter (this can also be mounted on the side).

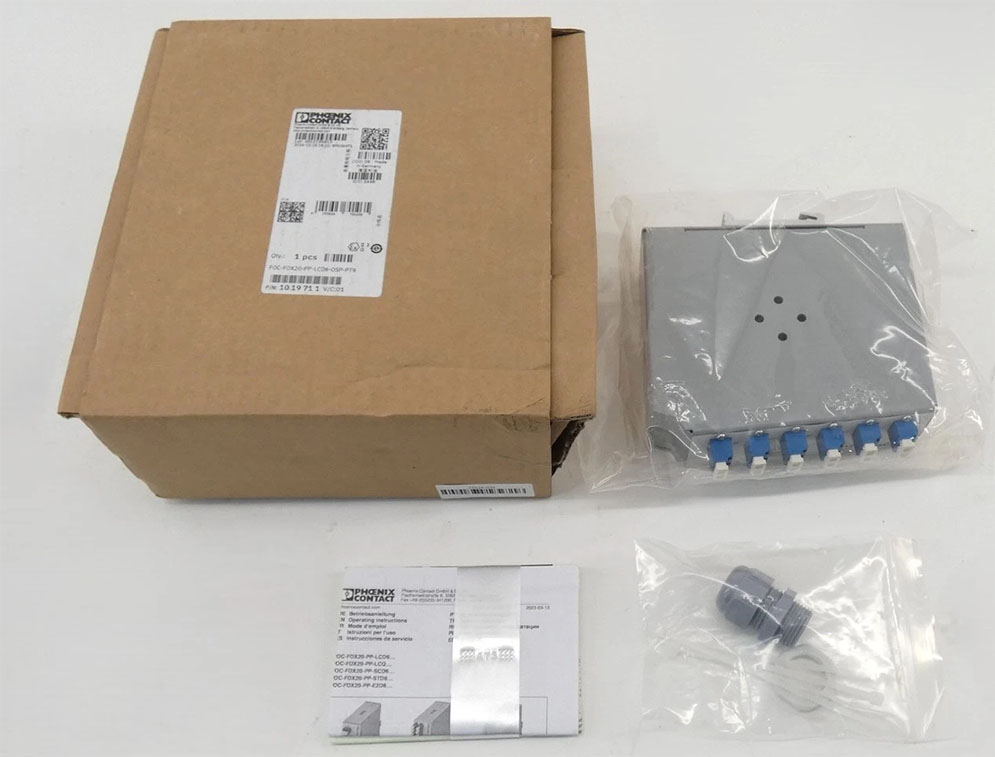

Scope of supply
DIN rail housing with integrated splice comb (mounted), equipped with 6x LC duplex couplings, 12x pigtails (OS2), 1x splice holder, 1x cable gland (M20x1.5)
Notes của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
| Order information: |
In addition, shrink splice protection (Item No.: 1019676) or crimp splice protection (Item No.: 1019678) must be ordered separately. |
Product properties của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
| Product type |
Network distributor box |
| Housing type |
DIN rail adapter |
| Series |
FDX 20 series |
| Type |
Rail-mountable module |
| Connection profile |
LC-Duplex |
| No. of cable outlets |
2 |
| No. of conductors |
12 |
| Number of module slots |
6 |
| Number of slots |
12 |
| Type of the screw connection |
M20 x 1.5 |
| Protective cover |
yes |
| Cable outlet |
above and below |
Electrical properties của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
| Attenuation |
≤ 0.3 dB |
| Transmission medium |
FO |
Connection data của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
| Connection technology |
| Connection method |
Splicing |
Interfaces của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
| Signal type/category |
Ethernet |
Dimensions của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
| Width |
40 mm |
| Height |
130 mm |
| Depth |
115 mm |
| Housing |
| Housing width |
40 mm |
| Mechanical characteristics |
| Ferrule diameter |
1.25 mm |
Material specifications của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
| Color |
gray |
| Flammability rating according to UL 94 |
V0 |
| Ferrule material |
Zirconia ceramics |
| Housing material |
Metal |
| Housing surface material |
Powder-coated, gray |
Cable/ Line của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
| Cable type |
Single-mode fiberglass |
| Cable type |
900 µm |
| Cable structure |
semi-loose compact wires (STB) |
| External cable diameter |
6 mm ... 12 mm |
| External cable diameter |
6 mm ... 12 mm |
| Wire diameter incl. insulation |
900 µm |
| Individual wire diameter |
900 µm (250/900 µm) |
| Single wire, color |
Assignment color-coded in accordance with IEC 60794-2 |
| Halogen-free |
yes |
| Resistance to oil |
no |
| Flame resistance |
yes |
| FO cable |
| Number of fibers |
12 |
| Fiber |
GOF |
| Fiber type |
Single-mode fiberglass, resistant to bending G.657 A2 |
| Attenuation |
≤ 0.3 dB (at 1310 nm / 1550 nm) |
| Return Loss |
≥ 50 dB (at 1310 nm / 1550 nm) |
| Transmission medium |
FO |
Mechanical properties của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
| Mechanical data |
| Type of the screw connection |
M20 x 1.5 |
| Insertion/withdrawal cycles |
≥ 500 |
Characteristics của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
Environmental and real-life conditions của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
| Ambient conditions |
| Degree of protection |
IP20 (according to IEC 60529) |
| IP20 |
| Ambient temperature (operation) |
-40 °C ... 85 °C |
| Ambient temperature (storage/transport) |
-40 °C ... 85 °C |
| Ambient temperature (assembly) |
0 °C ... 50 °C |
| Resistance to oil |
no |
Standards and Regulations của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
| Flame resistance |
yes |
| Resistance to oil |
no |
Mounting của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
| Mounting type |
DIN rail mounting |
| Assembly note |
Option for flexible replugging of DIN rail adapter |
Commercial data của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
| Item number |
1019711 |
| Packing unit |
1 pc |
| Minimum order quantity |
1 pc |
| Product key |
ABNGAA |
| GTIN |
4055626701035 |
| Weight per piece (including packing) |
692 g |
| Weight per piece (excluding packing) |
600.551 g |
| Customs tariff number |
85367000 |
| Country of origin |
DE |
Classifications của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
ECLASS
| ECLASS-13.0 |
19170113 |
| ECLASS-15.0 |
19170113 |
ETIM
UNSPSC
Approvals của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
UL Listed
Approval ID: E335024-20250729
cUL Listed
Approval ID: E335024-20250729
Environmental product compliance của Hộp nối cáp quang Phoenix Contact FOC-FDX20-PP-LCD6-OSP-PT9 - 1019711
| EU RoHS |
| Fulfills EU RoHS substance requirements |
Yes (No exemptions) |
| China RoHS |
| Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits |
| EU REACH SVHC |
| REACH candidate substance (CAS No.) |
No substance above 0.1 wt% |
