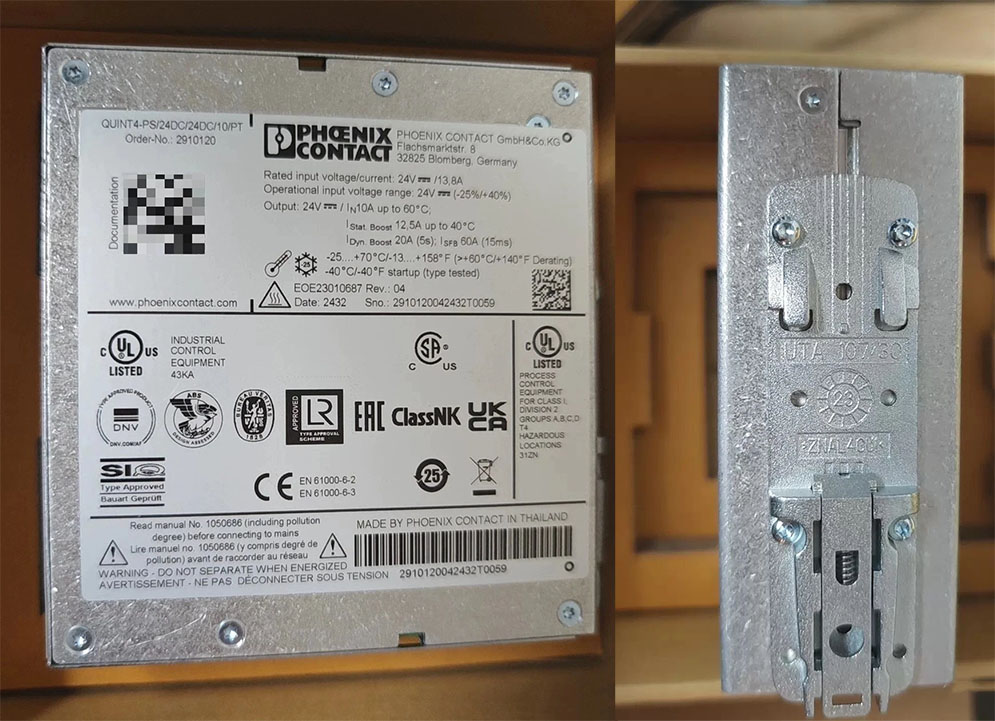

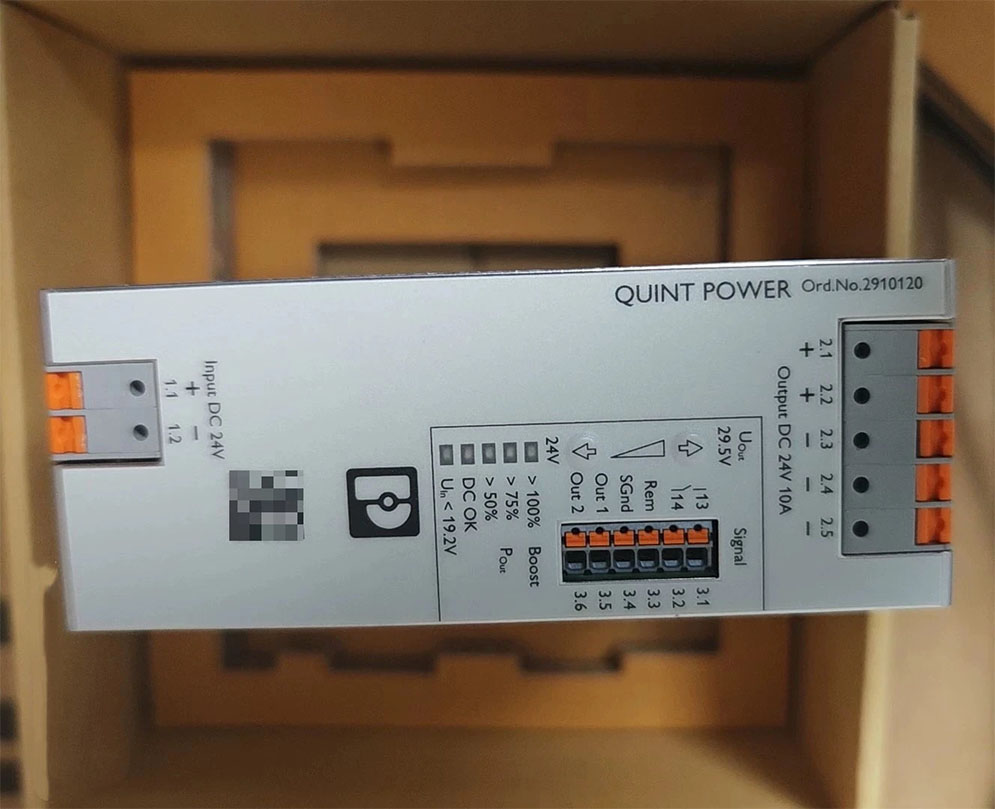

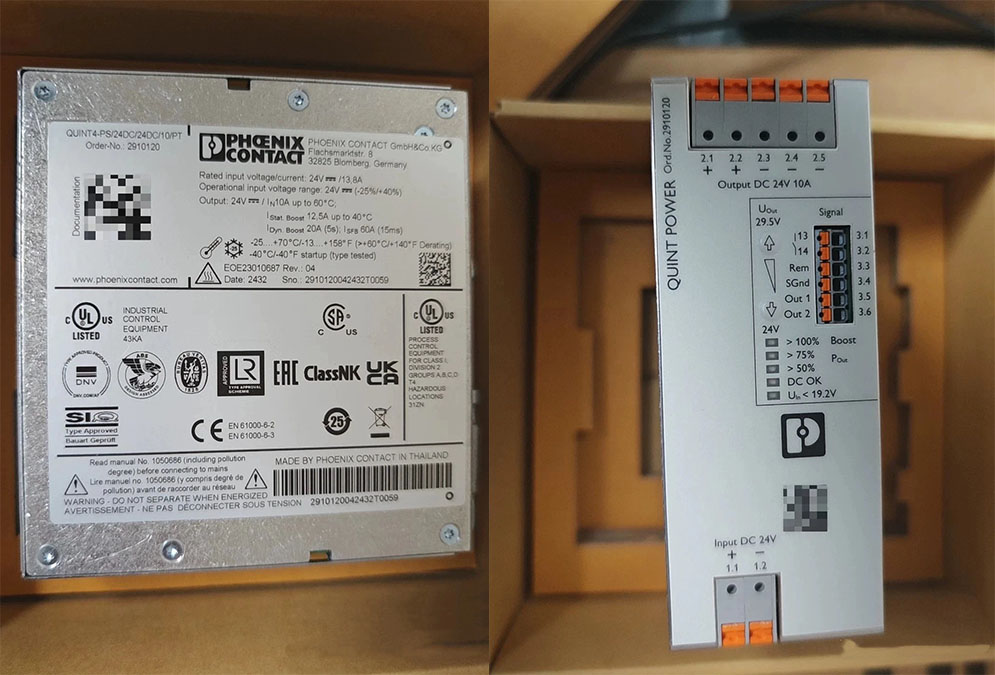

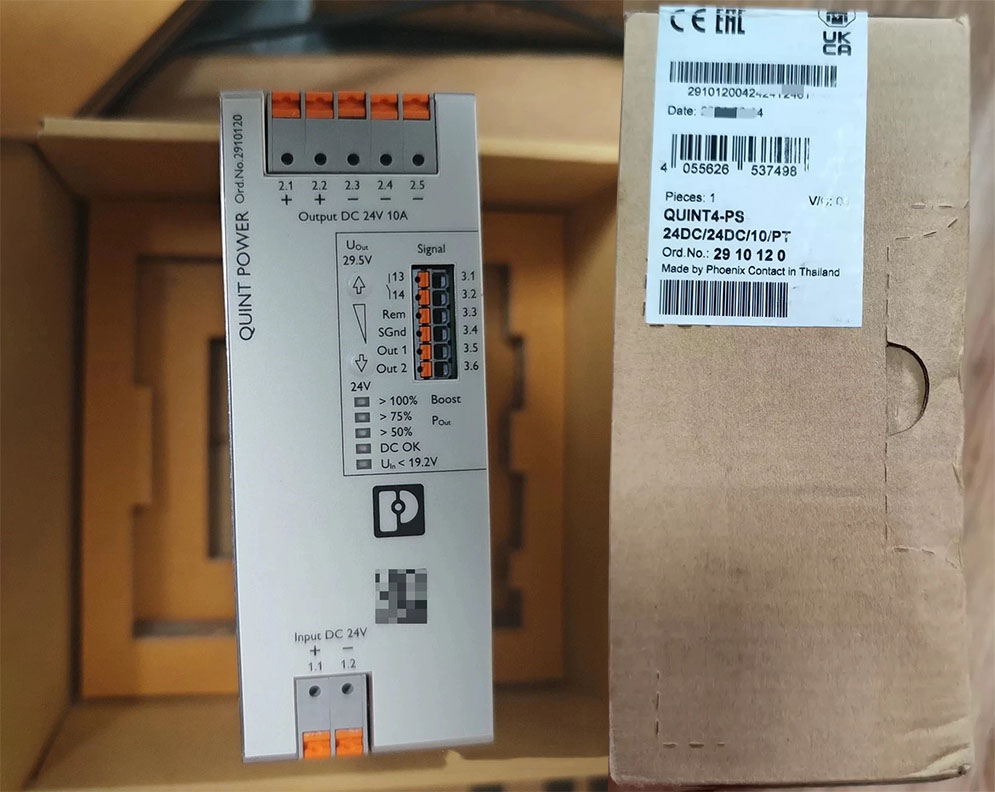

Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm PHOENIX CONTACT

• Xem thêm

Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120 là Bộ ổn áp DC/DC, công nghệ SFB , đầu vào 24VDC, đầu ra 24VDC 10A

Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 10 A


- Tài liệu kỹ thuật của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120 ở đây.



Thông số kỹ thuật của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

Product description của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

- QUINT DC/DC converter with maximum functionality
- DC/DC converters alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by means of electrical isolation.
- QUINT DC/DC converters magnetically and therefore quickly trip circuit breakers with six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.


Input data của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

Nominal input voltage range	24 V DC
Input voltage range	24 V DC -25 % ... +40 %
Wide-range input	no
Electric strength, max.	35 V DC (60 s)
Inrush current	typ. 1.5 A
Inrush current integral (I2t)	< 0.02 A2s
Inrush current limitation	1.5 A (after 1 ms)
Mains buffering time	typ. 11 ms (24 V DC)
Current consumption	13.8 A (24 V DC)
Nominal power consumption	258 VA
Typical response time	300 ms (from SLEEP MODE)
Switch-on time	< 1 s
Input fuse	30 A (slow-blow, internal)
Recommended breaker for input protection	16 A ... 20 A (Characteristic B, C, D, K or comparable)



Output data của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

Efficiency	typ. 93.3 % (24 V DC)
Output characteristic	U/I Advanced
	Smart HICCUP
	FUSE MODE
Nominal output voltage	24 V DC
Setting range of the output voltage (USet)	24 V DC ... 29.5 V DC (> 24 V DC, constant capacity)
Nominal output current (IN)	10 A
Static Boost (IStat.Boost)	12.5 A
Dynamic Boost (IDyn.Boost)	20 A (5 s)
Selective Fuse Breaking (ISFB)	60 A (15 ms)
Magnetic circuit breaker tripping	A1...A6 / B2...B6 / C1...C3 / Z1...Z6
Short-circuit-proof	yes
No-load proof	yes
Output power (PN)	240 W
Output power (PStat. Boost)	300 W
Output power (PDyn. Boost)	480 W (5 s)
Feedback voltage resistance	≤ 35 V DC
Protection against overvoltage at the output (OVP)	≤ 32 V DC
Residual ripple	< 50 mVPP
Control deviation static	< 1 % (change in load, static 10 % ... 90 %)
Control deviation dynamic	< 1 % (change in load, static 10 % ... 90 %)
Control deviation Input voltage change	< 1 % (change in load, static 10 % ... 90 %)
Rise time	< 100 ms (UOUT (10 % ... 90 %))
Connection in series	yes
Maximum no-load power dissipation	< 5 W
Power loss nominal load max.	< 16 W
Power dissipation SLEEP MODE	< 2 W
Connection in parallel	yes, for redundancy and increased capacity
Fuse protection (secondary side)	electronic
	thermal-magnetic
	thermal



Connection data của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

Input
Position	1.x
Conductor connection
Connection method	Push-in connection
rigid	0.2 mm² ... 6 mm²
flexible	0.2 mm² ... 6 mm²
flexible with ferrule without plastic sleeve	0.2 mm² ... 4 mm²
flexible with ferrule with plastic sleeve	0.2 mm² ... 4 mm²
rigid (AWG)	24 ... 10
Stripping length	10 mm
Output
Position	2.x
Conductor connection
Connection method	Push-in connection
rigid	0.2 mm² ... 6 mm²
flexible	0.2 mm² ... 6 mm²
flexible with ferrule without plastic sleeve	0.2 mm² ... 4 mm²
flexible with ferrule with plastic sleeve	0.2 mm² ... 4 mm²
rigid (AWG)	24 ... 10
Stripping length	10 mm
Signal
Position	3.x
Conductor connection
Connection method	Push-in connection
rigid	0.2 mm² ... 1 mm²
flexible	0.2 mm² ... 1.5 mm²
flexible with ferrule without plastic sleeve	0.2 mm² ... 1.5 mm²
flexible with ferrule with plastic sleeve	0.2 mm² ... 0.75 mm²
rigid (AWG)	24 ... 16
Stripping length	8 mm



Signaling data của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

LED signaling
Types of signaling	LED
	Floating signal contact
	Active signal output Out1 (digital, configurable)
	Active signal output Out2 (analog, configurable)
	Remote contact
	Signal ground SGnd
Signal threshold	> 100 % (LED lights up yellow, output power > 240 W)
	> 75 % (LED lights up green, output power > 180 W)
	> 50 % (LED lights up green, output power > 120 W)
	> 0.9 x USet (LED lights up green)
	< 0.9 x USet (LED flashes green)
	> 0.8 x UInNom (LED off)
	< 0.8 x UInNom (LED lights up yellow)
Signal input Remote (configurable)
Connection labeling	3.3 +
Function	Output power ON/OFF (remote)
Default	Output power ON (>40 kΩ/24 V DC/open bridge between REM and SGnd)
Signal output Out 1 (configurable)
Connection labeling	3.5 +
Digital	0 V DC
	24 V DC
	20 mA
Default	UIN input voltage OK
Signal option	Output voltage
	Output current
	Output power
	Operating hours
	Early warning of high temperatures
	OVP voltage limitation active
Signal output Out 2 (configurable)
Connection labeling	3.6 +
Digital	0 V DC
	24 V DC
	20 mA
Default	Output power
Signal option	Output voltage
	Output current
	Operating hours
	Early warning of high temperatures
	OVP voltage limitation active
Analog	4 mA ... 20 mA ±5 % (Load ≤400 Ω)
Signal option	Output voltage
	Output current
	Output power
Signal output Relay 13/14 (configurable)
Connection labeling	3.1, 3.2
Switch contact (floating)	floating
Digital	24 V DC
	1 A
	30 V AC
	0.5 A
Default	Output voltage
Signal option	Output current
	Output power
	Operating hours
	Early warning of high temperatures
	OVP voltage limitation active
	UIN input voltage OK
Signal ground SGnd
Connection labeling	3.4 +
Function	Signal ground
Reference potential	to OUT1, OUT2, REM



Electrical properties của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

Number of phases	1.00
Insulation voltage input/output	4 kV DC (type test)
	2 kV DC (routine test)
Switching frequency	190.00 kHz ... 220.00 kHz (Auxiliary converter stage)
	67.00 kHz ... 135.00 kHz (Main converter stage)



Product properties của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

Product type	DC/DC converters
Product family	QUINT POWER
MTBF (IEC 61709, SN 29500)	> 1380000 h (25 °C)
	> 800000 h (40 °C)
	> 340000 h (60 °C)
Insulation characteristics
Protection class	Special with SELV input and output
Overvoltage category (EN 61010-1)	II (≤ 5000 m)
Overvoltage category (EN 62477-1)	III (≤ 5000 m)
Degree of pollution	2
Life expectancy (electrolytic capacitors)
Current	5 A
Temperature	40 °C
Time	367721 h
Additional text	24 V DC
Life expectancy (electrolytic capacitors)
Current	10 A
Temperature	40 °C
Time	183860 h
Additional text	24 V DC
Life expectancy (electrolytic capacitors)
Current	10 A
Temperature	30 °C
Time	422400 h
Additional text	24 V DC



Dimensions của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

Item dimensions
Width	50 mm
Height	130 mm
Depth	125 mm
Item dimensions with alternative mounting
Width	122 mm
Height	130 mm
Depth	53 mm
Installation dimensions
Installation distance right/left (active)	15 mm / 15 mm (≤ 70 °C)
Installation distance right/left (passive)	0 mm / 0 mm (≤ 70 °C)
Installation distance top/bottom (active)	50 mm / 50 mm (≤ 70 °C)
Installation distance top/bottom (passive)	50 mm / 50 mm



Mounting data của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

Mounting type	DIN rail mounting
Assembly note	alignable: PN ≥50%, 5 mm horizontally, 15 mm next to active components, 50 mm vertically alignable: PN <50%, 0 mm horizontally, 40 mm vertically top, 20 mm vertically bottom
With protective coating	no



Material specifications của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

Flammability rating according to UL 94 (housing / terminal blocks)	V0
Housing material	Metal
Hood version	Stainless steel X6Cr17
Side element version	Aluminum



Environmental and real-life conditions của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Ambient temperature (start-up type tested)	-40 °C
Maximum altitude	≤ 5000 m (> 2000 m, observe derating)
Climatic class	3K22 (in accordance with EN 60721-3-3)
Max. permissible relative humidity (operation)	≤ 95 % (at 25 °C, non-condensing)
Shock	18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)	5 Hz ... 100 Hz resonance search 2.3g, 90 min., resonance frequency 2.3g, 90 min. (according to DNV GL Class C)
Temp code	T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K)



Standards and Regulations của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

Safety for measurement, control, and laboratory equipment
Standard designation	Electrical safety (of control and regulation devices)
Standards/specifications	IEC 61010-1
Protective extra-low voltage
Standard designation	Protective extra-low voltage
Standards/specifications	EN 61010-1 (SELV)
	IEC 61010-2-201 (PELV)
Mains voltage dips
Standard designation	Mains variation/undervoltage
Standards/specifications	EN 61000-4-29
Railway applications
Standard designation	Railway applications
Standards/specifications	EN 50121-3-2
	IEC 62236-3-2



Approvals của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

UL
Identification	UL Listed UL 61010-1
UL
Identification	UL Listed UL 61010-2-201
UL
Identification	UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location)
CSA
Identification	CAN/CSA-C22.2 No. 61010-1-12
CSA
Identification	CAN/CSA C22.2 No. 61010-2-201:18
SIQ
Identification	Type tested (type approved)
SIQ
Identification	CB scheme (IEC 61010-1, IEC 61010-2-201)
Shipbuilding
Identification	DNV
Shipbuilding
Identification	ABS
Shipbuilding
Identification	BV
Shipbuilding
Identification	NK
Shipbuilding
Identification	LR



EMC data của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Low Voltage Directive	Conformance with Low Voltage Directive 2014/35/EC
EMC requirements for noise emission	EN 61000-6-3
	EN 61000-6-4
EMC requirements for noise immunity	EN 61000-6-1
	EN 61000-6-2
EMC requirements, power plant	IEC 61850-3
	EN 61000-6-5
Conducted noise emission
Standards/regulations	EN 55016
	EN 61000-6-3 (Class B)
Noise emission
Standards/regulations	Additional basic standard EN 61000-6-5 (immunity in switching devices), IEC/EN 61850-3 (power supply)
Noise emission
Standards/regulations	EN 55016
	EN 61000-6-3 (Class B)
DNV GL conducted noise emissions
DNV	Class B
Additional text	Bridge and deck area
DNV GL noise radiation
DNV	Class B
Additional text	Bridge and deck area
Electrostatic discharge
Standards/regulations	EN 61000-4-2
Electrostatic discharge
Contact discharge	8 kV (Test Level 4)
Discharge in air	15 kV (Test Level 4)
Comments	Criterion A
Electromagnetic HF field
Standards/regulations	EN 61000-4-3
Electromagnetic HF field
Frequency range	80 MHz ... 1 GHz
Test field strength	20 V/m (Test Level 3)
Frequency range	1 GHz ... 6 GHz
Test field strength	10 V/m (Test Level 3)
Comments	Criterion A
Fast transients (burst)
Standards/regulations	EN 61000-4-4
Fast transients (burst)
Input	2 kV (Test Level 3 - asymmetrical)
Output	2 kV (Test Level 3 - asymmetrical)
Signal	2 kV (Test Level 4 - asymmetrical)
Comments	Criterion A
Surge voltage load (surge)
Standards/regulations	EN 61000-4-5
Surge voltage load (surge)
Input	1 kV (Test Level 3 - symmetrical)
	2 kV (Test Level 3 - asymmetrical)
Output	1 kV (Test Level 3 - symmetrical)
	2 kV (Test Level 3 - asymmetrical)
Signal	2 kV (Test Level 3 - asymmetrical)
Comments	Criterion A
Conducted interference
Standards/regulations	EN 61000-4-6
Conducted interference
Input/output/signal	asymmetrical
Frequency range	0.15 MHz ... 80 MHz
Comments	Criterion A
Voltage	10 V (Test Level 3)
Power frequency magnetic field
Standards/regulations	EN 61000-4-8
Frequency	16.7 Hz
	50 Hz
	60 Hz
Test field strength	100 A/m
Additional text	60 s
Comments	Criterion A
Frequency	50 Hz
	60 Hz
Frequency range	50 Hz ... 60 Hz
Test field strength	1 kA/m
Additional text	3 s
Comments	Criterion A
Frequency	0 Hz
Test field strength	300 A/m
Additional text	DC, 60 s
Comments	Criterion A
Voltage dips
Standards/regulations	EN 61000-4-29
Voltage	24 V DC
Voltage dip	70 %
Time	100 ms
Additional text	Test Level 2
Comments	Criterion A
Voltage dip	40 %
Time	100 ms
Additional text	Test Level 2
Comments	Criterion B
Voltage dip	0 %
Time	50 ms
Additional text	Test Level 2
Comments	Criterion B
Pulse-shape magnetic field
Standards/regulations	EN 61000-4-9
Test field strength	1000 A/m
Comments	Criterion A
Asymmetrical conducted disturbance variables
Standards/regulations	EN 61000-4-16
Test level 1	15 Hz 150 Hz (Test Level 3)
Voltage	10 V 1 V
Test level 2	150 Hz 1.5 kHz (Test Level 3)
Voltage	1 V
Test level 3	1.5 kHz 15 kHz (Test Level 3)
Voltage	1 V 10 V
Test level 4	15 kHz 150 kHz (Test Level 3)
Voltage	10 V
Test level 5	16.7 Hz 50 Hz 60 Hz 150 Hz 180 Hz (Test Level 3)
Voltage	10 V (Permanent)
Test level 6	0 Hz 16.7 Hz 50 Hz 60 Hz (Test Level 3)
Voltage	100 V (1 s)
Comments	Criterion A
Alternating component of direct voltage
Standards/regulations	EN 61000-4-17
Alternating component	15 % (UN)
Frequency	50 Hz
	100 Hz
	150 Hz
Comments	Criterion A
Alternating component	14 % (UN)
Frequency	300 Hz
Comments	Criterion A
Attenuated oscillating wave
Standards/regulations	EN 61000-4-18
Input, output (test level 1)	100 kHz 1 MHz (Test Level 2 - symmetrical)
Voltage	0.5 kV
Input, output (test level 2)	100 kHz 1 MHz (Test Level 2 - asymmetrical)
Voltage	1 kV
Input, output (test level 3)	10 MHz (Test Level 2 - asymmetrical)
Voltage	0.5 kV
Signals (test level 1)	100 kHz 1 MHz (Test Level 2 - symmetrical)
Voltage	0.5 kV
Signals (test level 2)	100 kHz 1 MHz (Test Level 2 - asymmetrical)
Voltage	1 kV
Comments	Criterion A
Attenuated oscillating magnetic field
Standards/regulations	EN 61000-4-10
Test field strength	100 A/m
Test level 1	100 kHz
Test field strength	100 A/m
Test level 2	1 MHz
Comments	Criterion A
Criteria
Criterion A	Normal operating behavior within the specified limits.
Criterion B	Temporary impairment to operational behavior that is corrected by the device itself.
Criterion C	Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements.



Commercial data của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

Item number	2910120
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	CMDI43
GTIN	4055626537498
Weight per piece (including packing)	1,043 g
Weight per piece (excluding packing)	910 g
Customs tariff number	85044095
Country of origin	TH



Classifications của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

ECLASS

ECLASS-13.0	27040701
ECLASS-15.0	27040701

ETIM

ETIM 10.0

EC002540

UNSPSC

UNSPSC 21.0

39121000



EAC

Approval ID: RU S-DE.BL08.W.00764


LR

Approval ID: LR22472797TA


NK

Approval ID: TA21182M


BV

Approval ID: 57060/B0 BV


UL Listed

Approval ID: E123528


cUL Listed

Approval ID: FILE E 123528

ABS

Approval ID: 26-0442641-PDA


Type approved

Approval ID: SI-SIQ BG 005/058

DNV

Approval ID: TAA00001YD


cCSAus

Approval ID: 70212082


EAC

Approval ID: KZ7500651 0101 12535


Environmental product compliance của Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-25 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	5dfe4efd-9da1-453e-9bab-b8d06fbdbfaf
EF3.1 Climate Change
CO2e kg	20.275 kg CO2e



Tham khảo thêm các models khác cùng loại, liên quan với Bộ ổn áp DC/DC 24V 10A Phoenix Contact QUINT4-PS/24DC/24DC/10/PT - 2910120:

QUINT4-PS/12-24DC/5-15DC/2.5/PT - DC/DC converter
1066704
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, input: 12 V DC - 24 V DC, output: 12 V DC / 2.5 A

QUINT4-PS/24DC/12DC/8/PT - DC/DC converter
2910122
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 12 V DC / 8 A

QUINT4-PS/24DC/24DC/20/PT - DC/DC converter
2910121
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 20 A

QUINT4-PS/24DC/24DC/10/PT - DC/DC converter
2910120
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 10 A

QUINT-PS/96-110DC/24DC/10 - DC/DC converter
2905010
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (selective fuse breaking) technology, input: 96 - 110 V DC, output: 24 V DC/10 A

QUINT4-PS/24DC/24DC/20/SC/+ - DC/DC converter
1046881
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), Protective coating and integrated decoupling MOSFET, input: 24 V DC, output: 24 V DC / 20 A

MINI-PS- 12- 24DC/24DC/1 - DC/DC converter
2866284
Please use the following items in new systems: 1066703, 1066716, 1066718, 1066714.
Primary-switched MINI DC/DC converter for DIN rail mounting, input: 12 - 24 V DC, output: 24 V DC/1 A

MINI-PS- 12- 24DC/ 5-15DC/2 - DC/DC converter
2320018
Please use the following item in new systems: 1066704.
Primary-switched MINI DC/DC converter for DIN rail mounting, input: 12 V DC ... 24 V DC, output: 5 V DC ... 15 V DC/2 A

QUINT4-PS/48-110DC/24DC/2.5/PT - DC/DC converter
1066708
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, input: 48 V DC - 110 V DC, output: 24 V DC / 2.5 A

QUINT4-PS/48DC/24DC/5/PT - DC/DC converter
2910125
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 48 V DC, output: 24 V DC / 5 A

QUINT4-PS/24DC/24DC/10/SC - DC/DC converter
1046803
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 10 A

QUINT4-PS/24DC/24DC/5/PT - DC/DC converter
2910119
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 5 A

QUINT-PS/60-72DC/24DC/10 - DC/DC converter
2905009
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (Selective Fuse Breaking) technology, input: 60-72 V DC, output 24 V DC / 10 A

MINI-PS- 48- 60DC/24DC/1 - DC/DC converter
2866271
Please use the following item in new systems: 1066708.
Primary-switched MINI DC/DC converter for DIN rail mounting, input: 48 - 60 V DC, output: 24 V DC/1 A

QUINT4-PS/12-24DC/24DC/1.3/PT - DC/DC converter
1066716
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 1.3 A

QUINT4-PS/24DC/48DC/5/PT - DC/DC converter
2910123
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 48 V DC / 5 A

QUINT4-PS/12-24DC/24DC/1.3/SC - DC/DC converter
1066703
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 1.3 A

QUINT4-PS/24DC/24DC/20/SC - DC/DC converter
1046805
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 20 A

QUINT4-PS/24DC/24DC/5/SC - DC/DC converter
1046800
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 5 A

QUINT-PS/96-110DC/24DC/10/CO - DC/DC converter, protective coating
2905012
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (selective fuse breaking) technology, input: 96 - 110 V DC, output: 24 V DC/10 A

QUINT4-PS/12-24DC/24DC/2.5/PT - DC/DC converter
1066714
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 2.5 A

MINI-PS- 12- 24DC/48DC/0.7 - DC/DC converter
2320021
Please use the following item in new systems: 1098676.
Primary-switched MINI DC/DC converter for DIN rail mounting, input: 12 - 24 V DC, output: 48 V DC/0.7 A

QUINT4-PS/12DC/24DC/5/PT - DC/DC converter
2910124
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 12 V DC, output: 24 V DC / 5 A

TRIO-PS-2G/1500DC/24DC/8 - DC/DC converter
1075240
Primary-switched TRIO POWER DC/DC converter with Push-in connection for DIN rail mounting, input: 1,500 V DC, output: 24 V DC / 8 A

QUINT4-PS/24-48DC/48DC/2/PT - DC/DC converter
1098676
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, input: 24 V DC - 48 V DC, output: 48 V DC / 2 A

UNO-PS/350-900DC/24DC/60W - DC/DC converter
2906300
Primary-switched UNO DC/DC converter with wide range input, for DIN rail mounting, input: 350 ... 900 V DC, output: 24 V DC/60 W

QUINT4-PS/48DC/48DC/5/PT - DC/DC converter
2910128
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 48 V DC, output: 48 V DC / 5 A

TRIO-PS-2G/1500DC/24DC/1.5 - DC/DC converter
1107892
Primary-switched TRIO POWER DC/DC converter with Push-in connection for DIN rail mounting, input: 1,500 V DC, output: 24 V DC / 1.5 A

QUINT4-PS/24DC/24DC/5/PT/CO - DC/DC converter
2910132
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 5 A

QUINT4-PS/12-24DC/24DC/2.5/SC - DC/DC converter
1066718
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 2.5 A

QUINT-PS/60-72DC/24DC/10/CO - DC/DC converter, protective coating
2905011
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (Selective Fuse Breaking) technology, input: 60-72 V DC, output 24 V DC / 10 A
