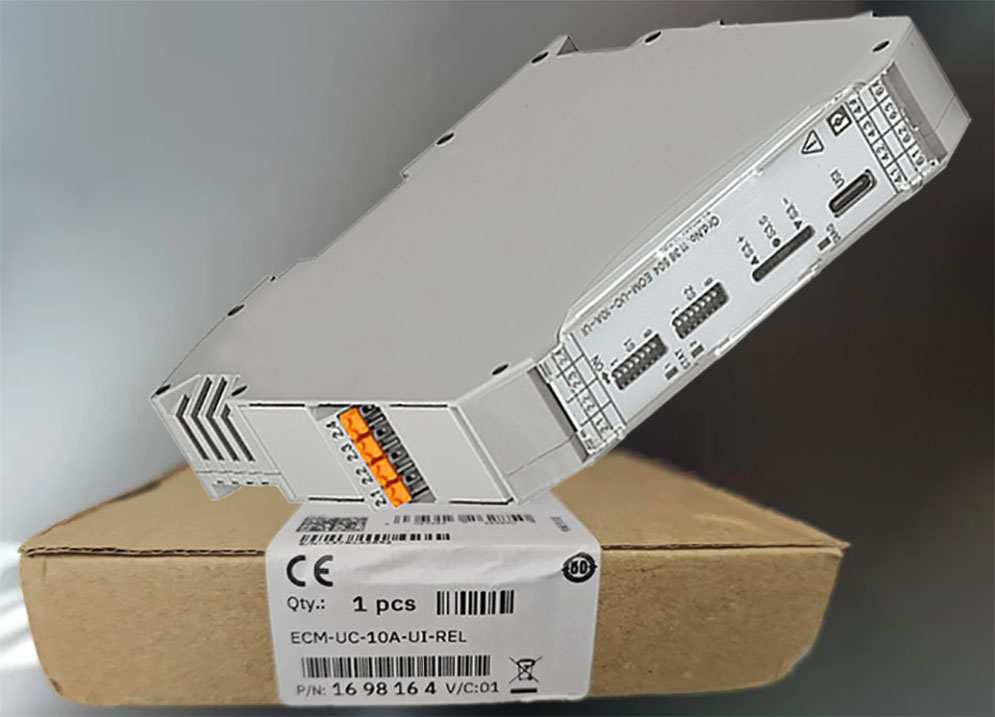

Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm PHOENIX CONTACT

•

  Danh mục hàng Siemens 6MF1111 6MF1113 6MF1201 6MF1211 6MF1213

• Xem thêm

Phoenix Contact ECM-UC-10A-UI - 1136504 là Cảm biến dòng điện

H01 - Current measuring transducers for measuring AC, DC, and distorted currents. Configuration via USB-C interface via the web server (without 24 V DC). Four current measuring ranges: 0 A ... 0.1 A to 0 A ... 12.5 A. Standard configuration, Push-in connection. The product is being prepared for compliance with the Cyber Resilience Act (CRA).



- Tài liệu kỹ thuật của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504 ở đây.



Thông số kỹ thuật của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504



Product descriptions của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

Intuitive configuration and precise measurement
The ECM UC current measuring transducer saves you a lot of time with the intuitive device configuration via web-based management. The products detect AC, DC, and distorted currents with an accuracy of < 0.5%.


Chú ý khi sử dụng Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

Note on application
Note on application	As things stand now, we are preparing the product so that, as of December 11, 2027, it will comply with the requirements of the EU Cyber Resilience Act (CRA) based on the information currently available regarding the CRA.



Product properties của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

Product type	Current measuring transducer
Special properties	The product is being prepared for compliance with the Cyber Resilience Act (CRA)
Insulation characteristics
Insulation	Safe isolation in accordance with IEC/EN 61010-1
Overvoltage category	III (300 V)
Pollution degree	2



Electrical properties của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

Step response (10-90%)	200 ms (AC/DC)
	20 ms (DC)
Maximum temperature coefficient	< 0.02 %/K
Maximum transmission error	0.5 % (of nominal range value under nominal conditions)
Rated insulation voltage	300 V AC (to earth)
Electrical isolation IEC 61010-2-030
Standards/regulations	IEC 61010-2-030
Measuring category	III (300 V)
Electrical isolation Input/output
Test voltage	4 kV AC (50 Hz, 60 s)
Electrical isolation Input/power supply
Test voltage	4 kV AC (50 Hz, 60 s)
Electrical isolation Output/supply
Test voltage	2 kV AC (50 Hz, 60 s)
Supply
Nominal supply voltage	24 V DC
Nominal supply voltage range	12 V DC ... 24 V DC -20 % ... +25 %
Supply voltage range	9.6 V DC ... 30 V DC
Power consumption	≤ 2.3 W (30 V DC)



Input data của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

Signal: digital
Voltage input signal	0 V DC ... 30 V DC
Current input signal	2 mA ... 15 mA
Measurement
Input current range	0 A AC ... 10 A AC
	-10 A DC ... 10 A DC
Measuring range	0 A AC/DC ... 0.1 A AC/DC
	0 A AC/DC ... 1 A AC/DC
	0 A AC/DC ... 5 A AC/DC
	0 A AC/DC ... 10 A AC/DC
Setting range for min. input current	0 A AC/DC ... 100 mA AC/DC
Setting range for max. input current	0 A AC/DC ... 12.5 A AC/DC (DIN/EN 61010-1)
	0 A AC/DC ... 10 A AC/DC (UL 61010-1)
	-12.5 A DC ... 12.5 A DC (DIN/EN 61010-1)
	-10 A DC ... 10 A DC (UL 61010-1)
Overload capacity	2 x IN
Surge strength	10 x IN
Frequency measuring range	0 Hz ... 100 Hz
	0 Hz ... 200 Hz
	0 Hz ... 500 Hz
	0 Hz ... 1000 Hz
Curve type	AC, DC or distorted currents



Output data của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

Signal: Voltage/current
Voltage output signal	0 V ... 10 V
	0 V ... 5 V
	1 V ... 5 V
	2 V ... 10 V
	-10 V ... 10 V
	-5 V ... 5 V
	10 V ... -10 V
	5 V ... -5 V
	10 V ... 0 V
	5 V ... 0 V
Current output signal	0 mA ... 20 mA
	4 mA ... 20 mA
	20 mA ... 0 mA
	20 mA ... 4 mA
Load/output load voltage output	> 10 kΩ
Load/output load current output	< 500 Ω



Connection data của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

Connection method	Push-in connection
Stripping length	10 mm
Conductor cross-section rigid	0.2 mm² ... 2.5 mm²
Conductor cross-section flexible	0.2 mm² ... 2.5 mm²
Conductor cross-section AWG	24 ... 13



Interfaces của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

WBM
Designation	WBM: Default address, USB-C interface
IP address	192.168.128.1



Dimensions của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

Item dimensions
Width	22.6 mm
Height	106.7 mm
Depth	113.8 mm
Depth (Device depth (DIN rail mounting))	114.5 mm (Snapped onto DIN rail NS 35/7,5 in accordance with EN 60715)



Material specifications của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0 (Housing)
Housing material	PA 6.6-FR



Environmental and real-life conditions của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-40 °C ... 60 °C
	-40 °F ... 140 °F
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Altitude	≤ 4000 m
Permissible humidity (operation)	≤ 95 % (non-condensing)



Approvals của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

CE
Certificate	CE-compliant
UL, USA/Canada
Identification	Ind. Cont. Eq. E238705-E196811



EMC data của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

Electromagnetic compatibility	Conformance with EMC directive
Low Voltage Directive	Conformance with Low Voltage Directive
Noise immunity	EN 61000-6-2
Noise emission
Standards/regulations	EN 61000-6-4



Standards and Regulations của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

Standards/regulations	IEC 61010-1
Standards/regulations	IEC/EN 61131-2 (type 3)
Standards/regulations	IEC/EN 61131-2 (type 3)



Mounting của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

Mounting position

vertical or horizontal



Commercial data của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

Item number	1136504
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	CMMA33
GTIN	4063151073107
Weight per piece (including packing)	150 g
Weight per piece (excluding packing)	149.6 g
Customs tariff number	85043129
Country of origin	DE



Classifications của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

ECLASS

ECLASS-13.0	27210123
ECLASS-15.0	27210123



ETIM

ETIM 10.0

EC002475



UNSPSC

UNSPSC 21.0

39121000



Approvals của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

cULus Listed

Approval ID: E238705-20221221


cULus Listed

Approval ID: E196811-20231108


cULus Listed

Approval ID: E196811-20231109


Environmental product compliance của Cảm biến dòng Phoenix Contact ECM-UC-10A-UI - 1136504

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
	2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS: 79-94-7)
