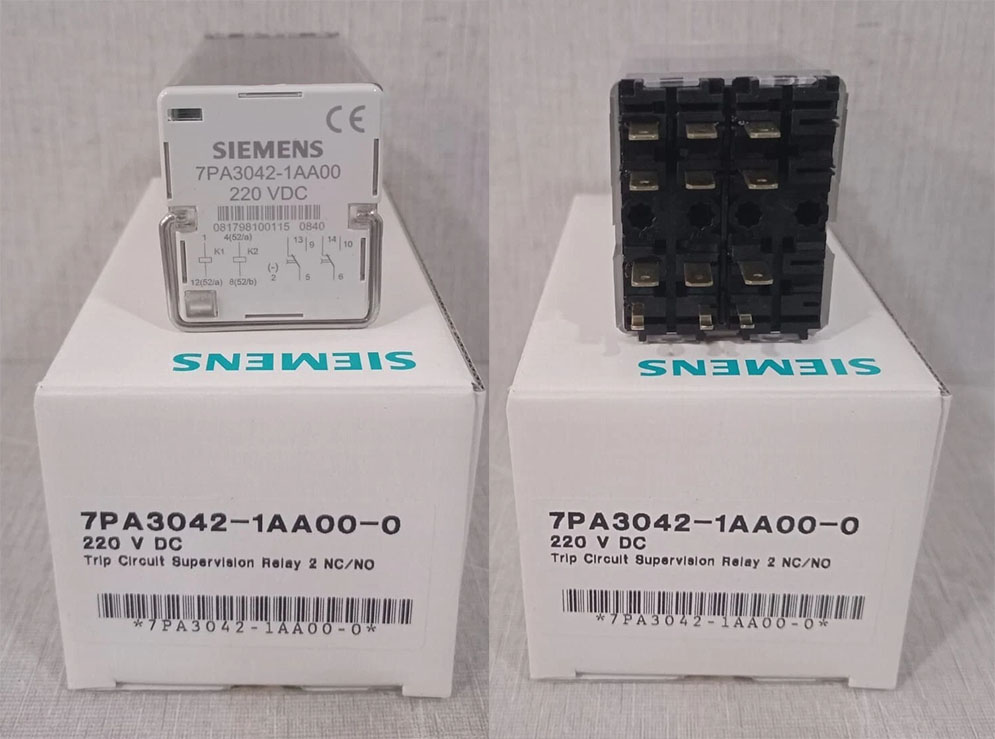

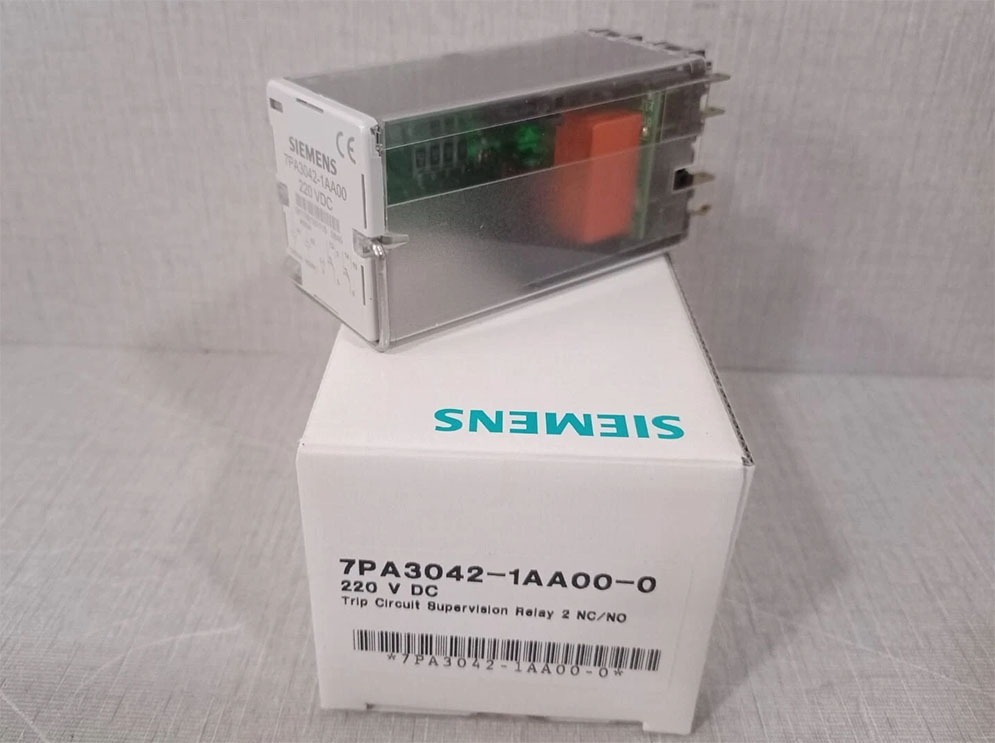

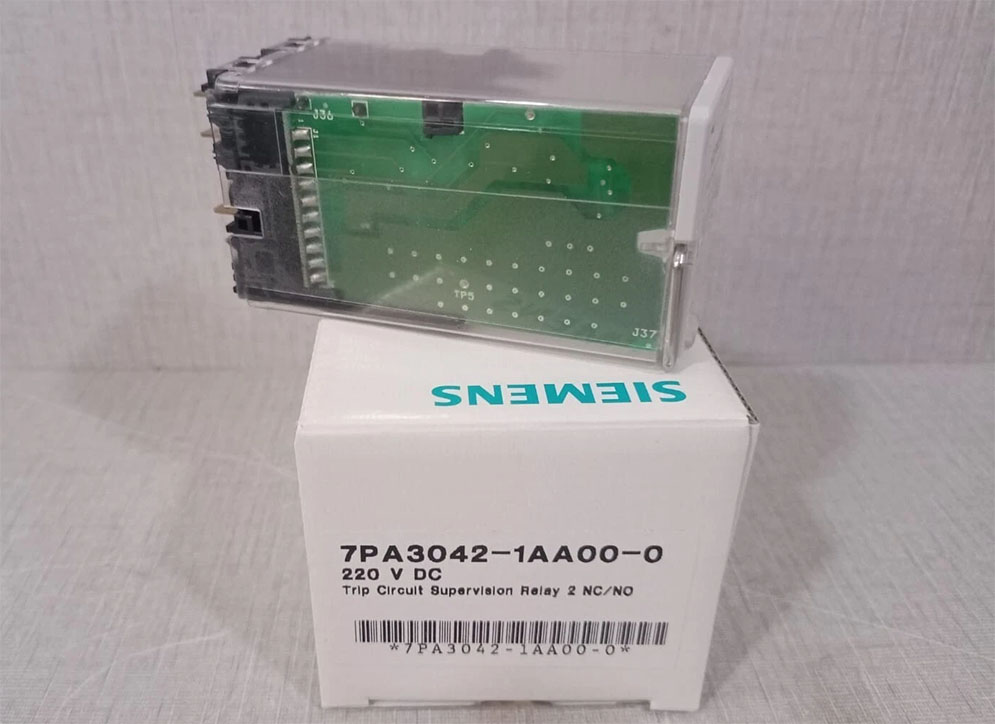

Rơ le giám sát mạch ngắt Siemens 7PA3042-1AA00-0

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm SIEMENS

•

  Danh mục hàng Siemens 6MF1111 6MF1113 6MF1201 6MF1211 6MF1213

• Xem thêm

Siemens 7PA3042-1AA00-0 là Rơ le giám sát mạch ngắt, Aux. 220VDC, không kèm đế

Trip circuit supervision relay Single-phase Auxiliary voltage: 220 V DC Relay without base


- Tài liệu kỹ thuật của Rơ le giám sát mạch ngắt Siemens 7PA3042-1AA00-0 ở đây.



Thông sớ kỹ thuật cơ bản của Rơ le giám sát mạch ngắt Siemens 7PA3042-1AA00-0

Product
Article Number (Market Facing Number)	7PA3042-1AA00-0
Product Description	Trip circuit supervision relay Single-phase Auxiliary voltage: 220 V DC Relay without base
Product family	7PA30 1-phase- Trip-Circuit Supervision Relay
Product Lifecycle (PLM)	PM300:Active Product
Price data
Price Group
List Price	Show prices
Customer Price	Show prices
Metal Factor	None
Delivery information
Export Control Regulations	AL : N / ECCN : N
Standard lead time ex-works	10 Day/Days
Net Weight (kg)	0,160 Kg
Packaging Dimension	26,00 x 39,00 x 14,00
Package size unit of measure	CM
Quantity Unit	1 Piece
Packaging Quantity	1
Additional Product Information
EAN	4025515718390
UPC	Not available
Commodity Code	85364900
LKZ_FDB/ CatalogID	PTD/EA
Product Group	1320
Group Code	U321
Country of origin	Spain
Compliance with the substance restrictions according to RoHS directive	Since: 27.06.2005
Product class	B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation	Yes
REACH Art. 33 Duty to inform according to the current list of candidates	Reach Information
SCIP number	Not available
Classifications
	Version Classification eClass 12 27-37-16-01 eClass 14 27-37-16-01 eClass 16 27-37-16-01 eClass 6 27-37-16-01 eClass 7.1 27-37-16-01 eClass 8 27-37-16-01 eClass 9 27-37-16-01 eClass 9.1 27-37-16-01 ETIM 10 EC001437 ETIM 7 EC001437 ETIM 8 EC001437 ETIM 9 EC001437 UNSPSC 15 32-15-17-05
