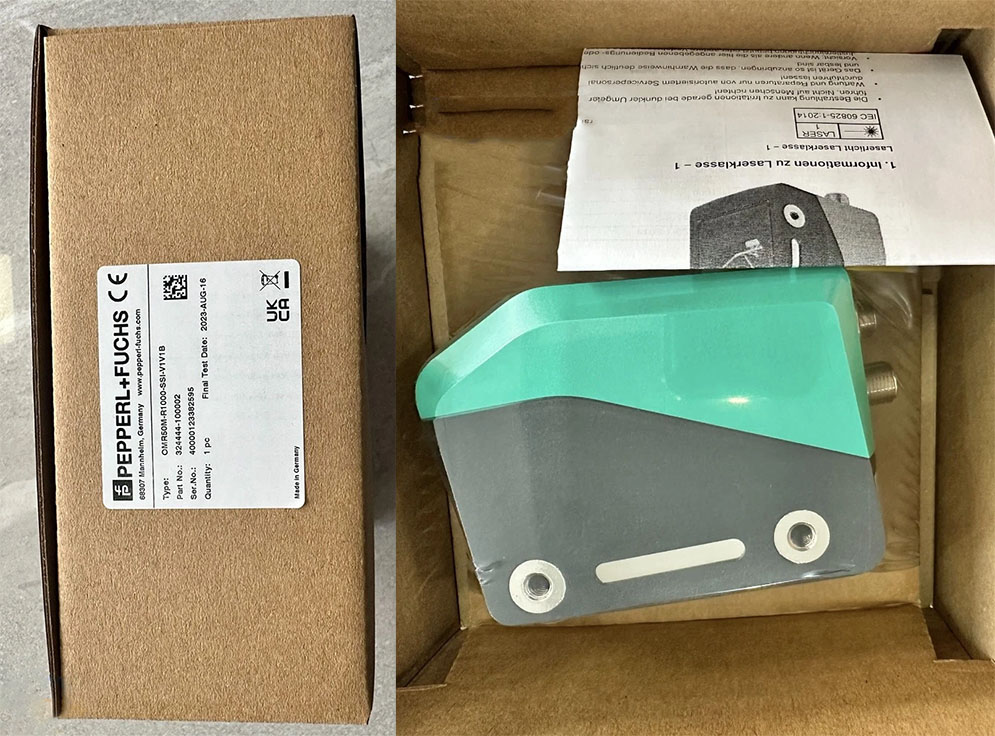

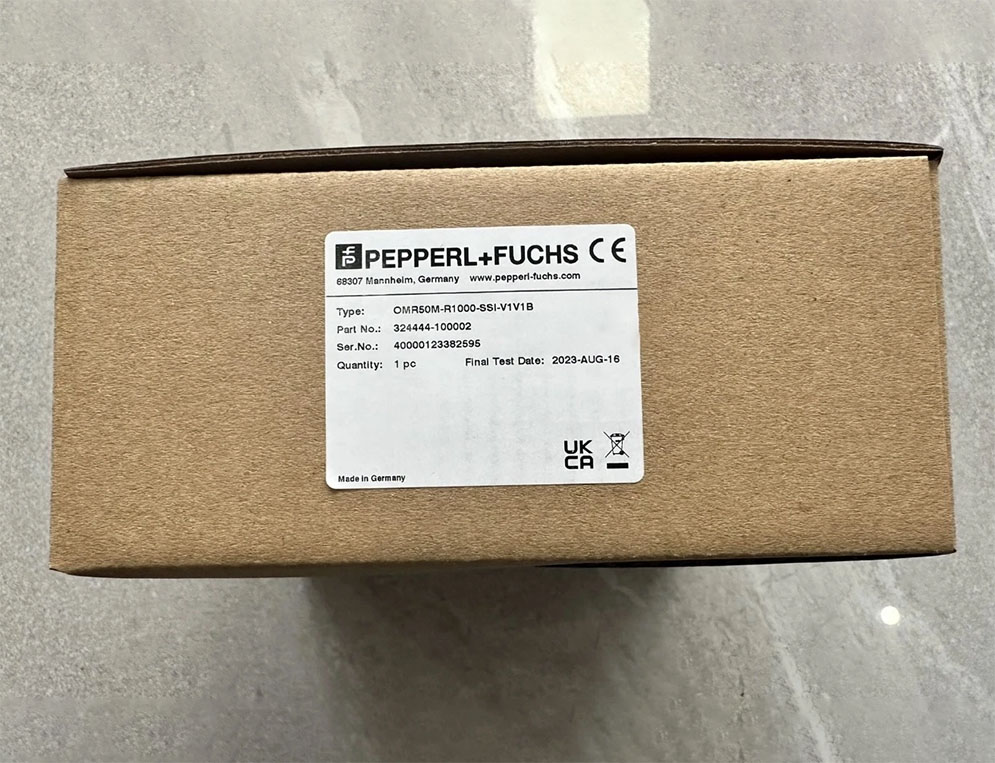

Pepperl Fuchs OMR150M-R1000-SSI-V1V1B là Cảm biến khoảng cách dùng định vị chính xác milimét, Công nghệ PRT, phạm vi Max 150m, SSI/RS-422, đầu nối M12.
- Tài liệu kỹ thuật của Cảm biến khoảng cách Pepperl Fuchs OMR150M-R1000-SSI-V1V1B ở đây.
Thông số kỹ thuật của Cảm biến khoảng cách Pepperl Fuchs OMR150M-R1000-SSI-V1V1B
General specifications của Cảm biến khoảng cách Pepperl Fuchs OMR150M-R1000-SSI-V1V1B
| Measuring range |
|
0.3 ... 150 m |
| Reference target |
|
REF-500MMx500MM (Foil reflector 500 mm x 500 mm)
REF-250MMx250MM (Film reflector 250 mm x 250 mm) up to 75 m |
| Light source |
|
laser diode |
| Light type |
|
modulated visible red light |
| Laser nominal ratings |
|
|
| Note |
|
LASER LIGHT , DO NOT STARE INTO BEAM |
| Laser class |
|
1 |
| Wave length |
|
660 nm |
| Beam divergence |
|
< 5 mrad |
| Pulse length |
|
5 ns |
| Repetition rate |
|
300 kHz |
| max. pulse energy |
|
< 2 nJ |
|

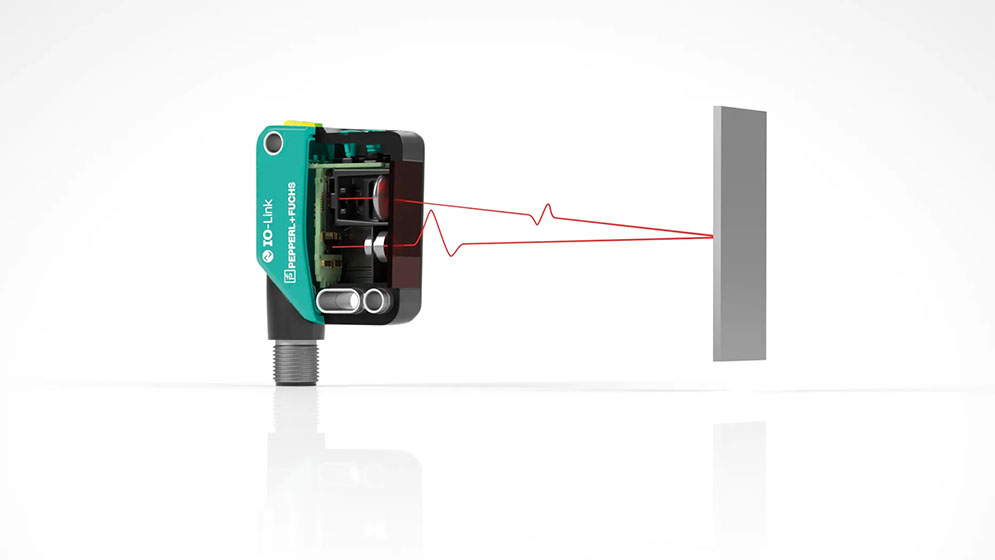

| Measuring method |
|
Pulse Ranging Technology (PRT) |
| Max. Motion velocity |
|
15 m/s |
| Diameter of the light spot |
|
< 75 cm at 150 m |
| Ambient light limit |
|
> 80000 Lux |
| Resolution |
|
0.1 mm , adjustable |
| Temperature influence |
|
0.03 mm/K |
Functional safety related parameters của Cảm biến khoảng cách Pepperl Fuchs OMR150M-R1000-SSI-V1V1B
| MTTFd |
|
> 100 a |
| Mission Time (TM) |
|
10 a |
| Diagnostic Coverage (DC) |
|
0 % |
Indicators/operating means của Cảm biến khoảng cách Pepperl Fuchs OMR150M-R1000-SSI-V1V1B
| Function indicator |
|
6 LEDs |
| Control elements |
|
Control panel (4 membrane keys) for setting parameters |
| Parameterization indicator |
|
Illuminated display for displaying measured values and parameterization |
Electrical specifications của Cảm biến khoảng cách Pepperl Fuchs OMR150M-R1000-SSI-V1V1B
| Operating voltage |
UB |
10 ... 30 V DC |
| No-load supply current |
I0 |
625 mA (10 V) ... 250 mA (24 V) ... 220 mA (30 V) |
| Protection class |
|
|
| Time delay before availability |
tv |
< 1 s |
Interface của Cảm biến khoảng cách Pepperl Fuchs OMR150M-R1000-SSI-V1V1B
| Interface type |
|
SSI |
| Monoflop time |
|
20 µs |
| Clock frequency |
|
0.1 ... 1 MHz |
Interface 1 của Cảm biến khoảng cách Pepperl Fuchs OMR150M-R1000-SSI-V1V1B
| Interface type |
|
RS-422 |
| Read out rate |
|
4.8 ... 115.2 kBit/s |
Input/Output của Cảm biến khoảng cách Pepperl Fuchs OMR150M-R1000-SSI-V1V1B
| Input/output type |
|
2 inputs/outputs, independent configuration, short-circuit protected, reverse polarity protected |
Output của Cảm biến khoảng cách Pepperl Fuchs OMR150M-R1000-SSI-V1V1B
| Switching voltage |
|
max. 30 V DC |
| Switching current |
|
max. 100 mA , resistive load |
| Voltage drop |
Ud |
≤ 1.5 V DC |
Conformity của Cảm biến khoảng cách Pepperl Fuchs OMR150M-R1000-SSI-V1V1B
| Product standard |
|
EN 60947-5-2 |
| Laser safety |
|
EN 60825-1:2014 |
Measurement accuracy của Cảm biến khoảng cách Pepperl Fuchs OMR150M-R1000-SSI-V1V1B
| Measured value output |
|
1 ms |
| Average data age |
|
3 ms , 6 ms , 12 ms , 25 ms , adjustable |
| Absolute accuracy |
|
typ. ± 2.5 mm |
| Repeat accuracy |
|
< 1 mm |
Approvals and certificates của Cảm biến khoảng cách Pepperl Fuchs OMR150M-R1000-SSI-V1V1B
| Protection class |
|
III |
| UL approval |
|
cULus Listed, Class 2 Power Source, Type 1 enclosure |
| FDA approval |
|
IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice 56, dated May 8, 2019. |
Ambient conditions của Cảm biến khoảng cách Pepperl Fuchs OMR150M-R1000-SSI-V1V1B
| Ambient temperature |
|
-10 ... 60 °C (14 ... 140 °F) |
| Storage temperature |
|
-40 ... 75 °C (-40 ... 167 °F) |
| Relative humidity |
|
95 % , no moisture condensation |
Mechanical specifications của Cảm biến khoảng cách Pepperl Fuchs OMR150M-R1000-SSI-V1V1B
| Degree of protection |
|
IP67 |
| Connection |
|
4-pin, M12x1 connector, A-coded (supply) ,
5-pin, M12x1 connector, B-coded (SSI) |
| Material |
|
|
| Housing |
|
ABS / PC |
| Optical face |
|
PMMA , hard coated |
|
| Mass |
|
approx. 300 g |
| Dimensions |
|
|
| Height |
|
106.6 mm |
| Width |
|
55 mm |
| Depth |
|
80.6 mm |
|
