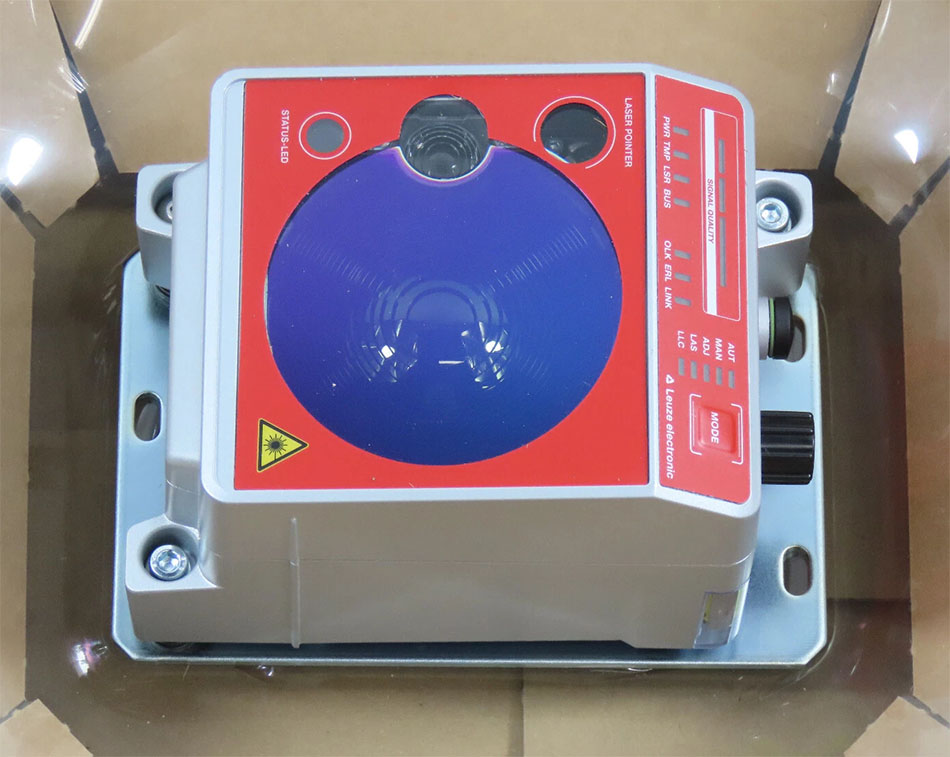

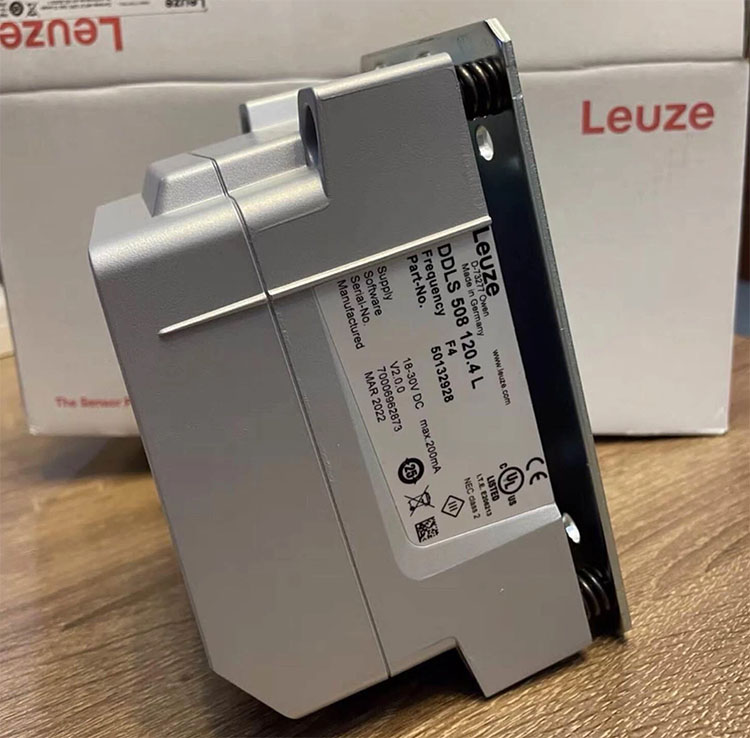

Leuze DDLS 508 120.4 L | 50132928 là Cảm biến truyền dữ liệu quang học, 100-120,000mm Profinet 100Mbit/s



- Tài liệu kỹ thuật của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928 ở đây.



Thông số kỹ thuật của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928



Basic data của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Series

DDLS 500



Special verson của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Special version

Integrated laser alignment aid Not influenced by reflective surfaces Operation of parallel light axes



Optical data của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Working range	100 ... 120,000 mm
Light source	Laser, Infrared
Transmission frequency	F4
Opening angle	1 °



Electrical data của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Performance data của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Supply voltage UB

18 ... 30 V, DC



Input data của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Number of digital switching inputs

1 Piece(s)



Output data của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Number of digital switching outputs

1 Piece(s)



Interface của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Type	PROFINET IRT, EtherNet TCP/IP, PROFINET, PROFIsafe over PROFINET
Transmission protocol	CIPsafety EtherNET/IP PROFINET/PROFIsafe PROFINET IO / RT PROFINET IRT TCP/IP 100 Mbit



Ethernet của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Architecture	Transparent
Address assignment	None
Transmission speed	100 Mbit/s
Function	Process
Switch functionality	None
Transmission protocol	TCP/IP , UDP



PROFINET của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Function	Process
Conformance class	B
Switch functionality	None
Transmission speed	100 Mbit/s



Connection của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Number of connections

2 Piece(s)



Connection 1 của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Type of connection	Connector
Designation on device	POWER
Thread size	M12
Type	Male
No. of pins	5 -pin
Encoding	A-coded



Connection 2 của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Type of connection	Connector
Designation on device	BUS
Thread size	M12
Type	Female
No. of pins	4 -pin
Encoding	D-coded



Mechanical data của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Dimension (W x H x L)	100 mm x 156 mm x 99.5 mm
Housing material	Metal
Net weight	1,255 g



Operation and Display của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Type of display

Bar graph LED



Environmental data của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Ambient temperature, operation	-5 ... 50 °C
Ambient temperature, storage	-35 ... 70 °C



Certifications của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Degree of protection	IP 65
Approvals	c UL US
Test procedure for EMC in accordance with standard	EN 1000-6-4 EN 61000-6-2
Test procedure for noise in accordance with standard	EN 60068-2-64
Test procedure for oscillation in accordance with standard	EN 60068-2-6
Test procedure for shock in accordance with standard	EN 60068-2-27



Classifications của Cảm biến quang Leuze DDLS 508 120.4 L | 50132928

Customs tariff number	84718000
ECLASS 5.1.4	19039001
ECLASS 8.0	19179090
ECLASS 9.0	19179090
ECLASS 10.0	19170506
ECLASS 11.0	19170506
ECLASS 12.0	19170506
ECLASS 13.0	19170506
ECLASS 14.0	19170506
ECLASS 15.0	19170506
ETIM 5.0	EC000515
ETIM 6.0	EC000515
ETIM 7.0	EC000515
ETIM 8.0	EC000515
ETIM 9.0	EC000515
ETIM 10.0	EC000515
