Sick KTX-WB9114225AZZZZ | 1081727 là Cảm biến quang tương phản, Sensing 13mm, spot 0.9mm x 3.8mm, IO-Link, 2xDI 2xDO, PNP/NPN
- Tài liệu kỹ thuật của Cảm biến quang tương phản Sick KTX-WB9114225AZZZZ | 1081727 ở đây.
Features của Cảm biến quang tương phản Sick KTX-WB9114225AZZZZ | 1081727
| Special applications |
High Precision |
| Device type |
Standard |
| Dimensions (W x H x D) |
30 mm x 53 mm x 78.5 mm |
| Sensing distance |
≤ 13 mm |
| Sensing distance tolerance |
± 5 mm |
| Housing design |
Large |
| Light source |
LED, RGB 1) |
| Wave length |
470 nm, 525 nm, 625 nm |
| Light emission |
Short device side |
| Light spot size |
0.9 mm x 3.8 mm |
| Light spot direction |
Vertical 2) |
| Receiving filters |
None |
| Teach-in mode |
1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode |
| Output function |
Light/dark switching |
| Delay time |
Adjustable |
| Special features |
- |
| Delivery status |
2-point teach-in |
| Parameter presettings |
None |
| Setting the key lock |
Standard |
| Safety-related parameters |
|
| MTTFD |
291 years |
|
1) Average service life: 100,000 h at TU = +25 °C.
2) In relation to long side of housing.
Interfaces của Cảm biến quang tương phản Sick KTX-WB9114225AZZZZ | 1081727
| IO-Link |
✔ , IO-Link |
| VendorID |
26 |
| DeviceID HEX |
8000A4 |
| DeviceID DEC |
8388772 |
|
| Process data structure |
Bit 0 = switching signal QL1
Bit 1 = empty
Bit 2 = Quality of Run Alarm
Bit 3 ... 5 = Emission Color
Bit 6 … 15 = Measurment Value Emission Color
|
| Digital output |
Q1, Q2 |
| Number |
2 |
|
| Digital input |
In1, In2 |
| Number |
2 |
|
Electronics của Cảm biến quang tương phản Sick KTX-WB9114225AZZZZ | 1081727
| Supply voltage |
10.8 V DC ... 28.8 V DC 1) |
| Ripple |
≤ 5 Vpp 2) |
| Current consumption |
< 100 mA 3) |
| Switching frequency |
70 kHz 4)
5)
|
| Response time |
3 µs 6)
7)
|
| Jitter |
3 µs 7) |
| Switching output |
Push-pull: PNP/NPN |
| Switching output (voltage) |
Push-pull: PNP/NPN HIGH = UV - 3 V/LOW ≤ 3 V |
| Output current Imax. |
100 mA 8) |
| Input, teach-in (ET) |
Teach: U = 10 V ... < VS |
| Input, blanking input (AT) |
Blanked: U = 10 V ... < Uv |
| Input, fine/coarse (F/C) |
Coarse: U = 10 V ... < Uv |
| Input, light/dark (L/D) |
Light: U = 10 V ... < Uv |
| Retention time (ET) |
25 ms, non-volatile memory |
| Protection class |
III |
| Circuit protection |
UV connections, reverse polarity protected
Output Q short-circuit protected
Interference pulse suppression
|
| Enclosure rating |
IP67 |
1) Limit values: DC 12 V (–10 %) ... DC 24 V (+20 %). Operation in short-circuit protected network max. 8 A.
2) May not fall below or exceed UV tolerances.
3) Without load.
4) With light/dark ratio 1:1.
5) 1-point teach-in (color mode): 23 kHz.
6) Signal transit time with resistive load.
7) 1-point teach-in (color mode): 9 µs.
8) Total current of all Outputs.
Mechanics của Cảm biến quang tương phản Sick KTX-WB9114225AZZZZ | 1081727
| Housing material |
VISTAL® |
| Optics material |
COP |
| Connection type |
Plug, M12, 5-pin |
| Weight |
94 g |
Ambient data của Cảm biến quang tương phản Sick KTX-WB9114225AZZZZ | 1081727
| Ambient operating temperature |
–20 °C ... +60 °C |
| Ambient temperature, storage |
–25 °C ... +75 °C |
| Shock load |
According to IEC 60068-2-27 (30 g/11 ms) |
| UL File No. |
E181493 |
Certificates của Cảm biến quang tương phản Sick KTX-WB9114225AZZZZ | 1081727
| EU declaration of conformity |
✔ |
| UK declaration of conformity |
✔ |
| ACMA declaration of conformity |
✔ |
| Moroccan declaration of conformity |
✔ |
| China-RoHS |
✔ |
| cULus certificate |
✔ |
| IO-Link |
✔ |
| Photobiological safety (IEC EN 62471) |
✔ |
Classifications của Cảm biến quang tương phản Sick KTX-WB9114225AZZZZ | 1081727
| ECLASS 5.0 |
27270906 |
| ECLASS 5.1.4 |
27270906 |
| ECLASS 6.0 |
27270906 |
| ECLASS 6.2 |
27270906 |
| ECLASS 7.0 |
27270906 |
| ECLASS 8.0 |
27270906 |
| ECLASS 8.1 |
27270906 |
| ECLASS 9.0 |
27270906 |
| ECLASS 10.0 |
27270906 |
| ECLASS 11.0 |
27270906 |
| ECLASS 12.0 |
27270906 |
| ETIM 5.0 |
EC001820 |
| ETIM 6.0 |
EC001820 |
| ETIM 7.0 |
EC001820 |
| ETIM 8.0 |
EC001820 |
| UNSPSC 16.0901 |
39121528 |
Technical drawings của Cảm biến quang tương phản Sick KTX-WB9114225AZZZZ | 1081727
.jpg)

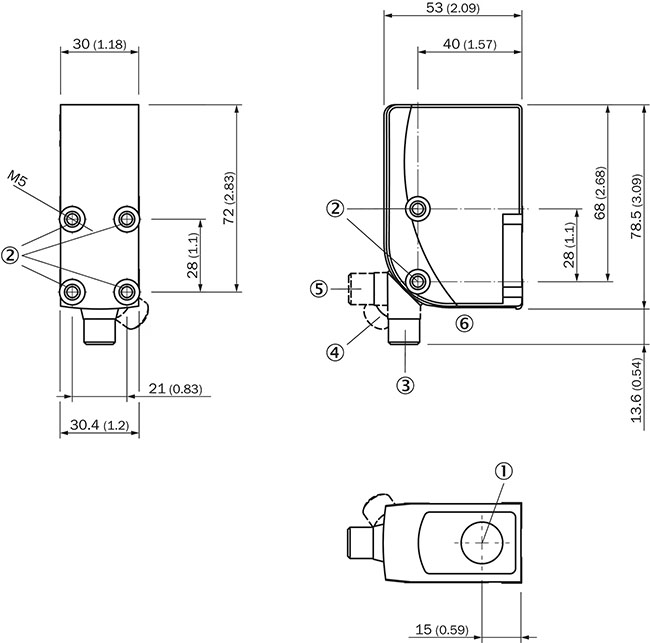

Dimensional drawing
Dimensions in mm (inch)
① Optical axis
② Threaded mounting hole M5
③ M12 male connector, delivery state
④ M12 male connector, end stop right
⑤ M12 male connector, end stop left
⑥ display and adjustment elements

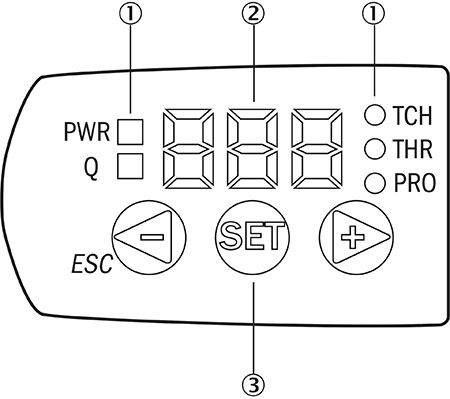

display and adjustment elements
① LED status indicator
② Display
③ Navigation buttons

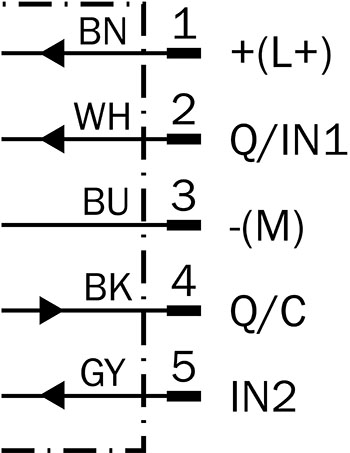

Connection diagram Cd-387

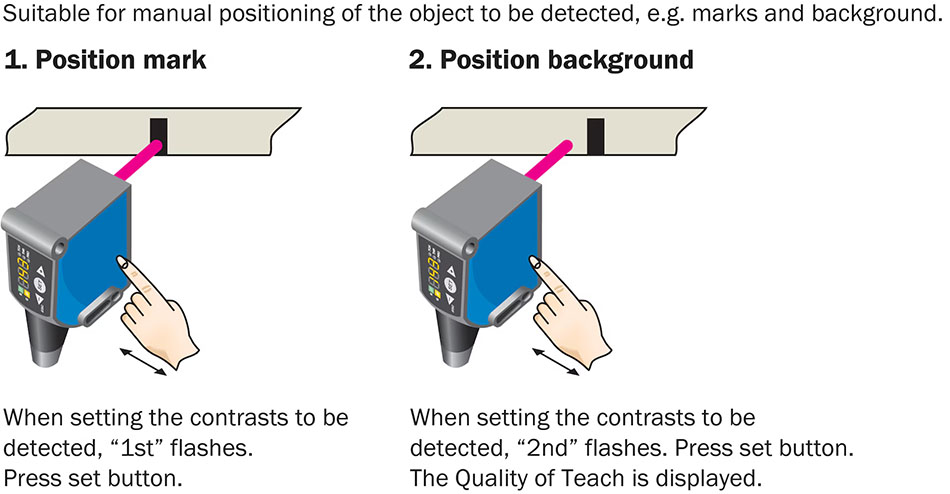

KTS/KTX Prime - setting the switching threshold (2-point teach-in)

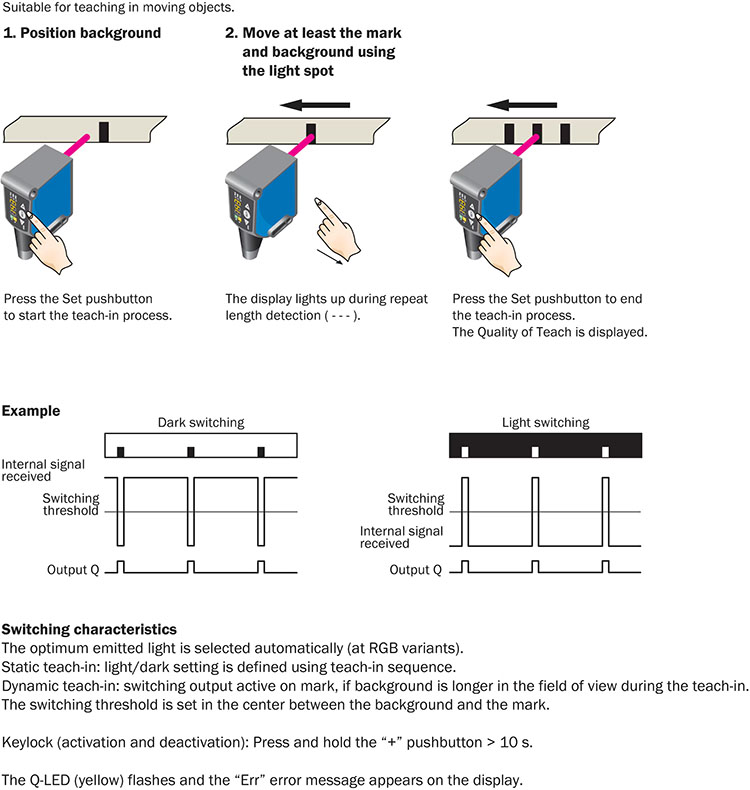

KTS/KTX Prime - Setting the switching threshold (teach-in dynamic)

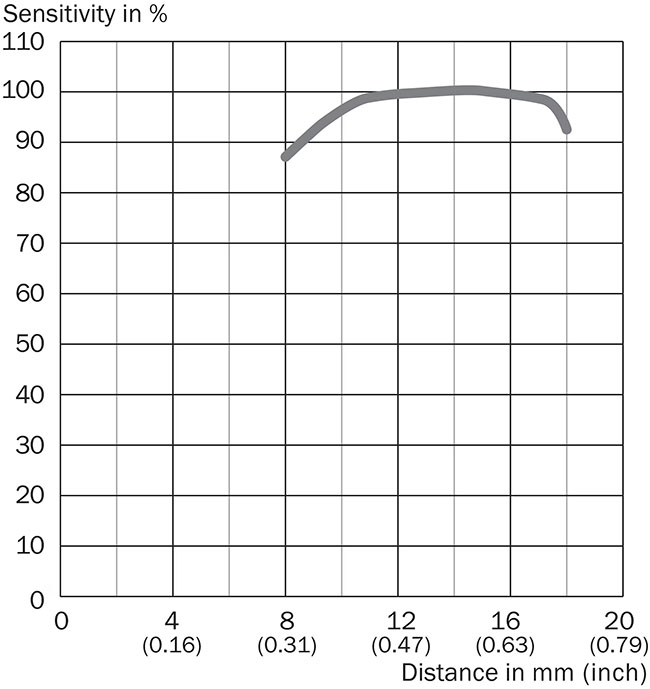

Sensing distance Sensing distance 13 mm, light spot direction horizontal/vertical
Customs data của Cảm biến quang tương phản Sick KTX-WB9114225AZZZZ | 1081727
| Unit weight |
0.130 Kilograms |
| Net unit weight |
0.13 Kilograms |
| Unit volume |
450 Cubic Centimetres (cm³) |
| Country of origin |
Germany |
| EAN |
4047084401541 |
