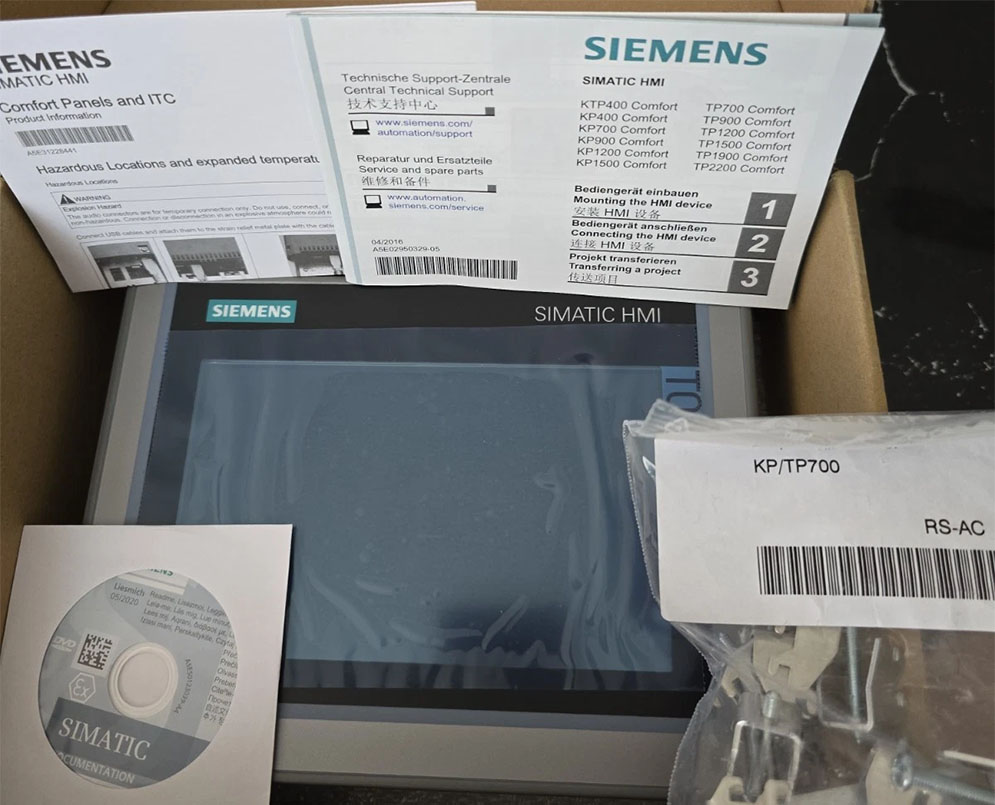

Màn hình HMI Siemens 6AG1124-0GC13-2AX0

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm SIEMENS

•

  Màn hình điều khiển HMI Siemens S7-1200 6AV21

•

  Các model SIMATIC HMI Hệ thống vận hành điều khiển và giám sát của Siemes | SIMATIC HMI operator control and monitoring systems

• Xem thêm

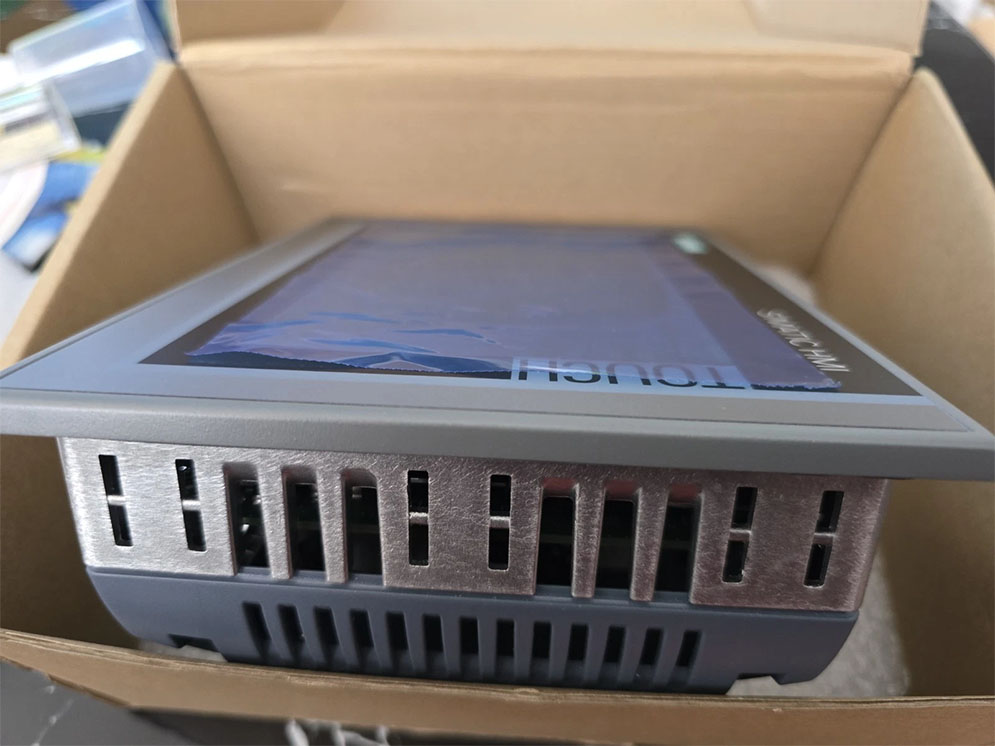

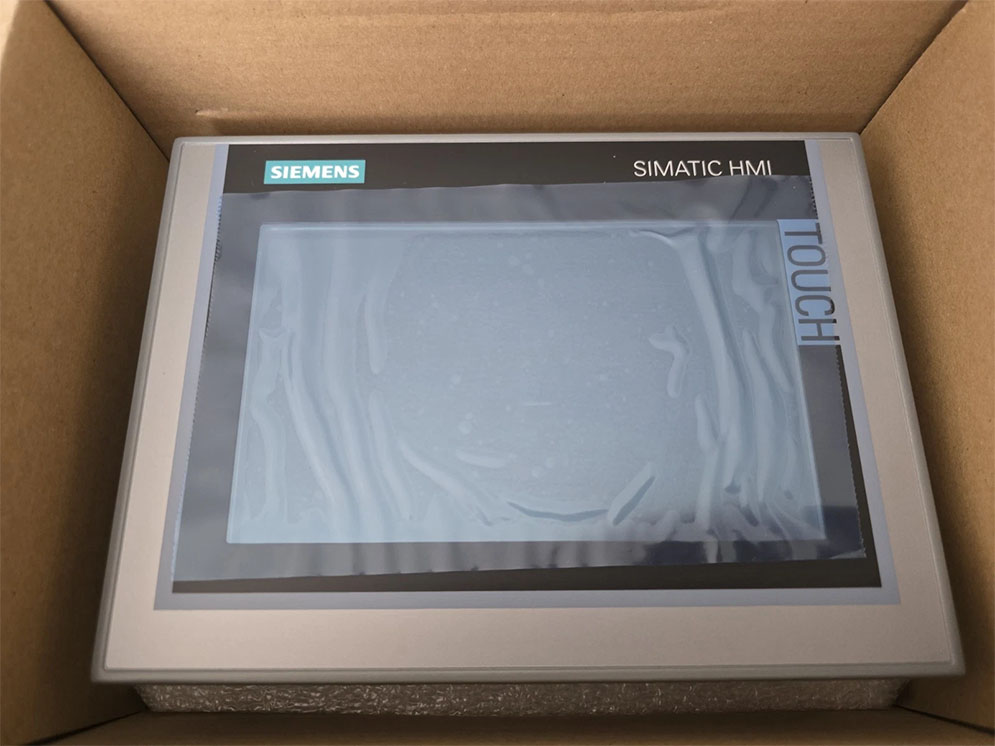

Siemens 6AG1124-0GC13-2AX0 là Màn hình điều khiển, SIPLUS HMI TP700 COMFORT OUTDOOR

- Tài liệu kỹ thuật của Màn hình HMI Siemens 6AG1124-0GC13-2AX0 ở đây.


Thông số kỹ thuật của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

SIPLUS HMI TP700 Comfort Outdoor based on 6AV2124-0GC13-0AX0 with conformal coating, -30…+60 °C, Comfort Panel, touch operation, 7" widescreen TFT display, 16 million colors, PROFINET interfaces, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable as of WinCC Comfort V13 SP1, HSP


Commercial data của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Product related của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Article number
6AG1124-0GC13-2AX0
Life cycle status
Active Product
Product Family
SIPLUS Comfort Panels Outdoor
EAN
4047618074104
UPC
804766378362
Commodity Code
85371091

Delivery related của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Export Control Regulations
AL : N / ECCN : 9N9999
Standard delivery time
55 Day/Days
Packaging dimensions (L x W x H)
27,00 x 17,00 x 8,5 cm
Net weight
1,917 Kg
Quantity Unit
1 Piece
Packaging Quantity
1
Minimum Order Quantity
1
Dangerous goods
No


Environment related của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

WEEE (2012/19/EU) Take-Back Obligations
Yes
Compliance with the substance restrictions according to RoHS directive
Since: 05.04.2016
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0,1 % (w / w)
4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-No. 80-05-7 > 0,1 % (w / w)
SCIP Number
not available


Siemens specific của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Product Group
4574
Catalog ID
A&DSE/SIP ADD
Group Code
R141
Country of origin
Germany
Product class
B: return restricted, please contact your Siemens partner/contact


Classification của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

eClass
            - Version : 16, Classification : 27-33-02-01
            - Version : 14, Classification : 27-33-02-01
            - Version : 12, Classification : 27-33-02-01
            - Version : 9.1, Classification : 27-33-02-01
            - Version : 9, Classification : 27-33-02-01
            - Version : 8, Classification : 27-24-23-02
            - Version : 7.1, Classification : 27-24-23-02
            - Version : 6, Classification : 27-24-23-02

ETIM
          - Version : 10, Classification : EC001412
          - Version : 9, Classification : EC001412
          - Version : 8, Classification : EC001412
          - Version : 7, Classification : EC001412

IDEA
          - Version : 4, Classification : 6607

UNSPSC
                 - Version : 15, Classification : 43-21-15-06


Specifications của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

General information của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Product type designationTP700 Comfort Outdoor
based on6AV2124-0GC13-0AX0


Display của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Design of displayTFT
Screen diagonal7 in
Display width152.4 mm
Display height91.4 mm
Number of colors16 777 216
Resolution (pixels)
- Horizontal image resolution800 pixel
- Vertical image resolution480 pixel

Backlighting
- MTBF backlighting (at 25 °C)50 000 h
- Backlight dimmableYes; LED, can be dimmed manually or automatically


Control elements của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Keyboard
- Function keys
  + Number of function keys0
  + Number of function keys with LEDs0

c Keys with LEDNo
- System keysNo
- Numeric keyboardYes; Onscreen keyboard
- alphanumeric keyboardYes; Onscreen keyboard

Touch operation
- Design as touch screenYes; Analog-resistive

Expansions for operator control of the process
- DP direct LEDs (LEDs as S7 output I/O)
   + F1...Fx0
- Direct keys (keys as S7 input I/O)
 + F1...Fx0
- Direct keys (touch buttons as S7 input I/O)32

Installation type/mounting  của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Mounting positionvertical
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
maximum permissible angle of inclination without external ventilation35°


Supply voltage của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Type of supply voltageDC
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V



Input current của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Current consumption (rated value)0.7 A
Starting current inrush I²t0.5 A²·s


Power của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Active power input, typ.17 W


Processor của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Processor typeX86


Storage của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

FlashYes
RAMYes
Memory available for user data12 Mbyte


Type of output của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Info LEDNo
Power LEDNo
Error LEDNo
Acoustics
- BuzzerNo
- SpeakerYes


Time of day của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Clock
- Hardware clock (real-time)Yes
- Software clockNo
- retentiveYes; Back-up duration typically 6 weeks
- synchronizableYes


Interfaces của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Number of industrial Ethernet interfaces2
Number of RS 485 interfaces1; RS 422 / 485 combined
Number of RS 422 interfaces1
Number of RS 232 interfaces0
Number of USB interfaces2; USB 2.0
- USB Mini B1; 5-pole
Number of 20 mA interfaces (TTY)0
Number of parallel interfaces0
Number of other interfaces0
Number of SD card slots2
With software interfacesNo
Industrial Ethernet
- Industrial Ethernet status LED2
- Number of ports of the integrated switch2


Protocols của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

PROFINETYes
Supports protocol for PROFINET IOYes
IRTYes; WinCC V13 SP1 HSP or higher
PROFIBUSYes
EtherNet/IPYes
MPIYes
Protocols (Ethernet)
- TCP/IPYes
- DHCPYes
- SNMPYes
- DCPYes
- LLDPYes

WEB characteristics
- HTTPYes
- HTTPSNo
- HTMLYes
- XMLNo
- CSSYes
- Active XNo
- JavaScriptYes
- Java VMNo

Redundancy mode
Media redundancy
   + MRPYes; WinCC V13 SP1 HSP or higher

Further protocols
- CANNo
- MODBUSYes


EMC của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Emission of radio interference acc. to EN 55 011
- Limit class A, for use in industrial areasYes
- Limit class B, for use in residential areasNo


Degree and class of protection của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

IP (at the front)IP66
IP (rear)IP20
NEMA (front)
- Enclosure Type 4 at the frontYes
- Enclosure Type 4x at the frontYes


Standards, approvals, certificates của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Marine approval
- Compass working clearance5 m


Ambient conditions của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Suited for indoor useYes
Suited for outdoor useYes; Powder-coated, UV resistant
Ambient temperature during operation
Operation (vertical installation)
   + For vertical installation, min.-30 °C; = Tmin
   + For vertical installation, max.60 °C; (55 °C, see entry ID: 64847814)

Operation (max. tilt angle)
   + At maximum tilt angle, min.-30 °C; = Tmin
   + At maximum tilt angle, max.50 °C; = Tmax

Operation (vertical installation, portrait format)
   + For vertical installation, min.-30 °C; = Tmin
   + For vertical installation, max.50 °C; = Tmax

Operation (max. tilt angle, portrait format)
   + At maximum tilt angle, min.-30 °C; = Tmin
   + At maximum tilt angle, max.45 °C; = Tmax

Ambient temperature during storage/transportation
- min.-30 °C
- max.70 °C

Altitude during operation relating to sea level
- Installation altitude above sea level, max.5 000 m
- Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
Relative humidity
- With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning when condensation present), vertical mounting position

Resistance
Coolants and lubricants
   + Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air
Use in stationary industrial systems
   + to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
   + to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
   + to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea
   + to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request
   + to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
   + to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology
   + Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)
   + Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark
   + Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating
- Coatings for printed circuit board assemblies acc. to EN 61086Yes; Class 2 for high reliability
- Protection against fouling acc. to EN 60664-3Yes; Type 1 protection
- Military testing according to MIL-I-46058C, Amendment 7Yes; Discoloration of coating possible during service life
- Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal coating, Class A


Operating systems của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

proprietaryNo
pre-installed operating system
- Windows CEYes


Configuration của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Message indicatorYes
Alarm system (incl. buffer and acknowledgment)Yes
Process value display (output)Yes
Process value default (input) possibleYes
Recipe managementYes

Configuration software
- STEP 7 Basic (TIA Portal)No
- STEP 7 Professional (TIA Portal)No
- WinCC flexible CompactNo
- WinCC flexible StandardNo
- WinCC flexible AdvancedNo
- WinCC Basic (TIA Portal)No
- WinCC Comfort (TIA Portal)Yes; WinCC V13 SP1 Update 7 + HSP or higher
- WinCC Advanced (TIA Portal)Yes; WinCC V13 SP1 Update 7 + HSP or higher
- WinCC Professional (TIA Portal)Yes; WinCC V13 SP1 Update 7 + HSP or higher


Languages của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Online languages
- Number of online/runtime languages32
Project languages
- Languages per project32


Functionality under WinCC (TIA Portal) của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

LibrariesYes
Applications/options
- Web browserYes
- Pocket WordYes
- Pocket ExcelYes
- PDF ViewerYes
- Media PlayerYes
- SIMATIC WinCC Sm@rtServerYes
- SIMATIC WinCC AuditYes
Number of Visual Basic ScriptsYes
Task planner
- time-controlledYes
- task-controlledYes
Help system
- Number of characters per info text70
Message system
- Number of alarm classes32
- Bit messages
   + Number of bit messages4 000
- Analog messages
  + Number of analog messages200
- S7 alarm number procedureYes
- System messages HMIYes
- System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Yes
- Number of characters per message80
- Number of process values per message8
- Acknowledgment groupsYes
- Message indicatorYes
- Message buffer
   + Number of entries1 024
   + Circulating bufferYes
   + retentiveYes
   + maintenance-freeYes

Recipe management
- Number of recipes300
- Data records per recipe500
- Entries per data record1 000
- Size of internal recipe memory2 Mbyte
- Recipe memory expandableYes

Variables
- Number of variables per device2 048
- Number of variables per screen400
- Limit valuesYes
- MultiplexingYes
- StructuresYes
- ArraysYes

Images
- Number of configurable images500
- Permanent window/defaultYes
- Global imageYes
- Image selection by PLCYes
- Image number in the PLCYes

Image objects
- Number of objects per image400
- Text fieldsYes
- I/O fieldsYes
- Graphic I/O fields (graphics list)Yes
- Symbolic I/O fields (text list)Yes
- Date/time fieldsYes
- SwitchesYes
- ButtonsYes
- Graphic displayYes
- IconsYes
- Geometric objectsYes

Complex image objects
- Number of complex objects per screen20
- Alarm viewYes
- Trend viewYes
- User viewYes
- Status/controlYes
- Sm@rtClient viewYes
- Recipe viewYes
- f(x) trend viewYes
- System diagnostics viewYes
- Media PlayerYes
- HTML browserYes
- PDF displayYes
- IP camera displayYes; Webcam type see FAQs
- Bar graphsYes
- SlidersYes
- Pointer instrumentsYes
- Analog/digital clockYes

Lists
- Number of text lists per project500
- Number of entries per text list500
- Number of graphics lists per project500
- Number of entries per graphics list500

Archiving
- Number of archives per device50
- Number of entries per archive20 000
- Message archiveYes
- Process value archiveYes
- Archiving methods
  + Sequential archiveYes
  + Short-term archiveYes
- Memory location
  + Memory cardYes
  + USB memoryYes
  + EthernetYes
- Data storage format
  + CSVYes
  + TXTYes
  + RDBYes

Security
- Number of user groups50
- Number of user rights32
- Number of users50
- Password export/importYes
- SIMATIC LogonYes

Logging through printer
- AlarmsYes
- Report (shift log)Yes
- HardcopyYes
- Electronic print to fileYes; PDF, HTML

Character sets
- Keyboard fonts
  + US EnglishYes

Transfer (upload/download)
- MPI/PROFIBUS DPYes
- USBYes
- EthernetYes
- using external storage mediumYes; Backup/restore

Process coupling
- S7-1200Yes
- S7-1500Yes
- S7-200Yes
- S7-300/400Yes
- LOGO!Yes
- WinACYes
- SINUMERIKYes; with SINUMERIK option package
- SIMOTIONYes
- Allen Bradley (EtherNet/IP)Yes
- Allen Bradley (DF1)Yes
- Mitsubishi (MC TCP/IP)Yes
- Mitsubishi (FX)Yes
- OMRON (FINS TCP)No
- OMRON (Host Link)Yes
- Modicon (Modbus TCP/IP)Yes
- Modicon (Modbus RTU)Yes
- OPC UA ClientYes
- OPC UA ServerYes

Service tools/configuration aids
- Backup/Restore manuallyYes
- Backup/Restore automaticallyYes
- SimulationYes
- Device switchoverYes


Peripherals/Options của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

PrinterYes
SIMATIC HMI MM memory card: Multi Media CardYes
SIMATIC HMI SD memory card: Secure Digital memory cardYes
SIMATIC HMI CF memory card Compact Flash CardNo
USB memoryYes; e.g. USB RFID reader, see FAQ entry ID: 99808171
SIMATIC IPC USB Flashdrive (USB stick)Yes
SIMATIC HMI USB stickYes
Network cameraYes; See FAQ Entry ID: 62383298 and entry ID: 65647473


Mechanics/material của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Enclosure material (front)
- PlasticNo
- AluminumYes; Powder-coated, UV resistant
- Stainless steelNo


Dimensions của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Width of the housing front214 mm
Height of housing front158 mm
Mounting cutout, width198 mm
Mounting cutout, height142 mm
mounting depth64.6 mm


Weights của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Weight (without packaging)1.5 kg
Weight (with packaging)1.7 kg


Other của Màn hình HMI Siemens 6AG1124-0GC13-2AX0

Note: Power, quantity structure and performance correspond to a standard 7" Comfort Panel


Tham khảo thêm các model khác cùng loại liên quan với Màn hình HMI Siemens 6AG1124-0GC13-2AX0:
