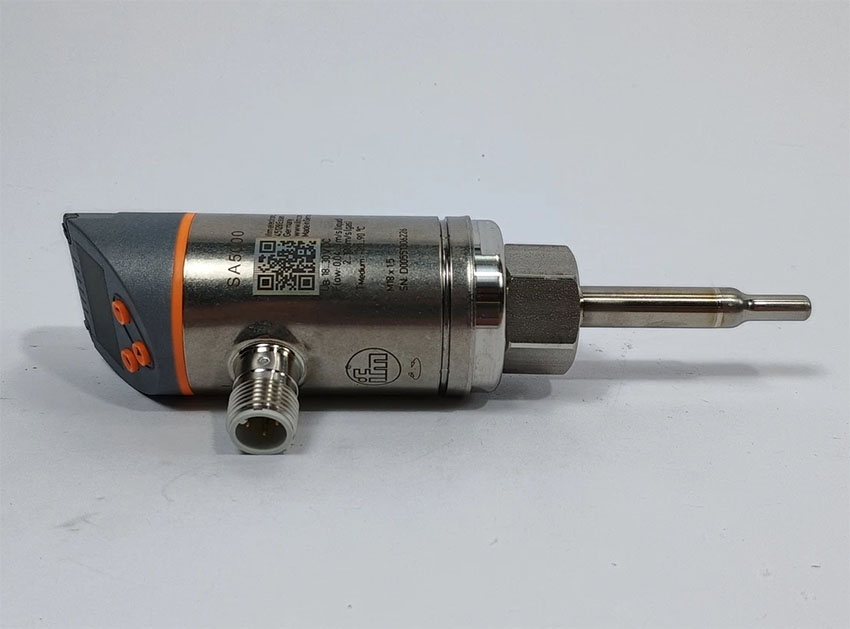

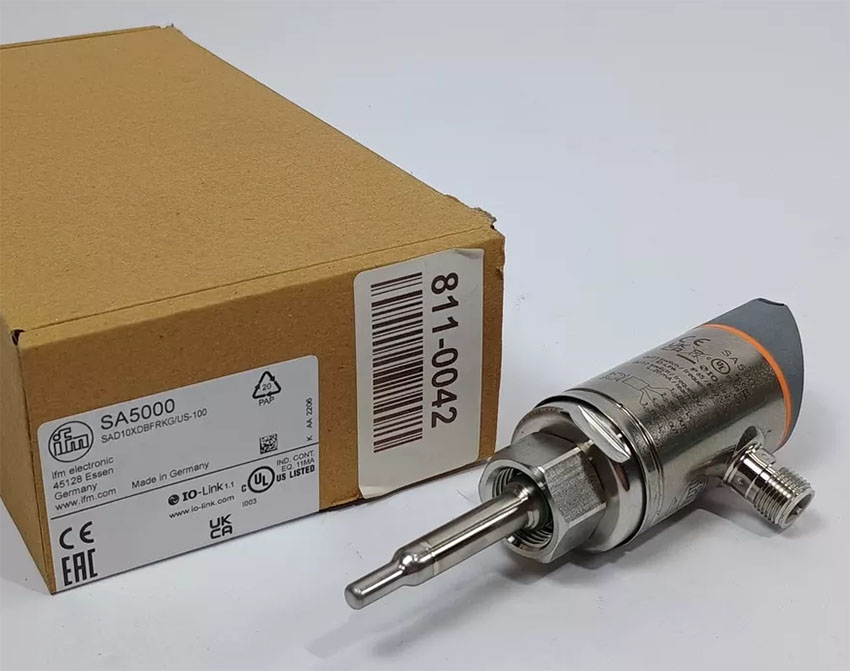

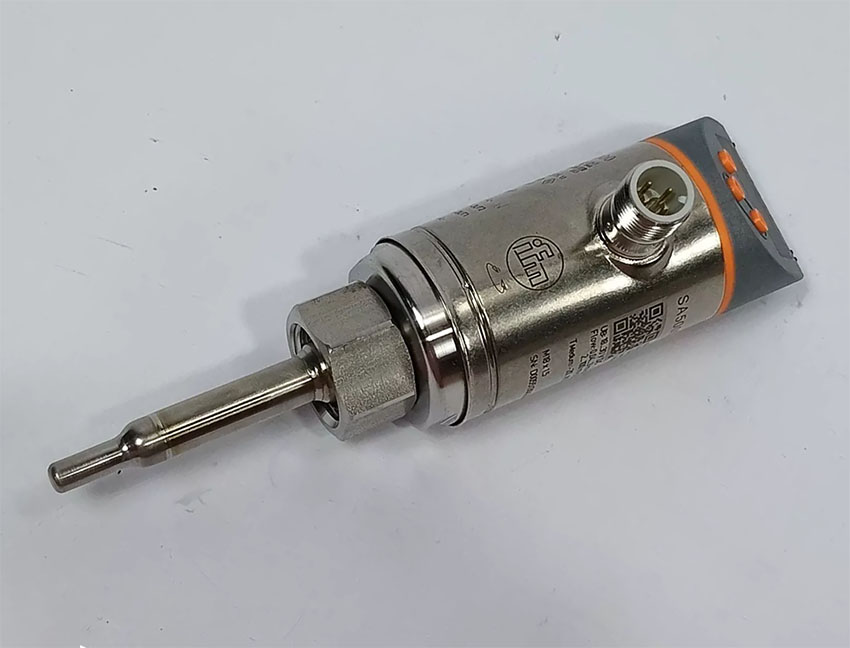

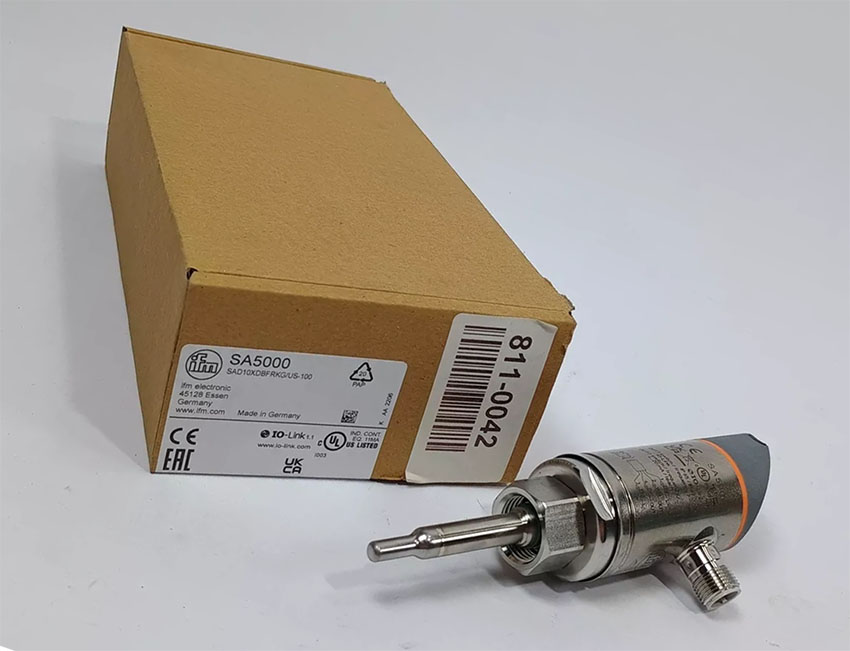

IFM SA5000 | SAD10XDBFRKG/US-100 là Cảm biến lưu lượng, PNP/NPN, tín hiệu switching-analog-tần số; IO-Link, -20...90°C; 100bar; Ren trong M18x1.5; Đầu nối

- Đo lưu lượng và nhiệt độ cùng lúc
- Tối ưu hóa cho nước, dầu và không khí
- Màn hình đỏ/xanh lá cây giúp nhận dạng rõ ràng phạm vi chấp nhận được
- Với đầu ra chuyển mạch, tín hiệu tương tự và IO-Link
- Kết nối quy trình có thể xoay để căn chỉnh tối ưu

- Tài liệu kỹ thuật của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100 ở đây.


Product characteristics của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Process connection	threaded connection M18 x 1,5 internal thread



Application của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

Special feature	Gold-plated contacts
Media	water; glycol solutions; air; oils
Note on media	low-viscosity oils with viscosity: ≤ 40 mm²/s (40 °C) high-viscosity oils with viscosity: > 40 mm²/s (40 °C)
Medium temperature[°C]	-20...90
Pressure rating	100 bar 10 MPa
MAWP for applications according to CRN[bar]	100



Electrical data của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

Operating voltage[V]	18...30 DC
Current consumption[mA]	< 100
Protection class	III
Reverse polarity protection	yes
Power-on delay time[s]	10
Measuring principle	calorimetric



Inputs / outputs của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1



Outputs của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

Total number of outputs	2
Output signal	switching signal; analogue signal; frequency signal; IO-Link; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V]	2.5
Permanent current rating of switching output DC[mA]	250
Number of analogue outputs	1
Analogue current output[mA]	4...20; (scalable)
Max. load[Ω]	350
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes
Frequency of the output[Hz]	0...1000



Measuring/setting range của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

Probe length L[mm]	45
Operating mode	relative; absolutely liquid; absolutely gaseous; (absolute: reference measurement recommended; Factory setting: relative)

Temperature monitoring
Measuring range[°C]	-20...90
Resolution[°C]	0.2

Liquid media - absolute operating mode
Setting range[m/s]	0.04...3
Greatest sensitivity[m/s]	0.04...3

Liquid media - relative operating mode
Setting range[m/s]	0.04...6
Greatest sensitivity[m/s]	0.04...3

Gases - operating mode "absolute"
Setting range[m/s]	2...100
Greatest sensitivity[m/s]	30...100

Gases - operating mode "relative"
Setting range[m/s]	2...200
Greatest sensitivity[m/s]	30...100



Accuracy / deviations của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

Temperature drift[cm/s x 1/K]	0,003 m/s x 1/K (< 20 °C; > 70 °C)
Temperature gradient[K/min]	100

Absolute operating mode
Repeatability	0,05 m/s; (water; flow velocity: 0,05...3 m/s)

Relative operating mode
Accuracy	± (7 % MW + 2 % MEW); (for relative mode in the range of maximum sensitivity under the following conditions:; water: 20...70 °C; inlet length: 1.5 m; DN25 (DIN 2448); mounting position according to instructions; Accuracy can differ for other media and mounting positions.)
Repeatability	0,05 m/s; (water; flow velocity: 0,05...3 m/s)

Temperature monitoring
Temperature drift	± 0,005 K/°C
Accuracy[K]	± 0,3 / ± 1; (water; flow velocity: 0,3...3 m/s / air; flow velocity: > 10 m/s)



Response times của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

Response time[s]

0.5; (T09; water; glycol: 0,8 s; air: 7 s; oil: 1,8 s; each T09)

Temperature monitoring
Dynamic response T05 / T09[s]	1,5 (T09); (water; flow velocity: 0,3...3 m/s)



Software / programming của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

Parameter setting options

hysteresis / window; normally open / normally closed; switching logic; current/frequency output; medium selection; Damping; Teach function; display can be rotated and switched off; standard unit of measurement; process value colour



Interfaces của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis
SIO mode	yes
Required master port type	A
Process data analogue	2
Process data binary	2
Min. process cycle time[ms]	3
Supported DeviceIDs	Type of operation DeviceID Factory setting / ModE = (REL) 533 ModE = (GAS) 547 ModE = (LIQU) 540



Operating conditions của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

Ambient temperature[°C]	-40...80
Storage temperature[°C]	-40...100
Protection	IP 65; IP 67



Tests / approvals của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

EMC	DIN EN 60947-5-9
Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF[years]	132
UL approval	UL approval no. I003 File number UL E174189



Mechanical data của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

Weight[g]	257
Housing	cylindrical
Dimensions[mm]	Ø 34 / L = 142
Materials	stainless steel (316L/1.4404); stainless steel (301/1.4310); PBT-GF20; PBT-GF30
Materials (wetted parts)	stainless steel (316L/1.4404); Gasket: FKM
Process connection	threaded connection M18 x 1,5 internal thread
Probe diameter[mm]	8
Installation length EL[mm]	45



Displays / operating elements của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

Display

Display unit 6 x LED, green (%, m/s, l/min, m³/h, °C, 10³) switching status 2 x LED, yellow measured values alphanumeric display, red/green 4-digit



Remarks của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

Remarks	MW = measured value MEW = Final value of the measuring range
Pack quantity	1 pcs.



Electrical connection của Cảm biến lưu lượng IFM SA5000 | SAD10XDBFRKG/US-100

Connection

Connector: 1 x M12; coding: A; Contacts: gold-plated
