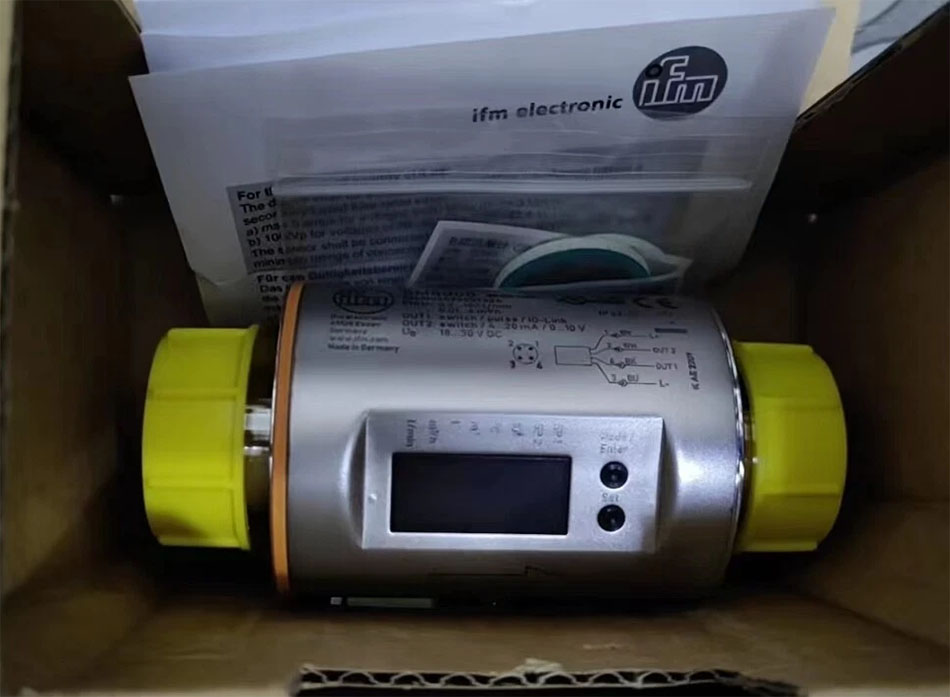

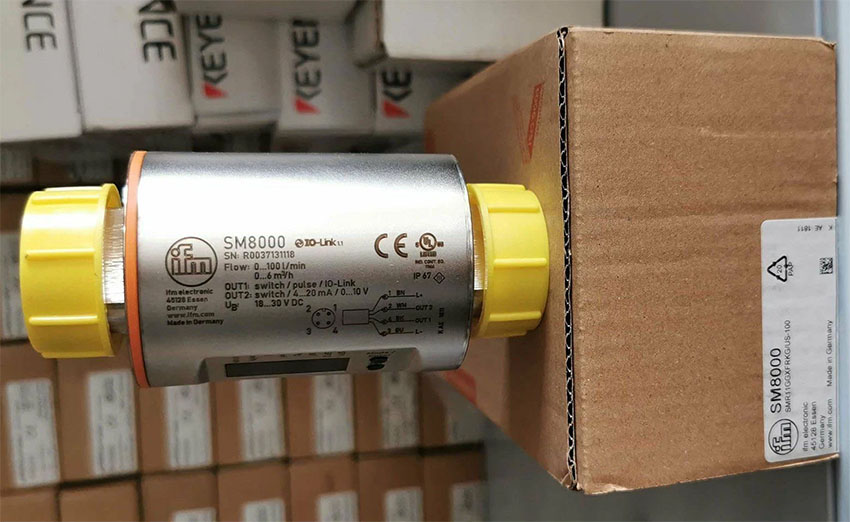

IFM SM8000 | SMR11GGXFRKG/US-100 là Cảm biến lưu lượng cảm ứng từ, PNP/NPN, switching-analogue-pulse signal, IO-Link, 0.2...100l/min, -10...70°C, 16bar, Ren trong G1 DN25, Connector

- Đo chính xác lưu lượng, mức tiêu thụ và nhiệt độ trung bình
- Độ chính xác, khả năng lặp lại và động lực đo lường cao
- Với đầu ra chuyển mạch, đầu ra tương tự và đầu ra xung
- Màn hình LED 4 chữ số hiển thị rõ ràng
- Thao tác thuận tiện thông qua các nút bấm hoặc cài đặt thông số qua IO-Link


- Tài liệu kỹ thuật của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100 ở đây.



Product characteristics của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range	0.2...100 l/min 0.01...6 m³/h
Process connection	threaded connection G 1 external thread DN25 flat seal



Application của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Special feature	Gold-plated contacts
Application	totaliser function; for industrial applications
Installation	connection to pipe by means of an adapter
Media	conductive liquids; water; hydrous media
Note on media	conductivity: ≥ 20 µS/cm viscosity: < 70 mm²/s (40 °C)
Medium temperature[°C]	-10...70
Pressure rating	16 bar 1.6 MPa
MAWP for applications according to CRN	10.4 bar 1.04 MPa



Electrical data của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Operating voltage[V]	18...30 DC; (to SELV/PELV)
Current consumption[mA]	95; (24 V)
Protection class	III
Reverse polarity protection	yes
Power-on delay time[s]	5
Measuring principle	magnetic-inductive



Inputs / outputs của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1



Inputs của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Inputs

counter reset



Outputs của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Total number of outputs	2
Output signal	switching signal; analogue signal; pulse signal; IO-Link; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V]	2
Permanent current rating of switching output DC[mA]	200
Number of analogue outputs	1
Analogue current output[mA]	4...20; (scalable)
Max. load[Ω]	500
Analogue voltage output[V]	0...10; (scalable)
Min. load resistance[Ω]	2000
Pulse output	flow rate meter
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes



Measuring/setting range của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Measuring range	0.2...100 l/min 0.01...6 m³/h
Display range	-120...120 l/min -7.2...7.2 m³/h
Resolution	0.1 l/min 0.005 m³/h
Set point SP	0.7...100 l/min 0.04...6 m³/h
Reset point rP	0.2...99.5 l/min 0.01...5.97 m³/h
Analogue start point ASP	0...80 l/min 0...4.8 m³/h
Analogue end point AEP	20...100 l/min 1.2...6 m³/h
In steps of	0.1 l/min 0.005 m³/h



Volumetric flow quantity monitoring
Pulse value	0.00001...100 000 m³
Pulse length[s]	0,0025...2



Temperature monitoring
Measuring range[°C]	-20...80
Resolution[°C]	0.2
Set point SP[°C]	-19.2...80
Reset point rP[°C]	-19.6...79.6
Analogue start point[°C]	-20...60
Analogue end point[°C]	0...80
In steps of[°C]	0.2



Accuracy / deviations của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Flow monitoring
Accuracy (in the measuring range)	± (0,8 % MW + 0,5 % MEW)
Repeatability	± 0,2% MEW



Temperature monitoring
Accuracy[K]	± 2,5 (Q > 5 l/min)



Response times của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Flow monitoring
Response time[s]	0.15; (dAP = 0, T19)
Delay time programmable dS, dr[s]	0...50
Damping process value dAP[s]	0...5



Temperature monitoring
Dynamic response T05 / T09[s]	T09 = 20 (Q > 5 l/min)



Software / programming của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Parameter setting options

Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; switching logic; current/voltage/pulse output; start-up delay; display can be deactivated; Display unit



Interfaces của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis
SIO mode	yes
Required master port type	A
Process data analogue	3
Process data binary	2
Min. process cycle time[ms]	5
Supported DeviceIDs	Type of operation DeviceID default 575



Operating conditions của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Ambient temperature[°C]	-10...60
Storage temperature[°C]	-25...80
Protection	IP 67



Tests / approvals của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

EMC	DIN EN 60947-5-9
CPA approval	model number 002MI accuracy class - maximum allowable error ± 1,5 % FS Q (min) 0,01 m³/h Q (t) - Q (max) 6 m³/h
Shock resistance	DIN IEC 68-2-27 20 g (11 ms)
Vibration resistance	DIN IEC 68-2-6 5 g (10...2000 Hz)
MTTF[years]	145
Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request



Mechanical data của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Weight[g]	577
Housing	cylindrical
Dimensions[mm]	Ø 54 / L = 110
Materials	stainless steel (316L/1.4404); PBT-GF20; PC; FKM; TPE
Materials (wetted parts)	stainless steel (316L/1.4404); PEEK; FKM
Process connection	threaded connection G 1 external thread DN25 flat seal



Displays / operating elements của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Display

Display unit 6 x LED, green (l/min, m³/h, l, m³, 10³, °C) switching status 2 x LED, yellow measured values alphanumeric display, 4-digit programming alphanumeric display, 4-digit



Remarks của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Remarks	MW = measured value MEW = Final value of the measuring range
Pack quantity	1 pcs.



Electrical connection của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

Connection

Connector: 1 x M12; coding: A; Contacts: gold-plated



Diagrams and graphs của Cảm biến lưu lượng cảm ứng từ IFM SM8000 | SMR11GGXFRKG/US-100

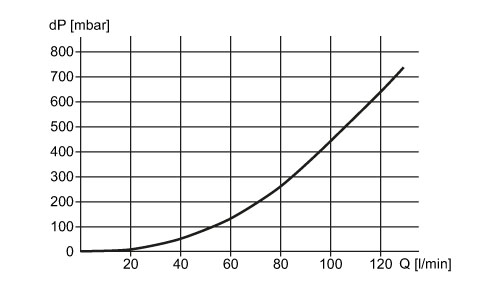

Pressure loss	dP Pressure loss Q volumetric flow quantity
