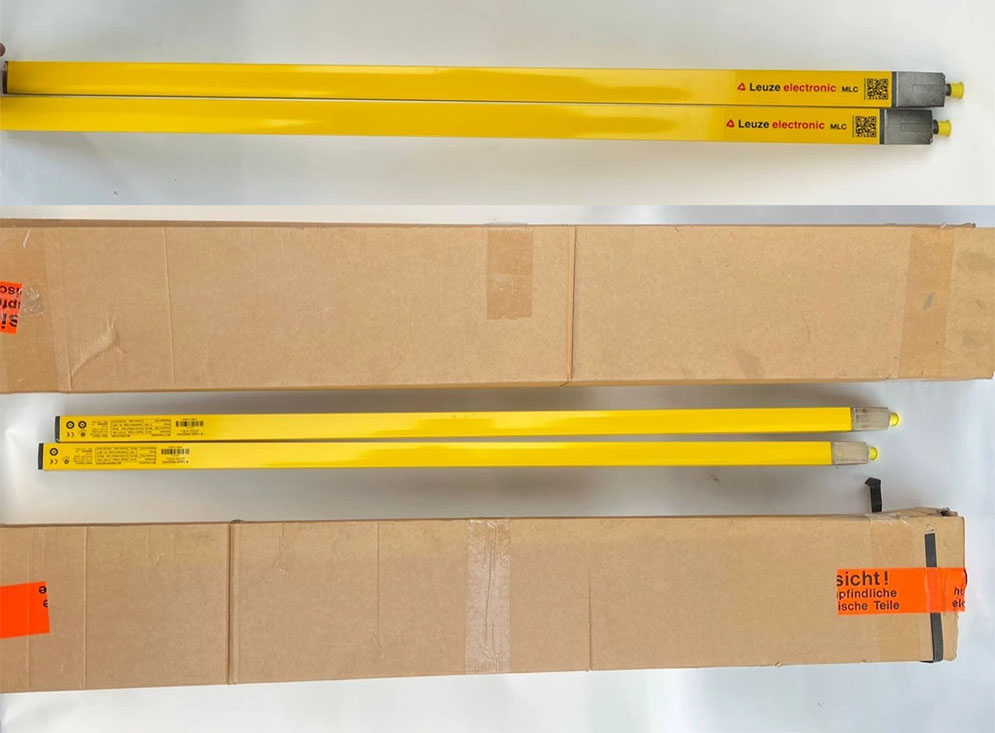

Leuze MLC500T30-1800 (68000318) + MLC530R30-1800 (68003318) là Bộ Cảm biến rèm ánh sáng an toàn gồm mô đun thu (Receiver) và mô-đun phát (Transmitter)

Transmitter module
Safety light curtain transmitter

MLC500T30-1800 (Part no.: 68000318)

- Series: MLC 500
- Operating range, max.: 0 ... 10 m
- Resolution: 30 mm
- Protective field height: 1,800 mm

- Tài liệu kỹ thuật của ở đây.


Thông số kỹ thuật của

Basic data

Series	MLC 500
Device type	Transmitter
Contains	2x BT-NC sliding block
Application	Hand protection



Functions

Functions

Range reduction Transmission channel changeover



Characteristic parameters

Type	4, IEC/EN IEC 61496
SIL	3, IEC 61508
SIL	3, IEC/EN IEC 62061
Mission time	20 years, EN ISO 13849-1



Protective field data

Resolution	30 mm
Protective field height	1,800 mm
Operating range	0 ... 10 m



Optical data

Synchronization	Optical between transmitter and receiver
Light source	LED, Infrared
Wavelength	940 nm
Mean power of transmitter diode	50 µW
Transmitted-signal shape	Pulsed
LED risk group	Exempt group (in acc. with EN 62471:2008)



Electrical data

Protective circuit

Overvoltage protection Short circuit protected



Performance data

Supply voltage UB	24 V, DC, -20 ... 20 %
Current consumption, max.	50 mA
Fuse	2 A semi time-lag



Inputs

Number of digital switching inputs

1 Piece(s)



Switch input

Type	Digital switching input
Switching voltage high, min.	18 V
Switching voltage low, max.	2.5 V
Switching voltage, type.	22.5 V
Voltage type	DC



Digital switching input 1

Function

Control input range reduction



Connection

Number of connections

1 Piece(s)



Connection 1

Function	Machine interface
Type of connection	Connector
Thread size	M12
Type	Male
Material	Metal
No. of pins	5 -pin



Cable properties

Permissible conductor cross section, type.	0.25 mm²
Length of connection cable, max.	100 m
Permissible cable resistance to load, max.	200 Ω



Mechanical data

Dimension (W x H x L)	29 mm x 1,866 mm x 35.4 mm
Housing material	Metal
Metal housing	Aluminum
Lens cover material	Plastic / PMMA
Material of end caps	Diecast zinc
Net weight	1,950 g
Housing color	Yellow, RAL 1021
Type of fastening	Groove mounting Mounting brackets Mounting on Device Column Swivel mount



Operation and Display

Type of display	LED
Number of LEDs	2 Piece(s)



Environmental data

Ambient temperature, operation	-30 ... 55 °C
Ambient temperature, storage	-30 ... 70 °C
Relative humidity (non-condensing)	0 ... 95 %



Certifications

Degree of protection	IP 65
Protection class	III
Approvals	KCs S Mark TÜV Süd c TÜV NRTL US c UL US
Vibration resistance	50 m/s²
Test procedure for oscillation in accordance with standard	IEC/EN 60068-2-6
Shock resistance	100 m/s²
Test procedure for shock in accordance with standard	IEC/EN 60068-2-6
US patents	US 6,418,546 B



Classification

Customs tariff number	85365019
ECLASS 5.1.4	27272704
ECLASS 8.0	27272704
ECLASS 9.0	27272704
ECLASS 10.0	27272704
ECLASS 11.0	27272704
ECLASS 12.0	27272704
ECLASS 13.0	27272704
ECLASS 14.0	27272704
ECLASS 15.0	27272704
ECLASS 16.0	27272704
ETIM 5.0	EC002549
ETIM 6.0	EC002549
ETIM 7.0	EC002549
ETIM 8.0	EC002549
ETIM 9.0	EC002549
ETIM 10.0	EC002549
UNSPSC 26.08	46171620

Receiver module
Safety light curtain receiver

MLC530R30-1800-SPG (Part no.: 68009318)

- Series: MLC 500
- Resolution: 30 mm
- Protective field height: 1,800 mm
- Type: 4, IEC/EN IEC 61496


- Tài liệu kỹ thuật của ở đây.




Series	MLC 500
Device type	Receiver
Contains	2x BT-NC sliding block
Application	Hand protection



Function package

Extended

Functions

Combination of floating/fixed blanking, can be changed to "fixed blanking" during operation Configuration by means of wiring Fixed blanking with 1-beam tolerance Fixed blanking without tolerance Fixed blanking without tolerance, can be activated/deactivated during operation Floating blanking, can be changed to "fixed blanking" during operation Integration of "contact-based safety circuit" Integration of "electronic safety-related switching outputs" MaxiScan Partial muting Reduced resolution, can be changed to "fixed blanking" during operation Start/restart interlock (RES) Timing controlled 2-sensor muting Transmission channel changeover



Type	4, IEC/EN IEC 61496
SIL	3, IEC 61508
SIL	3, IEC/EN IEC 62061
Performance Level (PL)	e, EN ISO 13849-1
PFHD	7.73E-09 per hour
Mission time	20 years, EN ISO 13849-1
Category	4, EN ISO 13849



Resolution	30 mm
Protective field height	1,800 mm



Synchronization

Optical between transmitter and receiver



Protective circuit

Overvoltage protection Short circuit protected



Supply voltage UB	24 V, DC, -20 ... 20 %
Current consumption, max.	150 mA
Fuse	2 A semi time-lag



Number of digital switching inputs

3 Piece(s)



Type	Digital switching input
Switching voltage high, min.	18 V
Switching voltage low, max.	2.5 V
Switching voltage, type.	22.5 V
Voltage type	DC



Function

Control input selection, operating mode 1 or 4



Function

Control input selection, operating mode 2 or 5



Function

Control input selection, operating mode 3 or 6



Number of safety-related switching outputs (OSSDs)

2 Piece(s)



Type	Safety-related switching output OSSD
Switching voltage high, min.	18 V
Switching voltage low, max.	2.5 V
Switching voltage, type.	22.5 V
Voltage type	DC
Current load, max.	380 mA
Load inductivity	2,000 µH
Load capacity	0.3 µF
Residual current, max.	0.2 mA
Residual current, type.	0.002 mA
Voltage drop	1.5 V



Switching principle	+24 V switching
Switching element	Transistor, PNP



Switching principle	+24 V switching
Switching element	Transistor, PNP



Response time	17 ms
Restart delay time	100 ms



Number of connections

1 Piece(s)



Function	Machine interface
Type of connection	Connector
Thread size	M12
Type	Male
Material	Metal
No. of pins	8 -pin



Permissible conductor cross section, type.	0.25 mm²
Length of connection cable, max.	100 m
Permissible cable resistance to load, max.	200 Ω



Dimension (W x H x L)	29 mm x 1,866 mm x 35.4 mm
Housing material	Metal
Metal housing	Aluminum
Lens cover material	Plastic / PMMA
Material of end caps	Diecast zinc
Net weight	1,950 g
Housing color	Yellow, RAL 1021
Type of fastening	Groove mounting Mounting brackets Mounting on Device Column Swivel mount



Type of display	7‑segment display LED
Number of LEDs	3 Piece(s)



Ambient temperature, operation	-30 ... 55 °C
Ambient temperature, storage	-30 ... 70 °C
Relative humidity (non-condensing)	0 ... 95 %



Degree of protection	IP 65
Protection class	III
Approvals	KCs TÜV Süd c TÜV NRTL US c UL US
Vibration resistance	50 m/s²
Test procedure for oscillation in accordance with standard	IEC/EN 60068-2-6
Shock resistance	100 m/s²
Test procedure for shock in accordance with standard	IEC/EN 60068-2-6
US patents	US 6,418,546 B



Customs tariff number	85365019
ECLASS 5.1.4	27272704
ECLASS 8.0	27272704
ECLASS 9.0	27272704
ECLASS 10.0	27272704
ECLASS 11.0	27272704
ECLASS 12.0	27272704
ECLASS 13.0	27272704
ECLASS 14.0	27272704
ECLASS 15.0	27272704
ECLASS 16.0	27272704
ETIM 5.0	EC002549
ETIM 6.0	EC002549
ETIM 7.0	EC002549
ETIM 8.0	EC002549
ETIM 9.0	EC002549
ETIM 10.0	EC002549
UNSPSC 26.08	46171620
