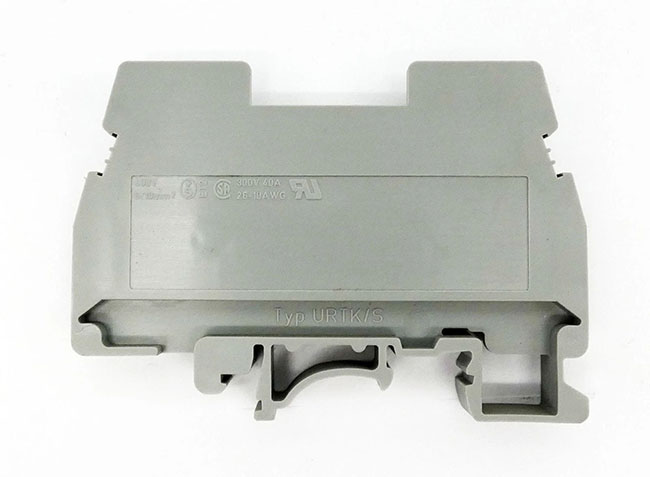

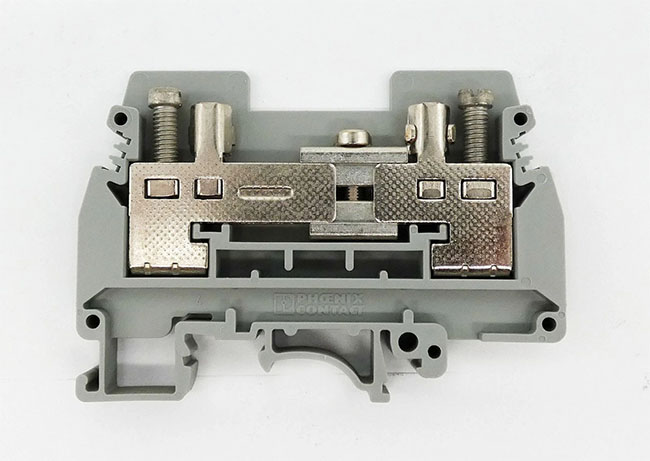

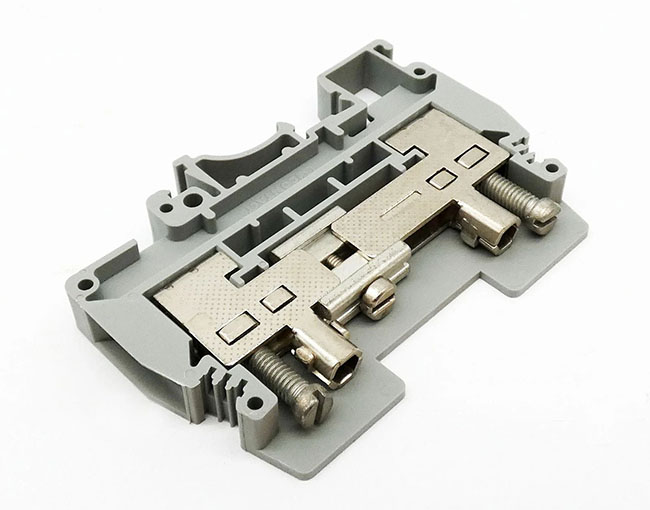

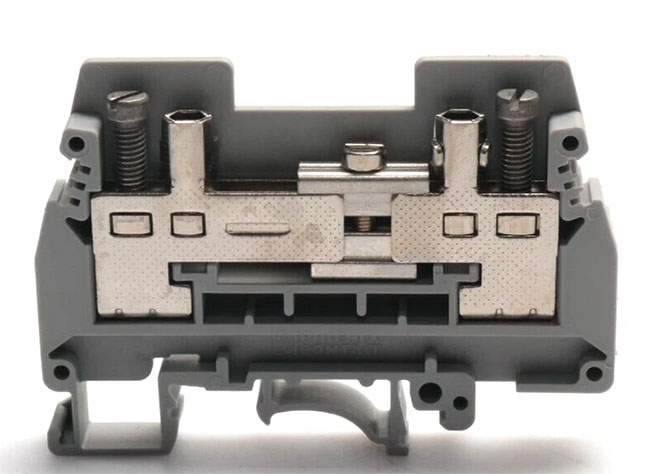

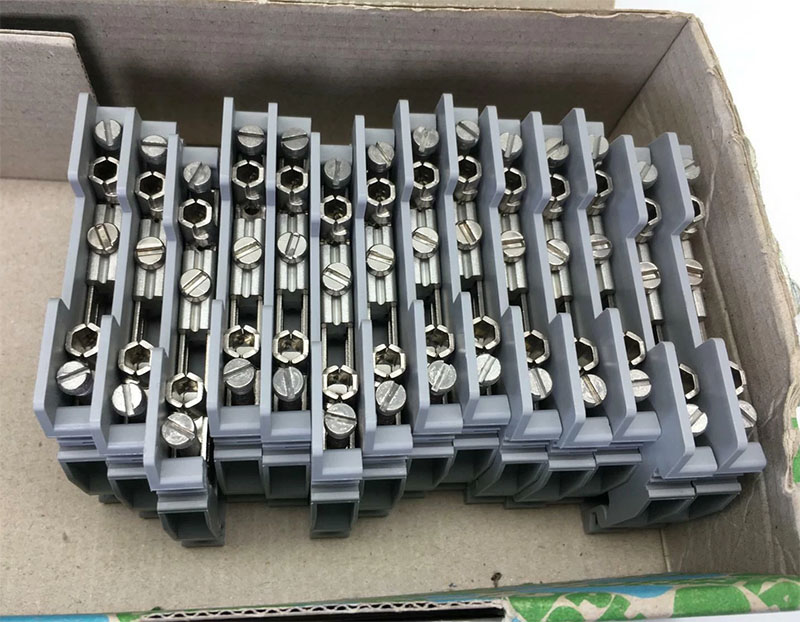

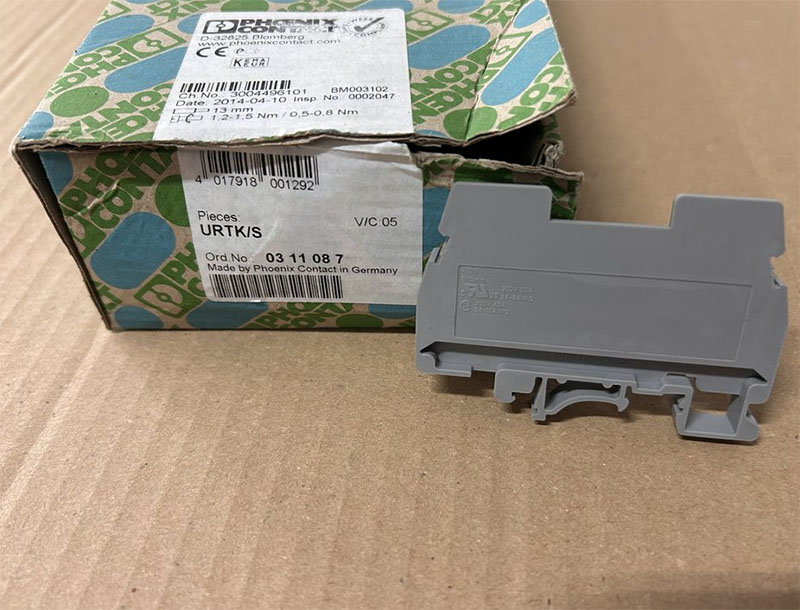

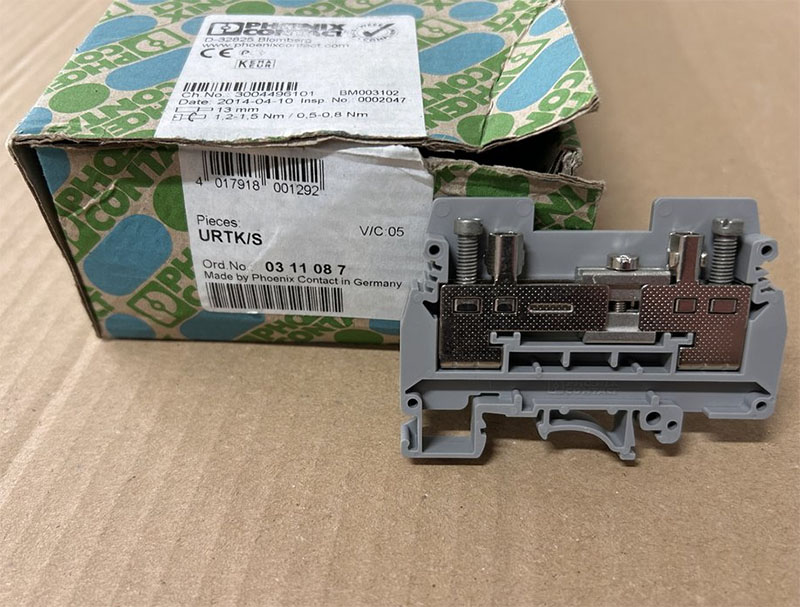

Phoenix Contact URTK/S - 0311087 là Cầu đấu test-ngắt mạch, 6mm2 400V 41A 2xSocket Screw Xám

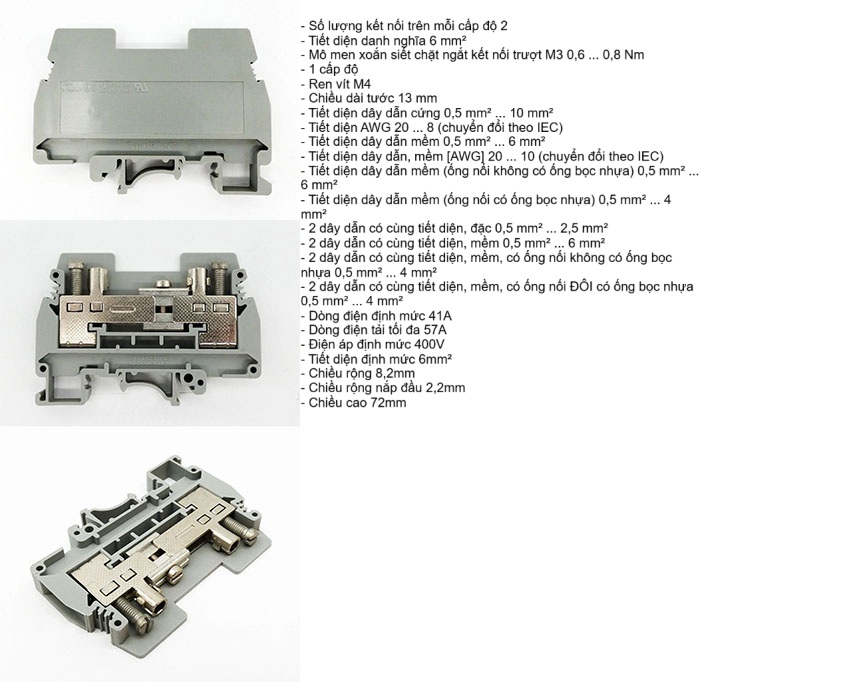

- Tài liệu kỹ thuật của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087 ở đây.



Technical data của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087



Product properties của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087

Product type	Test disconnect terminal block
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3



Electrical properties của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087

Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	1.31 W



Connection data của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087

Number of connections per level	2
Nominal cross section	6 mm²
Tightening torque disconnect slide	M3 0.6 ... 0.8 Nm
1 level
Screw thread	M4
Tightening torque	1.2 ... 1.5 Nm
Stripping length	13 mm
Internal cylindrical gage	A5
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.5 mm² ... 10 mm²
Cross section AWG	20 ... 8 (converted acc. to IEC)
Conductor cross section flexible	0.5 mm² ... 6 mm²
Conductor cross section, flexible [AWG]	20 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.5 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.5 mm² ... 4 mm²
2 conductors with same cross section, solid	0.5 mm² ... 2.5 mm²
2 conductors with same cross section, flexible	0.5 mm² ... 6 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.5 mm² ... 4 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 4 mm²
Nominal current	41 A
Maximum load current	57 A (with 10 mm² conductor cross section)
Nominal voltage	400 V
Nominal cross section	6 mm²



Dimensions của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087

Width	8.2 mm
End cover width	2.2 mm
Height	72 mm
Depth on NS 32	56.5 mm
Depth on NS 35/7,5	51.5 mm
Depth on NS 35/15	59 mm



Material specifications của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed



Electrical tests của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087

Surge voltage test
Test voltage setpoint	7.3 kV
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 6 mm²	0.72 kA
Short-time withstand current 10 mm²	1.2 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	1.89 kV
Result	Test passed



Mechanical properties của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087

Mechanical data
Open side panel	Yes



Mechanical tests của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 32/NS 35
Test force setpoint	5 N
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 rpm
Revolutions	135
Conductor cross section/weight	0.5 mm² / 0.3 kg
	6 mm² / 1.4 kg
	10 mm² / 2 kg
Result	Test passed



Environmental and real-life conditions của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087

Needle-flame test
Time of exposure	30 s
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %



Standards and regulations của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087

Connection in acc. with standard

IEC 60947-7-1



Mounting của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087

Mounting type	NS 35/7,5
	NS 35/15
	NS 32
Screw thread	M3



Commercial data của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087

Item number	0311087
Packing unit	50 pc
Minimum order quantity	50 pc
Product key	BE1233
Catalog page	Page 519 (C-1-2019)
GTIN	4017918001292
Weight per piece (including packing)	35.51 g
Weight per piece (excluding packing)	35.51 g
Customs tariff number	85369010
Country of origin	CN



Classifications của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087

ECLASS

ECLASS-13.0

27250109

ETIM

ETIM 9.0

EC000902

UNSPSC

UNSPSC 21.0

39121400



Approvals của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087

CSA

Approval ID: 13631

	Nominal voltage UN	Nominal current IN	Cross section AWG	Cross section mm2
	300 V	40 A	26 - 10



IECEE CB Scheme

Approval ID: NL-65058

	Nominal voltage UN	Nominal current IN	Cross section AWG	Cross section mm2
	400 V			- 6



EAC

Approval ID: KZ7500651131219505


cULus Recognized

Approval ID: E60425


KEMA-KEUR

Approval ID: 71-113436 REV.1

	Nominal voltage UN	Nominal current IN	Cross section AWG	Cross section mm2
	400 V			- 6



LR

Approval ID: LR2041789TA-02


cULus Recognized

Approval ID: E60425

DNV

Approval ID: TAE00001CT


Environmental product compliance của Cầu đấu test-ngắt mạch Phoenix Contact URTK/S - 0311087

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
