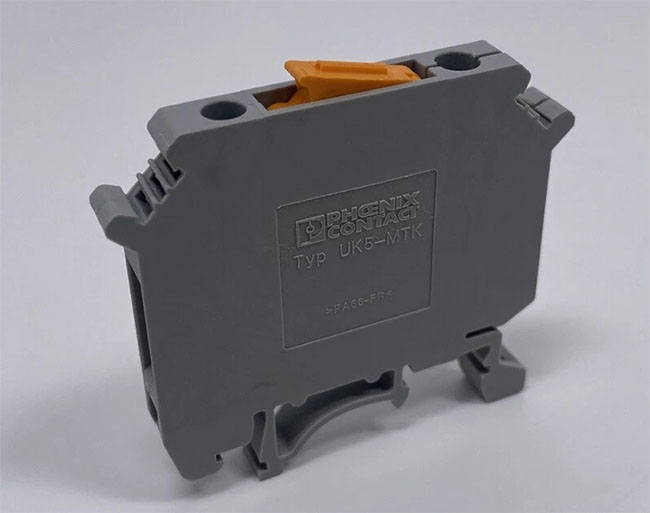

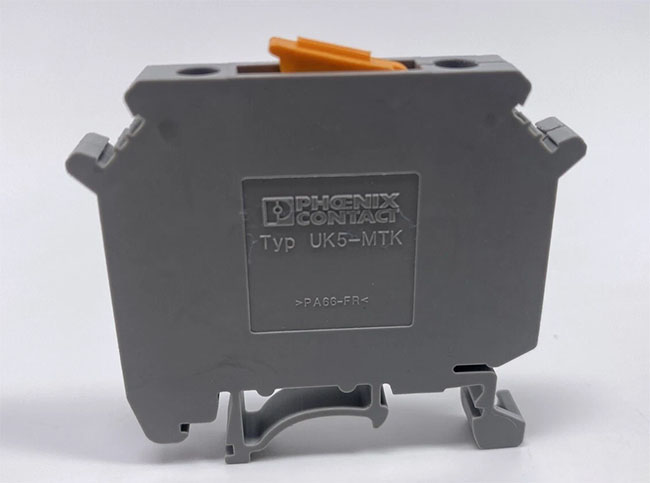

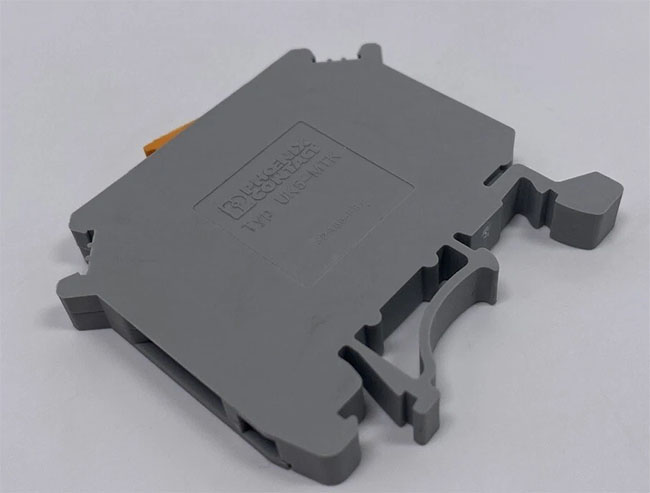

Phoenix Contact UK 5-MTK - 3004430 là Cầu đấu nối dây điện-tín hiệu dao cắt để ngắt kết nối, 500V 16A, nối vít, Tiết diện 4mm2 (0.2-6mm2), DIN Rail NS 35/7.5, NS 35/15, NS 32, màu xám
Bản vẽ kỹ thuật của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
Diagram circuit
Technical data của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
Product properties của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
| Product type |
Disconnect terminal block |
| Number of connections |
2 |
| Number of rows |
1 |
| Potentials |
1 |
| Insulation characteristics |
| Overvoltage category |
III |
| Degree of pollution |
3 |
Electrical properties của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
| Rated surge voltage |
6 kV |
| Maximum power dissipation for nominal condition |
1.02 W |
Connection data của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
| Number of connections per level |
2 |
| Nominal cross section |
4 mm² |
| Screw thread |
M3 |
| Tightening torque |
0.5 ... 0.6 Nm |
| Stripping length |
8 mm |
| Internal cylindrical gage |
A3 |
| Connection in acc. with standard |
IEC 60947-7-1 |
| Conductor cross section rigid |
0.2 mm² ... 6 mm² |
| Cross section AWG |
24 ... 10 (converted acc. to IEC) |
| Conductor cross section flexible |
0.2 mm² ... 4 mm² |
| Conductor cross section, flexible [AWG] |
24 ... 12 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) |
0.25 mm² ... 4 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) |
0.25 mm² ... 2.5 mm² |
| Cross-section with insertion bridge, rigid |
4 mm² |
| Cross-section with insertion bridge, flexible |
4 mm² |
| 2 conductors with same cross section, solid |
0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible |
0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve |
0.25 mm² ... 1.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve |
0.5 mm² ... 2.5 mm² |
| Thermal continuous current Ith |
16 A |
| Maximum load current |
16 A (with 4 mm² conductor cross section) |
| Nominal voltage |
500 V (up to 690 V for pollution degree II) |
| Nominal cross section |
4 mm² |
 |
Dimensions của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
| Width |
6.2 mm |
| Height |
51 mm |
| Depth on NS 32 |
63.5 mm |
| Depth on NS 35/7,5 |
58.5 mm |
| Depth on NS 35/15 |
66 mm |
Material specifications của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
| Color |
gray (RAL 7042) |
| Flammability rating according to UL 94 |
V0 |
| Insulating material group |
I |
| Insulating material |
PA |
| Static insulating material application in cold |
-60 °C |
| Relative insulation material temperature index (Elec., UL 746 B) |
130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 |
HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 |
HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 |
HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 |
HL 1 - HL 3 |
| Surface flammability NFPA 130 (ASTM E 162) |
passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) |
passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) |
passed |
Electrical tests của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
| Surge voltage test |
| Test voltage setpoint |
7.3 kV |
| Result |
Test passed |
| Temperature-rise test |
| Requirement temperature-rise test |
Increase in temperature ≤ 45 K |
| Result |
Test passed |
| Short-time withstand current 1.5 mm² |
0.18 kA |
| Result |
Test passed |
| Power-frequency withstand voltage |
| Test voltage setpoint |
1.89 kV |
| Result |
Test passed |
Mechanical properties của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
| Mechanical data |
| Open side panel |
No |
Mechanical tests của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
| Mechanical strength |
| Result |
Test passed |
| Attachment on the carrier |
| DIN rail/fixing support |
NS 32/NS 35 |
| Test force setpoint |
1 N |
| Result |
Test passed |
| Test for conductor damage and slackening |
| Rotation speed |
10 (+/- 2) rpm |
| Revolutions |
135 |
| Conductor cross section/weight |
0.2 mm² / 0.2 kg |
| 4 mm² / 0.9 kg |
| 6 mm² / 1.4 kg |
| Result |
Test passed |
Environmental and real-life conditions của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
| Needle-flame test |
| Time of exposure |
30 s |
| Result |
Test passed |
| Oscillation/broadband noise |
| Specification |
DIN EN 50155 (VDE 0115-200):2022-06 |
| Spectrum |
Long life test category 2, bogie-mounted |
| Frequency |
f1 = 5 Hz to f2 = 250 Hz |
| ASD level |
6.12 (m/s²)²/Hz |
| Acceleration |
3.12g |
| Test duration per axis |
5 h |
| Test directions |
X-, Y- and Z-axis |
| Result |
Test passed |
| Shocks |
| Pulse shape |
Half-sine |
| Acceleration |
5g |
| Shock duration |
30 ms |
| Number of shocks per direction |
3 |
| Test directions |
X-, Y- and Z-axis (pos. and neg.) |
| Result |
Test passed |
| Ambient conditions |
| Ambient temperature (operation) |
-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) |
-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) |
-5 °C ... 70 °C |
| Ambient temperature (actuation) |
-5 °C ... 70 °C |
| Permissible humidity (operation) |
20 % ... 90 % |
| Permissible humidity (storage/transport) |
30 % ... 70 % |
Standards and regulations của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
| Connection in acc. with standard |
IEC 60947-7-1 |
Mounting của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
| Mounting type |
NS 35/7,5 |
| NS 35/15 |
| NS 32 |
Commercial data của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
| Item number |
3004430 |

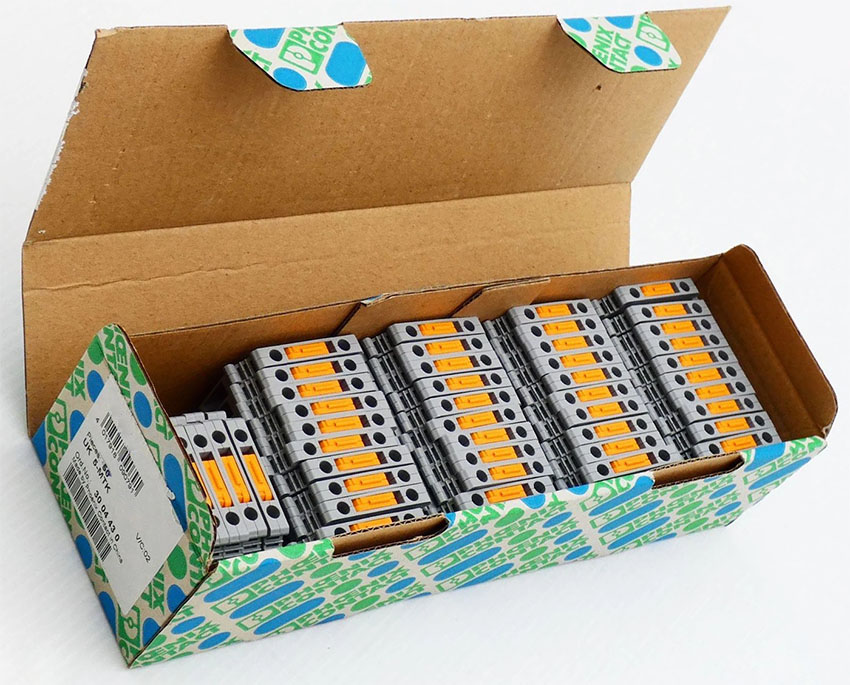

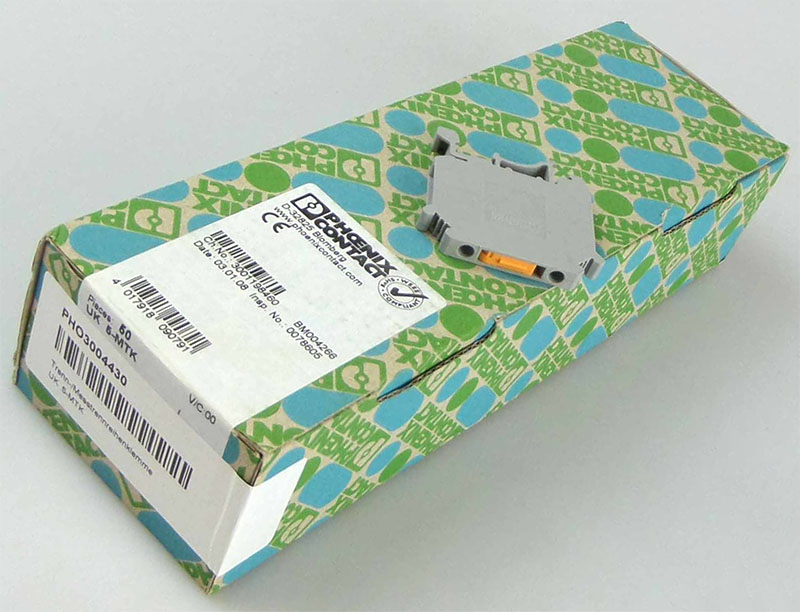

| Packing unit |
50 pc |
| Minimum order quantity |
50 pc |
| Product key |
BE1231 |
| GTIN |
4017918090791 |
| Weight per piece (including packing) |
12.29 g |
| Weight per piece (excluding packing) |
11.467 g |
| Customs tariff number |
85369010 |
| Country of origin |
CN |
Classifications của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
ECLASS
ETIM
UNSPSC
Approvals của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
CSA
Approval ID: 13631
| |
Nominal voltage UN |
Nominal current IN |
Cross section AWG |
Cross section mm2 |
| Use group B |
| |
600 V |
15 A |
22 - 14 |
|
| Use group C |
| |
600 V |
15 A |
22 - 14 |
|
EAC
Approval ID: KZ7500651131219505
cULus Recognized
Approval ID: E60425
| |
Nominal voltage UN |
Nominal current IN |
Cross section AWG |
Cross section mm2 |
| Use group B |
| |
300 V |
15 A |
22 - 12 |
|
| Use group C |
| |
300 V |
15 A |
22 - 12 |
|
| Use group F |
| |
500 V |
15 A |
22 - 12 |
|
| Use group D |
| |
600 V |
5 A |
22 - 12 |
|
Environmental product compliance của Cầu nối điện-tín hiệu Knife-disconnect Phoenix Contact UK 5-MTK - 3004430
| EU RoHS |
| Fulfills EU RoHS substance requirements |
Yes |
| Exemption |
6(c) |
| China RoHS |
| Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required. |
| EU REACH SVHC |
| REACH candidate substance (CAS No.) |
Lead (CAS: 7439-92-1) |
| SCIP |
d4a63a6a-f86a-491c-af1a-2c718dca5a2b |
