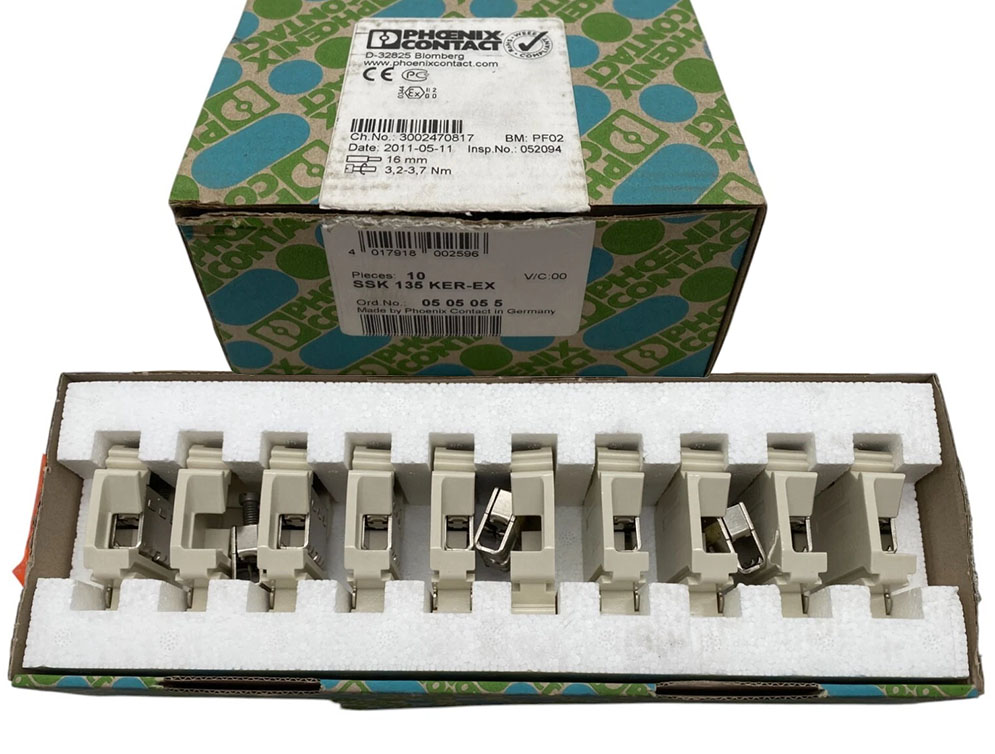

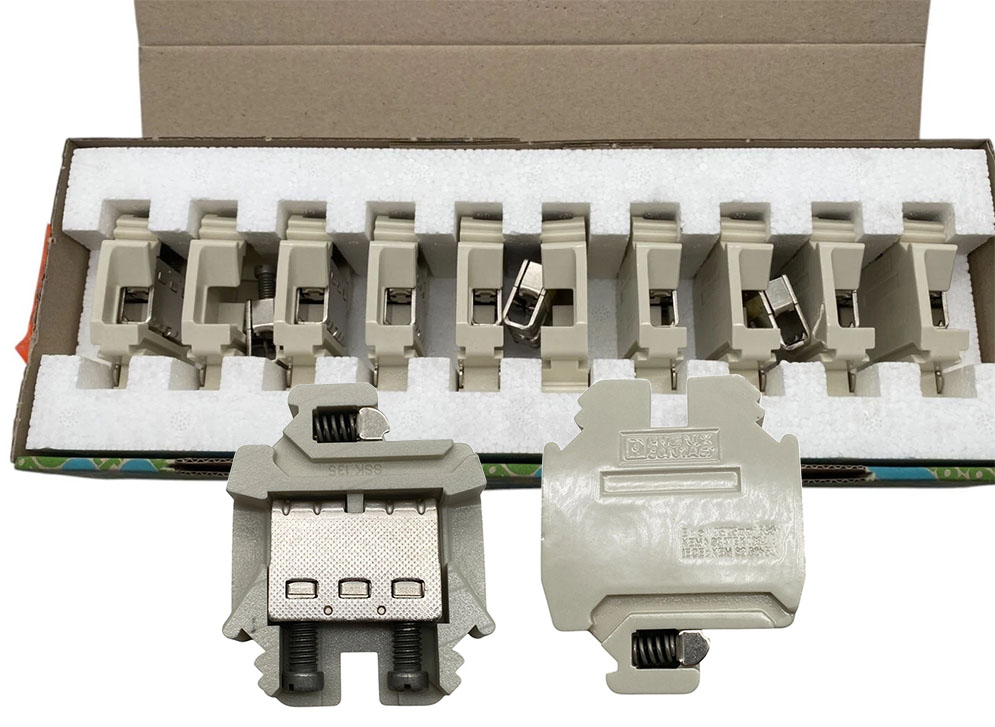

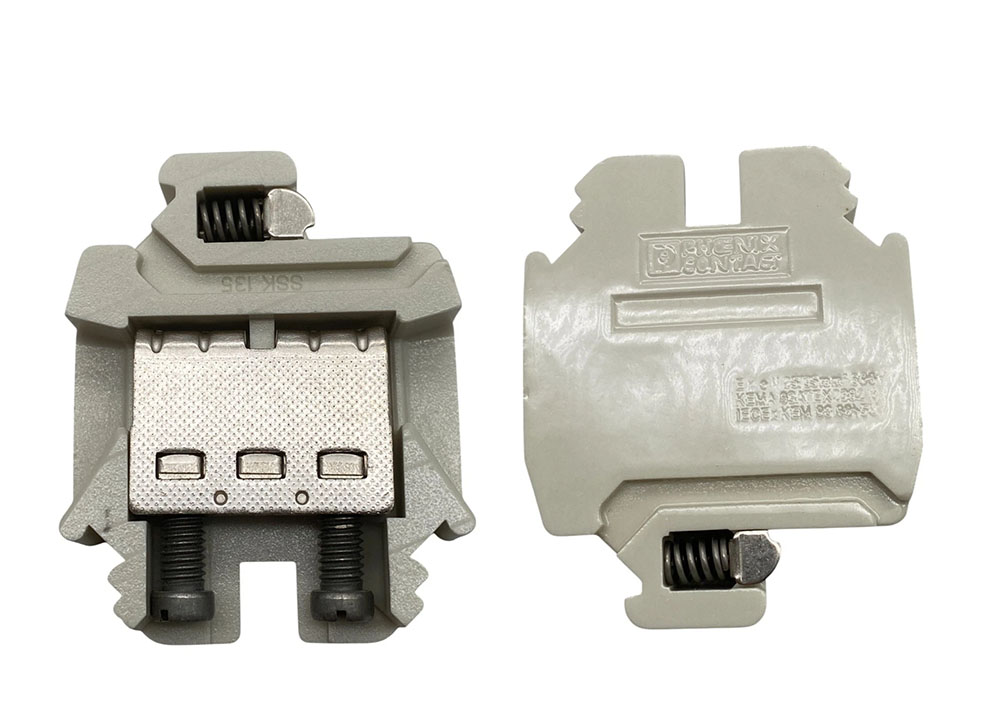

Phoenix Contact SSK 135 KER-EX - 0505055 là Đầu nối điện ceramic 180°C 35mm2 800V 125A

Feed-through terminal block, connection method: screw connection, cross section: 1 mm2 - 35 mm2, 18 - 2 AWG, color: white, mounting type: NS 32, insulation material: ceramic



- Tài liệu kỹ thuật của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055 ở đây.



Thông số kỹ thuật của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

Product properties của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

Product type	High temperature terminal block
Product family	SSK
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3



Electrical properties của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	4.06 W



Connection data của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

Number of connections per level	2
Nominal cross section	35 mm²
Level 1 above 1 below 1
Connection method	Screw connection
Screw thread	M6
Tightening torque	3.2 ... 3.7 Nm
Stripping length	16 mm
Internal cylindrical gage	B7
Connection in acc. with standard	IEC 60947-7-1
Conductor cross-section rigid	1 mm² ... 35 mm²
Cross section AWG	18 ... 2 (converted acc. to IEC)
Conductor cross-section flexible	1 mm² ... 25 mm²
Conductor cross-section, flexible [AWG]	18 ... 4 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.75 mm² ... 25 mm²
Flexible conductor cross-section (ferrule with plastic sleeve)	0.75 mm² ... 16 mm²
2 conductors with same cross section, rigid	0.75 mm² ... 10 mm²
2 conductors with same cross section, flexible	0.75 mm² ... 10 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.75 mm² ... 10 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.75 mm² ... 10 mm²
Nominal cross section	35 mm²
Nominal current	101 A (with 25 mm² conductor cross-section)
Maximum load current	125 A (with 35 mm² conductor cross-section)
Nominal voltage	800 V



Ex data của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

Rated data (ATEX/IECEx)
Identification	 II 2 GD  Ex eb IIC Gb
Operating temperature range	-60 °C ... 180 °C
Ex-certified accessories	0205067 D-SSK 135 KER
	1201044 E/1
List of bridges	/ KB- 15 / 0204259
Bridge data	100 A (35 mm²)
Ex temperature increase	40 K (116.5 A / 25 mm²)
for bridging with bridge	550 V
Rated insulation voltage	500 V
output	(Permanent)
Ex level General
Rated voltage	550 V
Rated current	101 A
Maximum load current	113 A
Contact resistance	0.2 mΩ
Ex connection data General
Torque range	3.2 Nm ... 3.7 Nm
Nominal cross section	25 mm²
Rated cross section AWG	3
Connection capacity rigid	1 mm² ... 35 mm²
Connection capacity AWG	18 ... 2
Connection capacity flexible	1 mm² ... 25 mm²
Connection capacity AWG	18 ... 3



Dimensions của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

Width	15.3 mm
Height	53 mm
Depth on NS 32	67 mm



Material specifications của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

Color	ivory (RAL 1014)
Material	Ceramics
Insulating material group	I
Relative insulation material temperature index (Elec., UL 746 B)	1000 °C



Electrical tests của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

Surge voltage test
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	2 kV
Result	Test passed



Mechanical properties của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

Mechanical data
Open side panel	Yes



Machanical tests của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 32
Result	Test passed



Environmental and real-life conditions của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

Needle-flame test
Time of exposure	30 s
Ambient conditions
Ambient temperature (operation)	-60 °C ... 180 °C
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %



Standards and Regulations của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

Connection in acc. with standard

IEC 60947-7-1



Mounting của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

Mounting type

NS 32



Commercial data của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

Item number	0505055
Packing unit	10 pc
Minimum order quantity	10 pc
Product key	BE1211
GTIN	4017918002596
Weight per piece (including packing)	98.62 g
Weight per piece (excluding packing)	90.88 g
Customs tariff number	85369010
Country of origin	DE



Classifications của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

ECLASS

ECLASS-13.0	27250101
ECLASS-15.0	27250101

ETIM

ETIM 10.0

EC000897

UNSPSC

UNSPSC 21.0

39121400



Approvals của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

CSA

Approval ID: 13631

	Nominal voltage UN	Nominal current IN	Cross section AWG	Cross section mm2
keine
not as Ex approval	600 V	140 A	14 - 2

X

ATEX

Approval ID: KIWA17ATEX0022U

	Nominal voltage UN	Nominal current IN	Cross section AWG	Cross section mm2
keine
	440 V	64.5 A
Only flexible conductors	440 V	55 A



EAC Ex

Approval ID: KZ 7500525010101950


IECEx

Approval ID: IECExKIWA17.0009U

	Nominal voltage UN	Nominal current IN	Cross section AWG	Cross section mm2
keine
	550 V	113 A		1 - 35
Only flexible conductors	550 V	101 A		1 - 25



CCC

Approval ID: 2020322313000628


DNV GL-EX

Approval ID: TAE00003K6

	Nominal voltage UN	Nominal current IN	Cross section AWG	Cross section mm2
keine
EEx e II part certificate	440 V	32 A		- 2.5

X

ATEX

Approval ID: KIWA17ATEX0022U

	Nominal voltage UN	Nominal current IN	Cross section AWG	Cross section mm2
keine
	550 V	113 A
Only flexible conductors	550 V	101 A



UKCA-EX

Approval ID: CSAE 22UKEX1188U


Environmental product compliance của Đầu nối điện ceramic Phoenix Contact SSK 135 KER-EX - 0505055

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
EF3.1 Climate Change
CO2e kg	1.113 kg CO2e
