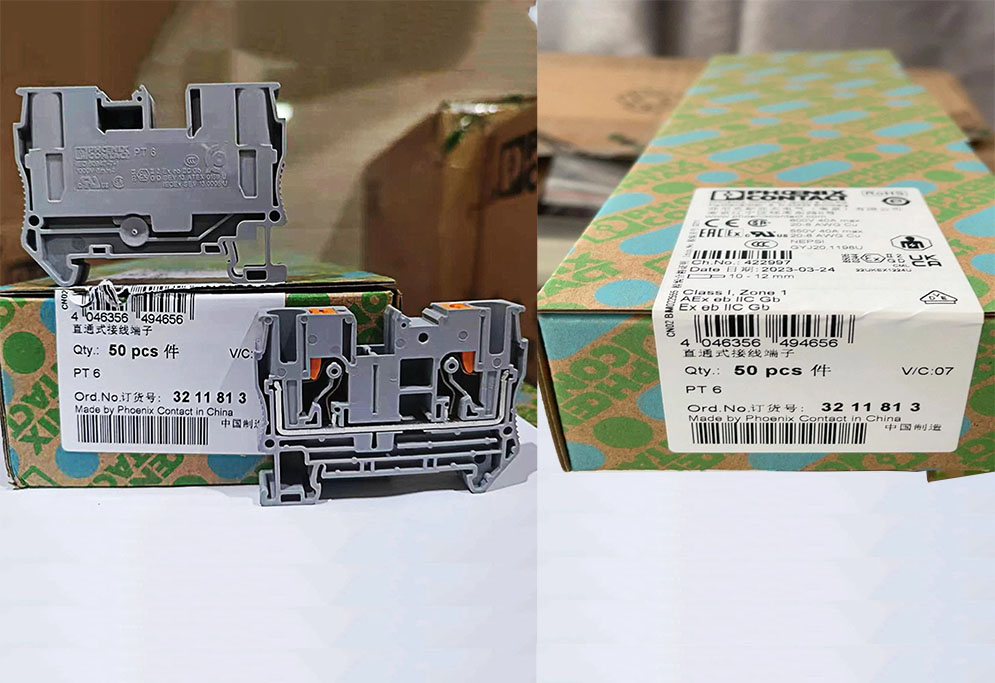

Phoenix Contact PT 2,5 - 3209510 là Cầu đấu nối dây điện điện 2.5mm2 800V 24A
Ưu điểm nổi bật của Cầu nối điện 6mm2 1000V 41A Phoenix Contact PT 6 - 3211813
- Cầu đấu nối dạng Push-in đặc trưng bởi các tính năng mang tính hệ thống của hệ thống CLIPLINE hoàn chỉnh và bằng cách dễ dàng và không cần công cụ định hướng dây dẫn với các ống dẫn hoặc dây dẫn rắn.
- Thiết kế nhỏ gọn và kết nối mặt trước cho phép dây trong không gian hạn chế.
- Ngoài các thiết bị thử nghiệm trong trục chức năng kép, tất cả các cầu đấu này cung cấp bổ sung test kết nối.
- Đã kiểm tra cho các ứng dụng railway

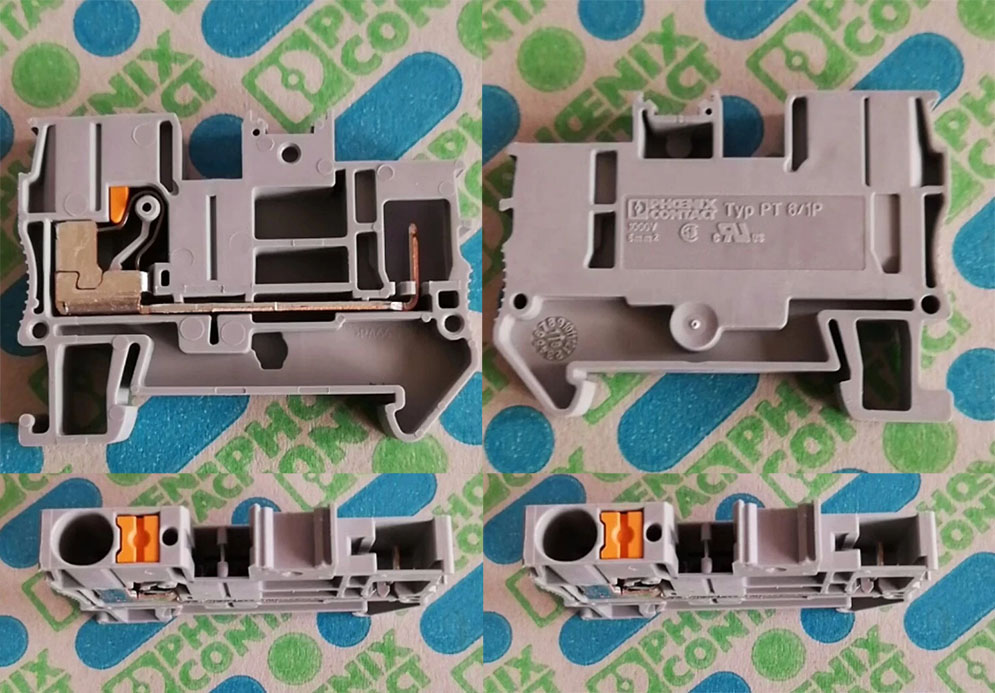

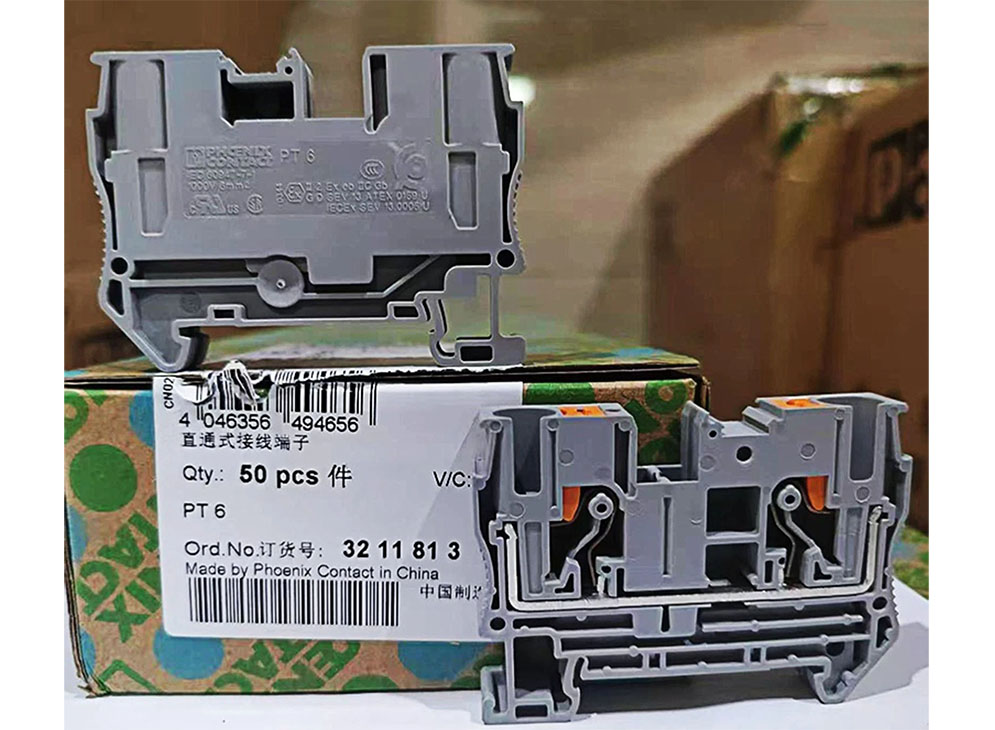

Bản vẽ và hình ảnh của Cầu nối điện 6mm2 1000V 41A Phoenix Contact PT 6 - 3211813
Thông tin chung của Cầu nối điện 6mm2 1000V 41A Phoenix Contact PT 6 - 3211813
| Number of levels |
1 |
| Number of connections |
2 |
| Potentials |
1 |
| Nominal cross section |
6 mm² |
| Color |
gray |
| Insulating material |
PA |
| Flammability rating according to UL 94 |
V0 |
| Area of application |
Railway industry |
| |
Machine building |
| |
Plant engineering |
| Rated surge voltage |
8 kV |
| Degree of pollution |
3 |
| Overvoltage category |
III |
| Insulating material group |
I |
| Maximum power dissipation for nominal condition |
1.31 W |
| Maximum load current |
52 A (with 10 mm² conductor cross section) |
| Nominal current IN |
41 A |
| Nominal voltage UN |
1000 V |
| Open side panel |
Yes |
| Shock protection test specification |
DIN EN 50274 (VDE 0660-514):2002-11 |
| Back of the hand protection |
guaranteed |
| Finger protection |
guaranteed |
| Result of surge voltage test |
Test passed |
| Surge voltage test setpoint |
9.8 kV |
| Result of power-frequency withstand voltage test |
Test passed |
| Power frequency withstand voltage setpoint |
2.2 kV |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) |
Test passed |
| Result of bending test |
Test passed |
| Bending test rotation speed |
10 rpm |
| Bending test turns |
135 |
| Bending test conductor cross section/weight |
0.5 mm² / 0.3 kg |
| |
6 mm2 / 1.4 kg |
| |
10 mm² / 2 kg |
| Tensile test result |
Test passed |
| Conductor cross section tensile test |
0.5 mm² |
| Tractive force setpoint |
20 N |
| Conductor cross section tensile test |
6 mm² |
| Tractive force setpoint |
80 N |
| Conductor cross section tensile test |
10 mm² |
| Tractive force setpoint |
90 N |
| Result of tight fit on support |
Test passed |
| Tight fit on carrier |
NS 35 |
| Setpoint |
5 N |
| Result of voltage-drop test |
Test passed |
| Requirements, voltage drop |
≤ 3.2 mV |
| Result of temperature-rise test |
Test passed |
| Short circuit stability result |
Test passed |
| Conductor cross section short circuit testing |
6 mm² |
| Short-time current |
0.72 kA |
| Conductor cross section short circuit testing |
10 mm² |
| Short-time current |
1.2 kA |
| Result of thermal test |
Test passed |
| Ageing test for screwless modular terminal block temperature cycles |
192 |
| Proof of thermal characteristics (needle flame) effective duration |
30 s |
| Result of aging test |
Test passed |
| Oscillation, broadband noise test result |
Test passed |
| Test specification, oscillation, broadband noise |
DIN EN 50155 (VDE 0115-200):2008-03 |
| Test spectrum |
Service life test category 2, bogie-mounted |
| Test frequency |
f1 = 5 Hz to f2 = 250 Hz |
| ASD level |
6.12 (m/s2)2/Hz |
| Acceleration |
3.12 g |
| Test duration per axis |
5 h |
| Test directions |
X-, Y- and Z-axis |
| Shock test result |
Test passed |
| Test specification, shock test |
DIN EN 50155 (VDE 0115-200):2008-03 |
| Shock form |
Half-sine |
| Acceleration |
30g |
| Shock duration |
18 ms |
| Number of shocks per direction |
3 |
| Test directions |
X-, Y- and Z-axis (pos. and neg.) |
| Relative insulation material temperature index (Elec., UL 746 B) |
130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) |
125 °C |
| Static insulating material application in cold |
-60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) |
Test passed |
| Flame test method (DIN EN 60695-11-10) |
V0 |
| Oxygen index (DIN EN ISO 4589-2) |
>32 % |
| NF F16-101, NF F10-102 Class I |
2 |
| NF F16-101, NF F10-102 Class F |
2 |
| Surface flammability NFPA 130 (ASTM E 162) |
passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) |
passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) |
passed |
| Calorimetric heat release NFPA 130 (ASTM E 1354) |
27,5 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 |
HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 |
HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 |
HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 |
HL 1 - HL 3 |
 |
Kích thước tiêu chuẩn của Cầu nối điện 6mm2 1000V 41A Phoenix Contact PT 6 - 3211813
| Width |
8.2 mm |
| End cover width |
2.2 mm |
| Length |
57.7 mm |
| Height |
42.2 mm |
| Height NS 35/7,5 |
43.5 mm |
| Height NS 35/15 |
51 mm |
Kết nối dữ liệu của Cầu nối điện 6mm2 1000V 41A Phoenix Contact PT 6 - 3211813
| Connection method |
Push-in connection |
| Connection in acc. with standard |
IEC 60947-7-1 |
| Conductor cross section solid min. |
0.5 mm² |
| Conductor cross section solid max. |
10 mm² |
| Conductor cross section AWG min. |
20 |
| Conductor cross section AWG max. |
8 |
| Conductor cross section flexible min. |
0.5 mm² |
| Conductor cross section flexible max. |
6 mm² |
| Min. AWG conductor cross section, flexible |
20 |
| Max. AWG conductor cross section, flexible |
10 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. |
0.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. |
6 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. |
0.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. |
6 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. |
0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. |
1.5 mm² |
| Stripping length |
10 mm ... 12 mm |
| Internal cylindrical gage |
A5 |
Tiêu chuẩn và Quy định của Cầu nối điện 6mm2 1000V 41A Phoenix Contact PT 6 - 3211813
| Connection in acc. with standard |
CSA |
| |
IEC 60947-7-1 |
| Flammability rating according to UL 94 |
V0 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 |
HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 |
HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 |
HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 |
HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 |
Tiêu chuẩn thân thiện môi trường của Cầu nối điện 6mm2 1000V 41A Phoenix Contact PT 6 - 3211813
| China RoHS |
Environmentally friendly use period: unlimited = EFUP-e |
| |
No hazardous substances above threshold values |
Tiêu chuẩn phân lớp của Cầu nối điện 6mm2 1000V 41A Phoenix Contact PT 6 - 3211813
eCl@ss
| eCl@ss 4.0 |
27141120 |
| eCl@ss 4.1 |
27141120 |
| eCl@ss 5.0 |
27141120 |
| eCl@ss 5.1 |
27141120 |
| eCl@ss 6.0 |
27141120 |
| eCl@ss 7.0 |
27141120 |
| eCl@ss 8.0 |
27141120 |
| eCl@ss 9.0 |
27141120 |
ETIM
| ETIM 4.0 |
EC000897 |
| ETIM 5.0 |
EC000897 |
| ETIM 6.0 |
EC000897 |
UNSPSC
| UNSPSC 6.01 |
30211811 |
| UNSPSC 7.0901 |
39121410 |
| UNSPSC 11 |
39121410 |
| UNSPSC 12.01 |
39121410 |
| UNSPSC 13.2 |
39121410 |
Approvals của Cầu nối điện 6mm2 1000V 41A Phoenix Contact PT 6 - 3211813
