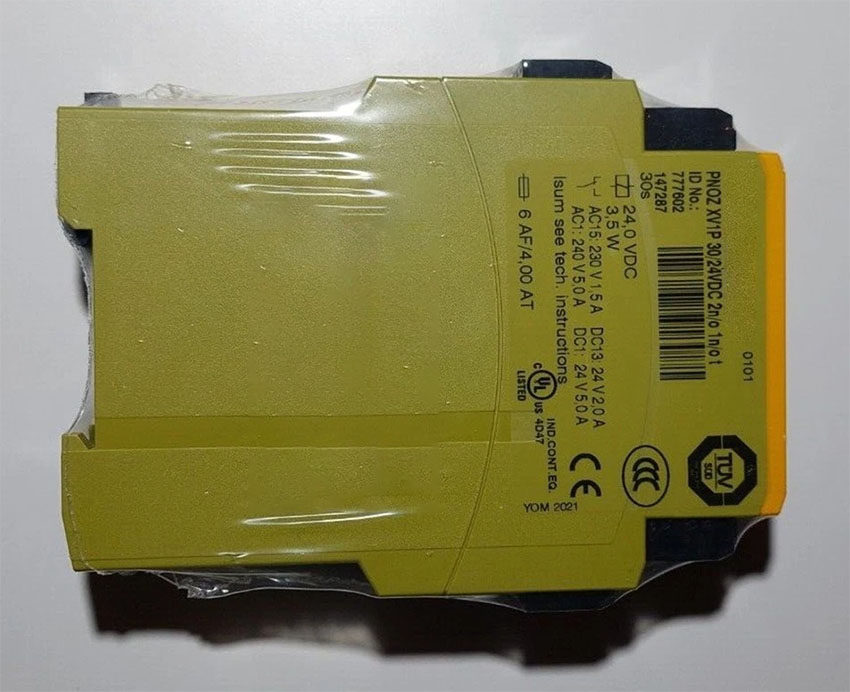

Rơ le an toàn Pilz PNOZ XV1P 30/24VDC 2n/o 1n/o t | 777602

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm PILZ

•

  Full Video về Sự khác nhau giữa Contactor và Relay

•

  Rờ le giám sát dòng Siemens SIRIUS 3RR24 cho 3RT2

• Xem thêm

Pilz PNOZ XV1P 30/24VDC 2n/o 1n/o t | 777602 là Rơ le an toàn, 1/2 kênh, 2 N/O, 1 N/Ot-d, 24VDC, rộng 22.5mm, nối vít, monitoring E-STOP, safety gates, light curtain, release 1-30s.



- Tài liệu kỹ thuật của Rơ le an toàn Pilz PNOZ XV1P 30/24VDC 2n/o 1n/o t | 777602 ở đây.



General data của Rơ le an toàn Pilz PNOZ XV1P 30/24VDC 2n/o 1n/o t | 777602

Approval

CCC   CE   UKCA   cULus Listed   EAC (Eurasian)   TÜV

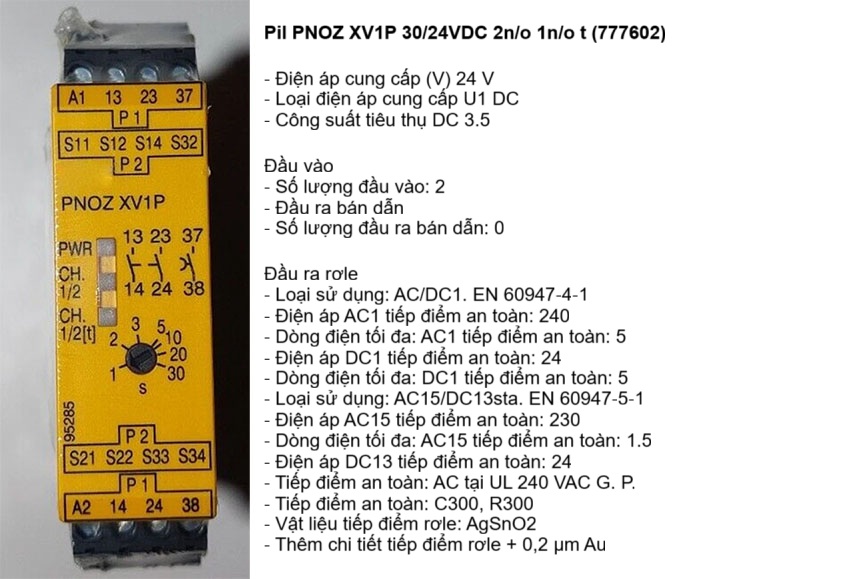

Electrical data của Rơ le an toàn Pilz PNOZ XV1P 30/24VDC 2n/o 1n/o t | 777602

Supply voltage (V)	24  V
Type of supply voltage U1	DC
Power consumption DC	3.5



Inputs của Rơ le an toàn Pilz PNOZ XV1P 30/24VDC 2n/o 1n/o t | 777602

Number of inputs

2



Semiconductor outputs của Rơ le an toàn Pilz PNOZ XV1P 30/24VDC 2n/o 1n/o t | 777602

Number of semicond. outputs

0



Relay outputs của Rơ le an toàn Pilz PNOZ XV1P 30/24VDC 2n/o 1n/o t | 777602

Utilisation cat. AC/DC1 stand.	EN 60947-4-1
Voltage AC1 safety cont.	240
Max. current AC1 safety cont.	5
Voltage DC1 safety cont.	24
Max. current DC1 safety cont.	5
Utilisation cat. AC15/DC13sta.	EN 60947-5-1
Voltage AC15 safety cont.	230
Max. current AC15 safety cont.	1.5
Voltage DC13 safety cont.	24
Safety contacts: AC at UL	240 VAC G. P.
Safety contacts: pilot duty	C300, R300
Relay contact material	AgSnO2
Addit. contact details relay	+ 0.2 µm Au



Environmental data của Rơ le an toàn Pilz PNOZ XV1P 30/24VDC 2n/o 1n/o t | 777602

Climatic suitability to ...	EN 60068-2-78
Ambient temperature	-10 - 55  °C
Humidity rating	93 % r. h. at 40 °C
Condensation permitted?	Not permitted
EMC to standard ...	EN 60947-5-1   EN 61000-6-2   EN 61000-6-3   EN 61326-3-1
Vibration to standard ...	EN 60068-2-6
Clearance & creepage dist. to	EN 60947-1
Overvoltage category	III / II
Pollution degree clear.&creep.	2
Protection type, mounting
Protection type, housing	IP40
Terminal protection type



Times của Rơ le an toàn Pilz PNOZ XV1P 30/24VDC 2n/o 1n/o t | 777602

Tolerance Tv	-20 %/+20 %
Repetition accuracy	2 %



Mechanical data của Rơ le an toàn Pilz PNOZ XV1P 30/24VDC 2n/o 1n/o t | 777602

Mounting position	any
Housing material lower section
Housing material front plate	ABS UL 94 V0
Housing material upper part
Connection terminal	Screw terminal
Terminal style	plug-in
Flex. cond. c/s AWG info	24 - 12 AWG
Height dimension	94  mm
Width dimension	22.5  mm
Depth dimension	121  mm
Net weight	230  g
Gross weight	235  g



Environment của Rơ le an toàn Pilz PNOZ XV1P 30/24VDC 2n/o 1n/o t | 777602

RoHS directive	2011/65/EU   2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	7c I
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead oxide
%-part of the pollutant	> 0,1
CAS No.	1317-36-8
SCIP entry available	yes
WEEE classification (08/2018)	5 devices (feed size < 50cm)



Commercial data của Rơ le an toàn Pilz PNOZ XV1P 30/24VDC 2n/o 1n/o t | 777602

ECLASS version	ECLASS-13
ECLASS Reference Feature	27371819
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000019
ETIM Reference Feature	EC001449
UNSPSC 25	39122331
GTIN	4046548009279
Volume	0.285  dm3
Harmonized System Code	85364900
Type of tariff number	TARIC
Use of customs tariff number	Ausfuhr   Einfuhr
Quantity per packaging unit	1



Optional accessories của Rơ le an toàn Pilz PNOZ XV1P 30/24VDC 2n/o 1n/o t | 777602

PNOZ X Set plug in screw terminals P1+P
2374280
Set of spare plug-in terminals of screw type, PU = 1 piece P1 and 1 piece P2.
