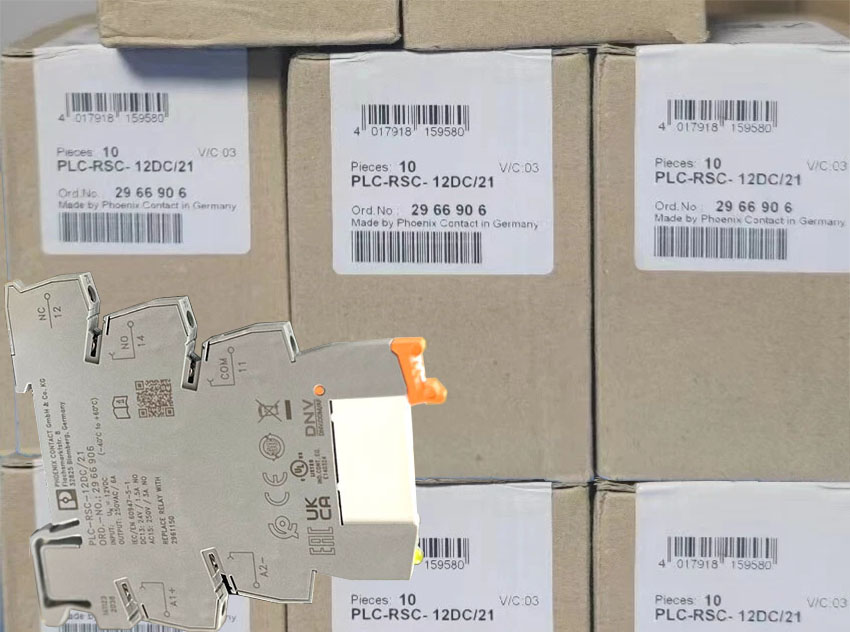

Phoenix Contact PLC-RSC- 12DC/21 - 2966906 là Rơ le SSR dạng nhỏ gọn, mỏng-dẹp, dao diện PLC-Interface, đế PLC-BSC.../21, 1CO, 12VDC 250V AC/DC 6A



- Tài liệu kỹ thuật của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906 ở đây.



Thông số kỹ thuật của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

Chú ý khi sử dụng Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

Notes on operation

Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or FBST 500....



Product properties của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

Product type	Relay Module
Product family	PLC-INTERFACE
Application	Universal
Operating mode	100% operating factor
Mechanical service life	2x 107 cycles
Data management status
Date of last data management	01.04.2026



Electrical properties của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

Maximum power dissipation for nominal condition	0.18 W
Test voltage (Winding/contact)	4 kV AC (50 Hz, 1 min., winding/contact)
Insulation characteristics: Coil/contact
Rated insulation voltage	250 V
Rated impulse withstand voltage	6 kV
Overvoltage category	III
Degree of pollution	3



Input data của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

Coil side
Nominal input voltage UN	12 V DC
Input voltage range	9.72 V DC ... 16.8 V DC (20 °C)
Nominal voltage (plugged-in electromechanical relay)	12 V DC
Drive and function	monostable
Drive (polarity)	polarized
Typical input current at UN	15.3 mA
Typical response time	5 ms
Typical release time	8 ms
Protective circuit	Reverse polarity protection; Polarity protection diode
	Freewheeling diode; Freewheeling diode
Operating voltage display	Yellow LED



Output data của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

Switching
Contact switching type	1 changeover contact
Type of switch contact	Single contact
Contact material	AgSnO
Maximum switching voltage	250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
Minimum switching voltage	5 V (100 mA)
Limiting continuous current	6 A
Maximum inrush current	10 A (4 s)
Min. switching current	10 mA (12 V)
Short-circuit current	200 A (conditional short-circuit current)
Interrupting rating (ohmic load) max.	140 W (at 24 V DC)
	20 W (at 48 V DC)
	18 W (at 60 V DC)
	23 W (at 110 V DC)
	40 W (at 220 V DC)
	1500 VA (for 250 V AC)
Output fuse	4 A gL/gG NEOZED
Switching capacity	2 A (at 24 V, DC13)
	0.2 A (at 110 V, DC13)
	0.1 A (at 220 V, DC13)
	3 A (at 24 V, AC15)
	3 A (at 120 V, AC15)
	3 A (at 230 V, AC15)



Connection data của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross-section rigid	0.14 mm² ... 2.5 mm²
Conductor cross-section flexible	0.14 mm² ... 2.5 mm²
	0.2 mm² ... 2.5 mm² (Single ferrule)
	2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
Conductor cross-section AWG	26 ... 14
Tightening torque	0.6 Nm ... 0.8 Nm



Dimensions của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

Item dimensions
Width	6.2 mm
Height	80 mm
Depth	94 mm



Material specifications của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

Color	gray (RAL 7042)
Flammability rating according to UL 94 (Housing)	V0 (Housing)



Environmental and real-life conditions của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

Ambient conditions
Degree of protection (Relay)	RT III (Relay)
Degree of protection (Relay base)	IP20 (Relay base)
Ambient temperature (operation)	-40 °C ... 60 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C



Approvals của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

CE
Certificate	CE-compliant
UKCA
Certificate	UKCA-compliant
Shipbuilding approval
Certificate	TAE0000196
Corrosive gas test
Identification	ISA-S71.04. G3 Harsh Group
	EN 60068-2-60
Shipbuilding data
Temperature	D
Humidity	A
Vibration	B/C
EMC	B
Enclosure	Required protection according to the Rules shall be provided upon installation on board



EMC data của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

Electromagnetic compatibility	Conformance with EMC directive
Low Voltage Directive	Conformance with Low Voltage Directive



Standards and Regulations của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

Standards/regulations

IEC 60947-5-1



Mounting của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

Mounting type	DIN rail mounting
Assembly note	in rows with zero spacing
Mounting position	any



Commercial của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

Item number	2966906
Packing unit	10 pc
Minimum order quantity	1 pc
Sales key	08
Product key	DK6226
GTIN	4017918159580
Weight per piece (including packing)	38.61 g
Weight per piece (excluding packing)	33.15 g
Customs tariff number	85364190
Country of origin	DE



Classificationscủa Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

ECLASS

ECLASS-13.0	27371601
ECLASS-15.0	27371601

ETIM

ETIM 10.0

EC001437

UNSPSC

UNSPSC 21.0

39122300



Approvals của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

cULus Listed

Approval ID: E140324

cULus Listed

Approval ID: E140324

cULus Listed

Approval ID: E140324

DNV

Approval ID: TAE0000196


Environmental product compliance của Rơ le SSR Phoenix Contact PLC-RSC- 12DC/21 - 2966906

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Hexahydromethylphthalic anhydride (CAS: n/a)
	Lead (CAS: 7439-92-1)
SCIP	b21c12f0-6f9f-42d9-b656-f8daedc362e8
EF3.1 Climate Change
CO2e kg	0.576 kg CO2e

---
