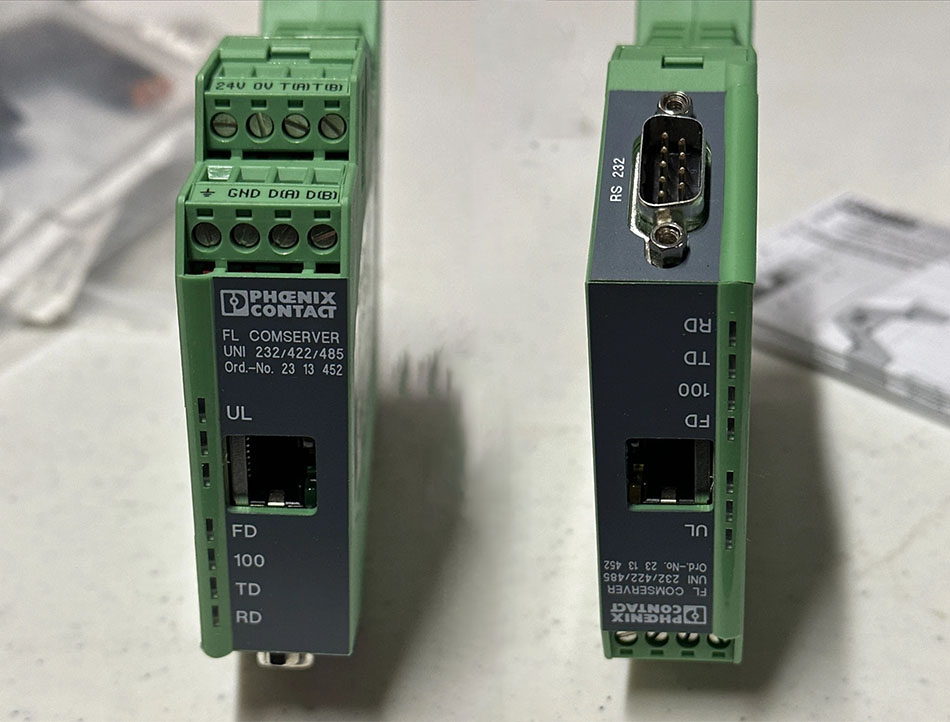

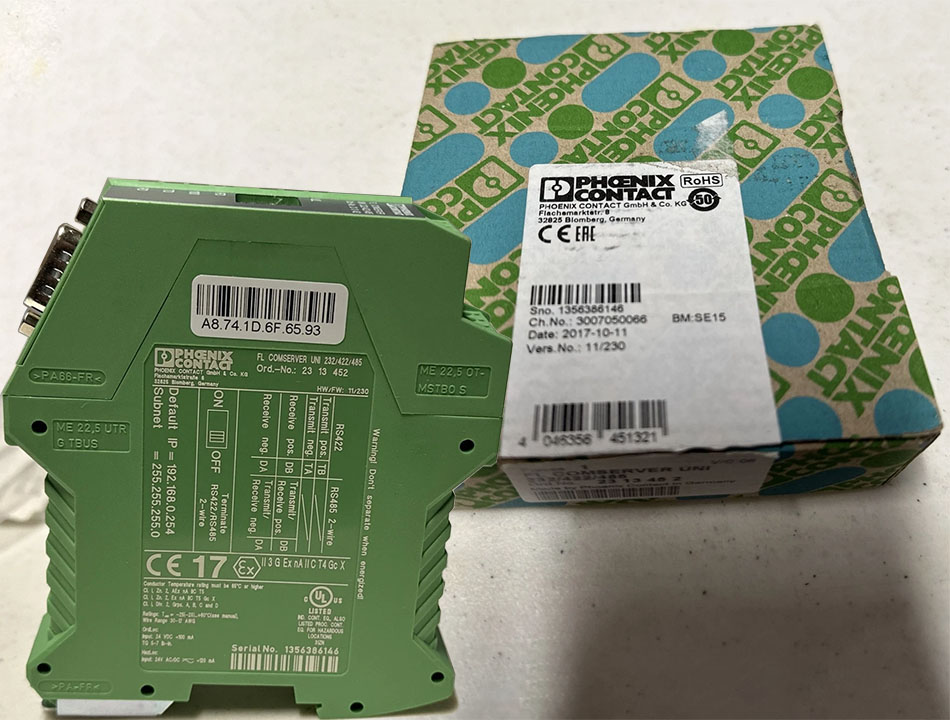

Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452 là Bộ chuyển đổi giao diện truyền thông, để chuyển đổi nối tiếp RS-232/422/485 sang Ethernet, TCP, UDP, Modbus, PPP



- Tài liệu kỹ thuật của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452 ở đây.



Product description của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

The FL COMSERVER...232/422/485 products are used to integrate serial V.24 (RS-232)/RS-422/RS-485 interfaces into existing Ethernet networks. This provides an easy way of implementing functions such as cable replacement, network integration or a Modbus gateway.



Note của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

Note on application
Note on application	Only for industrial use
Utilization restriction
CCCex note	Use in potentially explosive areas is not permitted in China.



Product properties của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

Product type	Interface converter
Application	TCP, UDP, Modbus gateway, PPP
MTTF	2013 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
	879 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
	359 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)
MTBF	666 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
	179 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day))



System properties của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

Modbus/TCP-Client
Number of Modbus/TCP clients	8
System requirements
Supported browsers	Netscape Communicator versions 4.5 and up or Internet Explorer versions 5.5 and up



Electrical properties của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

Electrical isolation	VCC // Ethernet // Serial
Maximum power dissipation for nominal condition	2.4 W
Test voltage data interface/data interface	1.5 kVrms (50 Hz, 1 min.)
Test voltage data interface/power supply	1.5 kVrms (50 Hz, 1 min.)
Supply
Supply voltage range	19.2 V AC/DC ... 28.8 V AC/DC (via pluggable COMBICON screw terminal block)
	22.8 V DC ... 25.2 V DC (as an alternative or redundant, via backplane bus contact and system current supply)
Typical current consumption	100 mA (24 V DC)
Function
Management	Web-based management, SNMP, emergency exit with Telnet and serial
Status and diagnostic indicators	LEDs: UL (logic voltage), TD + RD (data activity serial), FD (full duplex), 100 (100 Mbps mode), Link (Ethernet), Activity (Ethernet), ERR (error)



Connection data của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

Supply
Single conductor/terminal point, rigid	0.2 mm² ... 2.5 mm²
Single-wire/terminal point, flexible	0.2 mm² ... 2.5 mm²
Stripping length	7.00 mm
Tightening torque	0.5 Nm ... 0.6 Nm



Interfaces của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

Signal	Ethernet
	Modbus
Web server	yes
Data: Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3
Serial transmission speed	10/100 Mbps, auto negotiation
Connection method	RJ45 jack, shielded
No. of channels	1
Transmission length	≤ 100 m (shielded twisted pair)
Protocols supported	TCP/IP, UDP, Modbus (TCP, RTU/ASCII), PPP
Auxiliary protocols	ARP, DHCP, BOOTP, SNMP, RIP, RARP, HTTP, TFTP, ICMP
Data flow control/protocols	Modbus/TCP
Data: V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
Serial transmission speed	0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4 kbps
Connection method	D-SUB 9 plug
Tightening torque	0.4 Nm
Pin assignment	DTE/DCE switchover via web-based management
Transmission length	15 m
File format/coding	UART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity
Data flow control/protocols	Software handshake, Xon/Xoff, or hardware handshake RTS/CTS // 3964 R compatible, Modbus RTU/ASCII
Data: RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1
Serial transmission speed	0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4; 500; 1000 kbps
Connection method	Plug-in/screw connection via COMBICON
Transmission length	≤ 1200 m
Termination resistor	390 Ω (configurable)
	180 Ω
	390 Ω
File format/coding	UART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity
Data flow control/protocols	Automatic control
Data: RS-485 interface, in acc. with EIA/TIA-485, DIN 66259-4/RS-485 2-wire
Serial transmission speed	0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4; 500; 1000 kbps
Connection method	Plug-in/screw connection via COMBICON
Termination resistor	390 Ω
	180 Ω
	390 Ω (configurable)
File format/coding	UART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity
Data flow control/protocols	Automatic control



Dimensions của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

Width	22.5 mm
Height	99 mm
Depth	116 mm



Material specifications của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

Color (Housing)	green (RAL 6021)
Material (Housing)	PA 6.6-FR



Mechanical tests của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

Free fall in accordance with IEC 60068-2-32	Free fall: 1 m
Vibration resistance in accordance with EN 60068-2-6/IEC 60068-2-6	Vibration (operation): 5g, 10...150 Hz, 2.5 h, in XYZ direction
Shock in accordance with EN 60068-2-27/IEC 60068-2-27	Shock (operation): 15g, 11 ms period, half-sine shock pulse
	Shock (storage/transport): 30g, 11 ms period, half-sine shock pulse



Environmental and real-life conditions của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 60 °C
	-20 °C ... 60 °C (in acc. with UL)
Ambient temperature (storage/transport)	-25 °C ... 70 °C
Altitude	≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation)
Permissible humidity (operation)	10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)	5 % ... 95 % (non-condensing)



Approvals của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

CE
Certificate	CE-compliant
ATEX
Identification	 II 3 G Ex ec IIC T4 Gc
Certificate	PxCIF11ATEX2313478X
Note	Please follow the special installation instructions in the documentation!
UL, USA/Canada
Identification	508 Listed
	Class I, Div. 2, Groups A, B, C, D
UL, USA
Identification	Class I, Zone 2, AEx nA IIC T5
UL, Canada
Identification	Class I, Zone 2, Ex nA IIC T5 Gc X
KC approval for South Korea
Certificate	MSIP-REI-PCK-2313452
Corrosive gas test
Identification	ISA-S71.04-1985 G3 Harsh Group A



EMC data của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Noise immunity	EN 61000-6-2:2005
Noise emission
Standards/regulations	EN 61000-6-4
Electrostatic discharge
Standards/regulations	EN 61000-4-2
Electrostatic discharge
Contact discharge	± 6 kV
Discharge in air	± 8 kV
Comments	Criterion B
Electromagnetic HF field
Standards/regulations	EN 61000-4-3
Electromagnetic HF field
Field intensity	10 V/m
Comments	Criterion A
Fast transients (burst)
Standards/regulations	EN 61000-4-4
Fast transients (burst)
Input	2 kV (5 kHz)
Signal	1 kV (5 kHz)
Comments	Criterion A
Surge current load (surge)
Standards/regulations	EN 61000-4-5
Surge current load (surge)
Input	2 kV
Signal	1 kV
Comments	Criterion B
Conducted interference
Standards/regulations	EN 61000-4-6
Conducted interference
Comments	Criterion A
Voltage	10 V
Emitted interference
Standards/regulations	EN 55032
Criteria
Criterion A	Normal operating behavior within the specified limits.
Criterion B	Temporary impairment to operational behavior that is corrected by the device itself.



Standards and Regulations của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

Free from substances that could impair the application of coating	VDMA 24364:2018-05
Standards/regulations	EN 50121-4



Mounting của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

Mounting type	DIN rail mounting
Assembly note	The product can be snapped onto all 35 mm DIN rails in accordance with EN 60715.
Useable DIN rail type	DIN rail: 35 mm



Commercial data của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

Item number	2313452
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	DNC321
GTIN	4046356451321
Weight per piece (including packing)	172.9 g
Weight per piece (excluding packing)	120.26 g
Customs tariff number	85176200
Country of origin	DE



Classifications của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

ECLASS

ECLASS-13.0	27242208
ECLASS-15.0	27242208



ETIM

ETIM 9.0

EC001423



UNSPSC

UNSPSC 21.0

43222600



Approvals của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

EAC

Approval ID: RU D-DE.GB09.B.00312


UL Listed

Approval ID: E238705


cUL Listed

Approval ID: E238705


KC

Approval ID: MSIP-REI-PCK-2313452


cUL Listed

Approval ID: E199827


UL Listed

Approval ID: E199827


Environmental product compliance của Bộ chuyển đổi giao diện Phoenix Contact FL COMSERVER UNI 232/422/485 - 2313452

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	19a2f08d-521a-4fb9-860d-39c82142c9b4
EF3.0 Climate Change
CO2e kg	17.23 kg CO2e
