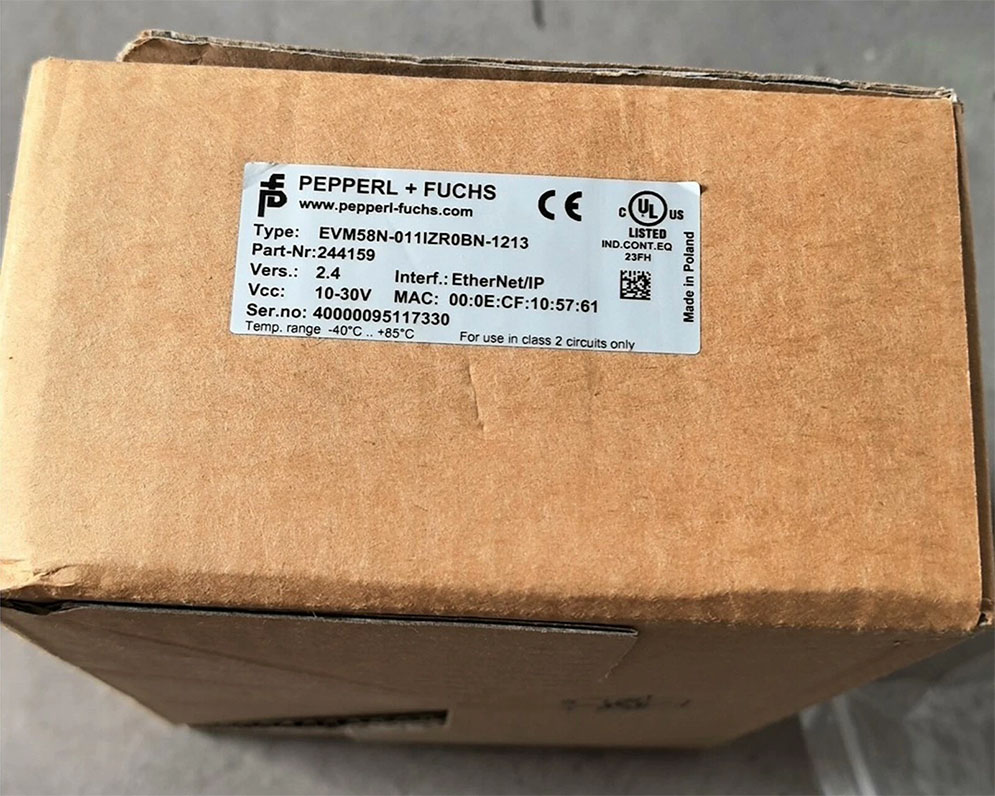

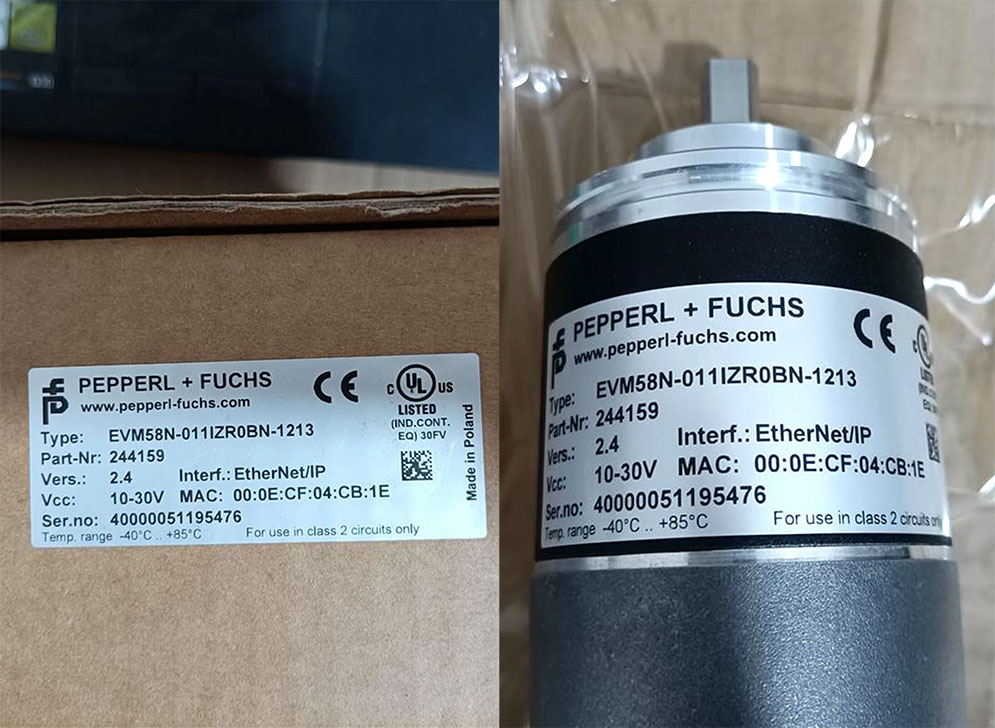

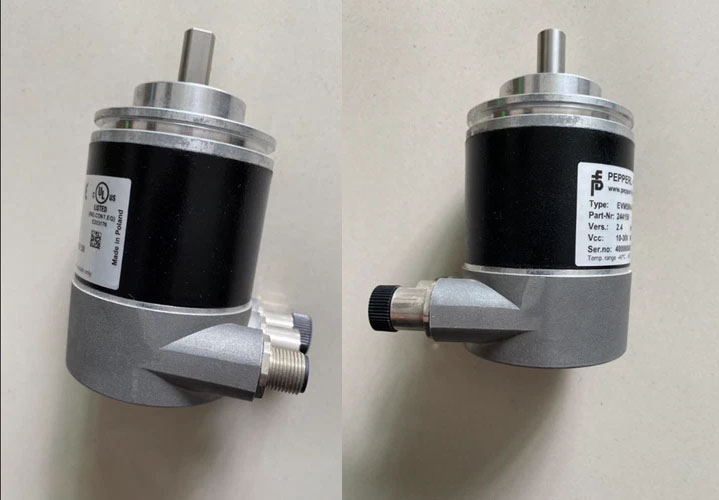

Pepperl Fuchs EVM58-IZ | EVM58N-011IZR0BN-1213 là Bộ mã hóa vòng quay tuyệt đối đa vòng, EtherNet/IP, 25-bit (13-bit đơn và 12-bit đa vòng)

H01: Bộ mã hóa vòng quay tuyệt đối đa vòng (multiturn) EVM58-IZ có các ưu điểm chính, như:
- Vỏ máy tiêu chuẩn công nghiệp đường kính ∅58 mm
- Giao tiếp EtherNet/IP
- Độ phân giải đa vòng lên đến 30-bit
- Tùy chọn mặt bích kiểu servo hoặc kiểu kẹp (clamping flange)
- Hỗ trợ kết nối mạng nối tiếp (loop-through) nhờ bộ chuyển mạch (switch) 2 cổng tích hợp
- Có thể thiết lập lại địa chỉ IP
- Không sử dụng công tắc DIP để cài đặt địa chỉ
- Tương thích với hệ thống điều khiển của Rockwell/Allen Bradley/Schneider
- Tương thích về mặt cơ học với các loại bộ mã hóa phổ biến có giao diện fieldbus
- Chức năng trục quay (rotary axis)
- Đèn LED hiển thị trạng thái
- Tuyên bố hợp quy Ethernet/IP
- Hồ sơ thiết bị (profile) CIP encoder


- Tài liệu kỹ thuật của Bộ encorder Pepperl Fuchs EVM58-IZ | EVM58N-011IZR0BN-1213 ở đây.



Thông số kỹ thuật của Bộ encorder Pepperl Fuchs EVM58-IZ | EVM58N-011IZR0BN-1213

General specifications của Bộ encorder Pepperl Fuchs EVM58-IZ | EVM58N-011IZR0BN-1213

Detection type		photoelectric sampling
Device type		Multiturn absolute rotary encoder



Functional safety related parameters của Bộ encorder Pepperl Fuchs EVM58-IZ | EVM58N-011IZR0BN-1213

MTTFd		120 a
Mission Time (TM)		20 a
L10		1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load
Diagnostic Coverage (DC)		0 %



Electrical specifications của Bộ encorder Pepperl Fuchs EVM58-IZ | EVM58N-011IZR0BN-1213

Operating voltage	UB	10 ... 30 V DC
Power consumption	P0	max. 4 W
Linearity		± 0.5 LSB (12 Bit) ,
Output code		binary code
Code course (counting direction)		programmable, cw ascending (clockwise rotation, code course ascending) cw descending (clockwise rotation, code course descending)



Interface của Bộ encorder Pepperl Fuchs EVM58-IZ | EVM58N-011IZR0BN-1213

Interface type		EtherNet/IP
Resolution
Single turn   up to 16 Bit Multiturn   14 Bit Overall resolution   up to 30 Bit
Physical		Ethernet
Transfer rate		100 MBit/s



Connection của Bộ encorder Pepperl Fuchs EVM58-IZ | EVM58N-011IZR0BN-1213

Connector

Ethernet: 2 sockets M12 x 1, 4-pin, D-coded Supply: 1 plug M12 x 1, 4-pin, A-coded



Standard conformity của Bộ encorder Pepperl Fuchs EVM58-IZ | EVM58N-011IZR0BN-1213

Degree of protection		DIN EN 60529, shaft side: IP64 (without shaft seal)/IP66 (with shaft seal) housing side: IP65 Stainless steel version (INOX): completely IP67
Climatic testing		DIN EN 60068-2-3, no moisture condensation
Emitted interference		EN 61000-6-4:2007
Noise immunity		EN 61000-6-2:2005
Shock resistance		DIN EN 60068-2-27, 100 g, 6 ms
Vibration resistance		DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz



Approvals and certificates của Bộ encorder Pepperl Fuchs EVM58-IZ | EVM58N-011IZR0BN-1213

UL approval

cULus Listed, General Purpose, Class 2 Power Source



Ambient conditions của Bộ encorder Pepperl Fuchs EVM58-IZ | EVM58N-011IZR0BN-1213

Operating temperature		-40 ... 85 °C (-40 ... 185 °F)
Storage temperature		-40 ... 85 °C (-40 ... 185 °F)



Mechanical specifications của Bộ encorder Pepperl Fuchs EVM58-IZ | EVM58N-011IZR0BN-1213

Material		housing: powder coated aluminum flange: aluminum shaft: stainless steel
Combination 1   housing: powder coated aluminum flange: aluminum shaft: stainless steel Combination 2 (Inox)   housing: stainless steel 1.4305 / AISI 303 flange: stainless steel 1.4301 / AISI 304 shaft: stainless steel 1.4305 / AISI 303
Mass		approx. 370 g (combination 1) approx. 840 g (combination 2)
Rotational speed		max. 12000 min -1
Moment of inertia		30 gcm2
Starting torque		≤ 3 Ncm (version without shaft seal)
Shaft load
Axial   40 N Radial   110 N
Dimensions
Diameter   59 mm
