Cảm biến quang Pepperl Fuchs OBG5000-R100-2EP-IO-V31

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm PEPPERL-FUCHS

•

  W9 Photoelectric retro-reflective sensors, Dòng cảm biến quang phản xạ hồi quy của Sick

•

  Cảm biến quang phản xạ hồi quy Sick W18-3 Series

• Xem thêm

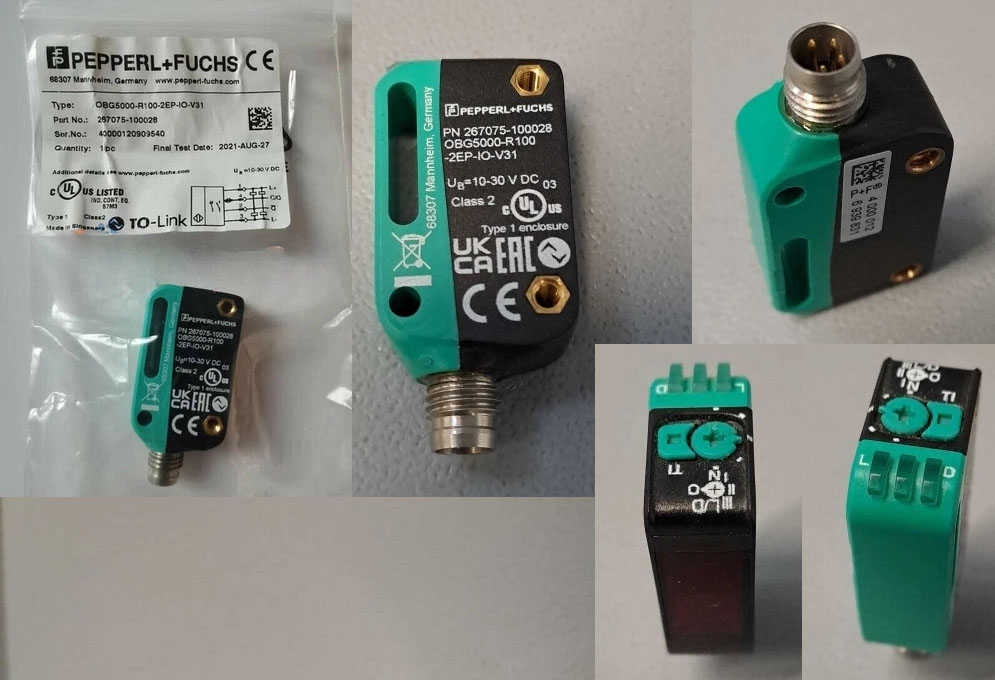

Pepperl Fuchs OBG5000-R100-2EP-IO-V31 là Cảm biến quang, 0-3.5m(Teach) 0-5m("N"), 10-30VDC, 2 Push-Pull, IO-Link, M8 4-Pin, Polycarbonate, IP67 IP69 IP69K

- Tài liệu kỹ thuật của ở đây.


Key Benefits at a Glance
Miniature design with versatile mounting options
Detects transparent objects, i.e., clear glass, PET and transparent films
Two machines in one: clear object detection or reflection operating mode with long range
High degree of protection IP69K
IO-Link interface for service and process data



Technical data of OBG5000-R100-2EP-IO-V31

General specifications

Effective detection range		0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N"
Reflector distance		0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N"
Threshold detection range		6 m
Reference target		H85-2 reflector
Light source		LED
Light type		modulated visible red light
LED risk group labelling		exempt group
Diameter of the light spot		approx. 170 mm at a distance of 3.5 m
Opening angle		approx. 5 °
Ambient light limit		EN 60947-5-2

Functional safety related parameters

MTTFd		600 a
Mission Time (TM)		20 a
Diagnostic Coverage (DC)		0 %

Indicators/operating means

Operation indicator		LED green: constantly on - power on flashing (4Hz) - short circuit flashing with short break (1 Hz) - IO-Link mode
Function indicator		Yellow LED: Permanently lit - light path clear Permanently off - object detected Flashing (4 Hz) - insufficient operating reserve
Control elements		Teach-In key
Control elements		5-step rotary switch for operating modes selection
Contrast detection levels		10 % - clean, water filled PET bottles 18 % - clear glass bottles 40 % - colored glass or opaque materials Adjustable via rotary switch

Electrical specifications

Operating voltage	UB	10 ... 30 V DC
Ripple		max. 10 %
No-load supply current	I0	< 25 mA at 24 V supply voltage
Protection class		III

Interface

Interface type		IO-Link ( via C/Q = pin 4 )
IO-Link revision		1.1
Device ID		0x110A01 (1116673)
Transfer rate		COM2 (38.4 kBit/s)
Min. cycle time		2.3 ms
Process data width		Process data input 2 Bit Process data output 2 Bit
SIO mode support		yes
Compatible master port type		A

Output

Switching type		The switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on
Signal output		2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected
Switching voltage		max. 30 V DC
Switching current		max. 100 mA , resistive load
Usage category		DC-12 and DC-13
Voltage drop	Ud	≤ 1.5 V DC
Switching frequency	f	500 Hz
Response time		1 ms

Conformity

Communication interface		IEC 61131-9
Product standard		EN 60947-5-2

Approvals and certificates

UL approval

E87056 , cULus Listed , class 2 power supply , type rating 1

Ambient conditions

Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Storage temperature		-40 ... 70 °C (-40 ... 158 °F)

Mechanical specifications

Degree of protection		IP67 / IP69 / IP69K
Connection		M8 x 1 connector, 4-pin
Material
Housing   PC (Polycarbonate) Optical face   PMMA
Mass		approx. 10 g
Dimensions
Height   44.5 mm Width   11 mm Depth   21.5 mm
