Cảm biến quang phản xạ hội tụ Pepperl Fuchs RL31-54/73c/136 | 156213

Cảm biến quang phản xạ hội tụ Pepperl Fuchs RL31-54/73c/136 | 156213

67
Nhà sản xuất:

Pepperl-Fuchs

;

Xuất xứ: Germany

Giá sỉ:

Giá tốt nhất xem...0909186879 dienelectrics@gmail.com

Khuyến mãi:Có Discount
Bảo hành:12 Tháng (Chính hãng)
Thanh toán:C.O.D / Bảo lãnh TT / Link hoạt
Vận chuyển:Miễn phí Tp.HCM, vùng lân cận
Thông tin nổi bật
Cảm biến quang phản xạ hội tụ, với bộ lọc phân cực, vỏ nhựa, Phạm vi phát hiện hiệu quả 0-9000mm, Khoảng cách phản xạ 20-9000mm, Phạm vi phát hiện ngưỡng 12m, Đèn LED đỏ 630nm, Đường kính điểm sáng khoảng 200mm ở khoảng cách 6m, Góc mở 3°, Đèn LED chỉ báo hoạt động màu xanh lá cây: bật nguồn, Đèn LED chỉ báo chức năng màu vàng 1. Đèn LED sáng liên tục: tín hiệu > 2 x điểm chuyển mạch (dự phòng hoạt động); 2. Đèn LED nhấp nháy: tín hiệu giữa 1 x điểm chuyển mạch và 2 x điểm chuyển mạch; 3. Đèn LED tắt: tín hiệu < điểm chuyển mạch, Điện áp hoạt động 10-30VDC, Loại chuyển mạch tối-bật (dark-on), Đầu ra tín hiệu 2 đầu ra đẩy-kéo (push-pull) (4 trong 1), bảo vệ ngắn mạch, bảo vệ phân cực ngược, IP67, 4-pin M12x1Connector, H62xW18xD35mm.

Pepperl Fuchs RL31-54/73c/136 | 156213 là Cảm biến quang phản xạ hội tụ, bộ lọc phân cực, vỏ nhựa, 20-9000mm, 3°, LED đỏ, Dark on, DC, 2xPush-pull, M12-plug

Cảm biến quang phản xạ hội tụ với bộ lọc phân cực, vỏ nhựa, 20-9000mm, 3°, LED đỏ, Dark on, DC, 2xPush-pull, M12-plug; CO CQ, BH 12 tháng, có CK


- Tài liệu kỹ thuật của Cảm biến quang Pepperl Fuchs RL31-54/73c/136 | 156213 ở đây.


Description của Cảm biến quang Pepperl Fuchs RL31-54/73c/136 | 156213

Retroreflective sensor with polarization filter, plastic housing, 9 m detection range, red light, dark on, DC version, 2 push-pull outputs, no control elements, M12 plug


Thông số chung của Cảm biến quang Pepperl Fuchs RL31-54/73c/136 | 156213

Effective detection range   0 ... 9000 mm
Reflector distance   20 ... 9000 mm
Threshold detection range   12 m
Reference target   reflector C110-2
Light source   LED
Light type   modulated visible red light , 630 nm
Polarization filter   yes
Diameter of the light spot   approx. 200 mm at a distance of 6 m
Opening angle   3 °
Ambient light limit   50000 Lux ; according to EN 60947-5-2


Functional safety related parameters của Cảm biến quang Pepperl Fuchs RL31-54/73c/136 | 156213

MTTFd   920 a
Mission Time (TM)   20 a
Diagnostic Coverage (DC)   0 %

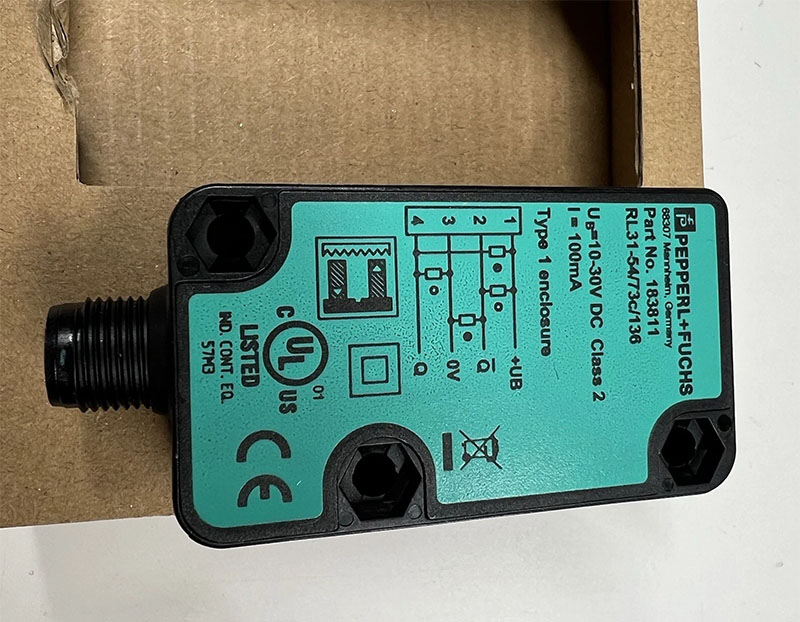

Cảm biến quang phản xạ hội tụ Pepperl Fuchs RL31-54/73c/136 | 156213


Indicators/operating means của Cảm biến quang Pepperl Fuchs RL31-54/73c/136 | 156213

Operation indicator   LED green: power on
Function indicator   LED yellow:
1. LED lit constantly: signal > 2 x switching point (operating reserve)
2. LED flashes: signal between 1 x switching point and 2 x switching point
3. LED off: signal < switching point


Electrical specifications của Cảm biến quang Pepperl Fuchs RL31-54/73c/136 | 156213

Operating voltage UB 10 ... 30 V DC
Ripple   10 %
No-load supply current I0 ≤ 20 mA


Output của Cảm biến quang Pepperl Fuchs RL31-54/73c/136 | 156213

Switching type   dark-on
Signal output   2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected
Switching voltage   max. 30 V DC
Switching current   max. 100 mA
Voltage drop Ud ≤ 1.5 V
Switching frequency f ≤ 500 Hz
Response time   ≤ 1 ms
Phạm vi phát hiện hiệu quả 0-9000mm, Khoảng cách phản xạ 20-9000mm, Phạm vi phát hiện ngưỡng 12m, LED đỏ 630nm, 200mm cách 6m, Góc 3°, 10-30VDC, dark-on, Đầu ra 2 push-pull (4 in 1), bảo vệ ngắn mạch-phân cực ngược, IP67, M12 4-Pin, H62xW18xD35mm


Conformity của Cảm biến quang Pepperl Fuchs RL31-54/73c/136 | 156213

Product standard   EN 60947-5-2


Approvals and certificates của Cảm biến quang Pepperl Fuchs RL31-54/73c/136 | 156213

Protection class   II , rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit basis insulation of input circuit according to EN 50178, rated insulation voltage 240 V AC
UL approval   cULus Listed, Class 2 Power Source, Type 1 enclosure
CCC approval   CCC approval / marking not required for products rated ≤36 V

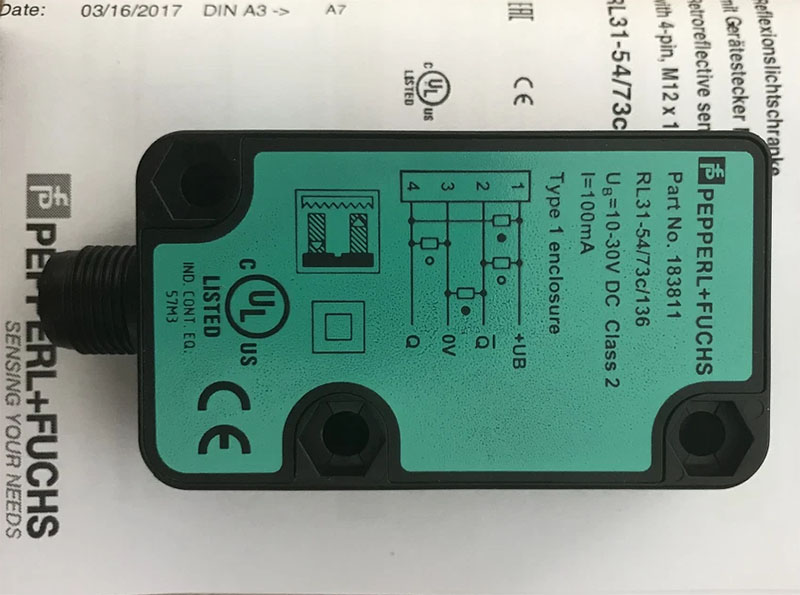

Cảm biến quang phản xạ hội tụ Pepperl Fuchs RL31-54/73c/136 | 156213


Ambient conditions của Cảm biến quang Pepperl Fuchs RL31-54/73c/136 | 156213

Ambient temperature   -30 ... 55 °C (-22 ... 131 °F)
Storage temperature   -40 ... 70 °C (-40 ... 158 °F)


Mechanical specifications của Cảm biến quang Pepperl Fuchs RL31-54/73c/136 | 156213

Degree of protection   IP67
Connection   4-pin, M12 x 1 connector
Material
Housing   plastic
Optical face   PMMA
Mass   24 g
Dimensions
Height   62 mm
Width   18 mm
Depth   35 mm

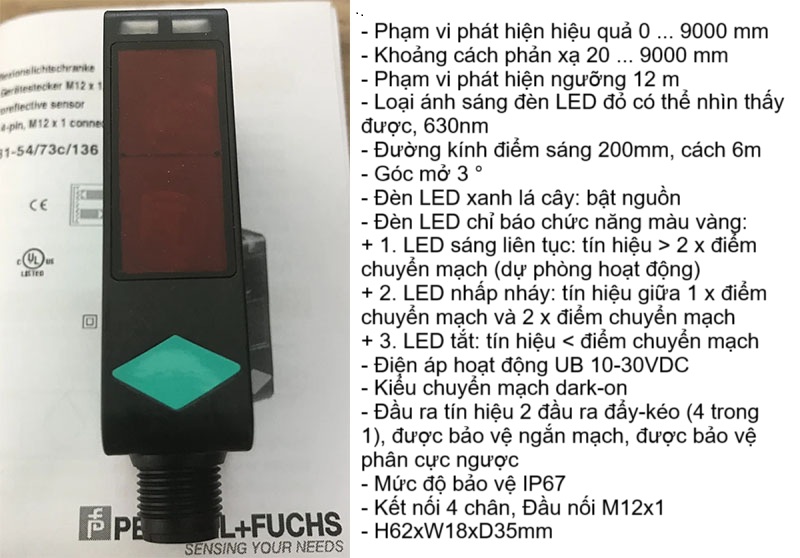

Cảm biến quang phản xạ hội tụ Pepperl Fuchs RL31-54/73c/136 | 156213


Classification của Cảm biến quang Pepperl Fuchs RL31-54/73c/136 | 156213

Classification Classcode
ECLASS 5.1 27270902
ECLASS 8.0 27270902
ECLASS 9.0 27270902
ECLASS 10.0.1 27270902
ECLASS 11.0 27270902
ECLASS 13.0 27270902
ECLASS 14.0 27270902
ETIM 5.0 EC002717
ETIM 6.0 EC002717
ETIM 7.0 EC002717
ETIM 8.0 EC002717
ETIM 9.0 EC002717
UNSPSC 12.1 39121528

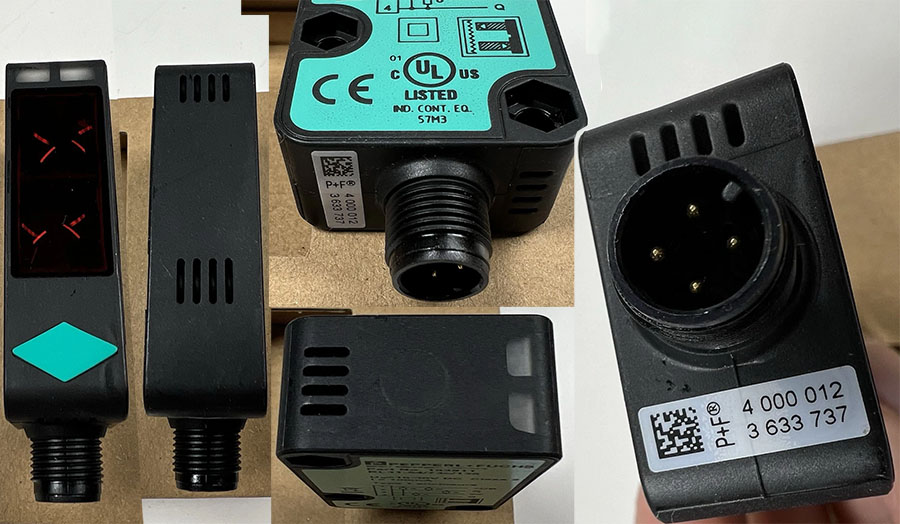

Cảm biến quang phản xạ hội tụ Pepperl Fuchs RL31-54/73c/136 | 156213
