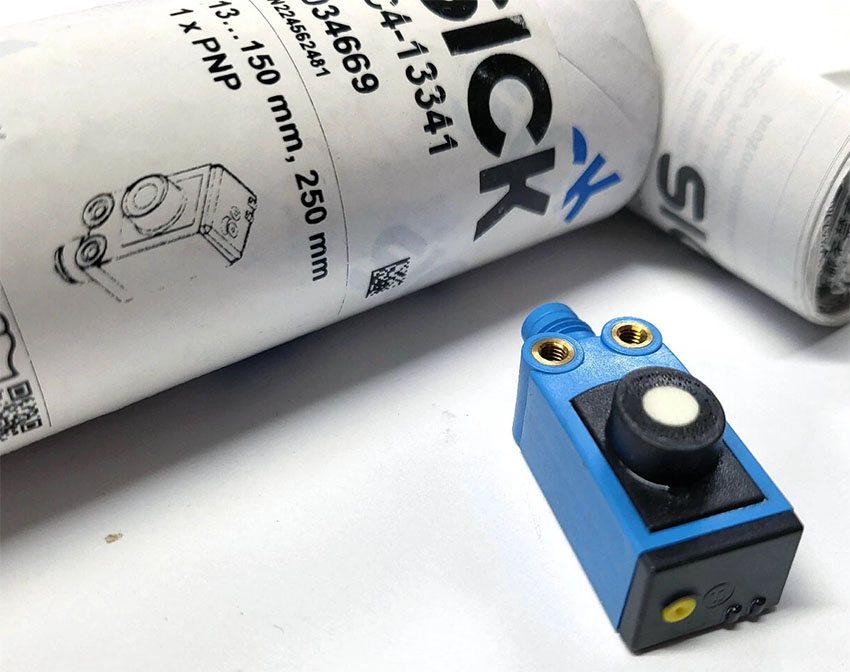

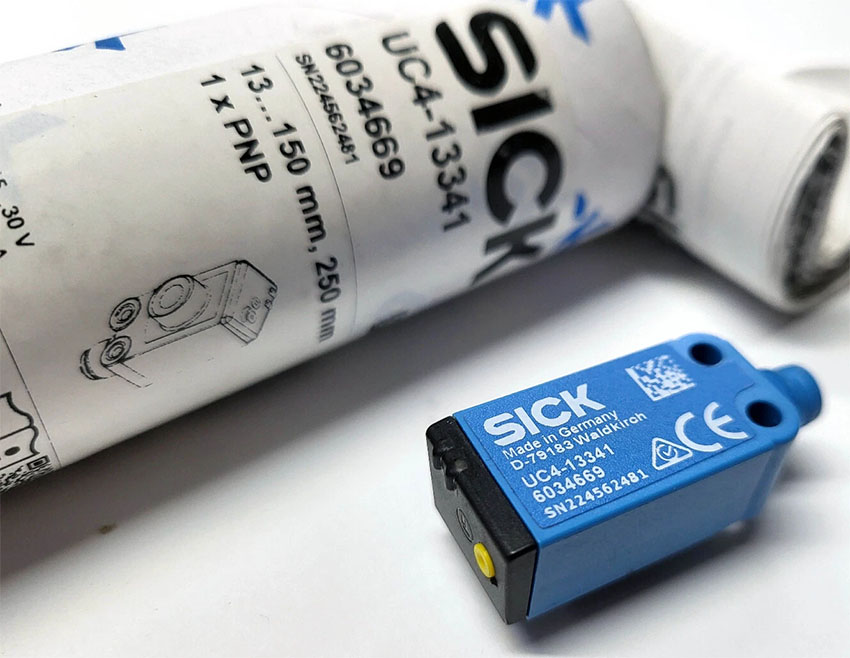

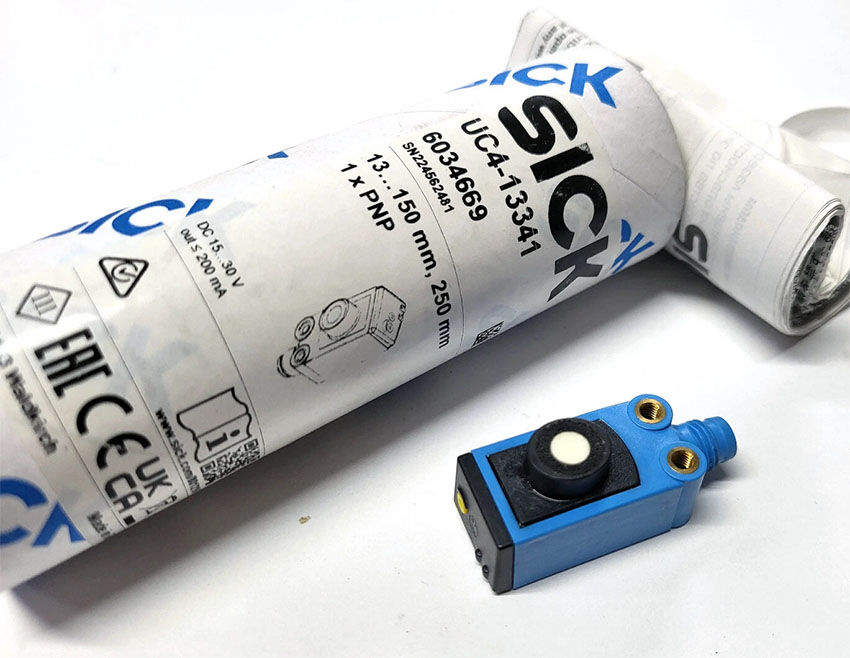

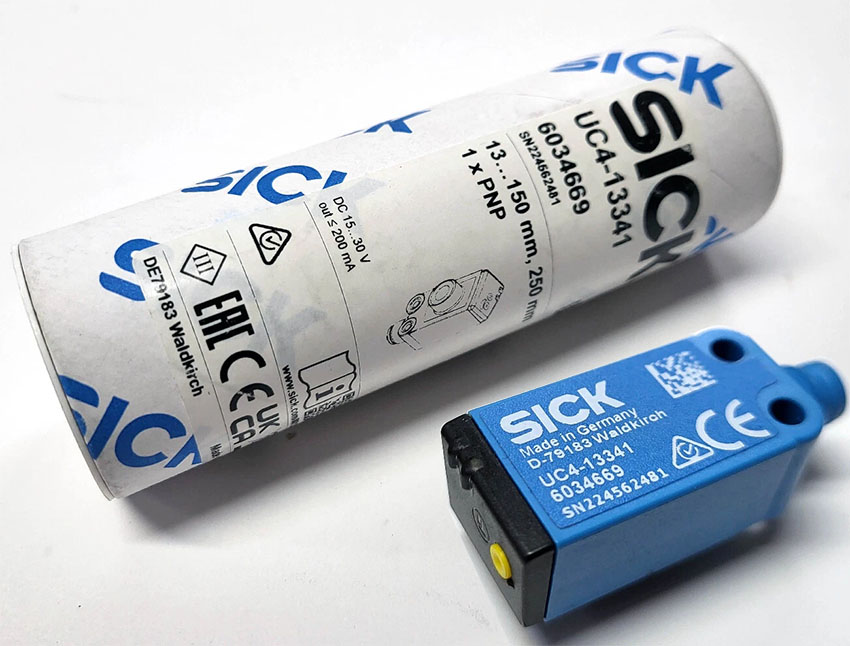

Sick UC4-13341 | 6034669 là Cảm biến siêu âm dùng để đo khoảng cách, 13...150mm, 250mm, 24ms, 30Hz, 8ms, 380kHz, PNP, IP65 IP67, Male M8 3-pin
- Tài liệu kỹ thuật của Cảm biến siêu âm đo khoảng cách Sick UC4-13341 | 6034669 ở đây.
Features của Cảm biến siêu âm đo khoảng cách Sick UC4-13341 | 6034669
| Operating range, limiting range |
13 mm ... 150 mm, 250 mm 1) |
| Target |
Natural objects |
| Resolution |
≥ 0.1 mm |
| Repeatability |
± 0.15 % 2) |
| Measurement accuracy |
± 1 % 3) |
| Temperature compensation |
✔ |
| Response time |
24 ms |
| Switching frequency |
30 Hz |
| Output time |
8 ms |
| Ultrasonic frequency (typical) |
380 kHz |
| Detection area (typical) |
See diagrams |
| Additional function |
Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB), teach-in of digital output, invertable digital output, teach-in button(s) (can be deactivated), reset to factory default 4) |
| Safety-related parameters |
|
| MTTFD |
101 years |
| DCavg |
0% |
|
1) Teach-in from 21 mm.
2) In relation to the current measured value, minimum value ≥ resolution.
3) Referring to current measurement value.
4) Functions may vary depending on sensor type.
Interfaces của Cảm biến siêu âm đo khoảng cách Sick UC4-13341 | 6034669
| Digital output |
|
| Number |
1 1) |
| Type |
PNP |
| Maximum output current IA |
≤ 200 mA |
|
| Hysteresis |
2 mm |
1) PNP: HIGH = VS - (< 2 V) / LOW = 0 V.
Electronics của Cảm biến siêu âm đo khoảng cách Sick UC4-13341 | 6034669
| Supply voltage UB |
DC 15 V ... 30 V 1) |
| Power consumption |
≤ 0.75 W 2) |
| Initialization time |
< 300 ms |
| Indication |
2 x LED |
| Enclosure rating |
IP65 / IP67 |
| Protection class |
III |
1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
2) Without load.
Mechanics của Cảm biến siêu âm đo khoảng cách Sick UC4-13341 | 6034669
| Dimensions (W x H x D) |
16 mm x 40.1 mm x 16.7 mm |
| Design |
Rectangular |
| Sending axis |
Straight |
| Housing material |
Plastic (ABS, ultrasonic transducer: polyurethane foam, glass epoxy resin) |
| Weight |
10 g |
| Connection type |
Male connector, M8, 3-pin |
Ambient data của Cảm biến siêu âm đo khoảng cách Sick UC4-13341 | 6034669
| Ambient temperature, operation |
–25 °C ... +70 °C 1) |
| Ambient temperature, storage |
–40 °C ... +85 °C |
1) At operating temperatures of > 50 °C, the rear side of the UC4 must be installed with its surface flat against a bracket.
Certificates của Cảm biến siêu âm đo khoảng cách Sick UC4-13341 | 6034669
| EU declaration of conformity |
✔ |
| UK declaration of conformity |
✔ |
| ACMA declaration of conformity |
✔ |
| Moroccan declaration of conformity |
✔ |
| China-RoHS |
✔ |
| cULus certificate |
✔ |
Classifications của Cảm biến siêu âm đo khoảng cách Sick UC4-13341 | 6034669
| ECLASS 5.0 |
27270804 |
| ECLASS 5.1.4 |
27270804 |
| ECLASS 6.0 |
27270804 |
| ECLASS 6.2 |
27270804 |
| ECLASS 7.0 |
27270804 |
| ECLASS 8.0 |
27270804 |
| ECLASS 8.1 |
27270804 |
| ECLASS 9.0 |
27270804 |
| ECLASS 10.0 |
27270804 |
| ECLASS 11.0 |
27270804 |
| ECLASS 12.0 |
27272806 |
| ETIM 5.0 |
EC001846 |
| ETIM 6.0 |
EC001846 |
| ETIM 7.0 |
EC001846 |
| ETIM 8.0 |
EC001846 |
| UNSPSC 16.0901 |
41111960 |
Technical drawings của Cảm biến siêu âm đo khoảng cách Sick UC4-13341 | 6034669

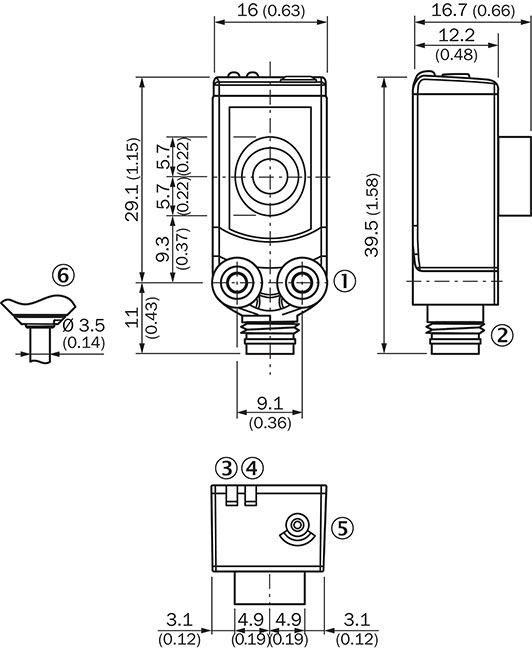

Dimensional drawing
Dimensions in mm (inch)
① Threaded mounting hole M3
② Connection
③ status indicator digital output (orange)
④ Status display for supply voltage active (green)
⑤ Control elements

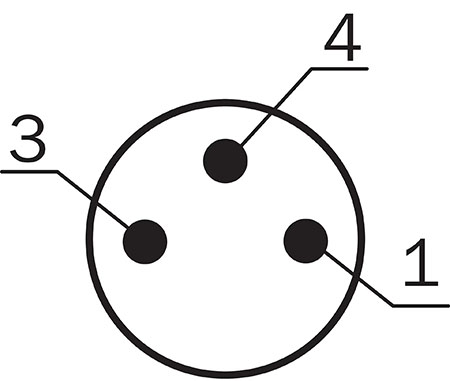

Connection type Connector M8, 3-pin

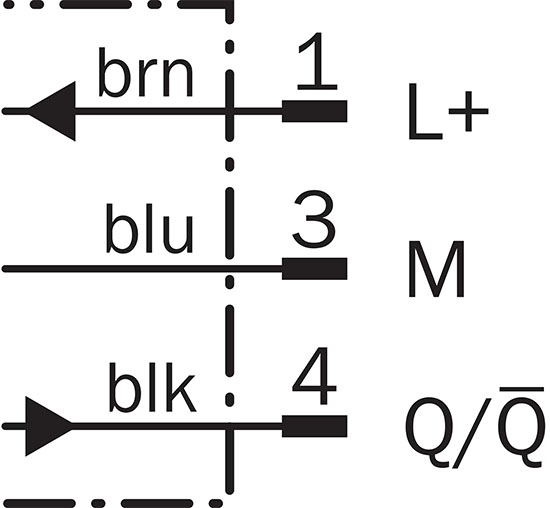

Connection diagram

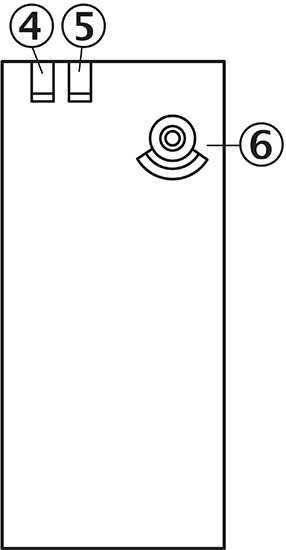

Adjustment possible
④ status indicator digital output (orange)
⑤ Status display for supply voltage active (green)
⑥ Control elements

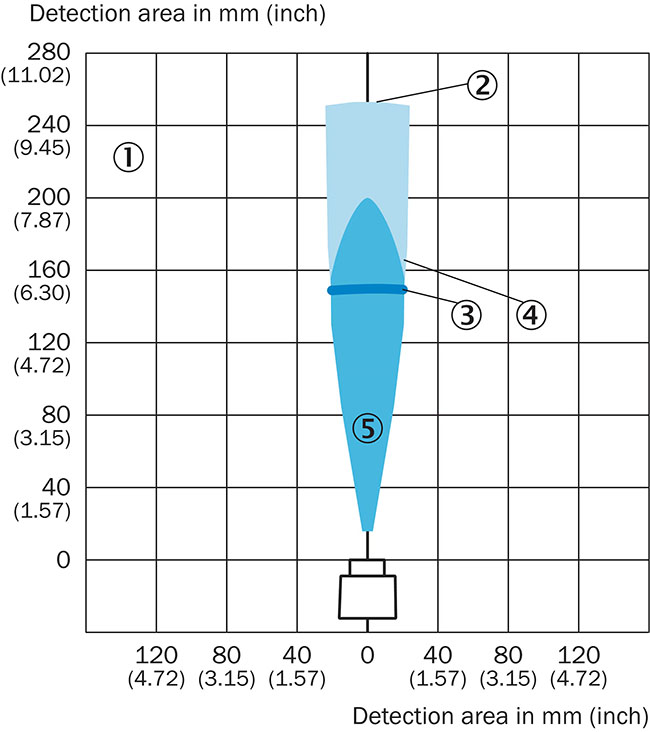

Detection area UC4-13
① Detection range dependent on reflection properties, size, and alignment of the object
② Limiting range
③ operating range
④ Example object: aligned plate 100 mm x 100 mm
⑤ Example object: cylindrical bar with a diameter of 10 mm
Customs data của Cảm biến siêu âm đo khoảng cách Sick UC4-13341 | 6034669
| Unit weight |
38.000 Grams |
| Net unit weight |
38 Grams |
| Unit volume |
142.154 Cubic Centimetres (cm³) |
| Country of origin |
Germany |
