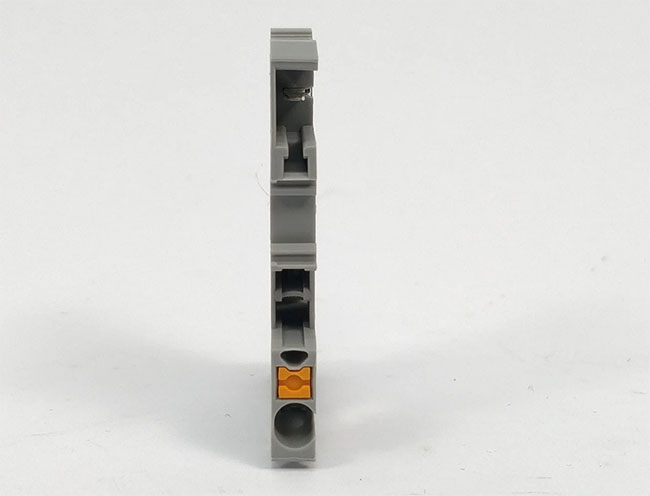

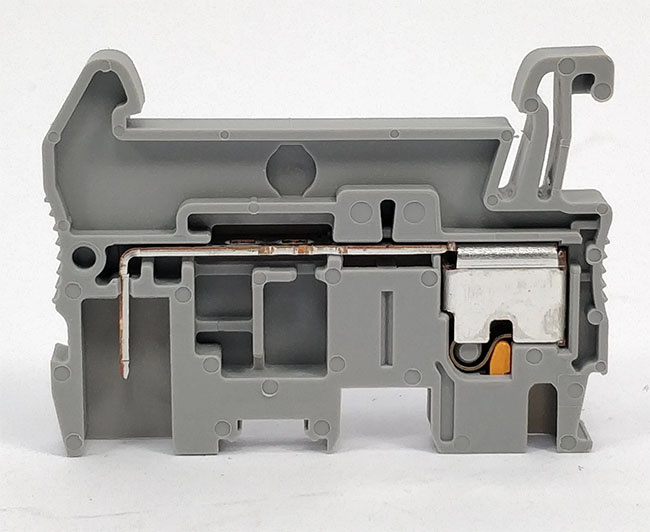

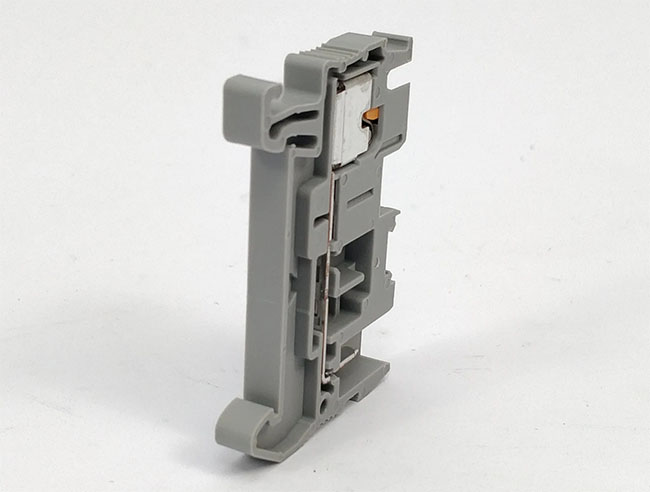

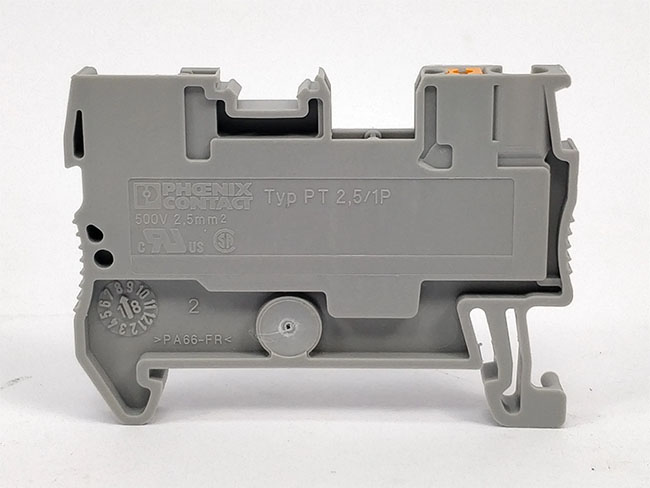

Phoenix Contact PT 2,5/1P - 3210033 là Cầu đấu nối dây điện 2.5mm2 500V 24A Push-in/Plug Xám



- Tài liệu kỹ thuật của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033 ở đây.



Technical data của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

Notes của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

General	Current and voltage are determined by the plug used.
General
Note	With a free-hanging connection, an insulating foil has to be placed between the plug connection and electrically conductive surfaces.
	Current and voltage are determined by the plug used



Product properties của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

Product type	Plug-in terminal block
Product family	PT
Area of application	Railway industry
	Machine building
	Plant engineering
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3



Electrical properties của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	0.77 W



Connection data của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

Number of connections per level	2
Nominal cross section	2.5 mm²
Stripping length	8 mm ... 10 mm
Internal cylindrical gage	A3
Connection in acc. with standard	IEC 61984
Conductor cross section rigid	0.14 mm² ... 4 mm²
Cross section AWG	26 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]	26 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm²
Nominal current	24 A
Maximum load current	24 A (with 4 mm² conductor cross section, rigid)
Nominal voltage	500 V
Nominal cross section	2.5 mm²
Connection cross sections directly pluggable
Conductor cross section rigid	0.34 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.34 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.34 mm² ... 2.5 mm²

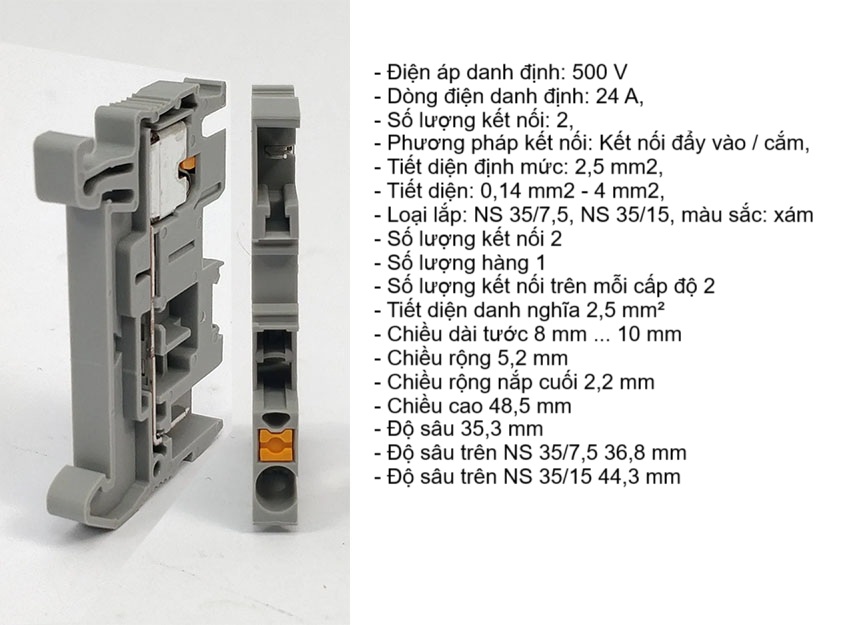

Dimensions của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

Width	5.2 mm
End cover width	2.2 mm
Height	48.5 mm
Depth	35.3 mm
Depth on NS 35/7,5	36.8 mm
Depth on NS 35/15	44.3 mm



Material specifications của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed



Electrical tests của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

Surge voltage test
Test voltage setpoint	7.3 kV
Result	Test passed
Short-time withstand current 1.5 mm²	0.18 kA
Short-time withstand current 4 mm²	0.48 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	1.89 kV
Result	Test passed



Mechanical properties của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

Mechanical data
Open side panel	Yes



Mechanical tests của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

Attachment on the carrier
Test force setpoint	1 N
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 rpm
Revolutions	135
Conductor cross section/weight	0.14 mm² / 0.2 kg
	2.5 mm² / 0.7 kg
	4 mm² / 0.9 kg
Result	Test passed



Environmental and real-life conditions của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2022-06
Spectrum	Long life test category 1, class B, body mounted
Frequency	f1 = 5 Hz to f2 = 150 Hz
ASD level	0.964 (m/s²)²/Hz
Acceleration	0.58g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Specification	DIN EN 50155 (VDE 0115-200):2022-06
Pulse shape	Half-sine
Acceleration	5g
Shock duration	30 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 100 °C (max. operating temperature range including self-heating, see derating curve)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %



Standards and regulations của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

Connection in acc. with standard

IEC 61984



Mounting của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

Mounting type	NS 35/7,5
	NS 35/15



Commercial data của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

Item number	3210033

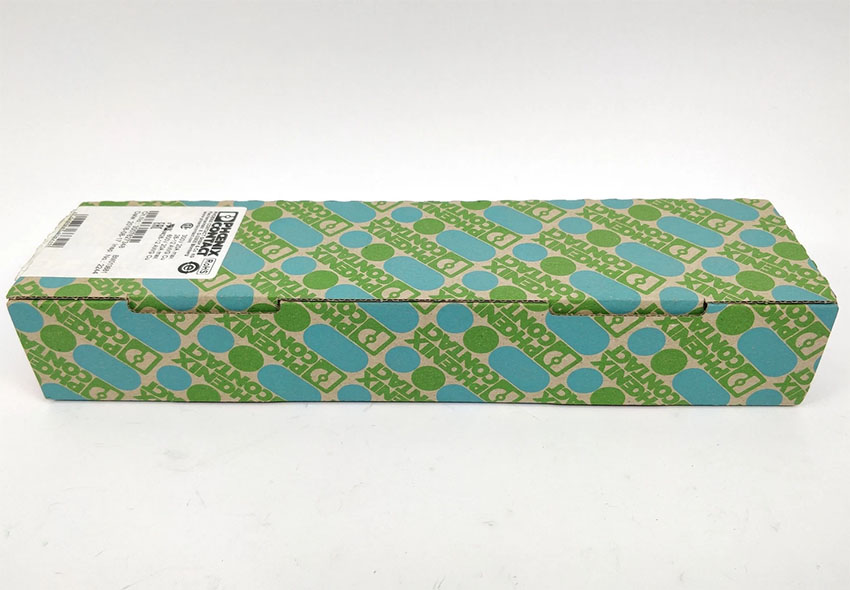

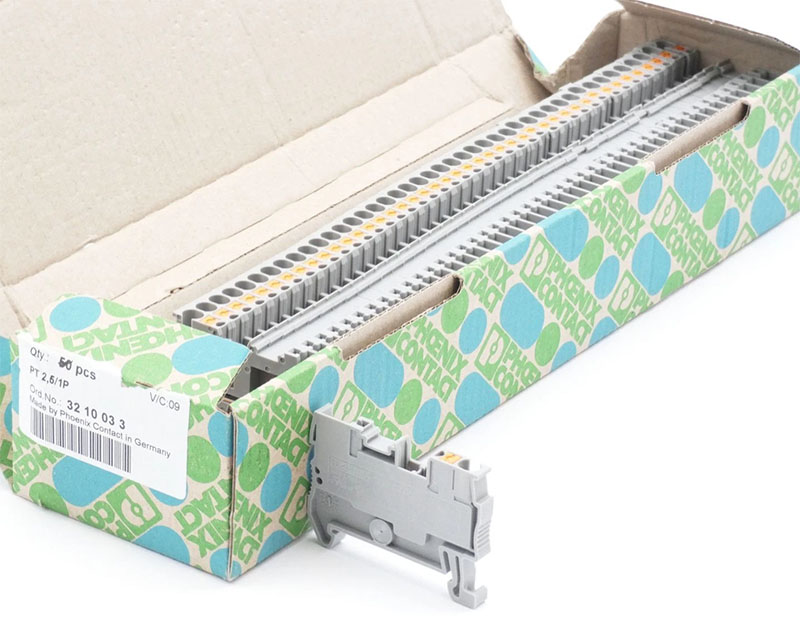

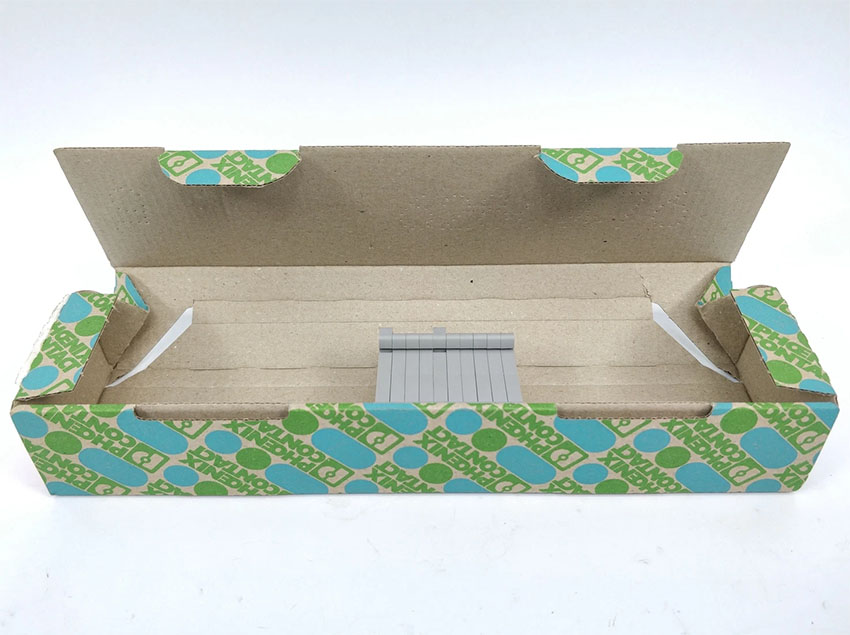

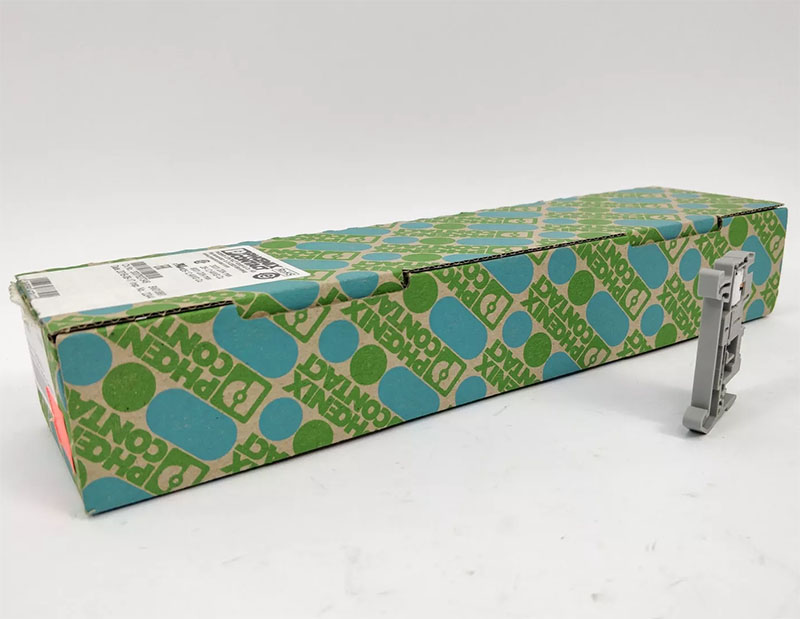

Packing unit	50 pc
Minimum order quantity	50 pc
Product key	BE2241
Catalog page	Page 291 (C-1-2019)
GTIN	4046356333412
Weight per piece (including packing)	6.071 g
Weight per piece (excluding packing)	5.566 g
Customs tariff number	85369010
Country of origin	DE



Classifications của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

ECLASS

ECLASS-13.0

27250117

ETIM

ETIM 9.0

EC000897

UNSPSC

UNSPSC 21.0

39121400



Approvals của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

CSA

Approval ID: 2030668

	Nominal voltage UN	Nominal current IN	Cross section AWG	Cross section mm2
Use group B
	300 V	20 A	26 - 12
Use group C
	300 V	20 A	26 - 12



EAC

Approval ID: RU C-DE.BL08.B.00644


cULus Recognized

Approval ID: E60425

	Nominal voltage UN	Nominal current IN	Cross section AWG	Cross section mm2
Use group B
	600 V	20 A	26 - 12
Use group C
	600 V	20 A	26 - 12
Use group F
	500 V	20 A	26 - 12
Use group D
	600 V	5 A	26 - 12



LR

Approval ID: LR2371832TA


NK

Approval ID: 14ME0912


BV

Approval ID: 25278/C1 BV


DNV

Approval ID: TAE000010T


Environmental product compliance của Cầu nối điện Phoenix Contact PT 2,5/1P - 3210033

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
EF3.0 Climate Change
CO2e kg	0.04 kg CO2e
