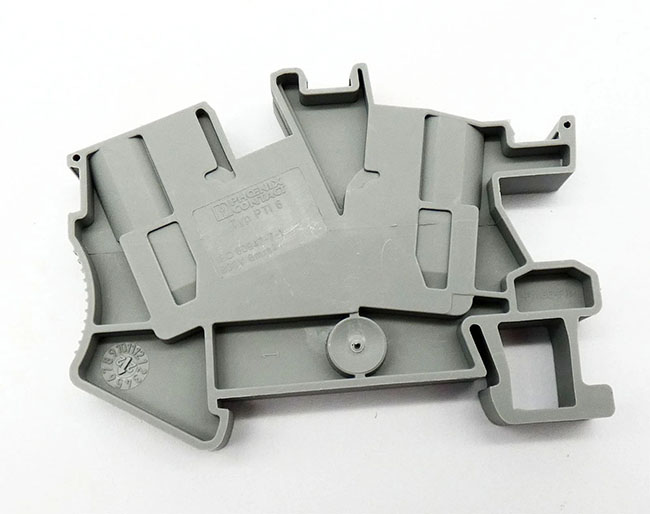

Phoenix Contact PTI 6 - 3213972 là Cầu đấu nối điện, 6mm2 800V 41A Installation Push-in Xám



- Tài liệu kỹ thuật của Cầu nối điện Phoenix Contact PTI 6 - 3213972 ở đây.



Technical data của Cầu nối điện Phoenix Contact PTI 6 - 3213972

Product properties của Cầu nối điện Phoenix Contact PTI 6 - 3213972

Product type	Installation terminal block
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3



Electrical properties của Cầu nối điện Phoenix Contact PTI 6 - 3213972

Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	1.31 W



Connection data của Cầu nối điện Phoenix Contact PTI 6 - 3213972

Number of connections per level	2
Nominal cross section	6 mm²
Stripping length	12 mm
Internal cylindrical gage	A5
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.5 mm² ... 10 mm²
Cross section AWG	20 ... 8 (converted acc. to IEC)
Conductor cross section flexible	0.5 mm² ... 10 mm²
Conductor cross section, flexible [AWG]	20 ... 8 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.5 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.5 mm² ... 6 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve)	0.5 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1.5 mm²
Nominal current	41 A
Maximum load current	51 A (with 10 mm² conductor cross section)
	41 A (with 6 mm² conductor cross section)
Nominal voltage	800 V
Nominal cross section	6 mm²
Connection cross sections directly pluggable
Conductor cross section rigid	1 mm² ... 10 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	1 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	1 mm² ... 6 mm²



Dimensions của Cầu nối điện Phoenix Contact PTI 6 - 3213972

Width	8.2 mm
End cover width	2.2 mm
Height	66 mm
Depth	48.5 mm
Depth on NS 35/7,5	50 mm
Depth on NS 35/15	57.5 mm



Material specifications của Cầu nối điện Phoenix Contact PTI 6 - 3213972

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Cầu nối điện Phoenix Contact PTI 6 - 3213972; Cầu nối điện Phoenix Contact 6mm2 800V 41A Installation Push-in Xám; Installation terminal block Phoenix Contact PTI 6 - 3213972



Mechanical properties của Cầu nối điện Phoenix Contact PTI 6 - 3213972

Mechanical data
Open side panel	Yes



Environmental and real-life conditions của Cầu nối điện Phoenix Contact PTI 6 - 3213972

Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %



Standards and regulations của Cầu nối điện Phoenix Contact PTI 6 - 3213972

Connection in acc. with standard

IEC 60947-7-1



Mounting của Cầu nối điện Phoenix Contact PTI 6 - 3213972

Mounting type	NS 35/7,5
	NS 35/15



Commercial data của Cầu nối điện Phoenix Contact PTI 6 - 3213972

Item number	3213972
Packing unit	50 pc
Minimum order quantity	50 pc
Product key	BE2251
Catalog page	Page 118 (C-1-2019)
GTIN	4046356609340
Weight per piece (including packing)	15.976 g
Weight per piece (excluding packing)	15 g
Customs tariff number	85369010
Country of origin	PL



Classifications của Cầu nối điện Phoenix Contact PTI 6 - 3213972

ECLASS

ECLASS-13.0	27250110
ECLASS-15.0	27250110

ETIM

ETIM 9.0

EC001329

UNSPSC

UNSPSC 21.0

39121400



Approvals của Cầu nối điện Phoenix Contact PTI 6 - 3213972

DNV

Approval ID: TAE00001BU


IECEE CB Scheme

Approval ID: DE1-62969


EAC

Approval ID: RU C-DE.BL08.B.00644


VDE Zeichengenehmigung

Approval ID: 40040549


EAC

Approval ID: KZ7500651131219505


Environmental product compliance của Cầu nối điện Phoenix Contact PTI 6 - 3213972

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
EF3.0 Climate Change
CO2e kg	0.089 kg CO2e
