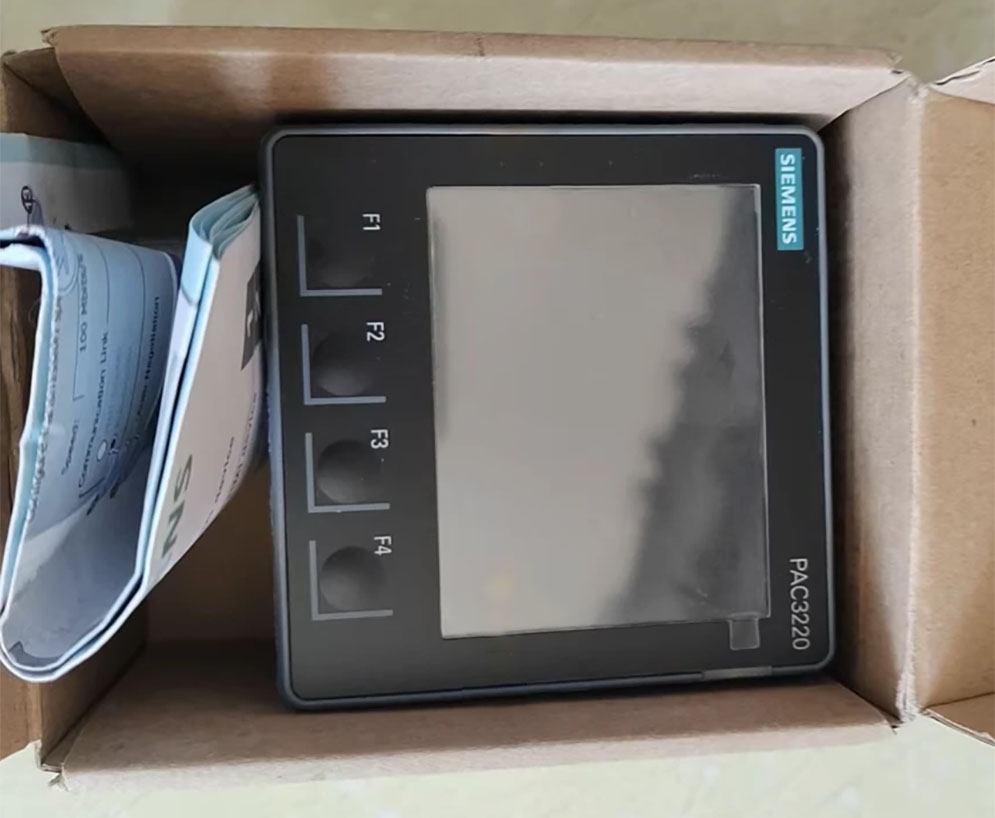

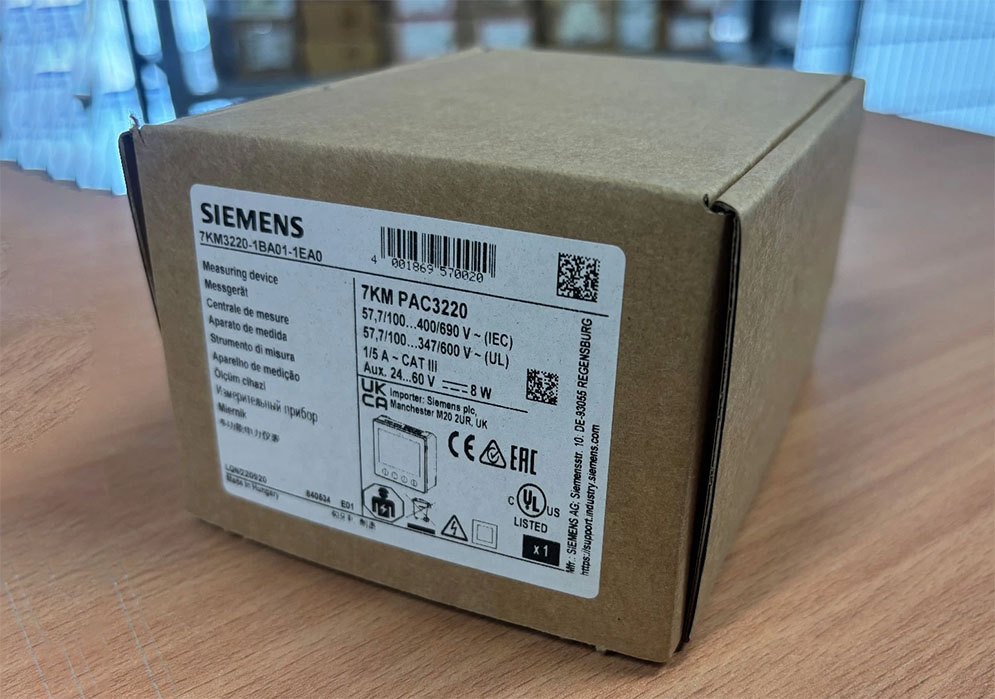

Đồng hồ điện Siemens 7KM3220-1BA01-1EA0

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm SIEMENS

• Xem thêm

Siemens 7KM3220-1BA01-1EA0 là Đồng hồ điện, PMD SENTRON PAC3220 LCD DC 60V



- Tài liệu kỹ thuật của Đồng hồ điện Siemens 7KM3220-1BA01-1EA0 ở đây.



Thông số kỹ thuật của Đồng hồ điện Siemens 7KM3220-1BA01-1EA0

Product related của Đồng hồ điện Siemens 7KM3220-1BA01-1EA0

- Article number 7KM3220-1BA01-1EA0
- Life cycle status Active Product
- Product Family SENTRON 7KM PAC Measuring Devices
- EAN 4001869570020
- UPC –
- Commodity Code 90283019


Delivery related của Đồng hồ điện Siemens 7KM3220-1BA01-1EA0

- Export Control Regulations AL : N / ECCN : EAR99
- Standard delivery time 3 Day/Days
- Packaging dimensions (L x W x H) 2.283 x 3.78 x 3.78 inch
- Net weight 0.802 lb
- Quantity Unit 1 Piece
- Packaging Quantity 1
- Minimum Order Quantity 1
- Dangerous goods No


Environment related của Đồng hồ điện Siemens 7KM3220-1BA01-1EA0

- WEEE (2012/19/EU) Take-Back Obligations 5
- Compliance with the substance restrictions according to RoHS directive Since: 08/30/2019
- REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0,1 % (w / w)
- Lead monoxide (lead oxide) CAS-No. 1317-36-8 > 0,1 % (w / w) SCIP Number not available Sustainability
- View certificate


Siemens specific của Đồng hồ điện Siemens 7KM3220-1BA01-1EA0

- Product Group 5308
- Catalog ID LV10
- Group Code P360
- Country of origin Hungary
- Returnable Status No


Classification của Đồng hồ điện Siemens 7KM3220-1BA01-1EA0

eClass
Version : 16, Classification : 27-20-03-01
Version : 14, Classification : 27-20-03-01
Version : 12, Classification : 27-20-03-01
Version : 9.1, Classification : 27-20-03-01
Version : 9, Classification : 27-20-03-01
Version : 8, Classification : 27-20-03-01
Version : 7.1, Classification : 27-20-03-01
Version : 6, Classification : 27-20-03-01

ETIM

Version : 10, Classification : EC002301
Version : 9, Classification : EC002301
Version : 8, Classification : EC002301
Version : 7, Classification : EC002301

Tham khảo thêm các models khác cùng loại, liên quan với Đồng hồ điện Siemens 7KM3220-1BA01-1EA0:

7KM3220-2BA01-1JA0
SENTRON PAC3220, calibrated according to MID, LCD 96 x 96 mm Power Monitoring Device, control panel instrument with measurement of electrical variables, protocol: Modbus TCP, with graphical display, Ue 230/400 V, 50 Hz, Ie x/1 A or x/5 A AC, additional optional auxiliary power supply 100 ... 250 V +-10% AC/DC screw terminal

7KM3120-2BA01-1HA0
SENTRON PAC3120, calibrated according to MID, LCD 96 x 96 mm Power Monitoring Device, control panel instrument with measurement of electrical variables, protocol: Modbus RTU, with graphical display, Ue 230/400 V, 50 Hz, Ie x/1 A or x/5 A AC, additional optional auxiliary power supply 100 ... 250 V +-10% AC/DC screw terminal

7KM4220-1BA01-1EA0
SENTRON PAC4220, Power Monitoring Device with color graphic TFT display PMD-III acc. to IEC 61557-12 active energy Class 0.2 (Class 0.2S acc. to IEC 62053-22) 96 x 96 mm, 3-phase, 45 - 65 Hz Ue rated: 690/400 V, Ie rated: x/1 A or x/5 A DC extra-low-voltage power supply unit 24 to 48 V +-25% screw terminal connection control panel instrument with measurement of electrical variables apparent / active / reactive energy / cos phi / THDu / THDi / even and odd harmonics per phase up to 64th

7KM4220-0BA01-1EA0
SENTRON PAC4220, Power Monitoring Device with color graphic TFT display PMD-III acc. to IEC 61557-12 active energy Class 0.2 (Class 0.2S acc. to IEC 62053-22) 96 x 96 mm, 3-phase, 45 - 65 Hz Ue rated: 690/400 V, Ie rated: x/1 A or x/5 A AC/DC wide-range power supply 95 to 250 V +-10% (AC), 110 to 270 V +-10% (DC) screw terminal connection control panel instrument with measurement of electrical variables apparent / active / reactive energy / cos phi / THDu / THDi / even and odd harmonics per phase up to 64th

7KM2200-2EA40-1JB1
SENTRON PAC2200-CLP measuring device L-L: 400 V, L-N: 230 V, 65 A direct DIN rail instrument, 6 MW, 3-phase LAN interface, Modbus TCP LC display, MID approval screw terminal, with internal power supply apparent / active / reactive energy certified load profile memory measurement and calibration regulation-compliant acc. to PTB-A 50.7

7KM2200-2EA00-1JB1
SENTRON 7KM measuring device PAC2200 CLP, L-L: 400 V, L-N: 230 V, x/1 A & x/5 A DIN rail instrument, 6 MW, 3-phase, LAN interface, Modbus TCP, LC display, MID approval, screw terminal, with internal power supply, apparent / active / reactive energy, certified load profile memory measurement and calibration regulation-compliant acc. to PTB-A 50.7

7KM3120-1BA01-1EA0
PAC3120 LCD 96X96 mm Power Mount Meter, 24-60 VDC only, 100+ Measurements, THD harmonics, 2-Dig In & 2- Dig Out, Standard RS485. U rated input: 690/400V 45-65Hz IE rated input: X/1A oder X/5A AC Power supply: 24 ... 60 V -20/+10 % DC screw connections

7KM3220-0BA01-1DA0
PAC3220 LCD 96 x 96 mm, Panel Mount Power Meter, AC/DC, 100+ Measurements, THD harmonics, 2-Dig In & 2-Dig Out, Modbus TCP, Standard Dual 10/100Base-T Ethernet with up to 3 master ability. Optional expansion modules for Modbus RTU, Profibus, Profinet. U rated input: 690/400V 45-65Hz IE rated input: X/1A oder X/5A AC Power supply: 100 ... 250 V +-10 % AC/DC screw connections

7KM3220-1BA01-1EA0
PAC3220 LCD 96 x 96 mm, Panel Mount Power Meter, 22-65 VDC only, 100+ Measurements, THD harmonics, 2-Dig In & 2-Dig Out, Modbus TCP, Standard Dual 10/100Base-T Ethernet with up to 3 master ability, Optional RS485, Profibus, Profinet expansion modules. U rated input: 690/400V 45-65Hz IE rated input: X/1A oder X/5A AC Power supply: 24 ... 60 V -20/+10 % DC screw connections

7KM3120-0BA01-1DA0
PAC3120 LCD 96 96 mm, Panel Mount Power Meter, 100+ Measurements, THD harmonics, 2-Dig In & 2-Dig Out, Standard RS485. U rated input: 690/400V 45-65Hz IE rated input: X/1A oder X/5A AC Power supply: 100 ... 250 V + 10 % AC/DC screw connections

7KM2200-2EA30-1JA1
PAC2220 LCD DIN Rail Mount Power Meter, 20+ Measurements, 1-Dig In & 1-Dig Out, Modbus TCP, MID Certified L-L: 400 V, L-N: 230 V, 5 Amp, strd rail instr., 3-phase, apparent /active/reactive energy, self-powered, screw terminals

7KM2200-2EA40-1GA1
SENTRON, measuring device, 7KM PAC2200, LCD, L-L: 400 V, L-N: 230 V, 65 A, strd rail instr., 3-phase, M-Bus + MID, apparent /active/reactive energy, self-powered, screw terminals

7KM2200-2EA30-1GA1
SENTRON, measuring device, 7KM PAC2200, LCD, L-L: 400 V, L-N: 230 V, 5 A, strd rail instr., 3-phase, M-Bus + MID, apparent /active/reactive energy, self-powered, screw terminals

7KM2200-2EA30-1HA1
PAC2220 LCD DIN Rail Mount Power Meter, 20+ Measurements, 1-Dig In & 1-Dig Out, Modbus RTU, MID Certified L-L: 400 V, L-N: 230 V, 5 Amp, strd rail instr., 3-phase, apparent /active/reactive energy, self-powered, screw terminals

7KM2200-2EA40-1CA1
SENTRON, measuring device, 7KM PAC2200, LCD, L-L: 400 V, L-N: 230 V, 65 A, strd rail instr., 3-phase, M-Bus, apparent/ active/reactive energy, self-powered, screw terminals

7KM3200-0CA01-1AA0
PAC3200T DIN Rail Mount Power Meter without DISPLAY, AC/DC, 100+ Measurements, THD harmonics, 1-Dig In & 1-Dig Out, Modbus TCP, Standard 10/100Base-T Ethernet with up to 2 master ability. L-L: 400 V, L-N: 230 V, 5 A, strd rail instr., 3-phase, MODBUS TCP, apparent /active/reactive energy, wide-range pwr sup. unit AC/DC, screw terminals

7KM2200-2EA30-1EA1
PAC2220 LCD DIN Rail Mount Power Meter, 20+ Measurements, 1-Dig In & 1-Dig Out, Modbus TCP L-L: 400 V, L-N: 230 V, 5 Amp, strd rail instr., 3-phase, apparent /active/reactive energy, self-powered, screw terminals

7KM2200-2EA30-1DA1
PAC2220 LCD DIN Rail Mount Power Meter, 20+ Measurements, 1-Dig In & 1-Dig Out, Modbus RTU L-L: 400 V, L-N: 230 V, 5 Amp, strd rail instr., 3-phase, apparent /active/reactive energy, self-powered, screw terminals

7KM2200-2EA30-1CA1
SENTRON, measuring device, 7KM PAC2200, LCD, L-L: 480 V, L-N: 277 V, 5 A, DIN-rail device, 3-phase, M-Bus, apparent / active / reactive energy, with internal power supply, screw terminal
7KM4211-1BA00-3AA0

7KM42111BA003AA0
SENTRON, measuring device, 7KM PAC4200, LCD, L-L: 500 V, L-N: 289 V, 5 A, 3-phase, Modbus TCP, optionally Modbus RTU / PROFINET / PROFIBUS / DI/DQ, apparent / active / reactive energy / cos phi, harmonics: 2nd - 64th, THD, Class 0.2 acc. to IEC 61557-12 or Class 0.2 s acc. to IEC 62053-22, extra-low-voltage power supply unit 22 to 65 V +-10% (DC) screw terminals

7KM4212-0BA00-3AA0
SENTRON, measuring device, 7KM PAC4200, LCD, L-L: 690 V, L-N: 400 V, 5 A, 3-phase, Modbus TCP, optionally Modbus RTU / PROFINET / PROFIBUS / DI/DQ, apparent / active / reactive energy / cos phi, harmonics: 2nd - 64th, THD, Class 0.2 acc. to IEC 61557-12 or Class 0.2 s acc. to IEC 62053-22, wide-range power supply 95 to 240 V +-10% (AC), 110 to 340 V +-10% (DC) screw terminals

A successor is available for this product7KM4220-0BA01-1EA0
