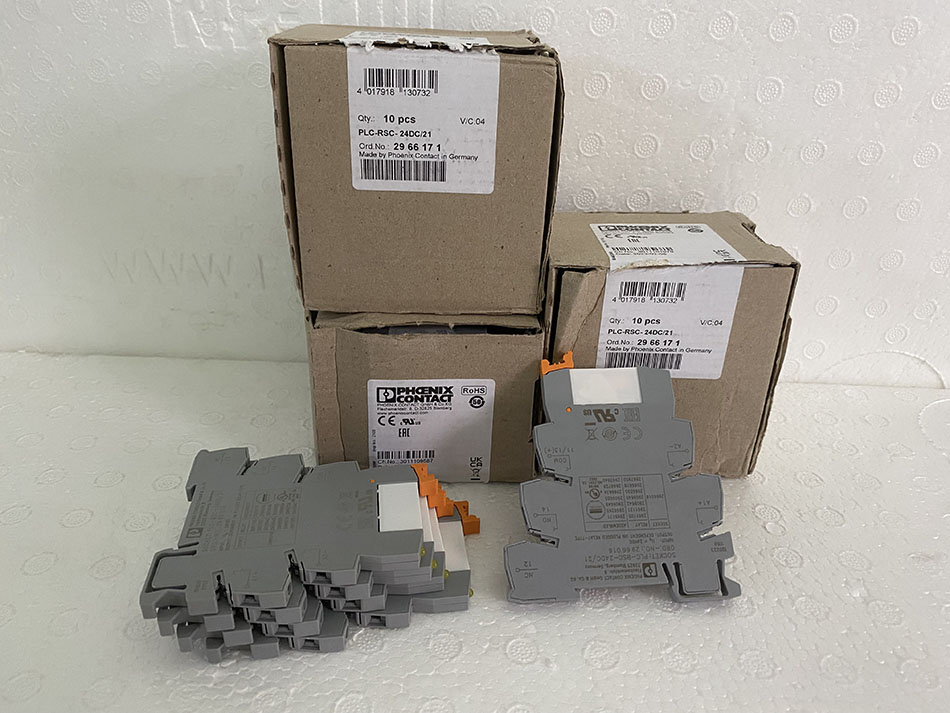

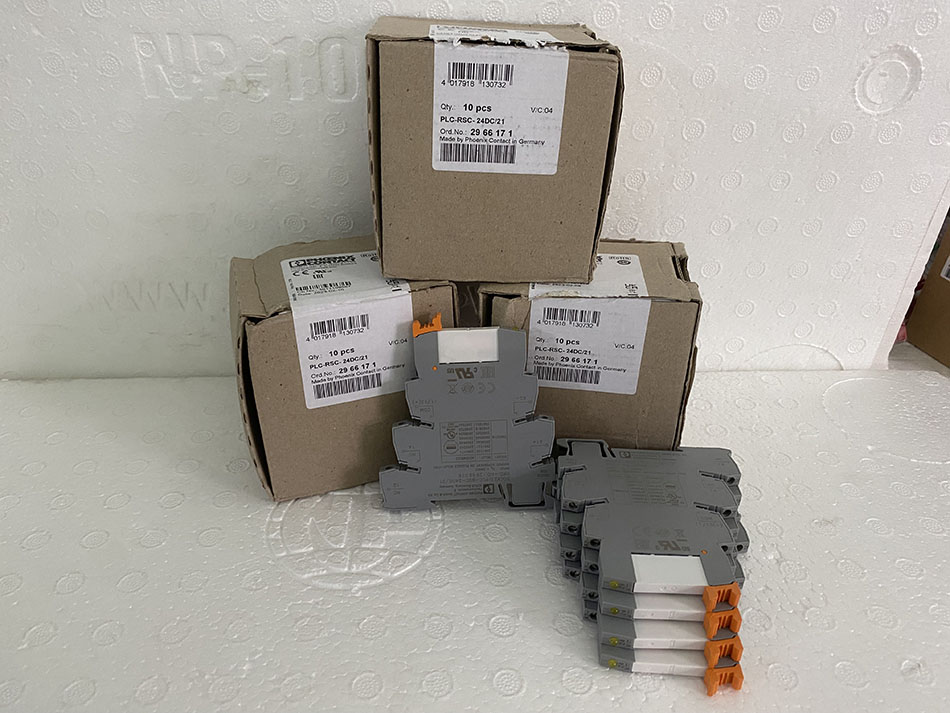

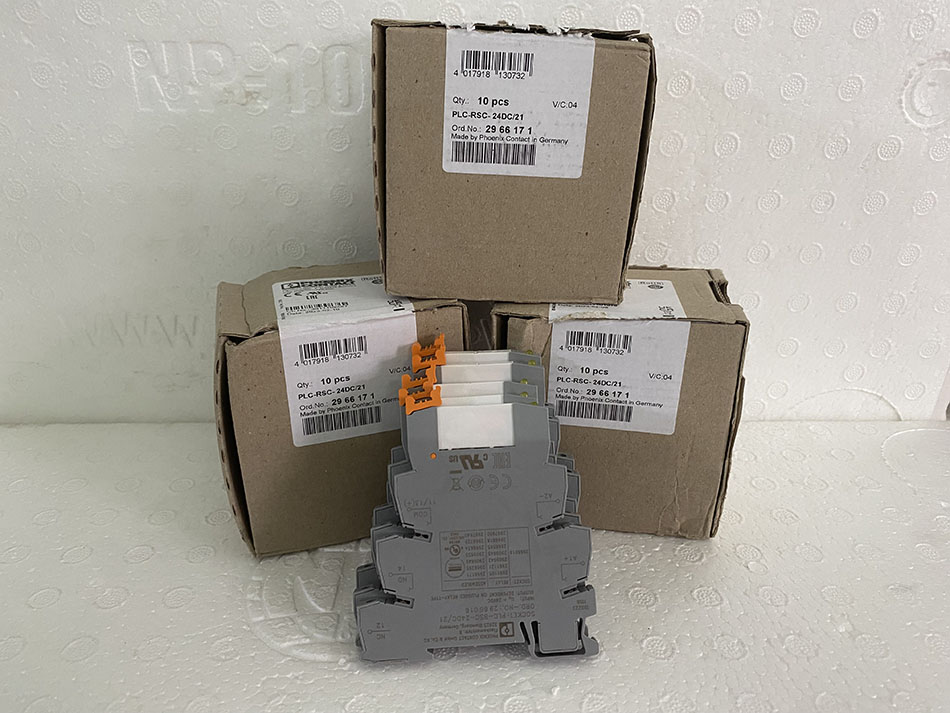

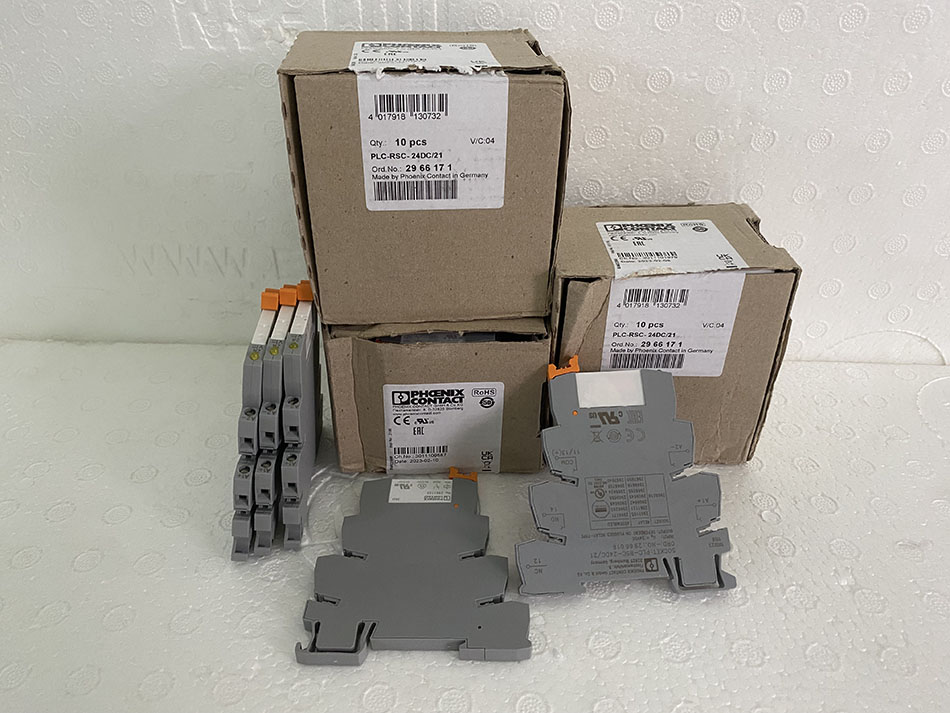

Thông tin chi tiết của PLC relay 24VDC, 1 cặp tiếp điểm, 6A - Phoenix Contact - Relay Module - PLC-RSC- 24DC/21 - 2966171

PLC relay, consisting of base terminal block PLC-BSC.../21 with screw connection and pluggable miniature relay with power contact, for assembly on DIN rail NS 35/7.5, 1 PDT, input voltage 24 V DC


Ưu điểm của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

- Slim design

- Efficient connection to system cabling using V8 adapter

- Safe isolation according to DIN EN 50178 between coil and contact

- RT III sealed relay

- Functional plug-in bridges

- Integrated input circuit and interference suppression circuit





Bảng vẽ thiết kế  của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

PLC relay 24VDC, 1 cặp tiếp điểm, 6A - Phoenix Contact - Relay Module - PLC-RSC- 24DC/21 - 2966171



Note của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

Utilization restriction

EMC: class A product, see manufacturer's declaration in the download area



Dimensions của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

Width	6.2 mm
Height	80 mm
Depth	94 mm



Ambient conditions của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

Ambient temperature (operation)	-40 °C ... 60 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C



Coil side của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

Nominal input voltage UN	24 V DC
Typical input current at UN	9 mA
Typical response time	5 ms
Typical release time	8 ms
Protective circuit	Reverse polarity protection Polarity protection diode
	Free-wheeling diode Damping diode
Operating voltage display	Yellow LED
Power dissipation for nominal condition	0.22 W



Contact side của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

Contact type	1 PDT
Type of switch contact	Single contact
Contact material	AgSnO
Maximum switching voltage	250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
Minimum switching voltage	5 V (at 100 mA)
Min. switching current	10 mA (at 12 V)
Maximum inrush current	10 A (4 s)
Limiting continuous current	6 A
Interrupting rating (ohmic load) max.	140 W (at 24 V DC)
	20 W (at 48 V DC)
	18 W (at 60 V DC)
	23 W (at 110 V DC)
	40 W (at 220 V DC)
	1500 VA (for 250 V AC)
Switching capacity in acc. with DIN VDE 0660/IEC 60947	2 A (at 24 V, DC13)
	0.2 A (at 110 V, DC13)
	0.1 A (at 220 V, DC13)
	3 A (at 24 V, AC15)
	3 A (at 120 V, AC15)
	3 A (at 230 V, AC15)



Connection data input side của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

Connection name	Coil side
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section solid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
Conductor cross section AWG	26 ... 14



Connection data output side của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

Connection name	Contact side
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section solid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
Conductor cross section AWG	26 ... 14



General của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

Note	Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or FBST 500....
Test voltage relay winding/relay contact	4 kV AC (50 Hz, 1 min.)
Operating mode	100% operating factor
Degree of protection	IP20 (Relay base)
Mechanical service life	2 x 107 cycles
Mounting position	any
Assembly instructions	In rows with zero spacing



Standards and Regulations của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

Connection in acc. with standard	CUL
Designation	Standards/regulations
Standards/regulations	IEC 60664
	EN 50178
Degree of pollution	3
Overvoltage category	III
Flammability rating according to UL 94	V0



Environmental Product Compliance của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

China RoHS	Environmentally Friendly Use Period = 50
	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”



Classifications của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

  eCl@ss của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

eCl@ss 5.0	27371601
eCl@ss 5.1	27371601
eCl@ss 6.0	27371601
eCl@ss 7.0	27371601
eCl@ss 8.0	27371601
eCl@ss 9.0	27371601



ETIM của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

ETIM 2.0	EC001437
ETIM 3.0	EC001437
ETIM 4.0	EC001437
ETIM 5.0	EC001437
ETIM 6.0	EC001437



UNSPSC của Rơle Phoenix Contact PLC-RSC-24DC/21 - 2966171

UNSPSC 6.01	30211916
UNSPSC 7.0901	39121515
UNSPSC 11	39121515
UNSPSC 12.01	39121515
UNSPSC 13.2	39122334
