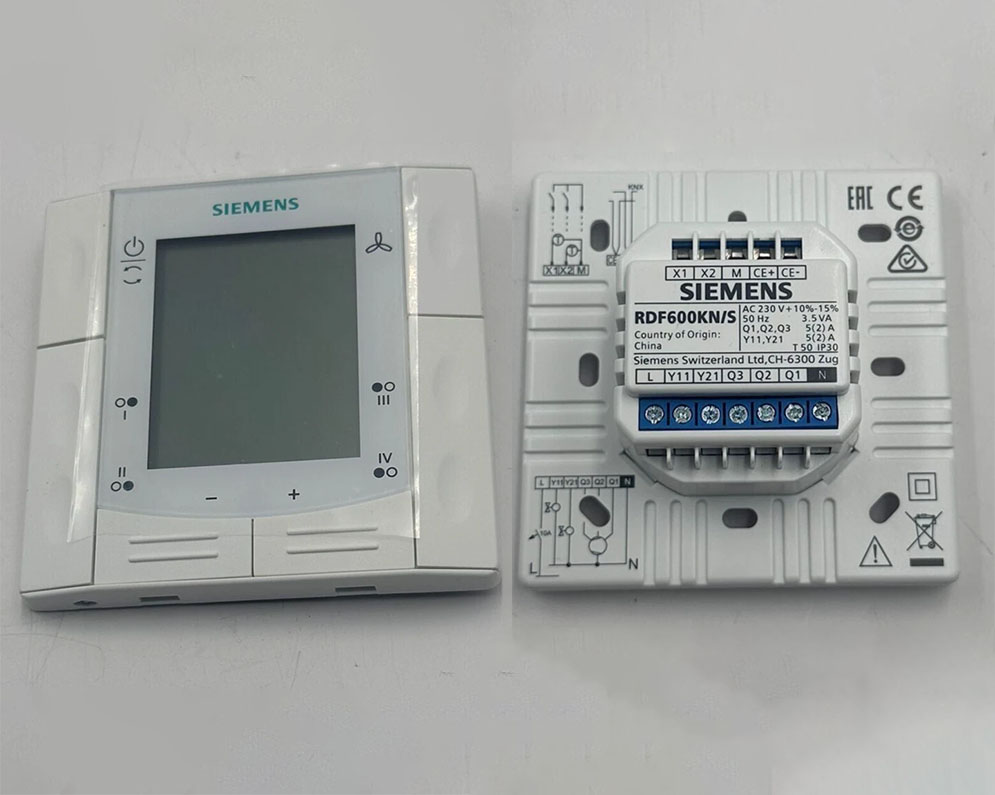

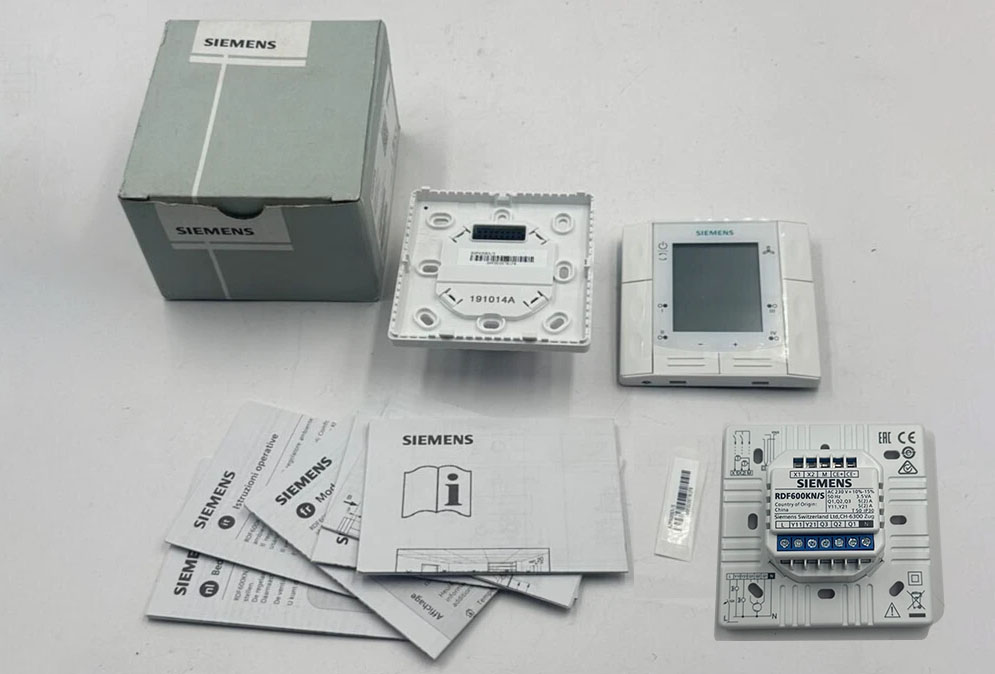

Bộ điều nhiệt phòng Siemens RDF600KN/S

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm SIEMENS

•

  Tất cả danh mục model sản phẩm HVAC của Siemens

• Xem thêm

Siemens RDF600KN/S là Bộ điều nhiệt phòng KNX, đầu ra bật/tắt, bốn nút để bật/tắt đèn và rèm cửa và 2 đầu vào đa năng

Flush mount KNX room thermostat for 2-/4-pipe FCU with on/off output, KNX switching group, four buttons for switching lights and blinds and 2x universal input, fit for both round and square conduit boxes

Flush-mount room thermostat with LCD for fan coil units and compressors in DX-type equipment
- KNX communications
- For heating and/or cooling applications
- 2- or 3-position control outputs
- Output for 1-speed or 3-speed fan
- 2 multifunctional inputs for keycard contact, external room / return air temperature (QAH11.1, QAA32), heat / cool changeover, operation mode changeover, window contact on/off, dewpoint monitor, electrical heater enabled, fault contact, presence detector
- Operating modes: Comfort, Economy and Protection
- Automatic or manual heating/cooling changeover
- Adjustable commissioning and control parameters
- Minimum and maximum setpoint limitation
- Backlit display
- Color of housing: signal white (RAL 9003)
- Independent function for window contact, presence detector (standard presence and hotel presence)
- Four buttons to control KNX actuators via KNX S-mode (functions: switching, dimming, blinds control, 8-bit scene)

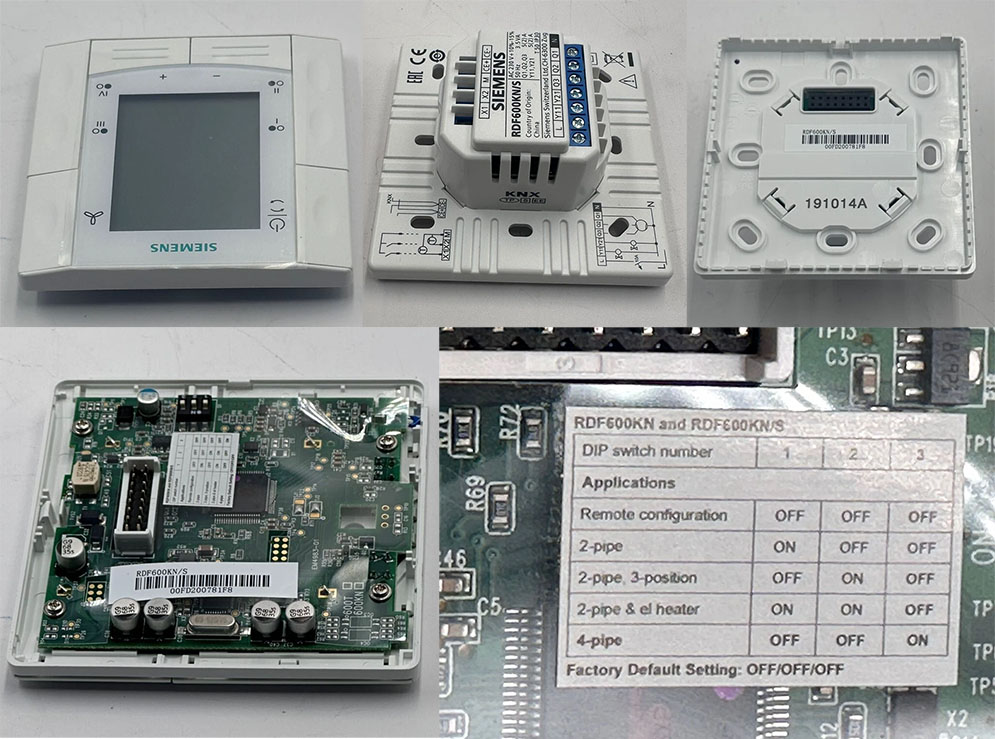

Application selectable của Bộ điều nhiệt phòng Siemens RDF600KN/S

- 2-pipe system
- 2-pipe system with electrical heater
- 4-pipe system


- Tài liệu kỹ thuật của Bộ điều nhiệt phòng Siemens RDF600KN/S ở đây.


Thông số kỹ thuật của Bộ điều nhiệt phòng Siemens RDF600KN/S

- Operating voltage AC 230 V
- Power consumption 2 VA
- Switching differential 0.5…6 K
- Communication KNX
- Analog inputs, number 2
- Digital inputs, number 2
- Relay outputs Fan: Normally open contact , Valve: Normally open contact , Non floating
- Relay outputs, number 5
- Relay output, switching voltage 230 V
- Relay output, switching current 5 (2)A
- Type of fixing With screws on recessed round conduit box diameter min. 60 mm
- Degree of protection IP30
- Dimensions (W x H x D) 86 x 86 x 46 mm
