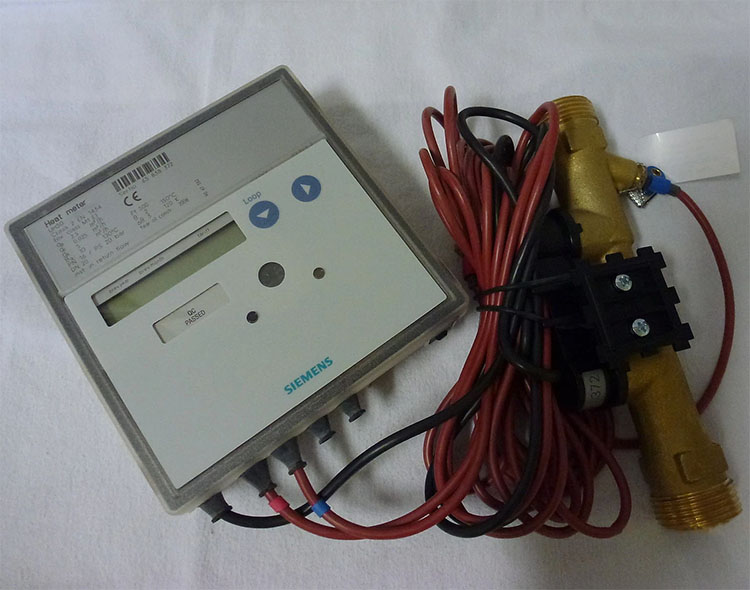

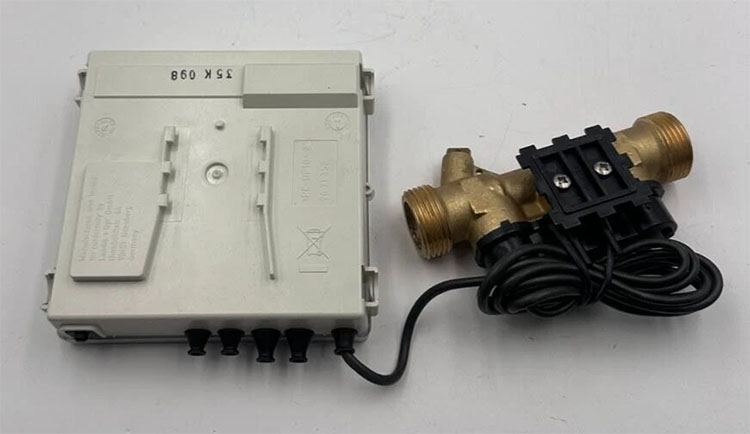

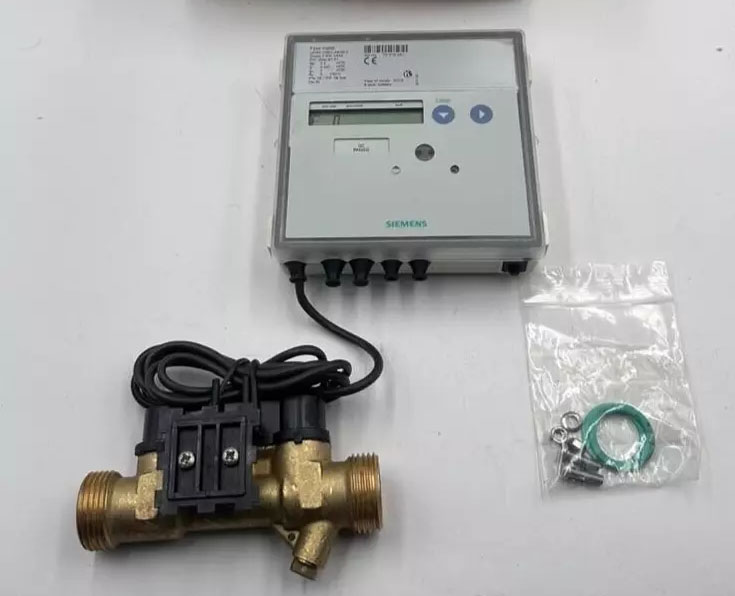

Đồng hồ đo Nhiệt-Mát siêu âm Siemens UH50-C45-00 | PN16 5-130oC 260mm 2xComm 3.5m3/h

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm SIEMENS

•

  Tất cả danh mục model sản phẩm HVAC của Siemens

• Xem thêm

Siemens UH50-C45-00 là Đồng hồ đo Nhiệt-Mát siêu âm, khe cắm cho 2x mô-đun truyền thông, nguồn điện có thể lựa chọn, IP54, PN16, 5...130 °C, 260mm, G 1¼", cảm biến M10x1mm (L=38 mm), Qp = 3.5 m³/h



- Tài liệu kỹ thuật của Đồng hồ đo Nhiệt-Mát siêu âm Siemens UH50-C45-00 ở đây.



Mô tả của Đồng hồ đo Nhiệt-Mát siêu âm Siemens UH50-C45-00

Đồng hồ đo nhiệt/làm mát siêu âm, có khe cắm cho 2 mô-đun giao tiếp, nguồn điện có thể lựa chọn, IP54, PN16, 5...130 °C, 260 mm, ren ngoài, cảm biến G 1¼", M10x1 mm (Dài=38 mm), Qp = 3,5 m³/h

Đồng hồ đo nhiệt UH50-A.. và đồng hồ đo nhiệt/kết hợp UH50-C.. thu thập lưu lượng thể tích tĩnh dựa trên nguyên lý đo siêu âm. Chúng có sẵn dưới dạng phiên bản gắn tường với nhiều kích cỡ khác nhau. Đồng hồ đo này có độ chính xác đo lường tuyệt vời, khả năng chống mài mòn và độ ổn định lâu dài. UH50.. truyền giá trị tiêu thụ hiện tại, giá trị hàng tháng, giá trị ngày đã đặt và thông báo lỗi đến bộ thu thập dữ liệu tương ứng.

Thông số kỹ thuật của Đồng hồ đo Nhiệt-Mát siêu âm Siemens UH50-C45-00

- Measurement accuracy MID class 2 , EN 1434
- Standard EN 1434
- Temperature response threshold Heat: 0.2 K , Cold: 0.2 K
- Sensing element, temperature Pt500
- Cable length, sensor 1.5 m
- Connecting thread G 1¼"
- Mounting location Meter: Return
- Dimensions (W x H x D) 143 x 42 x 136 mm
- Packaging unit 1 pce

Phụ kiện dùng chung với của Đồng hồ đo Nhiệt-Mát siêu âm Siemens UH50-C45-00

WZR-OP-USBOptical read head for Energy Meters, Optical to USB interface for PC

WZT-A34Adapter with threaded hole to install sensor, M10x1 mm x G ¾ B", incl. copper gasket

WZU-485E-BACCommunication module for UH50 meters, RS-485, BACnet MS/TP

WZU-485E-MODCommunication module for UH50 meters, RS-485, Modbus RTU

WZU-AMCommunication module for UH50 meters, 2 channel analog, DC 0...10 V or DC 4...20 mA

WZU-RFCommunication module for UH50 meters, wireless M-bus radio acc. EN 13757-4, 868 MHz, with internal

WZU-RF-EXTCommunication module for UH50 meters, wireless M-bus radio acc. EN 13757-4, 868 MHz, with SMA connector for external antenna (not included)

WZU-P2Communication module for UH50 meters, 2x Pulse outputs

WZU-MICommunication module for UH50 meters, M-bus with 2 pulse inputs, gen. 4

WZU-MB-G4Communication module for UH50 meters, M-bus module, gen. 4

WZU-BA+GUMPower supply for UH50 meters, 2x AA batteries with bracket, lifetime up to 6 years

WZT-G10Welding sleeve with threaded hole for temperature sensor DS M10×1 mm

WZM-E54Meter fittings, brass, G1 ¼" x R 1", set of 2 pcs. incl. fiber gaskets

WZU-AC110/230-15Power supply for UH50 meters, AC 110/230 V, with 1.5 meter cable

WZT-K1Ball valve for sensor, M10x1 mm @27.5 mm or Ø 5.2x45 mm, PN25, max 130 °C, internal thread, Rp 1", DN25

WZU-ACDC24-50Power supply for UH50 meters, AC/DC 24 V, with terminals for max 1 mm²

WZU-NE24Plug-in power supply to power RS485 communication modules in UH50 meters, AC 24 V, with 100 mA fine fuse

WZU-LRCommunication module for UH50 meters, LoRaWAN radio, 868 MHz, with internal antenna

WZU-LR-EXTCommunication module for UH50 meters, LoRaWAN radio, 868 MHz, with SMA connector for external antenna (not included)

WZU-AC110/230-50Power supply for UH50 meters, AC 110/230 V, with 5 meter cable

WZU-WHAdapter plate, standard, for energy meters UH40,UH50,UC50, incl. 2x screws & rawplugs

WZT-A12Adapter with threaded hole to install sensor, M10x1 mm x G ½ B", incl. copper gasket

WZU-ANT-MAGAntenna for UH50 wireless communation modules, with magnetic foot, 868 Mhz, 2.5 meter cable

WZU-ANT-WallAntenna for UH50 wireless communation modules, for wall mounting, 868 Mhz, 1.5 meter cable

WZU-485E-BACCommunication module for UH50 meters, RS-485, BACnet MS/TP

WZU-485E-MODCommunication module for UH50 meters, RS-485, Modbus RTU
