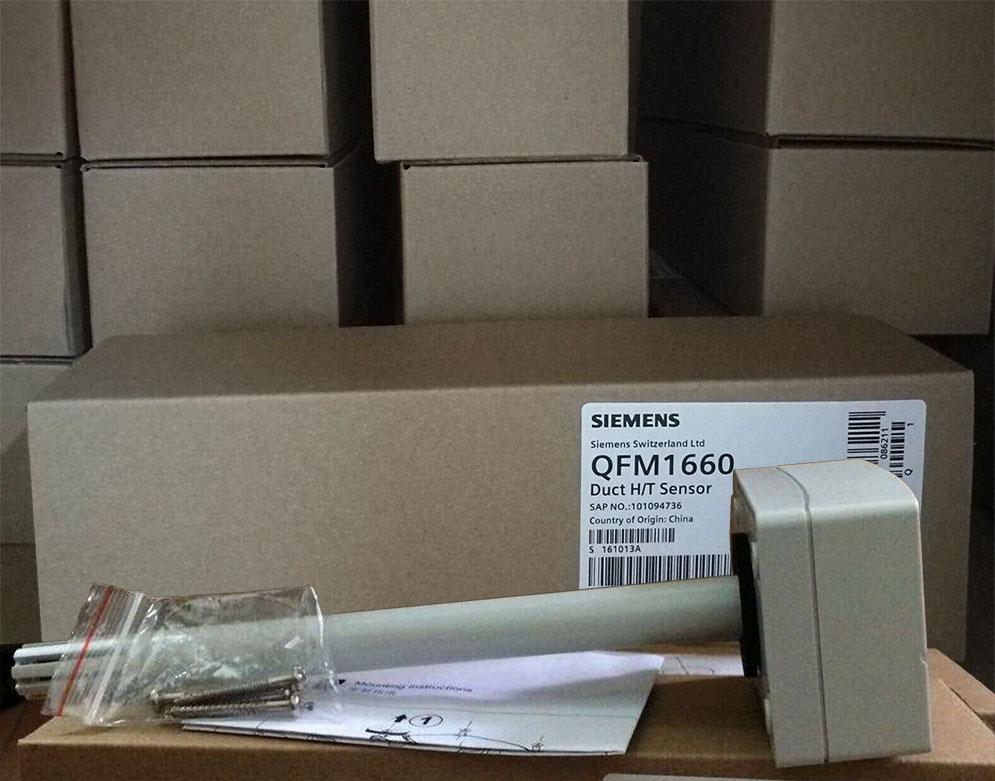

Cảm biến ẩm-nhiệt Siemens QFM1660

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm SIEMENS

•

  Tất cả danh mục model sản phẩm HVAC của Siemens

• Xem thêm

Siemens QFM1660 là Cảm biến lắp ống gió đo độ ẩm (0...10 V) và nhiệt độ (0...10 V). Cảm biến chủ động dùng để đo độ ẩm và nhiệt độ không khí trong ống gió.

QFM1660 - Duct sensor for humidity (0...10 V) and temperature (0...10 V). Active sensor for acquiring the air humidity and temperature in air duct

- Packaging dimensions (L x W x H) 23,00 x 8,00 x 6,8 cmt

- Net weight 0,086 Kg



Thông số kỹ thuật của Cảm biến ẩm-nhiệt Siemens QFM1660

- Operating voltage AC 19.2…28.8 V, 24 V, 19…30 V
- Voltage supply External SELV power supply AC/DC 24 V nominal
- Power consumption 1 VA
- Measurement range humidity 10…90 % r.h.
- Measurement accuracy 25 °C: ±0.8 K, At 20…25 % r.h., 10…90 % r.h.: ±5 % r.h.±5 % r.h.
- Immersion length 186 mm
- Analog output, signal DC 0...10 V
- Signal output temperature DC 0...10 V
- Signal output humidity DC 0...10 V
- Display No display
- Dimensions (W x H x D) 72 x 56 x 222 mm
