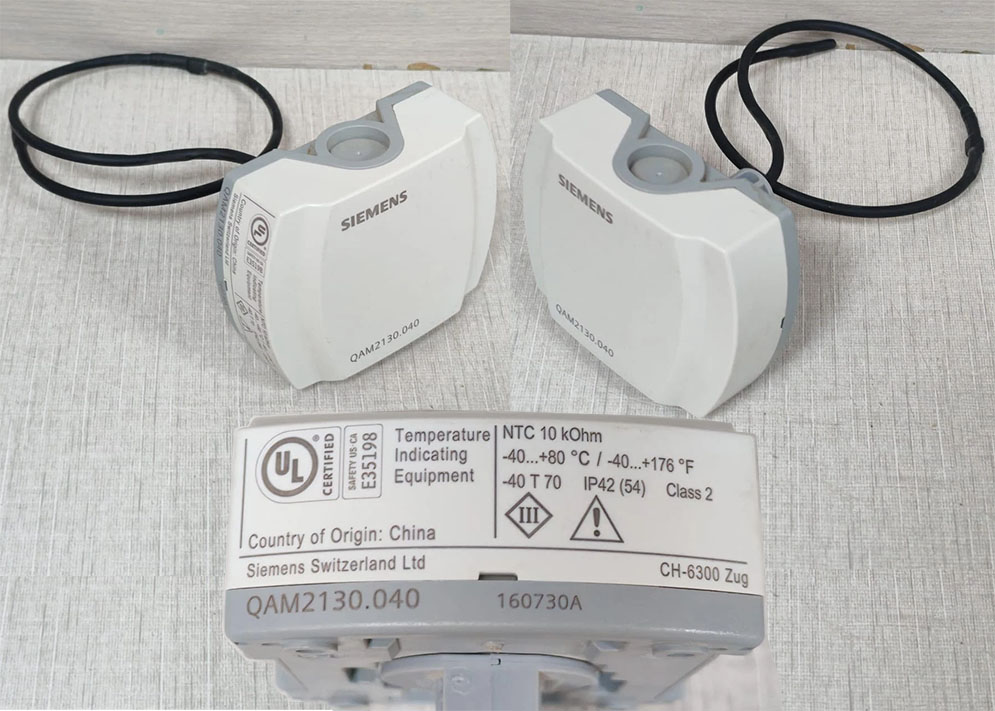

Cảm biến nhiệt độ Siemens QAM2130.040

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm SIEMENS

•

  Tất cả danh mục model sản phẩm HVAC của Siemens

• Xem thêm

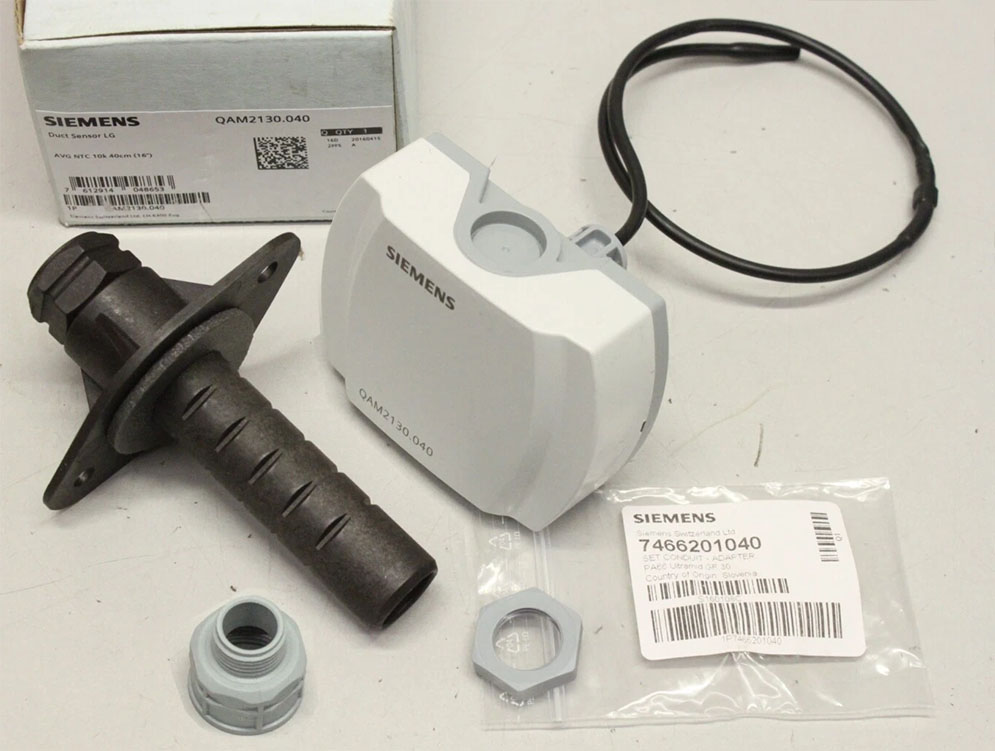

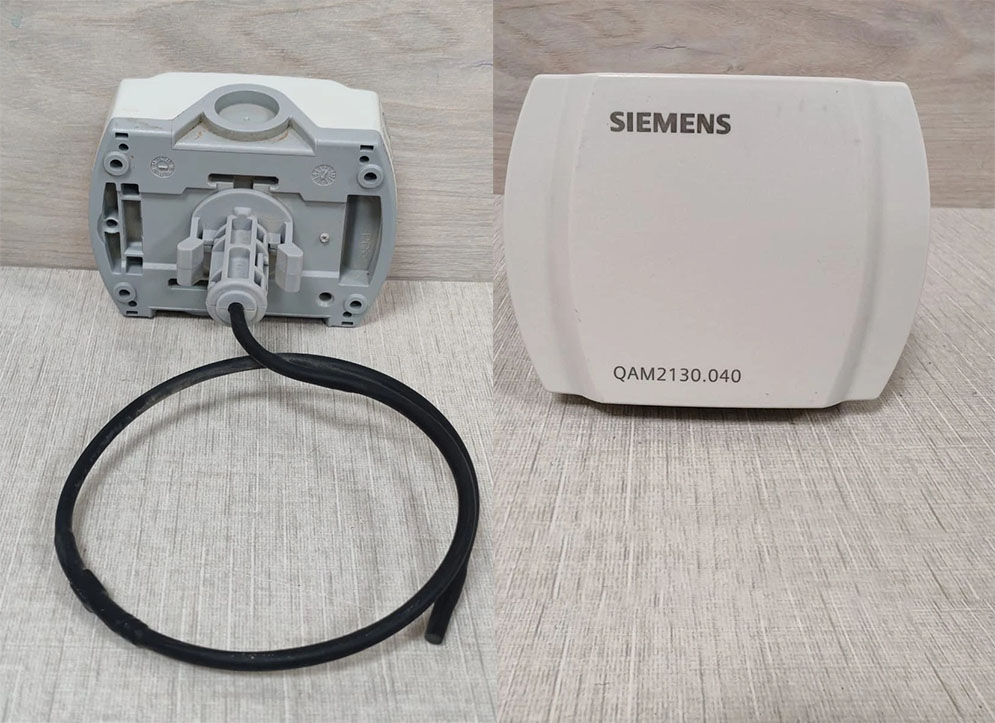

Siemens QAM2130.040 là Cảm biến nhiệt độ ống dẫn 400 mm, NTC 10k; thụ động với đầu dò mềm để đo nhiệt độ trung bình

Duct temperature sensor 400 mm, NTC 10k

- Passive sensor with flexible probe for measuring average temperature
- Note on fixing: Supplied complete with mounting flange.


- Tài liệu kỹ thuật của Cảm biến nhiệt độ Siemens QAM2130.040 ở đây.



Thông số kỹ thuật của Cảm biến nhiệt độ Siemens QAM2130.040

- Sensing element, temperature NTC 10k
- Sensing element NTC 10k , outside housing
- Measuring range, temperature -40…80 °C
- Measurement accuracy At -40…80 °C: ±1.2 K
- Time constant Air v=2 m/s: 30 s
- Immersion length 303…363 mm
- Probe length 400 mm
- Display No display
