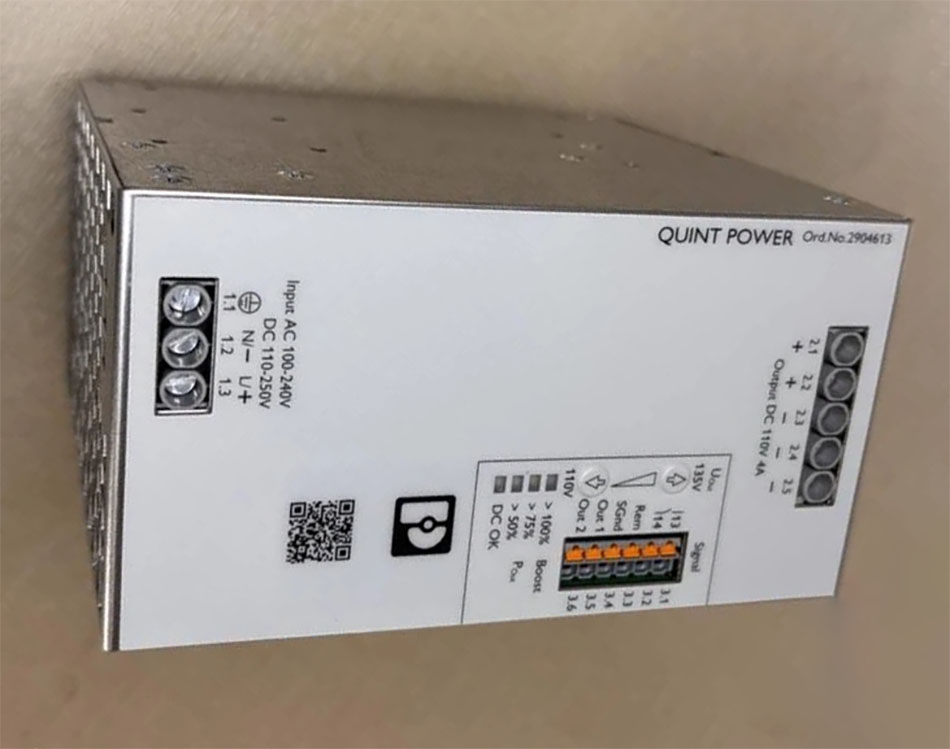

Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613 là Bộ nguồn với đầu vào 1 phase AC, đầu ra 110VDC 4A, có thể điều chỉnh từ 110...135VDC



- Tài liệu kỹ thuật của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613 ở đây.



Thông số kỹ thuật của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

Product description của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

- The fourth generation of the high-performance QUINT POWER power supplies ensures superior system availability by means of new functions. Signaling thresholds and characteristic curves can be individually adjusted via the NFC interface.

- The unique SFB technology and preventive function monitoring of the QUINT POWER power supply increase the availability of your application.



Input data của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

Control input (configurable) Rem	Output power ON/OFF (SLEEP MODE)
Default	Output power ON (>40 kΩ/24 V DC/open bridge between Rem and SGnd)
AC operation
Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	100 V AC ... 240 V AC -10 % ... +10 %
Derating	< 100 V AC (1 %/V)
Electric strength, max.	300 V AC 60 s
Typical national grid voltage	120 V AC
	230 V AC
Voltage type of supply voltage	AC
Inrush current	typ. 11 A (at 25 °C)
Inrush current integral (I2t)	< 0.3 A2s
Inrush current limitation	11 A
AC frequency range	50 Hz ... 60 Hz -10 % ... +10 %
Frequency range (fN)	50 Hz ... 60 Hz -10 % ... +10 %
Mains buffering time	typ. 37 ms (120 V AC)
	typ. 38 ms (230 V AC)
Current consumption	6.3 A (100 V AC)
	5 A (120 V AC)
	2.6 A (230 V AC)
	2.5 A (240 V AC)
Nominal power consumption	474 VA
Protective circuit	Transient surge protection; Varistor, gas-filled surge arrester
Power factor (cos phi)	0.94
Switch-on time	< 1 s
Typical response time	300 ms (from SLEEP MODE)
Input fuse	12 A (slow-blow, internal)
Recommended breaker for input protection	10 A ... 16 A (Characteristic B, C or comparable)
Discharge current to PE	< 3.5 mA
	0.7 mA (264 V AC, 60 Hz)
DC operation
Nominal input voltage range	110 V DC ... 250 V DC
Input voltage range	110 V DC ... 250 V DC -18 % ... +40 %
Derating	< 110 V DC (1 %/V)
Voltage type of supply voltage	DC
Current consumption	5.6 A (110 V DC)
	2.3 A (250 V DC)



Output datas của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

Efficiency	typ. 93.5 % (120 V AC)
	typ. 94.7 % (230 V AC)
Output characteristic	U/I Advanced
	Smart HICCUP
	FUSE MODE
Nominal output voltage	110 V DC
Setting range of the output voltage (USet)	110 V DC ... 135 V DC (constant capacity)
Nominal output current (IN)	4 A
Static Boost (IStat.Boost)	5 A
Dynamic Boost (IDyn.Boost)	6 A (5 s)
Selective Fuse Breaking (ISFB)	24 A (15 ms)
Magnetic circuit breaker tripping	A1 ... A4 / B2 ... B4 / C1 ... C2 / Z1 ... Z4
Derating	> 60 °C ... 70 °C (2.5 %/K)
Feedback voltage resistance	≤ 160 V DC
Protection against overvoltage at the output (OVP)	< 150 V DC
Control deviation	< 0.5 % (Static load change 10 % ... 90 %)
	< 4 % (Dynamic load change 10 % ... 90 %, (10 Hz))
	< 0.25 % (change in input voltage ±10 %)
Residual ripple	< 600 mVPP (with nominal values)
Short-circuit-proof	yes
No-load proof	yes
Output power	440 W
	550 W
	660 W
Apparent power	336 VA (120 V, UOUT = 24 V, IOUT = stat. Boost)
	345 VA (230 V, UOUT = 24 V, IOUT = stat. Boost)
Maximum no-load power dissipation	< 7 W (120 V AC)
	< 7 W (230 V AC)
Power loss nominal load max.	< 31 W (120 V AC)
	< 25 W (230 V AC)
Power dissipation SLEEP MODE	< 7 W (120 V AC)
	< 7 W (230 V AC)
Crest factor	typ. 1.54 (120 V AC)
	typ. 1.57 (230 V AC)
Rise time	< 1 s (UOut = 10 % ... 90 %)
Connection in parallel	yes, for redundancy and increased capacity
Connection in series	yes
Fuse protection (secondary side)	electronic
	thermal-magnetic
	thermal
Signal
Signal ground SGnd	Reference potential for Out1, Out2, and Rem
Signal Out 1 (configurable)
Digital	24 V DC 20 mA
Default	24 V DC 20 mA 24 V DC for UOut > 0.9 x USet
Signal Out 2 (configurable)
Digital	24 V DC 20 mA
Analog	4 mA ... 20 mA ±5 % (Load ≤400 Ω)
Default	24 V DC 20 mA 24 V DC for POut < PN
Signal relay 13/14 (configurable)
Default	closed (Uout > 0.9 USet)
Digital	24 V DC 1 A
	30 V AC/DC 0.5 A



Connection data của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

Input
Connection method	Screw connection
Conductor cross-section, rigid min.	0.2 mm²
Conductor cross-section, rigid max.	2.5 mm²
Conductor cross-section flexible min.	0.2 mm²
Conductor cross-section flexible max.	2.5 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, min.	0.25 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, max.	2.5 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, min.	0.25 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, max.	2.5 mm²
Conductor cross-section AWG min.	24
Conductor cross-section AWG max.	14
Stripping length	6.5 mm
Tightening torque, min	0.5 Nm
Tightening torque max	0.6 Nm
Output
Connection method	Screw connection
Conductor cross-section, rigid min.	0.2 mm²
Conductor cross-section, rigid max.	2.5 mm²
Conductor cross-section flexible min.	0.2 mm²
Conductor cross-section flexible max.	2.5 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, min.	0.25 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, max.	2.5 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, min.	0.25 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, max.	2.5 mm²
Conductor cross-section AWG min.	24
Conductor cross-section AWG max.	14
Stripping length	6.5 mm
Tightening torque, min	0.5 Nm
Tightening torque max	0.6 Nm
Signal
Connection method	Push-in connection
Conductor cross-section, rigid min.	0.2 mm²
Conductor cross-section, rigid max.	1 mm²
Conductor cross-section flexible min.	0.2 mm²
Conductor cross-section flexible max.	1.5 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, min.	0.2 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, max.	0.75 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, min.	0.2 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, max.	1.5 mm²
Conductor cross-section AWG min.	24
Conductor cross-section AWG max.	16
Stripping length	8 mm



Signaling của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

Types of signaling	LED
	Floating signal contact
	Active signal output Out1 (digital, configurable)
	Active signal output Out2 (analog, configurable)
	Remote contact
	Signal ground SGnd
Signal output
Signal option	Output current
	Output voltage
	Output power
	UIN input voltage OK
	Operating hours
	Early warning of high temperatures
	OVP voltage limitation active
POut	> 100 % (LED lights up yellow, output power > 440 W)
	> 75 % (LED lights up green, output power > 330 W)
	> 50 % (LED lights up green, output power > 220 W)
UOut	> 0.9 x USet (LED lights up green)
	< 0.9 x USet (LED flashes green)



Electrical properties của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

Number of phases	1
Insulation voltage input/output	4 kV AC (type test)
	2 kV AC (routine test)
Insulation voltage output / PE	0.5 kV DC (type test)
	0.5 kV DC (routine test)
Insulation voltage input / PE	3.5 kV AC (type test)
	2.4 kV AC (routine test)
Switching frequency	90.00 kHz ... 110.00 kHz (Auxiliary converter stage)
	80.00 kHz ... 340.00 kHz (Main converter stage)
	50.00 kHz ... 70.00 kHz (PFC stage)



Product properties của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

Product type	Power supply
Product family	QUINT POWER
MTBF (IEC 61709, SN 29500)	> 1169000 h (25 °C)
	> 688000 h (40 °C)
	> 308000 h (60 °C)
Environmental protection directive	RoHS Directive 2011/65/EU
	WEEE
	Reach
Insulation characteristics
Protection class	I
Degree of pollution	2
Life expectancy (electrolytic capacitors)
Current	2 A
Temperature	40 °C
Time	218000 h
Additional text	120 V AC
Life expectancy (electrolytic capacitors)
Current	2 A
Temperature	40 °C
Time	322000 h
Additional text	230 V AC
Life expectancy (electrolytic capacitors)
Current	4 A
Temperature	25 °C
Time	528000 h
Additional text	120 V AC
Life expectancy (electrolytic capacitors)
Current	4 A
Temperature	25 °C
Time	817000 h
Additional text	230 V AC
Life expectancy (electrolytic capacitors)
Current	4 A
Temperature	40 °C
Time	176000 h
Additional text	120 V AC
Life expectancy (electrolytic capacitors)
Current	4 A
Temperature	40 °C
Time	272000 h
Additional text	230 V AC



Dimension của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

Dimensional drawing
Width	70 mm
Height	130 mm
Depth	125 mm
Installation dimensions
Installation distance right/left	5 mm / 5 mm
Installation distance top/bottom	50 mm / 50 mm



Mounting của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

Mounting type	DIN rail mounting
With protective coating	no



Material specifications của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

Flammability rating according to UL 94 (housing / terminal blocks)	V0
Housing material	Metal
Side element version	Aluminum



Environmental and real-life conditions của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Ambient temperature (start-up type tested)	-40 °C
Maximum altitude	≤ 4000 m (> 2000 m, observe derating)
Climatic class	3K3 (in acc. with EN 60721)
Max. permissible relative humidity (operation)	≤ 95 % (at 25 °C, non-condensing)
Shock	18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)	5 Hz ... 100 Hz resonance search 2.3g, 90 min., resonance frequency 2.3g, 90 min. (according to DNV GL Class C)
Temp code	T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K)



Standards and Regulations của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

Rail applications	EN 50121-3-2
	EN 50121-5
	EN 50163
	IEC 62236-3-2
	IEC 62236-5
Standard – Limitation of mains harmonic currents	EN 61000-3-2
Standard - Electrical safety	IEC 61010-2-201
Standard - Safe isolation	IEC 61010-2-201
Standard - safety for equipment for measurement, control, and laboratory use	IEC 61010-1
Battery charging	DIN 41773-1
Approval - requirement of the semiconductor industry with regard to mains voltage dips	SEMI F47-0706, EN 61000-4-11



Approvals của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

CSA	CAN/CSA-C22.2 No. 61010-1-1
	CAN/CSA-C22.2 No. 61010-1-12
Shipbuilding approval	DNV GL applied for
SIQ	BG (type approved)
	CB-Scheme (IEC 61010-1, IEC 61010-2-201, IEC 60950-1)
UL approvals	UL Listed UL 61010-1
	UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location)



EMC data của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Low Voltage Directive	Conformance with Low Voltage Directive 2014/35/EC
Interference emission	Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial)
EMC requirements for noise immunity	EN 61000-6-1
	EN 61000-6-2
Noise immunity	Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial), and EN 61000-6-5 (switching devices), IEC/EN 61850-3 (power supply)
EMC requirements for power supply	IEC 61850-3 (G,H)
	EN 61000-6-5 (switching devices)
Conducted noise emission
Standards/regulations	EN 55016
	EN 61000-6-3 (Class B)
Noise emission
Standards/regulations	Additional basic standard EN 61000-6-5 (immunity in switching devices), IEC/EN 61850-3 (power supply)
Noise emission
Standards/regulations	EN 55016
	EN 61000-6-3 (Class B)
DNV GL conducted noise emissions
DNV	Class A
Additional text	Area power distribution
DNV GL noise radiation
DNV	Class B
Additional text	Bridge and deck area
Harmonic currents
Standards/regulations	EN 61000-3-2
	EN 61000-3-2 (Class A)
Frequency range	0 kHz ... 2 kHz
Flicker
Standards/regulations	EN 61000-3-3
	EN 61000-3-3
Frequency range	0 kHz ... 2 kHz
Electrostatic discharge
Standards/regulations	EN 61000-4-2
Electrostatic discharge
Contact discharge	8 kV (Test Level 4)
Discharge in air	15 kV (Test Level 4)
Comments	Criterion A
Electromagnetic HF field
Standards/regulations	EN 61000-4-3
Electromagnetic HF field
Frequency range	80 MHz ... 1 GHz
Test field strength	20 V/m (Test Level 3)
Frequency range	1 GHz ... 6 GHz
Test field strength	10 V/m (Test Level 3)
Comments	Criterion A
Fast transients (burst)
Standards/regulations	EN 61000-4-4
Fast transients (burst)
Input	4 kV (Test Level 4 - asymmetrical)
Output	4 kV (Test Level 4 - asymmetrical)
Signal	4 kV (Test Level 4 - asymmetrical)
Comments	Criterion A
Surge voltage load (surge)
Standards/regulations	EN 61000-4-5
Surge voltage load (surge)
Input	typ. 3 kV (Test Level 4 - symmetrical)
	typ. 6 kV (Test Level 4 - asymmetrical)
Output	1 kV (Test Level 3 - symmetrical)
	2 kV (Test Level 3 - asymmetrical)
Signal	4 kV (Test Level 4 - asymmetrical)
Comments	Criterion A
Conducted interference
Standards/regulations	EN 61000-4-6
Conducted interference
Input/output/signal	asymmetrical
Frequency range	10 kHz ... 80 MHz
Comments	Criterion A
Voltage	10 V (Test Level 3)
Power frequency magnetic field
Standards/regulations	EN 61000-4-8
Frequency	16.7 Hz
	50 Hz
	60 Hz
Test field strength	100 A/m
Additional text	60 s
Comments	Criterion A
Frequency	50 Hz
	60 Hz
Frequency range	50 Hz ... 60 Hz
Test field strength	1 kA/m
Additional text	3 s
Frequency	0 Hz
Test field strength	300 A/m
Additional text	DC, 60 s
Voltage dips
Standards/regulations	EN 61000-4-11
Voltage	230 V AC
Frequency	50 Hz
Voltage dip	70 %
Number of periods	0.5 / 1 / 25 / 30 periods
Additional text	Test Level 2
Comments	Criterion A: 0.5 / 1 / 25 / 30 periods
Voltage dip	40 %
Number of periods	5 / 10 / 50 periods
Additional text	Test Level 2
Comments	Criterion A
Voltage dip	0 %
Number of periods	0,5 / 1 / 5 / 50 / 250 periods
Additional text	Test Level 2
Comments	Criterion A: 0.5 / 1 period Criterion B: 5 / 50 / 250 periods
Pulse-shape magnetic field
Standards/regulations	EN 61000-4-9
Test field strength	1000 A/m
Comments	Criterion A
Attenuated sinusoidal oscillations (ring wave)
Standards/regulations	EN 61000-4-12
Input	2 kV (Test Level 4 - symmetrical)
	4 kV (Test Level 4 - asymmetrical)
Comments	Criterion A
Asymmetrical conducted disturbance variables
Standards/regulations	EN 61000-4-16
Test level 1	15 Hz 150 Hz (Test Level 4)
Voltage	30 V 3 V
Test level 2	150 Hz 1.5 kHz (Test Level 4)
Voltage	3 V
Test level 3	1.5 kHz 15 kHz (Test Level 4)
Voltage	3 V 30 V
Test level 4	15 kHz 150 kHz (Test Level 4)
Voltage	30 V
Test level 5	16.7 Hz 50 Hz 60 Hz 150 Hz 180 Hz (Test Level 4)
Voltage	30 V (10 s)
Test level 6	16.7 Hz 50 Hz 60 Hz (Test Level 4)
Voltage	300 V (1 s)
Comments	Criterion A
Attenuated oscillating wave
Standards/regulations	EN 61000-4-18
Input, output (test level 1)	100 kHz 1 MHz (Test Level 3 - symmetrical)
Voltage	1 kV
Input, output (test level 2)	10 MHz
Voltage	2 kV
Input, output (test level 3)	100 kHz 1 MHz (Test Level 3 - asymmetrical)
Voltage	2.5 kV
Signals (test level 1)	100 kHz 1 MHz (Test Level 3 - symmetrical)
Voltage	1 kV
Signals (test level 2)	100 kHz 1 MHz (Test Level 3 - asymmetrical)
Voltage	2.5 kV
Comments	Criterion A
Attenuated oscillating magnetic field
Standards/regulations	EN 61000-4-10
Test field strength	100 A/m
Test level 1	100 kHz
Test field strength	100 A/m
Test level 2	1 MHz
Comments	Criterion A
Criteria
Criterion A	Normal operating behavior within the specified limits.
Criterion B	Temporary impairment to operational behavior that is corrected by the device itself.
Criterion C	Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements.



Commercial data của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

Item number	2904613
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	CMPI14
GTIN	4063151023461
Weight per piece (including packing)	1,619 g
Weight per piece (excluding packing)	1,265 g
Customs tariff number	85044095
Country of origin	TH



Classifications của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

ECLASS

ECLASS-13.0	27040701
ECLASS-15.0	27040701

ETIM

ETIM 10.0

EC002540

UNSPSC

UNSPSC 21.0

39121000



Classifications của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

NK

Approval ID: TA21182M

EAC

Approval ID: RU S-DE.BL08.W.00764

DNV

Approval ID: TAA00001YD

BV

Approval ID: 44621/B1 BV

SEMI F47

Approval ID: SEMI F47

ABS

Approval ID: 26-0442641-PDA

cULus Listed

Approval ID: E123528-20201210

cULus Listed

Approval ID: E211944-20201130

cCSAus

Approval ID: 80059990

cULus Listed

Approval ID: E199827-20210217


Approvals của Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-25 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	0852a0eb-2ae0-4057-8ce5-81c3a4850200
EF3.1 Climate Change
CO2e kg	31.472 kg CO2e



Tham khảo thêm các model khác cùng loại với Bộ nguồn 1AC 110VDC 4A Phoenix Contact QUINT4-PS/1AC/110DC/4 - 2904613

QUINT4-PS/1AC/24DC/10 - Power supply
2904601
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 1-phase, output: 24 V DC/10 A

QUINT4-PS/1AC/24DC/20 - Power supply
2904602
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 1-phase, output: 24 V DC/20 A

QUINT4-PS/1AC/24DC/5 - Power supply
2904600
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 1-phase, output: 24 V DC/5 A

QUINT4-PS/1AC/110DC/4 - Power supply
2904613
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 110 V DC / 4 A, adjustable from 110 V DC ... 135 V DC

QUINT4-PS/1AC/24DC/1.3/SC - Power supply
2904597
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 1.3 A, adjustable from 24 V DC ... 28 V DC

QUINT4-PS/1AC/24DC/20/+ - Power supply
2904617
Primary-switched QUINT POWER supply for DIN rail mounting, SFB (Selective Fuse Breaking) Technology, protective coating and integrated decoupling MOSFET, input: 1-phase, output: 24 V DC/20 A

QUINT4-PS/1AC/24DC/40 - Power supply
2904603
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 1-phase, output: 24 V DC/40 A

QUINT4-PS/3AC/24DC/20 - Power supply
2904622
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 3-phase, output: 24 V DC/20 A

QUINT4-PS/1AC/24DC/2.5/SC - Power supply
2904598
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 2.5 A, adjustable from 24 V DC ... 28 V DC. Alternative item: 2909576

QUINT4-PS/1AC/24DC/3.8/SC - Power supply
2904599
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 3.8 A, adjustable from 24 V DC ... 28 V DC

QUINT4-PS/3AC/24DC/10 - Power supply
2904621
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 3-phase, output: 24 V DC/10 A

QUINT4-PS/3AC/24DC/40 - Power supply
2904623
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 3-phase, output: 24 V DC/40 A

QUINT4-PS/1AC/12DC/15 - Power supply
2904608
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 1-phase, output: 12 V DC / 15 A

QUINT4-PS/12-24DC/5-15DC/2.5/PT - DC/DC converter
1066704
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 12 V DC - 24 V DC, output: 12 V DC / 2.5 A

QUINT4-PS/1AC/48DC/10 - Power supply
2904611
Primary-switched QUINT POWER power supply for DIN rail mounting with free choice of output characteristic curve and SFB (Selective Fuse Breaking) technology, input: 1-phase, output: 48 V DC / 10 A

QUINT4-PS/3AC/24DC/5 - Power supply
2904620
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 3-phase, output: 24 V DC/5 A

QUINT4-PS/48-110DC/24DC/2.5/PT - DC/DC converter
1066708
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 48 V DC - 110 V DC, output: 24 V DC / 2.5 A

QUINT4-PS/1AC/5DC/5/PT - Power supply
2904595
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 5 V DC / 5 A, adjustable from 5 V DC ... 6.2 V DC

QUINT-PS/1AC/24DC/ 5/CO - Power supply, with protective coating
2320908
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 5 A, adjustable from 18 V DC ... 29.5 V DC. Please use the following item in new systems:
2904616
QUINT4-PS/1AC/24DC/10/+

QUINT4-PS/1AC/2X15DC/2/PT - Power supply
2904596
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 15 V DC / 2 A

QUINT4-PS/1AC/48DC/20 - Power supply
2904612
QUINT POWER primary-switched power supply with free choice of output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 1-phase, output: 48 V DC/20 A

QUINT-PS/96-110DC/24DC/10 - DC/DC converter
2905010
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (selective fuse breaking) technology, input: 96 - 110 V DC, output: 24 V DC/10 A

QUINT4-PS/1AC/24DC/40/+ - Power supply
2904618
Primary-switched QUINT POWER supply for DIN rail mounting, with selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, protective coating and integrated decoupling MOSFET, input: 1-phase, output: 24 V DC / 40 A

QUINT4-PS/24DC/12DC/8/PT - DC/DC converter
2910122
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 12 V DC / 8 A

QUINT4-PS/24DC/24DC/20/PT - DC/DC converter
2910121
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 20 A

QUINT4-PS/1AC/24DC/2.5/PT - Power supply
2909576
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 2.5 A, adjustable from 24 V DC ... 28 V DC

QUINT4-PS/24DC/24DC/20/SC/+ - DC/DC converter
1046881
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 20 A

QUINT4-PS/24DC/24DC/10/PT - DC/DC converter
2910120
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 10 A

QUINT4-PS/1AC/12DC/2.5/PT - Power supply
2904605
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 12 V DC / 2.5 A, adjustable from 12 V DC ... 15 V DC

QUINT4-PS/1AC/24DC/10/+ - Power supply
2904616
Primary-switched QUINT POWER supply for DIN rail mounting, with selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, protective coating and integrated decoupling MOSFET, input: 1-phase, output: 24 V DC / 10 A

QUINT4-PS/24DC/24DC/5/PT - DC/DC converter
2910119
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 5 A

QUINT-PS/1AC/12DC/20 - Power supply
2866721
Primary-switched power supply unit QUINT POWER, Screw connection, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 12 V DC / 20 A, adjustable from 5 V DC ... 18 V DC, 90 V DC ... 350 V DC. Please use the following item in new systems: 2904608 QUINT4-PS/1AC/12DC/15

QUINT4-PS/48DC/24DC/5/PT - DC/DC converter
2910125
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 48 V DC, output: 24 V DC / 5 A

QUINT4-PS/1AC/48DC/5 - Power supply
2904610
Primary-switched QUINT POWER power supply for DIN rail mounting with free choice of output characteristic curve and SFB (Selective Fuse Breaking) technology, input: 1-phase, output: 48 V DC / 5 A

QUINT-PS/96-110DC/24DC/10/CO - DC/DC converter, protective coating
2905012
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (selective fuse breaking) technology, input: 96 - 110 V DC, output: 24 V DC/10 A

QUINT-PS/60-72DC/24DC/10 - DC/DC converter
2905009
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (Selective Fuse Breaking) technology, input: 60-72 V DC, output 24 V DC / 10 A

QUINT4-PS/24DC/24DC/20/SC - DC/DC converter
1046805
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 20 A

TWN4 MIFARE NFC USB ADAPTER - Programming adapter
2909681
Near Field Communication (NFC) programming adapter with USB interface for the wireless configuration of NFC-capable products from Phoenix Contact with software. A separate USB driver is not required.

QUINT4-PS/12-24DC/24DC/1.3/SC - DC/DC converter
1066703
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 1.3 A

QUINT4-PS/1AC/24DC/1.3/PT - Power supply
2909575
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 1.3 A, adjustable from 24 V DC ... 28 V DC

QUINT4-PS/1AC/12DC/7.5/PT - Power supply
2904607
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 12 V DC / 7.5 A, adjustable from 12 V DC ... 15 V DC

QUINT4-SYS-PS/1AC/24DC/2.5/SC - Power supply
2904614
Primary-switched power supply, QUINT POWER, screw connection, DIN rail mounting, supply of devices possible via the TBUS DIN rail connector, protective coating, input: single-phase, output: 24 V DC/2.5 A

QUINT4-PS/3AC/24DC/40/CO - Power supply
1783052
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 3-phase, output: 24 V DC/40 A

QUINT4-PS/24DC/24DC/10/SC - DC/DC converter
1046803
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 10 A

QUINT4-PS/1AC/48DC/10/CO - Power supply
2904626
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, NFC interface, and protective coating, input: 1-phase, output: 48 V DC / 10 A

QUINT4-PS/24DC/48DC/5/PT - DC/DC converter
2910123
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 48 V DC / 5 A

QUINT4-PS/12-24DC/24DC/2.5/PT - DC/DC converter
1066714
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 2.5 A

QUINT4-PS/12-24DC/24DC/1.3/PT - DC/DC converter
1066716
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 1.3 A

QUINT4-PS/24DC/24DC/5/SC - DC/DC converter
1046800
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 5 A

QUINT-PS/3AC/24DC/20/CO - Power supply, with protective coating
2320924
Primary-switched power supply unit QUINT POWER, Screw connection, SFB Technology (Selective Fuse Breaking), input: 3-phase, output: 24 V DC / 20 A, adjustable from 18 V DC ... 29.5 V DC. Please use the following item in new systems: 1343940 QUINT4-PS/3AC/24DC/20/CO

QUINT4-PS/1AC/24DC/10/CO - Power supply
2904625
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, NFC interface, and protective coating, input: 1-phase, output: 24 V DC / 10 A

QUINT4-PS/12DC/24DC/5/PT - DC/DC converter
2910124
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 12 V DC, output: 24 V DC / 5 A

QUINT4-PS/3AC/24DC/40/IOL - Power supply
1151047
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 3-phase, output: 24 V DC / 40 A, adjustable from 24 V DC ... 29.5 V DC

UWA 182/52 - Mounting adapter
2938235
Universal wall adapter for securely mounting the device in the event of strong vibrations. The device is screwed directly onto the mounting surface. The universal wall adapter is attached on the top/bottom.

QUINT4-PS/24-48DC/48DC/2/PT - DC/DC converter
1098676
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 24 V DC - 48 V DC, output: 48 V DC / 2 A

QUINT4-PS/3AC/24DC/20/IOL - Power supply
1151048
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 3-phase, output: 24 V DC / 20 A, adjustable from 24 V DC ... 29.5 V DC

QUINT4-PS/12-24DC/24DC/2.5/SC - DC/DC converter
1066718
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 2.5 A

QUINT4-PS/3AC/48DC/20 - Power supply
2904627
QUINT POWER primary-switched power supply with free choice of output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 3-phase, output: 48 V DC/20 A

USB IO-LINK ADAPTER - Programming adapter
1533311
IO-Link programming adapter for the USB interface, for configuring IO-Link-capable products with compatible Phoenix Contact software.

UTA 107/30 - Mounting adapter
2320089

UWA 130 - Mounting adapter
2901664
2-piece universal wall adapter for securely mounting the device in the event of strong vibrations. The profiles that are screwed onto the side of the device are screwed directly onto the mounting surface. The universal wall adapter is attached on the left/right.

QUINT4-PS/24DC/24DC/5/PT/CO - DC/DC converter
2910132
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 5 A

QUINT4-PS/1AC/24DC/3.8/PT - Power supply
2909577
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 3.8 A, adjustable from 24 V DC ... 28 V DC

QUINT-PS/60-72DC/24DC/10/CO - DC/DC converter, protective coating
2905011
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (Selective Fuse Breaking) technology, input: 60-72 V DC, output 24 V DC / 10 A

QUINT4-PS/48DC/48DC/5/PT - DC/DC converter
2910128
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 48 V DC, output: 48 V DC / 5 A
