Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602 | 1P 24VDC 20A

Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602 | 1P 24VDC 20A

3,359
Nhà sản xuất:

Phoenix Contact

;

Xuất xứ: Germany

Giá sỉ:

Giá tốt nhất xem...0909186879 dienelectrics@gmail.com

Khuyến mãi:có discount
Bảo hành:12 Tháng (Chính hãng)
Thanh toán:C.O.D / Bảo lãnh TT / Linh hoạt
Vận chuyển:Miễn phí Tp.HCM, và vùng phụ cận
Thông tin nổi bật
Bộ nguồn 24vDC 20A 1pha. Dòng tối đa chức năng, đường cong đặc trưng đầu ra tùy chọn, công nghệ SFB (Selective Fuse Breaking), giao diện NFC (Near Field Communication). Thuộc thế hệ thứ tư của bộ nguồn điện QUINT POWER hiệu suất cao đảm bảo tính sẵn sàng của hệ thống với các chức năng mới. Ngưỡng tín hiệu và các đường cong đặc trưng có thể được điều chỉnh riêng qua giao diện NFC. Công nghệ SFB độc đáo và chức năng giám sát chức năng của bộ nguồn điện QUINT POWER làm tăng tính sẵn có của ứng dụng của bạn.

Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602 là Bộ cấp nguồn, đầu vào 1AC, đầu ra 24VDC 20A thuộc thế hệ QUINT4

Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602


- Tài liệu kỹ thuật Bộ nguồn 24vDC 20A (1AC) -Phoenix Contact -Power supply unit -QUINT4-PS/1AC/24DC/20 -2904602

 - Tài liệu lắp đặt Bộ nguồn 24vDC 20A (1AC) -Phoenix Contact -Power supply unit -QUINT4-PS/1AC/24DC/20 -2904602



Ưu điểm nổi bật của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

- Công nghệ SFB truyền tín hiệu ngắt mạch tiêu chuẩn có tính lựa chọn, tải được kết nối song song làm việc liên tục
- Chức năng hiển thị phòng ngừa theo dõi các trạng thái hoạt động quan trọng trước khi xảy ra lỗi
- Ngưỡng tín hiệu và các đường cong đặc trưng có thể được điều chỉnh thông qua NFC tối đa hóa khả năng sẵn sàng của hệ thống
- Hệ thống dễ dàng mở rộng nhờ chức năng nạp tĩnh điện; bắt đầu tải trọng khó nhờ chức năng nạp linh hoạt
- Mức độ miễn nhiễm cao, nhờ vào thiết bị chống sét dạng khí được tích hợp và thời gian cầu nối hỏng hóc chỉ hơn 20 phần nghìn giây
- Thiết kế chắc chắn nhờ vỏ kim loại và phạm vi hoạt động trong dải nhiệt độ rộng từ -40 ° C đến + 70 ° C
- Sử dụng rộng rãi trên toàn cầu nhờ vào dải đầu vào và gói approval quốc tế rộng rãi


Ứng dụng  của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

Bạn có cần một bộ nguồn điện với các thiết lập cá biệt?

Sử dụng bộ cấu hình, bạn có thể tối ưu hóa nguồn điện QUINT POWER cho ứng dụng cụ thể của bạn: thiết lập các thông số khác nhau, chẳng hạn như ngưỡng báo hiệu, các đường cong đặc trưng hoặc điện áp ra riêng lẻ và đặt nguồn cung cấp điện tùy biến của bạn với số lượng một hoặc nhiều hơn.


Hướng dẫn lắp đặt của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602










Bản vẽ và thiết kế mạch của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602


















Kích thước tiêu chuẩn của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

Width 70 mm
Height 130 mm
Depth 125 mm
Width with alternative assembly 122 mm
Height with alternative assembly 130 mm
Depth with alternative assembly 73 mm


Tiêu chuẩn điều kiện môi trường xung quanh phù hợp của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

Degree of protection IP20
Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K)
Ambient temperature (start-up type tested) -40 °C
Ambient temperature (storage/transport) -40 °C ... 85 °C
Max. permissible relative humidity (operation) ≤ 95 % (at 25 °C, non-condensing)
Climatic class 3K3 (in acc. with EN 60721)
Degree of pollution 2
Installation height ≤ 5000 m (> 2000 m, observe derating)


Dữ liệu đầu vào của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

Nominal input voltage range 100 V AC ... 240 V AC
  110 V DC ... 250 V DC
Input voltage range 100 V AC ... 240 V AC -15 % ... +10 %
  110 V DC ... 250 V DC -18 % ... +40 %
Dielectric strength maximum 300 V AC 60 s
AC frequency range 50 Hz ... 60 Hz -10 % ... +10 %
Discharge current to PE < 3.5 mA
Current consumption 6.8 A (100 V AC)
  5.5 A (120 V AC)
  2.8 A (230 V AC)
  2.7 A (240 V AC)
Nominal power consumption 509 W
Inrush surge current typ. 11 A (at 25 °C)
Mains buffering ≥ 20 ms (120 V AC)
  ≥ 20 ms (230 V AC)
Input fuse 12 A (slow-blow, internal)
Choice of suitable circuit breakers 10 A ... 16 A (Characteristic B, C, D, K or comparable)
Type of protection Transient surge protection
Protective circuit/component Varistor, gas-filled surge arrester

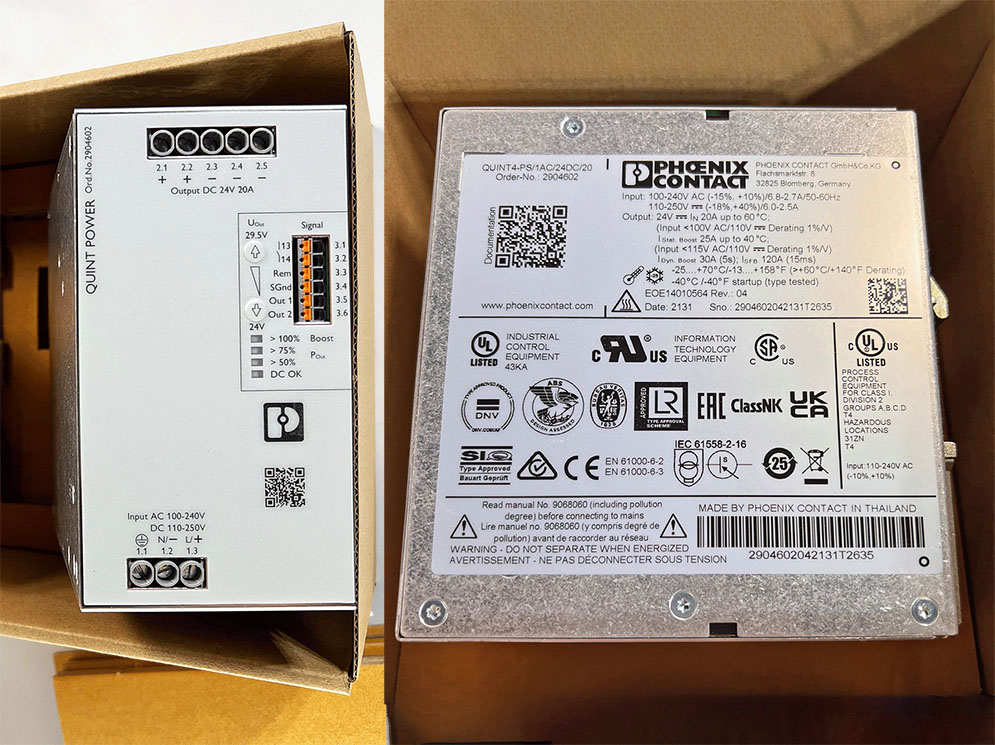

Phoenix Contact QUINT4-PS/1AC/24DC/20


Dữ liệu đầu ra của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

Nominal output voltage 24 V DC
Setting range of the output voltage (USet) 24 V DC ... 29.5 V DC (constant capacity)
Nominal output current (IN) 20 A
Static Boost (IStat.Boost) 25 A
Dynamic Boost (IDyn.Boost) 30 A (5 s)
Selective Fuse Breaking (ISFB) 120 A (15 ms)
Derating > 60 °C (2.5%/K)
Connection in parallel Yes, for redundancy and increased capacity
Connection in series yes
Feedback resistance ≤ 35 V DC
Circuit breaker against surge voltage at output by invasive foreign matter ≤ 32 V DC
Control deviation < 0.5 % (Static load change 10 % ... 90 %)
  < 4 % (Dynamic load change 10 % ... 90 %, (10 Hz))
  < 0.25 % (change in input voltage ±10 %)
Residual ripple < 50 mVPP (with nominal values)
Output power 480 W
Typical response time 300 ms (from SLEEP MODE)
Maximum power dissipation in no-load condition < 5 W (120 V AC)
  < 5 W (230 V AC)
Power loss nominal load max. < 40 W (120 V AC)
  < 32 W (230 V AC)


Thông tin chung căn bản của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

Net weight 1.3 kg
Efficiency typ. 92.4 % (120 V AC)
  typ. 94 % (230 V AC)
Insulation voltage input/output 4 kV AC (type test)
  2 kV AC (routine test)
Insulation voltage input / PE 3.5 kV AC (type test)
  2.4 kV AC (routine test)
Insulation voltage output / PE 0.5 kV DC (type test)
  0.5 kV DC (routine test)
Protection class I
Degree of protection IP20
MTBF (IEC 61709, SN 29500) > 1110000 h (25 °C)
  > 673000 h (40 °C)
  > 309000 h (60 °C)
Mounting position horizontal DIN rail NS 35, EN 60715
Assembly instructions alignable: PN ≥50 %, 5 mm horizontally, 15 mm next to active components, 50 mm vertically
alignable: PN <50 %, 0 mm horizontally, 40 mm vertikaly top, 20 mm vertikaly bottom


Dữ liệu kết nối, đầu vào của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

Connection method Screw connection
Conductor cross section solid min. 0.2 mm²
Conductor cross section solid max. 6 mm²
Conductor cross section flexible min. 0.2 mm²
Conductor cross section flexible max. 4 mm²
Conductor cross section AWG min. 30
Conductor cross section AWG max. 10
Stripping length 8 mm

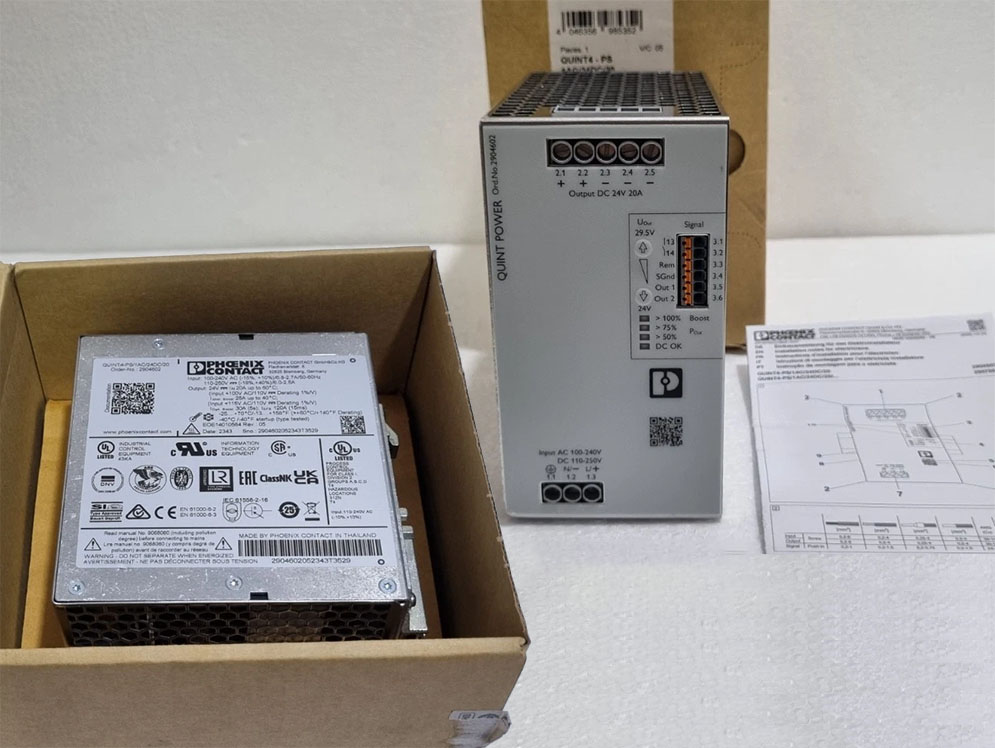

Phoenix Contact 2904602


Dữ liệu kết nối, đầu ra của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

Connection method Screw connection
Conductor cross section solid min. 0.2 mm²
Conductor cross section solid max. 6 mm²
Conductor cross section flexible min. 0.2 mm²
Conductor cross section flexible max. 4 mm²
Conductor cross section AWG min. 30
Conductor cross section AWG max. 10
Stripping length 8 mm


Tiêu chuẩn dữ liệu kết nối cho việc truyền tín hiệu của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

Connection method Push-in connection
Conductor cross section solid min. 0.2 mm²
Conductor cross section solid max. 1.5 mm²
Conductor cross section flexible min. 0.2 mm²
Conductor cross section flexible max. 1.5 mm²
Conductor cross section AWG min. 24
Conductor cross section AWG max. 16
Stripping length 8 mm


Tiêu chuẩn và quy định của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU
Noise emission Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply)
Noise immunity Immunity according to EN 61000-6-1 (residential), EN 61000-6-2 (industrial), and EN 61000-6-5 (power station equipment zone), IEC/EN 61850-3 (energy supply)
Standards/regulations EN 61000-4-2
Contact discharge 4 kV (Test Level 2)
Standards/regulations EN 61000-4-3
Frequency range 80 MHz ... 1 GHz
Test field strength 10 V/m (Test Level 3)
Frequency range 1.4 GHz ... 2 GHz
Test field strength 3 V/m (Test Level 2)
Standards/regulations EN 61000-4-4
Comments Criterion B
Standards/regulations EN 61000-4-5
Signal 0.5 kV (Test Level 1 - asymmetrical)
Standards/regulations EN 61000-4-6
Frequency range 0.15 MHz ... 80 MHz
Voltage 10 V (Test Level 3)
Conducted noise emission EN 55016 EN 61000-6-4 (Class A)
Standards/regulations EN 61000-4-8
  EN 61000-4-11
  EN 61000-4-9
  EN 61000-4-12
  EN 61000-4-16
  EN 61000-4-18
Low Voltage Directive Conformance with Low Voltage Directive 2014/35/EC
Standard - Safety of transformers EN 61558-2-16 (air clearances and creepage distances only)
Standard - Electrical safety IEC 60950-1/VDE 0805 (SELV)
Standard - power supply devices for low voltage with DC output EN 61204-3
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations EN 50178/VDE 0160 (PELV)
Standard – Safety extra-low voltage IEC 60950-1 (SELV)
  EN 60204-1 (PELV)
Standard - Safe isolation DIN VDE 0100-410
Standard – Limitation of mains harmonic currents EN 61000-3-2
Shipbuilding approval DNV GL, PRS, BV, LR, ABS
UL approvals UL Listed UL 508
  UL/C-UL Recognized UL 60950-1
  UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
Shock 18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation) 5 Hz - 100 Hz resonance search 2.3g, 90 min., resonance frequency 2.3g, 90 min. (according to DNV GL Class C)
Approval - requirement of the semiconductor industry with regard to mains voltage dips SEMI F47-0706 Compliance Certificate; EN 61000-4-11
Rail applications EN 50121-3-2
Overvoltage category (EN 60950-1) II
Overvoltage category (EN 61010-1) II
Overvoltage category (EN 62477-1) III
QUINT4-PS/1AC/24DC/20 2904602


Tiêu chuẩn thân thiện với môi trường của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

China RoHS Environmentally Friendly Use Period = 25;
  For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”


Tiêu chuẩn phân lớp của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

eCl@ss của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

eCl@ss 5.1 27242213
eCl@ss 6.0 27049005
eCl@ss 8.0 27049002
eCl@ss 9.0 27040701


ETIM của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

ETIM 5.0 EC002540
ETIM 6.0 EC002540


UNSPSC của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602

UNSPSC 13.2 39121004


APPROVAL của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 -2904602




Tham khảo thêm các models cùng loại, liên quan với Bộ nguồn Phoenix Contact QUINT4-PS/1AC/24DC/20 - 2904602:

QUINT4-PS/1AC/24DC/20 - Power supply
2904602
Primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 1-phase, output: 24 V DC/20 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/1AC/24DC/5 - Power supply
2904600
Primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 1-phase, output: 24 V DC/5 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/1AC/24DC/10 - Power supply
2904601
Primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 1-phase, output: 24 V DC/10 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-DIODE/12-24DC/2X20/1X40 - Redundancy module
2907719
DIN rail diode module 12-24 V DC/2x20 A or 1x40 A. Uniform redundancy up to the consumer.
QUINT4-UPS/24DC/24DC/20 - Uninterruptible power supply
2907071
QUINT DC UPS, IQ Technology, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 20 A, charging current: 5 A
QUINT4-PS/1AC/110DC/4 - Power supply
2904613
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 110 V DC / 4 A, adjustable from 110 V DC ... 135 V DC. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/1AC/24DC/40 - Power supply
2904603
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 1-phase, output: 24 V DC/40 A
NEW
QUINT4-PS/3AC/24DC/40/CO - Power supply
1783052
Primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 3-phase, output: 24 V DC/40 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-UPS/24DC/24DC/10 - Uninterruptible power supply
2907066
QUINT DC UPS, IQ Technology, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 10 A, charging current: 3 A
QUINT4-PS/3AC/24DC/20 - Power supply
2904622
Primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 3-phase, output: 24 V DC/20 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/1AC/24DC/20/+ - Power supply
2904617
Primary-switched QUINT POWER power supply, DIN rail mounting, SFB (Selective Fuse Breaking) Technology, integrated decoupling MOSFET, input: 1-phase, output: 24 V DC/20 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/1AC/24DC/2.5/SC - Power supply
2904598
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 2.5 A, adjustable from 24 V DC ... 28 V DC. Alternative item: 2909576
QUINT4-PS/3AC/24DC/40 - Power supply
2904623
Primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 3-phase, output: 24 V DC/40 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/1AC/24DC/1.3/SC - Power supply
2904597
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 1.3 A, adjustable from 24 V DC ... 28 V DC
QUINT4-PS/1AC/48DC/10 - Power supply
2904611
Primary-switched QUINT POWER power supply for DIN rail mounting, with selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, input: 1-phase, output: 48 V DC/10 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-UPS/24DC/24DC/5 - Uninterruptible power supply
2906990
QUINT DC UPS, IQ Technology, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 5 A, charging current: 1.5 A
QUINT4-PS/1AC/24DC/3.8/SC - Power supply
2904599
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 3.8 A, adjustable from 24 V DC ... 28 V DC
QUINT4-PS/1AC/48DC/20 - Power supply
2904612
Primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 1-phase, output: 48 V DC/20 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/3AC/24DC/10 - Power supply
2904621
Primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 3-phase, output: 24 V DC/10 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/1AC/12DC/2.5/PT - Power supply
2904605
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 12 V DC / 2.5 A, adjustable from 12 V DC ... 15 V DC
QUINT4-ORING/12-24DC/2X10/2X10 - Redundancy module
1088206
Active redundancy module QUINT ORING with decoupling MOSFET, ACB Technology, DIN rail mounting, 12 V DC ... 24 V DC, 2x 10 A, 2x 10 A
QUINT4-PS/1AC/12DC/15 - Power supply
2904608
Primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 1-phase, output: 12 V DC/15 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-UPS/24DC/24DC/40 - Uninterruptible power supply
2907077
QUINT DC UPS, IQ Technology, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 40 A, charging current: 5 A
QUINT4-PS/24DC/12DC/8/PT - DC/DC converter
2910122
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 12 V DC / 8 A
QUINT4-PS/12-24DC/5-15DC/2.5/PT - DC/DC converter
1066704
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, input: 12 V DC - 24 V DC, output: 12 V DC / 2.5 A

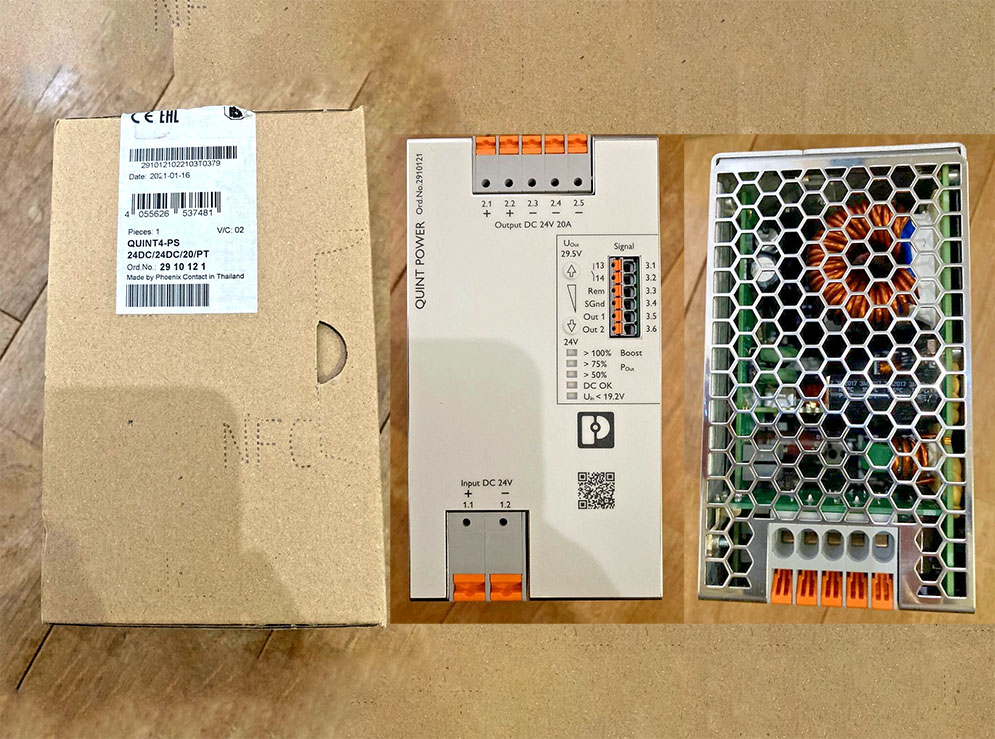

QUINT4-PS/24DC/24DC/20/PT - DC/DC converter
2910121
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 20 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-UPS/1AC/1AC/1KVA - Uninterruptible power supply
2320283
Uninterruptible power supply with IQ Technology for DIN rail mounting. Input: 120 V AC/230 V AC, output: 120 V AC/230 V AC/1 kVA. Provides information regarding the state of charge, remaining time, and service life of the rechargeable battery module at any time, thereby increasing system availability. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-UPS/24DC/24DC/10/EIP - Uninterruptible power supply
2907069
QUINT DC UPS, IQ Technology, EtherNet/IP (Modbus/TCP), DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 10 A, charging current: 3 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/48-110DC/24DC/2.5/PT - DC/DC converter
1066708
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, input: 48 V DC - 110 V DC, output: 24 V DC / 2.5 A
QUINT4-UPS/24DC/24DC/40/PN - Uninterruptible power supply
2907079
QUINT DC UPS, IQ Technology, PROFINET, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 40 A, charging current: 5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/48DC/24DC/5/PT - DC/DC converter
2910125
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 48 V DC, output: 24 V DC / 5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/24DC/24DC/10/PT - DC/DC converter
2910120
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 10 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-DIODE/48DC/2X20/1X40 - Redundancy module
2907720
DIN rail diode module 48 V DC/2x20 A or 1x40 A. Uniform redundancy up to the consumer.
QUINT4-UPS/24DC/24DC/40/USB - Uninterruptible power supply
2907078
QUINT DC UPS, IQ Technology, USB (Modbus/RTU), DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 40 A, charging current: 5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/1AC/24DC/40/+ - Power supply
2904618
Primary-switched QUINT POWER power supply, DIN rail mounting, selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, protective coating and integrated decoupling MOSFET, input: 1-phase, output: 24 V DC/40 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/1AC/2X15DC/2/PT - Power supply
2904596
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 15 V DC / 2 A
QUINT4-PS/1AC/48DC/5 - Power supply
2904610
Primary-switched QUINT POWER power supply for DIN rail mounting with free choice of output characteristic curve and SFB (Selective Fuse Breaking) technology, input: 1-phase, output: 48 V DC / 5 A
QUINT4-PS/1AC/24DC/2.5/PT - Power supply
2909576
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 2.5 A, adjustable from 24 V DC ... 28 V DC
QUINT4-PS/24DC/24DC/20/SC/+ - DC/DC converter
1046881
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), Protective coating and integrated decoupling MOSFET, input: 24 V DC, output: 24 V DC / 20 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-ORING/12-24DC/2X20/2X20 - Redundancy module
1088207
Active redundancy module QUINT ORING with decoupling MOSFET, ACB Technology, DIN rail mounting, 12 V DC ... 24 V DC, 2x 20 A, 2x 20 A
QUINT4-PS/3AC/24DC/5 - Power supply
2904620
Primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 3-phase, output: 24 V DC/5 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-S-ORING/12-24DC/1X40 - Redundancy module
2907752
Active QUINT single redundancy module for DIN rail mounting, input: 12 V DC ... 24 V DC, output: 12 V DC ... 24 V DC / 1 x 40 A, incl. mounted UTA 107/30 universal DIN rail adapter
QUINT4-PS/1AC/24DC/10/+ - Power supply
2904616
Primary-switched QUINT POWER power supply, DIN rail mounting, selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, protective coating and integrated decoupling MOSFET, input: 1-phase, output: 24 V DC/10 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-UPS/1AC/1AC/500VA/USB - Uninterruptible power supply
1067327
QUINT AC UPS, IQ Technology, DIN rail mounting, input: 120 V AC / 230 V AC, output: 120 V AC / 230 V AC / 500 VA. output: 120 V AC / 500 VA. output: 230 V AC / 500 VA.. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-UPS/24DC/24DC/20/USB - Uninterruptible power supply
2907072
QUINT DC UPS, IQ Technology, USB, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 20 A, charging current: 5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/1AC/5DC/5/PT - Power supply
2904595
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 5 V DC / 5 A, adjustable from 5 V DC ... 6.2 V DC
QUINT4-BUFFER/24DC/20 - Buffer module
2907913
QUINT buffer module with maintenance-free capacitor-based energy storage for DIN rail mounting, input: 24 V DC, output: 24 V DC/20 A, including mounted UTA 107 universal DIN rail adapter.
QUINT4-UPS/24DC/24DC/20/EIP - Uninterruptible power supply
2907074
QUINT DC UPS, IQ Technology, EtherNet/IP (Modbus/TCP), DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 20 A, charging current: 5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-UPS/24DC/24DC/5/USB - Uninterruptible power supply
2906991
QUINT DC UPS, IQ Technology, USB, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 5 A, charging current: 1.5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-UPS/24DC/24DC/40/EIP - Uninterruptible power supply
2907080
QUINT DC UPS, IQ Technology, EtherNet/IP (Modbus/TCP), DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 40 A, charging current: 5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-UPS/24DC/24DC/10/USB - Uninterruptible power supply
2907067
QUINT DC UPS, IQ Technology, USB, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 10 A, charging current: 3 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-CHARGER/1AC/24DC/10 - Battery charger
2907990
Battery charger QUINT CHARGER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 10 A, adjustable from 19.2 V DC ... 28.6 V DC. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
NEW
QUINT4-UPS/24DC/24DC/20/485 - Uninterruptible power supply
1322782
QUINT DC UPS, IQ Technology, RS485, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 20 A, charging current: 5 A
QUINT4-PS/1AC/24DC/1.3/PT - Power supply
2909575
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 1.3 A, adjustable from 24 V DC ... 28 V DC. Identical device with screw connection: 2904597
QUINT4-PS/24DC/24DC/10/SC - DC/DC converter
1046803
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 10 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-UPS/24DC/24DC/5/EIP - Uninterruptible power supply
2906994
QUINT DC UPS, IQ Technology, EtherNet/IP (Modbus/TCP), DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 5 A, charging current: 1.5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/24DC/24DC/5/PT - DC/DC converter
2910119
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 5 A
QUINT4-PS/1AC/24DC/3.8/PT - Power supply
2909577
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 3.8 A, adjustable from 24 V DC ... 28 V DC
QUINT4-PS/12-24DC/24DC/1.3/SC - DC/DC converter
1066703
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 1.3 A
QUINT4-CAP/24DC/10/8KJ - DC UPS with integrated capacity
2320571
QUINT DC UPS with integrated capacitor, with maintenance-free energy storage based on double-layer capacitor, USB (Modbus/RTU), DIN rail mounting, input: 24 V DC, output: 24 V DC / 10 A / 8 kJ incl. mounted UTA 107 universal DIN rail adapter. The “POWER MANAGEMENT SUITE” software (Item No. 1252232) available in the download area can be used for configuration.. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-S-ORING/12-24DC/1X40/+ - Redundancy module, with protective coating
2907753
Active QUINT single redundancy module for DIN rail mounting, protective coating, input: 12 V DC ... 24 V DC, output: 12 V DC ... 24 V DC / 1 x 40 A, integrated surge protection <28.8 V DC, incl. mounted UTA 107/30 universal DIN rail adapter
QUINT4-SYS-PS/1AC/24DC/2.5/SC - Power supply
2904614
Primary-switched power supply, QUINT POWER, screw connection, DIN rail mounting, supply of devices possible via the TBUS DIN rail connector, protective coating, input: single-phase, output: 24 V DC/2.5 A
QUINT4-PS/12-24DC/24DC/1.3/PT - DC/DC converter
1066716
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 1.3 A
QUINT4-UPS/24DC/24DC/20/PN - Uninterruptible power supply
2907073
QUINT DC UPS, IQ Technology, PROFINET, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 20 A, charging current: 5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/24DC/48DC/5/PT - DC/DC converter
2910123
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 48 V DC / 5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/24DC/24DC/20/SC - DC/DC converter
1046805
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 20 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-INV/24DC/1AC/600VA/USB - DC/AC inverter
1067325
QUINT INVERTER, DIN rail mounting, input:24 V DC, output:1AC / 600 VA, Pure sine.
QUINT-UPS/ 24DC/ 24DC/10/3.4AH - Uninterruptible power supply
2320267
Uninterruptible power supply with IQ Technology and integrated battery for DIN rail mounting, input: 24 V DC, output: 24 V DC/10 A, battery: lead AGM 4 Ah, including mounted UTA 107/30 universal DIN rail adapter. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-CAP/24DC/3.8/1KJ/PT - DC UPS with integrated capacity
2320526
QUINT DC UPS with integrated capacitor, with maintenance-free energy storage based on double-layer capacitor, DIN rail mounting, input: 24 V DC, output: 24 V DC / 3.8 A / 1 kJ
QUINT4-PS/12-24DC/24DC/2.5/PT - DC/DC converter
1066714
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 2.5 A
QUINT4-BUFFER/24DC/40 - Buffer module
2908283
QUINT buffer module with maintenance-free capacitor-based energy storage for DIN rail mounting, input: 24 V DC, output: 24 V DC/40 A, including mounted UTA 107 universal DIN rail adapter.
QUINT4-PS/12DC/24DC/5/PT - DC/DC converter
2910124
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 12 V DC, output: 24 V DC / 5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-CAP/24DC/20/16KJ/USB - DC UPS with integrated capacity
1065635
QUINT DC UPS with integrated capacitor, with maintenance-free energy storage based on double-layer capacitor, USB (Modbus/RTU), DIN rail mounting, input: 24 V DC, output: 24 V DC / 20 A / 16 kJ incl. mounted UTA 107 universal DIN rail adapter. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/24DC/24DC/5/SC - DC/DC converter
1046800
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-UPS/24DC/24DC/10/PN - Uninterruptible power supply
2907068
QUINT DC UPS, IQ Technology, PROFINET, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 10 A, charging current: 3 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/24-48DC/48DC/2/PT - DC/DC converter
1098676
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, input: 24 V DC - 48 V DC, output: 48 V DC / 2 A
QUINT4-PS/1AC/24DC/10/CO - Power supply
2904625
Primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, NFC interface, and protective coating, input: 1-phase, output: 24 V DC/10 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/1AC/12DC/7.5/PT - Power supply
2904607
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 12 V DC / 7.5 A, adjustable from 12 V DC ... 15 V DC
QUINT4-UPS/24DC/24DC/10/EC - Uninterruptible power supply
2907070
QUINT DC UPS, IQ Technology, EtherCAT®, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 10 A, charging current: 3 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/48DC/48DC/5/PT - DC/DC converter
2910128
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 48 V DC, output: 48 V DC / 5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-UPS/24DC/24DC/5/PN - Uninterruptible power supply
2906993
QUINT DC UPS, IQ Technology, PROFINET, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 5 A, charging current: 1.5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-UPS/24DC/24DC/20/EC - Uninterruptible power supply
2907076
QUINT DC UPS, IQ Technology, EtherCAT®, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 20 A, charging current: 5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/3AC/24DC/40/IOL - Power supply
1151047
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 3-phase, output: 24 V DC / 40 A, adjustable from 24 V DC ... 29.5 V DC. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/1AC/48DC/10/CO - Power supply
2904626
Primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, NFC interface, and protective coating, input: 1-phase, output: 48 V DC/10 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/24DC/24DC/5/PT/CO - DC/DC converter
2910132
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/3AC/24DC/20/IOL - Power supply
1151048
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 3-phase, output: 24 V DC / 20 A, adjustable from 24 V DC ... 29.5 V DC. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-CAP/24DC/20/16KJ/PN - DC UPS with integrated capacity
1076860
QUINT DC UPS with integrated capacitor, with maintenance-free energy storage based on double-layer capacitor, PROFINET, DIN rail mounting, input: 24 V DC, output: 24 V DC / 20 A / 16 kJ incl. mounted UTA 107 universal DIN rail adapter
QUINT4-UPS/24DC/24DC/5/EC - Uninterruptible power supply
2906996
QUINT DC UPS, IQ Technology, EtherCAT®, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 5 A, charging current: 1.5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/12-24DC/24DC/2.5/SC - DC/DC converter
1066718
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 2.5 A
QUINT4-CAP/24DC/5/4KJ - DC UPS with integrated capacity
2320539
QUINT DC UPS with integrated capacitor, with maintenance-free energy storage based on double-layer capacitor, USB (Modbus/RTU), DIN rail mounting, input: 24 V DC, output: 24 V DC / 5 A / 4 kJ incl. mounted UTA 107 universal DIN rail adapter. The “POWER MANAGEMENT SUITE” software (Item No. 1252232) available in the download area can be used for configuration.. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/3AC/48DC/20 - Power supply
2904627
Primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 3-phase, output: 48 V DC/20 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT-ADAPTER/4 - Mounting adapter
2866857
Mounting adapter for QUINT-BAT/24DC... on 35mm rail
QUINT-HP-BAT/PB/48DC/7.0AH/PT - Battery module
1133819
Battery module (device with battery), VRLA-AGM, 48 V DC, 7 Ah
QUINT4-UPS/24DC/24DC/40/EC - Uninterruptible power supply
2907081
QUINT DC UPS, IQ Technology, EtherCAT®, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 40 A, charging current: 5 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/24DC/24DC/20/PT/+ - DC/DC converter
2910134
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), Protective coating and integrated decoupling MOSFET, input: 24 V DC, output: 24 V DC / 20 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-CAP/24DC/20/16KJ/EC - DC UPS with integrated capacity
1076858
QUINT DC UPS with integrated capacitor, with maintenance-free energy storage based on double-layer capacitor, EtherCAT, DIN rail mounting, input: 24 V DC, output: 24 V DC / 20 A / 16 kJ incl. mounted UTA 107 universal DIN rail adapter. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-CAP/24DC/20/16KJ/EIP - DC UPS with integrated capacity
1076861
QUINT DC UPS with integrated capacitor, with maintenance-free energy storage based on double-layer capacitor, EtherNet/IP (Modbus/TCP), DIN rail mounting, input: 24 V DC, output: 24 V DC / 20 A / 16 kJ incl. mounted UTA 107 universal DIN rail adapter. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT-UPS/ 24DC/12DC/5/24DC/10 - Uninterruptible power supply
2320461
Uninterruptible power supply (UPS) with IQ Technology for DIN rail mounting, input: 24 V DC, output: 24 V DC/10 A and 12 V DC/5 A, including mounted UTA 107/30 universal DIN rail adapter. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT-UPS/ 24DC/ 24DC/ 5/1.3AH - Uninterruptible power supply
2320254
Uninterruptible power supply with IQ Technology and integrated battery for DIN rail mounting, input: 24 V DC, output: 24 V DC/5 A, battery: lead AGM 1.2 Ah, including mounted UTA 107/30 universal DIN rail adapter. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT-PS/96-110DC/24DC/10 - DC/DC converter
2905010
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (selective fuse breaking) technology, input: 96 - 110 V DC, output: 24 V DC/10 A
QUINT-PS/1AC/24DC/ 5/CO - Power supply, with protective coating
2320908
Please use the following item for new projects: 2904616 QUINT4-PS/1AC/24DC/10/+. Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 5 A, adjustable from 18 V DC ... 29.5 V DC
QUINT-PS/1AC/12DC/20 - Power supply
2866721
Please use the following item for new projects: 2904608 QUINT4-PS/1AC/12DC/15. Primary-switched power supply unit QUINT POWER, Screw connection, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 12 V DC / 20 A, adjustable from 5 V DC ... 18 V DC, 90 V DC ... 350 V DC
QUINT-PS/60-72DC/24DC/10 - DC/DC converter
2905009
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (Selective Fuse Breaking) technology, input: 60-72 V DC, output 24 V DC / 10 A
QUINT-PS/96-110DC/24DC/10/CO - DC/DC converter, protective coating
2905012
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (selective fuse breaking) technology, input: 96 - 110 V DC, output: 24 V DC/10 A
QUINT-PS/3AC/24DC/20/CO - Power supply, with protective coating
2320924
Please use the following item for new projects: 1343940 QUINT4-PS/3AC/24DC/20/CO. Primary-switched power supply unit QUINT POWER, Screw connection, SFB Technology (Selective Fuse Breaking), input: 3-phase, output: 24 V DC / 20 A, adjustable from 18 V DC ... 29.5 V DC
QUINT-PS/60-72DC/24DC/10/CO - DC/DC converter, protective coating
2905011
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (Selective Fuse Breaking) technology, input: 60-72 V DC, output 24 V DC / 10 A
UPS-BAT/PB/24DC/4AH - Battery module
1274117
Battery module (device with battery), VRLA-AGM, 24 V DC, 4 Ah, automatic detection and communication with QUINT UPS-IQ. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
NEW
QUINT4-PS/3AC/24DC/20/CO - Power supply
1343940
Primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 3-phase, output: 24 V DC/20 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
UWA 182/52 - Mounting adapter
2938235
Universal wall adapter for securely mounting the device in the event of strong vibrations. The device is screwed directly onto the mounting surface. The universal wall adapter is attached on the top/bottom.
ELR H5-IS-PT- 24DC/500AC-3-P - Hybrid motor starter
2909569
Hybrid motor starter as an alternative to a conventional reversing contactor. Reverses 3~ AC motors up to 3 A, provides motor protection and emergency stop up to SIL 3/PL e. Group shut-down, supply, and relay extension possible via DIN rail connector.
UPS-BAT-KIT/PB/2X12V/4AH - Uninterruptible power supply replacement battery
1283116
Replacement battery, VRLA-AGM, 2x12 V DC, 4 Ah. Only for 1274117 UPS-BAT/PB/24DC/4AH, 2320267 QUINT-UPS/24DC/24DC/10/3.4AH from V/C 06, 2905908 TRIO-UPS-2G/1AC/1AC/120V/750VA, 2905909 TRIO-UPS-2G/1AC/1AC/230V/750VA and 1394730 TRIO-BAT/PB/24DC/4AH
NEW
UPS-BAT/LI/24DC/189WH - Battery module
1460922
Battery module (device with battery), Lithium-Ion (LiFePO4), 24 V DC, 189 Wh. 2 x 1532141 are required as replacements batteries.. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
ELR H3-IS-PT- 24DC/500AC-3-P - Hybrid motor starter
2909570
Hybrid motor starter as an alternative to a conventional protective circuit. Starts 3~ AC motors up to 3 A, provides motor protection and emergency stop up to SIL 3/PL e. Group shut-down, supply, and relay extension possible via DIN rail connector.
ELR H5-IS-PT- 24DC/500AC-9-P - Hybrid motor starter
2909567
Hybrid motor starter as an alternative to a conventional reversing contactor. Reverses 3~ AC motors up to 9 A, provides motor protection and emergency stop up to SIL 3/PL e. Group shut-down, supply, and relay extension possible via DIN rail connector.
ELR H3-IS-PT- 24DC/500AC-9-P - Hybrid motor starter
2909568
Hybrid motor starter as an alternative to a conventional protective circuit. Starts 3~ AC motors up to 9 A, provides motor protection and emergency stop up to SIL 3/PL e. Group shut-down, supply, and relay extension possible via DIN rail connector.
ELR H5-IES-PT- 24DC/500AC-3-P - Hybrid motor starter
2909556
Hybrid motor starter as an alternative to a conventional reversing contactor. Reverses 3~ AC motors up to 3 A, provides motor protection, ATEX, and emergency stop up to SIL 3. Group shut-down, supply, and relay extension possible via DIN rail connector.
ELR H3-I-PT- 24DC/500AC-3-P - Hybrid motor starter
2909563
Hybrid motor starter as an alternative to a conventional contactor circuit. Starts 3~ AC motors up to 3 A and offers motor protection. Possible supply and relay extension via DIN rail connector.
UPS-BAT/LI/24DC/128WH - Battery module
1396415
Battery module (device with battery), Lithium-Ion (LiFePO4), 24 V DC, 128 Wh. For use with a QUINT UPS for ambient temperatures (charging) of 0°C ... 60°C and a maximum charging current of 5 A. For charging below 0°C, please note the permissible UPS V/C level. 2 x 1446073 are required as replacement batteries.. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
NEW
QUINT4-PS/1AC/24DC/10/+/F - Power supply
1672244
Primary-switched QUINT POWER power supply, DIN rail mounting, SFB (Selective Fuse Breaking) Technology, protective coating and integrated decoupling MOSFET, input: 1-phase, output: 24 V DC/10 A
NEW
QUINT4-PS/1AC/24DC/20/+/F - Power supply
1672245
Primary-switched QUINT POWER power supply, DIN rail mounting, SFB (Selective Fuse Breaking) Technology, integrated decoupling MOSFET, input: 1-phase, output: 24 V DC/20 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
NEW
QUINT4-PS/3AC/24DC/10/F - Power supply
1867359
Primary-switched QUINT POWER supply with SFB (Selective Fuse Breaking) Technology, input: 3-phase, output: 24 V DC/10 A
NEW
QUINT4-PS/3AC/24DC/5/F - Power supply
1867358
Primary-switched QUINT POWER supply with SFB (Selective Fuse Breaking) Technology, input: 3-phase, output: 24 V DC/5 A
ELR H3-I-PT- 24DC/500AC-9-P - Hybrid motor starter
2909561
Hybrid motor starter as an alternative to a conventional contactor circuit. Starts 3~ AC motors up to 9 A and offers motor protection. Possible supply and relay extension via DIN rail connector.
ELR H3-IES-PT- 24DC/500AC-9-P - Hybrid motor starter
2909555
Hybrid motor starter as an alternative to a conventional protective circuit. Starts 3~ AC motors up to 9 A, provides motor protection, ATEX, and emergency stop up to SIL 3. Group shut-down, supply, and relay extension possible via DIN rail connector.
POWER MANAGEMENT SUITE - Configuration software
1252232
Configuration and management software
Available as a download
ELR H3-IES-PT- 24DC/500AC-3-P - Hybrid motor starter
2909557
Hybrid motor starter as an alternative to a conventional protective circuit. Starts 3~ AC motors up to 3 A, provides motor protection, ATEX, and emergency stop up to SIL 3. Group shut-down, supply, and relay extension possible via DIN rail connector.
ELR H5-IES-PT- 24DC/500AC-9-P - Hybrid motor starter
2909554
Hybrid motor starter as an alternative to a conventional reversing contactor. Reverses 3~ AC motors up to 9 A, provides motor protection, ATEX, and emergency stop up to SIL 3. Group shut-down, supply, and relay extension possible via DIN rail connector.
ELR H5-I-PT- 24DC/500AC-9-P02 - Hybrid motor starter
1160740
Modular hybrid motor starter for starting and reversing motors incl. motor protection and rotary field monitoring, input: 24 V DC, output: 3~, 500 V AC, 9 A, connection method: Push-in connection
ELR H5-I-PT- 24DC/500AC-9-P - Hybrid motor starter
2909560
Hybrid motor starter as an alternative to a conventional reversing contactor. Reverses 3~ AC motors up to 9 A and offers motor protection. Possible supply and relay extension via DIN rail connector.
ELR H5-I-PT- 24DC/500AC-3-P - Hybrid motor starter
2909562
Hybrid motor starter as an alternative to a conventional reversing contactor. Reverses 3~ AC motors up to 3 A and offers motor protection. Possible supply and relay extension via DIN rail connector.
NEW
UPS-BAT/LI/24DC/284WH - Battery module
1460923
Battery module (device with battery), Lithium-Ion (LiFePO4), 24 V DC, 284 Wh. 3 x 1532141 are required as replacement batteries.. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/24DC/24DC/10/PT/CO - DC/DC converter
2910133
Primary-switched DC/DC converter, QUINT POWER DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 10 A. The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-PS/3AC/24DC/40/VASS - Power supply
1168603
Preconfigured and read-only version of the primary-switched QUINT POWER power supply with set output voltage and adjusted signaling, input: 3-phase, output: 24 V DC/40 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
Customizable
QUINT4-PS/1AC/24DC/20/+/... - Power supply
2908940
Custom-programmed version of the primary-switched QUINT POWER power supply, DIN rail mounting, selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, protective coating and integrated decoupling MOSFET, input: 1-phase, output: 24 V DC/20 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
Customizable
QUINT4-PS/1AC/24DC/20/... - Power supply
2907869
Custom-programmed version of the primary-switched QUINT POWER power supply for DIN rail mounting with selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, input: 1-phase, output: 24 V DC/20 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
Customizable
QUINT4-PS/1AC/24DC/10/... - Power supply
2907867
Custom-programmed version of the primary-switched QUINT POWER power supply for DIN rail mounting with selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, input: 1-phase, output: 24 V DC/10 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
Customizable
QUINT4-PS/1AC/12DC/15/... - Power supply
2908937
Online configured version of the primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 3-phase, output: 12 V DC / 15 A
Customizable
QUINT4-PS/3AC/24DC/10/... - Power supply
2907872
Online-configured version of the primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 3-phase, output: 24 V DC/10 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
Customizable
QUINT4-PS/1AC/24DC/40/... - Power supply
2908936
Custom-programmed version of the primary-switched QUINT POWER power supply for DIN rail mounting with selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, input: 1-phase, output: 24 V DC/40 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
Customizable
QUINT4-PS/1AC/24DC/5/... - Power supply
2907866
Custom-programmed version of the primary-switched QUINT POWER power supply for DIN rail mounting with selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, input: 1-phase, output: 24 V DC/5 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-CAP/24DC/20/16KJ/USB/C2 - DC UPS with integrated capacity
1769345
DC UPS with integrated capacity
QUINT4-PS/3AC/24DC/20/VASS - Power supply
1168602
Preconfigured and read-only version of the primary-switched QUINT POWER power supply with set output voltage and adjusted signaling, input: 3-phase, output: 24 V DC/20 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
Customizable
QUINT4-PS/3AC/24DC/5/... - Power supply
2907870
Online-configured version of the primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 3-phase, output: 24 V DC/5 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
Customizable
QUINT4-PS/1AC/24DC/40/+/... - Power supply
1106339
Version of the QUINT POWER primary-switched power supply programmed according to customer specifications, DIN rail mounting, selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, protective coating and integrated decoupling MOSFET, input: 1-phase, output: 24 V DC/40 A
Customizable
QUINT4-PS/3AC/24DC/20/... - Power supply
2907873
Online-configured version of the primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 3-phase, output: 24 V DC/20 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
Customizable
QUINT4-PS/1AC/48DC/5/... - Power supply
2908938
Online-configured version of the primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 1-phase, output: 48 V DC/5 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
Customizable
QUINT4-PS/1AC/110DC/4/... - Power supply
1161606
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 110 V DC / 4 A, adjustable from 110 V DC ... 135 V DC
Customizable
QUINT4-PS/3AC/24DC/40/... - Power supply
2908941
Online-configured version of the primary-switched QUINT POWER power supply with selectable output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 3-phase, output: 24 V DC/40 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
Customizable
QUINT4-PS/1AC/48DC/10/... - Power supply
2908939
Customer-specifically programmed version of the primary-switched QUINT POWER power supply for DIN rail mounting with free choice of output characteristic curve and SFB (selective fuse breaking) technology, input: 1-phase, output: 48 V DC/10 A
Customizable
QUINT4-PS/3AC/48DC/20/... - Power supply
1197484
Customer-specifically programmed version of the primary-switched QUINT POWER power supply for DIN rail mounting with free choice of output characteristic curve and SFB (Selective Fuse Breaking) Technology, input: 3-phase, output: 24 V DC/20 A

QUINT4-PS/1AC/24DC/10/+/... - Power supply
1304031
Version of the QUINT POWER primary-switched power supply programmed according to customer specifications, DIN rail mounting, selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, protective coating and integrated decoupling MOSFET, input: 1-phase, output: 24 V DC/10 A
QUINT4-UPS/24DC/24DC/20/USB/C1 - Uninterruptible power supply
1345294
QUINT UPS with IQ Technology, USB communication interface (Modbus/RTU), for DIN rail mounting, input: 24 V DC, output: 24 V DC/20 A, charging current: 5 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
Customizable
QUINT4-PS/1AC/48DC/20/... - Power supply
1197483
Custom-programmed version of the primary-switched QUINT POWER power supply for DIN rail mounting with selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, input: 1-phase, output: 48 V DC/20 A. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT4-CAP/24DC/10/8KJ/C03 - DC UPS with integrated capacity
1575710
QUINT DC UPS with integrated capacitor, with maintenance-free energy storage based on double-layer capacitor, USB (Modbus/RTU), DIN rail mounting, input: 24 V DC, output: 24 V DC / 10 A / 8 kJ . The product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT-UPS/24DC/24DC/40/C1 - Power supply
2909892
Customer-specific uninterruptible power supply with IQ Technology for DIN rail mounting; version with customer-specific parameters, input: 24 V DC, output: 24 V DC/40 A, including mounted UTA 107/30 universal DIN rail adapter. Product is being prepared for compliance with the Cyber Resilience Act (CRA).
QUINT-PS/1AC/24DC/10 - Power supply
2866763
Please use the following item for new projects: 2904601 QUINT4-PS/1AC/24DC/10. Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 10 A, adjustable from 18 V DC ... 29.5 V DC, 110 V DC ... 350 V DC
QUINT-PS/1AC/24DC/20 - Power supply
2866776
Please use the following item for new projects: 2904602 QUINT4-PS/1AC/24DC/20. Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 20 A, adjustable from 18 V DC ... 29.5 V DC, 90 V DC ... 350 V DC
QUINT-PS/1AC/24DC/ 5 - Power supply
2866750
Please use the following item for new projects: 2904600 QUINT4-PS/1AC/24DC/5. Primary-switched power supply unit QUINT POWER, Pluggable screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 5 A, adjustable from 18 V DC ... 29.5 V DC
QUINT-PS/FAN/4 - Fan
2320076
The fan for QUINT-PS/1AC and .../3AC can be mounted without the need for tools or other accessories. By using the fan, optimum cooling is ensured at high ambient temperatures or if the mounting position is rotated.
QUINT-PS/1AC/24DC/ 3.5 - Power supply
2866747
Please use the following items for new projects: 2904600 QUINT4-PS/1AC/24DC/5, 2909577 QUINT4-PS/1AC/24DC/3.8/PT, 2904599 QUINT4-PS/1AC/24DC/3.8/SC. Primary-switched power supply unit QUINT POWER, Screw connection, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 3.5 A, adjustable from 18 V DC ... 29.5 V DC, 90 V DC ... 350 V DC
QUINT-PS/3AC/24DC/20 - Power supply
2866792
Please use the following item for new projects: 2904622 QUINT4-PS/3AC/24DC/20. Primary-switched power supply unit QUINT POWER, Screw connection, SFB Technology (Selective Fuse Breaking), input: 3-phase, output: 24 V DC / 20 A, adjustable from 18 V DC ... 29.5 V DC, 450 V DC ... 800 V DC
QUINT-PS/24DC/24DC/10 - DC/DC converter
2320092
For new projects, please use the following items: 2910120 QUINT4-PS/24DC/24DC/10/PT, 1046803  QUINT4-PS/24DC/24DC/10/SC. Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 24 V DC, output: 24 V DC/10 A
QUINT-PS/1AC/24DC/40 - Power supply
2866789
Please use the following item for new projects: 2904603 QUINT4-PS/1AC/24DC/40. Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 40 A, adjustable from 18 V DC ... 29.5 V DC, 90 V DC ... 300 V DC
QUINT-PS/3AC/24DC/40 - Power supply
2866802
Please use the following item for new projects: 2904623 QUINT4-PS/3AC/24DC/40. Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 3-phase, output: 24 V DC / 40 A, adjustable from 18 V DC ... 29.5 V DC
QUINT-PS/24DC/24DC/ 5 - DC/DC converter
2320034
For new projects, please use the following items: 2910119 QUINT4-PS/24DC/24DC/5/PT, 1046800 QUINT4-PS/24DC/24DC/5/SC. Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 24 V DC, output: 24 V DC/5 A
QUINT-PS/48DC/24DC/ 5 - DC/DC converter
2320144
For new projects, please use the following item: 2910125 QUINT4-PS/48DC/24DC/5/PT. Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 48 V DC, output: 24 V DC/5 A
QUINT-PS/1AC/24DC/10/CO - Power supply, with protective coating
2320911
Please use the following item for new projects: 2904616 QUINT4-PS/1AC/24DC/10/+. Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 10 A, adjustable from 18 V DC ... 29.5 V DC
QUINT-PS/3AC/24DC/10 - Power supply
2866705
Please use the following item for new projects: 2904621 QUINT4-PS/3AC/24DC/10. Primary-switched power supply unit QUINT POWER, Pluggable screw connection, SFB Technology (Selective Fuse Breaking), input: 3-phase, output: 24 V DC / 10 A, adjustable from 18 V DC ... 29.5 V DC, 450 V DC ... 800 V DC
QUINT-PS/1AC/48DC/ 5 - Power supply
2866679
Please use the following item for new projects: 2904610 QUINT4-PS/1AC/48DC/5. Primary-switched power supply unit QUINT POWER, Pluggable screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 48 V DC / 5 A, adjustable from 30 V DC ... 56 V DC, 90 V DC ... 350 V DC
QUINT-PS/24DC/24DC/20 - DC/DC converter
2320102
For new projects, please use the following item: 2910121 QUINT4-PS/24DC/24DC/20/PT, 1046805 QUINT4-PS/24DC/24DC/20/SC. Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 24 V DC, output: 24 V DC/20 A
QUINT-PS/3AC/24DC/ 5 - Power supply
2866734
Please use the following item for new projects: 2904620 QUINT4-PS/3AC/24DC/5. Primary-switched power supply unit QUINT POWER, Pluggable screw connection, SFB Technology (Selective Fuse Breaking), input: 3-phase, output: 24 V DC / 5 A, adjustable from 18 V DC ... 29.5 V DC
QUINT-PS/1AC/24DC/20/CO - Power supply, with protective coating
2320898
Please use the following item for new projects: 2904617 QUINT4-PS/1AC/24DC/20/+. Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 20 A, adjustable from 18 V DC ... 29.5 V DC
QUINT-PS/1AC/48DC/10 - Power supply
2866682
Please use the following item for new projects: 2904611 QUINT4-PS/1AC/48DC/10. Primary-switched power supply unit QUINT POWER, Screw connection, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 48 V DC / 10 A, adjustable from 30 V DC ... 56 V DC, 90 V DC ... 350 V DC
QUINT-PS/1AC/48DC/20 - Power supply
2866695
Please use the following item for new projects: 2904612 QUINT4-PS/1AC/48DC/20. Primary-switched power supply unit QUINT POWER, Screw connection, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 48 V DC / 20 A, adjustable from 30 V DC ... 56 V DC, 90 V DC ... 300 V DC
QUINT-PS/3AC/48DC/20 - Power supply
2320827
Please use the following item for new projects: 2904627 QUINT4-PS/3AC/48DC/20. Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 3-phase, output: 48 V DC / 20 A, adjustable from 30 V DC ... 56 V DC
QUINT-PS/24DC/12DC/ 8 - DC/DC converter
2320115
For new projects, please use the following item: 2910122 QUINT4-PS/24DC/12DC/8/PT. Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 24 V DC, output: 12 V DC/8 A
QUINT-PS/12DC/24DC/ 5 - DC/DC converter
2320131
For new projects, please use the following item: 2910124 QUINT4-PS/12DC/24DC/5/PT. Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 12 V DC, output: 24 V DC/5 A
QUINT-PS/1AC/12DC/15 - Power supply
2866718
Please use the following item for new projects: 2904608 QUINT4-PS/1AC/12DC/15. Primary-switched power supply unit QUINT POWER, Pluggable screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 12 V DC / 15 A, adjustable from 5 V DC ... 18 V DC, 90 V DC ... 350 V DC
QUINT-PS/24DC/48DC/ 5 - DC/DC converter
2320128
For new projects, please use the following item: 2910123 QUINT4-PS/24DC/48DC/5/PT. Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 24 V DC, output: 48 V DC/5 A
QUINT-PS/48DC/48DC/5 - DC/DC converter
2905008
For new projects, please use the following item: 2910128 QUINT4-PS/48DC/48DC/5/PT. Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 48 V DC, output: 48 V DC/5 A
QUINT-BUFFER/24DC/20 - Buffer module
2866213
Buffer module, 24 V DC/20 A, maintenance-free capacitor-based energy storage. Decoupled input and output. In the download area, there is a clearly arranged selection table available with load currents and buffer times, as well as charging times after buffer mode.
QUINT4-PS/3AC/24DC/20/KONF1 - Power supply
1035480
Preconfigured version of the primary-switched QUINT POWER power supply for DIN rail mounting with free choice of output characteristic curve and SFB (Selective Fuse Breaking) Technology, input: 3-phase,
output: 24 V DC / 20 A
View replacement product 1168602
TS -QUINT4 PS-DIODE (480W-48V) -
1840770
TS -QUINT4 PS-DIODE (240W-48V) -
1840163
QUINT4-S-ORING/12-24DC/1X40/VP - Redundancy module, with protective coating
1043418
Active QUINT single redundancy module for DIN rail mounting, protective coating, input: 12 V DC ... 24 V DC, output: 12 V DC ... 24 V DC / 1 x 40 A, integrated surge protection <30 V DC, incl. mounted UTA 107/30 universal DIN rail adapter
View replacement product 2907753
QUINT4-PS/1AC/24DC/20/+/C01 - Power supply
1364968
Preconfigured version of the primary-switched QUINT POWER power supply with preset output voltage (24.5 V), input: 1-phase, output: 24 V DC/20 A
View replacement product 1364965
QUINT4-CAP/24DC/10/8KJ/C1 - DC UPS with integrated capacity
1027864
QUINT capacity module with maintenance-free double-layer capacitor-based energy storage for DIN rail mounting, input: 24 V DC, output: 24 V DC / 10 A / 8 kJ, including mounted UTA 107 universal DIN rail adapter
QUINT4-PS/1AC/48DC/10/00857 - Power supply
1395211
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 48 V DC / 10 A, adjustable from 48 V DC ... 56 V DC
QUINT4-CAP/24DC/20/16KJ/USB/C1 - DC UPS with integrated capacity
1343932
QUINT DC UPS with integrated capacitor, with maintenance-free energy storage based on double-layer capacitor, USB (Modbus/RTU), DIN rail mounting, input: 24 V DC, output: 24 V DC / 20 A / 16 kJ incl. mounted UTA 107 universal DIN rail adapter
QUINT4-PS/1AC/48DC/10 SRP - Power supply
1286002
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 48 V DC / 10 A, adjustable from 48 V DC ... 56 V DC
TS -QUINT 4 PSU KIT 19ZOLL -
1569636
QUINT-UPS/24DC/24DC/20/C02 - Uninterruptible power supply
1150036
ST - ROM122 - QUINT4-PS/24DC/10 -
1681271
QUINT-BAT/24DC/ 3.4AH - Battery module
2866349
Battery module, lead AGM, VRLA technology, 24 V DC, 4 Ah. Connection via pin cable lug.
View replacement product 1394730
Sản phẩm cùng loại
SẢN PHẨM XEM NHIỀU
Gọi điện thoại
