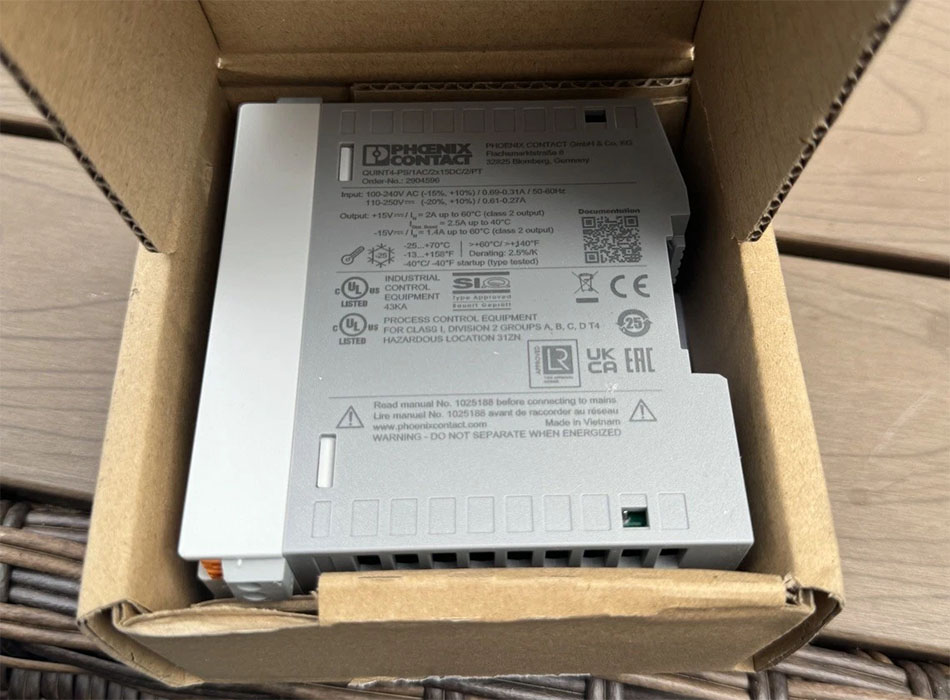

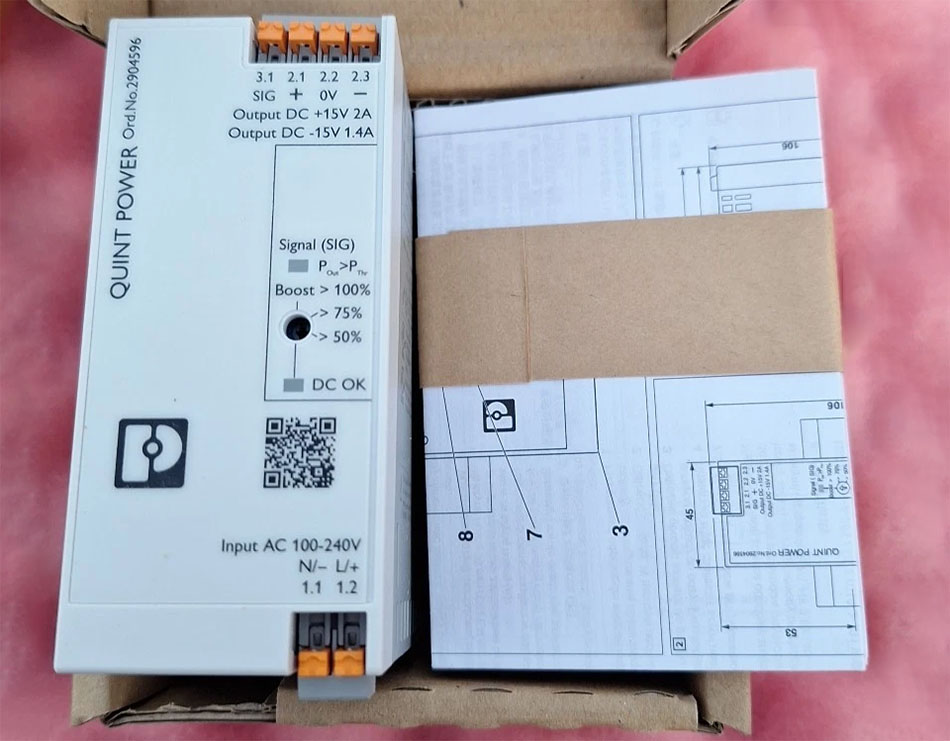

Bộ nguồn 1AC 2x15VDC 2A Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

120

Nhà sản xuất:

Phoenix Contact

;

Xuất xứ: Germany

Giá sỉ:

Giá tốt nhất xem...0909186879 dienelectrics@gmail.com

Khuyến mãi:Có Discount

Bảo hành:12 Tháng (Chính hãng)

Thanh toán:C.O.D / Bảo lãnh TT / Link hoạt

Vận chuyển:Miễn phí Tp.HCM, vùng lân cận

Thông tin nổi bật

Bộ nguồn chuyển mạch sơ cấp QUINT POWER, kết nối kiểu nhấn, lắp đặt trên thanh ray DIN, đầu vào: 1 pha, đầu ra: 15 V DC / 2 A

THÔNG TIN THAM KHẢO

Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596 là Bộ nguồn 1AC 2x15VDC 2A

- Tài liệu kỹ thuật của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596 ở đây.

Thông số kỹ thuật của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

Product description của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

In the power range of up to 100 W, QUINT POWER provides superior system availability in the smallest size. Preventative function monitoring and exceptional power reserves are available for applications in the low-power range.

Input data của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

AC operation
Input voltage range	100 V AC ... 240 V AC -15 % ... +10 %
Electric strength, max.	300 V AC 30 s
Typical national grid voltage	120 V AC
Typical national grid voltage	230 V AC
Voltage type of supply voltage	AC
Inrush current	< 15 A (at 25 °C)
Inrush current integral (I²t)	< 0.03 A²s
Inrush current limitation	< 5 A
Frequency range (f_N)	50 Hz ... 60 Hz -10 % ... +10 %
Mains buffering time	typ. 32 ms (120 V AC)
Mains buffering time	typ. 32 ms (230 V AC)
Current consumption	0.69 A (100 V AC)
	0.59 A (120 V AC)
	0.31 A (230 V AC)
	0.31 A (240 V AC)
Nominal power consumption	96.3 VA
Protective circuit	Transient surge protection; Varistor
Typical response time	300 ms
Input fuse	3.15 A (slow-blow, internal)
Recommended breaker for input protection	6 A ... 16 A (Characteristic B, C or comparable)
Discharge current to PE	< 0.25 mA (264 V AC, 60 Hz)
Discharge current to PE	< 0.17 mA
DC operation
Input voltage range	110 V DC ... 250 V DC -20 % ... +10 %
Voltage type of supply voltage	DC
Inrush current integral (I²t)	< 0.03 A²s
Inrush current limitation	< 5 A
Current consumption	0.61 A (110 V DC)
Current consumption	0.27 A (250 V DC)

Output data của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

Efficiency	typ. 88.8 % (120 V AC)
Efficiency	typ. 89.4 % (230 V AC)
Nominal output voltage	± 15 V DC
Nominal output current (I_N)	2 A (+)
Nominal output current (I_N)	1.4 A (-)
Static Boost (I_Stat.Boost)	2.5 A ((+) ≤ 40 °C)
Dynamic Boost (I_Dyn.Boost)	4 A ((+) ≤ 60 °C, 5 s)
Feedback voltage resistance	≤ 25 V DC
Protection against overvoltage at the output (OVP)	≤ 18 V DC
Control deviation	< 0.5 % (Static load change 10 % ... 90 %)
	< 2 % (Dynamic load change 10 % ... 90 %, (10 Hz))
	< 0.1 % (change in input voltage ±10 %)
Residual ripple	< 60 mV_PP (with nominal values)
Short-circuit-proof	yes
No-load proof	yes
Output power	51 W
	58.5 W
	81 W
Maximum no-load power dissipation	< 1.4 W (120 V AC)
Maximum no-load power dissipation	< 2 W (230 V AC)
Power loss nominal load max.	< 6.6 W (120 V AC)
Power loss nominal load max.	< 6.1 W (230 V AC)
Crest factor	typ. 1.8 (120 V AC)
Crest factor	typ. 2.2 (230 V AC)
Rise time	50 ms (U_Out = 10 % ... 90 %)
Connection in parallel	yes, for redundancy and increased capacity
Connection in series	yes
Signal (configurable)
Digital	0 V DC 15 V DC 24 mA
Default	15 V DC 24 mA 15 V DC for U_Out > 0.9 x U_Set

Connection data của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

Input
Connection method	Push-in connection
Conductor cross-section, rigid min.	0.2 mm²
Conductor cross-section, rigid max.	2.5 mm²
Conductor cross-section flexible min.	0.2 mm²
Conductor cross-section flexible max.	2.5 mm²
Single conductor/terminal point, stranded, with ferrule, min.	0.25 mm²
Single conductor/terminal point, stranded, with ferrule, max.	2.5 mm²
Conductor cross-section AWG min.	24
Conductor cross-section AWG max.	14
Stripping length	10 mm
Output
Connection method	Push-in connection
Conductor cross-section, rigid min.	0.2 mm²
Conductor cross-section, rigid max.	2.5 mm²
Conductor cross-section flexible min.	0.2 mm²
Conductor cross-section flexible max.	2.5 mm²
Single conductor/terminal point, stranded, with ferrule, min.	0.25 mm²
Single conductor/terminal point, stranded, with ferrule, max.	2.5 mm²
Conductor cross-section AWG min.	24
Conductor cross-section AWG max.	14
Stripping length	10 mm
Signal
Connection method	Push-in connection
Conductor cross-section, rigid min.	0.2 mm²
Conductor cross-section, rigid max.	2.5 mm²
Conductor cross-section flexible min.	0.2 mm²
Conductor cross-section flexible max.	2.5 mm²
Single conductor/terminal point, stranded, with ferrule, min.	0.25 mm²
Single conductor/terminal point, stranded, with ferrule, max.	2.5 mm²
Conductor cross-section AWG min.	24
Conductor cross-section AWG max.	14
Stripping length	10 mm

Signaling của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

Types of signaling	LED
Signal output
P_Out	> P_Thr (LED lights up yellow, output power > P_Thr, depending on the rotary selector switch setting)
U_Out	> 0.9 x U_Set (LED lights up green)
U_Out	< 0.9 x U_Set (LED flashes green)

Electrical properties của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

Number of phases	1
Insulation voltage input/output	4 kV AC (type test)
Insulation voltage input/output	3 kV AC (routine test)
Switching frequency	4.00 kHz ... 70.00 kHz (Auxiliary converter stage)
	80.00 kHz ... 190.00 kHz (Main converter stage)
	30.00 kHz ... 150.00 kHz (PFC stage)

Product properties của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

Product type	Power supply
Product family	QUINT POWER
MTBF (IEC 61709, SN 29500)	> 1284000 h (25 °C)
	> 644000 h (40 °C)
	> 231000 h (60 °C)
Insulation characteristics
Protection class	II
Overvoltage category (EN 61010-1)	II (≤ 5000 m)
Overvoltage category (EN 62477-1)	III (≤ 2000 m)
Degree of pollution	2
Life expectancy (electrolytic capacitors)
Current	2 A
Temperature	40 °C
Time	56000 h
Additional text	120 V AC
Life expectancy (electrolytic capacitors)
Current	2 A
Temperature	40 °C
Time	65000 h
Additional text	230 V AC
Life expectancy (electrolytic capacitors)
Current	2 A
Temperature	25 °C
Time	168000 h
Additional text	120 V AC
Life expectancy (electrolytic capacitors)
Current	2 A
Temperature	25 °C
Time	195000 h
Additional text	230 V AC

Dimensions của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

Width	45 mm
Height	106 mm
Depth	90 mm
Installation dimensions
Installation distance right/left (active)	15 mm / 15 mm (P_Out ≥50% )
Installation distance right/left (passive)	5 mm / 5 mm (P_Out ≥50% )
Installation distance right/left (active, passive)	0 mm / 0 mm (P_Out ≤50 %)
Installation distance top/bottom (active)	30 mm / 30 mm (P_Out ≥50% )
Installation distance top/bottom (passive)	30 mm / 30 mm (P_Out ≥50% )
Installation distance top/bottom (active, passive)	30 mm / 30 mm (P_Out ≤50 %)

Mounting của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

Mounting type	DIN rail mounting
With protective coating	no

Material specifications của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

Flammability rating according to UL 94 (housing / terminal blocks)	V0
Housing material	Plastic
Type of housing	Polycarbonate
Hood version	Polycarbonate

Environmental and real-life conditions của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Ambient temperature (start-up type tested)	-40 °C
Maximum altitude	≤ 5000 m (> 2000 m, observe derating)
Climatic class	3K22 (in accordance with EN 60721-3-3)
Max. permissible relative humidity (operation)	≤ 95 % (at 25 °C, non-condensing)
Shock	18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)	< 15 Hz, ±2.5 mm amplitude; 15 Hz ... 100 Hz: 2.3 g 90 Min. (in accordance with IEC 60068-2-6)
Temp code	T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K)

Standards and Regulations của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

Rail applications	EN 50121-3-2
	EN 50121-4
	EN 50121-5
	IEC 62236-3-2
	IEC 62236-4
	IEC 62236-5
Standard – Limitation of mains harmonic currents	EN 61000-3-2
Standard – Safety extra-low voltage	IEC 61010-1 (SELV)
Standard – Safety extra-low voltage	IEC 61010-2-201 (PELV)
Standard - Safe isolation	IEC 61558-2-16
Standard - Safe isolation	IEC 61010-2-201
Standard - safety for equipment for measurement, control, and laboratory use	IEC 61010-1
	IEC 61010-2-201 (SELV)
Standard - Safety of transformers	EN 61558-2-16

Approvals của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

SIQ	CB-Scheme (IEC 61010-1, IEC 61010-2-201)
UL approvals	UL Listed UL 61010-1
	UL Listed UL 61010-2-201
	UL 1310 Class 2 Power Units
	UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location)

EMC data của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Interference emission	Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial)
Noise immunity	Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial), and EN 61000-6-5 (switching devices), IEC/EN 61850-3 (power supply)
EMC requirements for power supply	IEC 61850-3 (G,H)
EMC requirements for power supply	EN 61000-6-5 (switching devices)
Conducted noise emission
Standards/regulations	EN 55016
Standards/regulations	EN 61000-6-3 (Class B)
Noise emission
Standards/regulations	Additional basic standard EN 61000-6-5 (immunity in switching devices), IEC/EN 61850-3 (power supply)
Noise emission
Standards/regulations	EN 55016
Standards/regulations	EN 61000-6-3 (Class B)
Harmonic currents
Standards/regulations	EN 61000-3-2
Standards/regulations	EN 61000-3-2 (Class A)
Frequency range	0 kHz ... 2 kHz
Flicker
Standards/regulations	EN 61000-3-3
Frequency range	0 kHz ... 2 kHz
Electrostatic discharge
Standards/regulations	EN 61000-4-2
Electrostatic discharge
Contact discharge	8 kV (Test Level 4)
Discharge in air	15 kV (Test Level 4)
Comments	Criterion A
Electromagnetic HF field
Standards/regulations	EN 61000-4-3
Electromagnetic HF field
Frequency range	80 MHz ... 1 GHz
Test field strength	20 V/m (Test Level 3)
Frequency range	1 GHz ... 6 GHz
Test field strength	10 V/m (Test Level 3)
Comments	Criterion A
Fast transients (burst)
Standards/regulations	EN 61000-4-4
Fast transients (burst)
Input	4 kV (Test Level 4 - asymmetrical)
Output	4 kV (Test Level 4 - asymmetrical)
Signal	4 kV (Test Level 4 - asymmetrical)
Comments	Criterion A
Surge voltage load (surge)
Standards/regulations	EN 61000-4-5
Surge voltage load (surge)
Input	2 kV (Test Level 4 - symmetrical)
Input	4 kV (Test Level 4 - asymmetrical)
Output	1 kV (Test Level 3 - symmetrical)
Output	2 kV (Test Level 3 - asymmetrical)
Signal	0.5 kV (Test Level 2 - symmetrical)
Signal	1 kV (Test Level 2 - asymmetrical)
Comments	Criterion A
Conducted interference
Standards/regulations	EN 61000-4-6
Conducted interference
Input/output/signal	asymmetrical
Frequency range	0.15 MHz ... 80 MHz
Comments	Criterion A
Voltage	10 V (Test Level 3)
Power frequency magnetic field
Standards/regulations	EN 61000-4-8
Frequency	16.67 Hz
	50 Hz
	60 Hz
Test field strength	100 A/m
Additional text	60 s
Comments	Criterion A
Frequency	50 Hz
Frequency	60 Hz
Frequency range	50 Hz ... 60 Hz
Test field strength	1 kA/m
Additional text	3 s
Frequency	0 Hz
Test field strength	300 A/m
Additional text	DC, 60 s
Voltage dips
Standards/regulations	EN 61000-4-11
Voltage	100 V AC
Frequency	60 Hz
Voltage dip	70 %
Number of periods	0.5 / 1 / 30 periods
Additional text	Test Level 2
Comments	Criterion A
Voltage dip	40 %
Number of periods	5 / 10 / 50 periods
Additional text	Test Level 2
Comments	Criterion B
Voltage dip	0 %
Number of periods	0.5 / 1 / 5 / 50 periods
Additional text	Test Level 2
Comments	Criterion B
Pulse-shape magnetic field
Standards/regulations	EN 61000-4-9
Test field strength	1000 A/m
Comments	Criterion A
Attenuated sinusoidal oscillations (ring wave)
Standards/regulations	EN 61000-4-12
Input	2 kV (symmetrical)
Input	4 kV (asymmetrical)
Comments	Criterion A
Asymmetrical conducted disturbance variables
Standards/regulations	EN 61000-4-16
Test level 1	16.67 Hz 50 Hz 60 Hz 150 Hz 180 Hz (Test Level 3)
Voltage	30 V (10 s)
Test level 2	16.67 Hz 50 Hz 60 Hz (Test Level 2)
Voltage	300 V (1 s)
Comments	Criterion A
Attenuated oscillating wave
Standards/regulations	EN 61000-4-18
Voltage	1 kV (symmetrical)
	2.5 kV (asymmetrical)
	1 kV (symmetrical)
Comments	Criterion A
Criteria
Criterion A	Normal operating behavior within the specified limits.
Criterion B	Temporary impairment to operational behavior that is corrected by the device itself.
Criterion C	Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements.

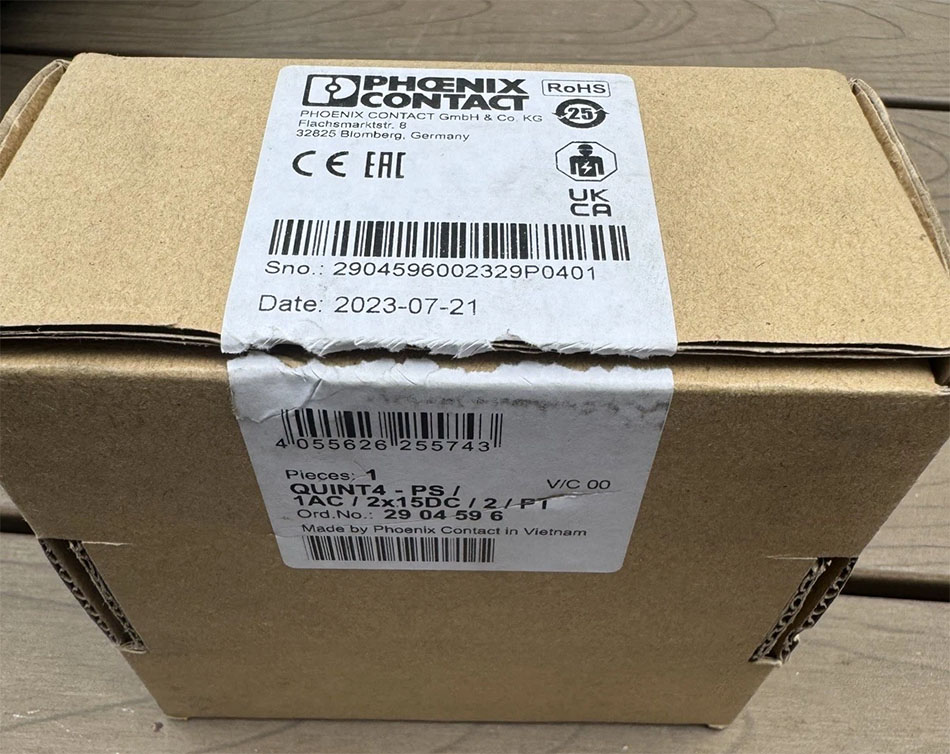

Commercial data của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

Item number	2904596
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	CMPI12
GTIN	4055626255743
Weight per piece (including packing)	379.9 g
Weight per piece (excluding packing)	370 g
Customs tariff number	85044095
Country of origin	VN

Power supply Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

Classifications của Bộ nguồn 1AC 2x15VDC 2A Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

ECLASS

ECLASS-13.0	27040701
ECLASS-15.0	27040701

ETIM

ETIM 10.0

EC002540

UNSPSC

UNSPSC 21.0

39121000

Approvals của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

DNV

Approval ID: TAA00001YD

IECEE CB Scheme

Approval ID: SI-8828

cULus Listed

Approval ID: E123528

Type approved

Approval ID: SI-SIQ BG 005/100

LR

Approval ID: LR22472797TA

BV

Approval ID: 44621/B1 BV

cULus Listed

Approval ID: E199827

Environmental product compliance của Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-25 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	b94c37dc-3090-4462-a273-c341dd223391
EF3.1 Climate Change
CO2e kg	7.385 kg CO2e

Tham khảo thêm các model khác cùng loại với Bộ nguồn Phoenix Contact QUINT4-PS/1AC/2X15DC/2/PT - 2904596

QUINT4-PS/1AC/24DC/10 - Power supply
2904601
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 1-phase, output: 24 V DC/10 A

QUINT4-PS/1AC/24DC/20 - Power supply
2904602
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 1-phase, output: 24 V DC/20 A

QUINT4-PS/1AC/24DC/5 - Power supply
2904600
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 1-phase, output: 24 V DC/5 A

QUINT4-PS/1AC/110DC/4 - Power supply
2904613
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 110 V DC / 4 A, adjustable from 110 V DC ... 135 V DC

QUINT4-PS/1AC/24DC/1.3/SC - Power supply
2904597
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 1.3 A, adjustable from 24 V DC ... 28 V DC

QUINT4-PS/1AC/24DC/20/+ - Power supply
2904617
Primary-switched QUINT POWER supply for DIN rail mounting, SFB (Selective Fuse Breaking) Technology, protective coating and integrated decoupling MOSFET, input: 1-phase, output: 24 V DC/20 A

QUINT4-PS/1AC/24DC/40 - Power supply
2904603
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 1-phase, output: 24 V DC/40 A

QUINT4-PS/3AC/24DC/20 - Power supply
2904622
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 3-phase, output: 24 V DC/20 A

QUINT4-PS/1AC/24DC/2.5/SC - Power supply
2904598
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 2.5 A, adjustable from 24 V DC ... 28 V DC. Alternative item: 2909576

QUINT4-PS/1AC/24DC/3.8/SC - Power supply
2904599
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 3.8 A, adjustable from 24 V DC ... 28 V DC

QUINT4-PS/3AC/24DC/10 - Power supply
2904621
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 3-phase, output: 24 V DC/10 A

QUINT4-PS/3AC/24DC/40 - Power supply
2904623
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 3-phase, output: 24 V DC/40 A

QUINT4-PS/1AC/12DC/15 - Power supply
2904608
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 1-phase, output: 12 V DC / 15 A

QUINT4-PS/12-24DC/5-15DC/2.5/PT - DC/DC converter
1066704
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 12 V DC - 24 V DC, output: 12 V DC / 2.5 A

QUINT4-PS/1AC/48DC/10 - Power supply
2904611
Primary-switched QUINT POWER power supply for DIN rail mounting with free choice of output characteristic curve and SFB (Selective Fuse Breaking) technology, input: 1-phase, output: 48 V DC / 10 A

QUINT4-PS/3AC/24DC/5 - Power supply
2904620
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 3-phase, output: 24 V DC/5 A

QUINT4-PS/48-110DC/24DC/2.5/PT - DC/DC converter
1066708
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 48 V DC - 110 V DC, output: 24 V DC / 2.5 A

QUINT4-PS/1AC/5DC/5/PT - Power supply
2904595
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 5 V DC / 5 A, adjustable from 5 V DC ... 6.2 V DC

QUINT-PS/1AC/24DC/ 5/CO - Power supply, with protective coating
2320908
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 5 A, adjustable from 18 V DC ... 29.5 V DC. Please use the following item for new projects: 2904616 QUINT4-PS/1AC/24DC/10/+

QUINT4-PS/1AC/2X15DC/2/PT - Power supply
2904596
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 15 V DC / 2 A

QUINT4-PS/1AC/48DC/20 - Power supply
2904612
QUINT POWER primary-switched power supply with free choice of output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 1-phase, output: 48 V DC/20 A

QUINT-PS/96-110DC/24DC/10 - DC/DC converter
2905010
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (selective fuse breaking) technology, input: 96 - 110 V DC, output: 24 V DC/10 A

QUINT4-PS/1AC/24DC/40/+ - Power supply
2904618
Primary-switched QUINT POWER supply for DIN rail mounting, with selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, protective coating and integrated decoupling MOSFET, input: 1-phase, output: 24 V DC / 40 A

QUINT4-PS/24DC/12DC/8/PT - DC/DC converter
2910122
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 12 V DC / 8 A

QUINT4-PS/24DC/24DC/20/PT - DC/DC converter
2910121
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 20 A

QUINT4-PS/1AC/24DC/2.5/PT - Power supply
2909576
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 2.5 A, adjustable from 24 V DC ... 28 V DC

QUINT4-PS/24DC/24DC/20/SC/+ - DC/DC converter
1046881
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 20 A

QUINT4-PS/24DC/24DC/10/PT - DC/DC converter
2910120
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 10 A

QUINT4-PS/1AC/12DC/2.5/PT - Power supply
2904605
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 12 V DC / 2.5 A, adjustable from 12 V DC ... 15 V DC

QUINT4-PS/1AC/24DC/10/+ - Power supply
2904616
Primary-switched QUINT POWER supply for DIN rail mounting, with selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, protective coating and integrated decoupling MOSFET, input: 1-phase, output: 24 V DC / 10 A

QUINT4-PS/24DC/24DC/5/PT - DC/DC converter
2910119
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 5 A

QUINT-PS/1AC/12DC/20 - Power supply
2866721
Primary-switched power supply unit QUINT POWER, Screw connection, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 12 V DC / 20 A, adjustable from 5 V DC ... 18 V DC, 90 V DC ... 350 V DC. Please use the following item for new projects: 2904608 QUINT4-PS/1AC/12DC/15

QUINT4-PS/48DC/24DC/5/PT - DC/DC converter
2910125
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 48 V DC, output: 24 V DC / 5 A

QUINT4-PS/1AC/48DC/5 - Power supply
2904610
Primary-switched QUINT POWER power supply for DIN rail mounting with free choice of output characteristic curve and SFB (Selective Fuse Breaking) technology, input: 1-phase, output: 48 V DC / 5 A

QUINT-PS/96-110DC/24DC/10/CO - DC/DC converter, protective coating
2905012
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (selective fuse breaking) technology, input: 96 - 110 V DC, output: 24 V DC/10 A

QUINT-PS/60-72DC/24DC/10 - DC/DC converter
2905009
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (Selective Fuse Breaking) technology, input: 60-72 V DC, output 24 V DC / 10 A

QUINT4-PS/24DC/24DC/20/SC - DC/DC converter
1046805
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 20 A

TWN4 MIFARE NFC USB ADAPTER - Programming adapter
2909681
Near Field Communication (NFC) programming adapter with USB interface for the wireless configuration of NFC-capable products from Phoenix Contact with software. A separate USB driver is not required.

QUINT4-PS/12-24DC/24DC/1.3/SC - DC/DC converter
1066703
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 1.3 A

QUINT4-PS/1AC/24DC/1.3/PT - Power supply
2909575
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 1.3 A, adjustable from 24 V DC ... 28 V DC

QUINT4-PS/1AC/12DC/7.5/PT - Power supply
2904607
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 12 V DC / 7.5 A, adjustable from 12 V DC ... 15 V DC

QUINT4-SYS-PS/1AC/24DC/2.5/SC - Power supply
2904614
Primary-switched power supply, QUINT POWER, screw connection, DIN rail mounting, supply of devices possible via the TBUS DIN rail connector, protective coating, input: single-phase, output: 24 V DC/2.5 A

QUINT4-PS/3AC/24DC/40/CO - Power supply
1783052
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 3-phase, output: 24 V DC/40 A

QUINT4-PS/24DC/24DC/10/SC - DC/DC converter
1046803
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 10 A

QUINT4-PS/1AC/48DC/10/CO - Power supply
2904626
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, NFC interface, and protective coating, input: 1-phase, output: 48 V DC / 10 A

QUINT4-PS/24DC/48DC/5/PT - DC/DC converter
2910123
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 48 V DC / 5 A

QUINT4-PS/12-24DC/24DC/2.5/PT - DC/DC converter
1066714
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 2.5 A

QUINT4-PS/12-24DC/24DC/1.3/PT - DC/DC converter
1066716
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 1.3 A

QUINT4-PS/24DC/24DC/5/SC - DC/DC converter
1046800
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 5 A

QUINT-PS/3AC/24DC/20/CO - Power supply, with protective coating
2320924
Primary-switched power supply unit QUINT POWER, Screw connection, SFB Technology (Selective Fuse Breaking), input: 3-phase, output: 24 V DC / 20 A, adjustable from 18 V DC ... 29.5 V DC. Please use the following item for new projects: 1343940 QUINT4-PS/3AC/24DC/20/CO

QUINT4-PS/1AC/24DC/10/CO - Power supply
2904625
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, NFC interface, and protective coating, input: 1-phase, output: 24 V DC / 10 A

QUINT4-PS/12DC/24DC/5/PT - DC/DC converter
2910124
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 12 V DC, output: 24 V DC / 5 A

QUINT4-PS/3AC/24DC/40/IOL - Power supply
1151047
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 3-phase, output: 24 V DC / 40 A, adjustable from 24 V DC ... 29.5 V DC

UWA 182/52 - Mounting adapter
2938235
Universal wall adapter for securely mounting the device in the event of strong vibrations. The device is screwed directly onto the mounting surface. The universal wall adapter is attached on the top/bottom.

QUINT4-PS/24-48DC/48DC/2/PT - DC/DC converter
1098676
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 24 V DC - 48 V DC, output: 48 V DC / 2 A

QUINT4-PS/3AC/24DC/20/IOL - Power supply
1151048
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 3-phase, output: 24 V DC / 20 A, adjustable from 24 V DC ... 29.5 V DC

QUINT4-PS/12-24DC/24DC/2.5/SC - DC/DC converter
1066718
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 12 V DC - 24 V DC, output: 24 V DC / 2.5 A

QUINT4-PS/3AC/48DC/20 - Power supply
2904627
QUINT POWER primary-switched power supply with free choice of output characteristic curve, SFB (Selective Fuse Breaking) Technology, and NFC interface, input: 3-phase, output: 48 V DC/20 A

USB IO-LINK ADAPTER - Programming adapter
1533311
IO-Link programming adapter for the USB interface, for configuring IO-Link-capable products with compatible Phoenix Contact software.

UTA 107/30 - Mounting adapter
2320089
Universal DIN rail adapter

UWA 130 - Mounting adapter
2901664
2-piece universal wall adapter for securely mounting the device in the event of strong vibrations. The profiles that are screwed onto the side of the device are screwed directly onto the mounting surface. The universal wall adapter is attached on the left/right.

QUINT4-PS/24DC/24DC/5/PT/CO - DC/DC converter
2910132
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 5 A

QUINT4-PS/1AC/24DC/3.8/PT - Power supply
2909577
Primary-switched power supply unit QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 3.8 A, adjustable from 24 V DC ... 28 V DC

QUINT-PS/60-72DC/24DC/10/CO - DC/DC converter, protective coating
2905011
Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (Selective Fuse Breaking) technology, input: 60-72 V DC, output 24 V DC / 10 A

QUINT4-PS/48DC/48DC/5/PT - DC/DC converter
2910128
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 48 V DC, output: 48 V DC / 5 A

Sản phẩm cùng loại
