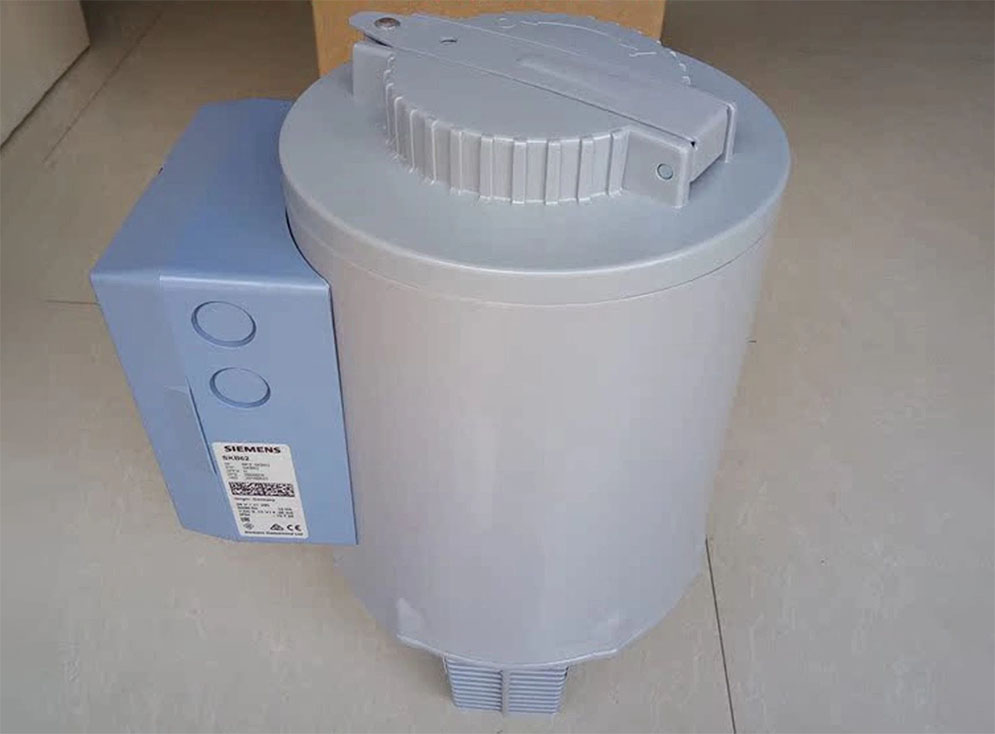

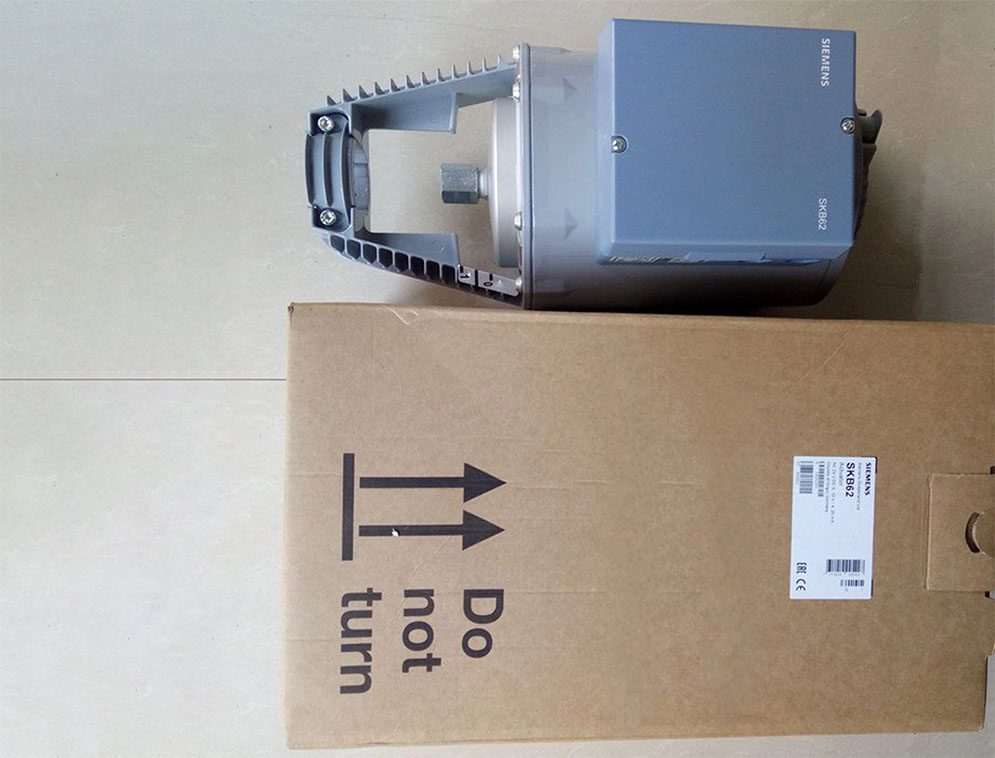

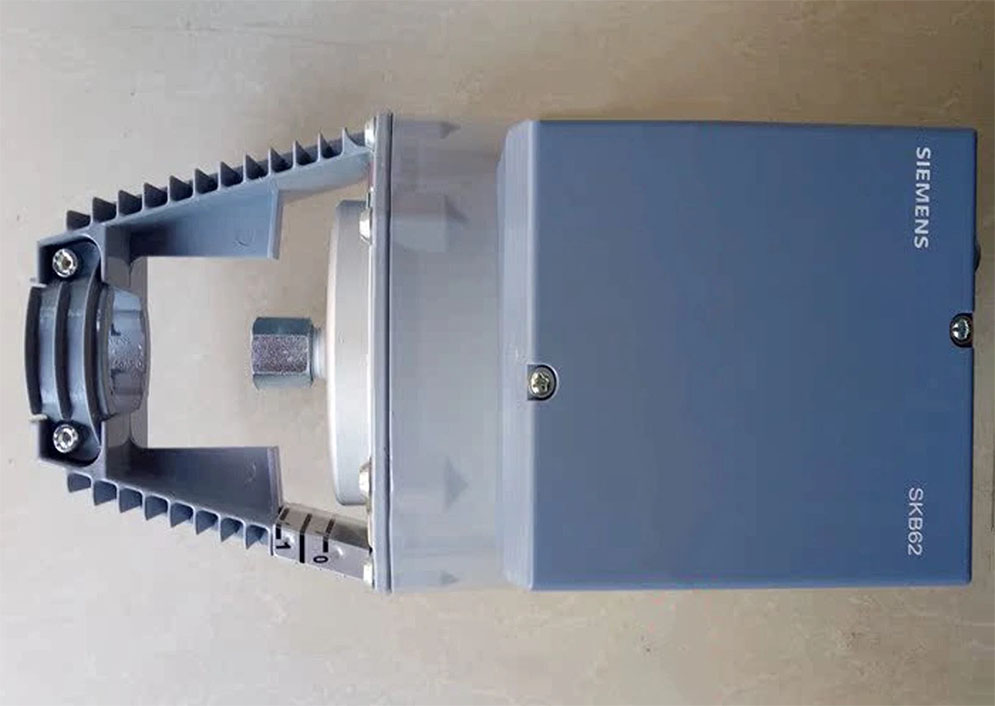

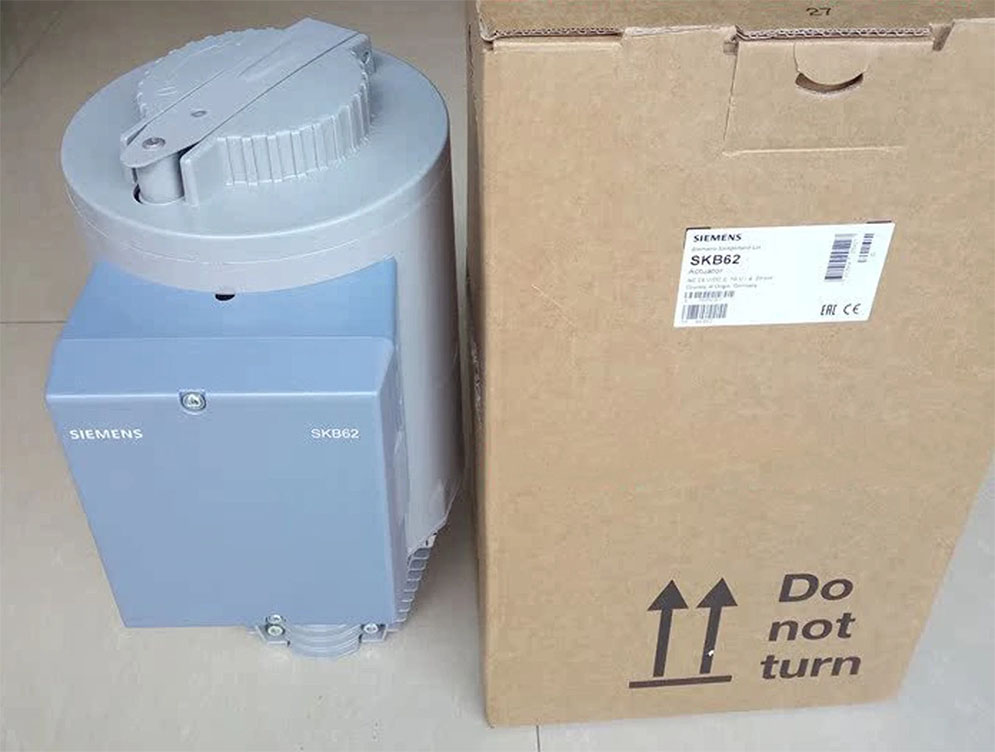

Siemens SKB62 là Bộ truyền động điện-thủy lực, 2800 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA, có lò xo hồi vị

H01: Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA, spring return
With fail-safe function. Overload-proof through travel-dependent, electronic switching off in end position. With die-cast aluminium housing and yoke for valves with 20 mm stroke. Optional function with one auxiliary switch. With manual control. Control devices MK..5.., MK..6.. or MK..5..G are control devices with safety shut-off function per DIN EN 14597.


- Tài liệu kỹ thuật của Bộ truyền động điện-thủy lực Siemens SKB62 ở đây.



Thông số kỹ thuật của Bộ truyền động điện-thủy lực Siemens SKB62

- Operating voltage AC 24 V
- Positioning signal DC 0...10 V, 4...20 mA, 0...1000 Ohm
- Positioning time Open:120 s, Close:10 s
- Stroke 20 mm
- Spring return function Yes (10 s)
- Position feedback DC 0…10 V, 4…20 mA
- Degree of protection IP54
- Medium temperature -25…220 °C
- Ambient temperature, operation -15…55 °C
- Mounting position Upright to horizontal
- Dimensions (W x H x D) 178 x 375 x 226 mm
