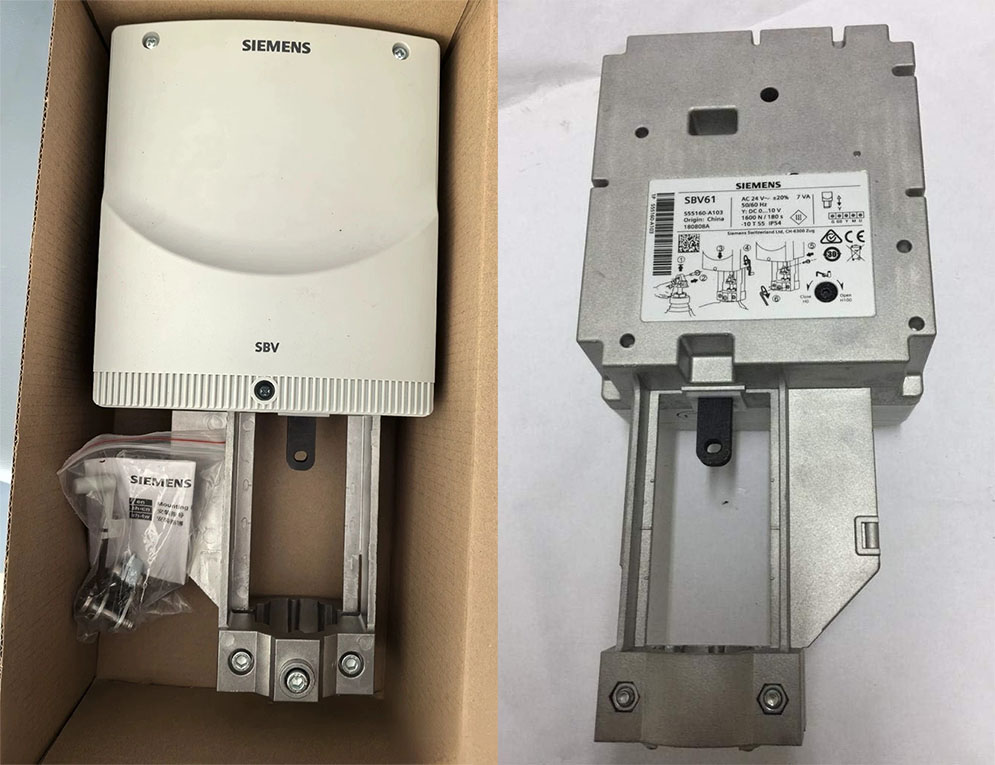

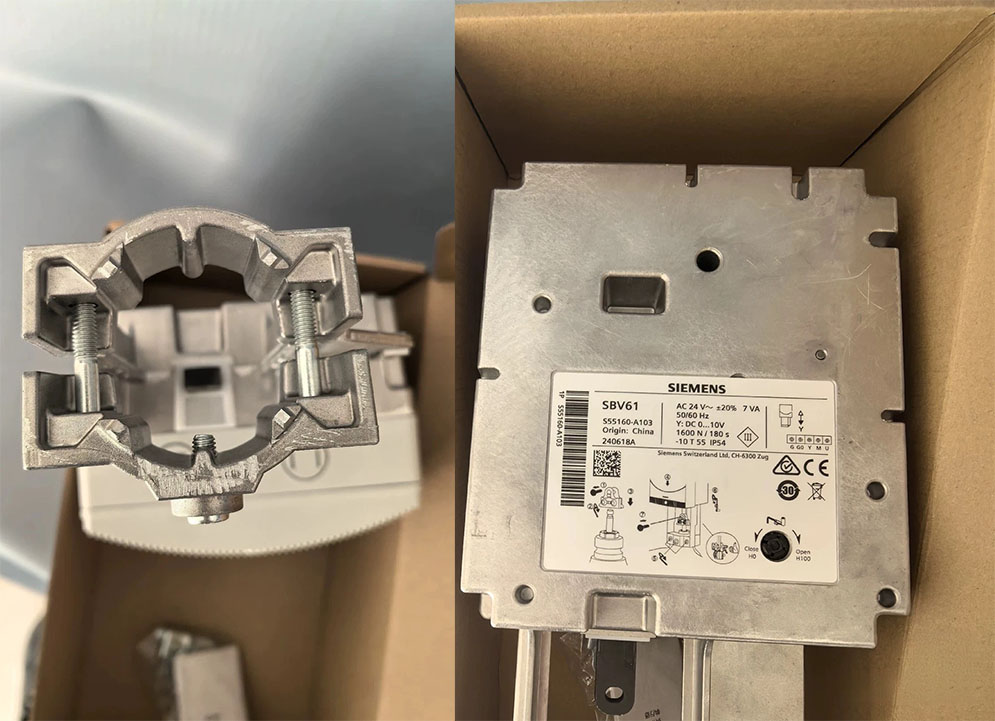

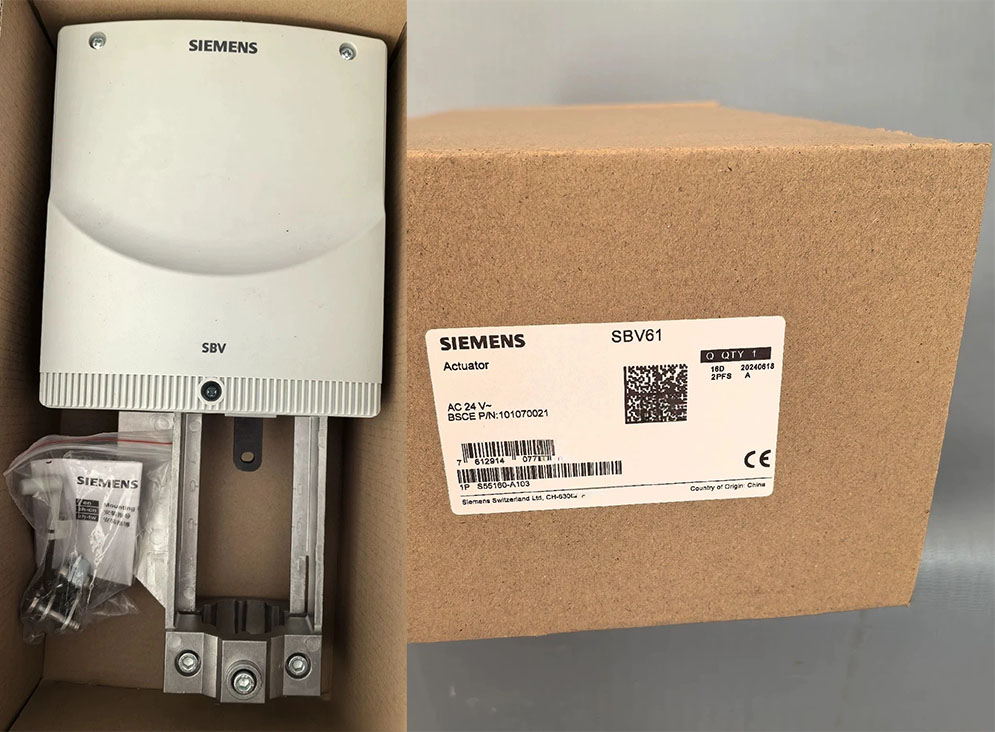

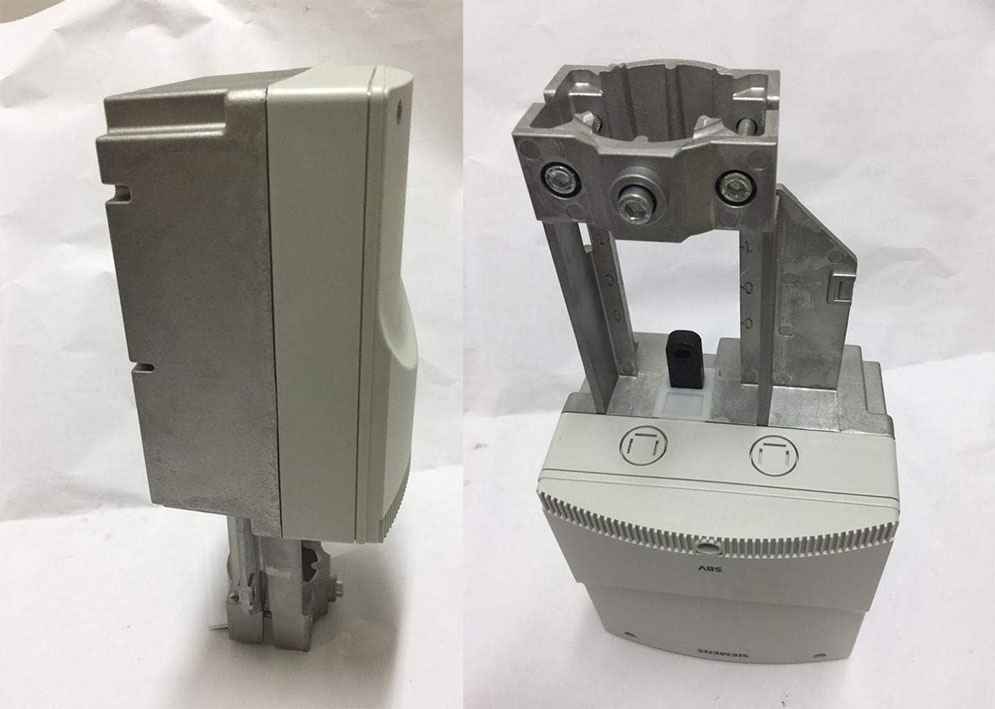

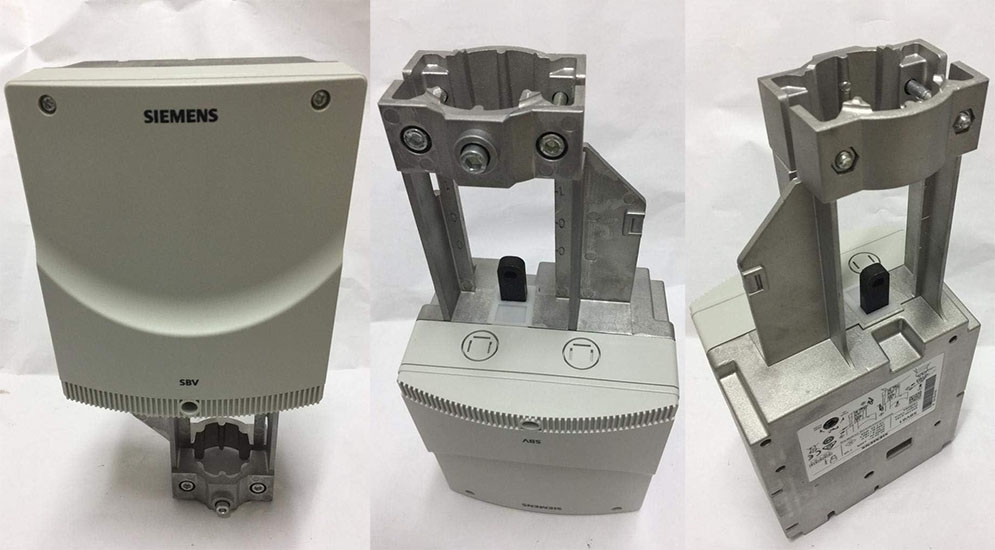

Siemens SBV61 | S55160-A103 là Bộ truyền động điện, AC 24V, DC 0...10V, cho van 2-3 cổng, hành trình 40mm, ..điều khiển hệ thống sưởi, thông gió và điều hòa không khí



- Tài liệu kỹ thuật của Bộ truyền động Siemens SBV61 | S55160-A103 ở đây.



Thông số thương mại của Bộ truyền động Siemens SBV61 | S55160-A103

- Article Number S55160-A103
- MFN SBV61
- Life cycle status Active product
- Product family Ordering Data Overview
- EAN 7612914077592
- UPC –
- Commodity code 850110
- Export control regulations AL : N / ECCN : N
- Standard delivery time 1 Day/Days
- Packaging dimensions (L x W x H) 26.6 x 16.00 x 32.00 cmt
- Net weight 2.5 Kg
- Quantity Unit 1 Piece
- Packaging Quantity 1
- Minimum Order Quantity 1
- WEEE (2012/19/EU) Take-Back Obligations Yes
- Compliance with the substance restrictions according to RoHs directive Since: 01.01.2010
- REACH Art. 33 Duty to inform according to the current list of candidates Reach Information
- SCIP Number not available
- Product group QBC1
- Catalog ID BT_Catalog
- Group code H5CC
- Country of origin China
- Product class Not available

Thông số kỹ thuật chính của
- Positioning force1600 N
- Stroke 40 mm
- Power consumption 7 VA
- Positioning time 180 s
- Positioning signal DC 0...10 V
- Degree of protection IP54
- Ambient temperature, operation -10…55 °C
- Medium temperature 1…95 °C; 33.8…203 ºF
- Ambient humidity, operation 95 % r.h.
- Dimensions (W x H x D) 153 x 316 x 113 mm
- Mounting position Upright to horizontal
- Operating voltage AC 24 V
