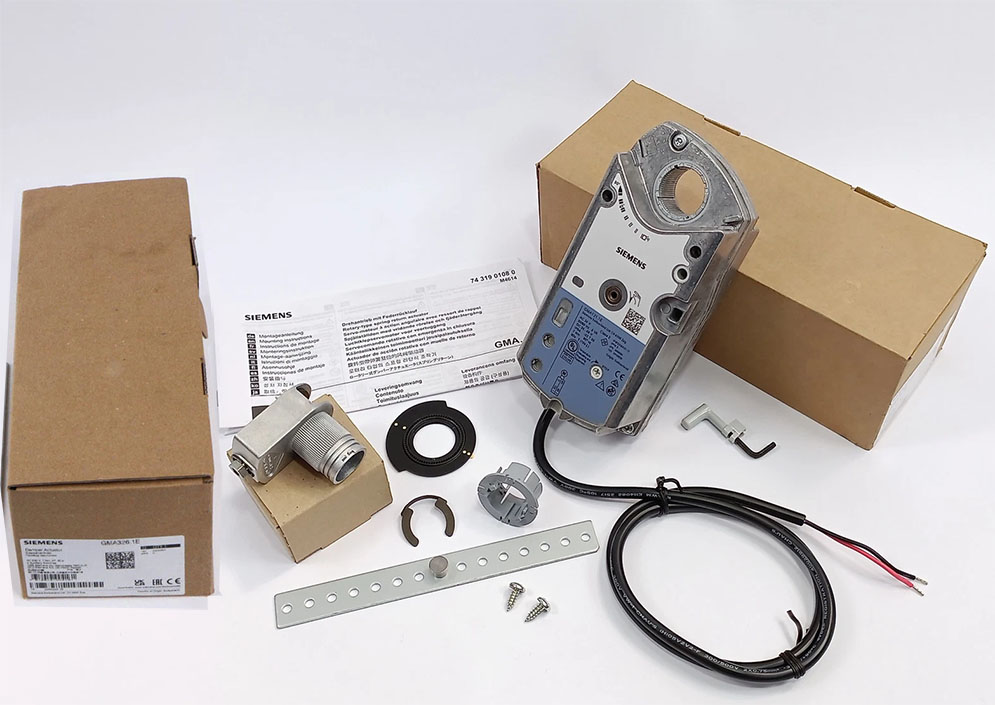

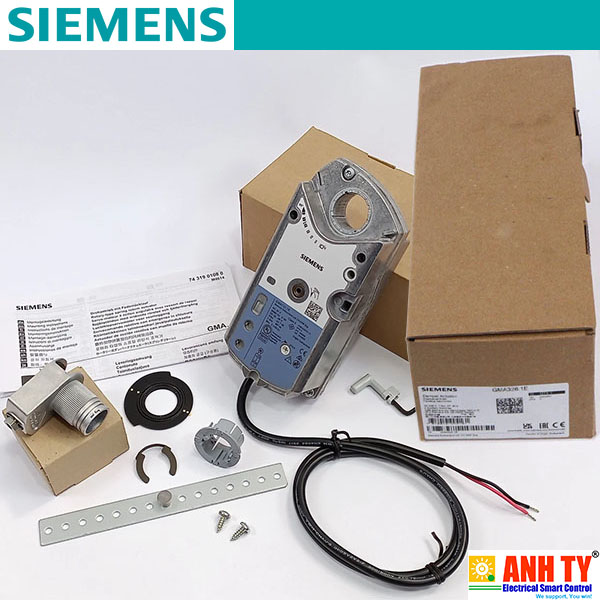

Bộ truyền động Siemens GMA121.9E

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm SIEMENS

• Xem thêm

Siemens GMA121.9E là Bộ truyền động quay điện, hồi vị bằng lò xo dùng cho van bi, AC/DC 24V, điều khiển 2 vị trí, mô-men xoắn 7Nm, thời gian vận hành 90/15 giây.

Electromotoric rotary actuator with spring-return for ball valves, AC/DC 24 V, 2-position, 7 Nm, 90/15 s
Electromotoric rotary actuator
- for 2-position control
- with spring-return


- Tài liệu kỹ thuật của Bộ truyền động Siemens GMA121.9E ở đây.



Thông số kỹ thuật của Bộ truyền động Siemens GMA121.9E

- Torque 7 Nm
- Angular rotation 90°
- Power consumption 2.9 VA, 1.9 W, Quiet power: 2 W
- Positioning time Open:90 s, Close:15 s
- Cable length 0.9 m
- Positioning signal 2-position
- Spring return function Yes
- Degree of protection IP54
- Ambient temperature, operation -32…55 °C
- Ambient humidity, operation 5…95 % r.h.
- Dimensions (W x H x D) 112 x 203 x 85 mm
- Mounting position Upright to horizontal
- Operating voltage AC 24 V, DC 24 V
- Position feedback None
- Auxiliary switch 0
- Number of full cycles 60000
- Rated impulse voltage 800 V
- Type of action Type 1
- Pollution degree 3
- Mounting location interior, weather-protected
