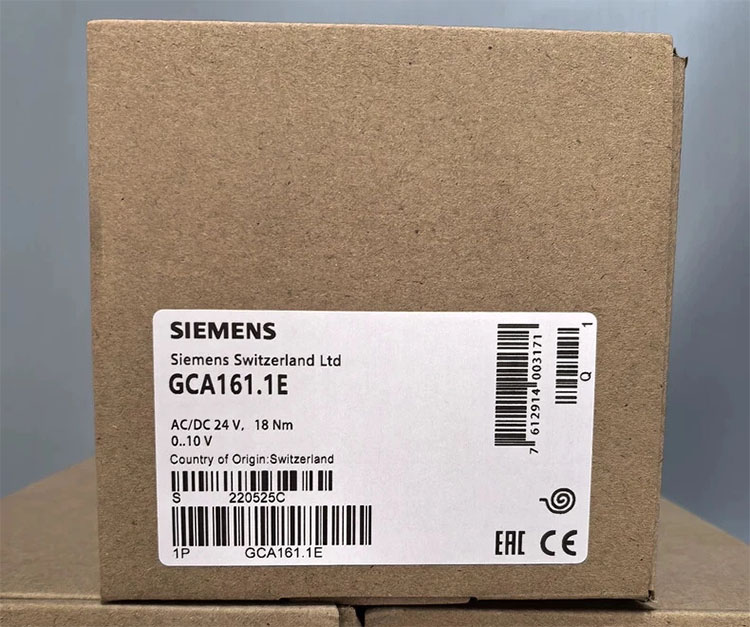

Bộ truyền động Siemens GCA161.1E

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm SIEMENS

• Xem thêm

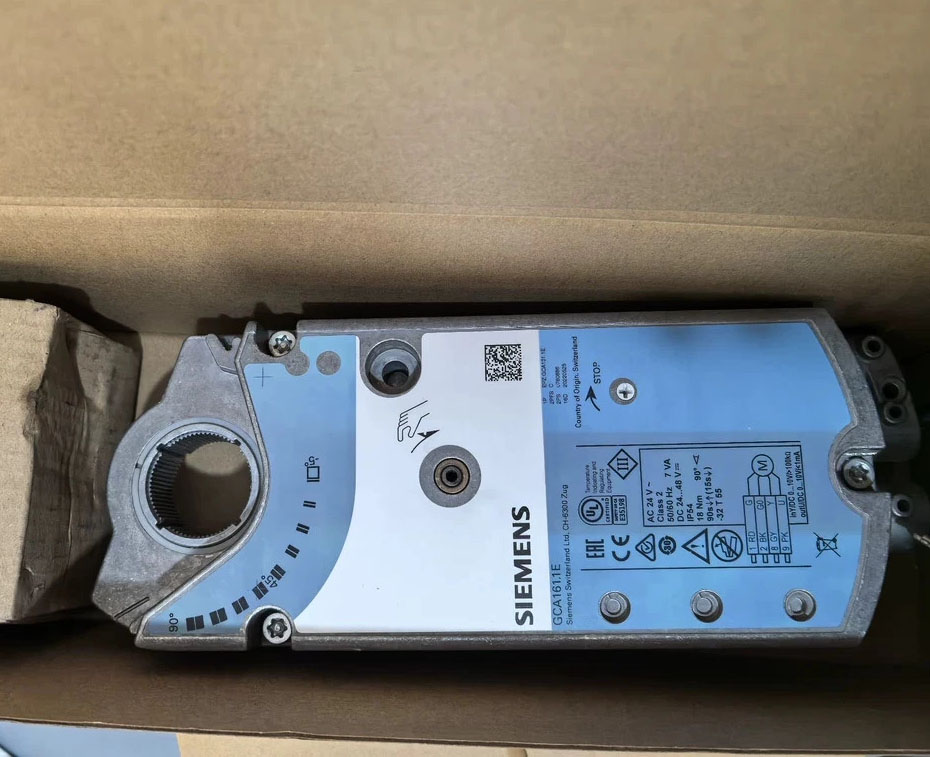

Siemens GCA161.1E là Bộ truyền động giảm chấn khí quay, AC/DC 24V, DC 0...10V, 18Nm, spring return 90/15s



- Tài liệu kỹ thuật của Bộ truyền động Siemens GCA161.1E ở đây.



Thông số kỹ thuật của Bộ truyền động Siemens GCA161.1E

- Torque 18 Nm
- Air damper area 3 m²
- Angular rotation 90°
- Power consumption 7 VA, 5 W, Quiet power: 3 W
- Positioning time Open:90 s, Close:15 s
- Cable length 0.9 m
- Positioning signal DC 0...10 V
- Spring return function Yes
- Degree of protection IP54
- Ambient temperature, operation -32…55 °C
- Medium temperature -32…55 °C
- Ambient humidity, operation 5…95 % r.h.
- Dimensions (W x H x D) 100 x 313 x 71 mm
- Operating voltage AC/DC 24 V
- Position feedback DC 0…10 V
- Auxiliary switch Optional
- Number of full cycles 60000
- Rated impulse voltage 800 V
- Type of action Type 1
- Pollution degree 3
- Mounting location interior, weather-protected
