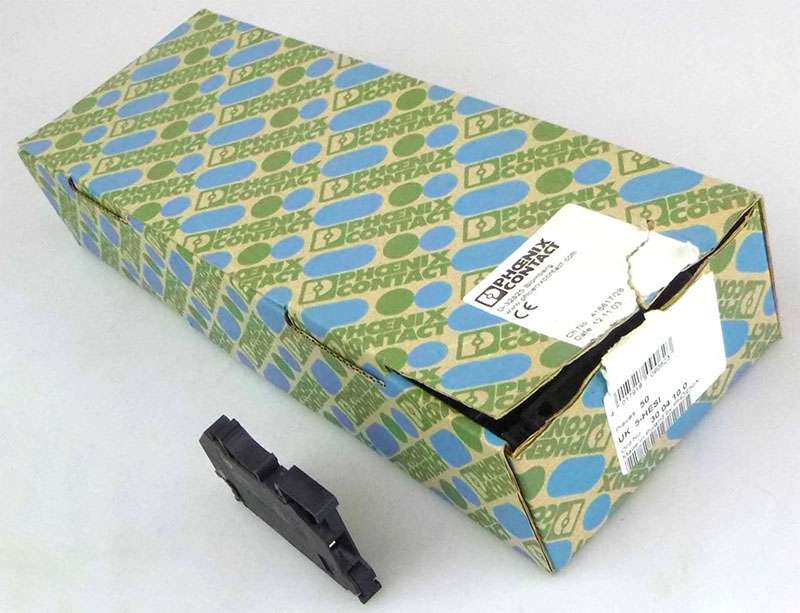

Phoenix Contact UK 5-HESI - 3004100 là Cầu đấu nối điện có cầu chì, 0.2-4mm2 800V 6.3A G/ 5x 20/25/30 Screw Black
Ưu điểm nổi bật của Cầu đấu nối điện có cầu chì Phoenix Contact UK 5-HESI - 3004100
- Các phiên bản có đèn LED
- Bề mặt ghi nhãn lớn
- Cần khóa an toàn ở vị trí cuối
Bản vẽ kỹ thuật của Cầu đấu nối điện có cầu chì Phoenix Contact UK 5-HESI - 3004100
Application drawing
Fuse terminal blocks in interconnected arrangement, block consisting of 5 fuse terminal blocks
Application drawing
Fuse terminal block in single arrangement, block consisting of one fuse terminal block and 4 feed-through terminal blocks
Circuit diagram
Circuit diagram
1 = insertion bridge
2 = fixed bridge
Thông số chung của Cầu đấu nối điện có cầu chì Phoenix Contact UK 5-HESI - 3004100
| Note |
For terminal marking, please use marking material with 8.2 mm pitch. |
| |
For lever marking, please use marking material with 6.2 mm pitch. |
| Number of levels |
1 |
| Number of connections |
2 |
| Nominal cross section |
4 mm² |
| Color |
black |
| Insulating material |
PA |
| Flammability rating according to UL 94 |
V0 |
| Maximum power dissipation for nominal condition |
1.02 W |
| Fuse |
G / 5 x 20 / 5 x 25 / 5 x 30 |
| Fuse type |
Glass / ceramics / ... |
| Rated surge voltage |
8 kV |
| Degree of pollution |
3 |
| Overvoltage category |
III |
| Insulating material group |
I |
| Connection in acc. with standard |
IEC 60947-7-3 |
| Maximum load current |
6.3 A (the current is determined by the fuse used) |
| Nominal current IN |
6.3 A |
| Nominal voltage UN |
800 V (As a fuse terminal block) |
| Rated operating voltage |
250 V |
| Open side panel |
No |
| Number of positions |
1 |
| Shock protection test specification |
DIN EN 50274 (VDE 0660-514):2002-11 |
| Back of the hand protection |
guaranteed |
| Finger protection |
guaranteed |
| Oscillation, broadband noise test result |
Test passed |
| Test specification, oscillation, broadband noise |
DIN EN 50155 (VDE 0115-200):2008-03 |
| Test spectrum |
Service life test category 1, class B, body mounted |
| Test frequency |
f1 = 5 Hz to f2 = 150 Hz |
| ASD level |
1.857 (m/s2)2/Hz |
| Acceleration |
0,8 g |
| Test duration per axis |
5 h |
| Test directions |
X-, Y- and Z-axis |
| Shock test result |
Test passed |
| Test specification, shock test |
DIN EN 50155 (VDE 0115-200):2008-03 |
| Shock form |
Half-sine |
| Acceleration |
5 g |
| Shock duration |
30 ms |
| Number of shocks per direction |
3 |
| Test directions |
X-, Y- and Z-axis (pos. and neg.) |
| Relative insulation material temperature index (Elec., UL 746 B) |
130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) |
125 °C |
| Static insulating material application in cold |
-60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) |
Test passed |
| Flame test method (DIN EN 60695-11-10) |
V0 |
| Oxygen index (DIN EN ISO 4589-2) |
>32 % |
| NF F16-101, NF F10-102 Class I |
2 |
| NF F16-101, NF F10-102 Class F |
2 |
| Surface flammability NFPA 130 (ASTM E 162) |
passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) |
passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) |
passed |
| Calorimetric heat release NFPA 130 (ASTM E 1354) |
27,5 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 |
HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 |
HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 |
HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 |
HL 1 - HL 3 |
 |
Dimensions của Cầu đấu nối điện có cầu chì Phoenix Contact UK 5-HESI - 3004100
| Width |
8.2 mm |
| Length |
72.5 mm |
| Height NS 35/7,5 |
56.5 mm |
| Height NS 35/15 |
64 mm |
| Height NS 32 |
61.5 mm |
Thông số kết nối dữ liệu của Cầu đấu nối điện có cầu chì Phoenix Contact UK 5-HESI - 3004100
| Conductor cross section solid min. |
0.2 mm² |
| Conductor cross section solid max. |
4 mm² |
| Conductor cross section flexible min. |
0.2 mm² |
| Conductor cross section flexible max. |
4 mm² |
| Conductor cross section AWG min. |
24 |
| Conductor cross section AWG max. |
12 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. |
0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. |
4 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. |
0.25 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. |
4 mm² |
| Cross section with insertion bridge, solid max. |
4 mm² |
| Cross section with insertion bridge, stranded max. |
4 mm² |
| 2 conductors with same cross section, solid min. |
0.2 mm² |
| 2 conductors with same cross section, solid max. |
1.5 mm² |
| 2 conductors with same cross section, stranded min. |
0.2 mm² |
| 2 conductors with same cross section, stranded max. |
1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. |
0.25 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. |
1.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. |
0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. |
1.5 mm² |
| Cross section with insertion bridge, solid max. |
4 mm² |
| Cross section with insertion bridge, stranded max. |
4 mm² |
| Connection method |
Screw connection |
| Stripping length |
8 mm |
| Internal cylindrical gage |
A4 |
| Screw thread |
M3 |
| Tightening torque, min |
0.6 Nm |
| Tightening torque max |
0.8 Nm |
 |
Thông số Tiêu chuẩn và Quy định của Cầu đấu nối điện có cầu chì Phoenix Contact UK 5-HESI - 3004100
| Connection in acc. with standard |
CSA |
| |
IEC 60947-7-3 |
| Flammability rating according to UL 94 |
V0 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 |
HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 |
HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 |
HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 |
HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 HL 1 - HL 3 |
Tiêu chuẩn thân thiện môi trường của Cầu đấu nối điện có cầu chì Phoenix Contact UK 5-HESI - 3004100
| REACh SVHC |
Lead 7439-92-1 |
| China RoHS |
Environmentally Friendly Use Period = 50 |
| |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Tiểu chuẩn phân lớp Classifications của Cầu đấu nối điện có cầu chì Phoenix Contact UK 5-HESI - 3004100
eCl@ss
| eCl@ss 4.0 |
27141116 |
| eCl@ss 4.1 |
27141116 |
| eCl@ss 5.0 |
27141116 |
| eCl@ss 5.1 |
27141100 |
| eCl@ss 6.0 |
27141100 |
| eCl@ss 7.0 |
27141116 |
| eCl@ss 8.0 |
27141116 |
| eCl@ss 9.0 |
27141116 |
ETIM của Cầu đấu nối điện có cầu chì Phoenix Contact UK 5-HESI - 3004100
| ETIM 2.0 |
EC000897 |
| ETIM 3.0 |
EC000899 |
| ETIM 4.0 |
EC000899 |
| ETIM 5.0 |
EC000899 |
| ETIM 6.0 |
EC000899 |
UNSPSC của Cầu đấu nối điện có cầu chì Phoenix Contact UK 5-HESI - 3004100
| UNSPSC 6.01 |
30211811 |
| UNSPSC 7.0901 |
39121410 |
| UNSPSC 11 |
39121410 |
| UNSPSC 12.01 |
39121410 |
| UNSPSC 13.2 |
39121410 |
Approvals của Cầu đấu nối điện có cầu chì Phoenix Contact UK 5-HESI - 3004100
