Bộ điều nhiệt phòng Siemens RDF510 | 5-40oC 0.5-6K 230VAC 4A NO CO 4Rly

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm SIEMENS

•

  Tất cả danh mục model sản phẩm HVAC của Siemens

• Xem thêm

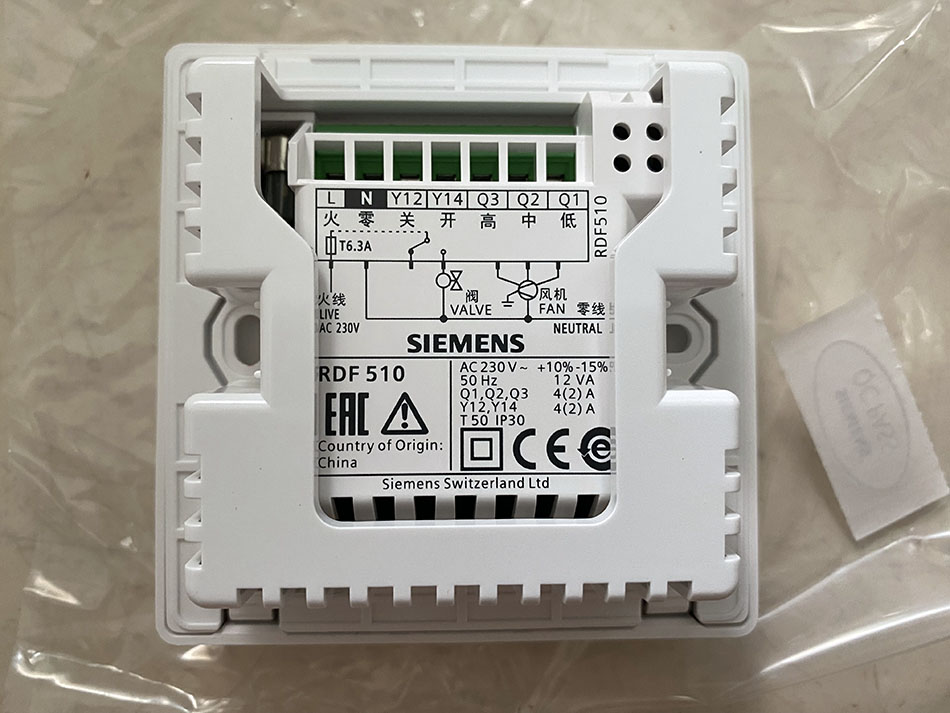

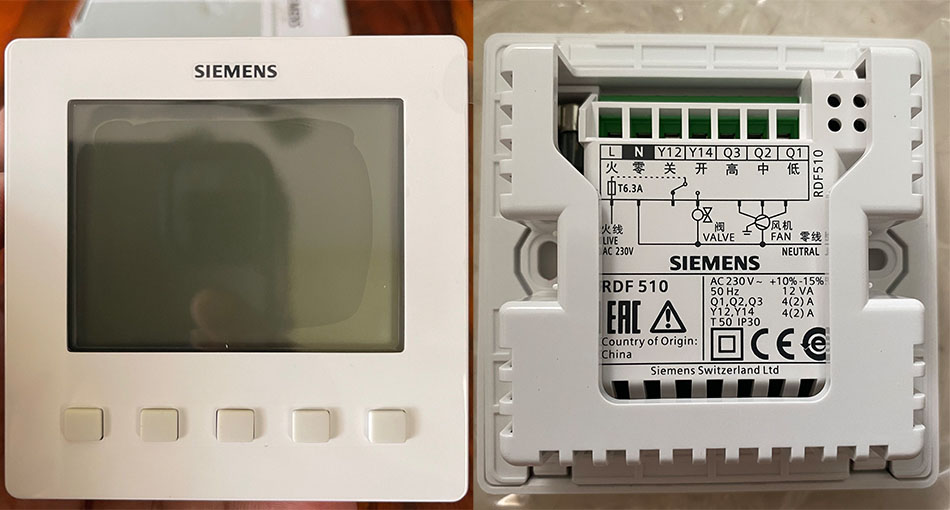

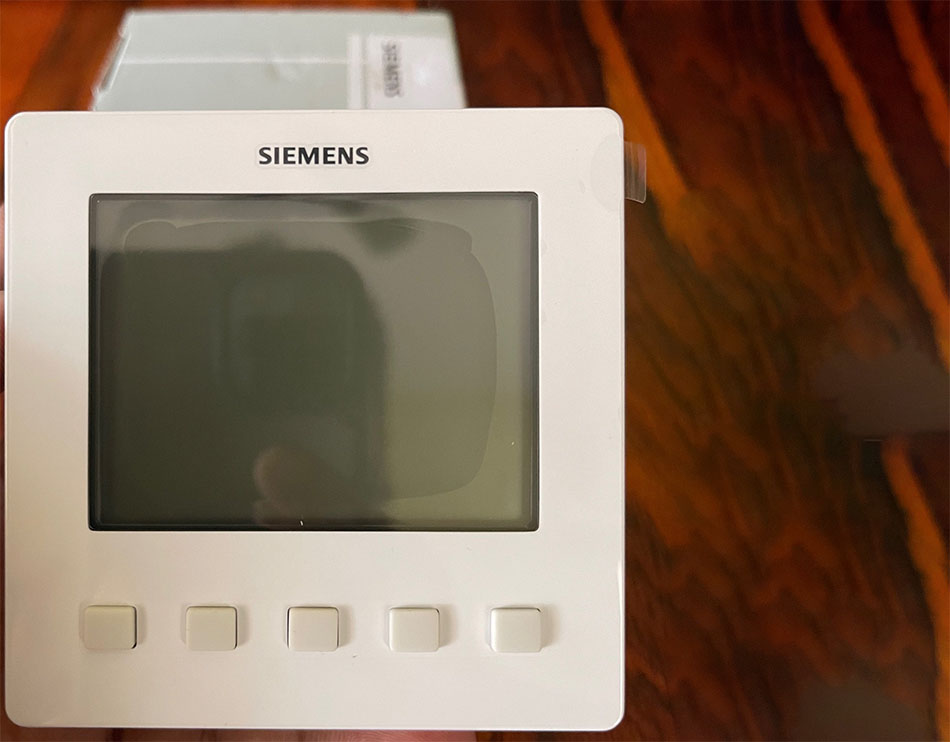

Siemens RDF510 là Bộ điều nhiệt phòng để điều khiển FCU, 5...40oC, 0.5...6K, 230VAC 4A, NO CO 4Rly



- Tài liệu kỹ thuật của Bộ điểu nhiệt phòng Siemens RDF510 ở đây.



Thông số kỹ thuật cơ bản của Bộ điểu nhiệt phòng Siemens RDF510

- Operating voltage AC 230 V
- Power consumption 12 VA
- Setpoint setting range 5…40 °C
- Switching differential Heating: 0.5…6 K; (factory seeting:1 K);Cooling: ...
- Relay outputs + Fan: Normally open contact, + Valve: Change-over contact , Non floating
- Relay outputs, number 4
- Relay output, switching voltage 230 V
- Relay output, switching current 4 (2)A
- Type of fixing Recessed square conduit box BS4662 with fixing centres of 60.3 mm
- Dimensions (W x H x D) 86 x 86 x 39 mm
