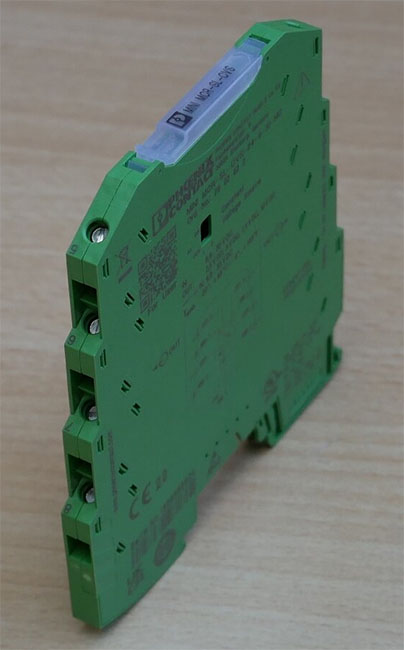

Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

THÔNG TIN THAM KHẢO

• Danh mục Model sản phẩm PHOENIX CONTACT

•

  Tìm hiểu về điều hòa, lọc nhiểu, khuếch đại, chuyển đổi tín hiệu điều khiển và đo lường MCR

• Xem thêm

Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822 là ​Bộ định áp, để điện áp không đổi, điện áp đầu vào 9.6-30VDC, điện áp đầu ra 10V, 7.5V, 5V, 2.5VDC, cách điện, cấu hình qua DIP switch, nối vít, tiêu chuẩn



- Tài liệu kỹ thuật của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822 ở đây.



Product description của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

- The 6.2 mm wide configurable MINI MCR-SL-CVS-24-10-5 constant voltage source is used to generate high precision constant voltages.
- The input voltage can fall between 9.6 V DC and 30 V DC.
- The DIP switches accessible from the side of the housing enable configuration of the 10 V DC, 5 V DC, 7.5 V DC, and 2.5 V DC output voltages.
- The input voltage can be applied either via connection terminal blocks on the modules or in conjunction with the DIN rail connector.

Technical data của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

Notes của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

Utilization restriction
EMC note	EMC: class A product, see manufacturer's declaration in the download area



Product properties của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

Product type	Constant voltage source
Product family	MINI Analog
Configuration	DIP switches
Insulation characteristics
Overvoltage category	II
Pollution degree	2



System properties của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

Functionality
Configuration	DIP switches



Electrical properties của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

Setting range comparison	± 300 mV
Maximum power dissipation for nominal condition	300 mW
Maximum temperature coefficient	< 0.01 %/K
Temperature coefficient, typical	< 0.002 %/K
Maximum transmission error	≤ 0.1 % (of final value)
	≤ 0.5 % (Without adjustment)
Electrical isolation Input/output
Rated insulation voltage	50 V AC/DC
Test voltage	1.5 kV AC (50 Hz, 60 s)
Insulation	Basic insulation in accordance with IEC/EN 61010
Supply
Nominal supply voltage	24 V DC
Supply voltage range	9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Max. current consumption	< 25 mA (10 V output with 30 mA load at 24 V DC IN)
	< 65 mA (10 V output with 30 mA load at 9.6 V DC IN)
	< 50 mA (10 V voltage output with 30 mA load at 12 V DC IN)
	< 20 mA (10 V voltage output with 30 mA load at 30 V DC IN)
Power consumption	< 600 mW (at 24 V IN)
	< 624 mW (at 9.6 V IN)
	< 564 mW (At 12 V IN)
	< 540 mW (at 30 V IN)



Input data của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

Signal: Voltage
Voltage input signal	9.6 V DC ... 30 V DC



Output data của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

Signal: Voltage
Configurable/programmable	Yes, preconfigured
Max. voltage output signal	10 V DC
	7.5 V DC
	5 V DC
	2.5 V DC
Short-circuit current	approx. 32 mA
Output current	≤ 30 mA
Ripple	< 20 mVPP



Connection data của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

Connection method	Screw connection
Stripping length	12 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	26 ... 12



Dimension của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

Dimensional drawing
Width	6.2 mm
Height	93.1 mm
Depth	101.2 mm



Material specifications của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

Color	green (RAL 6021)
Housing material	PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 2



Environmental and real-life conditions của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-20 °C ... 65 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Altitude	≤ 2000 m
Permissible humidity (operation)	5 % ... 95 % (non-condensing)



Approvals của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

CE
Certificate	CE-compliant
UKCA
Certificate	UKCA-compliant
UL, USA/Canada
Identification	UL 508 Listed
	Class I, Div. 2, Groups A, B, C, D T6
	Class I, Zone 2, Group IIC
Shipbuilding approval
Certificate	DNV GL TAA00002R0
Shipbuilding data
Temperature	B
Humidity	B
Vibration	B
EMC	B
Enclosure	Required protection according to the Rules shall be provided upon installation on board



EMC data của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

Electromagnetic compatibility	Conformance with EMC directive
Noise immunity	EN 61000-6-2
Note	When being exposed to interference, there may be minimal deviations.
Noise emission
Standards/regulations	EN 61000-6-4
Electrostatic discharge
Standards/regulations	EN 61000-4-2
Electrostatic discharge
Comments	Safety measures must be taken to prevent electrostatic discharge.
Electromagnetic HF field
Designation	Electromagnetic RF field
Standards/regulations	EN 61000-4-3
Typical deviation from the measuring range final value	3 %
Electromagnetic HF field
Comments	Criterion A
Fast transients (burst)
Designation	Fast transients (burst)
Standards/regulations	EN 61000-4-4
Typical deviation from the measuring range final value	3 %
Fast transients (burst)
Comments	Criterion B
Surge current load (surge)
Standards/regulations	EN 61000-4-5
Surge current load (surge)
Comments	Criterion B
Conducted interference
Designation	Conducted interferences
Standards/regulations	EN 61000-4-6
Typical deviation from the measuring range final value	0.5 %
Conducted interference
Comments	Criterion A



Mounting của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

Mounting type	DIN rail mounting
Assembly note	The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting position	any



Commercial data của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

Item number	2902822
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	DK1139
GTIN	4046356682428
Weight per piece (including packing)	87.1 g
Weight per piece (excluding packing)	82.88 g
Customs tariff number	85437090
Country of origin	DE



Classifications của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

ECLASS

ECLASS-13.0	27210192
ECLASS-15.0	27210192



ETIM

ETIM 9.0

EC002498



UNSPSC

UNSPSC 21.0

39121000



Approvals của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

DNV GL

Approval ID: TAA00002R0


UL Listed

Approval ID: E238705


cUL Listed

Approval ID: E238705


cUL Listed

Approval ID: E199827


UL Listed

Approval ID: FILE E 199827


Environmental product compliance của Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	d592cdca-41a8-4f80-85c7-fff7473dbfaa
EF3.0 Climate Change
CO2e kg	1.187 kg CO2e
