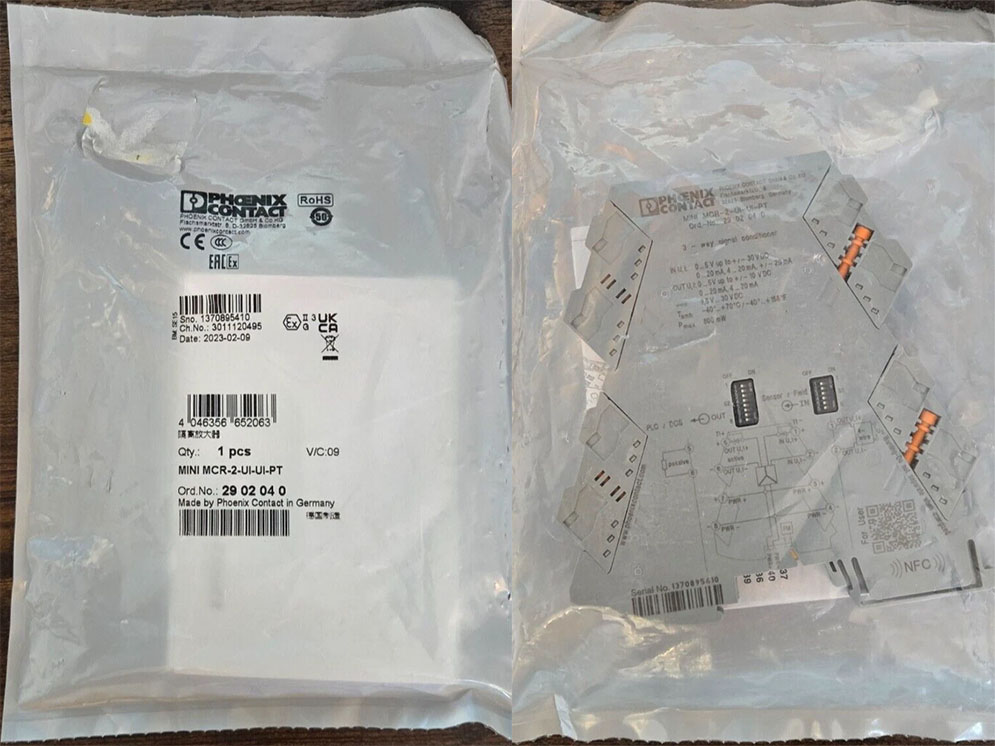

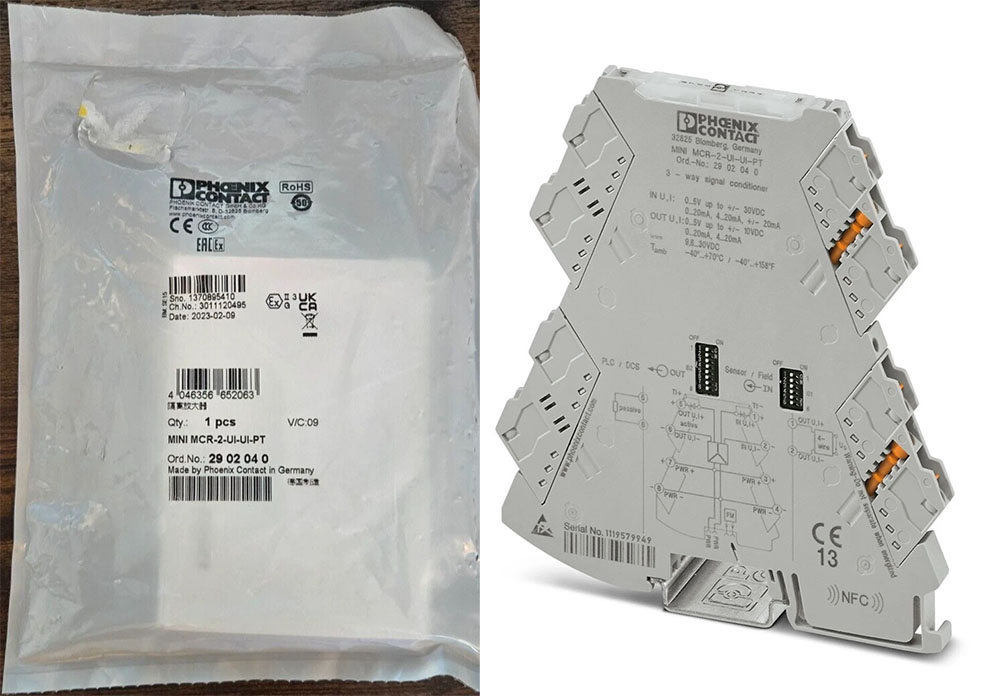

Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040 là Bộ bộ xử lý tín hiệu 3 cổng, để cách ly, chuyển đổi và khuếch đại tín hiệu analog
H01-
3-way signal conditioner with plug-in connection technology and calibrated measuring range changeover, for the electrical isolation of unipolar and bipolar analog signals. Input/output configurable via DIP switch. push-in connection technology, standard configuration.
- Tài liệu kỹ thuật của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040 ở đây.
Thông số kỹ thuật của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
Product descriptions của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
Bộ xử lý tín hiệu 3 kênh (cách ly 3 cổng) này sử dụng công nghệ kết nối dạng cắm và cho phép chuyển đổi dải đo đã được hiệu chuẩn thông qua các công tắc DIP; thiết bị được dùng để cách ly điện, chuyển đổi, khuếch đại và lọc các tín hiệu chuẩn và tín hiệu đã chuẩn hóa (dạng đơn cực và lưỡng cực). Về phía đầu vào, thiết bị hỗ trợ các tín hiệu analog tiêu chuẩn như 0...20 mA, 4...20 mA, 0...10 V, 0...5 V, 1...5 V hoặc -10...10 V, cùng các tín hiệu khác như 2...10 V, 0...20 V, 4...20 V, 0...24 V, 0...30 V, -5...5 V, -20...20 V, -24...24 V, -30...30 V và -20...20 mA. Về phía đầu ra, thiết bị hỗ trợ các dải tín hiệu 0...20 mA, 4...20 mA, 0...10 V, 0...5 V, 1...5 V, -10...10 V và -5...5 V. Không cần thực hiện thêm thao tác hiệu chỉnh nào sau khi thay đổi dải đo. Bộ chuyển đổi tín hiệu này cũng hỗ trợ tính năng giám sát lỗi và giao tiếp NFC/ The 3-way signal conditioner with plug-in connection technology and calibrated measuring range changeover can be configured using DIP switches and is used for the electrical isolation, conversion, amplification, and filtering of unipolar and bipolar standard and normalized signals. On the input side, the standard analog signals 0 ... 20 mA, 4 ... 20 mA, 0 ... 10 V, 0 ... 5 V, 1 ... 5 V or -10 ... 10 V, and signals2 ... 10 V, 0 ... 20 V, 4 ... 20 V, 0 ... 24 V, 0 ... 30 V, -5 ... 5 V, -20 ... 20 V, -24 ... 24 V, -30 ... 30 V and -20 ... 20 mA are available. On the output side, 0 ... 20 mA, 4 ... 20 mA, 0 ... 10 V, 0 ... 5 V, 1 ... 5 V, -10 ... 10 V and -5 ... 5 V are possible. There is no need for adjustment following a measuring range changeover. The measuring transducer supports fault monitoring and NFC communication.
Chú ý khi sử dụng Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Note on application |
| Note on application |
As things stand now, we are preparing the product so that, as of December 11, 2027, it will comply with the requirements of the EU Cyber Resilience Act (CRA) based on the information currently available regarding the CRA. |
| Utilization restriction |
| EMC note |
EMC: class A product, see manufacturer's declaration in the download area |
Product properties của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Product type |
Input signal conditioner |
| Product family |
MINI Analog Pro |
| No. of channels |
1 |
| Configuration |
DIP switches |
Systems properties của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Functionality |
| Configuration |
DIP switches |
Electrical properties của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Electrical isolation |
3-way isolation |
| Electrical isolation between input and output |
yes |
| Limit frequency (3 dB) |
30 Hz (via DIP switch) |
| 5 kHz (via DIP switch) |
| Protective circuit |
Transient protection |
| Step response (10-90%) |
< 12 ms (with 30 Hz filter) |
| Maximum temperature coefficient |
0.01 %/K |
| Temperature coefficient, typical |
0.01 %/K |
| Maximum transmission error |
≤ 0.1 % (of the maximum value of the configured output range) |
| ≤ 0.15 % (of final value, at IN: 4 mA ... 20 mA / OUT: -10 V ... 10 V) |
| Electrical isolation |
| Overvoltage category |
II |
| Pollution degree |
2 |
| Electrical isolation Input/output/power supply IEC/EN 61010-1 |
| Standards/regulations |
IEC/EN 61010-1 |
| Rated insulation voltage |
300 Vrms |
| Test voltage |
3 kV AC (50 Hz, 60 s) |
| Insulation |
Reinforced insulation |
| Supply |
| Nominal supply voltage |
24 V DC |
| Supply voltage range |
9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
| Typical current consumption |
25 mA (Current output, at 24 V DC incl. load) |
| 54 mA (Current output, at 12 V DC incl. load) |
| Power consumption (I output) |
≤ 800 mW (at IOUT = 20 mA, 9.6 V DC, 600 Ω load) |
Input data của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Signal: Voltage/current |
| Number of inputs |
1 |
| Configurable/programmable |
Yes |
| Voltage input signal |
0 V ... 5 V (via DIP switch) |
| 1 V ... 5 V (via DIP switch) |
| -5 V ... 5 V (via DIP switch) |
| 0 V ... 10 V (via DIP switch) |
| 2 V ... 10 V (via DIP switch) |
| -10 V ... 10 V (via DIP switch) |
| 0 V ... 20 V (via DIP switch) |
| 4 V ... 20 V (via DIP switch) |
| -20 V ... 20 V (via DIP switch) |
| 0 V ... 24 V (via DIP switch) |
| 4.8 V ... 24 V (via DIP switch) |
| -24 V ... 24 V (via DIP switch) |
| 0 V ... 30 V (via DIP switch) |
| 6 V ... 30 V (via DIP switch) |
| -30 V ... 30 V (via DIP switch) |
| Max. voltage input signal |
33 V |
| Current input signal |
0 mA ... 20 mA (via DIP switch) |
| 4 mA ... 20 mA (via DIP switch) |
| -20 mA ... 20 mA (via DIP switch) |
| Max. current input signal |
24 mA |
| Input resistance of voltage input |
> 1000 kΩ |
| Input resistance current input |
approx. 63 Ω (+0.7 V for test diode) |
Output data của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Signal: Voltage/current |
| Number of outputs |
1 |
| Configurable/programmable |
Yes |
| Voltage output signal |
0 V ... 5 V (via DIP switch) |
| 1 V ... 5 V (via DIP switch) |
| -5 V ... 5 V (via DIP switch) |
| 0 V ... 10 V (via DIP switch) |
| 2 V ... 10 V (via DIP switch) |
| -10 V ... 10 V (via DIP switch) |
| Open-circuit voltage |
< 17 V |
| Current output signal |
0 mA ... 20 mA (via DIP switch) |
| 4 mA ... 20 mA (via DIP switch) |
| Max. current output signal |
22 mA |
| Short-circuit current |
< 32 mA |
| Load/output load voltage output |
≥ 10 kΩ |
| Load/output load current output |
≤ 600 Ω (at 20 mA) |
| Ripple |
< 20 mVPP (at 600 Ω) |
| < 20 mVPP (at 600 Ω) |
Connection data của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Connection method |
Push-in connection |
| Stripping length |
10 mm |
| Conductor cross-section rigid |
0.2 mm² ... 2.5 mm² (with ferrule) |
| 0.14 mm² ... 2.5 mm² (without ferrule) |
| Conductor cross-section flexible |
0.14 mm² ... 2.5 mm² |
| Conductor cross-section AWG |
24 ... 12 (flexible) |
Ex data của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Ex installation (EPL) |
Gc |
| Div. 2 |
Signaling của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Status display |
Green LED (supply voltage) |
Dimensions của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Width |
6.2 mm |
| Height |
109.81 mm |
| Depth |
119.2 mm |
Material specifications của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Color |
gray (RAL 7042) |
| Housing material |
PBT |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 |
HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 |
HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 |
HL 1 - HL 2 |
Environmental and real-life conditional của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Ambient conditions |
| Degree of protection |
IP20 (not assessed by UL) |
| Ambient temperature (operation) |
-40 °C ... 70 °C |
| Ambient temperature (storage/transport) |
-40 °C ... 85 °C |
| Altitude |
≤ 2000 m |
| Permissible humidity (operation) |
5 % ... 95 % (non-condensing) |
Approvals của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| CE |
| Certificate |
CE-compliant |
| ATEX |
| Identification |
II 3 G Ex ec ic IIC T4 Gc |
| Certificate |
BVS 19 ATEX E 047 X |
| IECEx |
| Identification |
Ex ec ic IIC T4 Gc |
| Certificate |
IECEx BVS 19.0041X |
| CCC / China-Ex |
| Identification |
Ex ec ic IIC T4 Gc |
| Certificate |
2022122310115961 |
| UL, USA/Canada |
| Identification |
UL 508 Listed |
| Class I, Div. 2, Groups A, B, C, D T6 |
| Class I, Zone 2, Group IIC T6 |
| Shipbuilding approval |
| Certificate |
DNV GL TAA00002UA |
| EAC Ex |
| Identification |
2Ex ec ic IIC T4 Gc |
| Certificate |
BY/112 02.01 TP012 103.01 00079 |
| Shipbuilding data |
| Temperature |
B |
| Humidity |
B |
| Vibration |
A |
| EMC |
A |
| Enclosure |
Required protection according to the Rules shall be provided upon installation on board |
EMC data của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Electromagnetic compatibility |
Conformance with EMC directive |
| Noise immunity |
EN 61000-6-2 |
| Note |
When being exposed to interference, there may be minimal deviations. |
| Noise emission |
| Standards/regulations |
EN 61000-6-4 |
| Electrostatic discharge |
| Standards/regulations |
EN 61000-4-2 |
| Electrostatic discharge |
| Comments |
Safety measures must be taken to prevent electrostatic discharge. |
| Electromagnetic HF field |
| Designation |
Electromagnetic RF field |
| Standards/regulations |
EN 61000-4-3 |
| Fast transients (burst) |
| Designation |
Fast transients (burst) |
| Standards/regulations |
EN 61000-4-4 |
| Surge current load (surge) |
| Standards/regulations |
EN 61000-4-5 |
| Conducted interference |
| Designation |
Conducted interferences |
| Standards/regulations |
EN 61000-4-6 |
Standard and regulations của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Electrical isolation |
3-way isolation |
| GB Standard |
| Standards/regulations |
GB/T 3836.1 |
| GB/T 3836.3 |
| GB/T 3836.4 |
Mounting của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Mounting type |
DIN rail mounting |
| Assembly note |
The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. |
| Mounting position |
any |
Commercial data của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| Item number |
2902040 |
| Packing unit |
1 pc |
| Minimum order quantity |
1 pc |
| Product key |
DK1121 |
| GTIN |
4046356652063 |
| Weight per piece (including packing) |
116 g |
| Weight per piece (excluding packing) |
97.5 g |
| Customs tariff number |
85437090 |
| Country of origin |
DE |
Classifications của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
ECLASS
| ECLASS-13.0 |
27210120 |
| ECLASS-15.0 |
27210120 |
ETIM
UNSPSC
Approvals của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
UL Listed
Approval ID: FILE E 238705
cUL Listed
Approval ID: FILE E 238705
DNV
Approval ID: TAA00002UA
IECEx
Approval ID: IECEx BVS 19.0041X
cUL Listed
Approval ID: E196811
UL Listed
Approval ID: E196811
ATEX
Approval ID: BVS 19 ATEX E 047 X
EAC Ex
Approval ID: TP012 103.01 00079
CCC
Approval ID: 2022122310115961
Environtmental product compliance của Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040
| EU RoHS |
| Fulfills EU RoHS substance requirements |
Yes |
| Exemption |
7(a), 7(c)-I |
| China RoHS |
| Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required. |
| EU REACH SVHC |
| REACH candidate substance (CAS No.) |
Lead|7439-92-1 (CAS: n/a) |
| 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|79-94-7 (CAS: n/a) |
| SCIP |
52f84a81-2dec-4b2f-8dbf-6b987ddaebd9 |
| EF3.1 Climate Change |
| CO2e kg |
8.202 kg CO2e |
Tham khảo thêm các models khác cùng loại, liên quan với Bộ xử lý tín hiệu Phoenix Contact MINI MCR-2-UI-UI-PT - 2902040:
MINI MCR-SL-UI-2I-NC - Input signal conditioner
2864176
4-way signal duplicator for electrical isolation and duplication of analog signals with screw connection, standard configuration
MACX MCR-UI-UI-NC - Input signal conditioner
2811446
Configurable 3-way isolating amplifier with safe electrical isolation, 24 V, power bridging. DIP switches on the front, over 1600 signal conversions can be set. Standard configuration (IN 0 ... 10 V/OUT 0 ... 20 mA), screw connection, SIL.
MINI MCR-2-UI-UI - Input signal conditioner
2902037
3-way signal conditioner with plug-in connection technology and calibrated measuring range changeover for the electrical isolation of unipolar and bipolar analog signals. Input/output configurable via DIP switch. Screw connection technology, standard configuration.
MINI MCR-2-UNI-UI-2UI - Input signal conditioner
2905026
Universally configurable 4-way signal duplicator, with plug-in connection technology for the electrical isolation and duplication of analog signals. Configurable via DIP switch or software. Screw connection technology, standard configuration.
MINI MCR-SL-I-I - Input signal conditioner
2864406
3-way signal conditioner, for electrical isolation of analog signals, with screw connection, input signal: 0(4) mA ... 20 mA, output signal: 0(4) mA ... 20 mA
MINI MCR-SL-PT100-UI-NC - Temperature measuring transducer
2864273
MCR temperature transducer for Pt 100 temperature sensors, configured via DIP switches, with screw connection, not preconfigured
MINI MCR-SL-UI-UI-NC - Input signal conditioner
2864150
3-way signal conditioner for the electrical isolation of analog signals, I/O can be configured via DIP switches, with screw connection, standard configuration
MINI MCR-2-UNI-UI-2UI-PT - Input signal conditioner
2905028
Universally configurable 4-way signal duplicator, with plug-in connection technology for the electrical isolation and duplication of analog signals. Configurable via DIP switch or software. Push-in connection technology, standard configuration.
MINI MCR-SL-R-UI - Potentiometer measuring transducer
2864095
MCR potiposition transducer for conversion of potentiometer positions into a standard analog signal, 0 Ω input... 100 Ω to 0 kΩ ... 100 kΩ
MINI MCR-2-RTD-UI-PT - Temperature measuring transducer
2902052
Configurable temperature transducer with plug-in connection technology for connecting 2, 3, and 4-conductor resistance thermometers and resistance-type sensors. Configurable via DIP switch or software. push-in connection technology, standard configuration
MINI MCR-2-UI-UI-PT - Input signal conditioner
2902040
3-way signal conditioner with plug-in connection technology and calibrated measuring range changeover, for the electrical isolation of unipolar and bipolar analog signals. Input/output configurable via DIP switch. push-in connection technology, standard configuration.
MINI MCR-2-F-UI - Frequency measuring transducer
2902056
Universally configurable frequency transducer for converting frequency (Hz/rpm) and PWM signals into standard signals. Sensor voltages greater than 8.2 V DC are possible in combination with MINI MCR-2-SPS 1033202. Screw connection technology.
MACX MCR-T-UI-UP - Temperature measuring transducer
2811394
Freely programmable temperature measuring transducer with analog output and 1 limit value relay, resistance thermometer in 2-, 3-, or 4-conductor technology, thermocouples, wide-range supply. Standard configuration, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849-1): d, Systematic Capability: 2, Screw connection
MINI MCR-SL-UI-I-LP-NC - Signal conditioner
2902829
2-way loop-powered isolating amplifier (supplied on the output side), can be configured via DIP switches, with screw connection technology and standard configuration.
MACX MCR-UI-UI-UP-NC - Input signal conditioner
2811297
Isolating amplifier with safe electrical isolation and wide-range power supply (24 V ... 230 V AC/DC). DIP switches on the front, over 1600 signal conversions can be set. Standard configuration (IN 0 ... 10 V/OUT 0 ... 20 mA), screw connection, SIL.
MINI MCR-2-I-I - Input signal conditioner
2901998
3-way signal conditioner with plug-in connection technology for the electrical isolation of analog signals. Input signal: 0(4) mA ... 20 mA, output signal: 0(4) mA ... 20 mA, screw connection technology
MINI MCR-SL-RPS-I-I - Repeater power supply
2864422
Repeater power supply, screw connection, input signal: (0)4 mA. .. 20 mA, output signal: (0)4 mA. ... 20 mA
MINI MCR-2-RTD-UI - Resistance thermometer measuring transducer
2902049
Configurable temperature transducer with plug-in connection technology for connecting 2, 3, and 4-conductor resistance thermometers and resistance-type sensors. Configurable via DIP switch or software. Screw connection technology, standard configuration
MACX MCR-UI-UI-SP-NC - Input signal conditioner
2811556
Configurable 3-way isolating amplifier with safe electrical isolation, 24 V, power bridging. DIP switches on the front, over 1600 signal conversions can be set. Standard configuration (IN 0 ... 10 V/OUT 0 ... 20 mA), spring-cage connection, SIL.
MACX MCR-SL-RPSSI-I - Repeater power supply
2865955
Repeater power supply and input signal conditioner, HART-transparent. Transmits supplied or active 0/4 … 20 mA signals to a load (active or passive). 3-way electrical isolation, SIL 2 in accordance with IEC 61508.
MINI MCR-2-RPSS-I-2I - Repeater power supply
2905628
4-way power supply doubler with plug-in connection technology. HART-transparent, 0(4) mA ... 20 mA input signal, 0(4) mA ... 20 mA output signals. The device can be used in both signal and power supply doubler modes. Screw connection technology.
MINI MCR-2-U-UI-PT - Input signal conditioner
2902021
3-way signal conditioner, with configurable input/output, for electrical isolation and conversion of analog signals in the mV and V range, unipolar as well as bipolar. Push-in connection technology, standard configuration.
MACX MCR-SL-I-I-ILP - Input isolator
2905278
Input loop-powered input isolator with increased isolating voltage for electrical isolation of 0 mA/4 mA ... 20 mA signals. Input signal = output signal. number of channels: 1, Standard configuration, Loop-powered, 2-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MINI MCR-2-POT-UI - Potentiometer measuring transducer
2902016
Configurable potiposition transducer with plug-in connection technology for connecting potentiometers from 0 Ω ... 100 Ω to 0 kΩ ... 100 kΩ. Configurable via DIP switch or software. Screw connection technology, standard configuration
MINI MCR-2-RTD-UI-PT-C - Temperature measuring transducer
2902051
Configurable temperature transducer with plug-in connection technology for connecting 2, 3, and 4-conductor resistance thermometers and resistance-type sensors. Configurable via DIP switch or software. push-in connection technology, order configuration
MINI MCR-2-I4-U-PT - Input signal conditioner
2902003
3-way signal conditioner with plug-in connection technology for the electrical isolation of analog signals. Input signal: 4 mA ... 20 mA, output signal: 0 V ... 10 V, push-in connection technology
MINI MCR-2-UI-REL-PT - Limit value switch
2902035
Universally configurable threshold value switch with changeover contact relay output and plug-in connection technology for switching analog limit values. Configurable via DIP switch or software. Push-in connection technology, standard configuration.
MINI MCR-SL-1CP-I-I - Input isolator
2864419
MCR loop-powered isolator, 1-channel, for the electrical isolation of current signals without auxiliary power, with screw connection
MINI MCR-2-CVCS - Constant voltage source
2902064
Constant voltage/current source with plug-in connection technology, input voltage: 9.6 V DC ... 30 V DC. Output voltage: 1.25 V ... 10 V DC or output current: 2.5 mA ... 20 mA can be set. Configurable via DIP switch. Screw connection technology.
MINI MCR-SL-2CP-I-I - Input isolator
2864655
MCR passive isolator, 2-channel, for the electrical isolation of current signals without auxiliary power, with screw connection
MINI MCR-2-F-UI-PT - Frequency measuring transducer
2902058
Universally configurable frequency transducer for converting frequency (Hz/rpm) and PWM signals into standard signals. Sensor voltages greater than 8.2 V DC are possible in combination with MINI MCR-2-SPS-PT 1033201. Push-in connection technology.
MINI MCR-SL-PT100-UI-200-NC - Temperature measuring transducer
2864370
MCR temperature transducer, configurable, for Pt 100 temperature sensors, with screw-connection, not configured
MINI MCR-2-POT-UI-PT - Potentiometer measuring transducer
2902017
Configurable potiposition transducer with plug-in connection technology for connecting potentiometers from 0 Ω ... 100 Ω to 0 kΩ ... 100 kΩ. Configurable via DIP switch or software. push-in connection technology, standard configuration
MINI MCR-2-I-I-PT - Input signal conditioner
2901999
3-way signal conditioner with plug-in connection technology for the electrical isolation of analog signals. Input signal: 0(4) mA ... 20 mA, output signal: 0(4) mA ... 20 mA, push-in connection technology.
MINI MCR-SL-U-U - Input signal conditioner
2864684
MCR 3-way isolating amplifier, for electrical isolation of analog signals, with screw connection, input signal: 0 ... 10 V/±10 V, output signal: 0 ... 10 V/±10 V
MINI MCR-SL-PT100-LP-NC - Temperature measuring transducer
2810308
Configurable loop-powered temperature transducer for Pt 100 temperature sensors, configured via DIP switches, with screw connection, not preconfigured
MINI MCR-2-RPSS-I-I - Repeater power supply
2902014
3-way repeater power supply with plug-in connection technology. HART-transparent, input signal 0(4)...20 mA, output signal 0(4)...20 mA. The device can be used in both isolator and repeater power supply operation. Screw connection technology
MINI MCR-2-U-U - Input signal conditioner
2902042
3-way signal conditioner with plug-in connection technology for the electrical isolation of unipolar and bipolar analog signals. Input signal: 0 V ... 10 V/±10 V, output signal: 0 V ... 10 V/±10 V, screw connection technology
MACX MCR-UI-UI-UP-SP-NC - Input signal conditioner
2811569
Isolating amplifier with safe electrical isolation and wide-range power supply (24 V ... 230 V AC/DC). DIP switches on the front, over 1600 signal conversions can be set. Standard configuration (IN 0 ... 10 V/OUT 0 ... 20 mA), spring-cage connection, SIL.
MINI MCR-2-TC-UI - Temperature measuring transducer
2902055
Configurable temperature transducer with plug-in connection technology for connecting thermocouples. Configurable via DIP switch or software. Screw connection technology, standard configuration
MINI MCR-SL-I-U-4 - Input signal conditioner
2813538
MCR 3-way isolating amplifier, for electrical isolation of analog signals, with screw connection, input signal: 4 mA ... 20 mA, output signal: 0 A ... 10 V
MINI MCR-2-UI-I-OLP - Input isolator
2902061
Output loop-powered 2-way isolator with plug-in connection technology for the electrical isolation of unipolar and bipolar analog signals. Input configurable via DIP switch. Screw connection technology, standard configuration.
MINI MCR-SL-F-UI-NC - Frequency measuring transducer
2902832
The configurable frequency transducer is suitable for the connection of NAMUR proximity sensors as well as for sensors with NPN and PNP outputs. Configurable via DIP switch and teach-in wheel. Screw connection, standard configuration.
MINI MCR-2-U-I4 - Input signal conditioner
2902029
3-way signal conditioner with plug-in connection technology for the electrical isolation of analog signals. Input signal: 0 V ... 10 V, output signal: 4 mA ... 20 mA, screw connection technology
MINI MCR-SL-UI-REL - Limit value switch
2864480
MCR limit value switch, with adjustable hysteresis and delay time, with screw connection
MACX MCR-SL-RPSSI-I-SP - Repeater power supply
2924207
Repeater power supply and input signal conditioner, HART-transparent. Transmits supplied or active 0/4 … 20 mA signals to a load (active or passive). 3-way electrical isolation, SIL 2 in accordance with IEC 61508.
MINI MCR-SL-U-I-4 - Input signal conditioner
2813525
3-way signal conditioner, for electrical isolation of analog signals, with screw connection, input signal: 0 V ... 10 V, output signal: 4 mA ... 20 mA
MINI MCR-SL-IDS-I-I - Output signal conditioner
2905577
3-way output signal conditioner for transmitting 0/4 ... 20 mA signals from the controller to a load located in the field with simultaneous 3-way electrical isolation between the input, output, and supply, with screw connection
MACX MCR-SL-RPSSI-I-UP - Repeater power supply
2865968
Repeater power supply for supplying 2- and 4-conductor transmitters with Hart transparency and wide-range power supply, SIL 2 (1oo1)/SIL 3 (1oo2), screw connection
MACX MCR-UI-UI-SP - Input signal conditioner
2811572
Configurable 3-way isolating amplifier with safe electrical isolation, 24 V, power bridging. DIP switches on the front, over 1600 signal conversions can be set. Order configuration, spring-cage connection, SIL.
MACX MCR-T-UIREL-UP - Temperature measuring transducer
2811378
Freely programmable temperature measuring transducer with analog output and 3 limit value relays, resistance thermometer in 2, 3, or 4-conductor technology, thermocouples, wide-range supply. Standard configuration, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849): d, Systematic Capability: 2, Screw connection
MACX MCR-SL-RPSSI-2I - Repeater power supply
2924825
Measuring transducer repeater power supply and input signal conditioner transmits supplied or active 0 mA/4 mA ... 20 mA electrically isolated signals from the field to two loads. number of channels: 1, HART transparency, Standard configuration, 3-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849): d / KAT 2, Systematic Capability: 3, Screw connection
MACX MCR-SL-NAM-R-SP - NAMUR isolating switch amplifier
2924252
NAMUR signal conditioner for operating proximity sensors and switches. The signals are transmitted to the control level via relay output (changeover contact). Line fault detection (LFD), 3-way electrical isolation, SIL 2, with Push-in connection.
MINI MCR-2-UI-REL - Limit value switch
2902033
Universally configurable threshold value switch with changeover contact relay output and plug-in connection technology for switching analog limit values. Configurable via DIP switch or software. Screw connection technology, standard configuration.
MINI MCR-2-RPSS-I-I-PT - Repeater power supply
2902015
3-way repeater power supply with plug-in connection technology. HART-transparent, input signal 0(4) mA ... 20 mA, output signal 0(4) mA ... 20 mA. The device can be used in both isolator and repeater power supply operation. push-in connection technology
MACX MCR-SL-2NAM-R-UP - NAMUR isolating switch amplifier
2865052
2-channel NAMUR signal conditioner with wide range power supply for proximity sensors and switches. In terms of signal output, for each channel there is a relay with a changeover contact available. Line fault detection (LFD), 3-way isolation, screw connection, SIL 2.
MACX MCR-RTD-I-SP - Temperature measuring transducer
1050201
Temperature transducer, converts signals from resistance temperature detectors and resistors into analog 0/4 - 20 mA signals. Freely programmable, Push-in connection, SIL, 3-way electrical isolation, standard configuration.
MINI MCR-2-I-I-ILP - Input isolator
2901994
1-channel input loop-powered 2-way isolator with plug-in connection technology for the electrical isolation of analog signals. Input signal = output signal: 0(4) mA ... 20 mA. Screw connection technology.
MINI MCR-2-U-UI - Input signal conditioner
2902019
3-way signal conditioner, with configurable input/output, for electrical isolation and conversion of analog signals in the mV and V range, unipolar as well as bipolar. Screw connection technology, standard configuration.
MINI MCR-2-RPS-2I-2I-OLP-PT - Repeater power supply
2906449
Two-channel output loop-powered 2-way repeater power supply with plug-in connection technology for the electrical isolation of analog signals. Input signal = output signal: 0(4) mA ... 20 mA. Push-in connection technology.
MINI MCR-2-UNI-UI-UIRO-PT - Input signal conditioner
2902028
Universally configurable 4-way signal conditioner, with switching output and plug-in connection technology for the electrical isolation of analog signals. Configurable via DIP switch or software. Push-in connection technology, standard configuration.
MINI MCR-2-RPSS-I-2I-PT - Repeater power supply
2905629
4-way power supply doubler with plug-in connection technology. HART-transparent, 0(4) mA ... 20 mA input signal, 0(4) mA ... 20 mA output signals. The device can be used in both signal and power supply doubler modes. Push-in connection technology.
MACX MCR-T-UI-UP-SP - Temperature measuring transducer
2811860
Freely programmable temperature measuring transducer with analog output and 1 limit value relay, resistance thermometer in 2-, 3-, or 4-conductor technology, thermocouples, wide-range supply. Standard configuration, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849-1): d, Systematic Capability: 2, Push-in connection
MACX MCR-T-UIREL-UP-SP - Temperature measuring transducer
2811828
Freely programmable temperature measuring transducer with analog output and 3 limit value relays, resistance thermometer in 2, 3, or 4-conductor technology, thermocouples, wide-range supply. Standard configuration, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849): d, Systematic Capability: 2, Push-in connection
MINI MCR-SL-RPSS-I-I - Repeater power supply
2864079
MCR repeater power supply with HART transparency, input signal: 4 mA ... 20 mA, output signal: 4 mA ... 20 mA, with screw connection
MINI MCR-TC-UI-NC - Temperature measuring transducer
2902851
Configurable temperature transducer for the connection of thermocouples. Can be configured via DIP switches or, with extended functionality, using the software. Screw connection, standard configuration.
MINI MCR-2-UNI-UI-UIRO - Input signal conditioner
2902026
Universally configurable 4-way signal conditioner, with switching output and plug-in connection technology for the electrical isolation of analog signals. Configurable via DIP switch or software. Screw connection technology, standard configuration.
MACX MCR-SL-2NAM-RO - NAMUR isolating switch amplifier
2865049
NAMUR 2-channel signal conditioner for operating proximity sensors and switches. The signals are transferred to the control level using relay outputs (N/O contact). Line fault detection, 3-way electrical isolation, SIL 2, screw connection.
MINI MCR-2-I-I-ILP-PT - Input isolator
2901995
1-channel input loop-powered 2-way isolator with plug-in connection technology for the electrical isolation of analog signals. Input signal = output signal: 0(4) mA ... 20 mA. Push-in connection technology.
MINI MCR-2-U-U-PT - Input signal conditioner
2902043
3-way signal conditioner with plug-in connection technology for the electrical isolation of unipolar and bipolar analog signals. Input signal: 0 V ... 10 V/±10 V, output signal: 0 V ... 10 V/±10 V, push-in connection technology.
MINI MCR-SL-CVS-24-5-10-NC - Constant voltage source
2902822
Constant voltage source, input voltage 9.6 - 30 V DC, output voltage 10 V, 7.5 V, 5 V, 2.5 V DC, electrically isolated, can be configured via DIP switches, screw connection technology, standard configuration
MINI MCR-2-I4-U - Input signal conditioner
2902002
3-way signal conditioner with plug-in connection technology for the electrical isolation of analog signals. Input signal: 4 mA ... 20 mA, output signal: 0 V ... 10 V, screw connection technology
MINI MCR-2-UI-I-OLP-PT - Input isolator
2902063
Output loop-powered 2-way isolator with plug-in connection technology for the electrical isolation of unipolar and bipolar analog signals. Input configurable via DIP switch. Push-in connection technology, standard configuration.
MINI MCR-SL-UI-F - Frequency measuring transducer
2864082
Analog frequency transducers for converting analog standard signals into frequency signals or PWM signals, configurable via DIP switch, with screw connection
MACX MCR-SL-NAM-2T - NAMUR isolating switch amplifier
2865023
NAMUR isolation switch amplifier for operating proximity sensors and switches. The signals are transmitted to the control level via 2 transistor outputs (passive).. number of channels: 1, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 2, Systematic Capability: 3, Screw connection
MACX MCR-SL-RPSSI-I-UP-SP - Repeater power supply
2924210
Repeater power supply for supplying 2- and 4-conductor transmitters with HART transparency and wide-range power supply, SIL 2 (1oo1)/SIL 3 (1oo2), Push-in connection
MACX MCR-IDS-I-I-SP - Output signal conditioner
2908064
Output signal conditioner, HART-transparent. Isolates and transmits 0/4 mA ... 20 mA signals to a load in the safe area. 3-way electrical isolation, line fault detection (can be switched off via DIP switch), SIL 2 (SC3) in accordance with IEC 61508, Push-in connection.
MINI MCR-SL-I-U-0 - Input signal conditioner
2813541
MCR 3-way isolating amplifier, for electrical isolation of analog signals, with screw connection, input signal: 0 mA ... 20 mA, output signal: 0 V ... 10 V
MINI MCR-2-2I-2I-ILP-PT - Input isolator
2901997
2-channel input loop-powered 2-way isolator with plug-in connection technology for the electrical isolation of analog signals. Input signal = output signal: 0(4) mA ... 20 mA. Push-in connection technology.
MINI MCR-2-U-I0 - Input signal conditioner
2902022
3-way signal conditioner with plug-in connection technology for the electrical isolation of analog signals. Input signal: 0 V ... 10 V, output signal: 0 mA ... 20 mA, screw connection technology
MINI MCR-2-NAM-2RO - NAMUR isolating switch amplifier
2902004
Configurable NAMUR isolation amplifier with plug-in connection technology for proximity sensors, floating switch contacts, and switch contacts with resistance circuit. 2 transistor outputs, configurable via DIP switch. Screw connection technology.
MINI MCR-RTD-UI-NC - Temperature measuring transducer
2902849
Configurable temperature transducer for the connection of 2, 3, and 4-conductor resistance thermometers and resistance-type sensors. Can be configured via DIP switches or, with extended functionality, using the software. Screw connection, standard configuration.
MINI MCR-2-U-I0-PT - Input signal conditioner
2902023
3-way signal conditioner with plug-in connection technology for the electrical isolation of analog signals. Input signal: 0 V ... 10 V, output signal: 0 mA ... 20 mA, push-in connection technology
MACX MCR-SL-2I-2I-ILP - Input isolator
2905280
Input loop-powered input isolator with increased isolating voltage for electrical isolation of 0 mA/4 mA ... 20 mA signals. Input signal = output signal. number of channels: 2, Standard configuration, Loop-powered, 2-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MACX MCR-SL-RPSS-2I-2I-SP - Repeater power supply
2904090
2-channel repeater power supply for operating 2-conductor measuring transducers, input: 4 ... 20 mA (supplying), output: 4 ... 20 mA (active), bidirectional transmission with digital HART transparency, Push-in connection, SIL, PL.
MINI MCR-2-RPS-I-I-OLP-PT - Repeater power supply
2906447
1-channel output loop-powered 2-way repeater power supply with plug-in connection technology for the electrical isolation of analog signals. Input signal = output signal: 0(4) mA ... 20 mA. Push-in connection technology.
MACX MCR-SL-2NAM-R-UP-SP - NAMUR isolating switch amplifier
2924304
2-channel NAMUR signal conditioner with wide range power supply for proximity sensors and switches. In terms of signal output, for each channel there is a relay with a changeover contact available. Line fault detection (LFD), 3-way isolation, Push-in connection, SIL 2.
MACX MCR-SL-UI-REL - Limit value switch
2906169
Limit value switch with input for active current and voltage signals and a limit-value relay output (changeover contact). Can be set via DIP switch and potentiometer, galvanic 3-way electrical isolation, up to SIL2 (SC3), PLc Cat.1, screw connection.
MINI MCR-2-I0-U - Input signal conditioner
2902000
3-way signal conditioner with plug-in connection technology for the electrical isolation of analog signals. Input signal: 0 mA ... 20 mA, output signal: 0 V ... 10 V, screw connection technology
MINI MCR-2-SPS-24-15 - Constant voltage source
1033202
Constant voltage source with pluggable connection technology for the generation of a highly precise constant voltage of 15 V and for the supply of sensors without internal power supply. Screw connection technology.
MACX MCR-SL-UI-REL-SP - Limit value switch
2906170
Limit value switch with input for active current and voltage signals and a limit-value relay output (changeover contact). Can be set via DIP switch and potentiometer, galvanic 3-way electrical isolation, up to SIL2 (SC3), PLc Cat.1, Push-in connection.
MINI MCR-2-T-2RO-PT - Temperature limit switch
2906877
Universally configurable temperature limit value switch with two transistor outputs for the connection of 2, 3, and 4-conductor resistance thermometers and thermocouples. Configurable via DIP switch or software, push-in connection technology
MINI MCR-2-UI-FRO - Frequency measuring transducer
2902031
Analog frequency transducer with limit value functionality and plug-in connection technology for converting standard signals into frequency or PWM signals. Configurable via DIP switch or software. Screw connection technology, standard configuration.
MINI MCR-2-T-REL-PT - Temperature limit switch
2905633
Universally configurable temperature limit value switch with N/O relay output for the connection of 2, 3, and 4-conductor resistance thermometers and thermocouples. Configurable via DIP switch or software. Push-in connection technology
MACX MCR-SL-NAM-2RO - NAMUR isolating switch amplifier
2865010
NAMUR signal conditioner for operating proximity sensors and switches. The signals are transferred to the control level using 2 isolated relay outputs (N/O contact). Line fault detection (LFD), 3-way electrical isolation, SIL 2, screw connection.
MINI MCR-2-U-I4-PT - Input signal conditioner
2902030
3-way signal conditioner with plug-in connection technology for the electrical isolation of analog signals. Input signal: 0 V ... 10 V, output signal: 4 mA ... 20 mA, push-in connection technology
MINI MCR-2-U-UI-PT-C - Input signal conditioner
2902020
3-way signal conditioner, with configurable input/output, for electrical isolation and conversion of analog signals in the mV and V range, unipolar as well as bipolar. Push-in connection technology, order configuration.
MINI MCR-SL-U-I-0 - Input signal conditioner
2813512
MCR 3-way isolating amplifier, for electrical isolation of analog signals, with screw connection, input signal: 0 V ... 10 V, output signal: 0 mA ... 20 mA
MACX MCR-UI-UI-UP-SP - Input signal conditioner
2811585
Configurable 3-way isolating amplifier with safe electrical isolation and wide-range power supply (24 V ... 230 V AC/DC). DIP switches on the front, over 1600 signal conversions can be set. Order configuration, spring-cage connection, SIL.
MINI MCR-2-CVCS-PT - Constant voltage source
2902065
Constant voltage/current source with plug-in connection technology, input voltage: 9.6 V DC ... 30 V DC. Output voltage: 1.25 V DC ...10 V DC or output current: 2.5 mA ... 20 mA can be set. Configurable via DIP switch. Push-in connection technology.
MINI MCR-2-NAM-2RO-PT - NAMUR isolating switch amplifier
2902005
Configurable NAMUR isolation amplifier with plug-in connection technology for proximity sensors, floating switch contacts, and switch contacts with resistance circuit. 2 transistor outputs. Configurable via DIP switch. Push-in connection technology.
MACX MCR-SL-NAM-R - NAMUR isolating switch amplifier
2865997
NAMUR signal conditioners for operating proximity sensors and switches. The signals are transmitted to the control level via relay output (changeover contact). Line fault detection (LFD), 3-way electrical isolation, SIL 2, with screw connection.
MINI MCR-SL-NAM-2RNO - NAMUR isolating switch amplifier
2864105
Configurable NAMUR switching amplifier for proximity sensors, floating switching contacts and switching contacts with resistance circuit. On the output side 2 N/O contact, with screw connection
MINI MCR-2-UNI-UI-2UI-PT-C - Input signal conditioner
2905027
Universally configurable 4-way signal duplicator, with plug-in connection technology for the electrical isolation and duplication of analog signals. Configurable via DIP switch or software. Push-in connection technology, order configuration.
MINI MCR-2-UI-UI-PT-C - Input signal conditioner
2902039
3-way signal conditioner with plug-in connection technology and calibrated measuring range changeover for the electrical isolation of unipolar and bipolar analog signals. Input/output configurable via DIP switch. push-in connection technology, order configuration.
MINI MCR-2-UI-FRO-PT - Frequency measuring transducer
2902032
Analog frequency transducer with limit value functionality and plug-in connection technology for converting standard signals into frequency or PWM signals. Configurable via DIP switch or software. Push-in connection technology, standard configuration.
MACX MCR-SL-2NAM-RO-SP - NAMUR isolating switch amplifier
2924294
NAMUR 2-channel signal conditioner for operating proximity sensors and switches. The signals are transferred to the control level using relay outputs (N/O contact). Line fault detection, 3-way electrical isolation, SIL 2, Push-in connection.
MINI MCR-2-TC-UI-PT - Temperature measuring transducer
2905249
Configurable temperature transducer with plug-in connection technology for connecting thermocouples. Configurable via DIP switch or software. Push-in connection technology, standard configuration
MACX MCR-SL-NAM-2RO-SP - NAMUR isolating switch amplifier
2924265
NAMUR signal conditioner for operating proximity sensors and switches. The signals are transferred to the control level using 2 isolated relay outputs (N/O contact). Line fault detection (LFD), 3-way electrical isolation, SIL 2, Push-in connection.
MINI MCR-2-2I-2I-ILP - Input isolator
2901996
2-channel input loop-powered 2-way isolator with plug-in connection technology for the electrical isolation of analog signals. Input signal = output signal: 0(4) mA ... 20 mA. Screw connection technology.
MACX MCR-TC-I - Temperature measuring transducer
1050228
Temperature transducer: converts signals from thermocouples and mV sources into 0/4…20 mA signals. Freely programmable, 3-way electrical isolation, screw connection, SIL.
MINI MCR-2-I0-U-PT - Input signal conditioner
2902001
3-way signal conditioner with plug-in connection technology for the electrical isolation of analog signals. Input signal: 0 mA ... 20 mA, output signal: 0 V ... 10 V, Push-in connection technology
MINI MCR-2-T-REL - Temperature limit switch
2905632
Universally configurable temperature limit value switch with N/O relay output for the connection of 2, 3, and 4-conductor resistance thermometers and thermocouples. Configurable via DIP switch or software, screw connection technology
MACX MCR-RTD-I - Temperature measuring transducer
1050192
Temperature transducer, converts signals from resistance temperature detectors and resistors into analog 0/4 - 20 mA signals. Freely programmable, screw connection, SIL, 3-way electrical isolation, standard configuration.
MINI MCR-SL-SHUNT-UI-NC - Input signal conditioner
2810780
MCR 3-way signal conditioner, with configurable input/output, for electrical isolation and conversion of analog signals in the mV range, both unipolar and bipolar with screw connection, not preconfigured
MINI MCR-2-RPS-I-I-OLP - Repeater power supply
2906446
1-channel output loop-powered 2-way repeater power supply with plug-in connection technology for the electrical isolation of analog signals. Input signal = output signal: 0(4) mA ... 20 mA. Screw connection technology.
MINI MCR-SL-U-UI-NC - Input signal conditioner
2865007
MCR 3-way signal conditioner, with configurable input/output, for electrical isolation and conversion of analog signals up to 30 V, with screw connection, standard configuration
MINI MCR-2-RPS-2I-2I-OLP - Repeater power supply
2906448
Two-channel output loop-powered 2-way repeater power supply with plug-in connection technology for the electrical isolation of analog signals. Input signal = output signal: 0(4) mA ... 20 mA. Screw connection technology.
MINI MCR-2-POT-UI-PT-C - Potentiometer measuring transducer
2905006
Configurable potiposition transducer with plug-in connection technology for connecting potentiometers from 0 Ω ... 100 Ω to 0 kΩ ... 100 kΩ. Configurable via DIP switch or software. Push-in connection technology, order configuration
MACX MCR-SL-RPSS-2I-2I - Repeater power supply
2904089
2-channel repeater power supply for operating 2-conductor measuring transducers, input: 4 ... 20 mA (supplying), output: 4 ... 20 mA (active), bidirectional transmission with digital HART transparency, screw connection, SIL, PL.
MACX MCR-IDS-I-I - Output signal conditioner
2908063
Output signal conditioner, HART-transparent. Isolates and transmits 0/4 mA ... 20 mA signals to a load in the safe area. 3-way electrical isolation, line fault detection (can be switched off via DIP switch), SIL 2 (SC3) in accordance with IEC 61508, screw connection.
MACX MCR-SL-2NAM-T - NAMUR isolating switch amplifier
2865036
NAMUR isolation switch amplifier for operating proximity sensors and switches. The signals are transmitted per channel to the control level via 1 transistor output (passive). number of channels: 2, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 2, Systematic Capability: 3, Screw connection
MACX MCR-SL-RPSSI-2I-SP - Repeater power supply
2924838
Measuring transducer repeater power supply and input signal conditioner transmits supplied or active 0 mA/4 mA ... 20 mA electrically isolated signals from the field to two loads. number of channels: 1, HART transparency, Standard configuration, 3-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849): d / KAT 2, Systematic Capability: 3, Push-in connection
MINI MCR-2-UNI-UI-UIRO-PT-C - Input signal conditioner
2902027
Universally configurable 4-way signal conditioner, with switching output and plug-in connection technology for the electrical isolation of analog signals. Configurable via DIP switch or software. Push-in connection technology, order configuration.
MACX MCR-T-UIREL-UP-SP-C - Temperature measuring transducer
2811831
Freely programmable temperature measuring transducer with analog output and 3 limit value relays, resistance thermometer in 2, 3, or 4-conductor technology, thermocouples, wide-range supply. Order configuration, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849): d, Systematic Capability: 2, Push-in connection
MACX MCR-SL-I-I-ILP-SP - Input isolator
2905279
Input loop-powered input isolator with increased isolating voltage for electrical isolation of 0 mA/4 mA ... 20 mA signals. Input signal = output signal. number of channels: 1, Standard configuration, Loop-powered, 2-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MINI MCR-2-T-2RO - Temperature limit switch
2906876
Universally configurable temperature limit value switch with two transistor outputs for the connection of 2, 3, and 4-conductor resistance thermometers and thermocouples. Configurable via DIP switch or software, screw connection technology
MACX MCR-RTD-I-SP-C - Temperature measuring transducer
1052464
Temperature transducer, converts signals from resistance temperature detectors and resistors into analog 0/4 - 20 mA signals. Freely programmable, Push-in connection, SIL, 3-way electrical isolation, order configuration.
MINI MCR-2-SPS-24-15-PT - Constant voltage source
1033201
Constant voltage source with pluggable connection technology for the generation of a highly precise constant voltage of 15 V and for the supply of sensors without internal power supply. Push-in connection technology.
MINI MCR-2-RPS-I-U-PT - Repeater power supply
1162079
Repeater power supply with plug-in connection technology. Input signal 0/4 mA ... 20 mA, output signal 0 V ... 10 V. The device can be used in both isolator and repeater power supply operation. Signal conditioner, Standard configuration, Push-in connection
MACX MCR-T-UI-UP-SP-C - Temperature measuring transducer
2811970
Freely programmable temperature measuring transducer with analog output and 1 limit value relay, resistance thermometer in 2-, 3-, or 4-conductor technology, thermocouples, wide-range supply. Order configuration, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849-1): d, Systematic Capability: 2, Push-in connection
MINI MCR-2-T-I-PT - Temperature measuring transducer
2908829
Temperature transducer for converting and transmitting intrinsically signals from RTD and TC sensors to a load. Standard configuration, 3-way isolation, Push-in connection
MINI MCR-2-UI-I-OLP-PT-C - Input isolator
2902062
Output loop-powered 2-way isolator with plug-in connection technology for the electrical isolation of unipolar and bipolar analog signals. Input configurable via DIP switch. Push-in connection technology, order configuration.
MACX MCR-SL-2I-2I-ILP-SP - Input isolator
2905281
Input loop-powered input isolator with increased isolating voltage for electrical isolation of 0 mA/4 mA ... 20 mA signals. Input signal = output signal. number of channels: 2, Standard configuration, Loop-powered, 2-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MINI MCR-2-T-I - Temperature measuring transducer
2908828
Temperature transducer for converting and transmitting intrinsically signals from RTD and TC sensors to a load. Standard configuration, 3-way isolation, Screw connection
MACX MCR-SL-2NAM-T-SP - NAMUR isolating switch amplifier
2924281
NAMUR isolation switch amplifier for operating proximity sensors and switches. The signals are transmitted per channel to the control level via 1 transistor output (passive). number of channels: 2, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 2, Systematic Capability: 3, Push-in connection
MINI MCR-2-IDS-I-I - Output signal conditioner
2905623
Output signal conditioner for isolating and transmitting 0 mA / 4 mA ... 20 mA signals from the controller to an intrinsically safe load in the Ex area. number of channels: 1, HART transparency, open-circuit voltage: 27 V DC, Standard configuration, 3-way isolation, Screw connection
MINI MCR-2-IDS-I-I-PT - Output signal conditioner
2905625
Output signal conditioner for isolating and transmitting 0 mA / 4 mA ... 20 mA signals from the controller to an intrinsically safe load in the Ex area. number of channels: 1, HART transparency, open-circuit voltage: 27 V DC, Standard configuration, 3-way isolation, Push-in connection
MACX MCR-SL-NAM-2T-SP - NAMUR isolating switch amplifier
2924278
NAMUR isolation switch amplifier for operating proximity sensors and switches. The signals are transmitted to the control level via 2 transistor outputs (passive).. number of channels: 1, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 2, Systematic Capability: 3, Push-in connection
MINI MCR-2-T-I-PT-C - Temperature measuring transducer
1472070
Temperature transducer for converting and transmitting intrinsically signals from RTD and TC sensors to a load. Order configuration, 3-way isolation, Push-in connection
MINI MCR-2-RPS-I-U - Repeater power supply
1162046
Repeater power supply with plug-in connection technology. Input signal 0/4 mA ... 20 mA, output signal 0 V ... 10 V. The device can be used in both isolator and repeater power supply operation. Signal conditioner, Standard configuration, Screw connection
MACX MCR-IDS-2I-2I-SP - Output signal conditioner
2908066
2-channel output signal conditioner, HART-transparent. Isolates and transmits 0/4 mA ... 20 mA signals to a load in the safe area. 4-way electrical isolation, line fault detection, SIL 2 (SC3) in accordance with IEC 61508, Push-in connection.
MACX MCR-IDS-2I-2I - Output signal conditioner
2908065
2-channel output signal conditioner, HART-transparent. Isolates and transmits 0/4 mA ... 20 mA signals to a load in the safe area. 4-way electrical isolation, line fault detection, SIL 2 (SC3) in accordance with IEC 61508, screw connection.
MINI MCR-2-UI-REL-PT-C - Limit value switch
2909887
Universally configurable threshold value switch with changeover contact relay output and plug-in connection technology for switching analog limit values. Configurable via DIP switch or software. Push-in connection technology, order configuration.
MINI MCR-2-TC-UI-PT-C - Temperature measuring transducer
2905248
Configurable temperature transducer with plug-in connection technology for connecting thermocouples. Configurable via DIP switch or software. Push-in connection technology, order configuration
MACX MCR-TC-I-C - Temperature measuring transducer
1052459
Temperature transducer: converts signals from thermocouples and mV sources into 0/4…20 mA signals. Order configuration, freely programmable, 3-way electrical isolation, screw connection, SIL.
Products with similar properties:
MACX MCR-EX-SL-RPSSI-I - Repeater power supply
2865340
Ex i repeater power supply and input signal conditioner, HART-transparent. Transmits supplied or active 0/4 … 20 mA signals from the Ex area to a load (active or passive) in the safe area. 3-way electrical isolation, SIL 2 in accordance with IEC 61508, with screw connection
MACX MCR-EX-SL-2NAM-RO - NAMUR isolating switch amplifier
2865476
Ex i NAMUR isolating amplifier, 2-channel. For operating proximity sensors and switches in Ex areas. The signals are transmitted via relay outputs (N/O contact) to the safe area. Line fault detection (LFD), 3-way isolation, SIL 2.
MACX MCR-EX-SL-NAM-R - NAMUR isolating switch amplifier
2865434
Ex i NAMUR isolation amplifier. For operating proximity sensors and switches in a potentially explosive area. The signals are transmitted by a relay output (changeover contact) to a safe area. Line fault detection (LFD), 3-way isolation, SIL 2.
MACX MCR-EX-IDS-I-I - Output signal conditioner
2908060
Ex i output signal conditioner, HART-transparent. Isolates and transmits 0/4 mA … 20 mA signals with intrinsic safety to a load in the Ex area. 3-way electrical isolation, line fault detection (can be switched off via DIP switch), SIL 2 (SC3) in accordance with IEC 61508, screw connection.
MACX MCR-EX-SL-RPSS-2I-2I-SP - Repeater power supply
2924676
Ex i measuring transducer repeater power supply, 2-channel, HART-transparent. Supplies Ex i 2-conductor measuring transducers and transmits the 4…20 mA signal from the Ex area to the safe area. 5-way electrical isolation, Push-in connection, up to SIL 3, PL.
MACX MCR-EX-SL-RPSSI-I-SP - Repeater power supply
2924016
Ex i repeater power supply and input signal conditioner, HART-transparent. Transmits supplied or active 0/4 … 20 mA signals from the Ex area to a load (active or passive) in the safe area. 3-way electrical isolation, SIL 2 in accordance with IEC 61508, with Push-in connection
MACX MCR-EX-SL-RPSSI-2I - Repeater power supply
2865366
Ex i-Measuring transducer repeater power supply and input signal conditioner transmits supplied or active 0 mA/4 mA ... 20 mA electrically isolated signals from the Ex area to two loads in the safe area. number of channels: 1, HART transparency, Standard configuration, 3-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849): d / KAT 2, Systematic Capability: 3, Screw connection
MACX MCR-EX-RTD-I-SP - Temperature measuring transducer
1050252
Ex i temperature transducer: converts signals from resistance temperature detectors installed in the Ex area and transmits a 0/4 - 20 mA signal to a load in the safe area. Freely programmable, 3-way isolation, SIL, Push-in connection, standard configuration.
MACX MCR-EX-SL-RPSS-2I-2I - Repeater power supply
2865382
Ex i measuring transducer repeater power supply, 2-channel; HART-transparent. Supplies Ex i 2-conductor measuring transducers and transmits the 4…20 mA signal from the Ex area to the safe area. 5-way electrical isolation, screw connection, up to SIL 3, PL.
MACX MCR-EX-SL-2NAM-R-UP - NAMUR isolating switch amplifier
2865984
2-channel Ex i NAMUR signal conditioner with wide range power supply for proximity sensors and switches. In terms of signal output, for each channel there is a relay with a changeover contact available. Fault detection (LFD), 3-way isolation, SIL 2.
MACX MCR-EX-SL-RPSSI-2I-1S - Repeater power supply
2908855
Ex i-Measuring transducer repeater power supply and input signal conditioner, only output 1 is HART-transparent. Transmits supplied or active electrically isolated signals from the Ex area to two loads. number of channels: 1, HART transparency, Standard configuration, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849): d / KAT 2, Systematic Capability: 3, Screw connection
MACX MCR-EX-SL-RPSSI-I-UP - Repeater power supply
2865793
Ex i repeater power supply and input signal conditioner, HART-transparent. Transmits supplied or active 0/4 … 20 mA signals from the Ex area to a load (active or passive) in the safe area. SIL 2 (1oo1) / SIL 3 (1oo2), wide-range supply.
MACX MCR-EX-SL-NAM-R-SP - NAMUR isolating switch amplifier
2924045
Ex i NAMUR isolation amplifier. For operating proximity sensors and switches in a potentially explosive area. The signals are transmitted by a relay output (changeover contact) to a safe area. Line fault detection (LFD), 3-way isolation, SIL 2.
MACX MCR-EX-SL-NAM-2T-SP - NAMUR isolating switch amplifier
2924074
Ex i-NAMUR signal conditioner for operating proximity sensors and switches in the Ex area. The signals are transmitted to the safe area via 2 transistor outputs (passive). number of channels: 1, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 2, Systematic Capability: 3, Push-in connection
MACX MCR-EX-SL-SD-21-60-LP - Solenoid driver
2865515
Ex i solenoid driver. For the intrinsically safe control of Ex i solenoid valves, alarm modules or LEDs installed in the Ex area. Current limitation at 58 mA. For gases up to Group IIB, loop-powered, electrical isolation, SIL 3. Screw connection.
MINI MCR-EX-RPSS-I-I - Repeater power supply
2908803
Ex i-Repeater power supply and input signal conditioner transmits supplied or active 0 mA/4 mA ... 20 mA signals from the Ex area to a load in the safe area.. open-circuit voltage: 15 V DC, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MINI MCR-EX-IDS-I-I - Output signal conditioner
2908805
Ex i-Output signal conditioner for isolating and transmitting 0 mA / 4 mA ... 20 mA signals from the controller to an intrinsically safe load in the Ex area. number of channels: 1, open-circuit voltage: 27 V DC, Standard configuration, 3-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MACX MCR-EX-AP-RPSS-I-IR - Repeater power supply
1290774
Ex i-Feed and input signal conditioner with 2 limit value relays, feeds 2-, 3-, and 4-conductor measuring transducer, transmits 1:1 passive or active 0 mA/4 mA ... 20 mA input signals and has 2 configurable limit value outputs. number of channels: 1, Standard configuration, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Screw connection
MACX MCR-EX-SL-2NAM-T-SP - NAMUR isolating switch amplifier
2924090
Ex i-NAMUR isolation switch amplifier for operating proximity sensors and switches in potentially explosive areas. The signals are transmitted to the safe area via 1 transistor output (passive) per channel. number of channels: 2, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 2, Systematic Capability: 3, Push-in connection
MACX MCR-EX-SL-NAM-NAM - NAMUR isolating switch amplifier
2866006
Ex i-NAMUR isolation amplifier for operating Ex i proximity sensors and switches in the potentially explosive area. Passive transistor output (resistive according to EN 60947-5-6). number of channels: 1, Standard configuration, 3-way isolation, Line fault transparency, Safety Integrity Level (SIL, IEC 61508): 2, Systematic Capability: 3, Screw connection
MACX MCR-EX-SL-NAM-2RO-SP - NAMUR isolating switch amplifier
2924061
Ex i NAMUR isolating amplifier for operating proximity sensors and switches in the Ex area. The signals are transmitted via 2 relay outputs (N/O contact) to the safe area. Line fault detection (LFD), 3-way isolation, SIL 2.
MINI MCR-EX-SD-16-50-LFD - Solenoid driver
1175902
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 16 V DC, current limitation: 50 mA, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MACX MCR-EX-SL-NAM-2T - NAMUR isolating switch amplifier
2865463
Ex i-NAMUR signal conditioner for operating proximity sensors and switches in the Ex area. The signals are transmitted to the safe area via 2 transistor outputs (passive). number of channels: 1, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 2, Systematic Capability: 3, Screw connection
MACX MCR-EX-SL-RPSSI-I-UP-SP - Repeater power supply
2924029
Ex i repeater power supply and input signal conditioner, HART-transparent. Transmits supplied or active 0/4 … 20 mA signals from the Ex area to a load (active or passive) in the safe area. SIL 2 (1oo1) / SIL 3 (1oo2), wide-range supply.
MACX MCR-EX-SL-SD-24-48-LP-SP - Solenoid driver
2924126
Ex i solenoid driver. For the intrinsically safe control of Ex i solenoid valves, alarm modules or LEDs installed in the Ex area. Current limitation at 48 mA. For gases up to Group IIC, loop-powered, electrical isolation, SIL 3. Push-in connection.
MACX MCR-EX-T-UI-UP-SP - Temperature measuring transducer
2924689
Freely programmable Ex i temperature measuring transducer with analog output and 1 limit value relay, intrinsically safe signal inputs, resistance thermometer in 2-, 3-, or 4-conductor technology, thermocouples, wide-range supply. Standard configuration, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849): d, Systematic Capability: 2, Push-in connection
MACX MCR-EX-SL-SD-23-48-LFD-SP - Solenoid driver
2924870
Ex i solenoid driver for controlling Ex i solenoid valves in hazardous areas, logic input, open-circuit voltage 22.6 V, current limitation at 48 mA, line fault transparency, error message output, up to SIL 3 in accordance with IEC 61508, Push-in connection
MACX MCR-EX-SL-SD-21-40-LP-SP - Solenoid driver
2924139
Ex i solenoid driver. For the intrinsically safe control of Ex i solenoid valves, alarm modules or LEDs installed in the Ex area. Current limitation at 40 mA. For gases up to Group IIC, loop-powered, electrical isolation, SIL 3. Push-in connection.
MACX MCR-EX-T-UI-UP - Temperature measuring transducer
2865654
Freely programmable Ex i temperature measuring transducer with analog output and 1 limit value relay, intrinsically safe signal inputs, resistance thermometer in 2-, 3-, or 4-conductor technology, thermocouples, wide-range supply. Standard configuration, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849): d, Systematic Capability: 2, Screw connection
MACX MCR-EX-SL-RPSSI-2I-SP - Repeater power supply
2924236
Ex i-Measuring transducer repeater power supply and input signal conditioner transmits supplied or active 0 mA/4 mA ... 20 mA electrically isolated signals from the Ex area to two loads in the safe area. number of channels: 1, HART transparency, Standard configuration, 3-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849): d / KAT 2, Systematic Capability: 3, Push-in connection
MACX MCR-EX-TC-I - Temperature measuring transducer
1050233
Ex i temperature transducer: converts signals from thermocouples installed in Ex areas and mV sources and transmits a 0/4…20 mA signal to a load in the safe area. Freely programmable. 3-way isolation, screw connection, SIL.
MACX MCR-EX-SL-NAM-2RO - NAMUR isolating switch amplifier
2865450
Ex i NAMUR isolating amplifier for operating proximity sensors and switches in the Ex area. The signals are transmitted via 2 relay outputs (N/O contact) to the safe area. Line fault detection (LFD), 3-way isolation, SIL 2.
MACX MCR-EX-IDS-2I-2I-SP - Output signal conditioner
2904931
2-channel Ex i output signal conditioner, HART-transparent. Isolates and transmits 0/4 mA … 20 mA signals with intrinsic safety to a load in the Ex area. 4-way electrical isolation, line fault detection, SIL 2 (SC3) in accordance with IEC 61508, Push-in connection.
MACX MCR-EX-AP-2REL-2DI-LP - Relay module
1292331
Ex i-Relay module isolates binary Ex i and non Ex i signal and control circuits, and is used for intrinsically safe activation of Ex i field currents via one changeover contact relay per channel. number of channels: 2, Standard configuration, Loop-powered, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Screw connection
MACX MCR-EX-SL-2NAM-T - NAMUR isolating switch amplifier
2865489
Ex i-NAMUR isolation switch amplifier for operating proximity sensors and switches in potentially explosive areas. The signals are transmitted to the safe area via 1 transistor output (passive) per channel. number of channels: 2, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 2, Systematic Capability: 3, Screw connection
MACX MCR-EX-AP-IDS-2I-2I-LP - Output isolator
1291963
Ex i-Output isolator isolates and transmits 0 mA / 4 mA ... 20 mA signals with intrinsic safety in potentially explosive areas. Suitable for fire and gas detectors. number of channels: 2, open-circuit voltage: 25 V, Standard configuration, Loop-powered, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MACX MCR-EX-SL-2NAM-R-UP-SP - NAMUR isolating switch amplifier
2924249
2-channel Ex i NAMUR signal conditioner with wide range power supply for proximity sensors and switches. In terms of signal output, for each channel there is a relay with a changeover contact available. Fault detection (LFD), 3-way isolation, SIL 2.
MACX MCR-EX-SL-RPSSI-2I-1S-SP - Repeater power supply
2908856
Ex i-Measuring transducer repeater power supply and input signal conditioner, only output 1 is HART-transparent. Transmits supplied or active electrically isolated signals from the Ex area to two loads. number of channels: 1, HART transparency, Standard configuration, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849): d / KAT 2, Systematic Capability: 3, Push-in connection
MACX MCR-EX-IDS-I-I-SP - Output signal conditioner
2908062
Ex i output signal conditioner, HART-transparent. Isolates and transmits 0/4 mA … 20 mA signals with intrinsic safety to a load in the Ex area. 3-way electrical isolation, line fault detection (can be switched off via DIP switch), SIL 2 (SC3) in accordance with IEC 61508, Push-in connection.
MACX MCR-EX-AP-RTD-RTD - Temperature measuring transducer
1291894
Ex i-Resistance isolator for intrinsically safe operation of Pt 100 resistance thermometers in 2, 3, or 4-conductor technology and resistance-type sensors. The values measured at the Ex i input are transmitted 1:1 to the non Ex i output. number of channels: 1, Standard configuration, 3-way isolation, Screw connection
MACX MCR-EX-SL-UI-REL - Limit value switch
2906164
Limit value switch with Ex i input for active current and voltage signals and a limit-value relay output (changeover contact). Can be set via DIP switch and potentiometer, galvanic 3-way electrical isolation, up to SIL2 (SC3), PLc Cat.1, screw connection.
MACX MCR-EX-RTD-I - Temperature measuring transducer
1050222
Ex i temperature transducer: converts signals from resistance temperature detectors installed in the Ex area and transmits a 0/4 - 20 mA signal to a load in the safe area. Freely programmable. 3-way isolation, SIL, screw connection, standard configuration.
MINI MCR-EX-NAM-T-PT - NAMUR isolating switch amplifier
2908808
Ex i-NAMUR signal conditioner for operating proximity sensors and switches. The signals are transmitted to the control level via 1 transistor output (passive). Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MINI MCR-EX-NAM-T - NAMUR isolating switch amplifier
2908807
Ex i-NAMUR signal conditioner for operating proximity sensors and switches. The signals are transmitted to the control level via 1 transistor output (passive). Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MACX MCR-EX-SL-SD-21-60-LP-SP - Solenoid driver
2924100
Ex i solenoid driver. For the intrinsically safe control of Ex i solenoid valves, alarm modules or LEDs installed in the Ex area. Current limitation at 58 mA. For gases up to Group IIB, loop-powered, electrical isolation, SIL 3. Push-in connection.
MACX MCR-EX-SL-2NAM-RO-SP - NAMUR isolating switch amplifier
2924087
Ex i NAMUR isolating amplifier, 2-channel. For operating proximity sensors and switches in Ex areas. The signals are transmitted via relay outputs (N/O contact) to the safe area. Line fault detection (LFD), 3-way isolation, SIL 2.
MACX MCR-EX-SL-SD-24-48-LP - Solenoid driver
2865609
Ex i solenoid driver. For the intrinsically safe control of Ex i solenoid valves, alarm modules or LEDs installed in the Ex area. Current limitation at 48 mA. For gases up to Group IIC, loop-powered, electrical isolation, SIL 3. Screw connection.
MACX MCR-EX-T-UIREL-UP - Temperature measuring transducer
2865751
Freely programmable Ex i temperature measuring transducer with analog output and 3 limit value relays, intrinsically safe signal inputs, resistance thermometer in 2-, 3-, or 4-conductor technology, thermocouples, wide-range supply. Standard configuration, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849): d, Systematic Capability: 2, Screw connection
MACX MCR-EX-IDS-2I-2I - Output signal conditioner
2865421
2-channel Ex i output signal conditioner, HART-transparent. Isolates and transmits 0/4 mA … 20 mA signals with intrinsic safety to a load in the Ex area. 4-way electrical isolation, line fault detection, SIL 2 (SC3) in accordance with IEC 61508, screw connection.
MACX MCR-EX-AP-2SD-25-35-LP-SP - Solenoid driver
1291186
Ex i-Solenoid driver for intrinsically safe activation of Ex i solenoid valves, alarm transmitters, or displays installed in potentially explosive areas. number of channels: 2, Standard configuration, Loop-powered, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MACX MCR-EX-SL-SD-23-48-LFD - Solenoid driver
2924867
Ex i solenoid driver for controlling Ex i solenoid valves in hazardous areas, logic input, open-circuit voltage 22.6 V, current limitation at 48 mA, line fault transparency, error message output, up to SIL 3 in accordance with IEC 61508, screw connection
MINI MCR-EX-RPSS-I-I-PT - Repeater power supply
2908804
Ex i-Repeater power supply and input signal conditioner transmits supplied or active 0 mA/4 mA ... 20 mA signals from the Ex area to a load in the safe area.. open-circuit voltage: 15 V DC, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MACX MCR-EX-AP-IDS-2I-2I-LP-SP - Output isolator
1291983
Ex i-Output isolator isolates and transmits 0 mA / 4 mA ... 20 mA signals with intrinsic safety in potentially explosive areas. Suitable for fire and gas detectors. number of channels: 2, open-circuit voltage: 25 V, Standard configuration, Loop-powered, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MINI MCR-EX-T-I - Temperature measuring transducer
2908813
Ex i-Temperature transducer for converting and transmitting intrinsically safe signals from RTD and TC sensors to a load in the safe area. Standard configuration, 3-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Systematic Capability: 3, Screw connection
MACX MCR-EX-SL-SD-21-25-LP-SP - Solenoid driver
2924113
Ex i solenoid driver. For the intrinsically safe control of Ex i solenoid valves, alarm modules or LEDs installed in the Ex area. Current limitation at 25 mA. For gases up to Group IIC, loop-powered, electrical isolation, SIL 3. Push-in connection.
MINI MCR-EX-NAM-RO - NAMUR isolating switch amplifier
1157862
Ex i-NAMUR signal conditioner for operating proximity sensors and switches. The signals are transmitted to the control level via 1 solid-state relay at the output (passive). number of channels: 1, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MINI MCR-EX-NAM-RO-PT - NAMUR isolating switch amplifier
1157857
Ex i-NAMUR signal conditioner for operating proximity sensors and switches. The signals are transmitted to the control level via 1 solid-state relay at the output (passive). number of channels: 1, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MACX MCR-EX-SL-SD-21-25-LP - Solenoid driver
2865492
Ex i solenoid driver. For the intrinsically safe control of Ex i solenoid valves, alarm modules or LEDs installed in the Ex area. Current limitation at 25 mA. For gases up to Group IIC, loop-powered, electrical isolation, SIL 3. Screw connection.
MACX MCR-EX-AP-RTD-RTD-SP - Temperature measuring transducer
1291955
Ex i-Resistance isolator for intrinsically safe operation of Pt 100 resistance thermometers in 2, 3, or 4-conductor technology and resistance-type sensors. The values measured at the Ex i input are transmitted 1:1 to the non Ex i output. number of channels: 1, Standard configuration, 3-way isolation, Push-in connection
MACX MCR-EX-T-UIREL-UP-SP-C - Temperature measuring transducer
2924809
Freely programmable Ex i temperature measuring transducer with analog output and 3 limit value relays, intrinsically safe signal inputs, resistance thermometer in 2-, 3-, or 4-conductor technology, thermocouples, wide-range supply. Order configuration, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849): d, Systematic Capability: 2, Push-in connection
MINI MCR-EX-SD-20-25-LP-PT - Solenoid driver
1157868
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 20 V DC, current limitation: 25 mA, Standard configuration, Loop-powered, 2-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MINI MCR-EX-SD-21-48-LP - Solenoid driver
2908810
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 21 V DC, current limitation: 48 mA, Standard configuration, Loop-powered, 2-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MINI MCR-EX-SD-16-50-LFD-PT - Solenoid driver
1175904
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 16 V DC, current limitation: 50 mA, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MINI MCR-EX-SD-20-25-LP - Solenoid driver
1157867
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 20 V DC, current limitation: 25 mA, Standard configuration, Loop-powered, 2-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MINI MCR-EX-SD-16-50-LP - Solenoid driver
1157869
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 16 V DC, current limitation: 50 mA, Standard configuration, Loop-powered, 2-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MINI MCR-EX-T-I-PT - Temperature measuring transducer
2908814
Ex i-Temperature transducer for converting and transmitting intrinsically safe signals from RTD and TC sensors to a load in the safe area. Standard configuration, 3-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Systematic Capability: 3, Push-in connection
MACX MCR-EX-SL-SD-21-40-LP - Solenoid driver
2865764
Ex i solenoid driver. For the intrinsically safe control of Ex i solenoid valves, alarm modules or LEDs installed in the Ex area. Current limitation at 40 mA. For gases up to Group IIC, loop-powered, electrical isolation, SIL 3. Screw connection.
MACX MCR-EX-AP-RPSS-I-IR-SP - Repeater power supply
1290776
Ex i-Feed and input signal conditioner with 2 limit value relays, feeds 2-, 3-, and 4-conductor measuring transducer, transmits 1:1 passive or active 0 mA/4 mA ... 20 mA input signals and has 2 configurable limit value outputs. number of channels: 1, Standard configuration, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Push-in connection
MACX MCR-EX-SL-UI-REL-SP - Limit value switch
2906165
Limit value switch with Ex i input for active current and voltage signals and a limit-value relay output (changeover contact). Can be set via DIP switch and potentiometer, galvanic 3-way electrical isolation, up to SIL2 (SC3), PLc Cat.1, Push-in connection.
MINI MCR-EX-NAM-2T-PT - NAMUR isolating switch amplifier
1157854
Ex i-NAMUR signal conditioner for operating proximity sensors and switches in the Ex area. The signals are transmitted to the safe area via 2 transistor outputs (passive). Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MINI MCR-EX-SD-16-50-LP-PT - Solenoid driver
1157870
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 16 V DC, current limitation: 50 mA, Standard configuration, Loop-powered, 2-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MINI MCR-EX-SD-21-48-LP-PT - Solenoid driver
2908811
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 21 V DC, current limitation: 48 mA, Standard configuration, Loop-powered, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MINI MCR-EX-SD-23-38-LP-PT - Solenoid driver
1277114
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 23 V DC, current limitation: 38 mA, Standard configuration, Loop-powered, 2-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MACX MCR-EX-T-UI-UP-SP-C - Temperature measuring transducer
2924692
Freely programmable Ex i temperature measuring transducer with analog output and 1 limit value relay, intrinsically safe signal inputs, resistance thermometer in 2-, 3-, or 4-conductor technology, thermocouples, wide-range supply. Order configuration, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849): d, Systematic Capability: 2, Push-in connection
MINI MCR-EX-PHM-PT - Dummy module
1825064
Dummy module with no function for connecting unused intrinsically safe signal cables, with plug-in push-in connection terminal blocks.
MINI MCR-EX-SD-21-48-LFD - Solenoid driver
1175877
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 21 V DC, current limitation: 48 mA, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MINI MCR-EX-SD-20-25-LFD - Solenoid driver
1175891
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 20 V DC, current limitation: 25 mA, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MINI MCR-EX-NAM-2T - NAMUR isolating switch amplifier
1157852
Ex i-NAMUR signal conditioner for operating proximity sensors and switches in the Ex area. The signals are transmitted to the safe area via 2 transistor outputs (passive). Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MINI MCR-EX-SD-20-25-LFD-PT - Solenoid driver
1175897
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 20 V DC, current limitation: 25 mA, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MACX MCR-EX-AP-2SD-25-35-LP - Solenoid driver
1291176
Ex i-Solenoid driver for intrinsically safe activation of Ex i solenoid valves, alarm transmitters, or displays installed in potentially explosive areas. number of channels: 2, Standard configuration, Loop-powered, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MACX MCR-EX-AP-2F-2I-SP - Frequency measuring transducer
1290533
Ex i-Frequency transducer, the frequencies measured at the Ex i inputs (0.001 Hz ... 20 kHz) are output as 0 mA / 4 mA ... 20 mA non Ex i signals. number of channels: 2, Standard configuration, 5-way isolation, Push-in connection
MINI MCR-EX-IDS-I-I-PT - Output signal conditioner
2908806
Ex i-Output signal conditioner for isolating and transmitting 0 mA / 4 mA ... 20 mA signals from the controller to an intrinsically safe load in the Ex area. number of channels: 1, open-circuit voltage: 27 V DC, Standard configuration, 3-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MACX MCR-EX-T-UIREL-UP-SP - Temperature measuring transducer
2924799
Freely programmable Ex i temperature measuring transducer with analog output and 3 limit value relays, intrinsically safe signal inputs, resistance thermometer in 2-, 3-, or 4-conductor technology, thermocouples, wide-range supply. Standard configuration, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Performance Level (ISO 13849): d, Systematic Capability: 2, Push-in connection
MACX MCR-EX-AP-2F-2I - Frequency measuring transducer
1290530
Ex i-Frequency transducer, the frequencies measured at the Ex i inputs (0.001 Hz ... 20 kHz) are output as 0 mA / 4 mA ... 20 mA non Ex i signals. number of channels: 2, Standard configuration, 5-way isolation, Screw connection
MINI MCR-EX-SD-23-38-LFD-PT - Solenoid driver
1277119
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 23 V DC, current limitation: 38 mA, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MACX MCR-EX-SL-SD-21-25-LFD-SP - Solenoid driver
2905674
Ex i solenoid driver for controlling Ex i solenoid valves in hazardous areas, logic input, open-circuit voltage 21.1 V, current limitation at 25.1 mA, line fault transparency, error message output, up to SIL 3 according to IEC 61508; Push-in connection.
MACX MCR-EX-AP-2REL-2DI-LP-SP - Relay module
1292332
Ex i-Relay module isolates binary Ex i and non Ex i signal and control circuits, and is used for intrinsically safe activation of Ex i field currents via one changeover contact relay per channel. number of channels: 2, Standard configuration, Loop-powered, 4-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Push-in connection
MINI MCR-EX-SD-23-38-LFD - Solenoid driver
1277116
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 23 V DC, current limitation: 38 mA, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MINI MCR-EX-SD-23-38-LP - Solenoid driver
1277111
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 23 V DC, current limitation: 38 mA, Standard configuration, Loop-powered, 2-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MACX MCR-EX-SL-SD-21-25-LFD - Solenoid driver
2905669
Ex i solenoid driver for controlling Ex i solenoid valves in hazardous areas, logic input, open-circuit voltage 21.1 V, current limitation at 25.1 mA, line fault transparency, error message output, up to SIL 3 according to IEC 61508; screw connection.
MACX MCR-EX-SL-NAM-NAM-SP - NAMUR isolating switch amplifier
2924883
Ex i-NAMUR isolation amplifier for operating Ex i proximity sensors and switches in the potentially explosive area. Passive transistor output (resistive according to EN 60947-5-6). number of channels: 1, Standard configuration, 3-way isolation, Line fault transparency, Safety Integrity Level (SIL, IEC 61508): 2, Systematic Capability: 3, Push-in connection
MINI MCR-EX-SD-21-48-LFD-PT - Solenoid driver
1175884
Ex i-Solenoid driver for controlling Ex i solenoid valves in the Ex area. number of channels: 1, open-circuit voltage: 21 V DC, current limitation: 48 mA, Standard configuration, 3-way isolation, Line fault detection, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MINI MCR-EX-T-I-PT-C - Temperature measuring transducer
1472132
Ex i-Temperature transducer for converting and transmitting intrinsically safe signals from RTD and TC sensors to a load in the safe area. Order configuration, 3-way isolation, Safety Integrity Level (SIL, IEC 61508): 2, Systematic Capability: 3, Push-in connection
MACX MCR-EX-SL-SD-24-48-LFD - Solenoid driver
2906155
Ex i solenoid driver for controlling Ex i solenoid valves in hazardous areas, logic input, open-circuit voltage 24.3 V, current limitation at 48 mA, line fault transparency, error message output, up to SIL 3 according to IEC 61508; screw connection.
MACX MCR-EX-SL-SD-24-48-LFD-SP - Solenoid driver
2906156
Ex i solenoid driver for controlling Ex i solenoid valves in hazardous areas, logic input, open-circuit voltage 24.3 V, current limitation at 48 mA, line fault transparency, error message output, up to SIL 3 according to IEC 61508, Push-in connection.
MACX MCR-EX-RTD-I-SP-C - Temperature measuring transducer
1052652
Ex i temperature transducer: converts signals from resistance temperature detectors installed in the Ex area and transmits a 0/4 - 20 mA signal to a load in the safe area. Freely programmable, 3-way isolation, SIL, Push-in connection, order configuration.
Products with similar properties:
MACX MCR-EX-AP-RPSS-I-I - Repeater power supply
1291191
Ex i-Feed and input signal conditioner feeds 2-, 3- and 4-conductor measuring transducer and transmits 1:1 passive or active 0 mA / 4 mA ... 20 mA Ex i input signals as active non Ex i output signal. number of channels: 1, Standard configuration, 3-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection
MACX MCR-EX-TC-I-C - Temperature measuring transducer
1052458
Ex i temperature transducer: converts signals from thermocouples installed in Ex areas and mV sources and transmits a 0/4…20 mA signal to a load in the safe area. Order configuration, freely programmable. 3-way isolation, SIL.
Products with similar properties:
MACX MCR-EX-AP-2T-2I-SP - Temperature measuring transducer
1290849
Ex i-Temperature transducer, input signals from resistance thermometers in 2, 3, or 4-conductor technology, thermocouples, and mV sources are converted into active 0 mA / 4 mA ... 20 mA non Ex i signals. number of channels: 2, Standard configuration, 5-way isolation, Push-in connection
MACX MCR-EX-AP-RPSS-I-I-SP - Repeater power supply
1291193
Ex i-Feed and input signal conditioner feeds 2-, 3- and 4-conductor measuring transducer and transmits 1:1 passive or active 0 mA / 4 mA ... 20 mA Ex i input signals as active non Ex i output signal. number of channels: 1, Standard configuration, 3-way isolation, Safety Integrity Level (SIL, IEC 61508): 3, Push-in connection
MACX MCR-EX-AP-2T-2I - Temperature measuring transducer
1290780
Ex i-Temperature transducer, input signals from resistance thermometers in 2, 3, or 4-conductor technology, thermocouples, and mV sources are converted into active 0 mA / 4 mA ... 20 mA non Ex i signals. number of channels: 2, Standard configuration, 5-way isolation, Screw connection
ME 6,2 TBUS-2 1,5/5-ST-3,81 GY - DIN rail bus connector
2695439
DIN rail bus connector (TBUS), 5-pos., for bridging the supply voltage, can be snapped onto NS 35/... DIN rail in accordance with EN 60715
IFS-USB-PROG-ADAPTER - Programming adapter
2811271
Programming adapter with USB interface, for programming with software. The USB driver is included in the software solutions for the products to be programmed, such as measuring transducers or motor managers.
MINI MCR-2-PTB - Power terminal block
2902066
Power terminal with plug-in connection technology for delivering the supply voltage to the DIN rail connector. Monitoring of the supply voltages in combination with the fault monitoring module. Screw connection technology
MACX MCR-PTB - Power and error message module
2865625
Power and fault signaling module with screw connection, including corresponding ME 17,5 TBUS 1,5/ 5-ST-3,81 GY DIN rail connector
ME 6,2 TBUS-2 1,5/5-ST-3,81 GN - DIN rail bus connector
2869728
DIN rail bus connector for DIN rail mounting. Universal for TBUS housing. Gold-plated contacts, 5-pos.
QUINT4-SYS-PS/1AC/24DC/2.5/SC - Power supply
2904614
Primary-switched power supply, QUINT POWER, screw connection, DIN rail mounting, supply of devices possible via the TBUS DIN rail connector, protective coating, input: single-phase, output: 24 V DC/2.5 A
IFS-BT-PROG-ADAPTER - Adapter
2905872
Bluetooth adapter with micro USB and S-PORT interface for wireless communication with the MINI Analog, MINI Analog Pro, MACX Analog, Interface System Gateways, and PLC logic device series.
E/ME TBUS NS35 GY - End bracket
2713780
End clamp, stable construction for DIN rail bus connector
EMG 30-SP-10K LIN - Setpoint adjuster
2942124
Setpoint value potentiometer, to set setpoints individually, resistance value 10 kΩ
MINI MCR-2-PTB-PT - Power terminal block
2902067
Power terminal with plug-in connection technology for delivering the supply voltage to the DIN rail connector. Monitoring of the supply voltages in combination with the fault monitoring module. Push-in connection technology
MINI MCR-SL-PTB-FM - Power terminal block
2902958
The MINI MCR-SL-PTB-FM(-SP) power terminal block is used to supply the supply voltage to the DIN rail connector. The FM power terminal block offers the additional function of monitoring in combination with the fault monitoring module. Screw connection.
MINI MCR-2-FM-RC-PT - Monitoring block
2904508
Fault monitoring module with plug-in connection technology for evaluating and reporting group errors from the FM system and for monitoring the supply voltages. Error message via N/C contact. Push-in connection technology, standard configuration
MINI MCR-2-TB - Feed-through terminal block
2902068
Feed-through terminal block with plug-in connection technology for the transmission of signals already electrically isolated. Screw connection technology
MINI MCR-2-V8-PN - Communication module
2905637
Eight MINI Analog Pro signal conditioners and measuring transducers can be quickly and easily integrated into a PROFINET network via a communication adapter.
EMG 30-SP- 4K7LIN - Setpoint adjuster
2940252
Setpoint value potentiometer, to set setpoints individually, resistance value 4,7 kΩ
MINI MCR-2-V8-FLK 16 - System adapter
2901993
Eight MINI Analog Pro signal conditioners and measuring transducers can be connected to a controller with minimal cabling effort and without any errors using system adapters and system cabling.
EMG 30-SPK-10K LIN - Setpoint adjuster
2942137
Cascading setpoint value potentiometer, for selecting presettable setpoints via a 24 V control signal, resistance value 10 kΩ
MINI MCR-2-V8-MOD-TCP - Communication module
2905635
Eight MINI Analog Pro signal conditioners and measuring transducers are quickly and easily integrated into a Modbus/TCP network via a communication adapter.
MINI MCR-SL-PTB - Power terminal block
2864134
MCR power terminal block for supplying several MINI Analog modules via the DIN rail connector, with screw connection, maximum current consumption of up to 2 A
MACX MCR-PTB-SP - Power and error message module
2924184
Power and fault signaling module with Push-in connection, including corresponding ME 17,5 TBUS 1,5/ 5-ST-3,81 GY DIN rail connector
MINI MCR-2-V8-MOD-RTU - Communication module
2905634
Eight MINI Analog Pro signal conditioners and measuring transducers are quickly and easily integrated into a Modbus/RTU network via a communication adapter.
ME 6,2 TBUS-PR-ADAPTER - DIN rail bus connector
1136500
Power rail adapter (ME 6,2 TBUS-PR-ADAPTER), 2-pos., enables MINI and MACX Analog modules to be adapted for supply via universal power rail UPR-03 and UPR-05.
ME-TBUS-A IMC1,5-2 - DIN rail bus connector
1351982
DIN rail bus connector adapter (2-pos.) for connection of MACX MCR-EX-AP... devices on the left side to the MACX MCR-PTB(-SP) power module with DIN rail bus connector ME 17,5 TBUS 1,5/5-ST-3,81 GY for bridging the supply voltage.
MCR-DP - Divider plate
1430594
The divider plate is used to maintain Ex i isolating distances when Ex i and non-Ex i devices are mounted side by side on a DIN rail.
ME 17,5 TBUS 1,5/ 5-ST-3,81 GY - DIN rail bus connector
1090049
DIN rail bus connector, color: gray, nominal current: 8 A (parallel contacts), rated voltage (III/2): 125 V, number of positions: 5, product range: TBUS5-17,5.., pitch: 3.81 mm, mounting: DIN rail mounting, locking: without, mounting method: without, type of packaging: packed in cardboard, Item with gold-plated contacts, bus connectors for connecting with electronics housings, 5 parallel contacts
ME-TBUS-A MC 1,5-2 - DIN rail bus connector
1351974
DIN rail bus connector adapter (2-pos.) for connection of MACX MCR-EX-AP ... devices on the right side to the MACX MCR-PTB(-SP) power module with DIN rail bus connector ME 17,5 TBUS 1,5/5-ST-3,81 GY for bridging the supply voltage.
MINI MCR-SL-FM-RC-NC - Monitoring block
2902961
The fault monitoring module is used to evaluate and report group errors from the fault monitoring system and to monitor the supply voltages. The error is reported via an N/O contact. Screw connection, standard configuration.
MINI MCR-2-V8-PB-DP - Communication module
2905636
Eight MINI Analog Pro signal conditioners and measuring transducers are quickly and easily integrated into a PROFIBUS DP network via a communication adapter.
MINI MCR-2-FM-RC - Monitoring block
2904504
Fault monitoring module with plug-in connection technology for evaluating and reporting group errors from the FM system and for monitoring the supply voltages. Error message via N/C contact. Screw connection technology, standard configuration
dienelectrics@gmail.com
0909186879
84
Bộ cách ly tín hiệu analog Turck MK31-11EX0-LU/24VDC | 7506205Giá tốt nhất xem...0909186879 Email
Bộ khuếch đại cảm biến chồng tấm Leuze VDB 112B/6P | 50107002Giá tốt nhất xem...0909186879 Email
Màn hình digital hiển thị tín hiệu Phoenix Contact MCR-SL-D-U-I - 2864011Giá tốt nhất xem...0909186879 Email
Bộ định áp Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC - 2902822Giá tốt nhất xem...0909186879 Email
Bộ khuếch đại chuyển mạch cách ly Phoenix Contact MACX MCR-EX-SL-NAM-2RO -Giá tốt nhất xem...0909186879 Email
Bộ chuyển đổi tín hiệu 0-20mA/ 0-10V thành tín hiệu Hz hoặc PWM - Phoenix Contact - Frequency transducer MINI MCR-SL-UI-F 2864082Giá tốt nhất Xem...0909186879 Email
Bộ chia tách 4-chiều tín hiệu dòng 4-20mA Analog 24VDC - Phoenix Contact - Signal duplicator MINI MCR-BL-I-2I - 2810829Giá tốt nhất Xem...0909186879 Email
Bộ chuyển đổi tín hiệu V-A Phoenix Contact MINI MCR-SL-U-I-4 - 2813525Giá tốt nhất Xem...0909186879 Email
Bộ chia tín hiệu đo lường và điều khiển - Phoenix Contact - Signal duplicator - MINI MCR-SL-UI-2I-NC - 2864176Giá tốt nhất Xem...0909186879 Email
Bộ khuếch đại tín hiệu Switch Amplifier - Pepperl-Fuchs - Switch Amplifier KFD2-SR2-Ex2.WGiá tốt nhất Xem...0909186879 Email
Bộ chia khuếch đại tín hiệu Phoenix Contact MINI MCR-2-UNI-UI-2UI-C - 2905025Giá tốt nhất Xem...0909186879 Email
Bộ khuếch đại cách ly tín hiệu đo lường và điều khiển - Phoenix Contact - Signal conditioner - MCR-C-I/I-00-DC - 2814508Giá tốt nhất Xem...0909186879 Email
Bộ chống nhiễu tín hiệu đo lường và điều khiển - Phoenix Contact - Signal conditioner - MCR-C-UI-UI-DCI - 2810913Giá tốt nhất Xem...0909186879 Email
Bộ chuyển đổi tín hiệu Analog 0-20mA 0-10V thành tần số Hz PWM - Phoenix Cotact - Frequency transducer MINI MCR-SL-UI-F - 2864082Giá tốt nhất Xem...0909186879 Email
