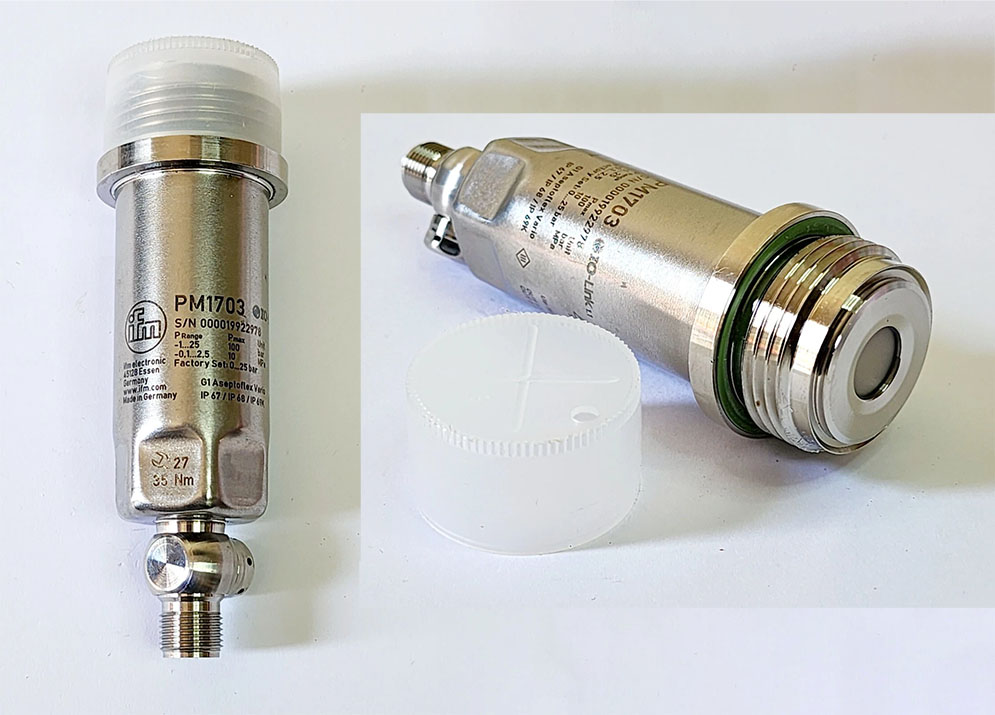

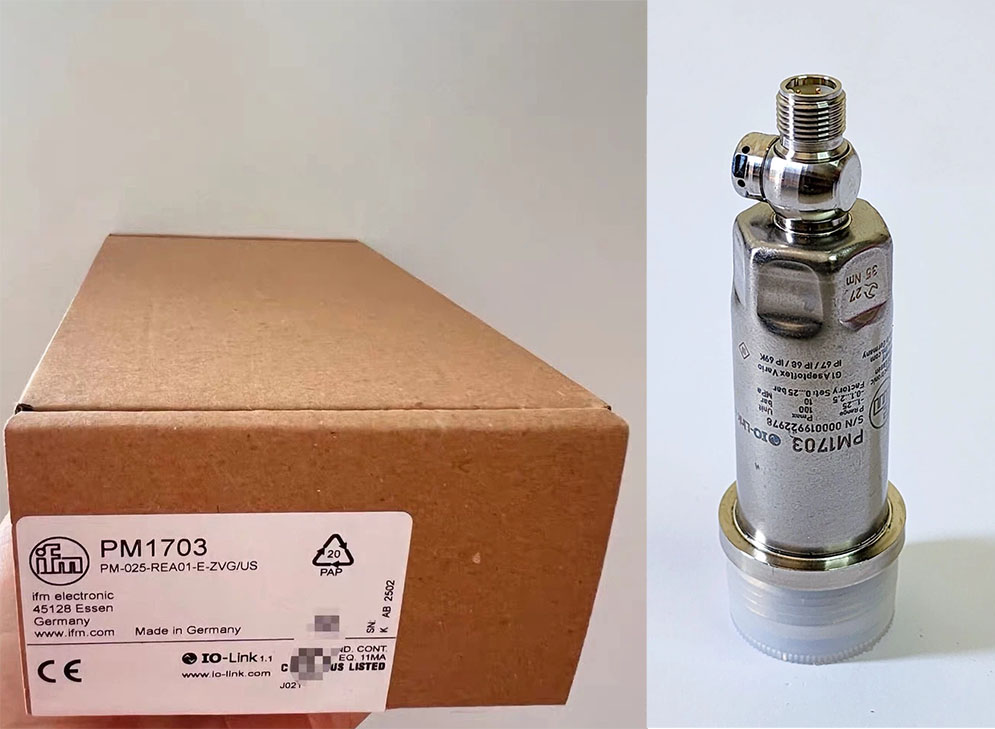

IFM PM1703 | PM-025-REA01-E-ZVG/US là Cảm biến áp suất màng phẳng -1...25 bar, chuẩn vi sinh cho ngành thực phẩm, đồ uống và công nghiệp khắc nghiệt.

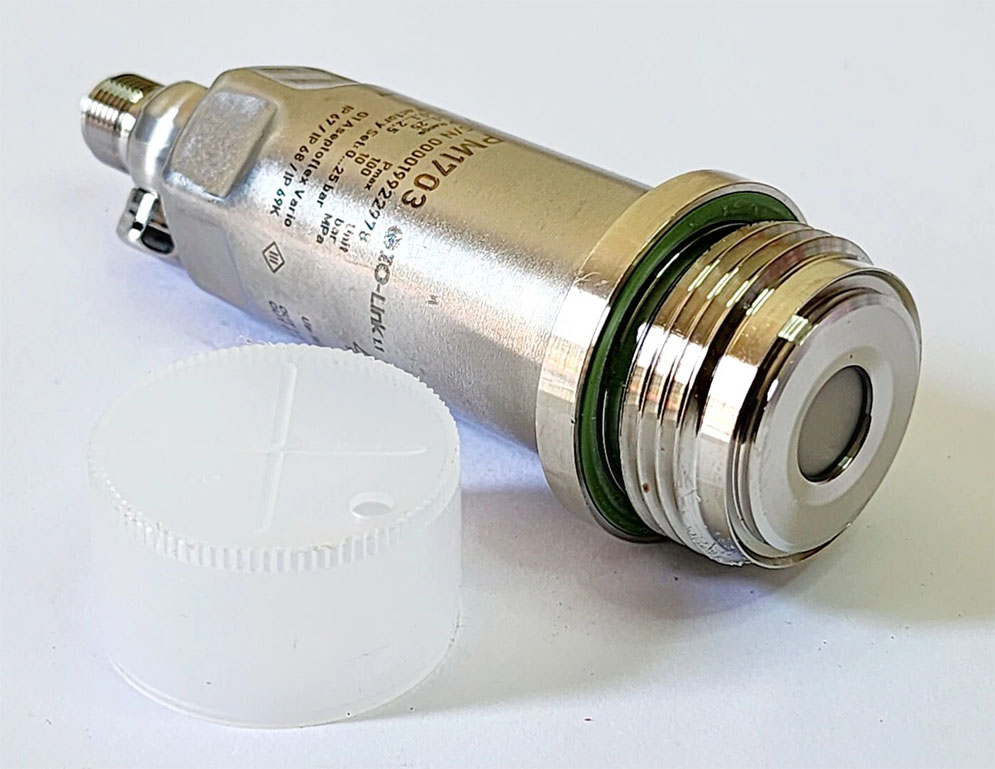

Flush pressure sensor
PM1703 PM-025-REA01-E-ZVG/US
- Robust stainless steel housing for use in the food and beverage industry
- Hygienic, flush design
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High temperature resistance and high protection rating
- Precise analogue output and user-friendly communication via IO-Link
- Tài liệu kỹ thuật của Cảm biến áp suất -1...25 bar IFM PM1703 ở đây.
Thông số kỹ thuật của Cảm biến áp suất -1...25 bar IFM PM1703
Product characteristics của Cảm biến áp suất -1...25 bar IFM PM1703
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analogue outputs: 1 |
| Measuring range |
| -1...25 bar |
-14.6...362.6 psi |
-0.1...2.5 MPa |
|
| Process connection |
threaded connection G 1 external thread with Aseptoflex Vario sealing contour |
| Note |
| G1 Gewinde nach ISO 228. Alternativ dichtend über rückwärtige Dichtkontur mit Dichtung in Anlehnung an DIN EN ISO 1179-2. |
|
Application của Cảm biến áp suất -1...25 bar IFM PM1703
| Special feature |
Gold-plated contacts |
| Measuring element |
ceramic-capacitive pressure measuring cell |
| Temperature monitoring |
no |
| Application |
flush mountable for the food and beverage industry |
| Media |
viscous media and liquids with suspended particles; liquids and gases |
| Medium temperature[°C] |
-25...150 |
| Min. burst pressure |
|
| Pressure rating |
|
| Vacuum resistance[mbar] |
-1000 |
| Type of pressure |
relative pressure; vacuum |
| No dead space |
yes |
| MAWP for applications according to CRN[bar] |
60 |
Electrical data của Cảm biến áp suất -1...25 bar IFM PM1703
| Operating voltage[V] |
18...30 DC |
| Min. insulation resistance[MΩ] |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Integrated watchdog |
yes |
| 2-wire |
| Current consumption[mA] |
3.5...21.5 |
| Power-on delay time[s] |
1 |
| 3-wire |
| Current consumption[mA] |
< 45 |
| Power-on delay time[s] |
0.5 |
Inputs / outputs của Cảm biến áp suất -1...25 bar IFM PM1703
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analogue outputs: 1 |
Outputs của Cảm biến áp suất -1...25 bar IFM PM1703
| Total number of outputs |
2 |
| Output signal |
analogue signal; IO-Link; (configurable) |
| Number of digital outputs |
1; (IO-Link) |
| Number of analogue outputs |
1 |
| Analogue current output[mA] |
4...20; (scalable) |
| Max. load[Ω] |
700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA) |
| Short-circuit proof |
yes |
| Overload protection |
yes |
Measuring/setting range của Cảm biến áp suất -1...25 bar IFM PM1703
| Measuring range |
| -1...25 bar |
-14.6...362.6 psi |
-0.1...2.5 MPa |
|
| Analogue start point |
| -1...20 bar |
-14.6...290 psi |
-0.1...2 MPa |
|
| Analogue end point |
| 4...25 bar |
58...362.6 psi |
0.4...2.5 MPa |
|
| In steps of |
| 0.01 bar |
0.2 psi |
0.001 MPa |
|
| Factory setting |
| ASP = 0.0 bar |
AEP = 25.0 bar |
|
|
Accuracy / deviations của Cảm biến áp suất -1...25 bar IFM PM1703
| Repeatability[% of the span] |
< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation[% of the span] |
< ± 0,2; (linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1) |
| Linearity deviation[% of the span] |
< ± 0,15; (Turn down 1:1) |
| Hysteresis deviation[% of the span] |
< ± 0,15; (Turn down 1:1) |
| Long-term stability[% of the span] |
< ± 0,1; (Turn down 1:1; per year) |
| Total deviation over temperature range |
| Temperature range |
total deviation |
| -25...15 °C |
Characteristics deviation ± 0,05 % of the span / 10 K |
| 15...80 °C |
Characteristics deviation |
| 80...150 °C |
Characteristics deviation ± 0,1 % of the span / 10 K |
|
| Notes on the accuracy / deviation |
for further details see section Diagrams and graphs |
Response times của Cảm biến áp suất -1...25 bar IFM PM1703
| Damping for the analogue output dAA[s] |
0...4 |
| 2-wire |
| Step response time analogue output[ms] |
30 |
| 3-wire |
| Step response time analogue output[ms] |
7 |
Interfaces của Cảm biến áp suất -1...25 bar IFM PM1703
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 3.1 |
Measuring Sensor |
| Common - I&D |
Identification and Diagnosis |
|
| SIO mode |
no |
| Required master port type |
A |
| Process data analogue |
3 |
| Min. process cycle time[ms] |
3.2 |
| IO-Link resolution pressure[bar] |
0.005 |
| IO-Link process data (cyclical) |
| function |
bit length |
| pressure |
16 |
| device status |
4 |
|
| IO-Link functions (acyclical) |
application specific tag; internal temperature |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| default |
660 |
|
Operating conditions của Cảm biến áp suất -1...25 bar IFM PM1703
| Ambient temperature[°C] |
-25...80 |
| Storage temperature[°C] |
-40...100 |
| Protection |
IP 67; IP 68; IP 69K |
Tests / approvals của Cảm biến áp suất -1...25 bar IFM PM1703
| EMC |
| DIN EN 61000-6-2 |
|
| DIN EN 61000-6-3 |
|
|
| Shock resistance |
| DIN EN 60068-2-27 |
50 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 |
20 g (10...2000 Hz) |
|
| MTTF[years] |
323 |
| Note on approval |
| factory certificate available as download at www.factory-certificate.ifm |
|
| UL approval |
|
Mechanical data của Cảm biến áp suất -1...25 bar IFM PM1703
| Weight[g] |
307.6 |
| Housing |
cylindrical |
| Dimensions[mm] |
Ø 30.2 / L = 111 |
| Materials |
stainless steel (316L/1.4404); PBT |
| Materials (wetted parts) |
ceramics (99.9 % Al2O3); stainless steel (316L/1.4435) surface characteristics: Ra < 0,4 µm / Rz = 4 µm; PTFE |
| Min. pressure cycles |
100 million |
| Tightening torque[Nm] |
35 |
| Process connection |
threaded connection G 1 external thread with Aseptoflex Vario sealing contour |
Remarks của Cảm biến áp suất -1...25 bar IFM PM1703
Electrical connection của Cảm biến áp suất -1...25 bar IFM PM1703
| Connector |
1 x M12; coding: A; Contacts: 4, gold-plated |
Diagrams and graphs của Cảm biến áp suất -1...25 bar IFM PM1703

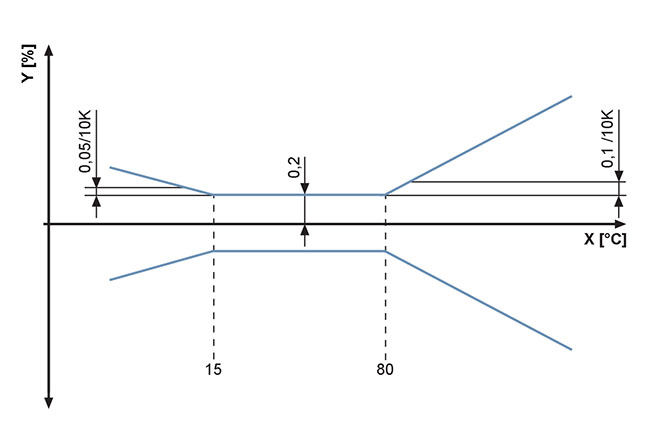

ambient temperature influence on the accuracy
 |
| X |
temperature |
| Y |
total deviation |
|
