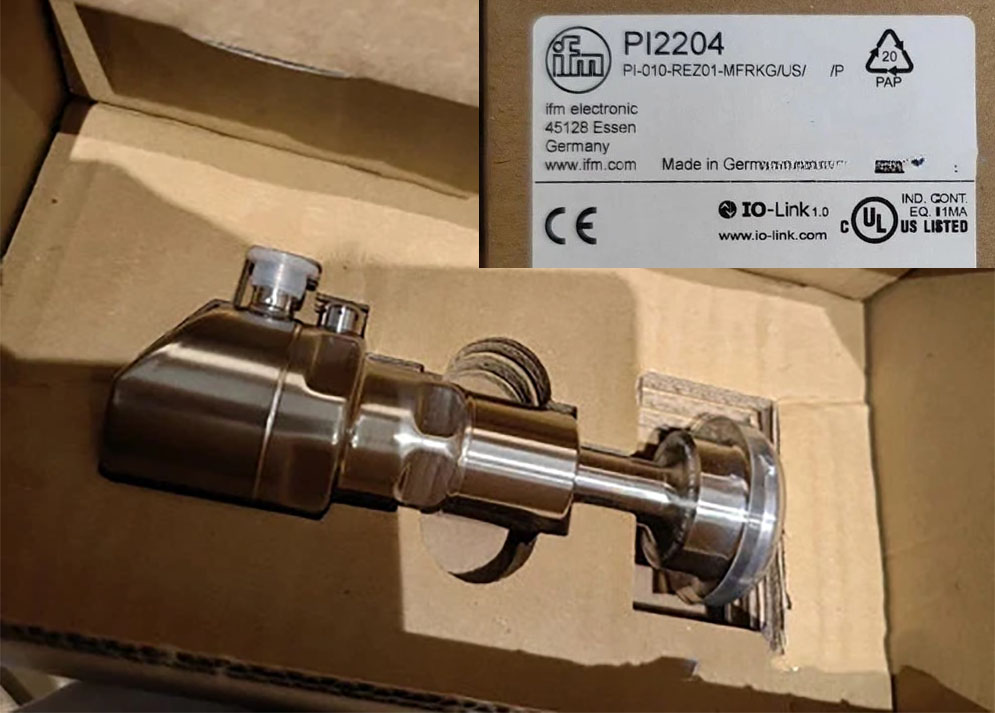

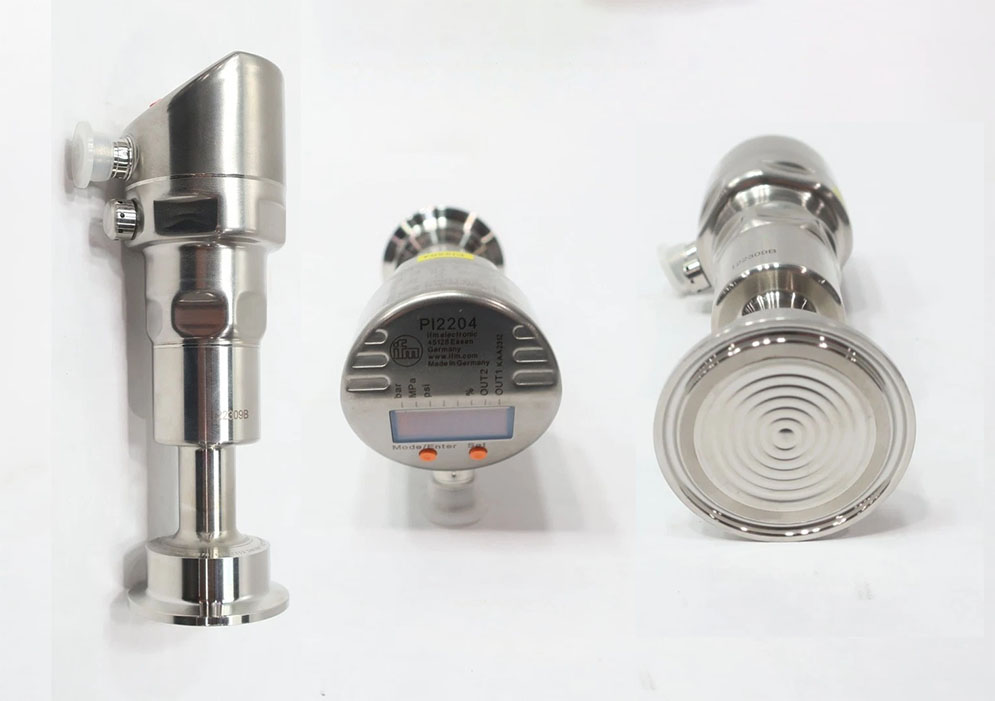

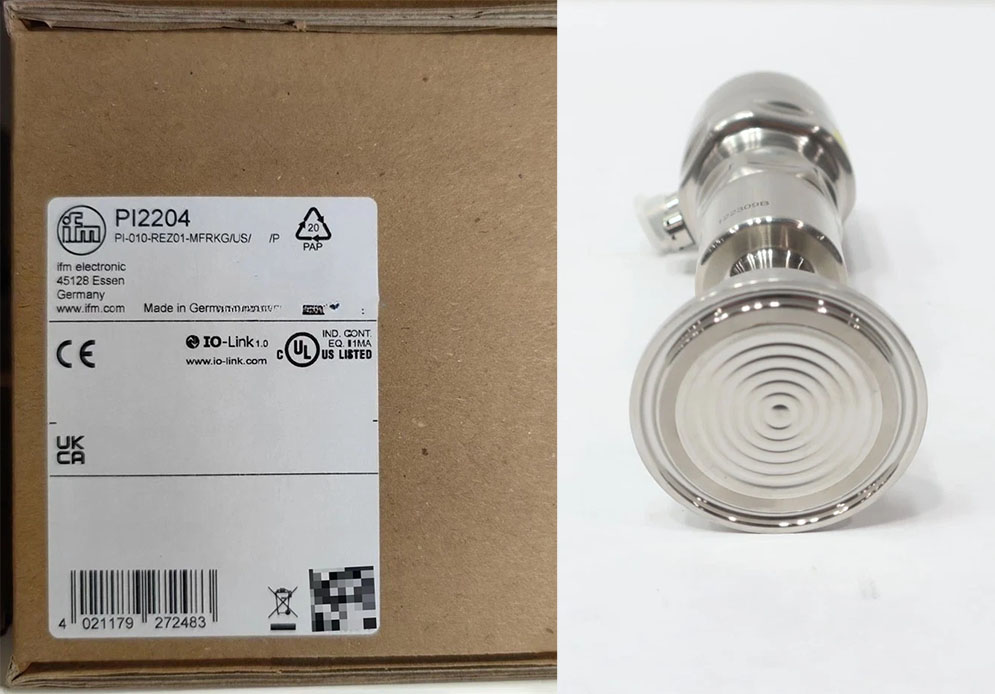

IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P là Cảm biến áp suất, -1...10 bar, DN38, 4-20mA Switching IO-Link, IP67 IP68 IP69KM, Max 50bar, Màn hình hiển thị
H01 - Cảm biến áp suất màng phẳng có màn hình hiển thị, Model PI2204 | PI-010-REZ01-MFRKG/US/ /P. Dùng cho môi trường nhiệt độ cao trong ngành công nghiệp thực phẩm và đồ uống; Vỏ thép không gỉ bền bỉ với thiết kế màng phẳng (flush-mount) đảm bảo vệ sinh; Hỗ trợ công nghệ kết nối 2 dây và 3 dây; Giảm thiểu độ phức tạp khi đi dây ở chế độ vòng dòng điện 2 dây; Tích hợp bộ cách ly màng kiểu kẹp (clamp) với màng ngăn bằng thép không gỉ; Vận hành thuận tiện qua các nút nhấn hoặc cài đặt thông số qua giao thức IO-Link.
- Tài liệu kỹ thuật của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P ở đây.
Thông số kỹ thuật của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
Product characteristics của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analogue outputs: 1 |
| Measuring range |
| -1...10 bar |
-14.5...145 psi |
-0.1...1 MPa |
|
| Process connection |
Clamp DN40 (1,5") DIN 32676 (ISO 2852) |
Application của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
| Special feature |
Gold-plated contacts |
| Application |
flush mountable for the food and beverage industry |
| Media |
viscous media and liquids with suspended particles; liquids and gases |
| Medium temperature[°C] |
-20...200; (-20...90 < 0 bar) |
| Min. burst pressure |
|
| Pressure rating |
|
| Type of pressure |
relative pressure; vacuum |
Electrical data của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
| Min. insulation resistance[MΩ] |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Integrated watchdog |
yes |
| 2-wire |
| Operating voltage[V] |
20...32 DC |
| Current consumption[mA] |
3.6...21 |
| Power-on delay time[s] |
1 |
| 3-wire |
| Operating voltage[V] |
18...32 DC |
| Current consumption[mA] |
< 45 |
| Power-on delay time[s] |
0.5 |
Inputs / outputs của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analogue outputs: 1 |
Outputs của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
| Total number of outputs |
2 |
| Output signal |
switching signal; analogue signal; IO-Link; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / normally closed; (parameterisable) |
| Number of analogue outputs |
1 |
| Analogue current output[mA] |
4...20, invertible; (scalable) |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| 3-wire |
| Max. voltage drop switching output DC[V] |
2 |
| Permanent current rating of switching output DC[mA] |
250 |
| Switching frequency DC[Hz] |
125 |
| Max. load[Ω] |
(Ub - 10 V) / 20 mA |
Measuring/setting range của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
| Measuring range |
| -1...10 bar |
-14.5...145 psi |
-0.1...1 MPa |
|
| Set point SP |
| -0.98...10 bar |
-14.2...145 psi |
-0.098...1 MPa |
|
| Reset point rP |
| -1...9.98 bar |
-14.5...144.7 psi |
-0.1...0.998 MPa |
|
| Analogue start point |
| -1...7.5 bar |
-14.5...108.7 psi |
-0.1...0.75 MPa |
|
| Analogue end point |
| 1.5...10 bar |
21.8...145 psi |
0.15...1 MPa |
|
| In steps of |
| 0.01 bar |
0.1 psi |
0.001 MPa |
|
| Factory setting |
| |
SP1 = 2.50 bar |
rP1 = 2.30 bar |
| |
SP2 = 7.50 bar |
rP2 = 7.30 bar |
| |
ASP = 0.00 bar |
AEP = 10.00 bar |
|
Accuracy / deviations của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
| Switch point accuracy[% of the span] |
< ± 0,2; (Turn down 1:1) |
| Repeatability[% of the span] |
< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation[% of the span] |
< ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1) |
| Linearity deviation[% of the span] |
< ± 0,15; (Turn down 1:1) |
| Zero-point stabilisation[% of the span] |
| IO-Link, analogue output |
0,15 |
| display, switching output |
0,2 |
|
| Hysteresis deviation[% of the span] |
< ± 0,15; (Turn down 1:1) |
| Long-term stability[% of the span] |
< ± 0,1; (Turn down 1:1; per year) |
| Temperature coefficient zero point[% of the span / 10 K] |
< ± 0,2; (0...200 °C) |
| Temperature coefficient span[% of the span / 10 K] |
< ± 0,15; (0...200 °C) |
Response times của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
| Damping process value dAP[s] |
0...30 |
| Damping for the analogue output dAA[s] |
0.01...99.99 |
| 2-wire |
| Step response time analogue output[ms] |
45 |
| 3-wire |
| Min. response time of switching output (dAP)[ms] |
3 |
| Step response time analogue output[ms] |
7 |
Interfaces của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.0 |
| SDCI standard |
IO-Link Communication Specification, Version 1.0, January 2009, Ordner No: 10.002 |
| SIO mode |
yes |
| Required master port type |
A |
| Process data analogue |
1 |
| Process data binary |
2 |
| Min. process cycle time[ms] |
2.3 |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| default |
157 |
|
Operating conditions của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
| Ambient temperature[°C] |
-25...80 |
| Note on ambient temperature |
| Medium temperature: ≤ 160 °C |
|
| Ambient temperature[°C] |
-25...65 |
| Note on ambient temperature |
| Medium temperature: ≤ 200 °C |
|
| Storage temperature[°C] |
-25...100 |
| Protection |
IP 67; IP 68; IP 69K |
Tests / approvals của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
| EMC |
| DIN EN 61000-6-2 |
|
| DIN EN 61000-6-3 |
|
|
| Shock resistance |
| DIN EN 60068-2-27 |
50 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 |
20 g (10...2000 Hz) |
|
| MTTF[years] |
142 |
| Note on approval |
| Including free 6-point calibration certificate. |
|
Mechanical data của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
| Weight[g] |
1053 |
| Housing |
cylindrical |
| Dimensions[mm] |
Ø 50 / L = 163 |
| Materials |
stainless steel (316L/1.4404); stainless steel (316L/1.4435); PBT; PEI; PFA |
| Materials (wetted parts) |
stainless steel (316L/1.4435) |
| Min. pressure cycles |
10 million |
| Process connection |
Clamp DN40 (1,5") DIN 32676 (ISO 2852) |
| Suitable for process connections in accordance with the standards |
| DIN 32676 series A (DIN) |
clamp DN40 |
|
| DIN 32676 series B (ISO) |
clamp DN42,4 |
|
| DIN 32676 series C (ASME BPE) |
clamp 1,5" |
|
| ISO 2852 |
clamp DN38 |
|
|
| Surface characteristics Ra/Rz of the wetted parts |
Ra < 0.38 µm |
| Fill fluid for pressure transmission |
NEOBEE (food grade, FDA compliant) |
| Diaphragm diameter[mm] |
34 |
Displays / operating elements của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
| Display |
| Display unit |
LED, green |
| switching status |
LED, yellow |
| function display |
alphanumeric display, 4-digit |
| measured values |
alphanumeric display, 4-digit |
|
| Display unit |
bar; psi; MPa; % of the span |
Remarks của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
Electrical connection của Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P
| Connector |
1 x M12; coding: A; Contacts: 4, gold-plated |
Tham khảo thêm các models khác cùng loại, liên quan với Cảm biến áp suất IFM PI2204 | PI-010-REZ01-MFRKG/US/ /P:
PG1703
Measuring range
-1...25 bar
-14.5...362.5 psi
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
TÜV S
CE
cULus
EHEDG
3-A
UKCA
TSDP/TÜV
NSF REG4S3
PG1704
Measuring range
-1...10 bar
-14.5...145 psi
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
TÜV S
CE
cULus
EHEDG
3-A
UKCA
TSDP/TÜV
NSF REG4S3
PG1705
Measuring range
-1...4 bar
-14.5...58 psi
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
TÜV S
CE
cULus
EHEDG
3-A
UKCA
TSDP/TÜV
NSF REG4S3
PG1706
Measuring range
-0.124...2.5 bar
-1.8...36.26 psi
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
TÜV S
CE
cULus
EHEDG
3-A
UKCA
TSDP/TÜV
NSF REG4S3
PG1707
Measuring range
-0.05...1 bar
-50...1000 mbar
-0.73...14.5 psi
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
TÜV S
CE
cULus
EHEDG
3-A
UKCA
TSDP/TÜV
NSF REG4S3
PG1708
Measuring range
-0.0124...0.25 bar
-12.4...250 mbar
-0.18...3.626 psi
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
TÜV S
CE
cULus
EHEDG
3-A
UKCA
TSDP/TÜV
NSF REG4S3
PG1709
Measuring range
-1...1 bar
-1000...1000 mbar
-14.5...14.5 psi
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
TÜV S
CE
cULus
EHEDG
3-A
UKCA
TSDP/TÜV
NSF REG4S3
PG1714
Measuring range
-1...16 bar
-14.5...232.1 psi
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
TÜV S
CE
cULus
EHEDG
3-A
UKCA
TSDP/TÜV
NSF REG4S3
PG1715
Measuring range
-1...6 bar
-14.5...87 psi
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
TÜV S
CE
cULus
EHEDG
3-A
UKCA
TSDP/TÜV
NSF REG4S3
PG1717
Measuring range
-0.1...1.6 bar
-1.45...23.21 psi
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
TÜV S
CE
cULus
EHEDG
3-A
UKCA
TSDP/TÜV
NSF REG4S3
PG1743
Measuring range
-1...40 bar
-14.5...580 psi
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
TÜV S
CE
cULus
EHEDG
3-A
UKCA
TSDP/TÜV
NSF REG4S3
PI1602
Measuring range
-1...100 bar
-14...1450 psi
-0.1...10 MPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
UKCA
hygienic cleanable
TSDP/TÜV
NSF REG4S3
PI1612
Measuring range
0...160 bar
0...2320 psi
0...16 MPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
cULus
3-A
UKCA
hygienic cleanable
TSDP/TÜV
NSF REG4S3
PI1703
Measuring range
-1...25 bar
-14.5...362.5 psi
-0.1...2.5 MPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
TSDP/TÜV
NSF REG4S3
PI1704
Measuring range
-1...10 bar
-14.6...145 psi
-0.1...1 MPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
TSDP/TÜV
NSF REG4S3
PI1705
Measuring range
-1...4 bar
-14.5...58 psi
-100...400 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
TSDP/TÜV
NSF REG4S3
PI1706
Measuring range
-0.124...2.5 bar
-1.8...36.25 psi
-50...1004 inH2O
-12.4...250 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
TSDP/TÜV
NSF REG4S3
PI1707
Measuring range
-0.05...1 bar
-50...1000 mbar
-0.72...14.5 psi
-20...401.5 inH2O
-5...100 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
TSDP/TÜV
NSF REG4S3
PI1708
Measuring range
-0.0124...0.25 bar
-12.4...250 mbar
-5...100.4 inH2O
-1.24...25 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
TSDP/TÜV
NSF REG4S3
PI1709
Measuring range
-1...1 bar
-1000...1000 mbar
-14.5...14.5 psi
-401...401 inH2O
-100...100 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
TSDP/TÜV
NSF REG4S3
PI1714
Measuring range
-1...16 bar
-14.6...232 psi
-0.1...1.6 MPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
TSDP/TÜV
NSF REG4S3
PI1715
Measuring range
-1...6 bar
-14.5...87 psi
-100...600 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
TSDP/TÜV
NSF REG4S3
PI1717
Measuring range
-0.1...1.6 bar
-100...1600 mbar
-1.46...23.2 psi
-40...642.5 inH2O
-10...160 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
TSDP/TÜV
NSF REG4S3
PI1718
Measuring range
-0.05...0.4 bar
-50...400 mbar
-20...160.6 inH2O
-5...40 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
TSDP/TÜV
NSF REG4S3
PI1743
Measuring range
-1...40 bar
-14.5...580 psi
-0.1...4 MPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
TSDP/TÜV
NSF REG4S3
PI1789
Measuring range
-0.005...0.1 bar
-5...100 mbar
-2...40.15 inH2O
-0.5...10 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
TSDP/TÜV
NSF REG4S3
PI1803
Measuring range
-1...25 bar
-14.5...362.5 psi
-0.1...2.5 MPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
UKCA
CRN
hygienic cleanable
TSDP/TÜV
NSF REG4S3
PI1804
Measuring range
-1...10 bar
-14.6...145 psi
-0.1...1 MPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
UKCA
CRN
hygienic cleanable
TSDP/TÜV
NSF REG4S3
PI1805
Measuring range
-1...4 bar
-14.5...58 psi
-100...400 kPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
UKCA
CRN
hygienic cleanable
TSDP/TÜV
NSF REG4S3
PI1806
Measuring range
-0.124...2.5 bar
-1.8...36.25 psi
-50...1004 inH2O
-12.4...250 kPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
UKCA
CRN
hygienic cleanable
TSDP/TÜV
NSF REG4S3
PI1807
Measuring range
-50...1000 mbar
-0.72...14.5 psi
-20...401.5 inH2O
-5...100 kPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
UKCA
CRN
hygienic cleanable
TSDP/TÜV
NSF REG4S3
PI1808
Measuring range
-12.4...250 mbar
-5...100.4 inH2O
-1.24...25 kPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
UKCA
CRN
hygienic cleanable
TSDP/TÜV
NSF REG4S3
PI1809
Measuring range
-1000...1000 mbar
-14.5...14.5 psi
-401...401 inH2O
-100...100 kPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
UKCA
CRN
hygienic cleanable
TSDP/TÜV
NSF REG4S3
PI1814
Measuring range
-1...16 bar
-14.6...232 psi
-0.1...1.6 MPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
UKCA
CRN
hygienic cleanable
TSDP/TÜV
NSF REG4S3
PI1815
Measuring range
-1...6 bar
-14.5...87 psi
-100...600 kPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
UKCA
CRN
hygienic cleanable
TSDP/TÜV
NSF REG4S3
PI1817
Measuring range
-100...1600 mbar
-1.46...23.2 psi
-40...642.5 inH2O
-10...160 kPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
UKCA
CRN
hygienic cleanable
TSDP/TÜV
NSF REG4S3
PI1818
Measuring range
-50...400 mbar
-20...160.6 inH2O
-5...40 kPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
UKCA
CRN
hygienic cleanable
TSDP/TÜV
NSF REG4S3
PI1843
Measuring range
-1...40 bar
-14.5...580 psi
-0.1...4 MPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
UKCA
CRN
hygienic cleanable
TSDP/TÜV
NSF REG4S3
PI1889
Measuring range
-0.005...0.1 bar
-5...100 mbar
-2...40.15 inH2O
-0.5...10 kPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; IO-Link
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
UKCA
CRN
hygienic cleanable
TSDP/TÜV
NSF REG4S3

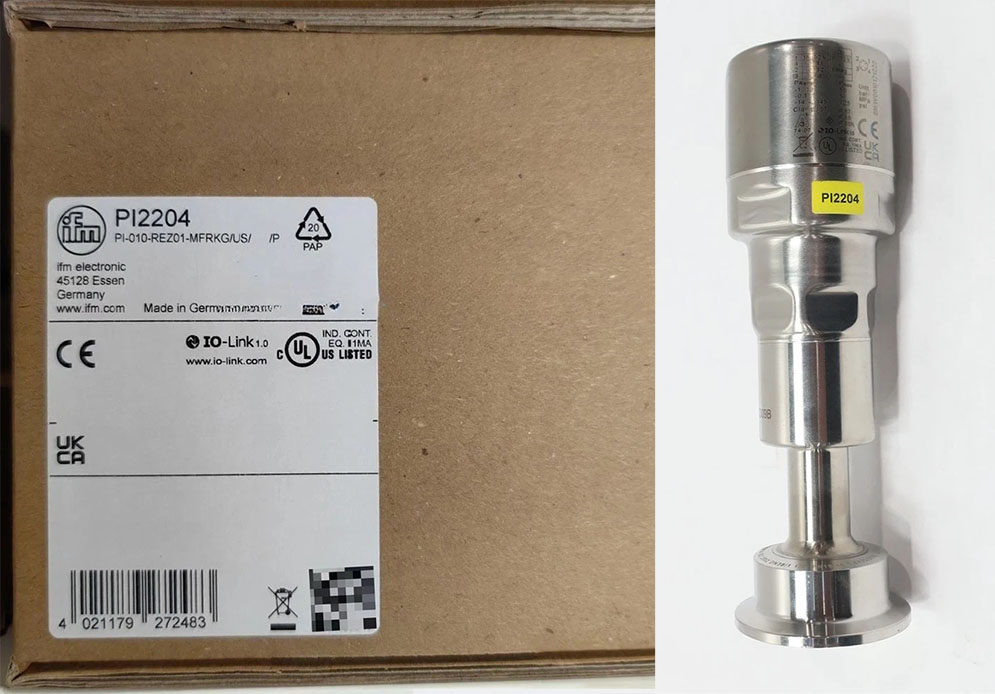

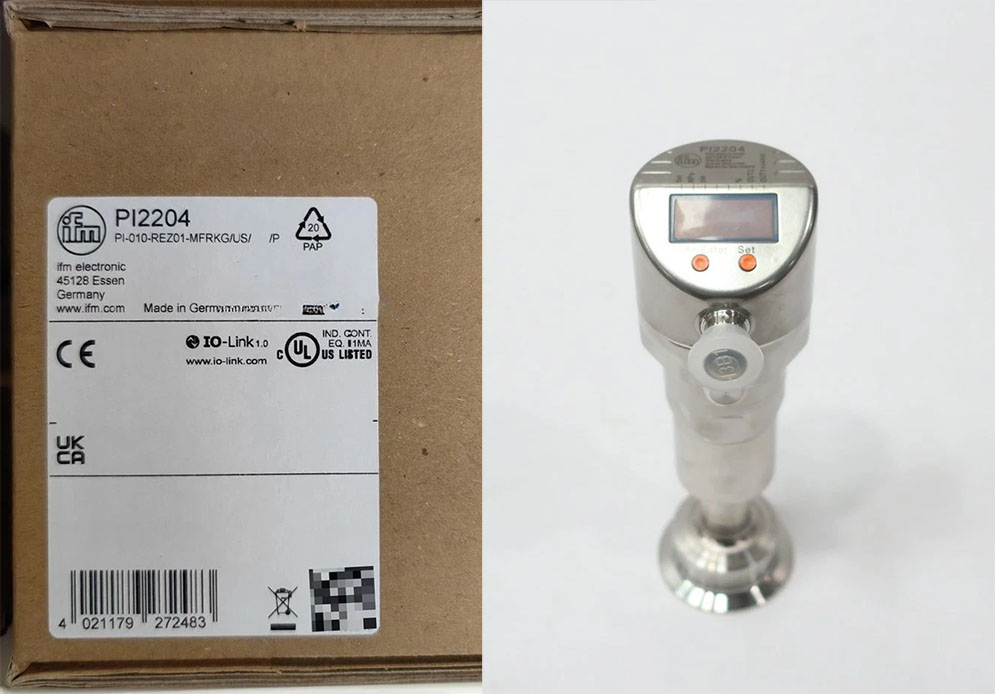

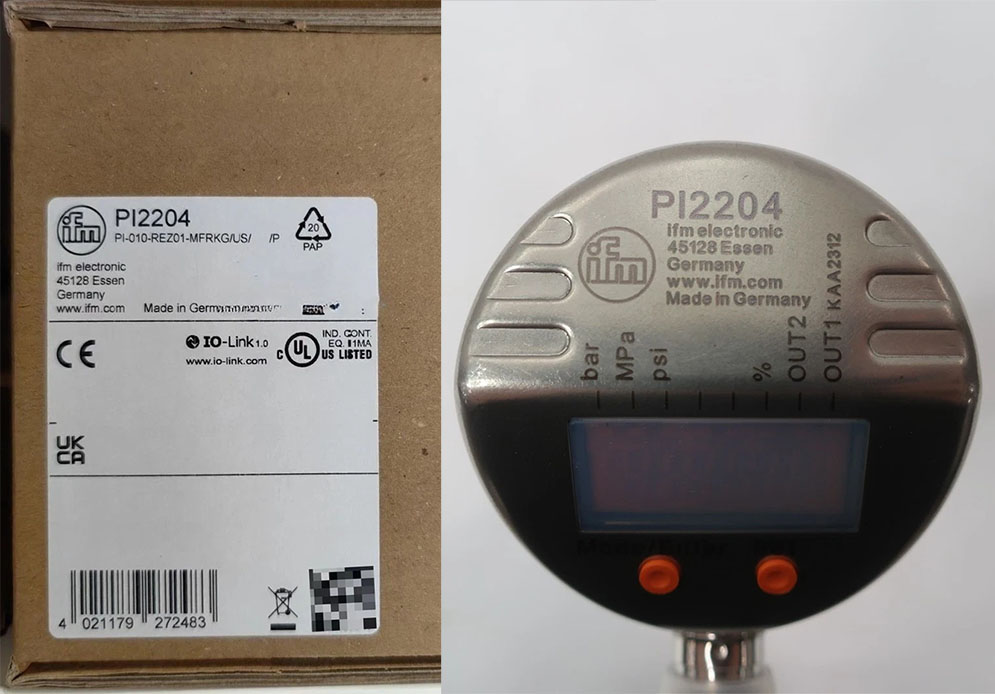

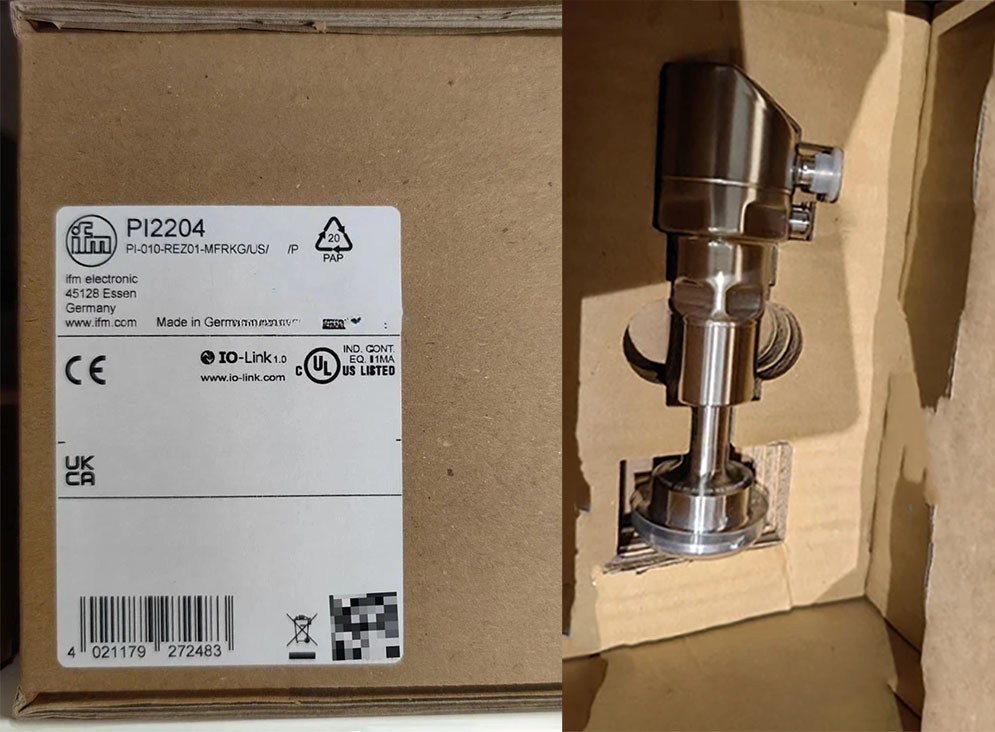

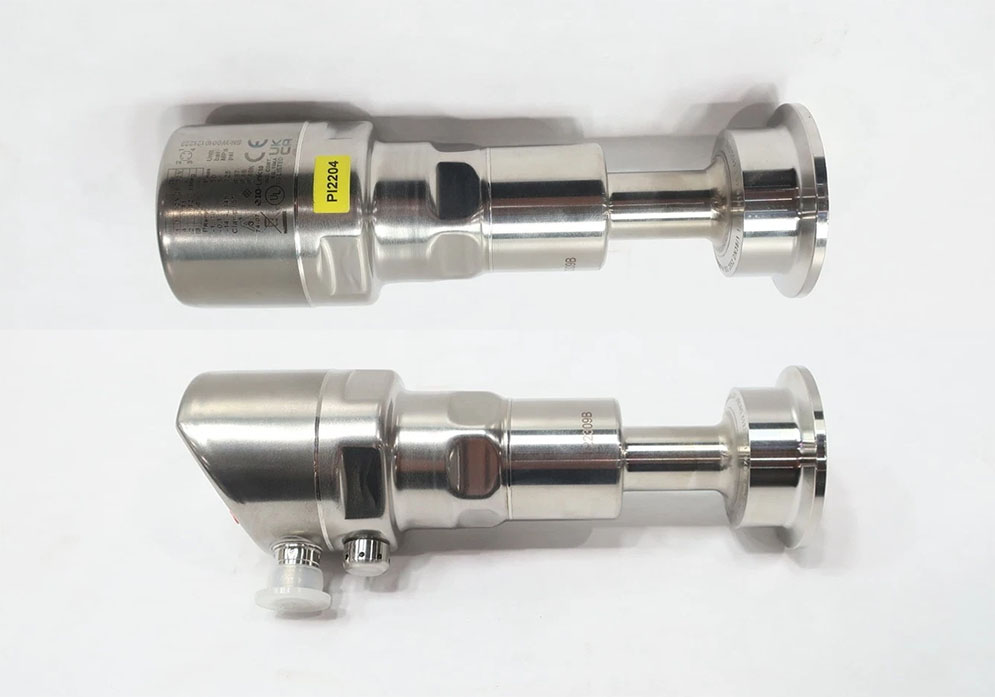

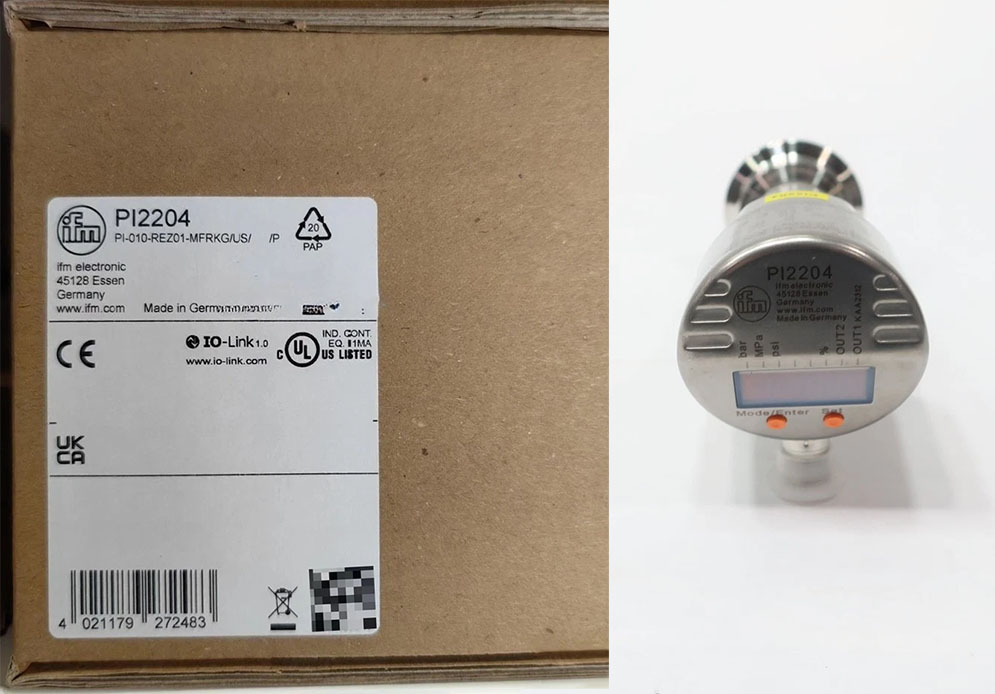

PI2204
Measuring range
-1...10 bar
-14.5...145 psi
-0.1...1 MPa
Process connection
Clamp DN40 (1,5")
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
-20...200; (-20...90 < 0 bar) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
cULus
EHEDG
3-A
UKCA
PY9001
Measuring range
0...250 bar
0...3625 psi
0...25 MPa
Process connection
homogeniser connection
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
5...125; (150 maximum 1h) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
UKCA
PY9060
Measuring range
0...600 bar
0...8700 psi
0...60 MPa
Process connection
homogeniser connection
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
5...125; (150 maximum 1h) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
UKCA
PY9070
Measuring range
0...400 bar
0...5800 psi
0...40 MPa
Process connection
homogeniser connection
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
5...125; (150 maximum 1h) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
UKCA
PY9071
Measuring range
0...250 bar
0...3625 psi
0...25 MPa
Process connection
homogeniser connection
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
5...125; (150 maximum 1h) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
UKCA
PY9170
Measuring range
0...600 bar
0...8700 psi
0...60 MPa
Process connection
homogeniser connection
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
5...90; (for further details see section Diagrams and graphs) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
UKCA
PI2203
Measuring range
-1...25 bar
-14.4...362.7 psi
-0.1...2.5 MPa
Process connection
Clamp DN40 (1,5")
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
-20...200; (-20...90 < 0 bar) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
cULus
EHEDG
3-A
UKCA
PI2304
Measuring range
-1...10 bar
-14.5...145 psi
-0.1...1 MPa
Process connection
Clamp DN50 (2")
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
-20...200; (-20...90 < 0 bar) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
cULus
EHEDG
3-A
UKCA
PG2894
Measuring range
-1...10 bar
-14.5...145 psi
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; (configurable)
Medium temperature
-25...125; (145 max. 1h) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
TÜV S
CE
cULus
UKCA
CRN
hygienic cleanable
PM1104
Measuring range
-1...10 bar
-14.5...145 psi
-100...1000 kPa
-0.1...1 MPa
Process connection
Clamp DN25...DN40 (1...1,5")
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1107
Measuring range
-0.05...1 bar
-50...1000 mbar
-0.73...14.5 psi
-5...100 kPa
Process connection
Clamp DN25...DN40 (1...1,5")
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1108
Measuring range
-0.0125...0.25 bar
-12.5...250 mbar
-0.182...3.626 psi
-1.25...25 kPa
Process connection
Clamp DN25...DN40 (1...1,5")
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1118
Measuring range
-0.05...0.4 bar
-50...400 mbar
-0.725...5.8 psi
-5...40 kPa
Process connection
Clamp DN25...DN40 (1...1,5")
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1608
Measuring range
-0.0125...0.25 bar
-12.5...250 mbar
-0.182...3.626 psi
-1.25...25 kPa
Process connection
G 1 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
hygienic cleanable
UKCA
CRN
NSF REG4S3
PM1618
Measuring range
-0.05...0.4 bar
-50...400 mbar
-0.725...5.8 psi
-5...40 kPa
Process connection
G 1 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
hygienic cleanable
UKCA
CRN
NSF REG4S3
PM1704
Measuring range
-1...10 bar
-14.5...145 psi
-100...1000 kPa
-0.1...1 MPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1707
Measuring range
-0.05...1 bar
-50...1000 mbar
-0.73...14.5 psi
-5...100 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1708
Measuring range
-0.0125...0.25 bar
-12.5...250 mbar
-0.182...3.626 psi
-1.25...25 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1718
Measuring range
-0.05...0.4 bar
-50...400 mbar
-0.725...5.8 psi
-5...40 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1504
Measuring range
-1...10 bar
-14.5...145 psi
-0.1...1 MPa
Process connection
G 1/2 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
Marokko CMim
CRN
NSF REG4S3
PM1507
Measuring range
-50...1000 mbar
-0.73...14.5 psi
-5...100 kPa
Process connection
G 1/2 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1604
Measuring range
-1...10 bar
-14.5...145 psi
-100...1000 kPa
-0.1...1 MPa
Process connection
G 1 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
hygienic cleanable
UKCA
CRN
NSF REG4S3
PM1607
Measuring range
-0.05...1 bar
-50...1000 mbar
-0.73...14.5 psi
-5...100 kPa
Process connection
G 1 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
hygienic cleanable
UKCA
CRN
NSF REG4S3
PI2303
Measuring range
-1...25 bar
-14.4...362.7 psi
-0.1...2.5 MPa
Process connection
Clamp DN50 (2")
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
-20...200; (-20...90 < 0 bar) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
cULus
EHEDG
3-A
UKCA
PI2307
Measuring range
-50...1000 mbar
-0.73...14.5 psi
-5...100 kPa
Process connection
Clamp DN50 (2")
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
-20...200; (-20...90 < 0 bar) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
cULus
EHEDG
3-A
UKCA
PM1709
Measuring range
-1...1 bar
-1000...1000 mbar
-14.5...14.5 psi
-100...100 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1789
Measuring range
-0.005...0.1 bar
-5...100 mbar
-0.073...1.45 psi
-0.5...10 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PI2309
Measuring range
-1000...1000 mbar
-14.5...14.5 psi
-100...100 kPa
Process connection
Clamp DN50 (2")
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
-20...200; (-20...90 < 0 bar) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
cULus
EHEDG
3-A
UKCA
PM1103
Measuring range
-1...25 bar
-14.6...362.6 psi
-0.1...2.5 MPa
Process connection
Clamp DN25...DN40 (1...1,5")
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1105
Measuring range
-1...4 bar
-14.5...58 psi
-100...400 kPa
Process connection
Clamp DN25...DN40 (1...1,5")
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1115
Measuring range
-1...6 bar
-14.5...87 psi
-100...600 kPa
Process connection
Clamp DN25...DN40 (1...1,5")
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1143
Measuring range
-1...40 bar
-14.6...580 psi
-0.1...4 MPa
Process connection
Clamp DN25...DN40 (1...1,5")
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1689
Measuring range
-0.005...0.1 bar
-5...100 mbar
-0.073...1.45 psi
-0.5...10 kPa
Process connection
G 1 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
hygienic cleanable
UKCA
CRN
NSF REG4S3
PM1703
Measuring range
-1...25 bar
-14.6...362.6 psi
-0.1...2.5 MPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1705
Measuring range
-1...4 bar
-14.5...58 psi
-100...400 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1715
Measuring range
-1...6 bar
-14.5...87 psi
-100...600 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1743
Measuring range
-1...40 bar
-14.6...580.2 psi
-0.1...4 MPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PI2205
Measuring range
-1...4 bar
-14.5...58 psi
-100...400 kPa
Process connection
Clamp DN40 (1,5")
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
-20...200; (-20...90 < 0 bar) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
cULus
EHEDG
3-A
UKCA
PI2207
Measuring range
-50...1000 mbar
-0.73...14.5 psi
-5...100 kPa
Process connection
Clamp DN40 (1,5")
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
-20...200; (-20...90 < 0 bar) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
cULus
EHEDG
3-A
UKCA
PI2305
Measuring range
-1...4 bar
-14.5...58 psi
-100...400 kPa
Process connection
Clamp DN50 (2")
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
-20...200; (-20...90 < 0 bar) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
cULus
EHEDG
3-A
UKCA
PI2306
Measuring range
-0.124...2.5 bar
-1.8...36.27 psi
-12.4...250 kPa
Process connection
Clamp DN50 (2")
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
-20...200; (-20...90 < 0 bar) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
cULus
EHEDG
3-A
UKCA
PM1106
Measuring range
-0.125...2.5 bar
-125...2500 mbar
-1.82...36.26 psi
-12.5...250 kPa
Process connection
Clamp DN25...DN40 (1...1,5")
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1114
Measuring range
-1...16 bar
-14.6...232 psi
-0.1...1.6 MPa
Process connection
Clamp DN25...DN40 (1...1,5")
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1117
Measuring range
-0.1...1.6 bar
-100...1600 mbar
-1.45...23.21 psi
-10...160 kPa
Process connection
Clamp DN25...DN40 (1...1,5")
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1503
Measuring range
-1...25 bar
-14.6...362.6 psi
-0.1...2.5 MPa
Process connection
G 1/2 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1505
Measuring range
-1...4 bar
-14.5...58 psi
-100...400 kPa
Process connection
G 1/2 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1506
Measuring range
-125...2500 mbar
-1.82...36.26 psi
-12.5...250 kPa
Process connection
G 1/2 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1514
Measuring range
-1...16 bar
-14.6...232 psi
-0.1...1.6 MPa
Process connection
G 1/2 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1515
Measuring range
-1...6 bar
-14.5...87 psi
-100...600 kPa
Process connection
G 1/2 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1543
Measuring range
-1...40 bar
-14.6...580.2 psi
-0.1...4 MPa
Process connection
G 1/2 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1602
Measuring range
-1...100 bar
-15...1450 psi
-0.1...10 MPa
Process connection
G 1 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
hygienic cleanable
UKCA
NSF REG4S3
PM1603
Measuring range
-1...25 bar
-14.6...362.6 psi
-0.1...2.5 MPa
Process connection
G 1 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
hygienic cleanable
UKCA
CRN
NSF REG4S3
PM1605
Measuring range
-1...4 bar
-14.5...58 psi
-100...400 kPa
Process connection
G 1 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
hygienic cleanable
UKCA
CRN
NSF REG4S3
PM1606
Measuring range
-0.125...2.5 bar
-125...2500 mbar
-1.82...36.26 psi
-12.5...250 kPa
Process connection
G 1 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
hygienic cleanable
UKCA
CRN
NSF REG4S3
PM1609
Measuring range
-1...1 bar
-1000...1000 mbar
-14.5...14.5 psi
-100...100 kPa
Process connection
G 1 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
hygienic cleanable
UKCA
CRN
NSF REG4S3
PM1614
Measuring range
-1...16 bar
-14.6...232 psi
-0.1...1.6 MPa
Process connection
G 1 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
hygienic cleanable
UKCA
CRN
NSF REG4S3
PM1615
Measuring range
-1...6 bar
-14.5...87 psi
-100...600 kPa
Process connection
G 1 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
hygienic cleanable
UKCA
CRN
NSF REG4S3
PM1643
Measuring range
-1...40 bar
-14.6...580.2 psi
-0.1...4 MPa
Process connection
G 1 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
ACS
CE
Reg31
cULus
3-A
hygienic cleanable
UKCA
CRN
NSF REG4S3
PM1706
Measuring range
-0.125...2.5 bar
-125...2500 mbar
-1.82...36.26 psi
-12.5...250 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1714
Measuring range
-1...16 bar
-14.6...232 psi
-0.1...1.6 MPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1717
Measuring range
-0.1...1.6 bar
-100...1600 mbar
-1.45...23.21 psi
-10...160 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
EHEDG
3-A
UKCA
CRN
NSF REG4S3
PM1617
Measuring range
-0.1...1.6 bar
-100...1600 mbar
-1.45...23.21 psi
-10...160 kPa
Process connection
G 1 external thread sealing cone
Output signal
analogue signal; IO-Link; (configurable)
Medium temperature
-25...150 °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
CE
Reg31
cULus
3-A
hygienic cleanable
UKCA
CRN
NSF REG4S3
PI2209
Measuring range
-1000...1000 mbar
-14.5...14.5 psi
-100...100 kPa
Process connection
Clamp DN40 (1,5")
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
-20...200; (-20...90 < 0 bar) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
cULus
EHEDG
3-A
UKCA
PI2206
Measuring range
-0.124...2.5 bar
-1.8...36.27 psi
-12.4...250 kPa
Process connection
Clamp DN40 (1,5")
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
-20...200; (-20...90 < 0 bar) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
cULus
EHEDG
3-A
UKCA
PG2893
Measuring range
-1...25 bar
-14.4...362.7 psi
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; (configurable)
Medium temperature
-25...125; (145 max. 1h) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
TÜV S
CE
cULus
UKCA
CRN
hygienic cleanable
PG2895
Measuring range
-1...4 bar
-14.5...58 psi
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; (configurable)
Medium temperature
-25...125; (145 max. 1h) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
ACS
TÜV S
CE
cULus
UKCA
CRN
hygienic cleanable
PI2214
Measuring range
-1...10 bar
-14.5...145 psi
-0.1...1 MPa
Process connection
Clamp DN40 (1,5")
Output signal
switching signal; analogue signal; IO-Link; (configurable)
Medium temperature
-20...200; (-20...90 < 0 bar) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
EHEDG
3-A
UKCA
PIM694
Measuring range
-1...10 bar
-14.5...145 psi
-0.1...1 MPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; (configurable)
Medium temperature
-25...125; (145 max. 1h) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
cULus
3-A
hygienic cleanable
UKCA
PIM693
Measuring range
-1...25 bar
-14.4...362.7 psi
-0.1...2.5 MPa
Process connection
G 1 external thread sealing cone
Output signal
switching signal; analogue signal; (configurable)
Medium temperature
-25...125; (145 max. 1h) °C
Approval
EC1935/2004
FDA
FCM JP
FCM CN
CE
cULus
3-A
hygienic cleanable
UKCA
PH1706
Measuring range
-0.13...2.5 bar
-1.82...36.26 psi
-12.5...250 kPa
Process connection
Clamp DN40
Output signal
analogue signal; (configurable)
Medium temperature
-25...150 °C
Approval
FCM JP
FCM
CE
EHEDG
3-A
UKCA
NSF REG4S3
PY2006
Measuring range
-0.125...2.5 bar
-125...2500 mbar
-1.82...36.26 psi
-12.5...250 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
analogue signal; (configurable)
Medium temperature
-25...85; (125: < 1 h) °C
Approval
EC1935/2004
FDA
FCM JP
CE
cULus
3-A
UKCA
PY2007
Measuring range
-0.05...1 bar
-50...1000 mbar
-0.73...14.5 psi
-5...100 kPa
Process connection
G 1 external thread with Aseptoflex Vario sealing contour
Output signal
analogue signal; (configurable)
Medium temperature
-25...85; (125: < 1 h) °C
Approval
EC1935/2004
FDA
FCM JP
CE
cULus
3-A
UKCA
dienelectrics@gmail.com
0909186879
Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /PGiá tốt nhất xem...0909186879 Email
Cảm biến áp suất IFM PM1706 | PM-2,5-REA01-E-ZVG/USGiá tốt nhất xem...0909186879 Email
Cảm biến áp suất -1...25 bar IFM PM1703 | PM-025-REA01-E-ZVG/USGiá tốt nhất xem...0909186879 Email
Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /WGiá tốt nhất xem...0909186879 Email
Cảm biến áp suất Siemens 7MF4033-1DA00-1AB7-Z B11+C11+C12+Y01+Y16+Y21Giá tốt nhất xem...0909186879 Email
Cảm biến áp suất Pressure sensor 0-10 bar 4-20mA - Siemens - 7MF1565-3CA00-1AA1Giá tốt nhất Xem...0909186879 Email![Màn hình kỹ thuật số hiển thị kép Cảm biến áp suất - Panasonic - 2 screen digital pressure sensor [for gas] DP-100 DP-102Z-M](https://dienelectric.com/images/product/Man-hinh-ky-thuat-so-hien-thi-kep-cho-Cam-bien-ap-suat-Panasonic-2-screen-digital-pressure-sensor-for-gas-DP-100 DP-102Z-M.png)
Màn hình kỹ thuật số hiển thị kép Cảm biến áp suất - Panasonic - 2 screen digital pressure sensor [for gas] DP-100 DP-102Z-MGiá tốt nhất Xem...0909186879 Email
Siemens SITRANS P320 7MF0340-1MM01-5AF2-Z A00+E01+H01+Y01+Y21 - Cảm biến đo áp suất và mức chênh lệch 4-20mA/HART Silicone oil 1600 mbarGiá tốt nhất Xem...0909186879 Email
Cảm biến áp suất Pressure sensor 100kPa PNP R1/8 4-20mA 12-24vDC - Autonics - PSAN PSAN-LC01CPA-R1/8Giá tốt nhất Xem...0909186879 Email
Cảm biến áp suất Pressure sensor 0-16 bar 4-20mA - Siemens - 7MF1565-3CB00-1AA1Giá tốt nhất Xem...0909186879 Email
Đồng hồ hiển thị áp suất Siemens 7MF0300-1QD01-5AF2-Z A00+E00Giá tốt nhất Xem...0909186879 Email
Cảm biến áp suất Schneider XMLA020A2S11 | 20-bar 1CO G1/4Giá tốt nhất Xem...0909186879 Email
Panasonic DP-101-E-P | Dual display digital pressure sensor -Đồng hồ kỹ thuật số hiển thị cảm biến áp suất -100..+100kPa 24VDC PNP NO/ NCGiá tốt nhất Xem...0909186879 Email
Cảm biến áp suất Pressure sensor 0-16 bar 0-10V - Siemens - QBE2003-P16 S55720-S296Giá tốt nhất Xem...0909186879 Email
55
