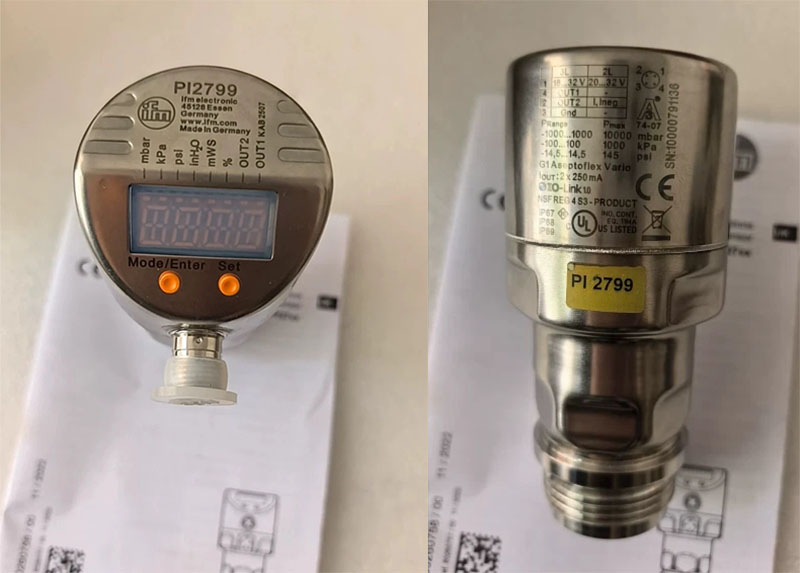

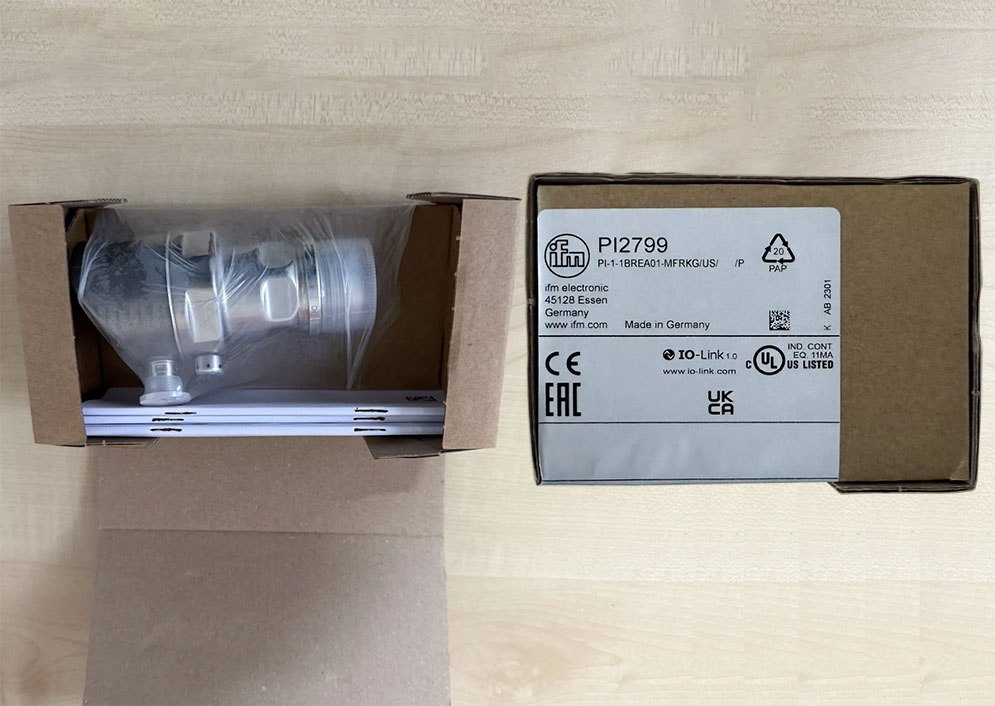

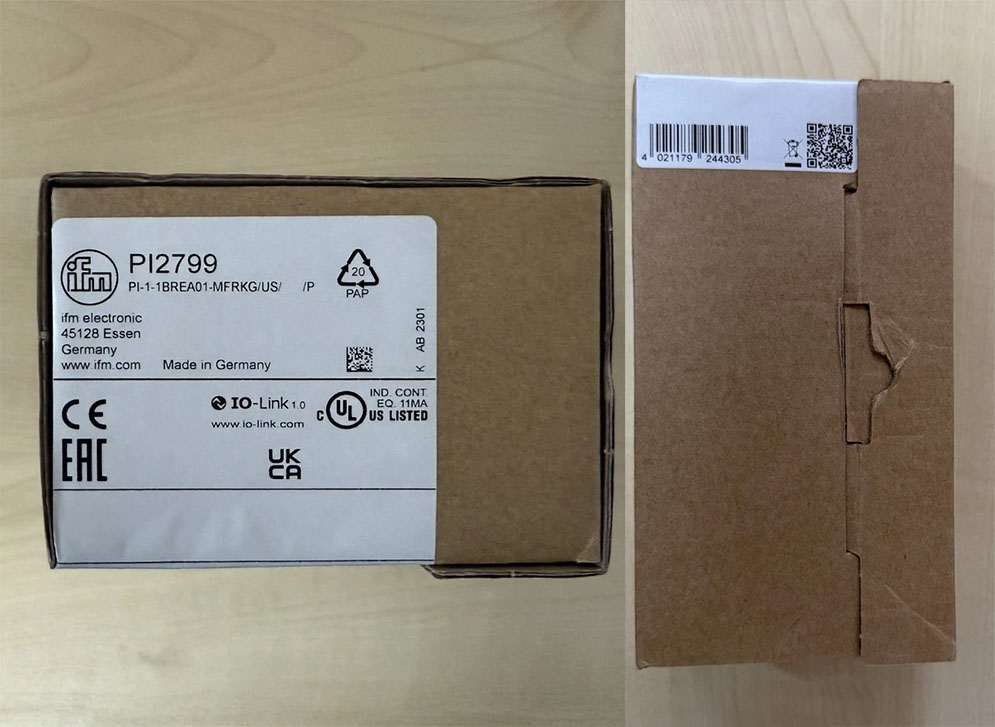

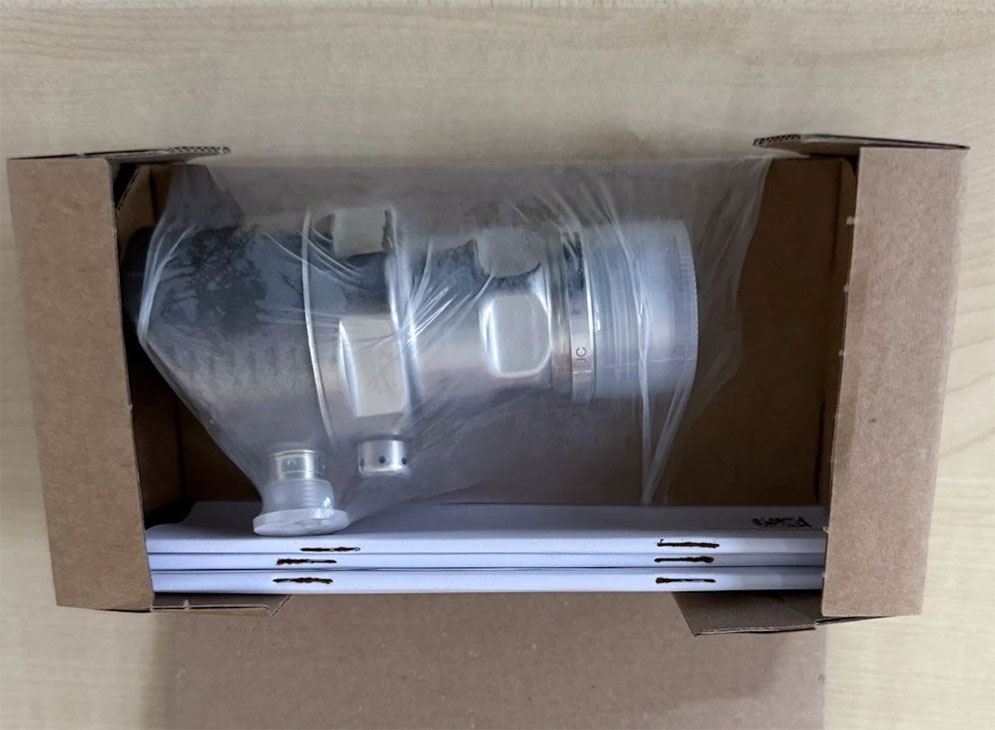

IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P là Cảm biến áp suất, -1...1 bar, G1, PNP/NPN và 4–20mA, IO-Link, IP69K



- Tài liệu kỹ thuật của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P ở đây



Thông số kỹ thuật của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

Product characteristics của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range	-1...1 bar -1000...1000 mbar -14.5...14.5 psi -100...100 kPa
Process connection	threaded connection G 1 external thread with Aseptoflex Vario sealing contour

Note	G1 Gewinde nach ISO 228. Alternativ dichtend über rückwärtige Dichtkontur mit Dichtung in Anlehnung an DIN EN ISO 1179-2.



Application của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

Special feature	Gold-plated contacts
Application	flush mountable for the food and beverage industry
Media	viscous media and liquids with suspended particles; liquids and gases
Medium temperature[°C]	-25...125; (145 max. 1h)
Min. burst pressure	30000 mbar 435 psi 3000 kPa
Pressure rating	10000 mbar 145 psi 1000 kPa
Vacuum resistance	-1000 mbar -0.1 MPa
Type of pressure	relative pressure; vacuum
No dead space	yes
MAWP for applications according to CRN[bar]	10



Electrical data của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

Min. insulation resistance[MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Integrated watchdog	yes



2-wire
Operating voltage[V]	20...32 DC
Current consumption[mA]	3.6...21
Power-on delay time[s]	1



3-wire
Operating voltage[V]	18...32 DC
Current consumption[mA]	< 45
Power-on delay time[s]	0.5



Inputs / outputs của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

Number of inputs and outputs

Number of digital outputs: 2; Number of analogue outputs: 1



Outputs của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

Total number of outputs	2
Output signal	switching signal; analogue signal; IO-Link; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Number of analogue outputs	1
Analogue current output[mA]	4...20, invertible; (scalable)
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes



2-wire
Max. load[Ω]	300



3-wire
Max. voltage drop switching output DC[V]	2
Permanent current rating of switching output DC[mA]	250
Switching frequency DC[Hz]	125
Max. load[Ω]	(Ub - 10 V) / 20 mA



Measuring/setting range của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

Measuring range	-1...1 bar -1000...1000 mbar -14.5...14.5 psi -100...100 kPa
Set point SP	-998...1000 mbar -14.45...14.5 psi -99.8...100 kPa
Reset point rP	-1000...998 mbar -14.5...14.45 psi -100...99.8 kPa
Analogue start point	-1000...500 mbar -14.5...7.25 psi -100...50 kPa
Analogue end point	-500...1000 mbar -7.25...14.5 psi -50...100 kPa
In steps of	1 mbar 0.05 psi 0.1 kPa
Factory setting	SP1 = -500 mbar rP1 = -540 mbar   SP2 = 500 mbar rP2 = 460 mbar   ASP = -1000 mbar AEP = 1000 mbar   dAP = 0.06 s dAA = 0.03 s



Accuracy / deviations của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

Switch point accuracy[% of the span]	< ± 0,2; (Turn down 1:1)
Repeatability[% of the span]	< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation[% of the span]	< ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation[% of the span]	< ± 0,15; (Turn down 1:1)
Hysteresis deviation[% of the span]	< ± 0,15; (Turn down 1:1)
Long-term stability[% of the span]	< ± 0,1; (Turn down 1:1; per year)
Temperature coefficient zero point[% of the span / 10 K]	< ± 0,05; (0...70 °C)
Temperature coefficient span[% of the span / 10 K]	< ± 0,15; (0...70 °C)



Response times của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

Damping process value dAP[s]	0...30
Damping for the analogue output dAA[s]	0.01...99.99



2-wire
Step response time analogue output[ms]	45



3-wire
Min. response time of switching output (dAP)[ms]	3
Step response time analogue output[ms]	7



Interfaces của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.0
SIO mode	yes
Required master port type	A
Process data analogue	1
Process data binary	2
Min. process cycle time[ms]	2.3
Supported DeviceIDs	Type of operation DeviceID default 258



Operating conditions của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

Ambient temperature[°C]	-25...80
Storage temperature[°C]	-40...100
Protection	IP 67; IP 68; IP 69K



Tests / approvals của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5/1 kV EN 61000-4-6 HF conducted 10 V
Shock resistance	DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance	DIN IEC 68-2-6 20 g (10...2000 Hz)
MTTF[years]	160
Note on approval	factory certificate available as download at www.factory-certificate.ifm



Mechanical data của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

Weight[g]	359
Housing	cylindrical
Dimensions[mm]	Ø 50 / L = 105.8
Materials	stainless steel (316L/1.4404); FKM; PTFE; PBT; PEI; PFA
Materials (wetted parts)	ceramics (99.9 % Al2O3); stainless steel (316L/1.4435) surface characteristics: Ra < 0,4 µm / Rz = 4 µm; PTFE
Min. pressure cycles	100 million
Process connection	threaded connection G 1 external thread with Aseptoflex Vario sealing contour



Displays / operating elements của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

Display	Display unit LED, green switching status LED, yellow function display alphanumeric display, 4-digit measured values alphanumeric display, 4-digit
Display unit	mbar; kPa; psi; inH2O; mWS; % of the span



Remarks của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

Pack quantity

1 pcs.



Electrical connection của Cảm biến áp suất IFM PI2799 | PI-1-1BREA01-MFRKG/US/ /P

Connector

1 x M12; coding: A; Contacts: 4, gold-plated
