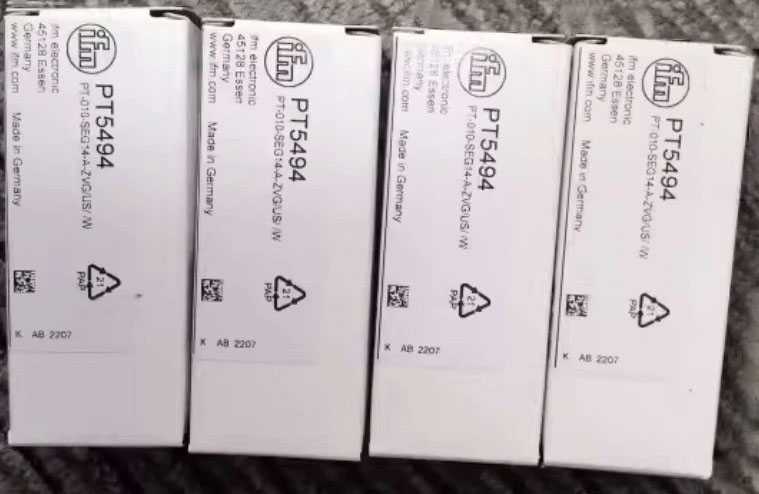

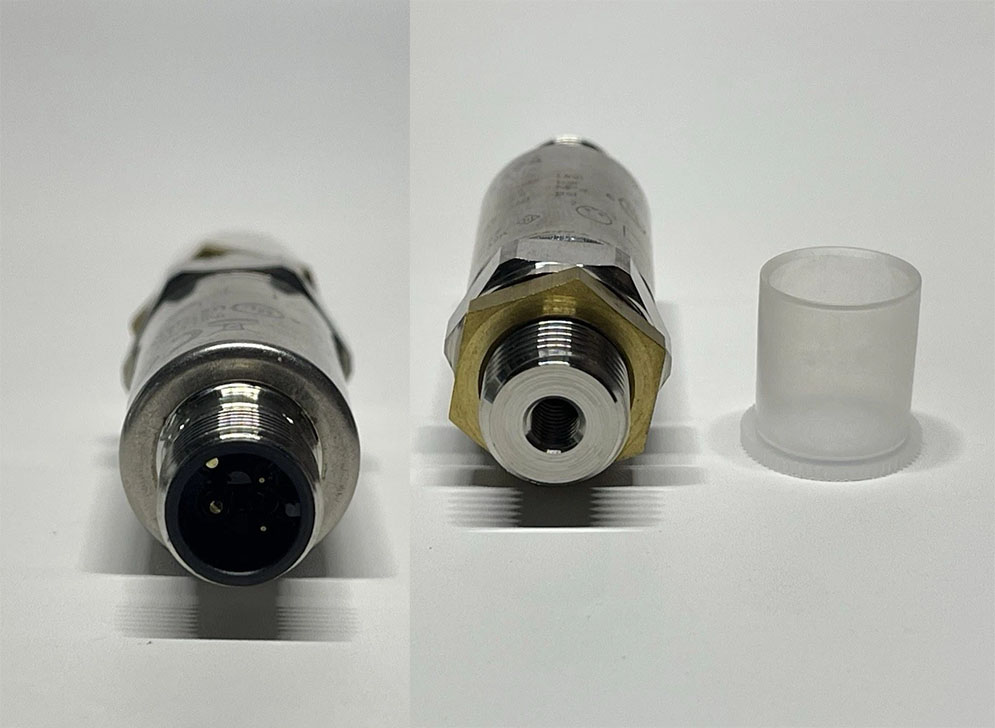

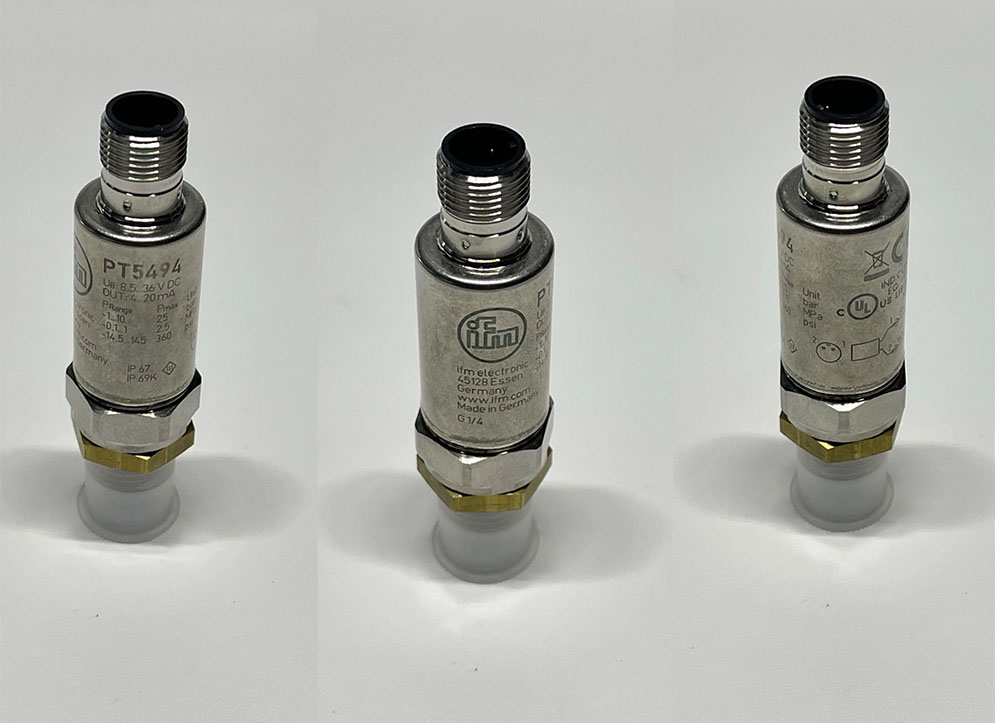

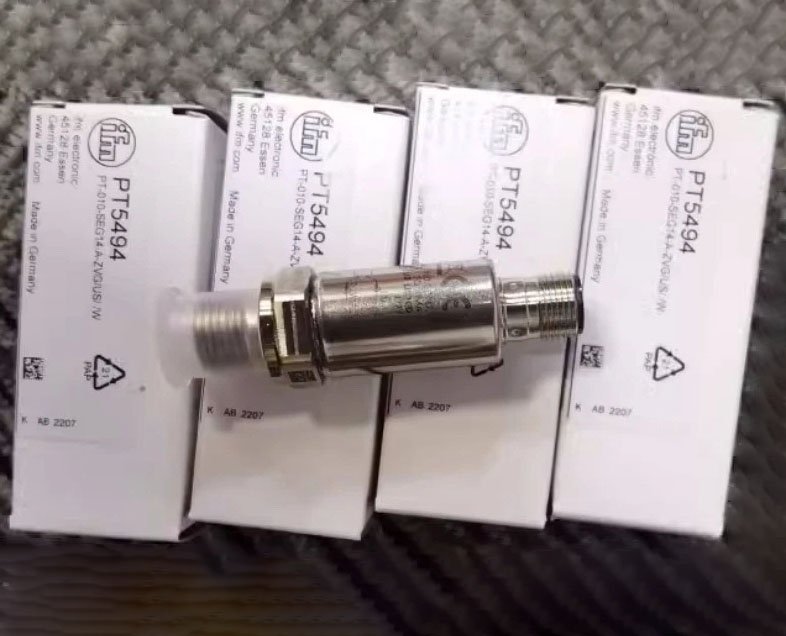

IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W là Cảm biến áp suất 1 analog output, -1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa, G 1/4, Chất lỏng và khí, ..
- Tài liệu kỹ thuật của Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W ở đây.
Thông số kỹ thuật của Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W
Product characteristics của Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W
| Number of inputs and outputs |
Number of analogue outputs: 1 |
| Measuring range |
| -1...10 bar |
-14.5...145 psi |
-100...1000 kPa |
-0.1...1 MPa |
|
| Process connection |
threaded connection G 1/4 external thread (DIN EN ISO 1179-2) |
Application của Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W
| Application |
for industrial applications |
| Media |
liquids and gases |
| Medium temperature[°C] |
-40...90 |
| Min. burst pressure |
|
| Pressure rating |
|
| Note on pressure rating |
|
| Vacuum resistance |
|
| Type of pressure |
relative pressure; vacuum |
Electrical data của Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W
| Operating voltage[V] |
8.5...36 DC |
| Min. insulation resistance[MΩ] |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time[s] |
< 0.1 |
Inputs / outputs của Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W
| Number of inputs and outputs |
Number of analogue outputs: 1 |
Outputs của Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W
| Total number of outputs |
1 |
| Output signal |
analogue signal |
| Number of analogue outputs |
1 |
| Analogue current output[mA] |
4...20 |
| Max. load[Ω] |
(Ub – 8,5 V) / 21,5 mA; @8,5V= 0 Ω; @12V max. 160 Ω; @24V max. 720 Ω |
| Short-circuit proof |
yes |
| Overload protection |
yes |
Measuring/setting range của Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W
| Measuring range |
| -1...10 bar |
-14.5...145 psi |
-100...1000 kPa |
-0.1...1 MPa |
|
Accuracy / deviations của Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W
| Repeatability[% of the span] |
< ± 0,05; (with temperature fluctuations < 10 K) |
| Characteristics deviation[% of the span] |
< ± 0,5; (incl. drift when overtightened, zero point and span error, non-linearity, hysteresis) |
| Linearity deviation[% of the span] |
< ± 0,1 (BFSL) / < ± 0,2 (LS) |
| Hysteresis deviation[% of the span] |
< ± 0,2 |
| Long-term stability[% of the span] |
< ± 0,1; (per 6 months) |
| Temperature coefficient zero point and span[% of the span / 10 K] |
< 0,1 (-25...90 °C) / < 0,2 (-40...-25 °C) |
Response times của Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W
| Step response time analogue output[ms] |
1 |
Operating conditions của Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W
| Ambient temperature[°C] |
-40...90 |
| Storage temperature[°C] |
-40...100 |
| Protection |
IP 67; IP 69K |
Tests / approvals của Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W
| EMC |
| DIN EN 61000-6-2 |
|
| DIN EN 61000-6-3 |
|
|
| Shock resistance |
| DIN EN 60068-2-27 |
50 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 |
20 g (10...2000 Hz) |
|
| MTTF[years] |
784 |
| UL approval |
|
| Pressure Equipment Directive |
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data của Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W
| Weight[g] |
59 |
| Housing |
cylindrical |
| Dimensions[mm] |
Ø 19 / L = 66 |
| Materials |
stainless steel (630/1.4542/17-4 PH); stainless steel (316L/1.4404); PEI |
| Materials (wetted parts) |
stainless steel (630/1.4542/17-4 PH) |
| Min. pressure cycles |
60 million; (at 1.2 times nominal pressure) |
| Tightening torque[Nm] |
25...35; (recommended tightening torque; depends on the lubrication, the seal and the pressure load) |
| Process connection |
threaded connection G 1/4 external thread (DIN EN ISO 1179-2) |
| Process connection sealing |
FKM (DIN EN ISO 1179-2) |
| Restrictor element integrated |
no (can be retrofitted) |
Remarks của Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W
| Remarks |
| BFSL = Best Fit Straight Line |
| LS = limit value setting |
|
| Pack quantity |
1 pcs. |
Electrical connection của Cảm biến áp suất IFM PT5494 | PT-010-SEG14-A-ZVG/US/ /W
| Connector |
1 x M12; coding: A; Contacts: 2 |
