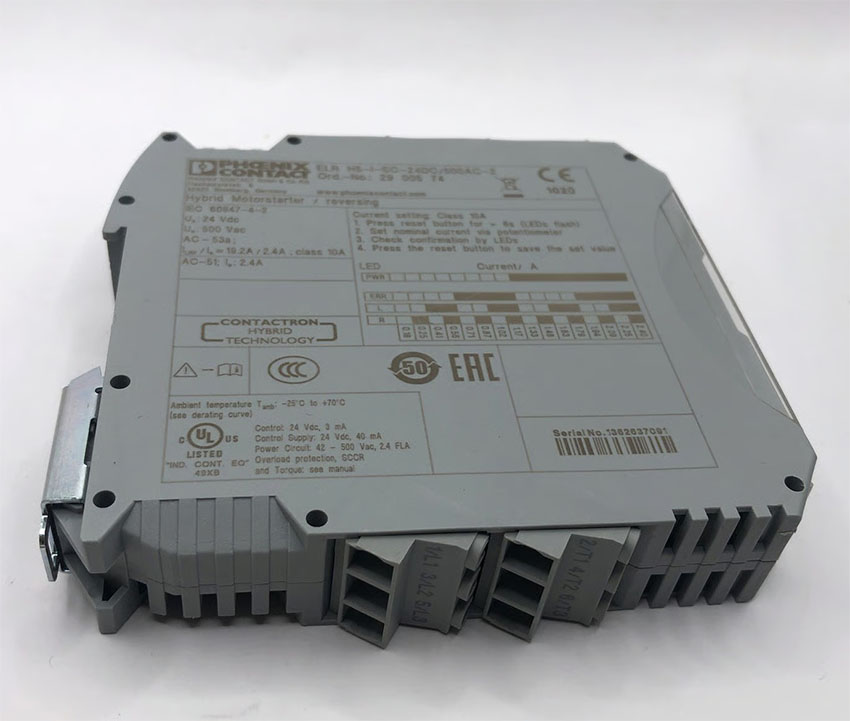

Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574 là Khởi động động cơ hỗn hợp (dybrid), đảo ngược động cơ 3AC 500VA 2.4A 24VDC, điều chỉnh tắt quá tải



- Tài liệu kỹ thuật của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574 ở đây.

Product properties của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574

Product type	Hybrid motor starters
Product family	CONTACTRON
Operating mode	100% operating factor

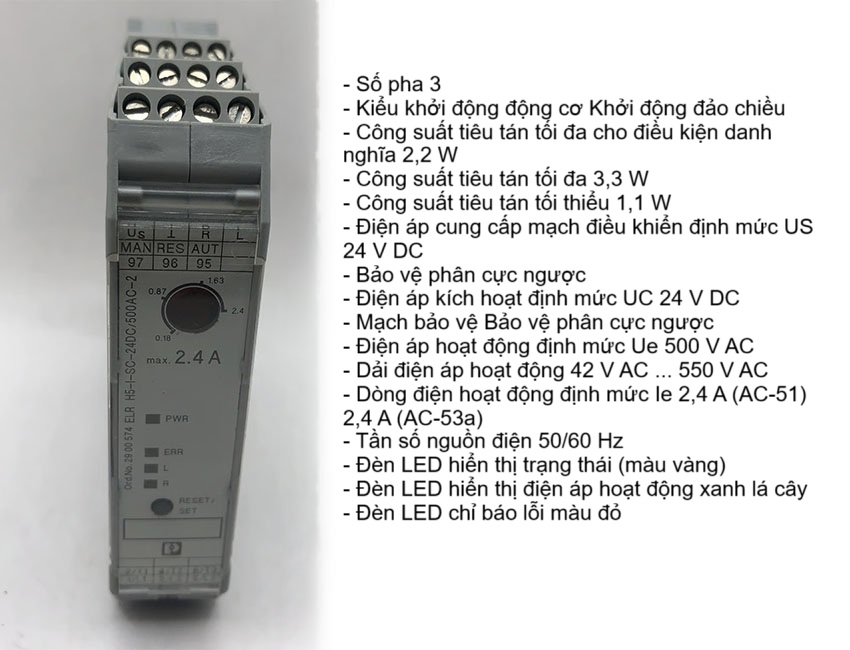

Electrical properties của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574​

Number of phases	3
Motor starter type	Reversing starter
Switching frequency	≤ 2 Hz (Load-dependent)
Maximum power dissipation for nominal condition	2.2 W
Switching frequency	≤ 2 Hz (Load-dependent)
Maximum power dissipation	3.3 W
Minimum power dissipation	1.1 W
Coordination type	1
Supply
Rated control circuit supply voltage US	24 V DC
Control supply voltage range	19.2 V DC ... 30 V DC
Rated control supply current IS	40 mA
Protective circuit	Surge protection
	Reverse polarity protection
Insulation characteristics
Rated insulation voltage	500 V
Rated surge voltage	6 kV
Overvoltage category	III
Degree of pollution	2
Insulation characteristics between the control input and control supply voltage, and auxiliary circuit to the main circuit	Safe isolation (IEC 60947-1) at operating voltage ≤ 300 V AC (e.g., 230/400 V AC, 277/480 V AC)
	Basic insulation (IEC 60947-1) at operating voltage 300 V AC ... 500 V AC
Isolation characteristics between the control input and control supply voltage to auxiliary circuit	Safe isolation (IEC 60947-1) in the auxiliary circuit ≤ 300 V AC



Input data của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574​

Control
Input name	Control input right/left
Rated actuating voltage UC	24 V DC
Triggering voltage range	19.2 V DC ... 30 V DC
Rated actuating current IC	5 mA (Input type 1)
Switching threshold	9.6 V (“0” signal)
	19.2 V (“1” signal)
Typical turn-off time	< 30 ms
Protective circuit	Reverse polarity protection



Output data của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574​

AC output
Rated operating voltage Ue	500 V AC
Operating voltage range	42 V AC ... 550 V AC
Rated operating current Ie	2.4 A (AC-51)
	2.4 A (AC-53a)
Mains frequency	50/60 Hz
Load current range	180 mA ... 2.4 A (see to derating)
Trigger characteristic in acc. with IEC 60947-4-2	Class 10A
Cooling time	20 min (for auto reset)
Leakage current	0 mA
Protective circuit	Surge protection
Acknowledge output
Note	Confirmation: floating change-over contact, signal contact
Contact switching type	1 changeover contact
Switching capacity in accordance with IEC 60947-5-1	3 A (230 V, AC15)
	2 A (24 V (DC13))



Connection data của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574​

Control circuits
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 14
Tightening torque	0.5 Nm ... 0.6 Nm
	5 lbf-in. ... 7 lbf-in.
Load circuit
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 14
Tightening torque	0.5 Nm ... 0.6 Nm
	5 lbf-in. ... 7 lbf-in.



Signaling của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574​

Status display	LED (yellow)
Operating voltage display	Green LED
Error indication	Red LED



Dimensions của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574​

Width	22.5 mm
Height	107 mm
Depth	114 mm



Material specifications của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574​

Flammability rating according to UL 94

V0 (Housing)



Environmental and real-life conditions của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574​

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 70 °C (observe derating)
Ambient temperature (storage/transport)	-40 °C ... 80 °C
Altitude	≤ 2000 m



Approvals của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574​

UKCA
Certificate	UKCA-compliant
UL approval
Certificate	NLDX.E228652
UL data
SCCR	100 kA (500 V AC (fuse: 30 A class CC/30 A class J (high fault)))
	5 kA (500 V AC (fuse: 20 A RK5 (standard fault)))
FLA	2.4 A (500 V AC)
Group installation	20 A (class RK5, SCCR 5kA, #24 - 14 AWG max. solid and stranded)
	30 A (class CC or J, SCCR 100kA, #24 - 14 AWG max, solid and stranded)
Category code	NLDX / NRNT



Standards and refulations của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574​

Standards/regulations
Standards/regulations	IEC 60947-1
	IEC 60947-4-2



Mounting của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574​

Mounting type	DIN rail mounting
Assembly note	alignable, for spacing see derating
Mounting position	vertical (horizontal DIN rail, motor output below)



Commercial data của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574​

Item number	2900574
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	DK7422
GTIN	4046356527866
Weight per piece (including packing)	256.1 g
Weight per piece (excluding packing)	218.11 g
Customs tariff number	85371098
Country of origin	DE



Classifications của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574​

ECLASS

ECLASS-13.0

27370905



ETIM

ETIM 9.0

EC001037



UNSPSC

UNSPSC 21.0

25173900



Approvals của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574​

IECEE CB Scheme

Approval ID: DE1-55728


EAC

Approval ID: RU*C-DE.*08.B.00520*


UL Listed

Approval ID: FILE E 323771


CCC

Approval ID: 2016010304871315


cUL Listed

Approval ID: FILE E 323771


cUL Listed

Approval ID: E228652


UL Listed

Approval ID: E228652


CCC

Approval ID: 2024010304672817


Environmental product compliance của Khởi động động cơ hỗn hợp Phoenix Contact ELR H5-I-SC- 24DC/500AC-2 - 2900574​

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	e0e11f8f-878d-4b3c-9bbb-ef6eae2b6481
